Sayfa 0-15B - Isuzu EPC

0-15B — CRANKSHAFT,PISTON AND FLYWHEEL (#4172) — 217 parça

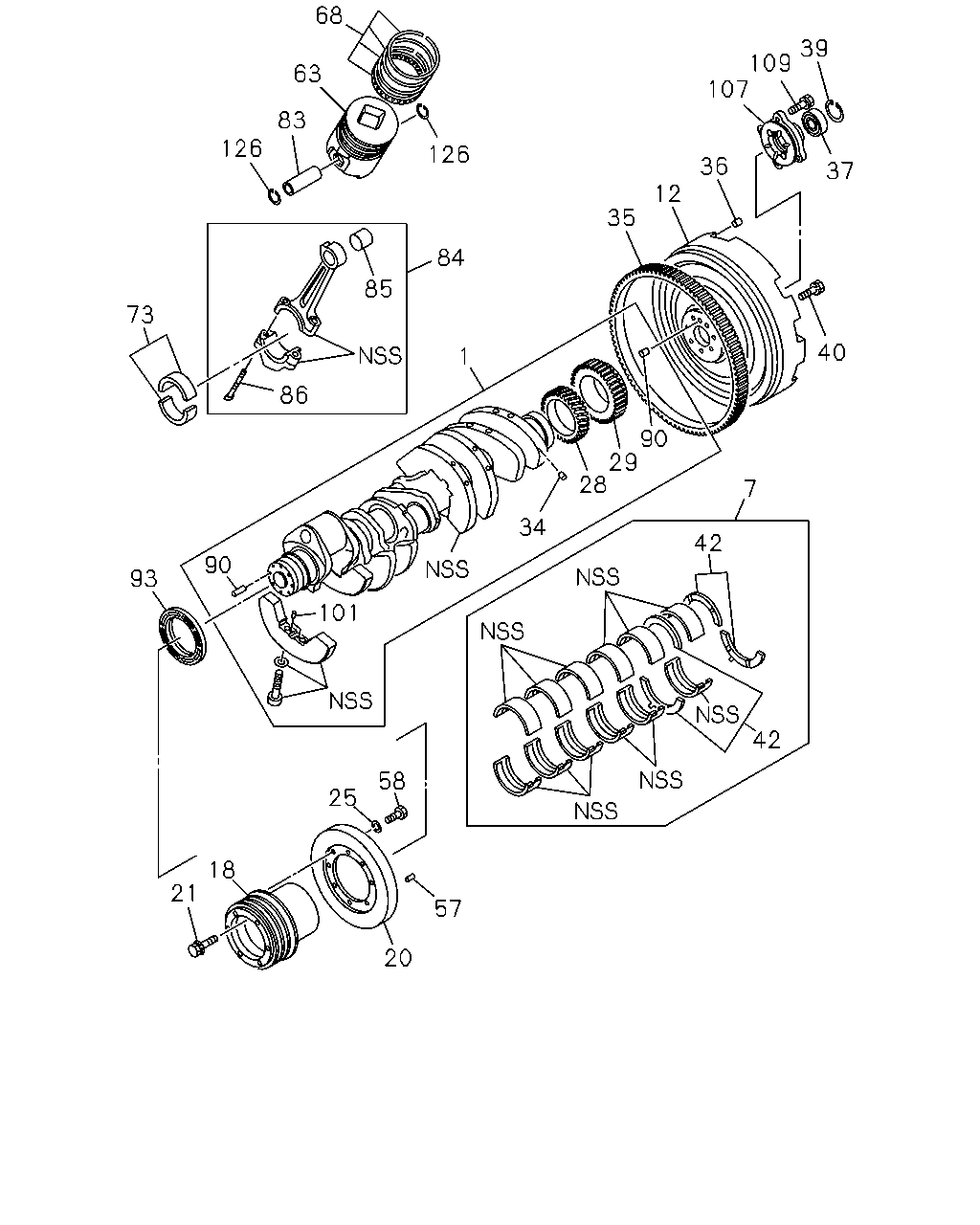

68 19 63 83 126 126 84 39 36 109 85 12 107 35 1 37 90 29 86 28 40 73 7 34 90 42 93 101 42 58 25 18 21 57 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-664-4	01	1	9603-9708	●
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-701-0	01	1	9709-9901	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-623-4	01	1	9603-9708	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-700-0	01	1	9709-9901	●
1	CRANKSHAFT MIXER TRUCK<RA2>	1-12310-701-1	01	1	9905-	●
1	CRANKSHAFT EXC. MIXER TRUCK<RA2>	1-12310-700-1	01	1	9905-	●
1	CRANKSHAFT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-12310-641-4	01	1	9603-9710		●
1	CRANKSHAFT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-12310-704-0	01	1	9711-9901		●
1	CRANKSHAFT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-12310-640-4	01	1	9603-9710		●
1	CRANKSHAFT CXZ&LONG CHASSIS(CXZ6MF)	1-12310-640-4	01	1	9603-9710		●
1	CRANKSHAFT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-12310-703-0	01	1	9711-9901		●
1	CRANKSHAFT CXZ&LONG CHASSIS(CXZ6MF)	1-12310-703-0	01	1	9711-9901		●
1	CRANKSHAFT MIXER TRUCK<RA2>	1-12310-704-1	01	1	9905-		●	●
1	CRANKSHAFT EXC. MIXER TRUCK<RA2>	1-12310-703-1	01	1	9905-		●	●	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-097-0	01	1	9603-9605	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-100-1	01	1	9606-9901	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-100-1	01	1	9905-0006	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-113-0	01	1	0007-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-096-0	01	1	9603-9605		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-099-1	01	1	9606-9901		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-099-1	01	1	9905-0006		●	●	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-111-0	01	1	0007-		●	●	●
12	FLYWHEEL	1-12331-258-4	01	1	9603-9901	●
12	FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-258-4	01	1	9603-9901		●
12	FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-258-4	01	1	9905-	●	●	●	●
12	FLYWHEEL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-294-2	01	1	9603-9901		●
12	FLYWHEEL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-294-2	01	1	9905-		●	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-0	01	1	9603-9901	●	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-0	01	1	9905-	●	●	●	●
19	POINTER; TIMING	1-11779-029-0	01	1	9603-9812	●
20	DAMPER; CR/SHF	1-12375-143-2	01	1	9603-9901	●	●
20	DAMPER; CR/SHF	1-12375-143-2	01	1	9905-	●	●	●	●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	08	1	9603-9901	●	●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	08	1	9905-	●	●	●	●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9603-9901	●	●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9905-	●	●	●	●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9603-9901	●	●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9905-	●	●	●	●
29	GEAR; CR/SHF,PTO SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) Z=34	1-38261-016-0	01	1	9603-9901	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=34	1-38261-016-0	01	1	9905-	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9603-9901	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9905-	●	●	●	●
35	GEAR; RING Z=164	1-12333-019-0	01	1	9603-9711	●	●
35	GEAR; RING Z=164	1-12333-024-0	01	1	9712-9901	●	●
35	GEAR; RING Z=164	1-12333-024-0	01	1	9905-	●	●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9603-9901	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9905-	●	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-0	01	1	9603-9901	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-0	01	1	9905-	●	●	●	●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9603-9901	●	●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9905-	●	●	●	●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9603-9901	●	●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9905-	●	●	●	●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9603-9901	●	●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9905-	●	●	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9603-9901	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9905-	●	●	●	●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9603-9901	●	●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9905-	●	●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	08	1	9603-9901	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	08	1	9905-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	10	1	9603-9901		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	10	1	9905-		●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-926-0	10	1	9905-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-0	08	1	9603-9901	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-1	08	1	9905-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-0	10	1	9603-9901		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-0	10	1	9905-		●	●	●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	08	1	9603-9606	●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	08	1	9607-9901	●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	08	1	9905-	●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	10	1	9603-9606		●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	10	1	9607-9901		●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	10	1	9905-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-3	08	1	9603-9901	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-4	08	1	9905-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-3	10	1	9603-9901		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-3	10	1	9905-		●	●	●
84	ROD ASM; CONN	1-12230-166-5	08	1	9603-9705	●
84	ROD ASM; CONN	1-12230-194-0	08	1	9706-9901	●
84	ROD ASM; CONN	1-12230-194-0	08	1	9905-	●
84	ROD ASM; CONN	1-12230-166-5	10	1	9603-9706		●
84	ROD ASM; CONN	1-12230-194-0	10	1	9706-9901		●
84	ROD ASM; CONN	1-12230-194-0	10	1	9905-		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-042-0	08	1	9603-9705	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	08	1	9706-9901	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	08	1	9905-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-042-0	10	1	9603-9706		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	10	1	9706-9901		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	10	1	9905-		●	●	●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	16	1	9603-9901	●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	16	1	9905-	●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	20	1	9603-9901		●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	20	1	9905-		●	●	●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9603-9901	●	●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9905-	●	●	●	●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9603-9901	●	●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9905-	●	●	●	●
101	PIN; CR/SHF	9-08150-616-0	16	1	9603-9901	●	●
101	PIN; CR/SHF	9-08150-616-0	16	1	9905-0103	●	●	●	●
101	PIN; CR/SHF OD=6 L=16	9-08160-616-0	16	1	0104-	●	●	●	●
107	RETAINER; BRG	1-12338-006-0	01	1	9603-9901	●	●
107	RETAINER; BRG	1-12338-006-0	01	1	9905-	●	●	●	●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9603-9901	●	●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9905-	●	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	16	1	9603-9901	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	16	1	9905-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9603-9901		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9905-		●	●	●

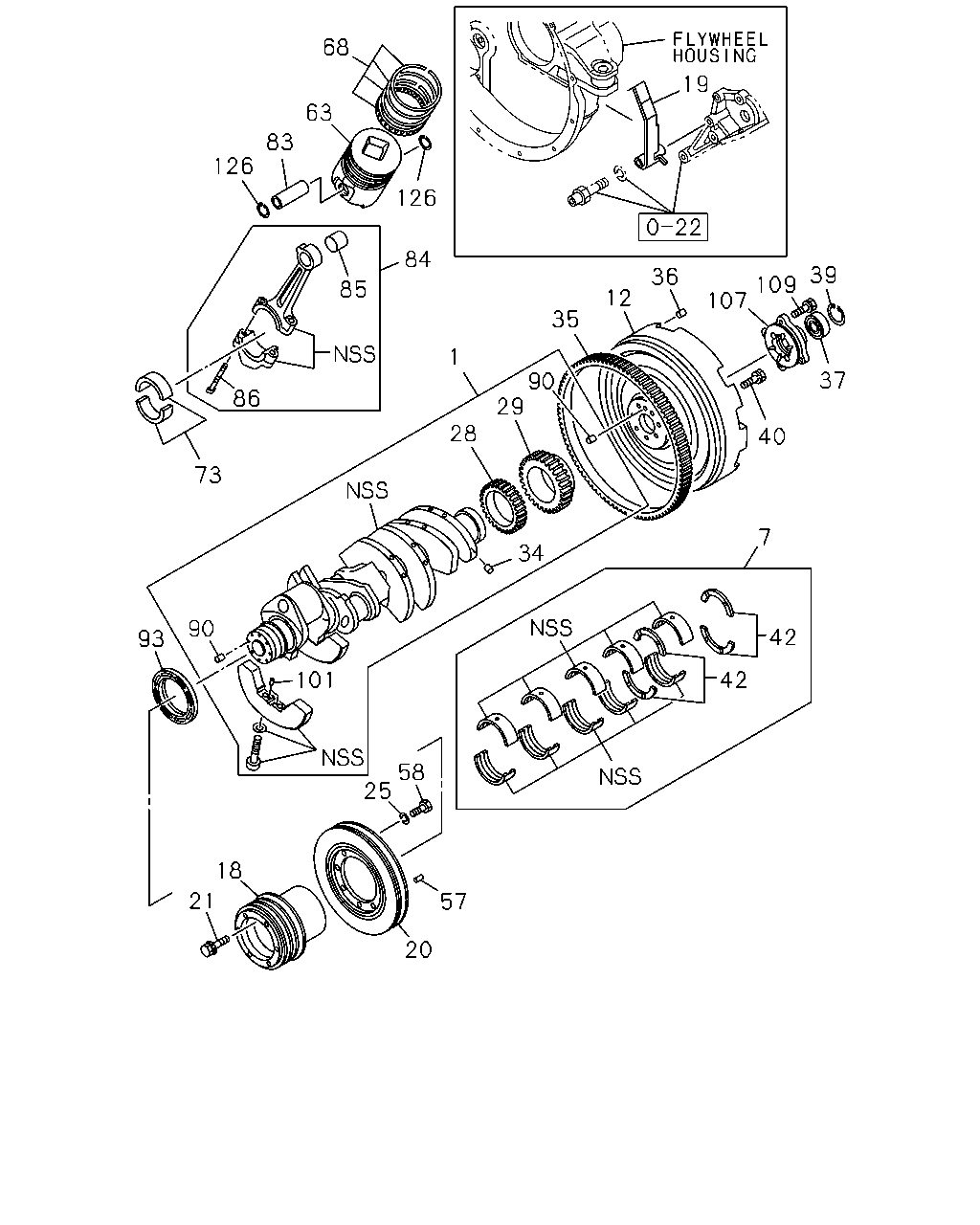

68 39 109 107 63 83 126 126 36 37 12 35 84 85 73 40 1 86 90 29 28 7 34 42 90 93 101 42 58 25 18 21 57 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-664-4	01	1	9603-9708	●
1	CRANKSHAFT ENGINE REAR PTO(SV1)	1-12310-701-0	01	1	9709-9901	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-623-4	01	1	9603-9708	●
1	CRANKSHAFT EXC. ENGINE REAR PTO(SV1)	1-12310-700-0	01	1	9709-9901	●
1	CRANKSHAFT MIXER TRUCK<RA2>	1-12310-701-1	01	1	9905-	●
1	CRANKSHAFT EXC. MIXER TRUCK<RA2>	1-12310-700-1	01	1	9905-	●
1	CRANKSHAFT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-12310-641-4	01	1	9603-9710		●
1	CRANKSHAFT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-12310-704-0	01	1	9711-9901		●
1	CRANKSHAFT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-12310-640-4	01	1	9603-9710		●
1	CRANKSHAFT CXZ&LONG CHASSIS(CXZ6MF)	1-12310-640-4	01	1	9603-9710		●
1	CRANKSHAFT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-12310-703-0	01	1	9711-9901		●
1	CRANKSHAFT CXZ&LONG CHASSIS(CXZ6MF)	1-12310-703-0	01	1	9711-9901		●
1	CRANKSHAFT MIXER TRUCK<RA2>	1-12310-704-1	01	1	9905-		●	●
1	CRANKSHAFT EXC. MIXER TRUCK<RA2>	1-12310-703-1	01	1	9905-		●	●	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-097-0	01	1	9603-9605	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-100-1	01	1	9606-9901	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-100-1	01	1	9905-0006	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-113-0	01	1	0007-	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-096-0	01	1	9603-9605		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-099-1	01	1	9606-9901		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-099-1	01	1	9905-0006		●	●	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-111-0	01	1	0007-		●	●	●
12	FLYWHEEL	1-12331-258-4	01	1	9603-9901	●
12	FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-258-4	01	1	9603-9901		●
12	FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-258-4	01	1	9905-	●	●	●	●
12	FLYWHEEL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-294-2	01	1	9603-9901		●
12	FLYWHEEL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-294-2	01	1	9905-		●	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-0	01	1	9603-9901	●	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-0	01	1	9905-	●	●	●	●
20	DAMPER; CR/SHF	1-12375-143-2	01	1	9603-9901	●	●
20	DAMPER; CR/SHF	1-12375-143-2	01	1	9905-	●	●	●	●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	08	1	9603-9901	●	●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	08	1	9905-	●	●	●	●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9603-9901	●	●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9905-	●	●	●	●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9603-9901	●	●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9905-	●	●	●	●
29	GEAR; CR/SHF,PTO SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) Z=34	1-38261-016-0	01	1	9603-9901	●	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO(SV1) Z=34	1-38261-016-0	01	1	9905-	●	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9603-9901	●	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9905-	●	●	●	●
35	GEAR; RING Z=164	1-12333-019-0	01	1	9603-9711	●	●
35	GEAR; RING Z=164	1-12333-024-0	01	1	9712-9901	●	●
35	GEAR; RING Z=164	1-12333-024-0	01	1	9905-	●	●	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9603-9901	●	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9905-	●	●	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-0	01	1	9603-9901	●	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-0	01	1	9905-	●	●	●	●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9603-9901	●	●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9905-	●	●	●	●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9603-9901	●	●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9905-	●	●	●	●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9603-9901	●	●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9905-	●	●	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9603-9901	●	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9905-	●	●	●	●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9603-9901	●	●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9905-	●	●	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	08	1	9603-9901	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	08	1	9905-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	10	1	9603-9901		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-813-0	10	1	9905-		●		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-926-0	10	1	9905-			●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-0	08	1	9603-9901	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-1	08	1	9905-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-0	10	1	9603-9901		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-0	10	1	9905-		●	●	●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	08	1	9603-9606	●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	08	1	9607-9901	●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	08	1	9905-	●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	10	1	9603-9606		●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	10	1	9607-9901		●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	10	1	9905-		●	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-3	08	1	9603-9901	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-4	08	1	9905-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-3	10	1	9603-9901		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-3	10	1	9905-		●	●	●
84	ROD ASM; CONN	1-12230-166-5	08	1	9603-9705	●
84	ROD ASM; CONN	1-12230-194-0	08	1	9706-9901	●
84	ROD ASM; CONN	1-12230-194-0	08	1	9905-	●
84	ROD ASM; CONN	1-12230-166-5	10	1	9603-9706		●
84	ROD ASM; CONN	1-12230-194-0	10	1	9706-9901		●
84	ROD ASM; CONN	1-12230-194-0	10	1	9905-		●	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-042-0	08	1	9603-9705	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	08	1	9706-9901	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	08	1	9905-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-042-0	10	1	9603-9706		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	10	1	9706-9901		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	10	1	9905-		●	●	●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	16	1	9603-9901	●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	16	1	9905-	●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	20	1	9603-9901		●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	20	1	9905-		●	●	●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9603-9901	●	●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9905-	●	●	●	●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9603-9901	●	●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9905-	●	●	●	●
101	PIN; CR/SHF	9-08150-616-0	16	1	9603-9901	●	●
101	PIN; CR/SHF	9-08150-616-0	16	1	9905-0103	●	●	●	●
101	PIN; CR/SHF OD=6 L=16	9-08160-616-0	16	1	0104-	●	●	●	●
107	RETAINER; BRG	1-12338-006-0	01	1	9603-9901	●	●
107	RETAINER; BRG	1-12338-006-0	01	1	9905-	●	●	●	●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9603-9901	●	●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9905-	●	●	●	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	16	1	9603-9901	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	16	1	9905-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9603-9901		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
