0-11 — CYLINDER HEAD (#41719) — 702 parça

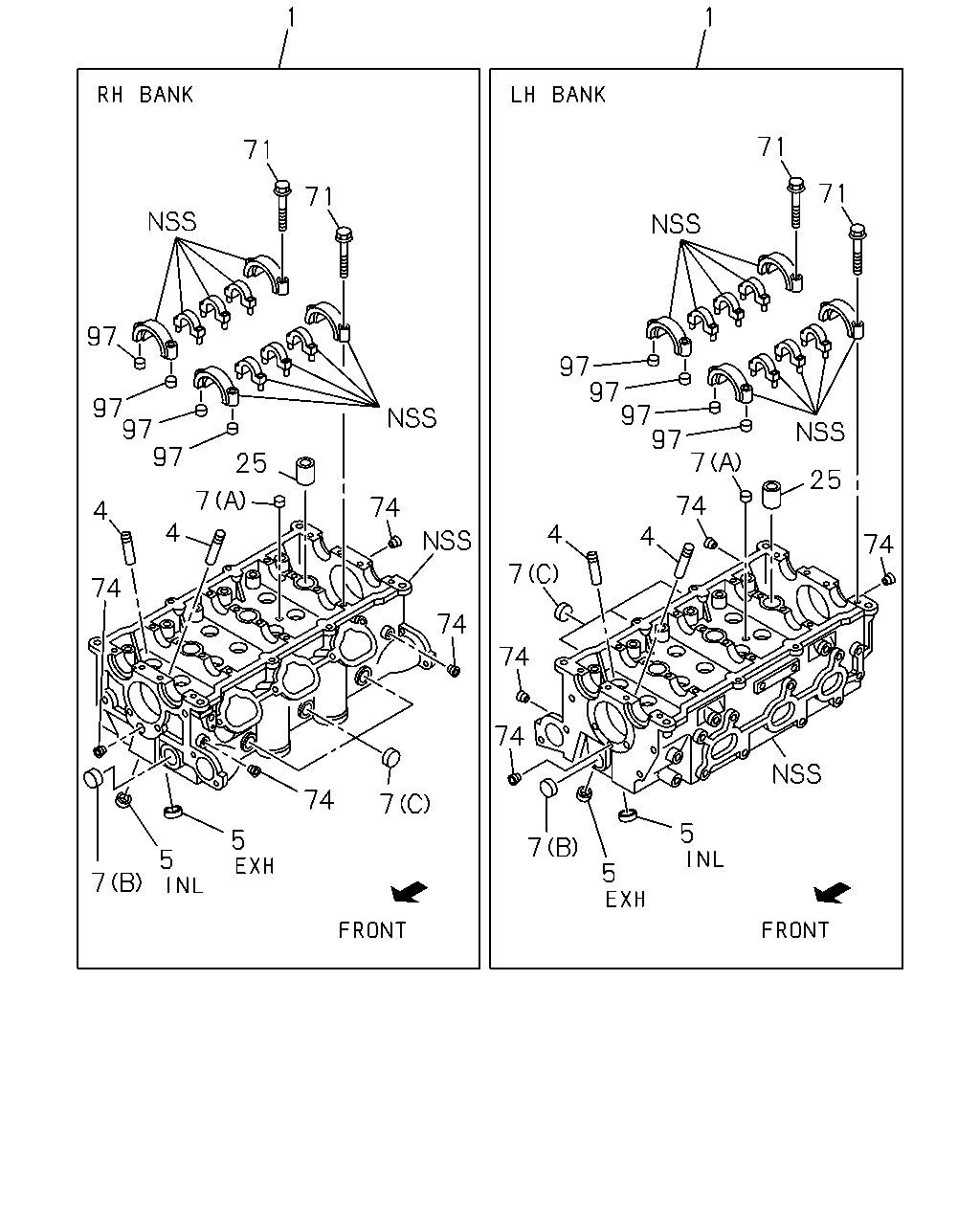

çizim 19698
1 1 71 71 71 71 97 97 97 97 97 7 97 97 97 25 25 7 74 74 4 4 4 4 74 7 74 74 74 74 74 7 5 5 7 5 7 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL 8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ● ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ● ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-1 01 1 9902-0205 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97129-630-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809-0108 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0109- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9804- ● ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9804- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9804-9904 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUAT EMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9905-0012 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHIL E EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 0101- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET OD=41.2 		8-97231-228-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> INLET 		8-94130-558-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST OD=36.7 		8-94130-559-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9804-0207 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		8-97351-451-0 01 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9804-9904 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		8-97209-609-0 07 1 9906- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9905- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9804- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) REAR & UPPER FACE OD=25 		9-11129-079-0 02 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) FRONT OD=40 		9-11219-309-0 01 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0109- ● ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9804-9812 ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9804- ●
71 00.413 BOLT; CAM BRKT
M6X40 FLANGE 		0-28690-640-0 40 1 9804- ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9804- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 9804-0108 ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0109- ● ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 9804- ●

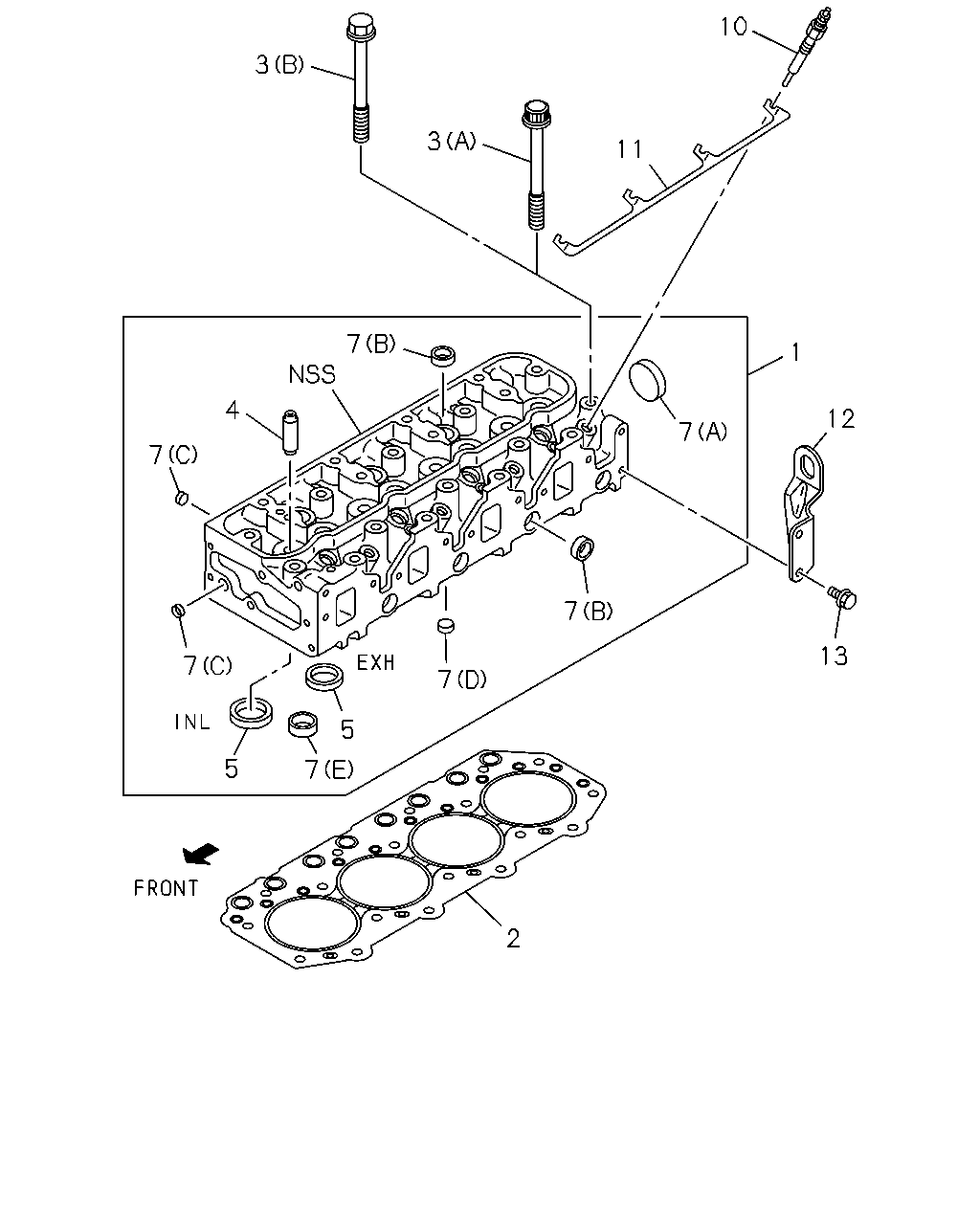

çizim 69334
10 3 3 11 7 1 4 12 7 7 7 13 7 7 5 5 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL 8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ● ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ● ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-1 01 1 9902-0205 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97129-630-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809-0108 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0109- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9804-9812 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-094-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 9804-0108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 0109- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 9901- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) (B) M11X122 		8-94247-355-1 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9804- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 9804-0108 ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0109- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9804- ● ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9804- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9804-9904 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUAT EMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9905-0012 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHIL E EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 0101- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET OD=41.2 		8-97231-228-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> INLET 		8-94130-558-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST OD=36.7 		8-94130-559-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9804-0207 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		8-97351-451-0 01 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9804-9904 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		8-97209-609-0 07 1 9906- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9905- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9804- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) REAR & UPPER FACE OD=25 		9-11129-079-0 02 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) FRONT OD=40 		9-11219-309-0 01 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0109- ● ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> BOSCH 		8-94133-759-8 04 1 9804-0211 ● ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0212- ● ●
10 02.270 PLUG; GLOW
COLD START DEVICE<7LY> NGK 		8-94175-158-1 04 1 9804-0211 ● ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0212- ● ●
10 02.270 PLUG; GLOW
EXC. COLD START DEVICE<7LY> 		8-94140-115-6 04 1 9804-0211 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 9804- ● ●
12 00.004 HANGER; ENG,RR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97019-563-0 01 1 9804-9812 ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 9901- ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 9804-0108 ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0109- ● ●
13 00.004 BOLT; HANGER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9804-9812 ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9901- ●
13 00.004 BOLT; HANGER 8-11051-927-0 01 1 9804-0108 ●
13 00.004 BOLT; HANGER 8-11051-927-0 01 1 0109- ● ●

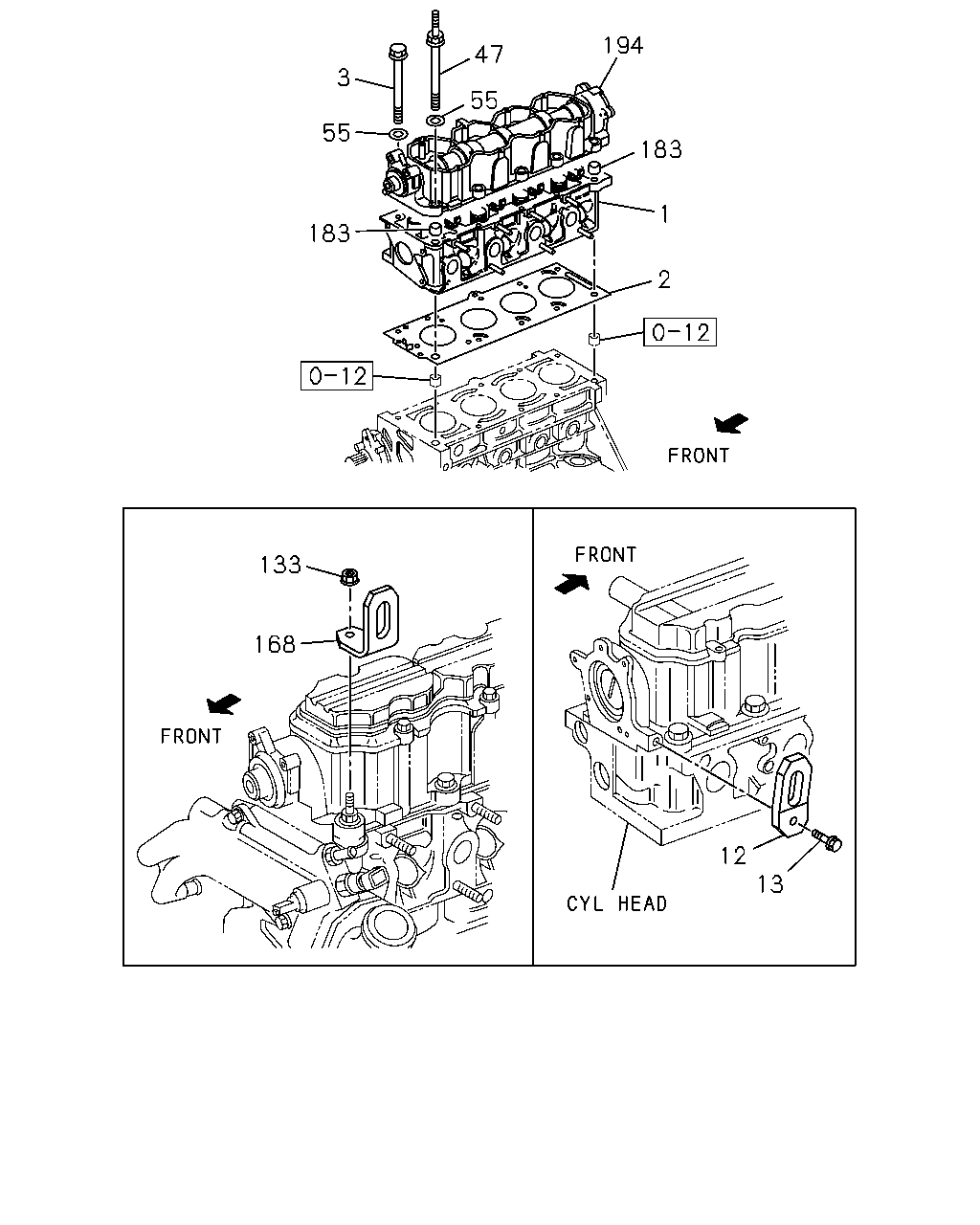

çizim 69911
194 47 3 55 55 183 1 183 2 133 168 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL 8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ● ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ● ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-1 01 1 9902-0205 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97129-630-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809-0108 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0109- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9804-9812 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-094-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 9804-0108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 0109- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 9901- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) (B) M11X122 		8-94247-355-1 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9804- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 9804-0108 ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0109- ● ●
12 00.004 HANGER; ENG,RR
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97019-563-0 01 1 9804-9812 ●
12 00.004 HANGER; ENG,RR 8-97019-563-0 01 1 9901- ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 9804-0108 ●
12 00.004 HANGER; ENG,RR 8-90156-902-0 01 1 0109- ● ●
13 00.004 BOLT; HANGER
EXC. CHINA CHONGQING EQUIPMENT(R5B) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9804-9812 ●
13 00.004 BOLT; HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 9901- ●
13 00.004 BOLT; HANGER 8-11051-927-0 01 1 9804-0108 ●
13 00.004 BOLT; HANGER 8-11051-927-0 01 1 0109- ● ●
47 00.413 STUD; CYL HD
00.349 M8X33 L=44 		8-94232-311-0 01 1 9804-9812 ●
47 00.413 STUD; CYL HD
00.349 M8X18 L=29 		8-94232-312-0 02 1 9804-9812 ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 9804-0108 ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 0109- ● ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 9804-0108 ●
55 00.004 WASHER; PL,CYL HD TO BLOCK 8-90325-497-0 10 1 0109- ● ●
133 00.004 NUT; HANGER 8-11014-038-0 01 1 9804-0108 ●
133 00.004 NUT; HANGER 8-11014-038-0 01 1 0109- ● ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9804-9812 ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 9804-0108 ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 0109- ● ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 9804-0108 ●
183 00.206 DOWEL; CYL HEAD
00.293 		8-90353-654-0 02 1 0109- ● ●
194 00.349 CARRIER; CAM SHAFT 8-90467-878-0 01 1 9804-0108 ●
194 00.349 CARRIER; CAM SHAFT 8-90467-878-0 01 1 0109- ● ●

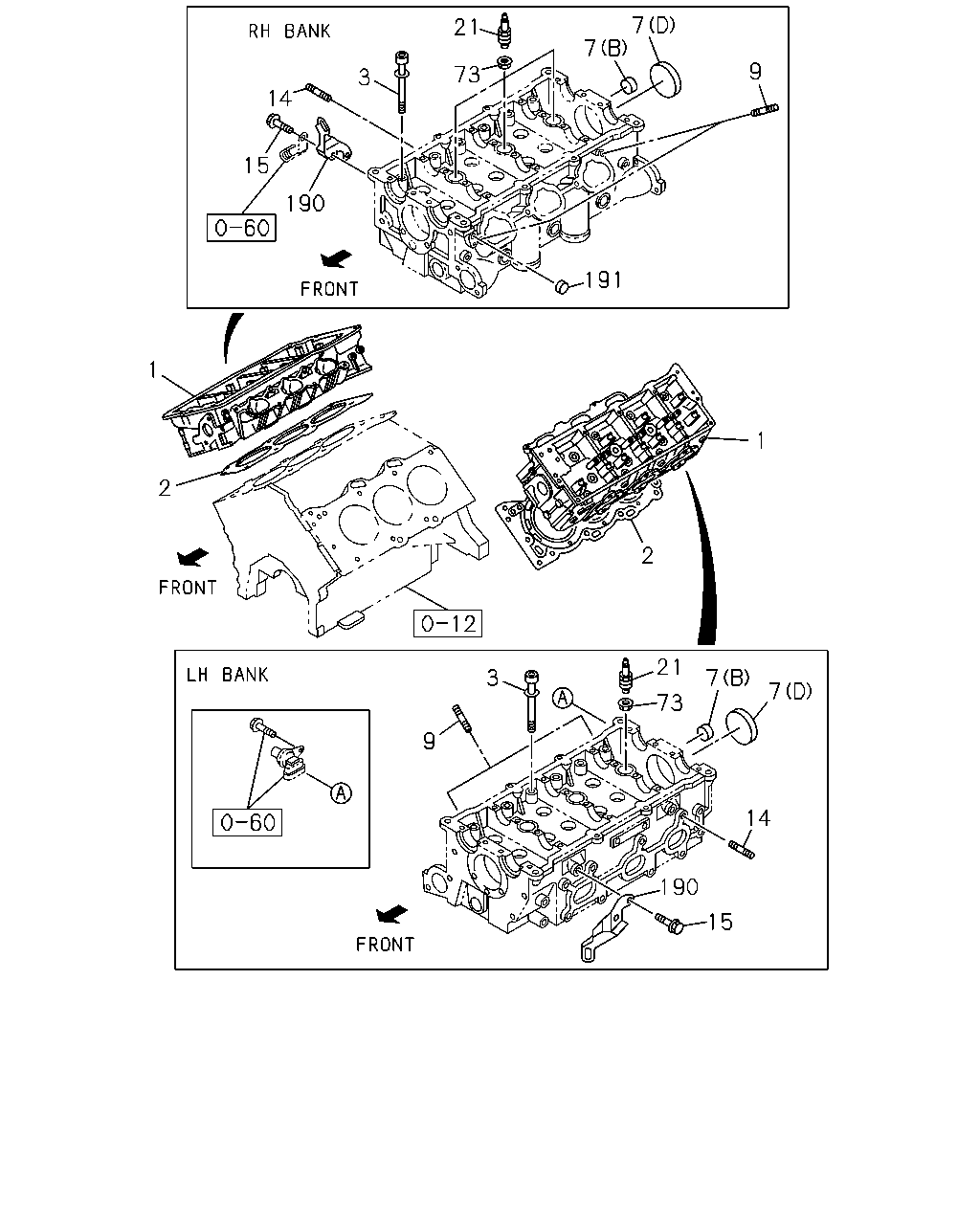

çizim 71709
7 7 21 9 73 3 14 15 190 191 1 1 2 2 21 3 7 7 73 9 14 190 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL 8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ● ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ● ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-1 01 1 9902-0205 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97129-630-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809-0108 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0109- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9804-9812 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-094-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 9804-0108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 0109- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 9901- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) (B) M11X122 		8-94247-355-1 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9804- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 9804-0108 ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9804-0207 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		8-97351-451-0 01 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9804-9904 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		8-97209-609-0 07 1 9906- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9905- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9804- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) REAR & UPPER FACE OD=25 		9-11129-079-0 02 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) FRONT OD=40 		9-11219-309-0 01 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0109- ● ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9804-9812 ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9804- ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 9804-0108 ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 0109- ● ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9804-9812 ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9804-9812 ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9804- ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 9804-0108 ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 0109- ● ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9804-9812 ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9804-9812 ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804- ●
21 02.270 PLUG; SPARK
NGK 		8-94219-943-0 04 1 9804-9812 ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9804-0009 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9810- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 9804-0108 ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0109- ● ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-173-0 06 1 9804- ●
190 00.004 HANGER; ENG 8-97131-856-0 02 1 9804-0111 ●
190 00.004 HANGER; ENG 8-97288-729-0 02 1 0112- ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 9804- ●

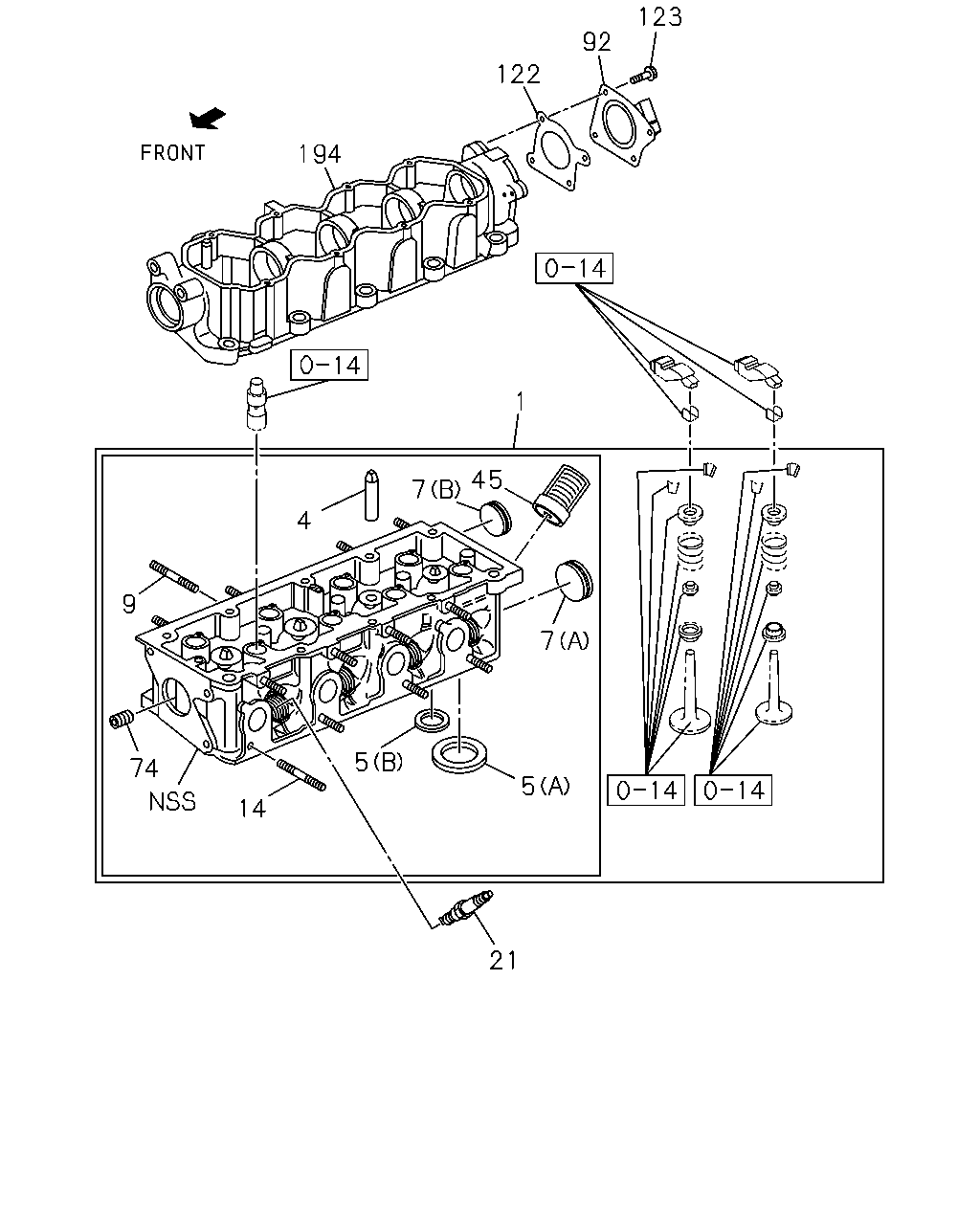

çizim 73447
123 92 122 194 1 45 7 4 9 7 5 74 5 14 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL 8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ● ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ● ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-1 01 1 9902-0205 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97129-630-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809-0108 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0109- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9804- ● ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9804- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9804-9904 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUAT EMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9905-0012 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHIL E EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 0101- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET OD=41.2 		8-97231-228-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> INLET 		8-94130-558-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST OD=36.7 		8-94130-559-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9804-0207 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		8-97351-451-0 01 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9804-9904 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		8-97209-609-0 07 1 9906- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9905- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9804- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) REAR & UPPER FACE OD=25 		9-11129-079-0 02 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) FRONT OD=40 		9-11219-309-0 01 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0109- ● ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9804-9812 ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9804- ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 9804-0108 ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 0109- ● ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9804-9812 ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9804-9812 ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9804- ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 9804-0108 ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 0109- ● ●
21 02.270 PLUG; SPARK
NGK 		8-94219-943-0 04 1 9804-9812 ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9804-0009 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9810- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 9804-0108 ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0109- ● ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 9804-0108 ●
45 00.293 VALVE; OIL RELIEF,CYL HD 8-90136-113-0 01 1 0109- ● ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9804- ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 9804-0108 ●
74 01.531 PLUG; OIL GALLERY 8-11095-511-0 01 1 0109- ● ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 9804-0108 ●
92 00.206 COVER; CM/SHF,CYL HD 8-92063-831-0 01 1 0109- ● ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-158-0 01 1 9804-0108 ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-158-0 01 1 0109- ● ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 9804-0108 ●
123 00.206 BOLT; COVER 8-11027-991-0 04 1 0109- ● ●
194 00.349 CARRIER; CAM SHAFT 8-90467-878-0 01 1 9804-0108 ●
194 00.349 CARRIER; CAM SHAFT 8-90467-878-0 01 1 0109- ● ●

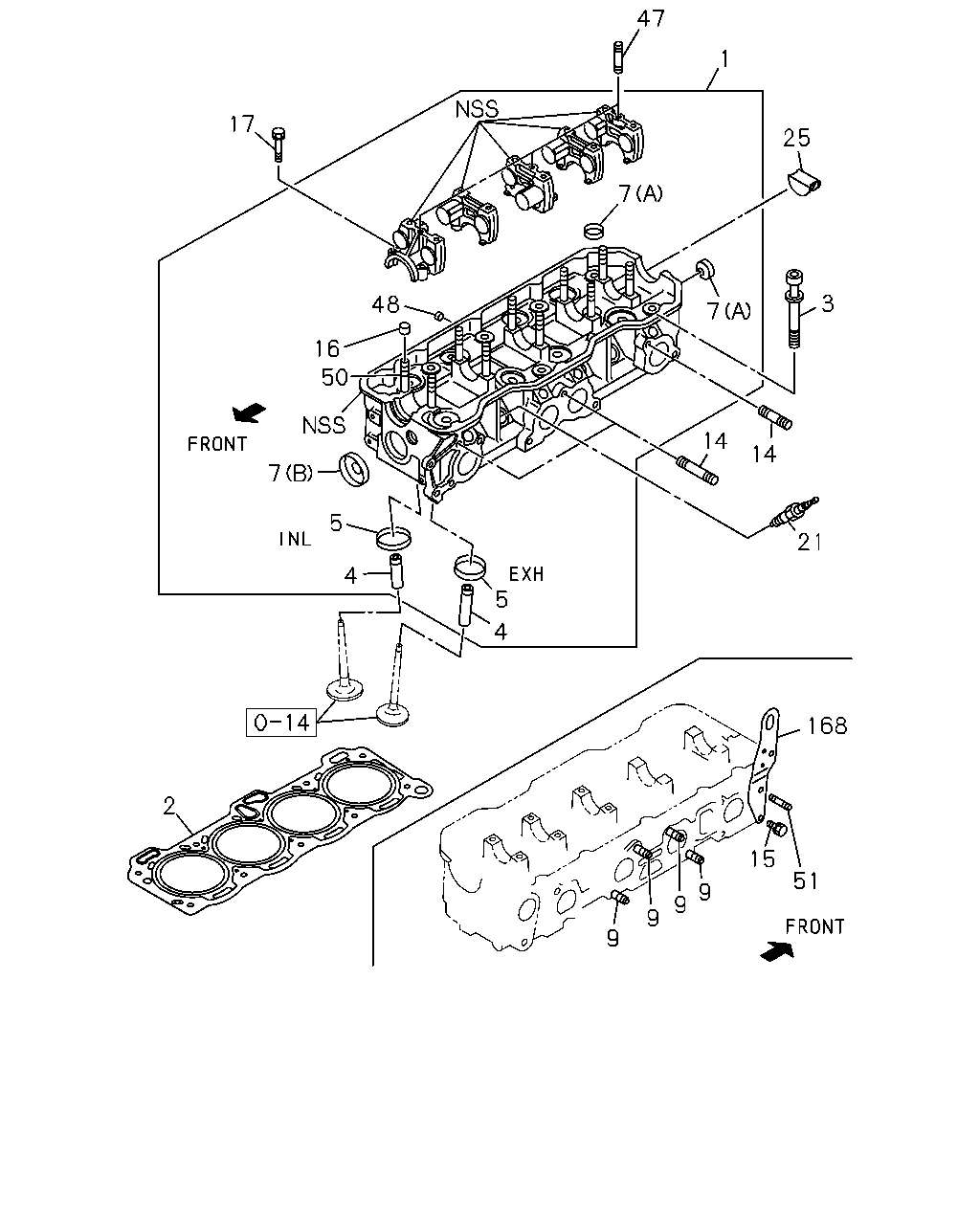

çizim 74052
47 1 7 17 25 7 3 48 16 50 14 14 7 5 21 5 4 4 168 2 15 51 9 9 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-520-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL 8-94431-520-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL 8-94431-520-1 01 1 9902-0009 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL 8-94431-520-2 01 1 0010-0204 ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-3 01 1 0205-0207 ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0208-0211 ● ●
1 00.269 HEAD ASM; CYL 8-94343-290-4 01 1 0212-0302 ● ●
1 00.269 HEAD ASM; CYL 8-94431-520-4 01 1 0303- ● ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT(R5B) 		8-94431-523-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-0 01 1 9901-9901 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 		8-94431-523-1 01 1 9902-0205 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-94431-523-2 01 1 0206-0207 ●
1 00.269 HEAD ASM; CYL 8-97129-630-0 01 1 9804-9812 ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9804-0111 ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ●
1 00.269 HEAD ASM; CYL 8-92063-642-0 01 1 9804-9808 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 9809-0108 ●
1 00.269 HEAD ASM; CYL 8-92064-601-0 01 1 0109- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 9804-0212 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-94174-279-0 01 1 9804-9812 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97148-520-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-096-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97136-259-3 01 1 9804-0104 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-97262-094-0 01 1 0105- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 9804-0108 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 		8-92062-330-0 01 1 0109- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
EXC. CHINA CHONGQING EQUIPMENT(R5B) (A) M11X122 		8-97133-416-0 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M11X122 		8-97133-416-1 18 1 9901- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
CHINA CHONGQING EQUIPMENT(R5B) (B) M11X122 		8-94247-355-1 18 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M12X102 HEX SOCKET 		8-94200-751-0 10 1 9804-9812 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9804- ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 9804-0108 ●
3 00.293 BOLT; CYL HD TO BLOCK 8-90325-498-0 09 1 0109- ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9804- ● ●
4 00.283 GUIDE; VLV
INLET 		8-94206-762-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
EXHAUST 		8-97112-882-0 04 1 9804-9812 ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9804- ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
STD 		8-90108-699-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 9804-0108 ●
4 00.283 GUIDE; VLV
0VSI=0.20 		8-90108-700-0 08 1 0109- ● ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9804-9904 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHILE EQUIPMENT(6KB),GUAT EMALA/COSTA RICA EQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 9905-0012 ●
4 00.283 GUIDE; VLV
4X4(TFS***) M/T MSG 5 SPEED(M75) EXC. ECUADOR EQUIPMENT(S6E),EGYPT EQUIPMENT(YJ4),CHINA EQUIPMENT(YT2),CHIL E EQUIPMENT(6KB),GUATEMALA/COSTA RICAEQUIPMENT(7LD) OVSI=0.40 		8-90108-701-0 08 1 0101- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94431-521-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-94431-521-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97254-814-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
INLET OD=41.2 		8-97231-228-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. CHINA CHONGQING EQUIPMENT(R5B) EXHAUST 		8-94431-522-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-94431-522-0 04 1 9902-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD), ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0004-0009 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> PHILIPPINE EQUIPMENT(S2U), GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0010-0204 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97254-815-0 04 1 0205-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST OD=36.7 		8-97231-229-0 04 1 0208- ● ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) INLET 		8-94130-558-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) INLET 		8-94130-558-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> INLET 		8-94130-558-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
CHINA CHONGQING EQUIPMENT(R5B) EXHAUST OD=36.7 		8-94130-559-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>,ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9901-9901 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51>, GUATEMALA/COSTA RICA EQUIPMENT(7LD),ARGENTINA EQUIPMENT(7SZ) EXHAUST OD=36.7 		8-94130-559-0 04 1 9902-0205 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST OD=36.7 		8-94130-559-0 04 1 0206-0207 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97037-802-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97110-273-0 04 1 9804-9812 ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9804- ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) INLET 		8-90233-708-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST 		8-90233-709-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) INLET 		8-90233-712-0 04 1 0109- ● ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 9804-0108 ●
5 00.253 SEAT; VLV INSERT
(A) EXHAUST 		8-90233-713-0 04 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. CHINA CHONGQING EQUIPMENT(R5B) 00.034 (E) OD=32 		5-11219-015-0 02 1 9804-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9804-0207 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=45 		8-97351-451-0 01 1 0208- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		1-09600-011-2 07 1 9804-9905 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9804-9904 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) UPPER 3 Q'TY SIDE 4 Q'TY OD=22 		8-97209-609-0 07 1 9906- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 05 1 9905- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 03 1 9804- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) REAR & UPPER FACE OD=25 		9-11129-079-0 02 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) FRONT OD=40 		9-11219-309-0 01 1 9804-9812 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9804- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) STD OD=26 		8-11044-142-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30.8 		8-11067-433-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=30 		8-11072-963-0 01 1 0109- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 9804-0108 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OVSI OD=28 		8-11084-312-0 01 1 0109- ● ●
9 03.275 STUD; INL MANIF
M8X27 L=39 		8-94202-304-0 04 1 9804-9812 ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9804- ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 9804-0108 ●
9 03.275 STUD; INL MANIF 8-90106-924-0 09 1 0109- ● ●
14 03.275 STUD; EXH MANIF
M8X42 L=58 		8-97118-447-0 03 1 9804-9812 ●
14 03.275 STUD; EXH MANIF
M8X30 L=46 		9-04010-830-0 04 1 9804-9812 ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9804- ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 9804-0108 ●
14 03.275 STUD; EXH MANIF 8-90106-924-0 08 1 0109- ● ●
15 00.004 BOLT; HANGER,FRT
POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9804-9812 ●
15 00.004 BOLT; HANGER,FRT
EXC. POWER STEERING<N40> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9804-9812 ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9804- ●
16 00.413 DOWEL; ROCKER SHAFT BRKT 8-94108-075-1 10 1 9804-9812 ●
17 00.349 BOLT; ROCKER SHAFT BRKT
04.054 M6X25 W/LK WASHER 		0-50040-625-0 02 1 9804-9812 ●
21 02.270 PLUG; SPARK
NGK 		8-94219-943-0 04 1 9804-9812 ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9804-0009 ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9810- ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 9804-0108 ●
21 02.270 PLUG; SPARK 8-92063-360-0 04 1 0109- ● ●
25 00.293 PLUG; CYL HD 8-94220-423-1 01 1 9804-9812 ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9804- ●
47 00.413 STUD; CYL HD
00.349 M8X33 L=44 		8-94232-311-0 01 1 9804-9812 ●
47 00.413 STUD; CYL HD
00.349 M8X18 L=29 		8-94232-312-0 02 1 9804-9812 ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 9804-0108 ●
47 00.413 STUD; CYL HD 8-92061-632-0 01 1 0109- ● ●
48 00.293 PLUG; CYL HD,INL SIDE
00.253 OD=6.3 		8-94200-790-2 01 1 9804-9812 ●
50 00.349 STUD; ROCKER SHAFT BRKT
M8X65 L=81 		9-04020-865-0 10 1 9804-9812 ●
51 00.413 STUD; HANGER
POWER STEERING<N40> M8X60 L=72 		9-04110-860-0 01 1 9804-9812 ●
168 00.004 HANGER; ENG,FRT 8-94472-343-0 01 1 9804-9812 ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 9804-0108 ●
168 00.004 HANGER; ENG,FRT 8-90323-004-0 01 1 0109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
