1-31 — AIR DUCT (#41712) — 351 parça
çizim 17497
62 2 5 26 209 2 26 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-94321-187-2 01 1 9210- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94321-187-2 01 1 9210- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94480-369-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97096-178-0 01 1 9308- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97078-667-1 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97096-177-0 01 1 9308- ●
2 03.417 HOSE; ACL 8-94475-175-0 01 1 9210-9308 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-048-1 01 1 9210-9406 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-248-0 01 1 9407- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 		8-94320-727-1 01 1 9210- ●
2 03.417 HOSE; ACL 8-94479-047-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL 8-97094-667-0 01 1 9308- ●
5 03.407 CLIP; AIR DUCT
EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 (B) 		8-94216-977-0 01 1 9210- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.417 (A) 		8-94323-226-1 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
(F) 		9-09915-194-1 02 1 9210-9308 ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=58-79 		8-94126-771-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-114-0 01 1 9210- ● ●
5 03.407 CLIP; AIR DUCT
EXC. THAILAND EQUIPMENT(PM9) 03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9605-9607 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9608- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (D) ID=50-69 		8-94316-991-0 01 1 9407- ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9407- ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94322-428-0 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94451-139-2 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (C) 		8-97062-046-1 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9404- ● ● ●
26 03.417 DUCT; AIR INT 8-94320-928-1 01 1 9210-9308 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94320-728-2 01 1 9210- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-94311-351-2 01 1 9210-9307 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9308-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
AUSTRALIA EQUIPMENT(RR3) 09.003 (A) 		8-97033-650-0 01 1 9210- ●
62 03.417 BOLT; AIR INT DUCT
02.559 M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9210-9308 ●
62 03.417 BOLT; AIR INT DUCT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9410 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9411- ● ●
62 03.417 BOLT; AIR INT DUCT
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9210-9604 ● ●
62 03.417 BOLT; AIR INT DUCT
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9210-9406 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9407- ●
62 03.417 BOLT; AIR INT DUCT
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9407- ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9210- ● ● ●
209 03.405 BRACKET; ACL
AUSTRALIA EQUIPMENT(RR3) ID=14 		8-94370-320-0 01 1 9210- ●
209 03.405 BRACKET; ACL 8-94320-729-0 01 1 9210- ● ●

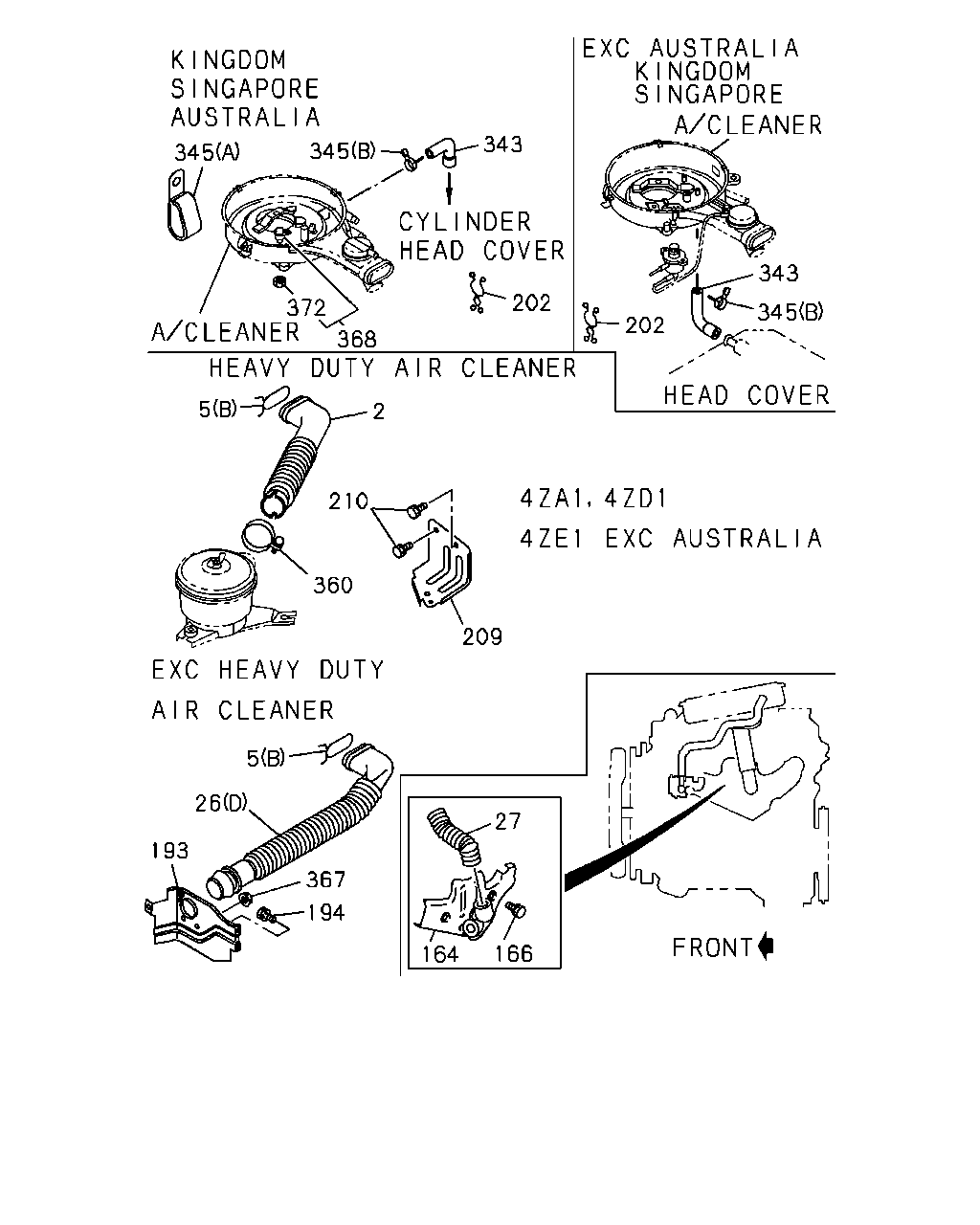

çizim 66184
343 345 345 372 368 202 202 343 345 2 5 210 209 360 5 26 193 367 194 27 166 164
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-94321-187-2 01 1 9210- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94321-187-2 01 1 9210- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94480-369-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97096-178-0 01 1 9308- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97078-667-1 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97096-177-0 01 1 9308- ●
2 03.417 HOSE; ACL 8-94475-175-0 01 1 9210-9308 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-048-1 01 1 9210-9406 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-248-0 01 1 9407- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 		8-94320-727-1 01 1 9210- ●
2 03.417 HOSE; ACL 8-94479-047-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL 8-97094-667-0 01 1 9308- ●
5 03.407 CLIP; AIR DUCT
EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 (B) 		8-94216-977-0 01 1 9210- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.417 (A) 		8-94323-226-1 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
(F) 		9-09915-194-1 02 1 9210-9308 ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=58-79 		8-94126-771-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-114-0 01 1 9210- ● ●
5 03.407 CLIP; AIR DUCT
EXC. THAILAND EQUIPMENT(PM9) 03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9605-9607 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9608- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (D) ID=50-69 		8-94316-991-0 01 1 9407- ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9407- ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94322-428-0 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94451-139-2 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (C) 		8-97062-046-1 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9404- ● ● ●
26 03.417 DUCT; AIR INT 8-94320-928-1 01 1 9210-9308 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94320-728-2 01 1 9210- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-94311-351-2 01 1 9210-9307 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9308-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
AUSTRALIA EQUIPMENT(RR3) 09.003 (A) 		8-97033-650-0 01 1 9210- ●
27 03.417 HOSE; HOT AIR,ACL
SINGAPORE EQUIPMENT(S9Y) 		8-94324-193-1 01 1 9210-9403 ●
27 03.417 HOSE; HOT AIR,ACL
HOT AIR INTAKE<RN4> 		8-94324-193-1 01 1 9210-9403 ●
27 03.417 HOSE; HOT AIR,ACL 8-94324-193-1 01 1 9210-9403 ●
27 03.417 HOSE; HOT AIR,ACL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94324-193-1 01 1 9210-9403 ●
27 03.417 HOSE; HOT AIR,ACL
HOT AIR INTAKE<RN4> 		8-94324-193-1 01 1 9404- ●
27 03.417 HOSE; HOT AIR,ACL
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94324-193-1 01 1 9404- ● ●
164 03.602 COVER; HEAT PROTECTOR
SINGAPORE EQUIPMENT(S9Y) 		8-97083-580-1 01 1 9210-9406 ●
164 03.602 COVER; HEAT PROTECTOR
HOT AIR INTAKE<RN4> 		8-97083-580-1 01 1 9210-9406 ●
164 03.602 COVER; HEAT PROTECTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97083-580-1 01 1 9210-9406 ● ●
164 03.602 COVER; HEAT PROTECTOR
HOT AIR INTAKE<RN4> 		8-97083-580-1 01 1 9407- ●
164 03.602 COVER; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97083-580-1 01 1 9407- ● ●
164 03.602 COVER; HEAT PROTECTOR
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97041-514-0 01 1 9210-9406 ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
SINGAPORE EQUIPMENT(S9Y) M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9210-9403 ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
HOT AIR INTAKE<RN4> M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9210-9403 ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9210-9403 ● ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
HOT AIR INTAKE<RN4> M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9404- ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9404- ● ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94435-046-3 01 1 9210- ● ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-94435-046-3 01 1 9210- ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-94408-386-1 03 1 9210- ● ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 08.077 M6X18 		8-94408-386-1 03 1 9210- ●
202 03.417 CLIP; HIGH TENSION CABLE
AIR CON(C60),COOLER WO/HEATER(YL1) 09.276 ID=30 & 8 		8-94167-439-0 01 1 9210- ● ● ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9210- ● ● ●
209 03.405 BRACKET; ACL
AUSTRALIA EQUIPMENT(RR3) ID=14 		8-94370-320-0 01 1 9210- ●
209 03.405 BRACKET; ACL 8-94320-729-0 01 1 9210- ● ●
210 03.405 BOLT; ACL BRKT
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-94408-386-1 03 1 9210- ● ● ●
210 03.405 BOLT; ACL BRKT
AUSTRALIA EQUIPMENT(RR3) 08.077 M6X18 		8-94408-386-1 03 1 9210- ●
343 03.417 HOSE; ACL TO CYL HD COVER
SINGAPORE EQUIPMENT(S9Y) 		8-94342-562-0 01 1 9210-9402 ●
343 03.417 HOSE; ACL TO CYL HD COVER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94342-562-0 01 1 9210-9402 ●
343 03.417 HOSE; ACL TO CYL HD COVER
SINGAPORE EQUIPMENT(S9Y) 		8-94342-562-0 01 1 9403-9403 ●
343 03.417 HOSE; ACL TO CYL HD COVER
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-94342-562-0 01 1 9403-9403 ●
343 03.417 HOSE; ACL TO CYL HD COVER
UNITED KINGDOM EQUIPMENT(EK3), SINGAPORE EQUIPMENT(S9Y) 		8-94342-562-0 01 1 9404-9406 ●
343 03.417 HOSE; ACL TO CYL HD COVER
SINGAPORE EQUIPMENT(S9Y) 		8-94342-562-0 01 1 9407- ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-94175-084-2 01 1 9210-9308 ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94175-084-2 01 1 9210-9308 ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94175-084-2 01 1 9210-9308 ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. SINGAPORE EQUIPMENT(S9Y) 		8-94175-084-2 01 1 9309-9406 ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94175-084-2 01 1 9309-9406 ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94175-084-2 01 1 9309-9406 ●
343 03.417 HOSE; ACL TO CYL HD COVER 8-94175-084-2 01 1 9407- ●
343 03.417 HOSE; ACL TO CYL HD COVER
EXC. AUSTRALIA EQUIPMENT(RR3), SINGAPORE EQUIPMENT(S9Y) 		8-94175-084-2 01 1 9407- ● ●
345 03.417 CLIP; PCV HOSE
SINGAPORE EQUIPMENT(S9Y) (A) ID=23 & 29 		8-94160-682-2 01 1 9210-9403 ●
345 03.417 CLIP; PCV HOSE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) ID=23 & 29 		8-94160-682-2 01 1 9210-9403 ●
345 03.417 CLIP; PCV HOSE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) (A) ID=23 & 29 		8-94160-682-2 01 1 9404-9406 ●
345 03.417 CLIP; PCV HOSE
SINGAPORE EQUIPMENT(S9Y) (A) ID=23 & 29 		8-94160-682-2 01 1 9407- ●
345 03.417 CLIP; PCV HOSE
SINGAPORE EQUIPMENT(S9Y) 01.762 (B) ID=19 		8-94238-569-0 01 1 9210-9403 ●
345 03.417 CLIP; PCV HOSE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 01.762 (B) ID=19 		8-94238-569-0 01 1 9210-9403 ●
345 03.417 CLIP; PCV HOSE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 01.762 (B) ID=19 		8-94238-569-0 01 1 9404-9406 ●
345 03.417 CLIP; PCV HOSE
SINGAPORE EQUIPMENT(S9Y) 01.762 (B) ID=19 		8-94238-569-0 01 1 9407- ●
360 03.403 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. AUSTRALIA EQUIPMENT(RR3) 03.407 ID=50-69 		8-94316-991-0 01 1 9210-9210 ● ● ●
360 03.403 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER<K46> EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 ID=58-79 		8-94126-771-0 01 1 9211- ● ● ●
367 03.417 NUT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46> 07.829 M6 FLANGE 		5-09440-004-0 01 1 9210- ● ●
367 03.417 NUT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9210- ●
368 03.415 SENSOR; TEMP
SINGAPORE EQUIPMENT(S9Y) 		8-94334-529-0 01 1 9210-9308 ●
372 03.415 NUT; THERMO SENSOR FIX
UNITED KINGDOM EQUIPMENT(EK3) 		8-94208-147-0 01 1 9210-9308 ●
372 03.415 NUT; THERMO SENSOR FIX
SINGAPORE EQUIPMENT(S9Y) 		8-94208-147-0 02 1 9210-9308 ●
372 03.415 NUT; THERMO SENSOR FIX
AUSTRALIA EQUIPMENT(RR3) 		8-94208-147-0 02 1 9210-9308 ●
372 03.415 NUT; THERMO SENSOR FIX
SINGAPORE EQUIPMENT(S9Y) 		8-94208-147-0 02 1 9309-9403 ●
372 03.415 NUT; THERMO SENSOR FIX
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94208-147-0 02 1 9309-9403 ●
372 03.415 NUT; THERMO SENSOR FIX
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SINGAPORE EQUIPMENT(S9Y) 		8-94208-147-0 02 1 9404-9406 ●
372 03.415 NUT; THERMO SENSOR FIX
SINGAPORE EQUIPMENT(S9Y) 		8-94208-147-0 02 1 9407- ●

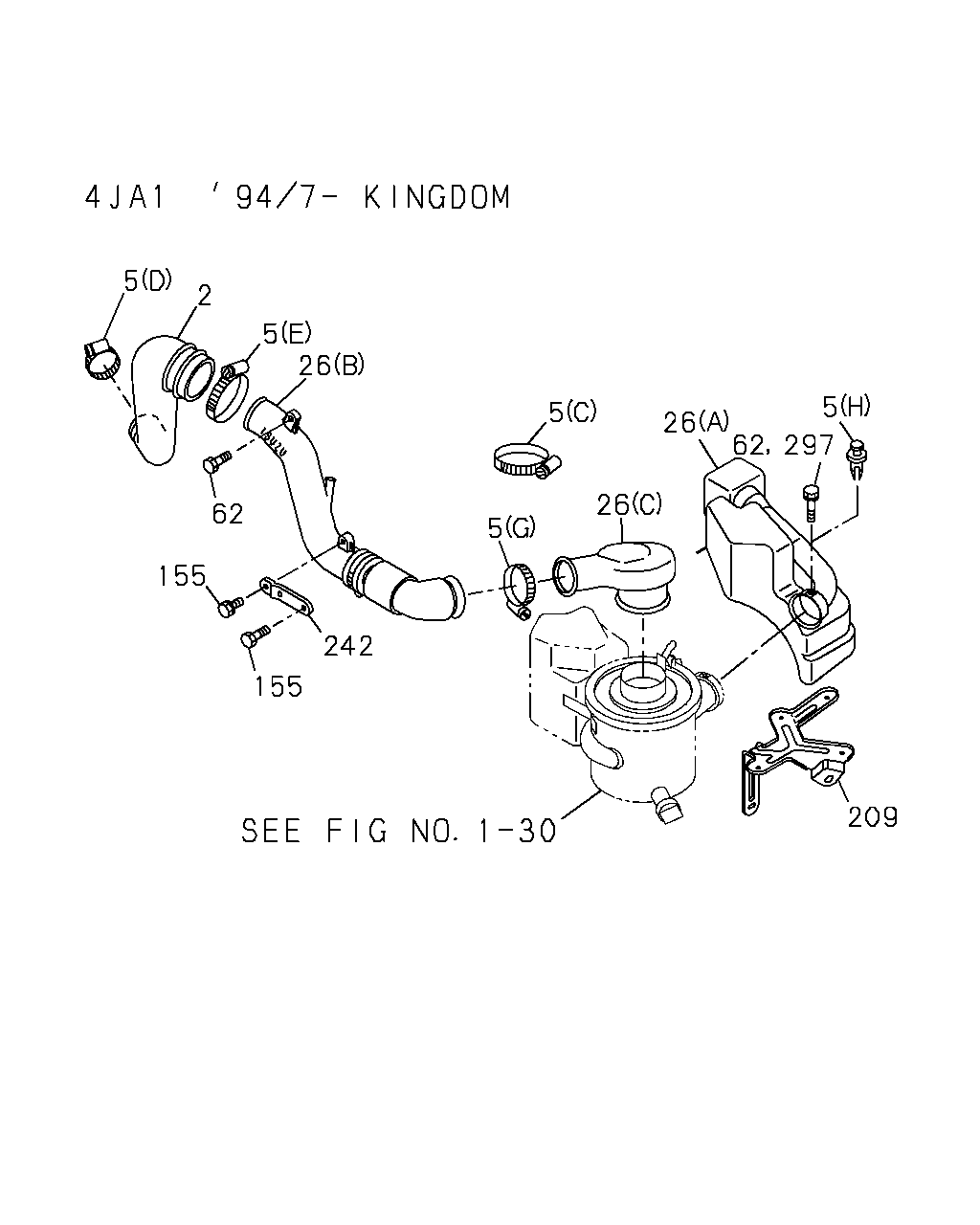

çizim 66690
5 2 5 26 62 155 155 242 5 5 26 26 62 5 297 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-94321-187-2 01 1 9210- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94321-187-2 01 1 9210- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94480-369-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97096-178-0 01 1 9308- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97078-667-1 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97096-177-0 01 1 9308- ●
2 03.417 HOSE; ACL 8-94475-175-0 01 1 9210-9308 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-048-1 01 1 9210-9406 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-248-0 01 1 9407- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 		8-94320-727-1 01 1 9210- ●
2 03.417 HOSE; ACL 8-94479-047-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL 8-97094-667-0 01 1 9308- ●
5 03.407 CLIP; AIR DUCT
EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 (B) 		8-94216-977-0 01 1 9210- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.417 (A) 		8-94323-226-1 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
(F) 		9-09915-194-1 02 1 9210-9308 ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=58-79 		8-94126-771-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-114-0 01 1 9210- ● ●
5 03.407 CLIP; AIR DUCT
EXC. THAILAND EQUIPMENT(PM9) 03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9605-9607 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9608- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (D) ID=50-69 		8-94316-991-0 01 1 9407- ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9407- ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94322-428-0 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94451-139-2 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (C) 		8-97062-046-1 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9404- ● ● ●
26 03.417 DUCT; AIR INT 8-94320-928-1 01 1 9210-9308 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94320-728-2 01 1 9210- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-94311-351-2 01 1 9210-9307 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9308-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
AUSTRALIA EQUIPMENT(RR3) 09.003 (A) 		8-97033-650-0 01 1 9210- ●
62 03.417 BOLT; AIR INT DUCT
02.559 M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9210-9308 ●
62 03.417 BOLT; AIR INT DUCT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9410 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9411- ● ●
62 03.417 BOLT; AIR INT DUCT
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9210-9604 ● ●
62 03.417 BOLT; AIR INT DUCT
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9210-9406 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9407- ●
62 03.417 BOLT; AIR INT DUCT
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9407- ●
155 03.417 BOLT; BRKT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9210-9406 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9407-9410 ●
155 03.417 BOLT; BRKT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9407-9410 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9411- ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9411- ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9210- ● ● ●
209 03.405 BRACKET; ACL
AUSTRALIA EQUIPMENT(RR3) ID=14 		8-94370-320-0 01 1 9210- ●
209 03.405 BRACKET; ACL 8-94320-729-0 01 1 9210- ● ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9210-9406 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94387-686-1 01 1 9407- ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9407- ●
297 03.417 BOLT; DUCT
THAILAND EQUIPMENT(PM9) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9605-9607 ●

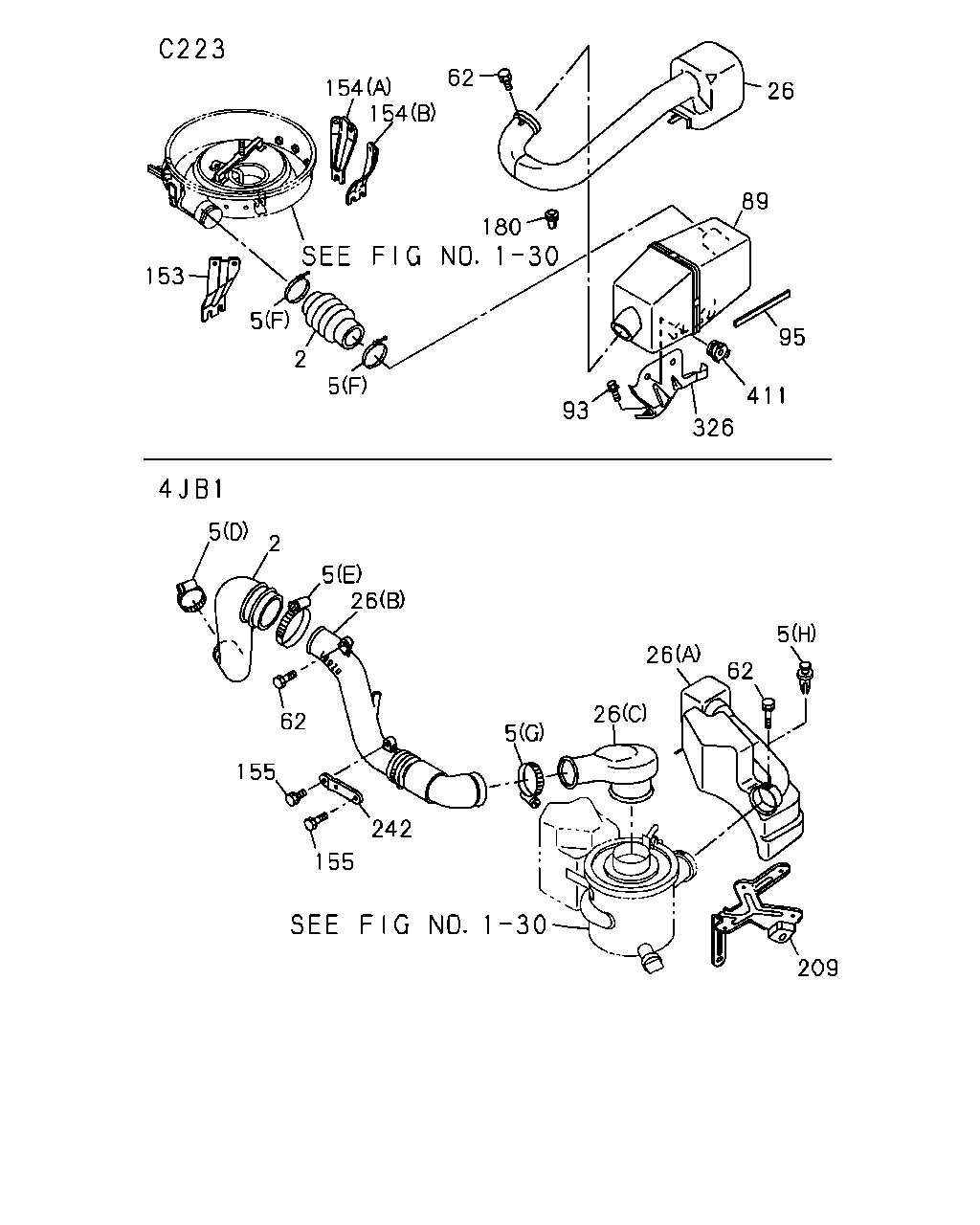

çizim 68298
154 154 62 180 153 5 2 5 26 89 95 411 326 93 5 2 5 26 62 155 155 242 5 26 26 62 5 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-94321-187-2 01 1 9210- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94321-187-2 01 1 9210- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94480-369-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97096-178-0 01 1 9308- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97078-667-1 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97096-177-0 01 1 9308- ●
2 03.417 HOSE; ACL 8-94475-175-0 01 1 9210-9308 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-048-1 01 1 9210-9406 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-248-0 01 1 9407- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 		8-94320-727-1 01 1 9210- ●
2 03.417 HOSE; ACL 8-94479-047-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL 8-97094-667-0 01 1 9308- ●
5 03.407 CLIP; AIR DUCT
EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 (B) 		8-94216-977-0 01 1 9210- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.417 (A) 		8-94323-226-1 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
(F) 		9-09915-194-1 02 1 9210-9308 ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=58-79 		8-94126-771-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-114-0 01 1 9210- ● ●
5 03.407 CLIP; AIR DUCT
EXC. THAILAND EQUIPMENT(PM9) 03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9605-9607 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9608- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (D) ID=50-69 		8-94316-991-0 01 1 9407- ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9407- ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94322-428-0 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94451-139-2 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (C) 		8-97062-046-1 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9404- ● ● ●
26 03.417 DUCT; AIR INT 8-94320-928-1 01 1 9210-9308 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94320-728-2 01 1 9210- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-94311-351-2 01 1 9210-9307 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9308-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
AUSTRALIA EQUIPMENT(RR3) 09.003 (A) 		8-97033-650-0 01 1 9210- ●
62 03.417 BOLT; AIR INT DUCT
02.559 M8X22 W/LK&PL WASHER 		0-50140-822-0 01 1 9210-9308 ●
62 03.417 BOLT; AIR INT DUCT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9210-9410 ● ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9411- ● ●
62 03.417 BOLT; AIR INT DUCT
03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9210-9604 ● ●
62 03.417 BOLT; AIR INT DUCT
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9210-9406 ●
62 03.417 BOLT; AIR INT DUCT
UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9407- ●
62 03.417 BOLT; AIR INT DUCT
01.540 M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 9407- ●
89 03.402 SILENCER ASM; INT,ACL
03.417 		8-94100-235-2 01 1 9210-9308 ●
93 03.417 BOLT; INT SILENCER
03.275 M8X30 FLANGE 		0-28080-830-0 02 1 9210-9308 ●
93 03.417 BOLT; INT SILENCER
00.206 M8X14 W/LK WASHER 		0-50040-814-0 03 1 9210-9308 ●
95 03.403 INSULATOR; INT SILENCER 8-94456-536-0 01 1 9210-9308 ●
153 03.405 BRACKET; ACL,FRT 5-14234-039-1 01 1 9210-9308 ●
154 03.405 BRACKET; ACL,RR
(A) 		5-14234-017-1 01 1 9210-9308 ●
154 03.405 BRACKET; ACL,RR
(B) 		5-14234-040-1 01 1 9210-9308 ●
155 03.417 BOLT; BRKT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9210-9406 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9407-9410 ●
155 03.417 BOLT; BRKT
03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 9407-9410 ●
155 03.417 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9411- ●
155 03.417 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9411- ●
180 03.417 CLIP; AIR INT HOSE 8-94135-843-0 01 1 9210-9308 ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9210- ● ● ●
209 03.405 BRACKET; ACL
AUSTRALIA EQUIPMENT(RR3) ID=14 		8-94370-320-0 01 1 9210- ●
209 03.405 BRACKET; ACL 8-94320-729-0 01 1 9210- ● ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9210-9406 ●
242 03.417 BRACKET; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94387-686-1 01 1 9407- ●
242 03.417 BRACKET; AIR DUCT 8-94387-686-1 01 1 9407- ●
326 03.417 BRACKET; INTAKE SILENCER,LWR 8-94475-177-0 01 1 9210-9308 ●
411 03.417 RUBBER; CUSHION 8-94103-468-0 02 1 9210-9308 ●

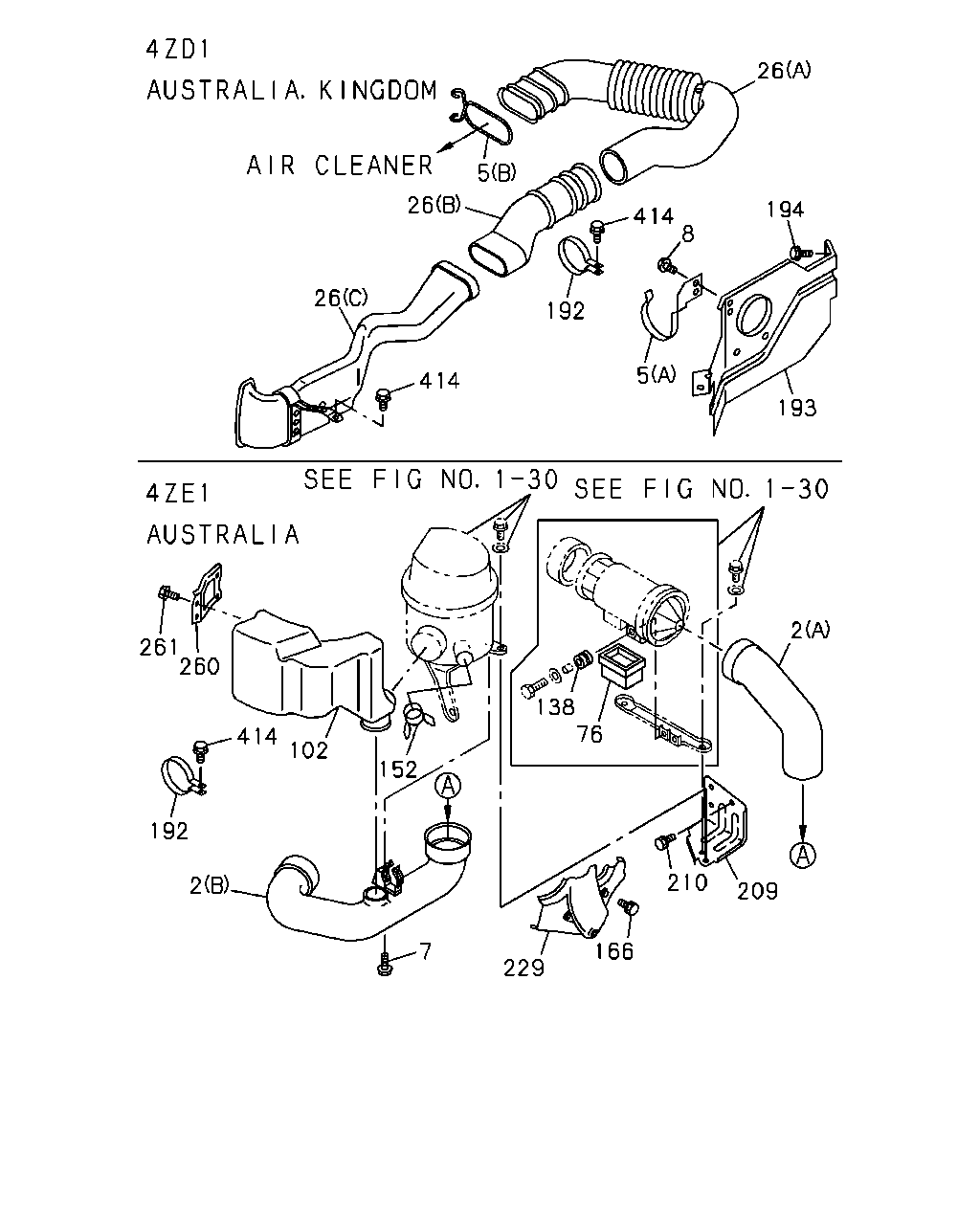

çizim 68352
26 5 26 26 414 192 414 194 8 5 193 261 260 414 102 192 2 7 152 138 76 2 209 210 166 229
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-94321-187-2 01 1 9210- ● ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER<K46> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94321-187-2 01 1 9210- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94480-369-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97096-178-0 01 1 9308- ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97078-667-1 01 1 9210-9307 ●
2 03.417 HOSE; ACL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97096-177-0 01 1 9308- ●
2 03.417 HOSE; ACL 8-94475-175-0 01 1 9210-9308 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-94382-048-1 01 1 9210-9406 ●
2 03.417 HOSE; ACL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97106-248-0 01 1 9407- ●
2 03.417 HOSE; ACL
EXC. UNITED KINGDOM EQUIPMENT(EK3) 03.407 		8-94320-727-1 01 1 9210- ●
2 03.417 HOSE; ACL 8-94479-047-2 01 1 9210-9307 ●
2 03.417 HOSE; ACL 8-97094-667-0 01 1 9308- ●
5 03.407 CLIP; AIR DUCT
EXC. AUSTRALIA EQUIPMENT(RR3) 03.417 (B) 		8-94216-977-0 01 1 9210- ● ● ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 03.417 (A) 		8-94323-226-1 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
(F) 		9-09915-194-1 02 1 9210-9308 ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=58-79 		8-94126-771-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		8-94320-428-0 01 1 9210- ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-114-0 01 1 9210- ● ●
5 03.407 CLIP; AIR DUCT
EXC. THAILAND EQUIPMENT(PM9) 03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9605-9607 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (H) D6X11 POP RIVET 		8-94298-119-0 01 1 9608- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9210-9406 ●
5 03.407 CLIP; AIR DUCT
UNITED KINGDOM EQUIPMENT(EK3) (D) ID=50-69 		8-94316-991-0 01 1 9407- ●
5 03.407 CLIP; AIR DUCT
(D) ID=50-69 		8-94316-991-0 01 1 9407- ●
7 03.417 BOLT; DUCT CLIP
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9303-9308 ●
7 03.417 BOLT; DUCT CLIP
AUSTRALIA EQUIPMENT(RR3) 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 9309- ●
8 03.417 SCREW; DUCT CLIP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 16.080 M6X12 		9-03900-612-0 02 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-94322-428-0 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-94451-139-2 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (C) 		8-97062-046-1 01 1 9210-9406 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9210-9403 ●
26 03.417 DUCT; AIR INT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (D) 		8-94321-842-0 01 1 9404- ● ● ●
26 03.417 DUCT; AIR INT 8-94320-928-1 01 1 9210-9308 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
(C) 		8-94382-047-2 01 1 9210- ●
26 03.417 DUCT; AIR INT
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94320-728-2 01 1 9210- ● ●
26 03.417 DUCT; AIR INT
(B) 		8-94311-351-2 01 1 9210-9307 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9308-9406 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
(B) 		8-97095-443-0 01 1 9407-9503 ●
26 03.417 DUCT; AIR INT
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
(B) 		8-97128-955-0 01 1 9504- ●
26 03.417 DUCT; AIR INT
AUSTRALIA EQUIPMENT(RR3) 09.003 (A) 		8-97033-650-0 01 1 9210- ●
76 03.403 VALVE; PRE ACL
AUSTRALIA EQUIPMENT(RR3) 		8-94326-671-0 01 1 9210- ●
102 03.402 RESONATOR; AIR INT
AUSTRALIA EQUIPMENT(RR3) 		8-97078-666-0 01 1 9210- ●
138 03.403 GROMMET; PRE ACL
AUSTRALIA EQUIPMENT(RR3) 		8-94326-672-0 02 1 9210- ●
152 03.602 CLIP; HOSE,HD COVER
AUSTRALIA EQUIPMENT(RR3) 06.672 ID=21 		8-94242-034-0 01 1 9210- ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
SINGAPORE EQUIPMENT(S9Y) M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9210-9403 ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
HOT AIR INTAKE<RN4> M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9210-9403 ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9210-9403 ● ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
HOT AIR INTAKE<RN4> M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9404- ●
166 03.405 BOLT; HEAT PROTECTOR TO C/BL
M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9404- ● ●
192 03.407 CLIP; HOSE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94455-047-2 01 1 9210-9406 ●
192 03.407 CLIP; HOSE
AUSTRALIA EQUIPMENT(RR3) 		8-94455-047-2 01 1 9510- ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-94435-046-3 01 1 9210- ● ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 		8-94435-046-3 01 1 9210- ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-94408-386-1 03 1 9210- ● ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER<K46>, AUSTRALIA EQUIPMENT(RR3) 08.077 M6X18 		8-94408-386-1 03 1 9210- ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> ID=14 		8-94370-320-0 01 1 9210- ● ● ●
209 03.405 BRACKET; ACL
AUSTRALIA EQUIPMENT(RR3) ID=14 		8-94370-320-0 01 1 9210- ●
209 03.405 BRACKET; ACL 8-94320-729-0 01 1 9210- ● ●
210 03.405 BOLT; ACL BRKT
HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18 		8-94408-386-1 03 1 9210- ● ● ●
210 03.405 BOLT; ACL BRKT
AUSTRALIA EQUIPMENT(RR3) 08.077 M6X18 		8-94408-386-1 03 1 9210- ●
229 03.417 PROTECTOR; HEAT
AUSTRALIA EQUIPMENT(RR3) 03.602 		8-94464-616-2 01 1 9210- ●
260 03.417 STAY; AIR DUCT
AUSTRALIA EQUIPMENT(RR3) 		8-97078-668-0 01 1 9210- ●
261 03.417 BOLT; DUCT STAY
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9210- ●
414 03.403 BOLT; CLIP
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9210-9406 ●
414 03.403 BOLT; CLIP
AUSTRALIA EQUIPMENT(RR3) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 02 1 9510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
