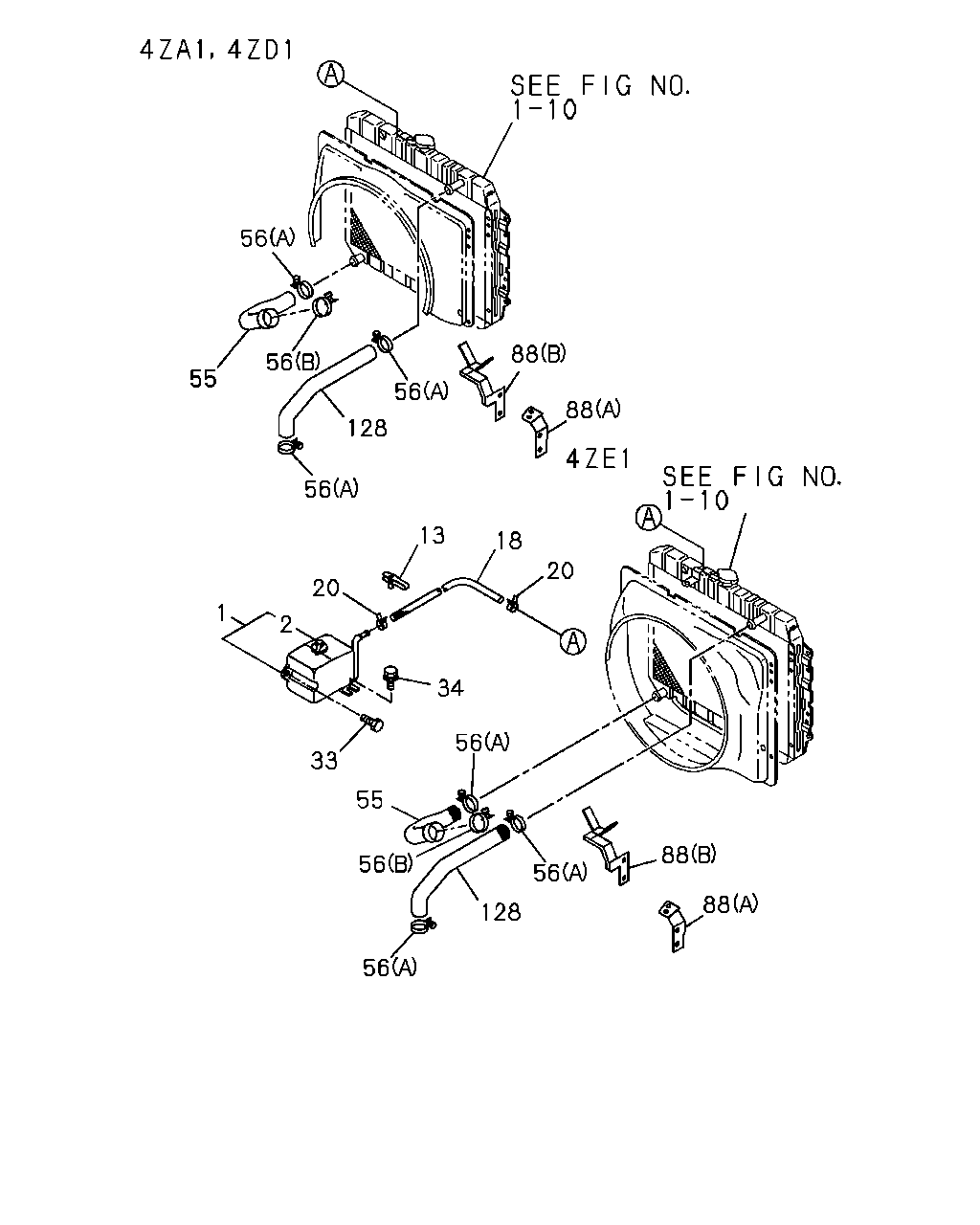

1-11 — RADIATOR HOSE AND SUB TANK (#41710) — 100 parça

88 13 18 20 20 1 2 34 33 56 128 56 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97032-681-1	01	1	9210-9307	●	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9308-	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9210-9307	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97100-665-0	01	1	9308-9506	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9507-	●	●	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9210-9403	●	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK EXC. AUSTRALIA EQUIPMENT(RR3) 02.559 L=103	8-94239-339-0	02	1	9210-9403						●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9404-	●	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK EXC. AUSTRALIA EQUIPMENT(RR3) 02.559 L=103	8-94239-339-0	02	1	9404-			●			●
13	01.240 CLIP; HOSE,SURGE TANK AUSTRALIA EQUIPMENT(RR3) 02.559 L=103	8-94239-339-0	01	1	9210-						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-0	01	1	9210-9606	●	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG>	8-97016-104-0	01	1	9607-9607	●		●			●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-0	01	1	9607-9607				●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9608-	●		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. ELECTRIC FUEL INJECTION<6GG>	8-97016-104-1	01	1	9608-						●
18	01.240 HOSE; RAD TO SURGE TANK LONG(TF***F) HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG>	8-97161-787-0	01	1	9607-			●			●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9210-	●	●	●	●	●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-94408-386-1	02	1	9210-9308		●		●	●
33	01.277 BOLT; BRKT ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-94408-386-1	02	1	9309-9508			●			●
33	01.277 BOLT; BRKT 08.077 M6X18	8-94408-386-1	02	1	9309-9508				●	●
33	01.277 BOLT; BRKT ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9509-9512			●			●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9509-9512				●	●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9601-	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9601-			●	●	●
33	01.277 BOLT; BRKT LONG(TF***F) EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9601-						●
33	01.277 BOLT; BRKT SHORT(TF***C) EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9601-						●
33	01.277 BOLT; BRKT LONG(TF***F) EXC. ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9601-						●
33	01.277 BOLT; BRKT SHORT(TF***C) 08.077 M6X18	8-97071-681-0	02	1	9601-						●
34	01.203 BOLT; RESERVE TANK M8X25	8-97017-390-0	02	1	9210-9302	●	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9303-	●	●	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94337-300-0	01	1	9210-	●		●			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94438-040-1	01	1	9210-9308		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9210-				●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9210-	●		●			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9210-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=46	8-94160-650-0	01	1	9210-9308		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9210-				●	●
88	01.219 BRACKET; SUB TANK HOSE (A)	8-94473-988-3	01	1	9210-9403	●	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94473-988-3	01	1	9210-9403						●
88	01.219 BRACKET; SUB TANK HOSE (A)	8-94473-988-3	01	1	9404-	●	●		●	●
88	01.219 BRACKET; SUB TANK HOSE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94473-988-3	01	1	9404-			●			●
88	01.219 BRACKET; SUB TANK HOSE AUSTRALIA EQUIPMENT(RR3) (B)	8-94473-989-1	01	1	9210-9403						●
88	01.219 BRACKET; SUB TANK HOSE AUSTRALIA EQUIPMENT(RR3) (B)	8-94473-989-1	01	1	9404-			●			●
128	01.159 HOSE; WATER,RAD INL	8-94389-481-0	01	1	9210-	●		●
128	01.159 HOSE; WATER,RAD INL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94389-481-0	01	1	9210-						●
128	01.159 HOSE; WATER,RAD INL AUSTRALIA EQUIPMENT(RR3)	8-94447-549-1	01	1	9210-						●
128	01.159 HOSE; WATER,RAD INL	8-94438-037-1	01	1	9210-9308		●
128	01.159 HOSE; WATER,RAD INL	8-94388-164-1	01	1	9210-9409				●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9210-9409					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9410-				●	●

56 56 55 56 128 56 88 88 20 18 13 20 2 1 34 33 56 55 56 56 128 56 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD	8-97032-681-1	01	1	9210-9307	●	●	●	●	●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9308-	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9210-9307	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97100-665-0	01	1	9308-9506	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9507-	●	●	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9210-9403	●	●	●	●	●
13	01.240 CLIP; HOSE,SURGE TANK EXC. AUSTRALIA EQUIPMENT(RR3) 02.559 L=103	8-94239-339-0	02	1	9210-9403						●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9404-	●	●		●	●
13	01.240 CLIP; HOSE,SURGE TANK EXC. AUSTRALIA EQUIPMENT(RR3) 02.559 L=103	8-94239-339-0	02	1	9404-			●			●
13	01.240 CLIP; HOSE,SURGE TANK AUSTRALIA EQUIPMENT(RR3) 02.559 L=103	8-94239-339-0	01	1	9210-						●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-0	01	1	9210-9606	●	●	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG>	8-97016-104-0	01	1	9607-9607	●		●			●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-0	01	1	9607-9607				●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97016-104-1	01	1	9608-	●		●	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. ELECTRIC FUEL INJECTION<6GG>	8-97016-104-1	01	1	9608-						●
18	01.240 HOSE; RAD TO SURGE TANK LONG(TF***F) HEAVY DUTY AIR CLEANER<K46> ELECTRIC FUEL INJECTION<6GG>	8-97161-787-0	01	1	9607-			●			●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9210-	●	●	●	●	●	●
33	01.277 BOLT; BRKT 08.077 M6X18	8-94408-386-1	02	1	9210-9308		●		●	●
33	01.277 BOLT; BRKT ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-94408-386-1	02	1	9309-9508			●			●
33	01.277 BOLT; BRKT 08.077 M6X18	8-94408-386-1	02	1	9309-9508				●	●
33	01.277 BOLT; BRKT ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9509-9512			●			●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9509-9512				●	●
33	01.277 BOLT; BRKT EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9601-	●		●
33	01.277 BOLT; BRKT 08.077 M6X18	8-97071-681-0	02	1	9601-			●	●	●
33	01.277 BOLT; BRKT LONG(TF***F) EXC. HEAVY DUTY AIR CLEANER<K46>, ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9601-						●
33	01.277 BOLT; BRKT SHORT(TF***C) EXC. HEAVY DUTY AIR CLEANER<K46> 08.077 M6X18	8-97071-681-0	02	1	9601-						●
33	01.277 BOLT; BRKT LONG(TF***F) EXC. ELECTRIC FUEL INJECTION<6GG> 08.077 M6X18	8-97071-681-0	02	1	9601-						●
33	01.277 BOLT; BRKT SHORT(TF***C) 08.077 M6X18	8-97071-681-0	02	1	9601-						●
34	01.203 BOLT; RESERVE TANK M8X25	8-97017-390-0	02	1	9210-9302	●	●	●	●	●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9303-	●	●	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94337-300-0	01	1	9210-	●		●			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94438-040-1	01	1	9210-9308		●
55	01.173 HOSE; WATER,RAD OUTLET	8-94388-165-2	01	1	9210-				●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9210-	●		●			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=42	9-09915-042-1	03	1	9210-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=46	8-94160-650-0	01	1	9210-9308		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	01	1	9210-				●	●
88	01.219 BRACKET; SUB TANK HOSE (A)	8-94473-988-3	01	1	9210-9403	●	●	●	●	●
88	01.219 BRACKET; SUB TANK HOSE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94473-988-3	01	1	9210-9403						●
88	01.219 BRACKET; SUB TANK HOSE (A)	8-94473-988-3	01	1	9404-	●	●		●	●
88	01.219 BRACKET; SUB TANK HOSE EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94473-988-3	01	1	9404-			●			●
88	01.219 BRACKET; SUB TANK HOSE AUSTRALIA EQUIPMENT(RR3) (B)	8-94473-989-1	01	1	9210-9403						●
88	01.219 BRACKET; SUB TANK HOSE AUSTRALIA EQUIPMENT(RR3) (B)	8-94473-989-1	01	1	9404-			●			●
128	01.159 HOSE; WATER,RAD INL	8-94389-481-0	01	1	9210-	●		●
128	01.159 HOSE; WATER,RAD INL EXC. AUSTRALIA EQUIPMENT(RR3)	8-94389-481-0	01	1	9210-						●
128	01.159 HOSE; WATER,RAD INL AUSTRALIA EQUIPMENT(RR3)	8-94447-549-1	01	1	9210-						●
128	01.159 HOSE; WATER,RAD INL	8-94438-037-1	01	1	9210-9308		●
128	01.159 HOSE; WATER,RAD INL	8-94388-164-1	01	1	9210-9409				●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9210-9409					●
128	01.159 HOSE; WATER,RAD INL	8-97023-019-0	01	1	9410-				●	●
