◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50651 - TFR/TFS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-05 - AUTO CRUISE ACTUATOR ▶
1-05 — AUTO CRUISE ACTUATOR (#41708) — 20 parça
çizim 18310
24 23 25
BalonParca AdiParca NoAdetTipApplied Date
23 03.454 LEVER; CRUISE
AUTO CRUISE CONT<K30> 		8-97016-789-0 01 1 9210-9308
24 03.463 LINK; CRUISE
AUTO CRUISE CONT<K30> 		8-94476-217-1 01 1 9210-9308
25 03.459 SPRING; RETURN,CRUISE LEVER
AUTO CRUISE CONT<K30> 		8-94478-007-1 01 1 9210-9308

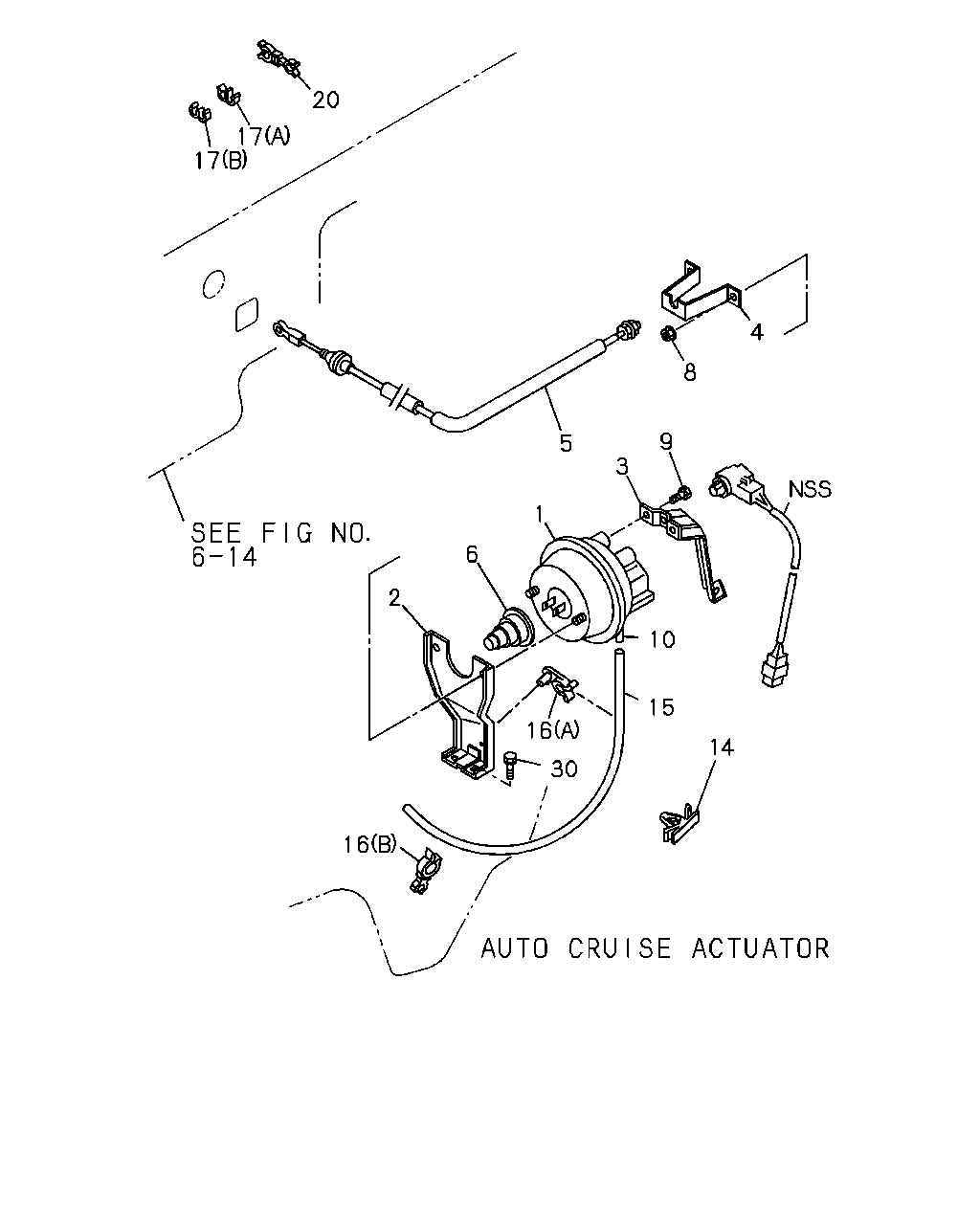

çizim 66664
20 17 17 5 8 4 9 3 1 6 2 10 15 14 16 30 16
BalonParca AdiParca NoAdetTipApplied Date
1 03.885 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-94366-038-0 01 1 9210-9308
2 03.885 BRACKET; A ACTUATOR
AUTO CRUISE CONT<K30> 		8-94377-803-0 01 1 9210-9308
3 03.885 BRACKET; B ACTUATOR
AUTO CRUISE CONT<K30> 		8-94377-804-0 01 1 9210-9308
4 03.880 SUPPORT; CABLE ACTUATOR
AUTO CRUISE CONT<K30> 		8-94408-635-0 01 1 9210-9308
5 03.880 CABLE; ACTUATOR
AUTO CRUISE CONT<K30> 		8-94377-805-0 01 1 9210-9308
6 03.885 BOOT; CABLE ACTUATOR
AUTO CRUISE CONT<K30> 03.880 		8-94114-776-0 01 1 9210-9308
8 03.885 NUT; FLANGE SUPPORT
AUTO CRUISE CONT<K30> 		8-94455-124-0 02 1 9210-9308
9 03.885 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 03.440 		8-94408-639-0 02 1 9210-9308
10 03.885 FILTER; ACTUATOR UNIT
AUTO CRUISE CONT<K30> 		8-94120-661-0 01 1 9210-9308
14 03.885 CLIP; HOSE
AUTO CRUISE CONT<K30> 01.166 		8-94456-949-0 01 1 9210-9308
15 03.445 HOSE; ACTUATOR TO EMISSION CONT
AUTO CRUISE CONT<K30> 08.962 SERVICED BY L=3000 		0-04740-300-0 01 1 9210-9308
16 03.425 CLIP; ROD HOLDER,ACTUATOR HOSE
AUTO CRUISE CONT<K30> (A) ID=8.0 		8-94310-798-0 01 1 9210-9308
16 03.425 CLIP; ROD HOLDER,ACTUATOR HOSE
AUTO CRUISE CONT<K30> (B) ID=8.3 & 20.2 		8-94470-738-0 01 1 9210-9308
17 03.483 CLIP; ACCEL CONT CABLE TO VAC HO
AUTO CRUISE CONT<K30> 03.162 (A) ID=6.8X2 		8-94126-636-0 03 1 9210-9308
17 03.483 CLIP; ACCEL CONT CABLE TO VAC HO
AUTO CRUISE CONT<K30> 03.680 (B) ID=5.7/7.7 		8-94419-080-0 02 1 9210-9308
20 03.440 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> 04.661 ID=14.5 & 6 		8-94312-791-0 01 1 9210-9308
30 03.440 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> 02.334 M8X18 		8-94478-122-0 03 1 9210-9308
