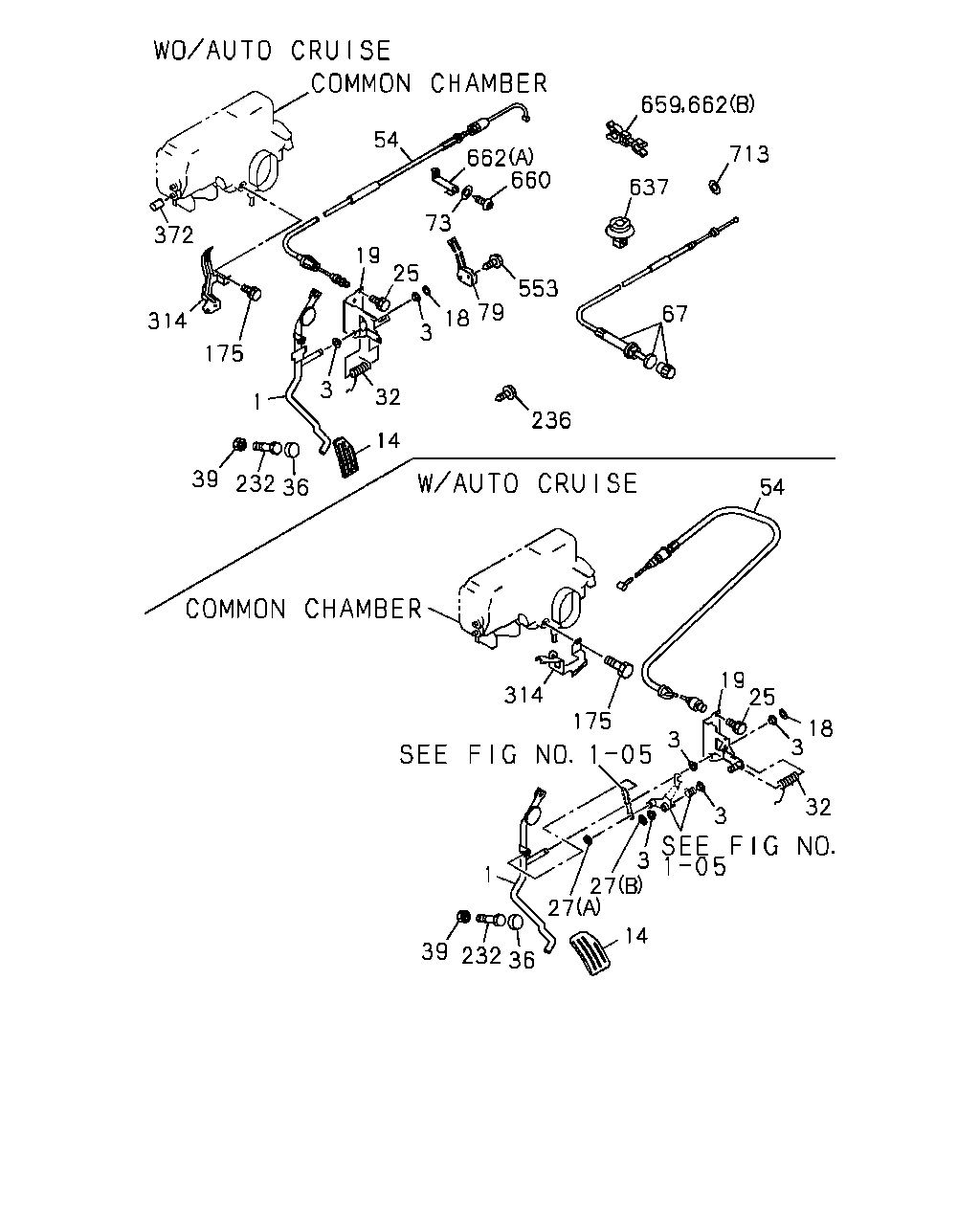

1-01 — ACCELERATOR PEDAL AND CONTROL (#41707) — 76 parça

659 662 713 637 54 662 660 372 314 175 1 39 232 36 14 3 32 19 25 3 18 79 553 73 67 236 54 314 175 19 25 18 3 3 3 32 3 27 27 1 39 232 36 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	9210-9308	●	●	●	●
1	03.451 LEVER; PEDAL SIDE EXC. AUTO CRUISE CONT<K30>	8-97022-897-0	01	1	9210-9308					●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIA EQUIPMENT(RR3)	8-97022-897-0	01	1	9210-9308						●
1	03.451 LEVER; PEDAL SIDE	8-97022-897-0	01	1	9309-	●		●	●	●
1	03.451 LEVER; PEDAL SIDE EXC. AUSTRALIA EQUIPMENT(RR3)	8-97022-897-0	01	1	9309-						●
1	03.451 LEVER; PEDAL SIDE AUTO CRUISE CONT<K30>	8-97022-898-0	01	1	9210-9308					●
1	03.451 LEVER; PEDAL SIDE AUSTRALIA EQUIPMENT(RR3)	8-97033-389-0	01	1	9210-						●
3	03.454 BUSHING; PEDAL 16.585 OD=9.9	8-94279-701-3	02	1	9210-9308	●	●	●	●		●
3	03.454 BUSHING; PEDAL EXC. AUTO CRUISE CONT<K30> 16.585 OD=9.9	8-94279-701-3	02	1	9210-9308					●
3	03.454 BUSHING; PEDAL AUTO CRUISE CONT<K30> 16.585 OD=9.9	8-94279-701-3	04	1	9210-9308					●
3	03.454 BUSHING; PEDAL 16.585 OD=9.9	8-94279-701-3	02	1	9309-9501	●		●	●	●	●
3	03.454 BUSHING; PEDAL 16.585 OD=9.9	8-94279-701-3	02	1	9502-	●				●
3	03.454 BUSHING; PEDAL EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 16.585 OD=9.9	8-94279-701-3	02	1	9502-				●		●
14	03.451 PAD; PEDAL,ACCEL	8-94473-376-1	01	1	9210-	●	●	●	●	●	●
18	03.459 NUT; JOINT LK 03.452 ID=7.9 PUSH NUT	8-94368-617-0	01	1	9210-	●	●	●	●	●	●
19	03.452 BRACKET; ACCEL PEDAL	8-94473-373-2	01	1	9210-9308	●	●	●	●		●
19	03.452 BRACKET; ACCEL PEDAL EXC. AUTO CRUISE CONT<K30>	8-94473-373-2	01	1	9210-9308					●
19	03.452 BRACKET; ACCEL PEDAL	8-94473-373-2	01	1	9309-9501	●		●	●	●	●
19	03.452 BRACKET; ACCEL PEDAL	8-97117-120-1	01	1	9502-	●		●	●	●	●
19	03.452 BRACKET; ACCEL PEDAL AUTO CRUISE CONT<K30>	8-94473-374-2	01	1	9210-9308					●
25	03.452 BOLT; SHAFT SIDE 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	02	1	9210-	●	●	●	●	●	●
27	04.040 RETAINER; ACCEL PEDAL AUTO CRUISE CONT<K30> (A) ID=4	9-09185-404-0	02	1	9210-9308					●
27	04.040 RETAINER; ACCEL PEDAL AUTO CRUISE CONT<K30> (B) ID=6	9-09185-406-0	01	1	9210-9308					●
32	03.459 SPRING; RETURN,ACCEL PEDAL	8-97019-282-0	01	1	9210-	●	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL EXC. AUSTRALIA EQUIPMENT(RR3)	8-97019-282-0	01	1	9210-						●
32	03.459 SPRING; RETURN,ACCEL PEDAL AUSTRALIA EQUIPMENT(RR3)	8-97041-783-0	01	1	9210-						●
36	03.451 PAD; ACCEL PEDAL STOPPER	8-94328-339-0	01	1	9210-9501	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 08.915 M8	9-09111-508-0	01	1	9210-9406	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 00.787	9-09111-408-0	01	1	9407-	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT	8-97069-427-2	01	1	9210-9304	●		●
54	03.430 CABLE; ENG CONT EXC. AUSTRALIA EQUIPMENT(RR3)	8-97069-427-2	01	1	9210-9304					●
54	03.430 CABLE; ENG CONT	8-94434-522-4	01	1	9305-	●		●
54	03.430 CABLE; ENG CONT EXC. AUSTRALIA EQUIPMENT(RR3)	8-94434-522-4	01	1	9305-					●
54	03.430 CABLE; ENG CONT AUSTRALIA EQUIPMENT(RR3)	8-97070-791-4	01	1	9210-					●
54	03.430 CABLE; ENG CONT	8-94434-597-2	01	1	9210-9308		●
54	03.430 CABLE; ENG CONT A/T AISIN(RMD) 940711-	8-97117-266-0	01	1	9407-				●
54	03.430 CABLE; ENG CONT	8-97014-876-2	01	1	9210-9310				●		●
54	03.430 CABLE; ENG CONT THAILAND EQUIPMENT(PM9)	8-97014-876-3	01	1	9311-9407				●
54	03.430 CABLE; ENG CONT M/T MSG 5 SPEED(M75) THAILAND EQUIPMENT(PM9) 940711-	8-97014-876-3	01	1	9407-				●
54	03.430 CABLE; ENG CONT EXC. THAILAND EQUIPMENT(PM9)	8-97104-385-0	01	1	9311-				●		●
67	03.480 CABLE ASM; IDLE CONT	8-94473-379-4	01	1	9210-9308		●		●		●
67	03.480 CABLE ASM; IDLE CONT	8-97100-936-2	01	1	9309-9510				●		●
67	03.480 CABLE ASM; IDLE CONT	8-97137-521-0	01	1	9511-				●		●
73	03.463 WASHER; PL,ACCEL CONT CABLE 00.206 ID=6.1	9-09150-506-0	01	1	9210-9509				●		●
73	03.463 WASHER; PL,ACCEL CONT CABLE THAILAND EQUIPMENT(PM9) 00.206 ID=6.1	9-09150-506-0	01	1	9510-				●
79	03.451 SWITCH; ACCEL PEDAL SINGAPORE EQUIPMENT(S9Y)	8-97069-328-1	01	1	9210-9401	●
79	03.451 SWITCH; ACCEL PEDAL	8-97069-328-1	01	1	9210-9401			●
79	03.451 SWITCH; ACCEL PEDAL	8-97069-328-1	01	1	9402-			●
79	03.451 SWITCH; ACCEL PEDAL UNITED KINGDOM EQUIPMENT(EK3)	8-97084-553-0	01	1	9210-				●
175	03.483 BOLT; BRKT,ACCEL CABLE 03.444 M8X14 W/LK WASHERT	8-94208-228-0	03	1	9210-9508	●		●
175	03.483 BOLT; BRKT,ACCEL CABLE EXC. AUSTRALIA EQUIPMENT(RR3) 03.444 M8X14 W/LK WASHERT	8-94208-228-0	03	1	9210-9508					●
175	03.483 BOLT; BRKT,ACCEL CABLE 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9509-	●		●
175	03.483 BOLT; BRKT,ACCEL CABLE EXC. AUSTRALIA EQUIPMENT(RR3) 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9509-					●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.704 M8X35	0-20800-835-0	01	1	9210-	●	●	●	●	●	●
236	03.452 SCREW; TAP,PEDAL TO BRKT EXC. THAILAND EQUIPMENT(PM9) 16.165 M6X16 TAPPING W/PL WASHER	0-74300-616-0	01	1	9311-				●		●
314	03.481 BRACKET; ACCEL CABLE	8-94167-322-2	01	1	9210-	●		●
314	03.481 BRACKET; ACCEL CABLE EXC. AUSTRALIA EQUIPMENT(RR3)	8-94167-322-2	01	1	9210-					●
314	03.481 BRACKET; ACCEL CABLE A/T AISIN(RMD)	8-97060-113-0	01	1	9210-					●
372	03.402 PLUG; COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) EXC. AUTO CRUISE CONT<K30> 01.780 ID=4	8-94217-809-0	01	1	9210-9308					●
372	03.402 PLUG; COMMON CHAMBER AUSTRALIA EQUIPMENT(RR3) 01.780 ID=4	8-94217-809-0	01	1	9309-9406					●
553	03.451 SCREW; TAP,PEDAL TO SW SINGAPORE EQUIPMENT(S9Y) M3X16 TAPPING	0-71280-316-0	02	1	9210-9401	●
553	03.451 SCREW; TAP,PEDAL TO SW M3X16 TAPPING	0-71280-316-0	02	1	9210-9401			●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9210-9401				●
553	03.451 SCREW; TAP,PEDAL TO SW M3X16 TAPPING	0-71280-316-0	02	1	9402-			●
553	03.451 SCREW; TAP,PEDAL TO SW UNITED KINGDOM EQUIPMENT(EK3) M3X16 TAPPING	0-71280-316-0	02	1	9402-				●
637	03.469 GROMMET; ACCEL CABLE 16.346	8-97801-635-1	01	1	9510-	●		●		●
637	03.469 GROMMET; ACCEL CABLE THAILAND EQUIPMENT(PM9) 16.346	8-97801-635-1	01	1	9510-				●
659	03.483 CLIP; ACCEL CONT CABLE 04.661 ID=14.5/6 ID=14.5 & 6	8-94312-791-0	01	1	9210-9405						●
660	03.463 SCREW; CLIP TO BRKT 02.343	8-94470-854-1	01	1	9210-9509				●		●
660	03.463 SCREW; CLIP TO BRKT THAILAND EQUIPMENT(PM9) 02.343	8-94470-854-1	01	1	9510-				●
662	03.430 CLIP; ACCEL CONT CABLE 02.559 (B) ID=10 & 12	8-94155-296-0	01	1	9210-				●		●
662	03.430 CLIP; ACCEL CONT CABLE (B) ID=6 & 16.5	8-94165-402-0	01	1	9210-				●		●
662	03.430 CLIP; ACCEL CONT CABLE (A) ID=10.5 H=60	8-94323-658-1	01	1	9210-				●		●
662	03.430 CLIP; ACCEL CONT CABLE 03.145 (B) ID=25 & 11	8-97068-799-0	01	1	9407-				●		●
713	03.463 WASHER; PL 16.674 ID=8.4	9-09160-508-0	01	1	9502-			●
713	03.463 WASHER; PL UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 16.674 ID=8.4	9-09160-508-0	01	1	9502-				●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
