0-83A — ANEROID COMPENSATOR; INJECTION GOVERNOR (#41700) — 40 parça

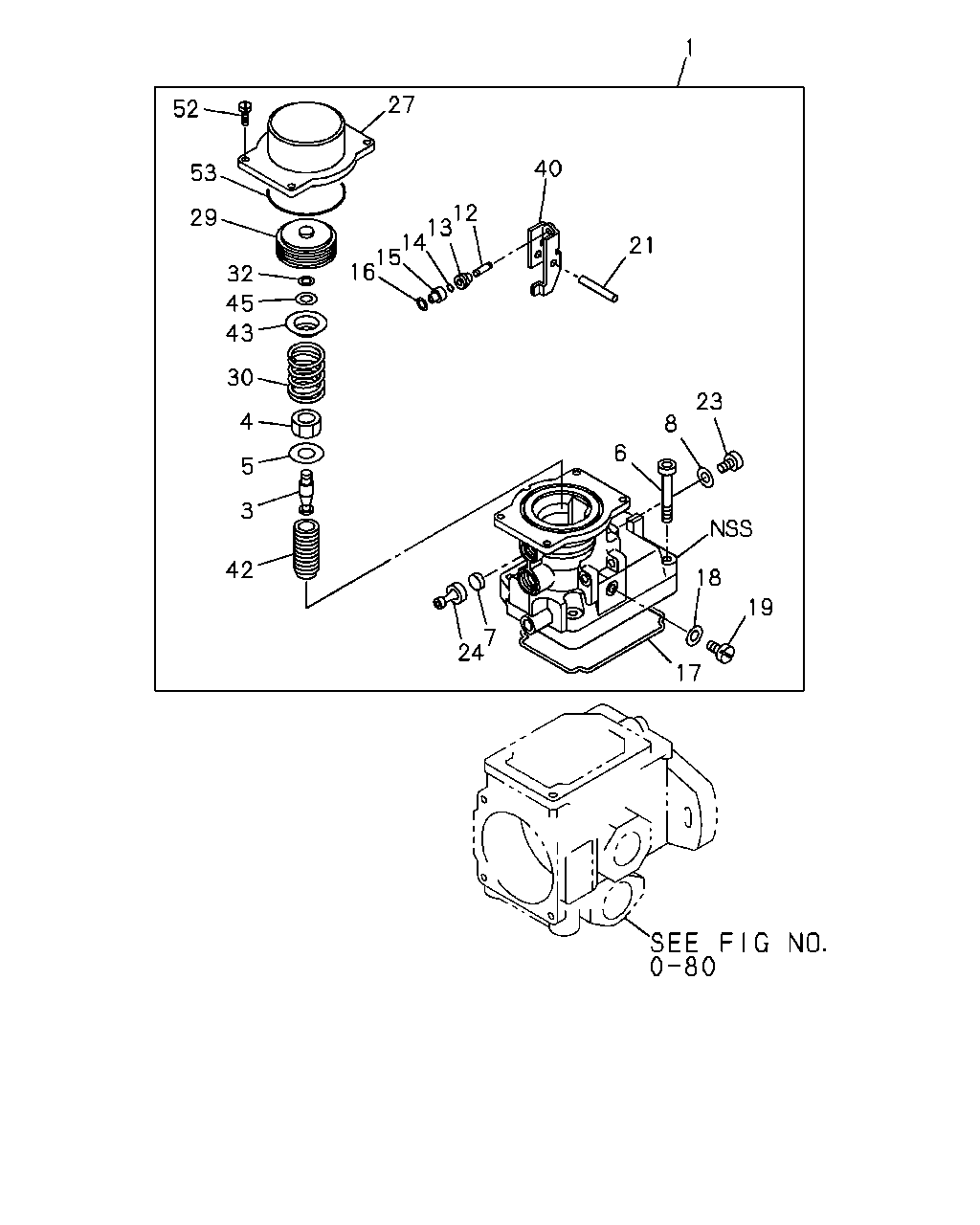

çizim 66274
1 21 40 12 13 14 15 16 27 52 53 29 32 45 43 30 4 5 3 42 23 8 6 18 19 17 7 24
BalonParca AdiParca NoAdetTipApplied Date
1 03.320 COMPENSATOR ASM; ANEROID,INJ PUM
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192 		8-94329-753-0 01 1 -
1 03.320 COMPENSATOR ASM; ANEROID,INJ PUM
ASM PART: C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-97079-008-0 01 1 -
3 03.320 PIN; ADJ,ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192 		8-94111-668-0 01 1 -
3 03.320 PIN; ADJ,ANEROID COMPENSATOR
03.318 ASM PART: C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94464-676-0 01 1 -
4 03.320 NUT; BUSHING LOCK,ANEROID COMPEN
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-166-0 01 1 -
5 03.320 WASHER; BUSHING FIX,ANEROID COMP
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-165-0 01 1 -
6 03.330 BOLT; HSG FIX,ANEROID COMPENSATO
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94242-298-0 04 1 -
7 03.314 ELEMENT; HSG
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94159-096-0 01 1 -
8 03.308 GASKET; HSG PLUG,ANEROID,COMPENS
03.306 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94144-588-0 01 1 -
12 03.320 PIN; CONN,ANEROID COMPENSATOR
L=24.6 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-167-0 01 1 -
12 03.320 PIN; CONN,ANEROID COMPENSATOR
L=24.8 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-168-0 01 1 -
12 03.320 PIN; CONN,ANEROID COMPENSATOR
L=25.0 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-169-0 01 1 -
12 03.320 PIN; CONN,ANEROID COMPENSATOR
L=25.2 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-170-0 01 1 -
12 03.320 PIN; CONN,ANEROID COMPENSATOR
L=25.4 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-171-0 01 1 -
13 03.318 NUT; ADJ PIN BUSHING,ANEROID COM
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-683-0 01 1 -
14 03.318 GASKET; CONN PIN,ANEROID COMPENS
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-684-0 01 1 -
15 03.314 BUSHING; CONN PIN,ANEROID COMPEN
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-685-0 01 1 -
16 03.318 GASKET; BUSHING,ANEROID COMPENSA
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-686-0 01 1 -
17 03.308 GASKET; HSG,ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94227-599-0 01 1 -
18 03.318 GASKET; LEVER PIN PLUG,HSG
09.170 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		5-15729-099-0 02 1 -
19 03.318 PLUG; LEVER PIN,ANEROID COMPENSA
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-694-0 02 1 -
21 03.318 PIN; LEVER,ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-693-0 01 1 -
23 03.318 PLUG; HSG,ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-687-0 01 1 -
24 03.308 PLUG; HSG UPR,ANEROID COMPENSATO
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-174-0 01 1 -
27 03.320 COVER; HSG,ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-172-0 01 1 -
29 03.320 BELLOWS; ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-699-0 01 1 -
30 03.320 SPRING; PUSH ROD,ANEROID COMPENS
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-690-0 01 1 -
32 03.322 SHIM; BELLOWS,ANEROID COMPENSATO
T=0.20 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-700-0 AR 1 -
32 03.322 SHIM; BELLOWS,ANEROID COMPENSATO
T=0.30 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-701-0 AR 1 -
32 03.322 SHIM; BELLOWS,ANEROID COMPENSATO
T=0.50 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-702-0 AR 1 -
32 03.322 SHIM; BELLOWS,ANEROID COMPENSATO
T=0.70 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-703-0 AR 1 -
32 03.322 SHIM; BELLOWS,ANEROID COMPENSATO
T=1.00 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-704-0 AR 1 -
32 03.322 SHIM; BELLOWS,ANEROID COMPENSATO
T=1.50 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-705-0 AR 1 -
40 03.320 LEVER; ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-173-0 01 1 -
42 03.220 BUSHING; ADJ PIN,ANEROID COMPENS
03.320 ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-164-0 01 1 -
43 03.320 SEAT; SPRING,ANEROID COMPENSATOR
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-697-0 01 1 -
45 03.320 RING; SNAP,ADJ PIN,ANEROID COMPE
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94257-698-0 01 1 -
52 03.320 SCREW; COVER FIX,ANEROID COMPENS
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192 		8-94244-600-0 02 1 -
52 03.320 SCREW; COVER FIX,ANEROID COMPENS
03.306 ASM PART: C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94313-203-0 04 1 -
53 03.308 GASKET; COVER,ANEROID COMPENSATO
ASM PART: A = 8-94475-191-0, 94475191, B = 8-94475-192-0, 94475192, C = 8-97069-758-0, 97069758, D = 8-97069-759-0, 97069759, E = 8-97069-760-0, 97069760 		8-94150-175-0 01 1 -
