Sayfa 0-14B - Isuzu EPC

0-14B — CAMSHAFT AND VALVE (#4170) — 314 parça

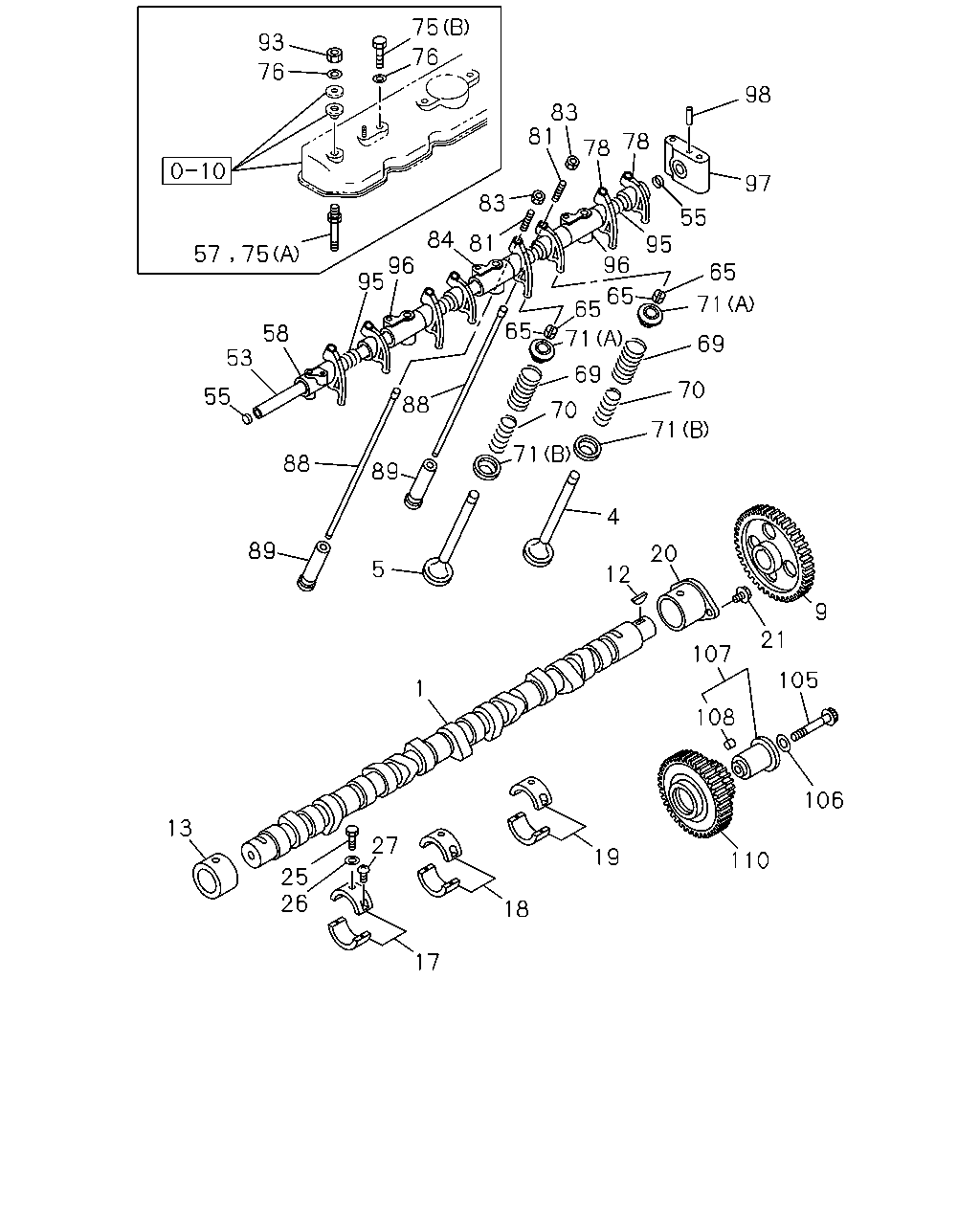

75 93 76 76 83 81 78 83 81 78 96 97 98 96 55 57 75 84 84 78 78 95 65 65 65 71 65 71 69 69 88 53 70 70 58 71 55 71 88 5 89 4 89 21 20 12 9 105 106 25 27 26 19 1 13 18 108 17 107 110 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	1-12511-191-2	01	1	9603-9901	●
1	CAMSHAFT	1-12511-191-2	01	1	9905-	●
1	CAMSHAFT	1-12511-189-3	01	1	9603-9901		●
1	CAMSHAFT	1-12511-189-3	01	1	9905-		●	●	●
4	VALVE; INL	1-12551-136-1	08	1	9603-9901	●
4	VALVE; INL	1-12551-136-1	08	1	9905-	●
4	VALVE; INL	1-12551-136-1	10	1	9603-9901		●
4	VALVE; INL	1-12551-136-1	10	1	9905-		●	●	●
5	VALVE; EXH	1-12552-097-0	08	1	9603-9901	●
5	VALVE; EXH	1-12552-097-0	08	1	9905-	●
5	VALVE; EXH	1-12552-097-0	10	1	9603-9901		●
5	VALVE; EXH	1-12552-097-0	10	1	9905-		●	●	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9603-9901	●	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9905-	●	●	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9603-9901	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9905-	●	●	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9603-9901	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9905-	●	●	●	●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9603-9901		●
16	METAL; CM/SHF,NO 3	1-11617-007-1	01	1	9905-		●	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9603-9901	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9905-	●	●	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9603-9901	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9905-	●	●	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9603-9901	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9905-	●	●	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9603-9901	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9905-	●	●	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9603-9901	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9905-	●	●	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9603-9901	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9905-	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9603-9901		●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9905-		●	●	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9603-9901	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9603-9901		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9905-		●	●	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9603-9901	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9905-	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9603-9901		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9905-		●	●	●
53	SHAFT; ROCKER ARM	1-12621-005-2	02	1	9603-9901	●
53	SHAFT; ROCKER ARM	1-12621-005-3	02	1	9905-	●
53	SHAFT; ROCKER ARM	1-12621-011-0	02	1	9603-9901		●
53	SHAFT; ROCKER ARM	1-12621-011-1	02	1	9905-		●	●	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9603-9901	●	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9905-	●	●	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	06	1	9603-9901	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-2	06	1	9905-	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9603-9901		●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9905-		●	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9603-9901	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9905-	●	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9905-		●	●	●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9905-	●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9603-9901	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9603-9901		●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	08	1	9603-9901	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	08	1	9603-9901	●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	08	1	9905-	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	08	1	9905-	●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	10	1	9603-9901		●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	10	1	9603-9901		●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	10	1	9905-		●	●	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	10	1	9905-		●	●	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	08	1	9603-9901	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	08	1	9603-9901	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	08	1	9905-	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	08	1	9905-	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	10	1	9603-9901		●
70	SPRING; VLV,INNER INLET	1-12562-047-0	10	1	9603-9901		●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	10	1	9905-		●	●	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	10	1	9905-		●	●	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	08	1	9603-9901	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	08	1	9603-9901	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	16	1	9603-9901	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	08	1	9905-	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	08	1	9905-	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	16	1	9905-0101	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-059-1	16	1	0102-	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	10	1	9603-9901		●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	10	1	9603-9901		●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	20	1	9603-9901		●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	10	1	9905-		●	●	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	10	1	9905-		●	●	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	20	1	9905-0101		●	●	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-059-1	20	1	0102-		●	●	●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-1	02	1	9603-9901	●	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9603-9901	●	●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-1	02	1	9905-	●	●	●	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9905-	●	●	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9603-9901	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9905-	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9603-9901		●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9905-		●	●	●
78	ARM; ROCKER INLET	1-12611-266-0	08	1	9603-9807	●
78	ARM; ROCKER INLET	1-12611-282-0	08	1	9808-9901	●
78	ARM; ROCKER EXHAUST	1-12611-267-0	08	1	9603-9807	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	08	1	9808-9901	●
78	ARM; ROCKER INLET	1-12611-282-0	08	1	9905-	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	08	1	9905-	●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9603-9807		●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9808-9901		●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9603-9807		●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9808-9901		●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9905-		●	●	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9905-		●	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9603-9901	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9905-	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9603-9901		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9905-		●	●	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9603-9901	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9905-	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9603-9901		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9905-		●	●	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9603-9901	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9905-	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9603-9901		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9905-		●	●	●
88	ROD; PUSH	1-12575-048-1	16	1	9603-9901	●
88	ROD; PUSH	1-12575-048-1	16	1	9905-0012	●
88	ROD; PUSH	1-12575-061-0	16	1	0101-	●
88	ROD; PUSH	1-12575-048-1	20	1	9603-9901		●
88	ROD; PUSH	1-12575-048-1	20	1	9905-0012		●	●	●
88	ROD; PUSH	1-12575-061-0	20	1	0101-		●	●	●
89	TAPPET; VLV	1-12571-228-4	16	1	9603-9703	●
89	TAPPET; VLV	1-12571-241-0	16	1	9704-9901	●
89	TAPPET; VLV	1-12571-241-0	16	1	9905-	●
89	TAPPET; VLV	1-12571-228-4	20	1	9603-9703		●
89	TAPPET; VLV	1-12571-241-0	20	1	9704-9901		●
89	TAPPET; VLV	1-12571-241-0	20	1	9905-		●	●	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9603-9901	●	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9603-9901	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9905-	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9603-9901		●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9905-		●	●	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9603-9901	●	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9905-	●	●	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9603-9901	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9905-	●	●	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9603-9901	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9905-	●	●	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 W/FLANGE 12-POINT HEAD M16X94 FLANGE	1-09070-031-0	01	1	9603-9901	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 W/FLANGE 12-POINT HEAD M16X94 FLANGE	1-09070-031-1	01	1	9905-	●	●	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9603-9901	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9905-	●	●	●	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9603-9901	●	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9905-	●	●	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9603-9901	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9905-	●	●	●	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-2	01	1	9603-9901	●	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9905-	●	●	●	●

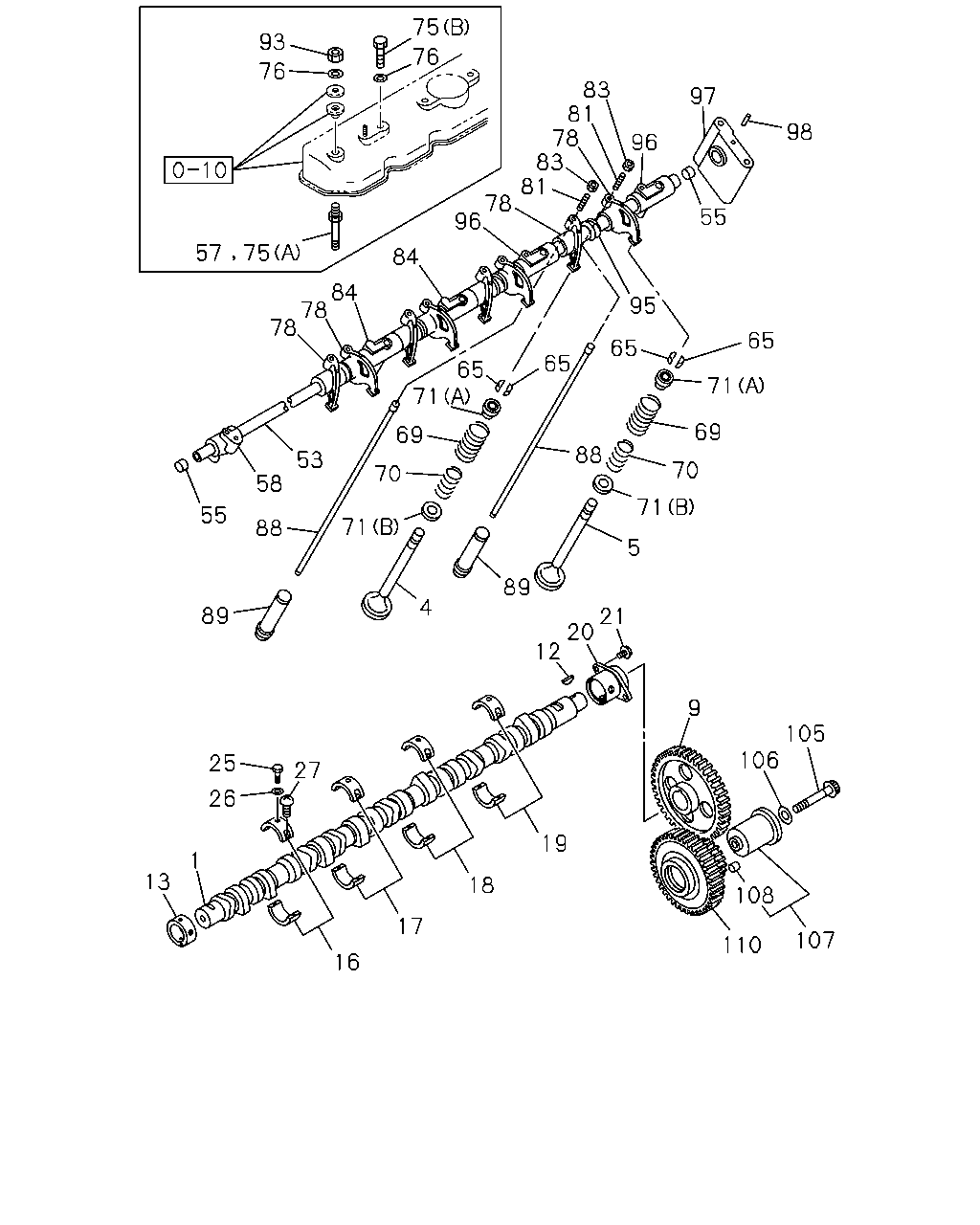

75 93 76 76 98 83 81 78 78 97 83 55 95 84 81 57 75 96 65 65 96 95 65 71 65 58 71 69 53 69 70 55 88 70 71 71 88 89 4 89 20 5 12 9 21 107 105 1 108 106 13 27 19 110 25 26 18 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	1-12511-191-2	01	1	9603-9901	●
1	CAMSHAFT	1-12511-191-2	01	1	9905-	●
1	CAMSHAFT	1-12511-189-3	01	1	9603-9901		●
1	CAMSHAFT	1-12511-189-3	01	1	9905-		●	●	●
4	VALVE; INL	1-12551-136-1	08	1	9603-9901	●
4	VALVE; INL	1-12551-136-1	08	1	9905-	●
4	VALVE; INL	1-12551-136-1	10	1	9603-9901		●
4	VALVE; INL	1-12551-136-1	10	1	9905-		●	●	●
5	VALVE; EXH	1-12552-097-0	08	1	9603-9901	●
5	VALVE; EXH	1-12552-097-0	08	1	9905-	●
5	VALVE; EXH	1-12552-097-0	10	1	9603-9901		●
5	VALVE; EXH	1-12552-097-0	10	1	9905-		●	●	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9603-9901	●	●
9	GEAR; CM/SHF Z=52	1-12522-033-2	01	1	9905-	●	●	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9603-9901	●	●
12	KEY; CAM GEAR SET	9-08055-516-0	01	1	9905-	●	●	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9603-9901	●	●
13	METAL; CM/SHF,NO 1	1-11611-003-2	01	1	9905-	●	●	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9603-9901	●	●
17	METAL; CM/SHF,NO 4	1-11618-006-1	01	1	9905-	●	●	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9603-9901	●	●
18	METAL; CM/SHF,NO 5	1-11619-015-1	01	1	9905-	●	●	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9603-9901	●	●
19	METAL; CM/SHF,NO 6	1-11619-018-1	01	1	9905-	●	●	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9603-9901	●	●
20	METAL; CM/SHF,NO 7	1-11619-059-1	01	1	9905-	●	●	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9603-9901	●	●
21	BOLT; CM/SHF METAL,NO 7 M10X22 FLANGE	0-28181-022-0	02	1	9905-	●	●	●	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9603-9901	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	04	1	9905-	●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9603-9901		●
25	SCREW; CM/SHF METAL M8X31	1-09129-004-2	05	1	9905-		●	●	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9603-9901	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	04	1	9905-	●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9603-9901		●
26	GASKET; SET SCREW ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	05	1	9905-		●	●	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9603-9901	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	06	1	9905-	●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9603-9901		●
27	SCREW; CM/SHF METAL M4X14 W/LK WASHER	9-03910-414-0	08	1	9905-		●	●	●
53	SHAFT; ROCKER ARM	1-12621-005-2	02	1	9603-9901	●
53	SHAFT; ROCKER ARM	1-12621-005-3	02	1	9905-	●
53	SHAFT; ROCKER ARM	1-12621-011-0	02	1	9603-9901		●
53	SHAFT; ROCKER ARM	1-12621-011-1	02	1	9905-		●	●	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9603-9901	●	●
55	PLUG; ROCKER SHAFT END OD=16	9-11129-081-0	04	1	9905-	●	●	●	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	06	1	9603-9901	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-2	06	1	9905-	●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9603-9901		●
57	BOLT; ROCKER ARM BRKT M8X13,M10X70 L=90	1-09029-024-1	08	1	9905-		●	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9603-9901	●	●
58	BRACKET; ROCKER SHAFT,FRT	1-12628-048-0	02	1	9905-	●	●	●	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9905-		●	●	●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9905-	●
65	COLLAR; SPLIT	1-12565-007-0	32	1	9603-9901	●
65	COLLAR; SPLIT	1-12565-007-0	40	1	9603-9901		●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	08	1	9603-9901	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	08	1	9603-9901	●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	08	1	9905-	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	08	1	9905-	●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	10	1	9603-9901		●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	10	1	9603-9901		●
69	SPRING; VLV,OUTER EXHAUST	1-12561-074-0	10	1	9905-		●	●	●
69	SPRING; VLV,OUTER INLET	1-12561-075-0	10	1	9905-		●	●	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	08	1	9603-9901	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	08	1	9603-9901	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	08	1	9905-	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	08	1	9905-	●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	10	1	9603-9901		●
70	SPRING; VLV,INNER INLET	1-12562-047-0	10	1	9603-9901		●
70	SPRING; VLV,INNER EXHAUST	1-12562-046-0	10	1	9905-		●	●	●
70	SPRING; VLV,INNER INLET	1-12562-047-0	10	1	9905-		●	●	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	08	1	9603-9901	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	08	1	9603-9901	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	16	1	9603-9901	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	08	1	9905-	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	08	1	9905-	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	16	1	9905-0101	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-059-1	16	1	0102-	●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	10	1	9603-9901		●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	10	1	9603-9901		●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	20	1	9603-9901		●
71	SEAT; SPR (B) LOWER INLET	1-12563-027-0	10	1	9905-		●	●	●
71	SEAT; SPR (B) LOWER EXHAUST	1-12563-034-1	10	1	9905-		●	●	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-049-0	20	1	9905-0101		●	●	●
71	SEAT; SPR (A) UPPER INL & EXH	1-12563-059-1	20	1	0102-		●	●	●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-1	02	1	9603-9901	●	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9603-9901	●	●
75	BOLT; BRKT (A) M8X13,M10X70 L=90	1-09029-024-1	02	1	9905-	●	●	●	●
75	BOLT; BRKT (B) M10X70	9-01661-070-0	02	1	9905-	●	●	●	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9603-9901	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	10	1	9905-	●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9603-9901		●
76	WASHER; PL,BRKT ID=10	1-09503-033-1	12	1	9905-		●	●	●
78	ARM; ROCKER INLET	1-12611-266-0	08	1	9603-9807	●
78	ARM; ROCKER INLET	1-12611-282-0	08	1	9808-9901	●
78	ARM; ROCKER EXHAUST	1-12611-267-0	08	1	9603-9807	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	08	1	9808-9901	●
78	ARM; ROCKER INLET	1-12611-282-0	08	1	9905-	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	08	1	9905-	●
78	ARM; ROCKER INLET	1-12611-266-0	10	1	9603-9807		●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9808-9901		●
78	ARM; ROCKER EXHAUST	1-12611-267-0	10	1	9603-9807		●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9808-9901		●
78	ARM; ROCKER INLET	1-12611-282-0	10	1	9905-		●	●	●
78	ARM; ROCKER EXHAUST	1-12611-283-0	10	1	9905-		●	●	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9603-9901	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	16	1	9905-	●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9603-9901		●
81	SCREW; ADJ,ROCKER ARM	1-12616-001-0	20	1	9905-		●	●	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9603-9901	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	16	1	9905-	●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9603-9901		●
83	NUT; ADJ SCREW,LK M10	9-09840-310-0	20	1	9905-		●	●	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9603-9901	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	02	1	9905-	●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9603-9901		●
84	BRACKET; ROCKER SHAFT,INTER	1-12628-012-1	04	1	9905-		●	●	●
88	ROD; PUSH	1-12575-048-1	16	1	9603-9901	●
88	ROD; PUSH	1-12575-048-1	16	1	9905-0012	●
88	ROD; PUSH	1-12575-061-0	16	1	0101-	●
88	ROD; PUSH	1-12575-048-1	20	1	9603-9901		●
88	ROD; PUSH	1-12575-048-1	20	1	9905-0012		●	●	●
88	ROD; PUSH	1-12575-061-0	20	1	0101-		●	●	●
89	TAPPET; VLV	1-12571-228-4	16	1	9603-9703	●
89	TAPPET; VLV	1-12571-241-0	16	1	9704-9901	●
89	TAPPET; VLV	1-12571-241-0	16	1	9905-	●
89	TAPPET; VLV	1-12571-228-4	20	1	9603-9703		●
89	TAPPET; VLV	1-12571-241-0	20	1	9704-9901		●
89	TAPPET; VLV	1-12571-241-0	20	1	9905-		●	●	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9603-9901	●	●
93	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9603-9901	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	08	1	9905-	●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9603-9901		●
95	SPRING; ROCKER SHAFT	9-09941-218-0	10	1	9905-		●	●	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9603-9901	●	●
96	BRACKET; ROCKER ARM SHAFT	1-12628-011-1	04	1	9905-	●	●	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9603-9901	●	●
97	BRACKET; ROCKER SHAFT,RR	1-12628-006-2	02	1	9905-	●	●	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9603-9901	●	●
98	PIN; SHAFT SET	9-08160-430-0	02	1	9905-	●	●	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 W/FLANGE 12-POINT HEAD M16X94 FLANGE	1-09070-031-0	01	1	9603-9901	●	●
105	BOLT; IDLE GEAR SHAFT M16X94 W/FLANGE 12-POINT HEAD M16X94 FLANGE	1-09070-031-1	01	1	9905-	●	●	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9603-9901	●	●
106	WASHER; IDLE GEAR SHAFT ID=16.2	1-09503-022-1	01	1	9905-	●	●	●	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9603-9901	●	●
107	SHAFT; IDLE GEAR	1-12531-057-0	01	1	9905-	●	●	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9603-9901	●	●
108	DOWEL; SHAFT	9-12539-079-0	01	1	9905-	●	●	●	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-2	01	1	9603-9901	●	●
110	GEAR ASM; IDLE Z=48-26	1-12523-206-3	01	1	9905-	●	●	●	●

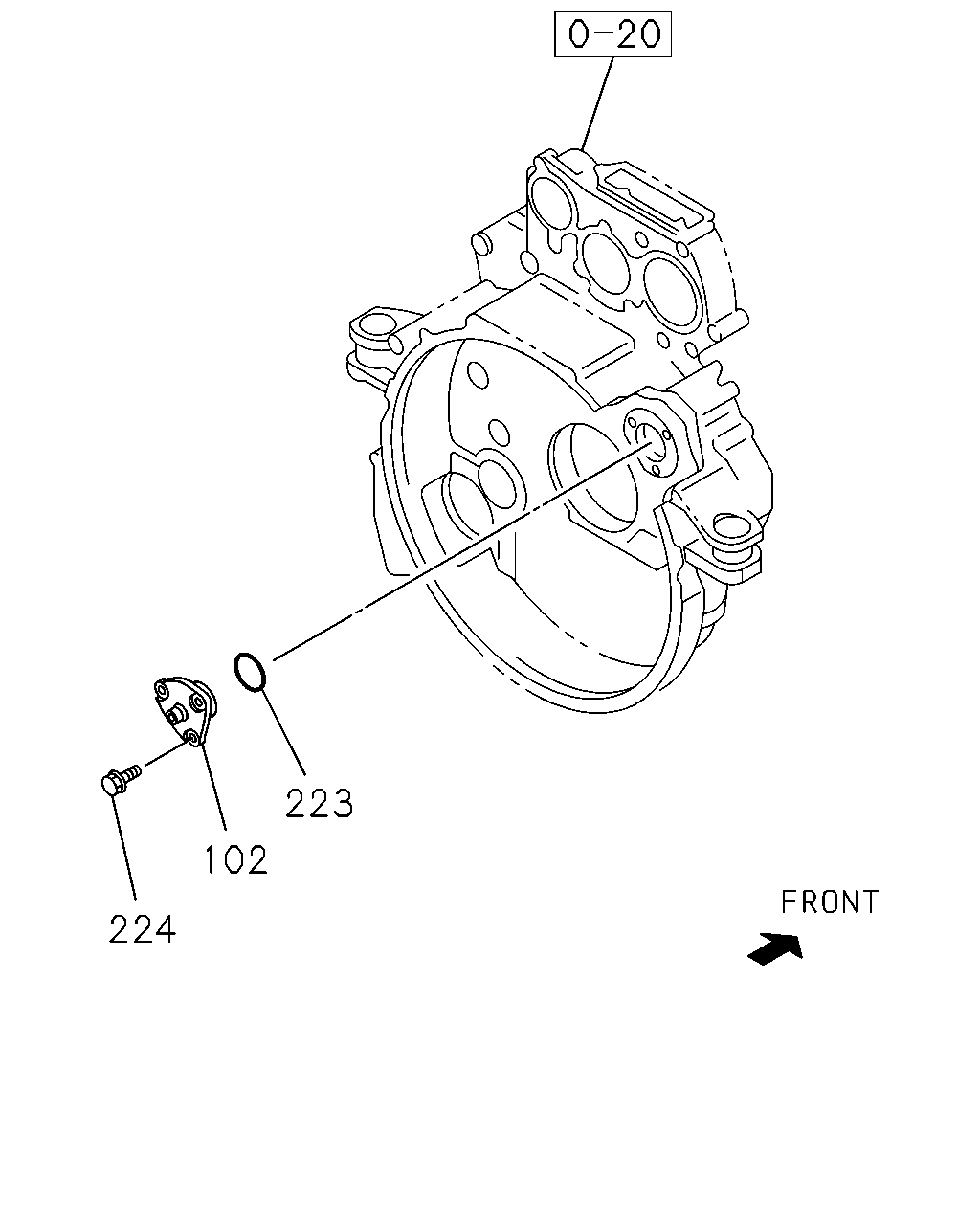

223 102 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
102	COVER; IDLE GEAR	1-11343-005-0	01	1	9603-9901	●	●
102	COVER; IDLE GEAR	1-11343-005-0	01	1	9905-	●	●	●	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=56.6	1-09623-567-0	02	1	9603-9901	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=56.6	1-09623-567-0	02	1	9905-	●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=56.6	1-09623-567-0	01	1	9603-9901		●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=56.6	1-09623-567-0	01	1	9905-		●	●	●
224	BOLT; COVER M10X20 W/LK WASHER	0-50051-020-0	03	1	9603-9901	●	●
224	BOLT; COVER M10X20 W/LK WASHER	0-50051-020-0	03	1	9905-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
