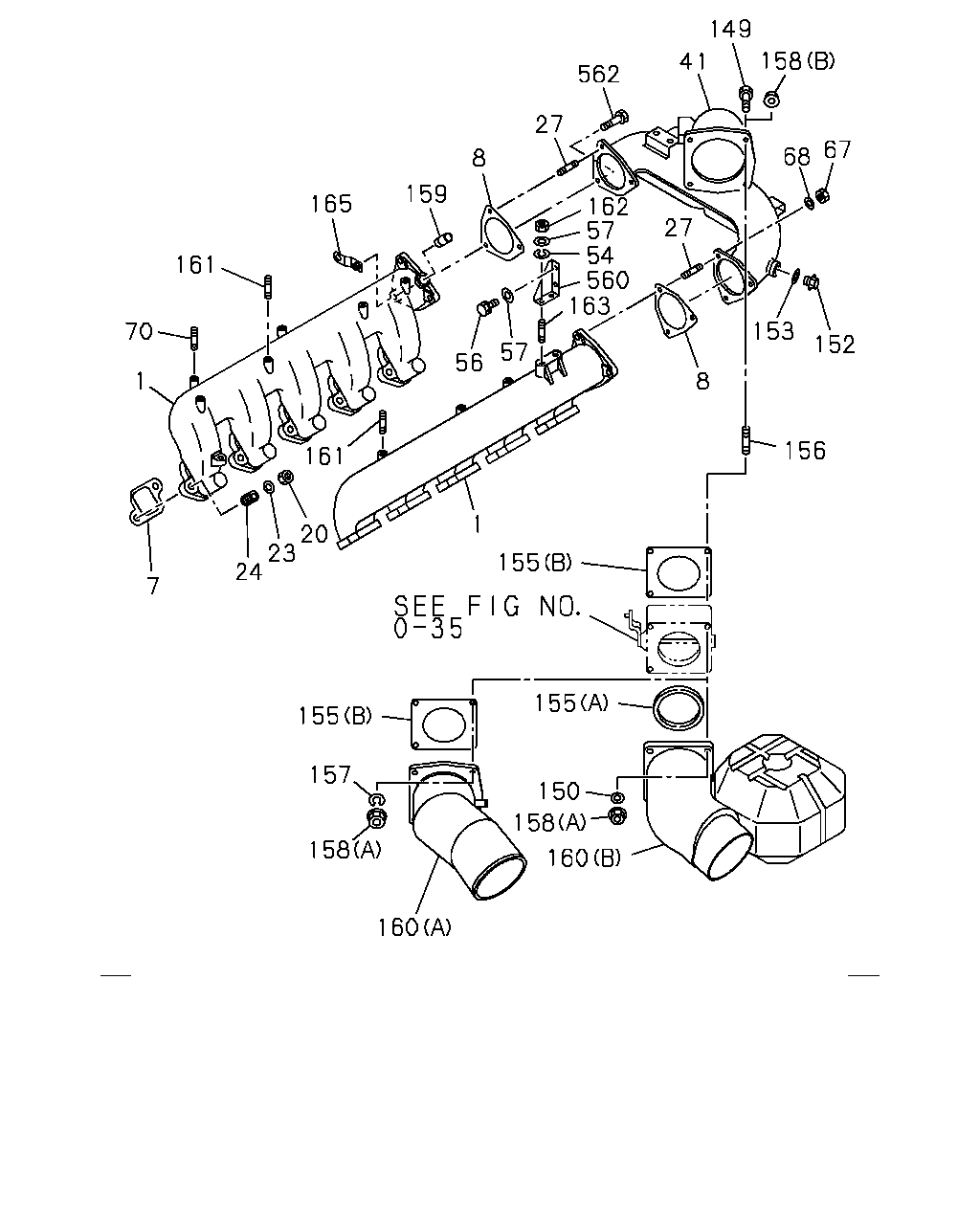

1 |
MANIFOLD; INL
RH BANK
|
1-14111-877-2 |
01 |
1 |
8712-9001 |
● |
|
| |
1 |
MANIFOLD; INL
LH BANK
|
1-14111-882-2 |
01 |
1 |
8712-9001 |
● |
|
| |
1 |
MANIFOLD; INL
RH BANK
|
1-14112-281-1 |
01 |
1 |
9002- |
|
● |
| |
1 |
MANIFOLD; INL
LH BANK
|
1-14112-284-3 |
01 |
1 |
9002- |
|
● |
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14115-026-0 |
10 |
1 |
8712-9001 |
● |
|
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14115-048-0 |
10 |
1 |
9002- |
|
● |
| |
8 |
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14117-044-0 |
02 |
1 |
8712- |
● |
● |
| |
20 |
NUT; INL MANIF
M10
|
9-09110-410-0 |
40 |
1 |
8712-9001 |
● |
|
| |
20 |
NUT; INL MANIF
M10
|
9-09110-410-0 |
20 |
1 |
9002-9202 |
|
● |
| |
20 |
NUT; INL MANIF
M10 FLANGE
|
0-91150-110-0 |
20 |
1 |
9203- |
|
● |
| |
23 |
WASHER; PL,INL MANIF
|
1-09503-067-1 |
20 |
1 |
8712-9202 |
● |
● |
| |
24 |
SPRING; INL MANIF
|
1-09580-156-0 |
20 |
1 |
8712- |
● |
● |
| |
27 |
STUD; INL MANIF
M10X35 L=55
|
9-04311-035-0 |
03 |
1 |
8712-8901 |
● |
|
| |
27 |
STUD; INL MANIF
M10X30 L=45
|
9-04411-030-0 |
03 |
1 |
8712- |
● |
● |
| |
27 |
STUD; INL MANIF
AIR COMPRESSOR HEAVY DUTY(E1Q)
M10X35 L=55
|
9-04311-035-0 |
01 |
1 |
8902-9005 |
● |
● |
| |
27 |
STUD; INL MANIF
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
M10X35 L=55
|
9-04311-035-0 |
03 |
1 |
8902-9005 |
● |
● |
| |
27 |
STUD; INL MANIF
M10X35 L=55
|
9-04311-035-0 |
03 |
1 |
9002- |
|
● |
| |
41 |
DUCT; INT COVER
WO/PLUG
|
1-14114-768-2 |
01 |
1 |
8712-9001 |
● |
|
| |
41 |
DUCT; INT COVER
|
1-14114-818-4 |
01 |
1 |
9002- |
|
● |
| |
54 |
WASHER; LK,INL PIPE
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
ID=10.2
|
9-09150-510-0 |
04 |
1 |
8902-9001 |
● |
|
| |
54 |
WASHER; LK,INL PIPE
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
ID=10.2
|
9-09150-510-0 |
06 |
1 |
8902-9001 |
● |
|
| |
56 |
BOLT; STAY AIR DUCT
|
0-28021-022-0 |
01 |
1 |
9002-9002 |
|
● |
| |
56 |
BOLT; STAY AIR DUCT
|
0-28081-022-0 |
01 |
1 |
9003-9306 |
|
● |
| |
56 |
BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
01 |
1 |
9307- |
|
● |
| |
57 |
WASHER; PL
ID=10.5 OD=26
|
9-09160-710-0 |
01 |
1 |
9002-9306 |
|
● |
| |
57 |
WASHER; PL
ID=10.5 OD=26
|
9-09160-710-0 |
02 |
1 |
9307- |
|
● |
| |
67 |
NUT; INL DUCT
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
M10
|
9-09110-410-0 |
04 |
1 |
8902-9001 |
● |
|
| |
67 |
NUT; INL DUCT
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
M10
|
9-09110-410-0 |
06 |
1 |
8902-9001 |
● |
|
| |
67 |
NUT; INL DUCT
M10 FLANGE
|
0-91150-110-0 |
06 |
1 |
9002- |
|
● |
| |
68 |
WASHER; PL,INL DUCT
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
8712- |
● |
● |
| |
70 |
STUD; WATER PIPE
M8X16 L=28
|
9-04110-816-0 |
02 |
1 |
8712- |
● |
● |
| |
149 |
BOLT; INT SHUTTER
M10X80
|
9-01056-080-0 |
04 |
1 |
9002-9004 |
|
● |
| |
149 |
BOLT; INT SHUTTER
M10X80
|
0-10806-080-0 |
04 |
1 |
9005- |
|
● |
| |
150 |
WASHER; PL,INT SHUTTER
ID=10.5 OD=18
|
9-09160-510-0 |
04 |
1 |
9002- |
|
● |
| |
152 |
PLUG; INT DUCT
M22X12
|
1-09604-035-0 |
02 |
1 |
8712- |
● |
● |
| |
153 |
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=22.5
|
9-09571-422-0 |
02 |
1 |
8712- |
● |
● |
| |
155 |
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=120
|
1-14317-027-0 |
02 |
1 |
8712-9001 |
● |
|
| |
155 |
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=125.4
|
1-13213-012-0 |
01 |
1 |
9002- |
|
● |
| |
155 |
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=120
|
1-14317-027-0 |
01 |
1 |
9002- |
|
● |
| |
156 |
STUD; AIR DUCT,INT SHUTTER FIX
|
1-09302-089-0 |
04 |
1 |
8712-9001 |
● |
|
| |
157 |
WASHER; LK,INT SHUTTER
ID=10.2
|
9-09150-510-0 |
04 |
1 |
8712-9001 |
● |
|
| |
158 |
NUT; INT SHUTTER
(A),(B)
M10
|
9-09110-410-0 |
08 |
1 |
8712-9001 |
● |
|
| |
158 |
NUT; INT SHUTTER
(A)
M10
|
9-09110-410-0 |
04 |
1 |
9002- |
|
● |
| |
159 |
PIPE; VENTILATOR
|
9-14119-228-1 |
01 |
1 |
8712- |
● |
● |
| |
160 |
DUCT; AIR
(A)
|
1-14114-648-1 |
01 |
1 |
8712-9001 |
● |
|
| |
160 |
DUCT; AIR
(B)
|
1-14114-872-2 |
01 |
1 |
9002- |
|
● |
| |
161 |
STUD; BRKT,INJ PUMP
M8X16 L=28
|
9-04110-816-0 |
06 |
1 |
8712- |
● |
● |
| |
162 |
NUT; STAY
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9002- |
|
● |
| |
163 |
STUD; BRKT,ENG SPD CONT
M10X20 L=35
|
9-04411-020-0 |
02 |
1 |
8712- |
● |
● |
| |
165 |
BRACKET; CLIP,EXH BRK PIPE
|
1-22196-219-0 |
01 |
1 |
8712- |
● |
● |
| |
560 |
BRACKET; AIR PIPE
|
1-14119-336-0 |
01 |
1 |
9002- |
|
● |
| |
562 |
BOLT; INL DUCT
AIR COMPRESSOR HEAVY DUTY VAR2(E6A)
M10X45
|
9-01991-045-0 |
02 |
1 |
8902-9001 |
● |
|
| |
562 |
BOLT; INL DUCT
AIR COMPRESSOR HEAVY DUTY(E1Q)
M10X45
|
9-01991-045-0 |
02 |
1 |
9002-9002 |
|
● |
| |
562 |
BOLT; INL DUCT
AIR COMPRESSOR HEAVY DUTY(E1Q)
M10X45 W/LK&PL WASHER
|
0-50151-045-0 |
02 |
1 |
9003-9307 |
|
● |
