3-26 — TRAILER CONTROL (#41685) — 188 parça

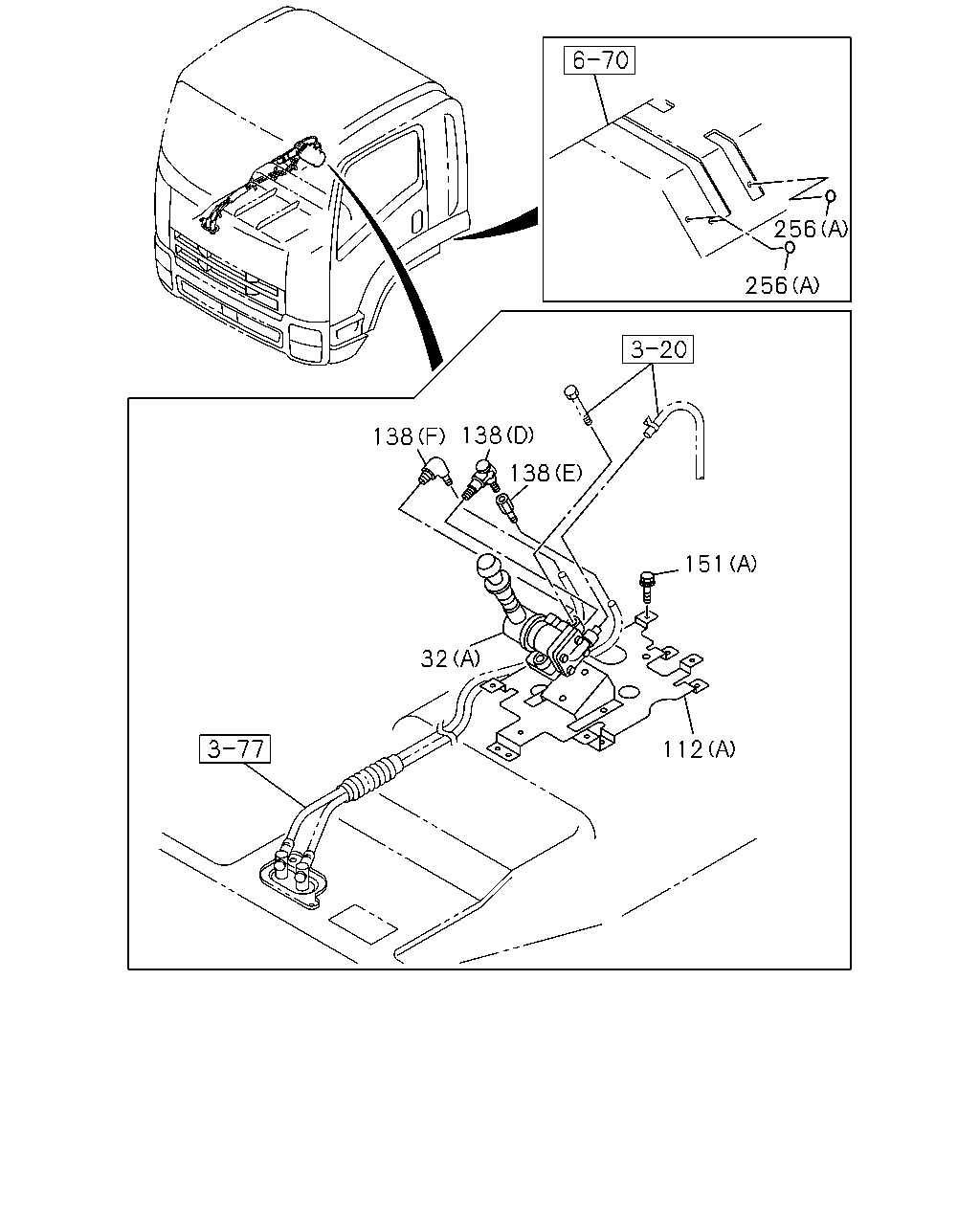

çizim 111744
256 256 138 138 138 151 32 112
BalonParca AdiParca NoAdetTipApplied Date A B C
32 VALVE; BRK,HAND CONT
(A) 		1-48460-306-0 01 1 0710- ● ●
32 VALVE; BRK,HAND CONT
(B) 		1-48100-674-0 01 1 0710- ●
32 VALVE; BRK,HAND CONT
(A) 		1-48460-356-0 01 1 0710- ●
112 BRACKET; CONT VLV
(A) 		1-73908-054-7 01 1 0710- ● ●
112 BRACKET; CONT VLV
(C) 		1-73908-268-0 01 1 0710- ●
112 BRACKET; CONT VLV
(B) 		8-97610-416-2 01 1 0710- ●
138 CONNECTOR; DELIVERY
(D) 		1-09650-240-1 01 1 0710- ● ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0710-0808 ● ● ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0809- ● ●
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ● ●
138 CONNECTOR; DELIVERY
(G) M14 		1-09656-391-2 01 1 0710-0808 ●
138 CONNECTOR; DELIVERY
(H) 		1-09660-335-1 01 1 0809-1101 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1102- ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY 		1-09660-693-0 03 1 0710-1101 ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY 		1-09660-693-0 02 1 1102- ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0808 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0809-0905 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0906-1101 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0906-1101 ●
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ●
151 BOLT; VLV BRKT
(A) M6X16 		0-52000-616-0 04 1 0710- ● ●
151 BOLT; VLV BRKT
(A) M6X16 		0-52000-616-0 03 1 0710- ●
151 BOLT; VLV BRKT
(B) M8X20 W/LK&PL WASHER 		0-52000-820-0 02 1 0710- ●
256 SEAL
(A) OD=25 BLACK 		1-76798-019-0 08 1 0710- ● ●
256 SEAL
(B) 		1-72497-062-1 01 1 0710- ●
256 SEAL
(A) OD=25 BLACK 		1-76798-019-0 07 1 0710- ●
256 SEAL
(C) 		1-79996-382-0 01 1 0710- ●
256 SEAL
(D) 		8-98049-765-0 01 1 0710- ●

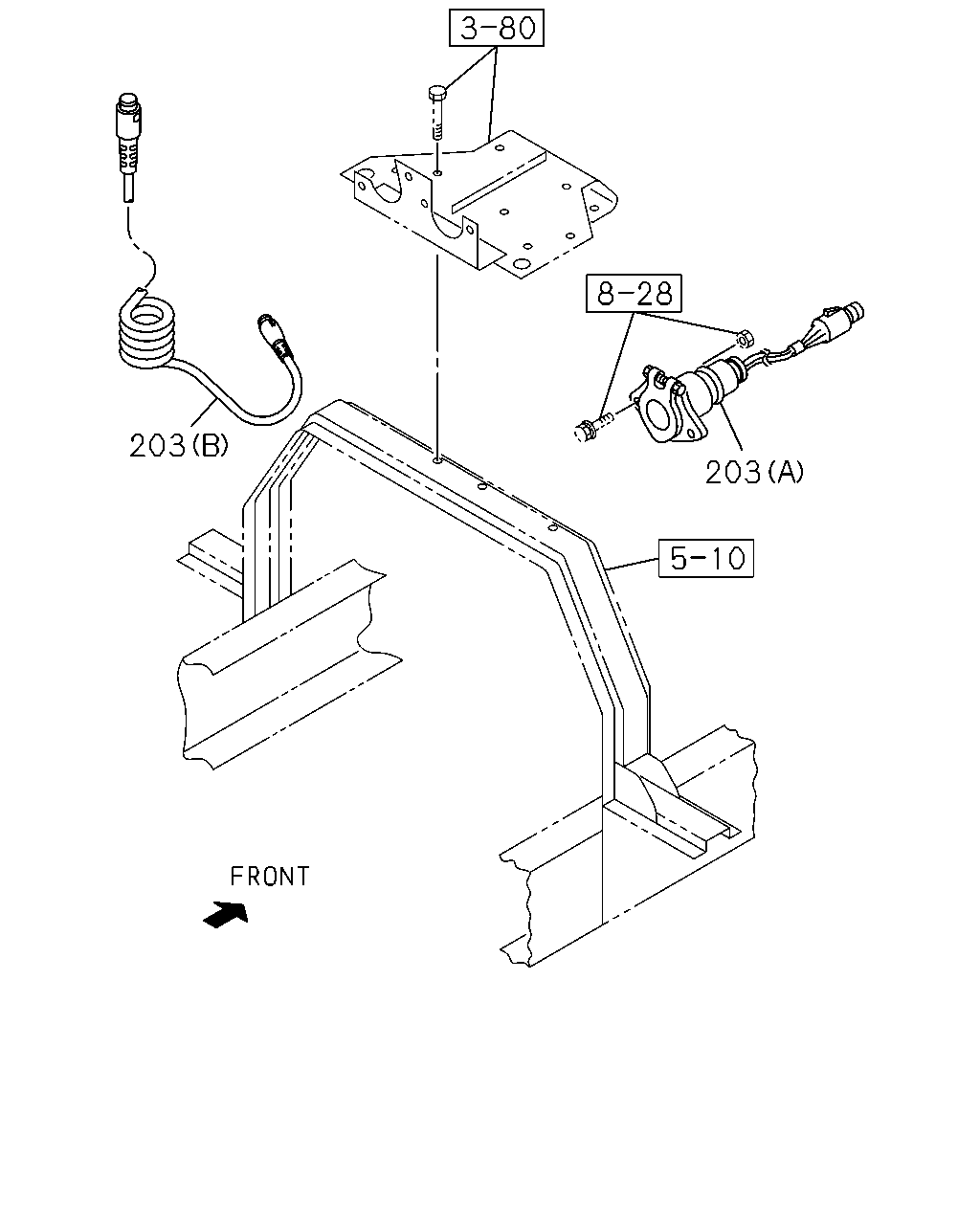

çizim 111748
203 203
BalonParca AdiParca NoAdetTipApplied Date A B C
203 CABLE; JUMPER
(A) 7P 		1-82523-014-0 01 1 0710- ●
203 CABLE; JUMPER
(B) 		8-98105-162-1 01 1 0712- ●

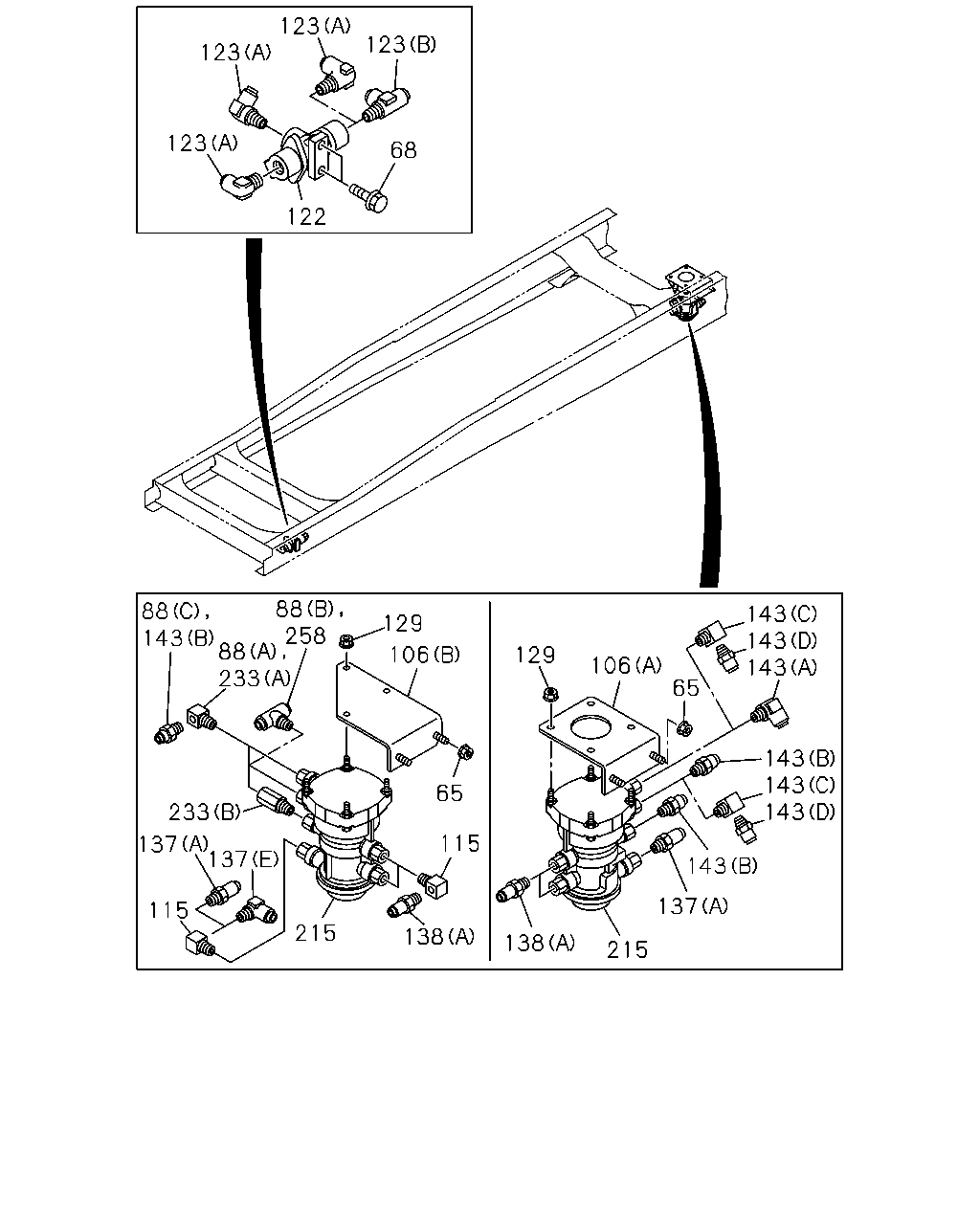

çizim 111749
123 123 123 123 68 122 88 88 143 258 88 233 143 143 143 129 106 129 106 65 143 143 143 65 233 115 137 137 14 137 115 215 138 138 215
BalonParca AdiParca NoAdetTipApplied Date A B C
14 FOLLOWER; CAM 1-48129-109-0 01 1 0710- ●
65 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 04 1 0710-0712 ●
65 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0801- ●
68 BOLT; DOUBLE CHECK VLV
M8X20 FLANGE 		0-28050-820-0 02 1 0710- ●
88 CONNECTOR; ELBOW
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 1003- ●
88 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW 		1-09660-696-0 03 1 0807-1002 ●
88 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 1003- ●
88 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1003- ●
88 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0807-1002 ●
88 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP> (C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1003- ●
88 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-996-0 02 1 1003- ●
106 BRACKET; VLV
(A) 		1-48495-168-0 01 1 0710-0806 ●
106 BRACKET; VLV
(B) 		8-98110-679-1 01 1 0807- ●
115 CONNECTOR; DUAL RELAY VLV
PT3/8 ELBOW 		1-09660-696-0 03 1 0807-1002 ●
115 CONNECTOR; DUAL RELAY VLV
PT3/8 ELBOW 		1-09660-696-0 02 1 1003- ●
122 VALVE ASM; DOUBLE CHECK 1-48410-531-1 01 1 0710- ●
123 CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-0712 ●
123 CONNECTOR; DBL CHECK VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 0801- ●
123 CONNECTOR; DBL CHECK VLV
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-0712 ●
123 CONNECTOR; DBL CHECK VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0801- ●
123 CONNECTOR; DBL CHECK VLV
EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0801- ●
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0710-0806 ●
129 NUT; VLV
M8 FLANGE 		0-91180-108-0 03 1 0807- ●
137 CONNECTOR; SUPPLY
(B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 0710-0801 ●
137 CONNECTOR; SUPPLY
(B) 		1-09650-352-1 01 1 0802-1101 ●
137 CONNECTOR; SUPPLY
(C) PT1/4 2WAY 		1-09660-693-0 01 1 0710-1101 ●
137 CONNECTOR; SUPPLY
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0806 ●
137 CONNECTOR; SUPPLY
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0807-1002 ●
137 CONNECTOR; SUPPLY
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1003- ●
138 CONNECTOR; DELIVERY
(D) 		1-09650-240-1 01 1 0710- ● ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0710-0808 ● ● ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0809- ● ●
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ● ●
138 CONNECTOR; DELIVERY
(G) M14 		1-09656-391-2 01 1 0710-0808 ●
138 CONNECTOR; DELIVERY
(H) 		1-09660-335-1 01 1 0809-1101 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1102- ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY 		1-09660-693-0 03 1 0710-1101 ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY 		1-09660-693-0 02 1 1102- ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0808 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0809-0905 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0906-1101 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0906-1101 ●
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ●
143 CONNECTOR; CONT
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0712 ●
143 CONNECTOR; CONT
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801-0806 ●
143 CONNECTOR; CONT
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 0710-0712 ●
143 CONNECTOR; CONT
(B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801-0806 ●
143 CONNECTOR; CONT
H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 03 1 0807-1002 ●
143 CONNECTOR; CONT
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0801-0806 ●
143 CONNECTOR; CONT
EXC. H.S.A SYSTEM<6EP> (B) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 02 1 0807-1002 ●
215 VALVE; TRAILER CONT 1-48240-045-1 01 1 0710- ●
233 ADAPTER; VLV
(B) PT3/8 		1-09664-210-0 01 1 1003- ●
233 ADAPTER; VLV
H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW 		1-09660-696-0 02 1 1003- ●
233 ADAPTER; VLV
EXC. H.S.A SYSTEM<6EP> (A) PT3/8 ELBOW 		1-09660-696-0 01 1 1003- ●
258 CONNECTOR; 3 WAY
EXC. H.S.A SYSTEM<6EP> DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0807-1002 ●
çizim 111752
180
BalonParca AdiParca NoAdetTipApplied Date A B C
180 REPAIR KIT; RELAY VLV 1-85576-449-0 01 1 0710- ●

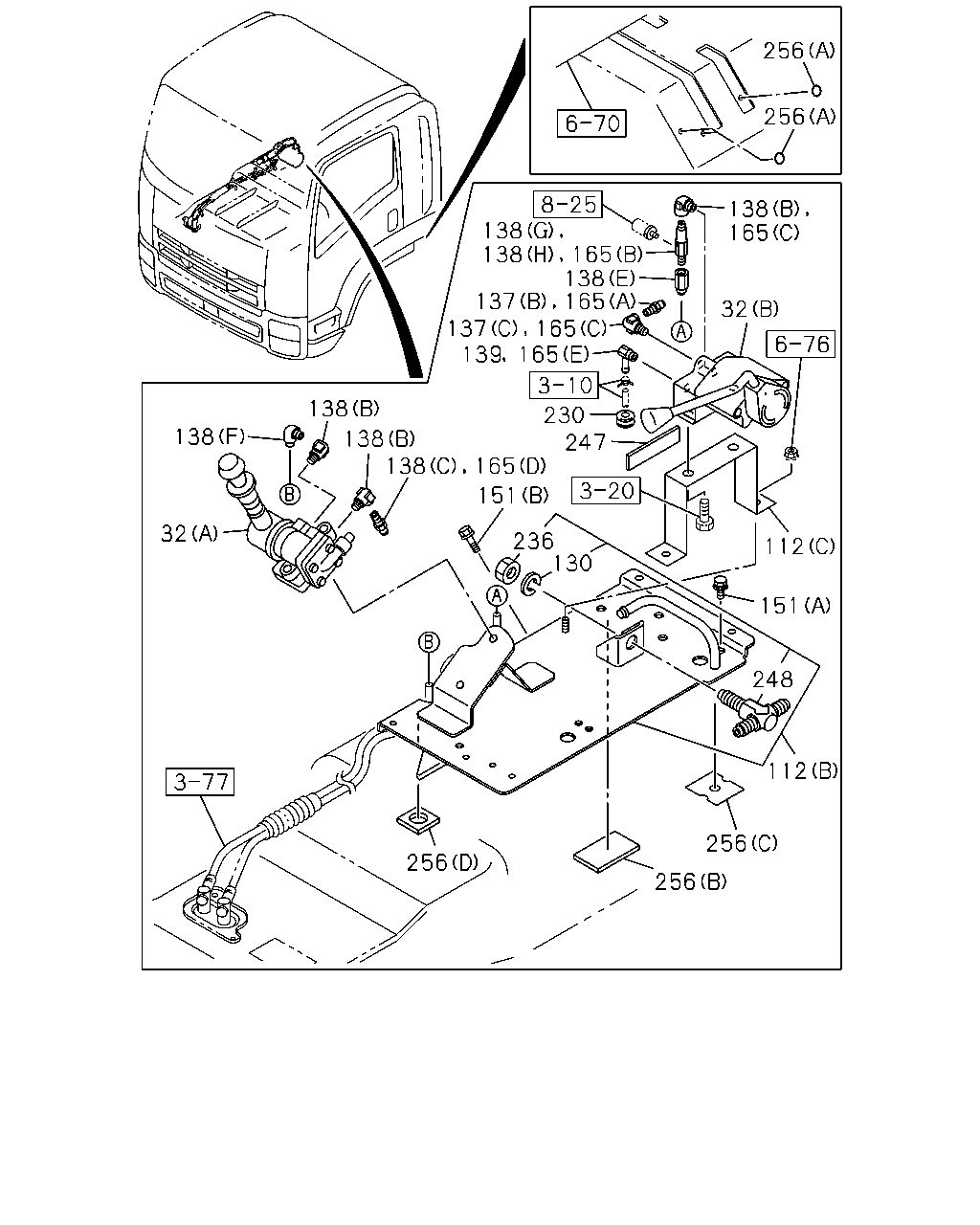

çizim 111757
256 256 138 138 165 138 137 165 137 165 138 165 32 138 230 247 138 138 138 165 151 32 236 130 112 151 248 112 256 256 256 139 165
BalonParca AdiParca NoAdetTipApplied Date A B C
32 VALVE; BRK,HAND CONT
(A) 		1-48460-306-0 01 1 0710- ● ●
32 VALVE; BRK,HAND CONT
(B) 		1-48100-674-0 01 1 0710- ●
32 VALVE; BRK,HAND CONT
(A) 		1-48460-356-0 01 1 0710- ●
112 BRACKET; CONT VLV
(A) 		1-73908-054-7 01 1 0710- ● ●
112 BRACKET; CONT VLV
(C) 		1-73908-268-0 01 1 0710- ●
112 BRACKET; CONT VLV
(B) 		8-97610-416-2 01 1 0710- ●
130 WASHER; LK,VLV
ID=16.2 		0-91510-816-0 01 1 0807- ●
137 CONNECTOR; SUPPLY
(B) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 0710-0801 ●
137 CONNECTOR; SUPPLY
(B) 		1-09650-352-1 01 1 0802-1101 ●
137 CONNECTOR; SUPPLY
(C) PT1/4 2WAY 		1-09660-693-0 01 1 0710-1101 ●
137 CONNECTOR; SUPPLY
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0806 ●
137 CONNECTOR; SUPPLY
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0807-1002 ●
137 CONNECTOR; SUPPLY
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1003- ●
138 CONNECTOR; DELIVERY
(D) 		1-09650-240-1 01 1 0710- ● ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0710-0808 ● ● ●
138 CONNECTOR; DELIVERY
(E) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0809- ● ●
138 CONNECTOR; DELIVERY
(F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710- ● ● ●
138 CONNECTOR; DELIVERY
(G) M14 		1-09656-391-2 01 1 0710-0808 ●
138 CONNECTOR; DELIVERY
(H) 		1-09660-335-1 01 1 0809-1101 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1102- ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY 		1-09660-693-0 03 1 0710-1101 ●
138 CONNECTOR; DELIVERY
(B) PT1/4 2WAY 		1-09660-693-0 02 1 1102- ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-0808 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0809-0905 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0906-1101 ●
138 CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0906-1101 ●
138 CONNECTOR; DELIVERY
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ●
139 CONNECTOR; EXH 8-97062-077-1 01 1 0710-1101 ●
151 BOLT; VLV BRKT
(A) M6X16 		0-52000-616-0 04 1 0710- ● ●
151 BOLT; VLV BRKT
(A) M6X16 		0-52000-616-0 03 1 0710- ●
151 BOLT; VLV BRKT
(B) M8X20 W/LK&PL WASHER 		0-52000-820-0 02 1 0710- ●
165 CONNECTOR; HAND BRK VLV
(A) 		1-09650-352-1 01 1 1102- ●
165 CONNECTOR; HAND BRK VLV
(B) 		1-09660-335-1 01 1 1102- ●
165 CONNECTOR; HAND BRK VLV
(C) PT1/4 2WAY 		1-09660-693-0 02 1 1102- ●
165 CONNECTOR; HAND BRK VLV
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1102- ●
165 CONNECTOR; HAND BRK VLV
(E) 		8-97062-077-1 01 1 1102- ●
230 GROMMET; EXH
OD=24 		9-61166-007-0 01 1 0710-1101 ●
236 NUT
M16 		0-91111-516-0 01 1 0807- ●
247 SEAL; HOSE
100X40 		1-72498-022-1 01 1 0710- ●
248 UNION
M16 3WAY 		0-92148-610-0 01 1 0802- ●
256 SEAL
(A) OD=25 BLACK 		1-76798-019-0 08 1 0710- ● ●
256 SEAL
(B) 		1-72497-062-1 01 1 0710- ●
256 SEAL
(A) OD=25 BLACK 		1-76798-019-0 07 1 0710- ●
256 SEAL
(C) 		1-79996-382-0 01 1 0710- ●
256 SEAL
(D) 		8-98049-765-0 01 1 0710- ●

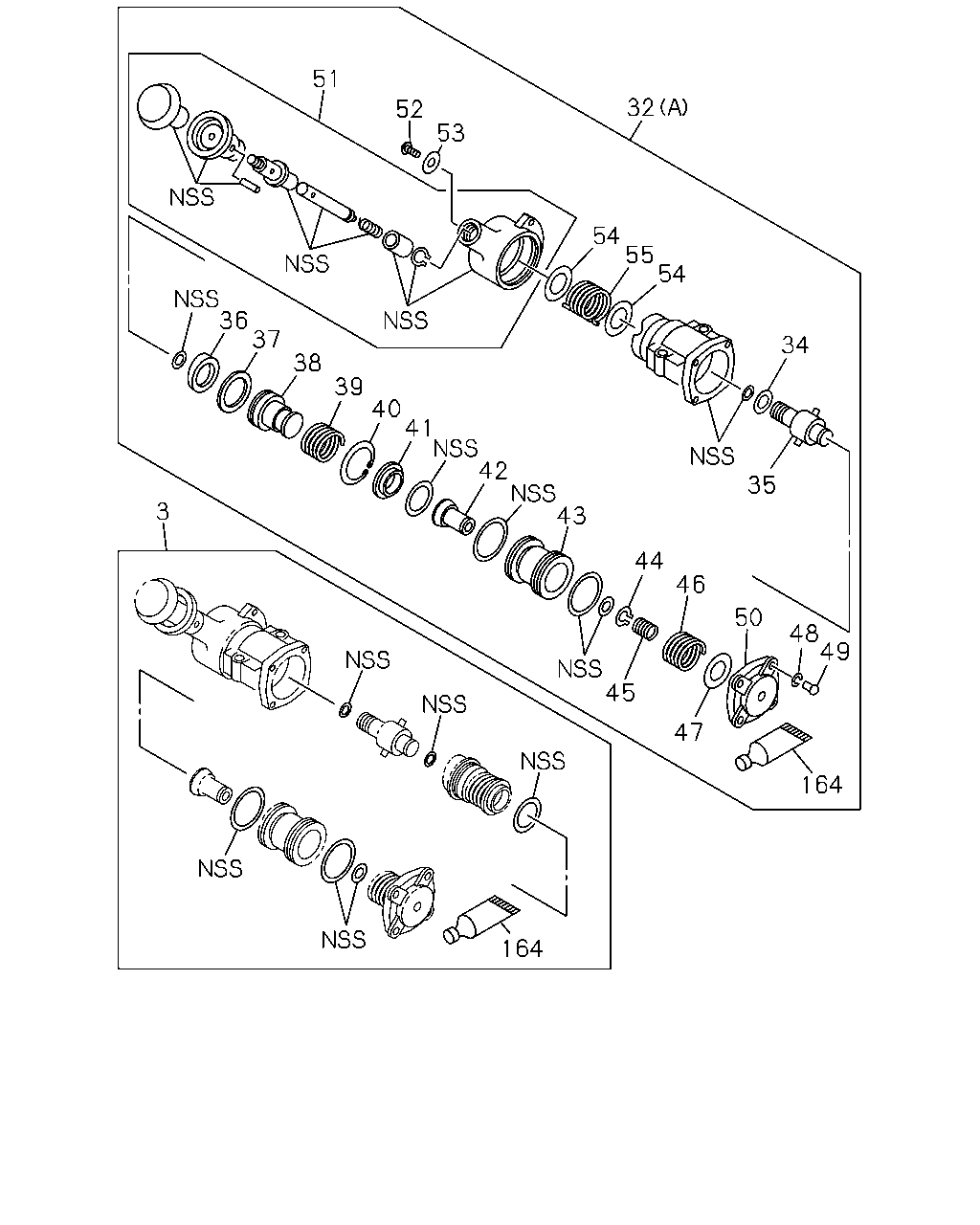

çizim 111775
51 32 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 48 49 45 47 164 164
BalonParca AdiParca NoAdetTipApplied Date A B C
3 REPAIR KIT; HAND BRK VLV 1-48469-096-0 01 1 0710- ● ● ●
32 VALVE; BRK,HAND CONT
(A) 		1-48460-306-0 01 1 0710- ● ●
32 VALVE; BRK,HAND CONT
(B) 		1-48100-674-0 01 1 0710- ●
32 VALVE; BRK,HAND CONT
(A) 		1-48460-356-0 01 1 0710- ●
34 SHIM; CAM HOLDER 1-48469-055-0 AR 1 0710- ● ● ●
35 HOLDER; CAM 1-48469-054-0 01 1 0710- ● ● ●
36 RING; CAM 1-48469-056-0 01 1 0710- ● ● ●
37 GUIDE; CAM RING 1-48469-058-0 01 1 0710- ● ● ●
38 SEAT; EXH VLV 1-48469-057-0 01 1 0710- ● ● ●
39 SPRING; RETURN,CAM RING 1-48469-063-0 01 1 0710- ● ● ●
40 RING; SNAP 1-48469-067-0 01 1 0710- ● ● ●
41 SEAT; FEED VLV 1-48469-066-0 01 1 0710- ● ● ●
42 VALVE; FEED 1-48469-065-0 01 1 0710- ● ● ●
43 PISTON; HAND BRK VLV 1-48469-064-0 01 1 0710- ● ● ●
44 RING; SNAP,FEED VLV 1-48469-068-0 02 1 0710- ● ●
44 RING; SNAP,FEED VLV 1-48469-068-0 01 1 0710- ●
45 SPRING; FEED VLV 1-48469-070-0 01 1 0710- ● ● ●
46 SPRING; MAIN,PISTON 1-48469-089-0 01 1 0710- ● ● ●
47 SHIM; MAIN SPRING 1-48469-072-0 AR 1 0710- ● ● ●
48 WASHER; COVER 1-48469-091-0 04 1 0710- ● ●
49 SCREW; COVER 1-48469-092-0 04 1 0710- ● ●
49 SCREW; COVER 1-48469-118-0 04 1 0710- ●
50 COVER; HAND BRK VLV 1-48469-090-0 01 1 0710- ● ●
50 COVER; HAND BRK VLV 1-48469-222-0 01 1 0710- ●
51 HANDLE ASM; HAND BRK VLV 1-48469-122-0 01 1 0710- ● ● ●
52 SCREW; HANDLE 1-48469-062-0 01 1 0710- ● ● ●
53 WASHER; HANDLE 1-48469-061-0 01 1 0710- ● ● ●
54 SEAT; SPRING 1-48469-082-0 02 1 0710- ● ● ●
55 SPRING; RETURN,HANDLE 1-48469-059-0 01 1 0710- ● ● ●
164 GREASE; HAND BRK VLV 1-48469-084-0 01 1 0710- ● ● ●
çizim 111785

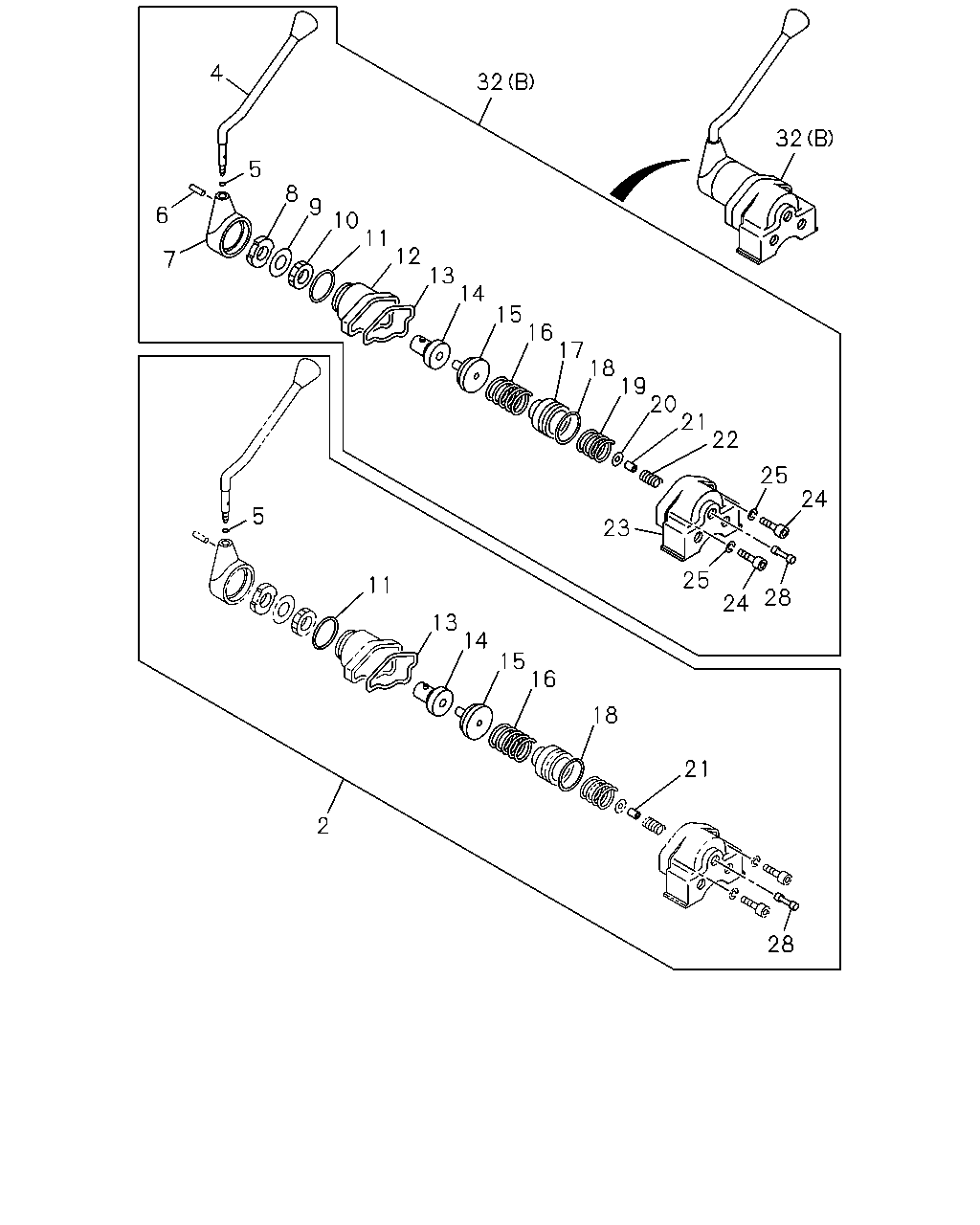

4 32 32 5 8 9 6 10 11 12 7 13 14 15 16 17 18 19 20 21 22 25 24 5 23 25 11 28 24 13 14 15 16 18 21 2 28
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; HAND BRK VLV 1-85576-180-0 01 1 0710- ●
4 HANDLE ASM; BRK VLV 1-48119-144-0 01 1 0710- ●
5 GASKET; HANDLE 1-48119-128-0 01 1 0710- ●
6 PIN; SPR 1-48119-143-0 01 1 0710- ●
7 HEAD; BRK VLV 1-48119-131-1 01 1 0710- ●
8 STOPPER; BRK VLV 1-48119-136-0 01 1 0710- ●
9 WASHER; LK,ADJ 1-48119-123-0 01 1 0710- ●
10 RING; ADJ 1-48119-122-0 01 1 0710- ●
11 GASKET; HD TO COVER 1-48119-130-0 01 1 0710- ●
12 COVER; BRK VLV 1-48129-097-1 01 1 0710- ●
13 GASKET; BODY TO COVER 1-48119-120-0 01 1 0710- ●
14 FOLLOWER; CAM 1-48129-109-0 01 1 0710- ●
15 CAM; FOLLOWER 1-48129-110-0 01 1 0710- ●
16 SPRING; GRUDUATING 1-48129-101-0 01 1 0710- ●
17 PISTON; SPR 1-48129-095-0 01 1 0710- ●
18 GASKET; BODY 1-48129-096-0 01 1 0710- ●
19 SPRING; PISTON 1-48129-094-0 01 1 0710- ●
20 GUIDE; VLV 1-48129-090-0 01 1 0710- ●
21 VALVE; IN & EXH 1-48121-017-0 01 1 0710- ●
22 SPRING; VLV 1-48123-024-0 01 1 0710- ●
23 BODY; BRK VLV 1-48111-060-1 01 1 0710- ●
24 BOLT; EXH VLV 1-48129-092-0 02 1 0710- ●
25 WASHER; LK,EXH VLV 1-48129-093-0 02 1 0710- ●
28 STEM ASM; BRK VLV 1-48129-089-0 01 1 0710- ●
32 VALVE; BRK,HAND CONT
(A) 		1-48460-306-0 01 1 0710- ● ●
32 VALVE; BRK,HAND CONT
(B) 		1-48100-674-0 01 1 0710- ●
32 VALVE; BRK,HAND CONT
(A) 		1-48460-356-0 01 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
