◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#41684) — 427 parça
çizim 111733
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B C
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0710- ● ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0710- ● ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710- ● ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710- ● ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0710- ● ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710- ● ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710- ● ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710- ● ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710- ● ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710- ● ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710- ● ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710- ● ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710- ● ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710- ● ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710- ● ● ●

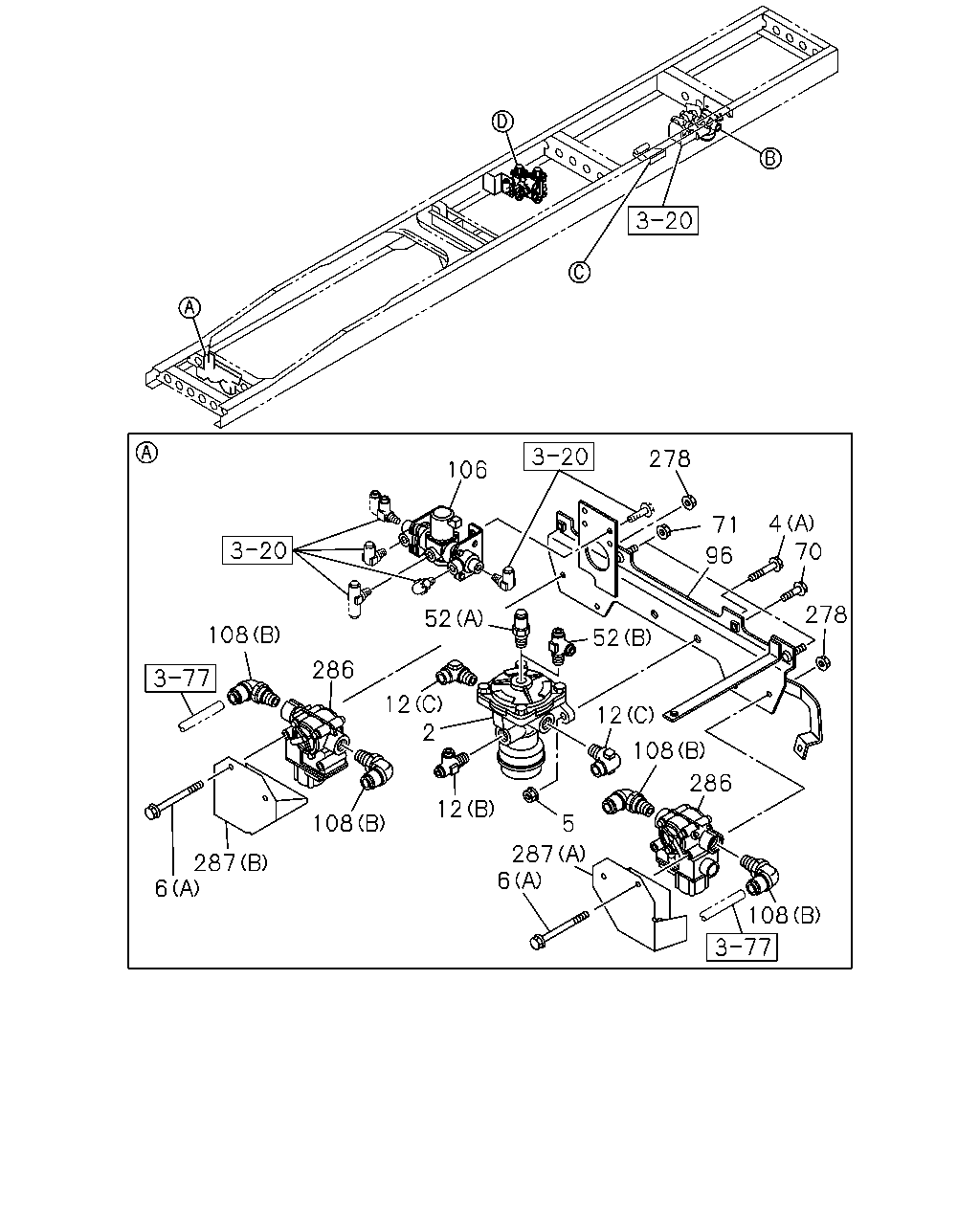

çizim 111735
278 106 4 70 71 96 278 52 52 108 286 12 2 12 108 286 12 108 5 287 6 287 6 108
BalonParca AdiParca NoAdetTipApplied Date A B C
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ● ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ● ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ●
2 VALVE; RELAY 1-48210-997-0 01 1 0711- ● ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0805 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0711- ● ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-1408 ● ● ●
6 BOLT; VLV
M8X85 		1-09044-074-0 04 1 1409- ● ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-1002 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1003- ● ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ● ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ● ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0711- ● ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710- ● ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0712 ● ● ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-0712 ● ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0801- ● ●
52 CONNECTOR; RELAY VLV
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0801- ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ● ●
96 BRACKET 8-98074-613-3 01 1 0710-1408 ● ● ●
96 BRACKET 8-98273-496-0 01 1 1409- ● ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ● ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0907 ●
108 CONNECTOR; ELBOW
WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0907 ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0908- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0908- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0907 ●
108 CONNECTOR; ELBOW
WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0907 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0908- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0908- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710- ● ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
278 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 0710-0712 ● ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 0710-1408 ● ● ●
286 MODULATOR; FRT 8-98215-454-0 02 1 1409- ● ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 0710-1408 ● ● ●
287 COVER; MODULATOR 8-98273-493-0 01 1 1409- ● ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 0710-1408 ● ● ●
287 COVER; MODULATOR 8-98273-494-0 01 1 1409- ● ● ●

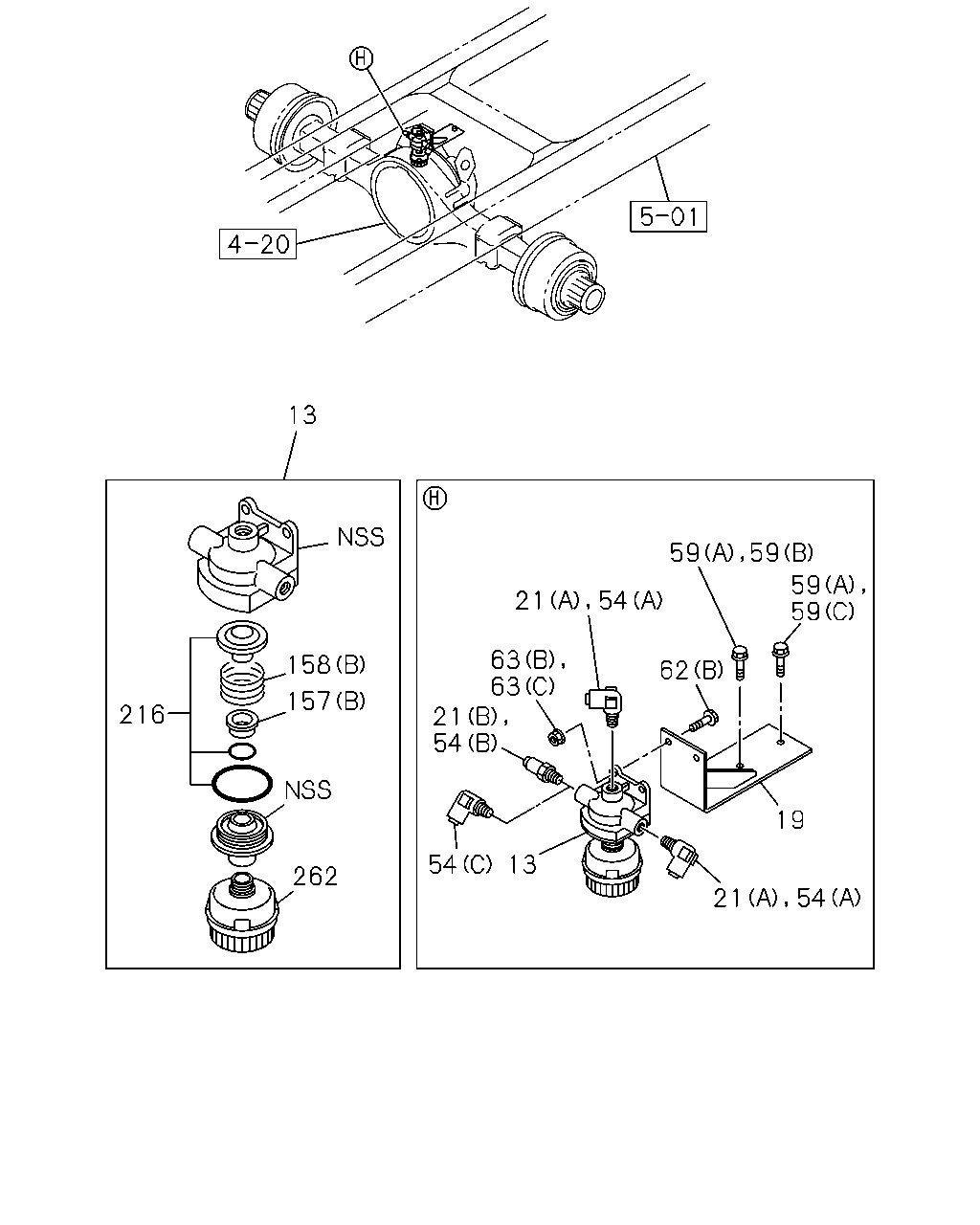

çizim 111741
13 59 59 59 59 21 54 63 63 21 54 158 62 157 216 19 13 54 262 21 54
BalonParca AdiParca NoAdetTipApplied Date A B C
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 01 1 0710-1008 ● ● ●
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 01 1 1009- ● ● ●
19 BRACKET; QUICK RELEASE VLV 8-98179-172-0 01 1 1108- ● ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 0710-1107 ● ● ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 01 1 1108- ●
21 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1108- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-1107 ● ● ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1108- ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1107 ● ●
54 CONNECTOR; QUICK RELEASE VLV
(C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710- ●
59 BOLT; RELEASE VALVE FIX
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
59 BOLT; RELEASE VALVE FIX
(C) M8X16 FLANGE 		0-28050-816-0 01 1 0710- ●
59 BOLT; RELEASE VALVE FIX
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0710- ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ● ● ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ● ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ● ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ● ●
63 NUT; BRKT FIX
(C) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ● ●
63 NUT; BRKT FIX
(C) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0710 ● ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0710 ● ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0710 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0711- ● ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-1008 ● ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1009- ● ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0710 ● ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0710 ● ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0710 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0711- ● ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710- ● ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0710-1008 ● ● ●
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 01 1 1009- ● ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1002 ● ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1002 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1003- ● ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1003- ● ● ●

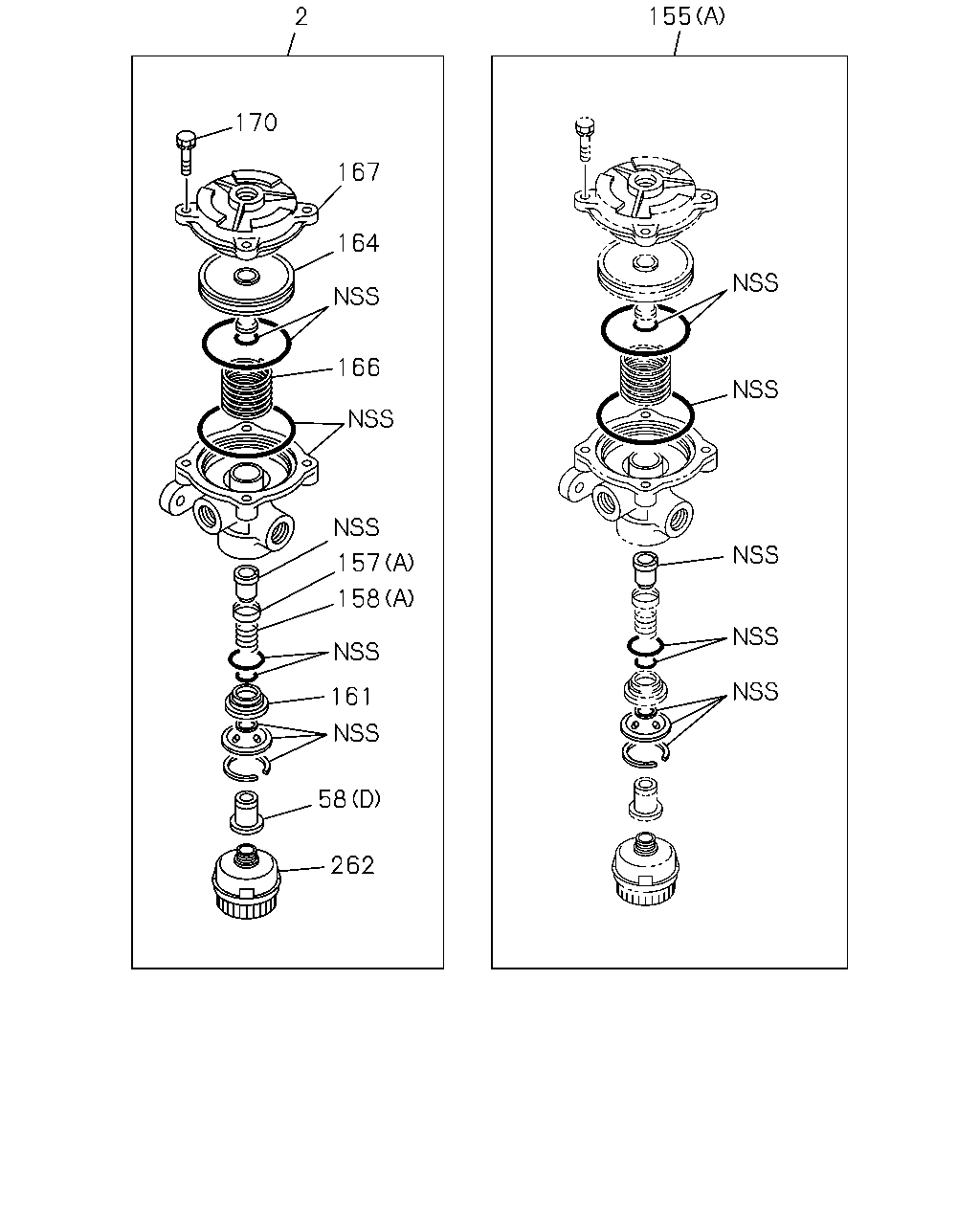

çizim 111742
155 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B C
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ● ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ● ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ●
2 VALVE; RELAY 1-48210-997-0 01 1 0711- ● ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710-1002 ● ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1003- ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0711- ● ● ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 0710-1002 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0710 ● ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0710 ● ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0710 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0711- ● ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0710 ● ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0710 ● ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0710 ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0711- ● ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 01 1 0710-1008 ● ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 1009- ● ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0710 ● ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0710 ● ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0710 ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0711- ● ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0710- ● ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-0710 ● ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-0710 ● ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-0710 ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0711- ● ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710-0710 ● ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710-0710 ● ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710-0710 ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0711- ● ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710-0710 ● ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710-0710 ● ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710-0710 ●
166 SPRING; PISTON 1-47819-090-0 01 1 0711- ● ● ●
167 COVER; VALVE 1-48219-070-0 01 1 0710-0710 ● ● ●
167 COVER; VALVE 1-48219-070-0 01 1 0710-0710 ● ● ●
167 COVER; VALVE 1-48219-070-0 01 1 0710-0710 ●
167 COVER; VALVE 1-48219-070-0 01 1 0711- ● ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710-0710 ● ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710-0710 ● ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710-0710 ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0711- ● ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1002 ● ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1002 ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1003- ● ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 1003- ● ● ●

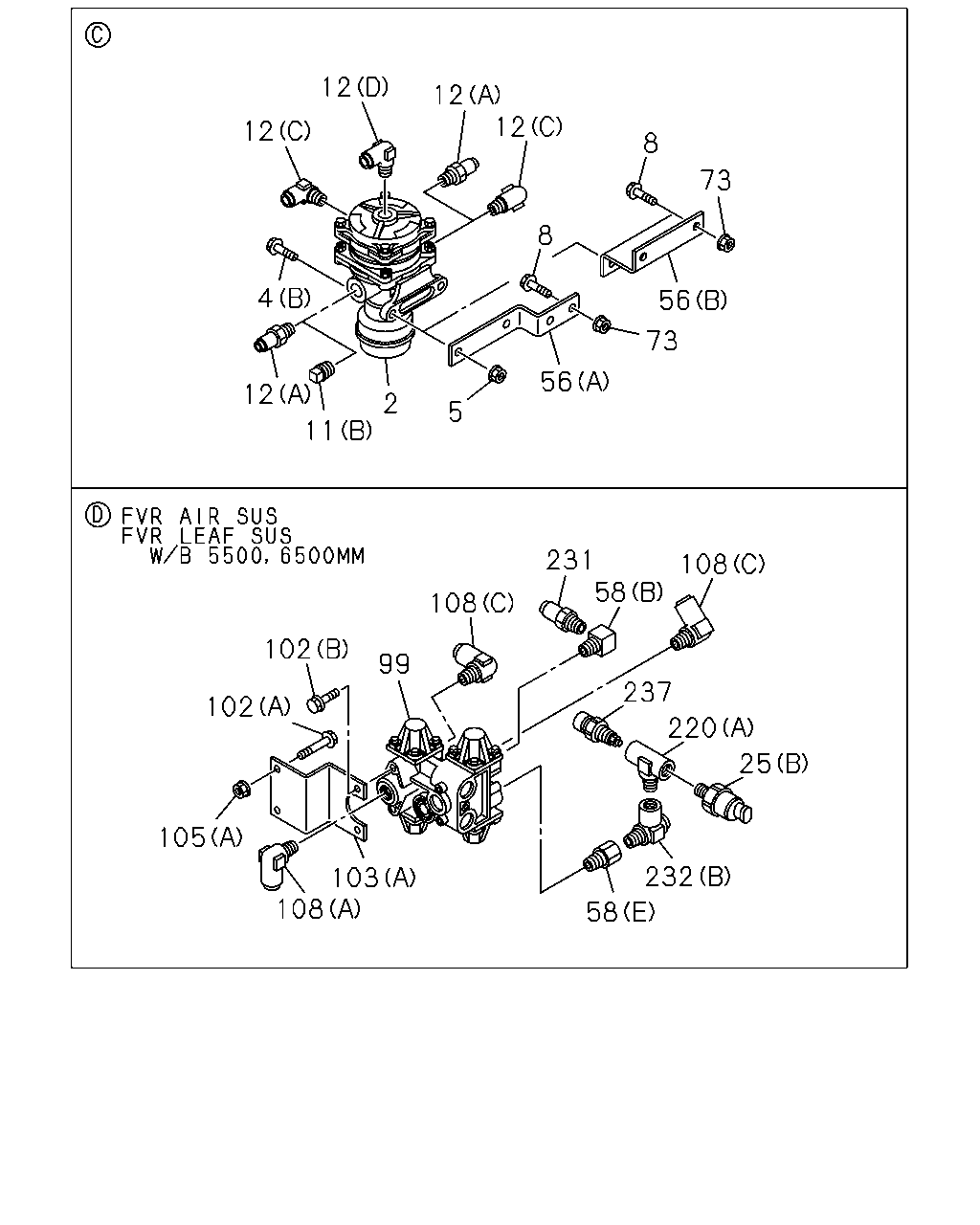

çizim 111743
12 12 12 12 8 73 8 4 56 73 56 12 2 11 5 231 58 108 108 102 99 237 102 220 25 105 232 103 108 58
BalonParca AdiParca NoAdetTipApplied Date A B C
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ● ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ● ● ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0710 ●
2 VALVE; RELAY 1-48210-997-0 01 1 0711- ● ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0805 ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710- ● ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ● ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0710 ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0711- ● ● ●
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-1002 ● ●
8 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1003- ● ● ●
11 PLUG
(A) 		1-09661-502-0 01 1 1003- ●
11 PLUG
(B) PT3/8 		9-09204-517-0 01 1 1003- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-1002 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1003- ● ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ● ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ● ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0710 ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0711- ● ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710- ● ● ●
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0710- ● ● ●
25 SWITCH; PRESSURE
(A) 		8-98010-856-1 01 1 0710- ● ● ●
56 BRACKET; RELAY VLV
(B) 		1-47478-233-0 01 1 0710-0710 ●
56 BRACKET; RELAY VLV
(B) 		1-47478-233-0 01 1 0710-0710 ●
56 BRACKET; RELAY VLV
WHEEL BASE 6500MM(65W) (B) 		1-47478-233-0 01 1 0710-0710 ●
56 BRACKET; RELAY VLV
(B) 		1-47478-233-0 01 1 0711- ●
56 BRACKET; RELAY VLV
(A) 		8-98031-257-0 01 1 0710-0710 ●
56 BRACKET; RELAY VLV
WHEEL BASE 4200MM(42W) (A) 		8-98031-257-0 01 1 0710-0710 ●
56 BRACKET; RELAY VLV
(A) 		8-98031-257-0 01 1 0711-1002 ●
56 BRACKET; RELAY VLV
(A) 		8-98031-257-0 01 1 1003- ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710-1002 ● ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1003- ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0711- ● ● ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 0710-1002 ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-1002 ● ●
73 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1003- ● ● ●
99 VALVE; PROTECTION 1-48110-294-2 01 1 0710- ● ● ●
102 BOLT; PROTECTION VALVE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0907 ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0907 ●
102 BOLT; PROTECTION VALVE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ● ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(C) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
103 BRACKET; PROTECTION VALVE
(A) 		8-98090-802-0 01 1 0710-0907 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 6500MM(65W) (A) 		8-98090-802-0 01 1 0710-0907 ●
103 BRACKET; PROTECTION VALVE
(A) 		8-98090-802-0 01 1 0908- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98090-802-0 01 1 0908- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98073-219-1 01 1 0710-0710 ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98073-219-1 01 1 0710-0710 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98100-094-0 01 1 0710-0801 ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98100-094-0 01 1 0710-0801 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98073-219-1 01 1 0802-0805 ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98073-219-1 01 1 0802-0805 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98119-704-0 01 1 0806- ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98119-704-0 01 1 0806- ●
105 NUT; BRKT,VALVE
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
105 NUT; BRKT,VALVE
WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
105 NUT; BRKT,VALVE
(A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
105 NUT; BRKT,VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
105 NUT; BRKT,VALVE
WHEEL BASE 4200MM(42W) (B) M10 FLANGE 		0-91180-210-0 02 1 0710- ●
105 NUT; BRKT,VALVE
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0907 ●
108 CONNECTOR; ELBOW
WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0907 ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0908- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0908- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0907 ●
108 CONNECTOR; ELBOW
WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0907 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0908- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0908- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710- ● ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
220 CONNECTOR; 3WAY
(A) 		1-09660-988-1 01 1 0710-0907 ●
220 CONNECTOR; 3WAY
WHEEL BASE 6500MM(65W) (A) 		1-09660-988-1 01 1 0710-0907 ●
220 CONNECTOR; 3WAY
(A) 		1-09660-988-1 01 1 0908- ●
220 CONNECTOR; 3WAY
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		1-09660-988-1 01 1 0908- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) 		1-09656-708-0 01 1 0710-1101 ●
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 0710-1101 ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
(B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ●
220 CONNECTOR; 3WAY
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (C) 		8-98031-238-0 01 1 0710- ●
220 CONNECTOR; 3WAY
(C) 		8-98031-238-0 01 1 0710- ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ● ●
232 VALVE; CHECK
(B) 		8-98032-527-0 01 1 0710- ● ● ●
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0710- ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710- ● ● ●
çizim 111747
188 204
BalonParca AdiParca NoAdetTipApplied Date A B C
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0710- ● ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ● ●
çizim 111750
155 279
BalonParca AdiParca NoAdetTipApplied Date A B C
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0710 ● ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0710 ● ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0710 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0711- ● ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0710- ● ● ●

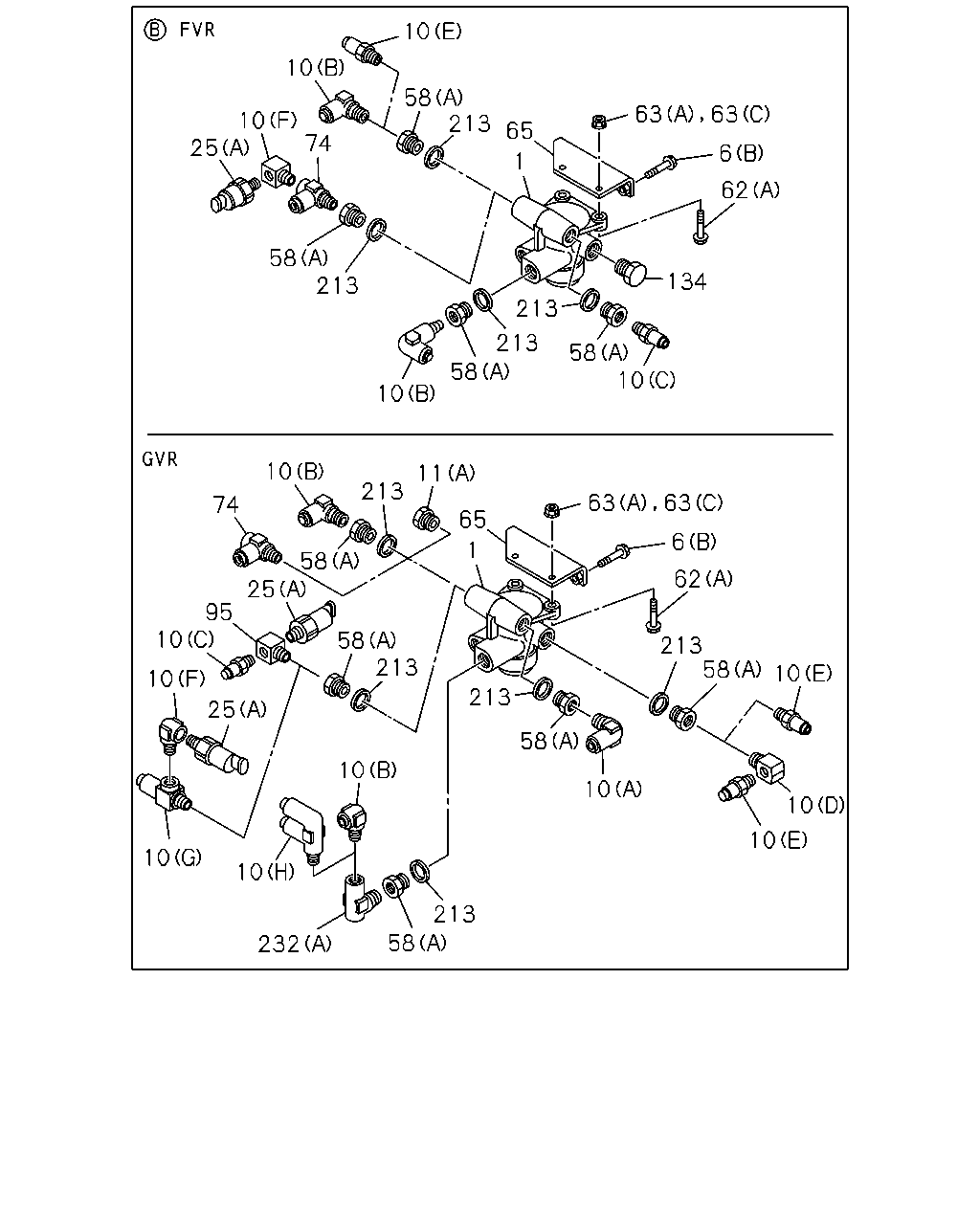

çizim 111751
10 10 58 213 63 63 10 74 65 25 6 1 62 58 213 134 213 213 58 10 58 10 10 11 213 63 63 74 65 6 1 58 62 25 95 10 58 213 213 58 10 10 213 25 58 10 10 10 10 10 10 213 58 232
BalonParca AdiParca NoAdetTipApplied Date A B C
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 0710- ● ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-1408 ● ● ●
6 BOLT; VLV
M8X85 		1-09044-074-0 04 1 1409- ● ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ● ●
10 CONNECTOR
(F) PT1/4 2WAY 		1-09660-693-0 01 1 0710-0711 ●
10 CONNECTOR
(F) PT1/4 2WAY 		1-09660-693-0 01 1 0712-0712 ● ●
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0712 ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801- ●
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0711 ● ●
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0712-0712 ● ● ●
10 CONNECTOR
(F) PT1/4 2WAY 		1-09660-693-0 01 1 0801- ● ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-0712 ●
10 CONNECTOR
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801-1002 ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1003- ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712- ●
10 CONNECTOR
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-0712 ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-1002 ● ●
10 CONNECTOR
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1003- ● ●
10 CONNECTOR
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0712 ●
10 CONNECTOR
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801-1002 ●
10 CONNECTOR
(H) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1003- ●
10 CONNECTOR
(G) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 1003- ●
11 PLUG
(A) 		1-09661-502-0 01 1 1003- ●
11 PLUG
(B) PT3/8 		9-09204-517-0 01 1 1003- ●
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0710- ● ● ●
25 SWITCH; PRESSURE
(A) 		8-98010-856-1 01 1 0710- ● ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710-1002 ● ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1003- ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0711- ● ● ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 0710-1002 ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ● ● ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ● ●
63 NUT; BRKT FIX
(B) M8 		0-91110-508-0 02 1 0710-0711 ● ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ● ●
63 NUT; BRKT FIX
(C) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ● ●
63 NUT; BRKT FIX
(C) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ● ●
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 0710- ● ● ●
74 CONNECTOR; 3WAY 1-09661-536-0 01 1 0710-0711 ●
74 CONNECTOR; 3WAY 1-09661-536-0 01 1 0712- ● ●
74 CONNECTOR; 3WAY
DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 0710-0711 ●
74 CONNECTOR; 3WAY
DIN8 & R3/8 & RC1/4 3WAY 		1-09661-687-0 01 1 0801-1002 ●
95 UNION; AIR VLV 1-09656-708-0 01 1 0710-0712 ●
134 PLUG; RELAY VALVE 1-09661-502-0 01 1 0710- ● ●
213 GASKET
ID=22.5 		9-09571-422-0 04 1 0710-1002 ● ●
213 GASKET
ID=22.5 		9-09571-422-0 04 1 1003- ● ● ●
213 GASKET
ID=22.5 		9-09571-422-0 05 1 0710-1002 ●
232 VALVE; CHECK
(B) 		8-98032-527-0 01 1 0710- ● ● ●
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0710- ●

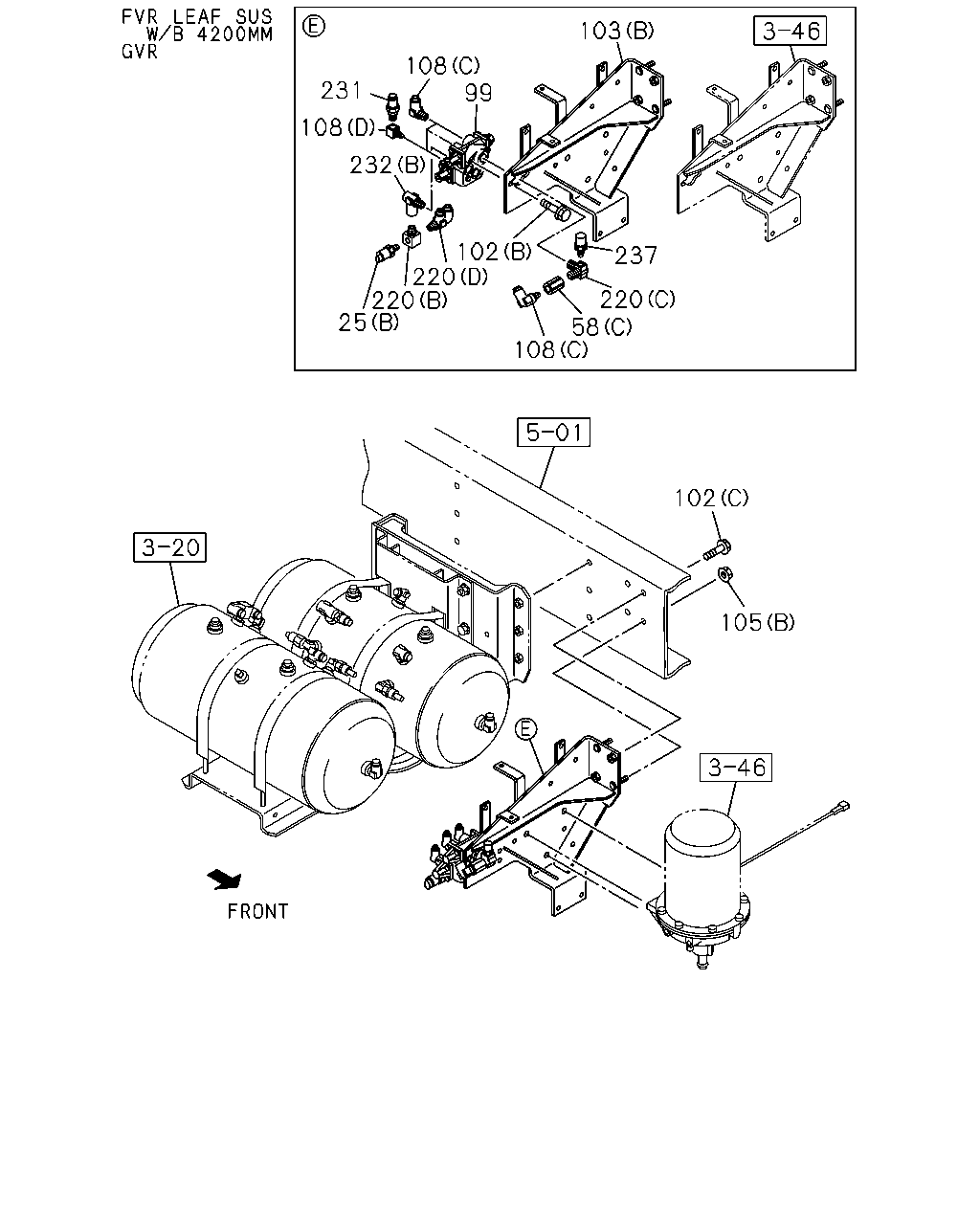

çizim 111756
103 108 99 231 108 232 102 220 220 25 237 220 58 108 102 105
BalonParca AdiParca NoAdetTipApplied Date A B C
25 SWITCH; PRESSURE
(B) STAMP 5.5 		8-97609-249-0 01 1 0710- ● ● ●
25 SWITCH; PRESSURE
(A) 		8-98010-856-1 01 1 0710- ● ● ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0710-0907 ●
58 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW 		1-09660-696-0 01 1 0908- ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0710-0907 ●
58 ADAPTER
(E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8 		1-09664-210-0 01 1 0908- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710-1002 ● ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1003- ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ● ● ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0710-0710 ●
58 ADAPTER
(D) 		1-48219-154-0 01 1 0711- ● ● ●
58 ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(C) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ●
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 0710-1002 ●
99 VALVE; PROTECTION 1-48110-294-2 01 1 0710- ● ● ●
102 BOLT; PROTECTION VALVE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0907 ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0907 ●
102 BOLT; PROTECTION VALVE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ● ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(C) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
103 BRACKET; PROTECTION VALVE
(A) 		8-98090-802-0 01 1 0710-0907 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 6500MM(65W) (A) 		8-98090-802-0 01 1 0710-0907 ●
103 BRACKET; PROTECTION VALVE
(A) 		8-98090-802-0 01 1 0908- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98090-802-0 01 1 0908- ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98073-219-1 01 1 0710-0710 ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98073-219-1 01 1 0710-0710 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98100-094-0 01 1 0710-0801 ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98100-094-0 01 1 0710-0801 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98073-219-1 01 1 0802-0805 ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98073-219-1 01 1 0802-0805 ●
103 BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B) 		8-98119-704-0 01 1 0806- ●
103 BRACKET; PROTECTION VALVE
(B) 		8-98119-704-0 01 1 0806- ●
105 NUT; BRKT,VALVE
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
105 NUT; BRKT,VALVE
WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
105 NUT; BRKT,VALVE
(A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
105 NUT; BRKT,VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 02 1 0908- ●
105 NUT; BRKT,VALVE
WHEEL BASE 4200MM(42W) (B) M10 FLANGE 		0-91180-210-0 02 1 0710- ●
105 NUT; BRKT,VALVE
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0907 ●
108 CONNECTOR; ELBOW
WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0907 ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0908- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0908- ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0907 ●
108 CONNECTOR; ELBOW
WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0710-0907 ●
108 CONNECTOR; ELBOW
(A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0908- ●
108 CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0908- ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710- ● ● ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
(D) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ●
108 CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ●
220 CONNECTOR; 3WAY
(A) 		1-09660-988-1 01 1 0710-0907 ●
220 CONNECTOR; 3WAY
WHEEL BASE 6500MM(65W) (A) 		1-09660-988-1 01 1 0710-0907 ●
220 CONNECTOR; 3WAY
(A) 		1-09660-988-1 01 1 0908- ●
220 CONNECTOR; 3WAY
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		1-09660-988-1 01 1 0908- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) 		1-09656-708-0 01 1 0710-1101 ●
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 0710-1101 ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
(B) 		8-98166-127-0 01 1 1102- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ●
220 CONNECTOR; 3WAY
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ●
220 CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (C) 		8-98031-238-0 01 1 0710- ●
220 CONNECTOR; 3WAY
(C) 		8-98031-238-0 01 1 0710- ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ● ●
232 VALVE; CHECK
(B) 		8-98032-527-0 01 1 0710- ● ● ●
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0710- ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
