3-10 — BRAKE PEDAL AND CONTROL (#41681) — 40 parça

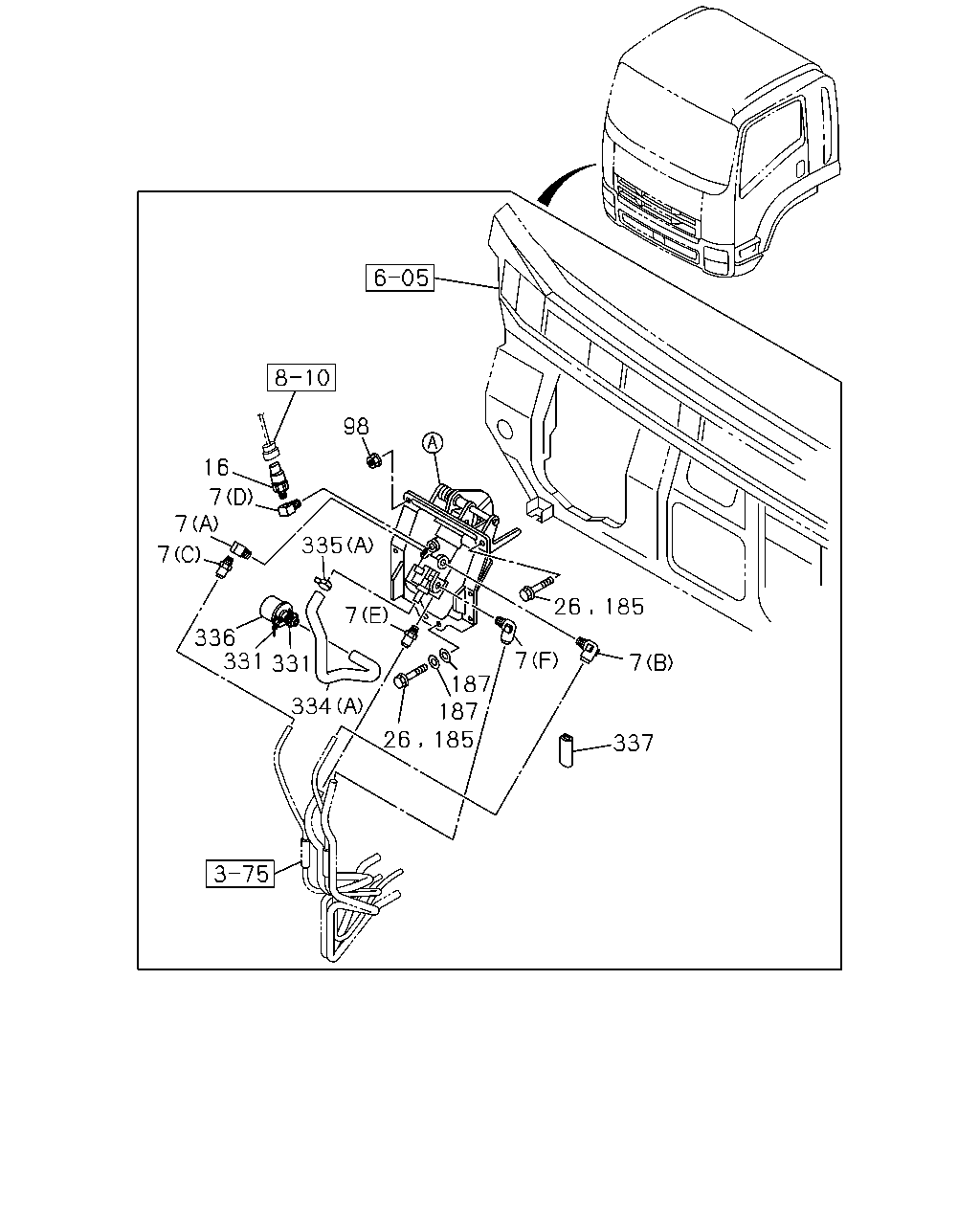

çizim 111732
98 16 7 7 335 7 26 185 7 336 331 7 7 331 187 187 185 334 26 337
BalonParca AdiParca NoAdetTipApplied Date A B C
7 CONNECTOR; BRK VALVE
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0710- ● ● ●
7 CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ● ● ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710- ● ● ●
7 CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710- ● ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710- ● ● ●
7 CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ● ●
16 SWITCH; STOP LAMP 8-98010-857-0 01 1 0710- ● ● ●
26 BOLT; PEDAL
M8X25 FLANGE 		8-98057-109-0 07 1 0710-0908 ● ● ●
98 NUT; BRKT
M8 FLANGE 		0-91180-208-0 01 1 0710- ● ● ●
185 BOLT; BRKT
M8X25 FLANGE 		8-98057-109-0 07 1 0909- ● ● ●
187 WASHER; PL,BRKT
ID=8.4 OD=26 		0-91614-808-0 04 1 0710- ● ● ●
331 CLIP; BAND
L=197 		1-83574-032-0 02 1 0710- ● ● ●
334 HOSE; AIR,BRK
(A) 		8-98017-118-4 01 1 0710- ● ● ●
334 HOSE; AIR,BRK
(B) L=240 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0710- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 0710- ● ● ●
335 CLAMP; HOSE
(B) ID=14 		8-94238-572-0 01 1 1102- ●
336 SILENCER; AIR 1-48199-544-0 01 1 0710- ● ● ●
337 PROTECTOR; AIR BRK
L=30 L=50 		8-94270-377-1 01 1 0710- ● ● ●
çizim 112101
313 335 334
BalonParca AdiParca NoAdetTipApplied Date A B C
313 CLIP; HOSE
ID=14 		8-94238-572-0 01 1 0710-1101 ●
334 HOSE; AIR,BRK
(A) 		8-98017-118-4 01 1 0710- ● ● ●
334 HOSE; AIR,BRK
(B) L=240 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0710- ●
335 CLAMP; HOSE
(A) ID=24 		8-98025-921-0 01 1 0710- ● ● ●
335 CLAMP; HOSE
(B) ID=14 		8-94238-572-0 01 1 1102- ●
çizim 112112
4 10 183 332 2 27 4 93 6 332 207 80 1 273 76 159
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL
A/T<X9D> 		8-98071-973-1 01 1 0710- ●
1 BRACKET ASM; PEDAL
ZF9S1110 M/T(Y5E) 		8-98071-972-1 01 1 0710- ●
1 BRACKET ASM; PEDAL 8-98071-972-1 01 1 0710- ● ●
2 PEDAL; BRK 8-98057-226-0 01 1 0710- ● ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0710- ● ● ●
6 COVER; BRK PEDAL 8-98056-865-0 01 1 0710- ● ● ●
10 SPRING; RETURN,BRK PEDAL 8-98057-232-1 01 1 0710- ● ● ●
27 SHAFT; BRK PEDAL 8-98057-231-0 01 1 0710- ● ● ●
76 NUT; PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 0710- ● ● ●
93 SEAL; BRK PEDAL 1-48199-534-0 01 1 0710- ● ● ●
159 ROD ASM; PUSH,BRK 8-98057-234-0 01 1 0710- ● ● ●
183 BOLT; BRK VLV
M8X30 FLANGE 		0-28660-830-0 04 1 0710- ● ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-97387-230-0 01 1 0710-1007 ● ● ●
207 PIN; JOINT,BRK PEDAL LINK 8-98147-657-0 01 1 1008- ● ● ●
273 ROD; PULL 8-98057-233-0 01 1 0710- ● ● ●
332 RING; SNAP
ID=12 		0-91805-512-0 02 1 0710- ● ● ●
