0-13B — OIL PAN AND LEVEL GAUGE (#4168) — 219 parça

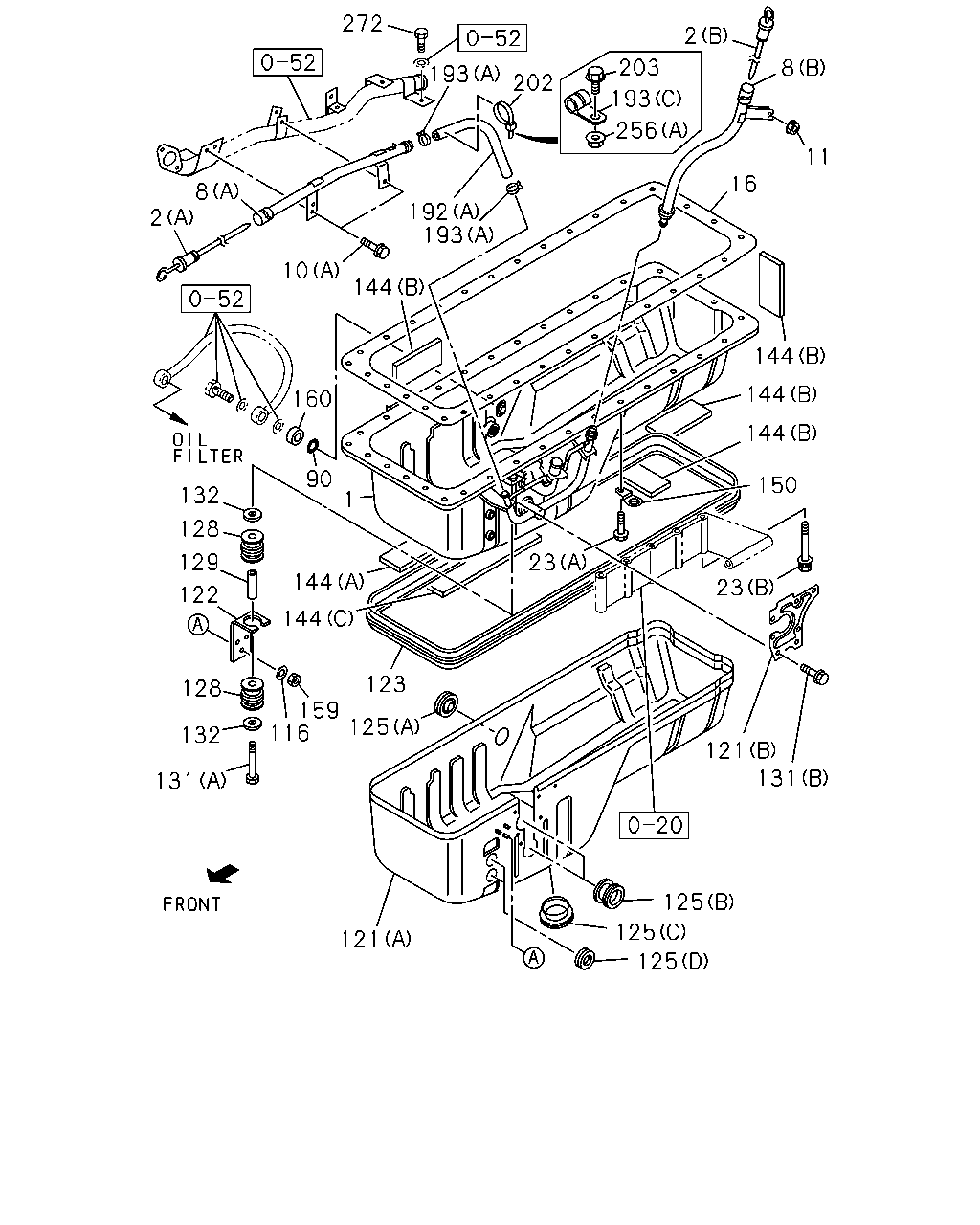

çizim 4597
272 2 203 8 193 202 193 256 11 16 8 192 193 2 10 144 144 144 160 144 90 150 132 1 128 129 23 144 23 122 144 123 128 159 116 125 132 121 131 131 125 125 121 125
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAN ASM; OIL 1-11360-850-1 01 1 9905- ●
1 PAN ASM; OIL 1-11360-827-1 01 1 9603-9705 ●
1 PAN ASM; OIL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) 		1-11360-827-2 01 1 9706-9901 ●
1 PAN ASM; OIL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-11360-850-0 01 1 9706-9901 ●
1 PAN ASM; OIL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-849-1 01 1 9905- ● ●
1 PAN ASM; OIL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. GOVERNOR CONTROL<W69> 		1-11360-848-0 01 1 9706-9901 ●
1 PAN ASM; OIL
EXC. GOVERNOR CONTROL<W69> 		1-11360-826-0 01 1 9603-9705 ●
1 PAN ASM; OIL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,GOVERNOR CONTROL<W69>,CHINA EQUIPMENT(YT2) 		1-11360-826-1 01 1 9706-9901 ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-828-0 01 1 9603-9705 ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-849-0 01 1 9706-9812 ●
1 PAN ASM; OIL
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> 		1-11360-849-0 01 1 9901-9901 ●
1 PAN ASM; OIL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-848-0 01 1 9905- ●
1 PAN ASM; OIL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-11360-848-0 01 1 9905- ● ●
1 PAN ASM; OIL
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-848-0 01 1 9905- ●
1 PAN ASM; OIL
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-826-3 01 1 0002- ●
1 PAN ASM; OIL
MIXER TRUCK<RA2> 		1-11360-826-3 01 1 0002- ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-403-0 01 1 9603-9901 ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-403-0 01 1 9905- ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-394-1 01 1 9603-9901 ● ●
2 GAUGE; OIL LEVEL
(B) 		1-11760-394-1 01 1 9905- ● ● ● ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-398-0 01 1 9603-9901 ●
2 GAUGE; OIL LEVEL
(A) 		1-11760-398-0 01 1 9905- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-419-2 01 1 9603-9901 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-430-2 01 1 9603-9901 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-419-2 01 1 9905- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-430-2 01 1 9905- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-429-2 01 1 9603-9901 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-458-1 01 1 9603-9901 ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-429-2 01 1 9905- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-458-1 01 1 9905- ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9901 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9902-9904 ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ● ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 9603-9901 ● ●
11 NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE 		0-91150-108-0 01 1 9905- ● ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-107-0 01 1 9603-9901 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-107-0 01 1 9905- ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 9603-9901 ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-105-0 01 1 9905- ● ● ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 18 1 9603-9901 ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 18 1 9905- ●
23 BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 9603-9901 ● ●
23 BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER 		1-09030-078-0 10 1 9905- ● ● ● ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 9603-9901 ●
23 BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER 		1-09030-004-0 22 1 9905- ● ● ●
90 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-588-0 01 1 9603-9901 ● ●
90 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-588-0 01 1 9905- ● ● ● ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 03 1 9905- ●
116 WASHER; LK,COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=6.1 		9-09150-506-0 03 1 9603-9901 ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 04 1 9603-9901 ●
116 WASHER; LK,COVER
EXC. ANTI NOISE EQUIPMENT<SV9> ID=6.1 		9-09150-506-0 04 1 9905- ●
116 WASHER; LK,COVER
ID=6.1 		9-09150-506-0 04 1 9905- ● ●
121 COVER; OIL PAN
(B) 		1-19381-350-0 01 1 9905- ●
121 COVER; OIL PAN
(A) 		1-19381-380-0 01 1 9905- ●
121 COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-19381-348-0 01 1 9603-9705 ●
121 COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) 		1-19381-380-0 01 1 9706-9901 ●
121 COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 		1-19381-350-0 01 1 9603-9901 ●
121 COVER; OIL PAN
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-19381-349-0 01 1 9905- ● ●
121 COVER; OIL PAN
ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-19381-379-0 01 1 9905- ● ●
121 COVER; OIL PAN
EXC. GOVERNOR CONTROL<W69> (A) 		1-19381-347-0 01 1 9603-9705 ●
121 COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. GOVERNOR CONTROL<W69> (A) 		1-19381-378-0 01 1 9706-9901 ●
121 COVER; OIL PAN
EXC. GOVERNOR CONTROL<W69> (B) 		1-19381-357-0 01 1 9603-9705 ●
121 COVER; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. GOVERNOR CONTROL<W69> (B) 		1-19381-357-0 01 1 9706-9901 ●
121 COVER; OIL PAN
GOVERNOR CONTROL<W69> (B) 		1-19381-349-0 01 1 9603-9812 ●
121 COVER; OIL PAN
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (B) 		1-19381-349-0 01 1 9901-9901 ●
121 COVER; OIL PAN
GOVERNOR CONTROL<W69> (A) 		1-19381-353-0 01 1 9603-9705 ●
121 COVER; OIL PAN
GOVERNOR CONTROL<W69> (A) 		1-19381-379-0 01 1 9706-9812 ●
121 COVER; OIL PAN
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (A) 		1-19381-379-0 01 1 9901-9901 ●
121 COVER; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-19381-357-0 01 1 9905- ●
121 COVER; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B) 		1-19381-357-0 01 1 9905- ● ●
121 COVER; OIL PAN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-19381-357-0 01 1 9905- ●
121 COVER; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-19381-378-0 01 1 9905- ●
121 COVER; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 		1-19381-378-0 01 1 9905- ● ●
121 COVER; OIL PAN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 		1-19381-378-0 01 1 9905- ●
122 BRACKET; OIL PAN COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-19389-171-0 01 1 9603-9707 ●
122 BRACKET; OIL PAN COVER 1-19389-171-0 01 1 9603-9707 ●
122 BRACKET; OIL PAN COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) 		1-19389-171-0 01 1 9708-9901 ● ●
122 BRACKET; OIL PAN COVER 1-19389-171-0 01 1 9905- ● ● ● ●
123 RUBBER; SEAL OIL 1-19387-043-1 01 1 9905- ●
123 RUBBER; SEAL OIL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-19387-043-1 01 1 9603-9901 ●
123 RUBBER; SEAL OIL 1-19387-042-1 01 1 9603-9901 ●
123 RUBBER; SEAL OIL
EXC. ANTI NOISE EQUIPMENT<SV9> 		1-19387-042-1 01 1 9905- ●
123 RUBBER; SEAL OIL 1-19387-042-1 01 1 9905- ● ●
125 GROMMET; OIL PAN
(B) ID=18 		1-09333-056-0 03 1 9905- ●
125 GROMMET; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) ID=34 		1-09333-032-0 01 1 9603-9707 ●
125 GROMMET; OIL PAN
(A) ID=34 		1-09333-032-0 01 1 9603-9707 ●
125 GROMMET; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (A) ID=34 		1-09333-032-0 01 1 9708-9901 ● ●
125 GROMMET; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) ID=18 		1-09333-056-0 03 1 9603-9901 ●
125 GROMMET; OIL PAN
(A) ID=34 		1-09333-032-0 01 1 9905- ● ● ● ●
125 GROMMET; OIL PAN
(B) ID=18 		1-09333-056-0 02 1 9603-9901 ●
125 GROMMET; OIL PAN
(C) ID=60 		1-09333-090-0 01 1 9603-9901 ●
125 GROMMET; OIL PAN
ENGINE OIL TEMPERATURE GAUGE<UG3> (B) 		1-09333-067-0 02 1 9905- ● ●
125 GROMMET; OIL PAN
EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=18 		1-09333-056-0 02 1 9905- ●
125 GROMMET; OIL PAN
(B) ID=18 		1-09333-056-0 02 1 9905- ● ●
125 GROMMET; OIL PAN
EXC. ANTI NOISE EQUIPMENT<SV9> (C) ID=60 		1-09333-090-0 01 1 9905- ●
125 GROMMET; OIL PAN
(C) ID=60 		1-09333-090-0 01 1 9905- ● ●
125 GROMMET; OIL PAN
GOVERNOR CONTROL<W69> (D) 		1-09333-067-0 02 1 9603-9812 ●
125 GROMMET; OIL PAN
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (D) 		1-09333-067-0 02 1 9901-9901 ●
128 RUBBER; MTG,OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-09337-004-0 06 1 9603-9707 ●
128 RUBBER; MTG,OIL PAN 1-09337-004-0 06 1 9603-9707 ●
128 RUBBER; MTG,OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) 		1-09337-004-0 06 1 9708-9901 ● ●
128 RUBBER; MTG,OIL PAN 1-09337-004-0 06 1 9905- ● ● ● ●
129 TUBE; DIST
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X10 		1-11369-081-0 03 1 9603-9707 ●
129 TUBE; DIST
M8X10 		1-11369-081-0 03 1 9603-9707 ●
129 TUBE; DIST
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) M8X10 		1-11369-081-0 03 1 9708-9901 ● ●
129 TUBE; DIST
M8X10 		1-11369-081-0 03 1 9905- ● ● ● ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 04 1 9905- ●
131 BOLT; COVER NOISE SHIELD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) M8X50 		0-10805-850-0 03 1 9603-9707 ●
131 BOLT; COVER NOISE SHIELD
(A) M8X50 		0-10805-850-0 03 1 9603-9707 ●
131 BOLT; COVER NOISE SHIELD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (A) M8X50 		0-10805-850-0 03 1 9708-9901 ● ●
131 BOLT; COVER NOISE SHIELD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M6X10 FLANGE 		0-28080-610-0 04 1 9603-9901 ●
131 BOLT; COVER NOISE SHIELD
(A) M8X50 		0-10805-850-0 03 1 9905- ● ● ● ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 06 1 9603-9707 ●
131 BOLT; COVER NOISE SHIELD
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (B) M6X10 FLANGE 		0-28080-610-0 06 1 9708-9801 ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 06 1 9802-9901 ●
131 BOLT; COVER NOISE SHIELD
EXC. ANTI NOISE EQUIPMENT<SV9> (B) M6X10 FLANGE 		0-28080-610-0 06 1 9905- ●
131 BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE 		0-28080-610-0 06 1 9905- ● ●
132 WASHER; PL,OIL PAN COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=8.4 OD=26 		9-09164-808-0 06 1 9603-9707 ●
132 WASHER; PL,OIL PAN COVER
ID=8.4 OD=26 		9-09164-808-0 06 1 9603-9707 ●
132 WASHER; PL,OIL PAN COVER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) ID=8.4 OD=26 		9-09164-808-0 06 1 9708-9901 ● ●
132 WASHER; PL,OIL PAN COVER
ID=8.4 OD=26 		9-09164-808-0 06 1 9905- ● ● ● ●
144 INSULATOR; OIL PAN
(B) 80X200 		1-19389-192-0 05 1 9905- ●
144 INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 80X200 		1-19389-157-0 05 1 9603-9705 ●
144 INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) 80X200 		1-19389-192-0 05 1 9706-9901 ●
144 INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 80X300 		1-19389-163-0 03 1 9603-9705 ●
144 INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 80X300 		1-19389-193-0 03 1 9706-9901 ●
144 INSULATOR; OIL PAN
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (C) 80X300 		1-19389-193-0 03 1 9706-9901 ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (C) 80X300 		1-19389-193-0 03 1 9905-0003 ● ●
144 INSULATOR; OIL PAN
ANTI NOISE EQUIPMENT<SV9> (C) 80X300 		1-19389-193-0 03 1 0004- ● ●
144 INSULATOR; OIL PAN
CXZ&LONG CHASSIS(CXZ6MF) ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 80X300 		1-19389-193-0 03 1 0004- ●
144 INSULATOR; OIL PAN
(B) 80X200 		1-19389-157-0 07 1 9603-9705 ●
144 INSULATOR; OIL PAN
(B) 80X200 		1-19389-192-0 07 1 9706-9901 ●
144 INSULATOR; OIL PAN
(C) 80X300 		1-19389-163-0 01 1 9603-9705 ●
144 INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. GOVERNOR CONTROL<W69> (C) 80X300 		1-19389-193-0 01 1 9706-9901 ●
144 INSULATOR; OIL PAN
(A) 80X400 		1-19389-164-0 02 1 9603-9705 ●
144 INSULATOR; OIL PAN
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. GOVERNOR CONTROL<W69> (A) 80X400 		1-19389-194-0 02 1 9706-9901 ●
144 INSULATOR; OIL PAN
EXC. ANTI NOISE EQUIPMENT<SV9> (B) 80X200 		1-19389-192-0 07 1 9905- ●
144 INSULATOR; OIL PAN
(B) 80X200 		1-19389-192-0 07 1 9905- ● ●
144 INSULATOR; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 80X300 		1-19389-193-0 01 1 9905- ●
144 INSULATOR; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (C) 80X300 		1-19389-193-0 01 1 9905- ● ●
144 INSULATOR; OIL PAN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (C) 80X300 		1-19389-193-0 01 1 9905- ●
144 INSULATOR; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 80X400 		1-19389-194-0 02 1 9905- ●
144 INSULATOR; OIL PAN
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (A) 80X400 		1-19389-194-0 02 1 9905- ● ●
144 INSULATOR; OIL PAN
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> (A) 80X400 		1-19389-194-0 02 1 9905- ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 9603-9901 ● ●
150 CLIP; WATER,OIL DRAIN 9-11229-070-0 01 1 9905- ● ● ● ●
159 NUT; PLATE
M6 		9-09110-406-0 03 1 9905- ●
159 NUT; PLATE
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M6 		9-09110-406-0 03 1 9603-9901 ●
159 NUT; PLATE
M6 		9-09110-406-0 04 1 9603-9901 ●
159 NUT; PLATE
EXC. ANTI NOISE EQUIPMENT<SV9> M6 		9-09110-406-0 04 1 9905- ●
159 NUT; PLATE
M6 		9-09110-406-0 04 1 9905- ● ●
160 ADAPTER 1-11369-126-0 01 1 9603-9901 ● ●
160 ADAPTER 1-11369-126-0 01 1 9905- ● ● ● ●
192 HOSE; GUIDE TUBE
L=600 SERVICED BY L=3000 		0-02361-300-0 01 1 9902-9904 ● ●
192 HOSE; GUIDE TUBE
(A) L=620 SERVICED BY L=3000 		0-02365-300-0 01 1 9603-9901 ●
192 HOSE; GUIDE TUBE
(A) L=620 SERVICED BY L=3000 		0-02365-300-0 01 1 9905- ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9603-9901 ● ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9905- ● ● ● ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9603-9901 ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9905- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 9902-9904 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9603-9901 ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-0 02 1 9603-9901 ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9607-9901 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9905- ● ● ● ●
202 CLIP; BAND,RUBBER COVER
L=250 		5-09707-030-0 01 1 9603-9606 ● ●
202 CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-0 01 1 9607-9901 ● ●
202 CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 01 1 9905- ● ●
203 BOLT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9901 ● ●
203 BOLT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9905- ● ● ● ●
256 NUT; CLIP
(A) M8 FLANGE 		0-91150-108-0 01 1 9607-9901 ● ●
272 BOLT; STAY
M8X30 		1-09009-020-1 01 1 9603-9901 ● ●
272 BOLT; STAY
M8X30 		1-09009-020-1 01 1 9905- ● ● ● ●

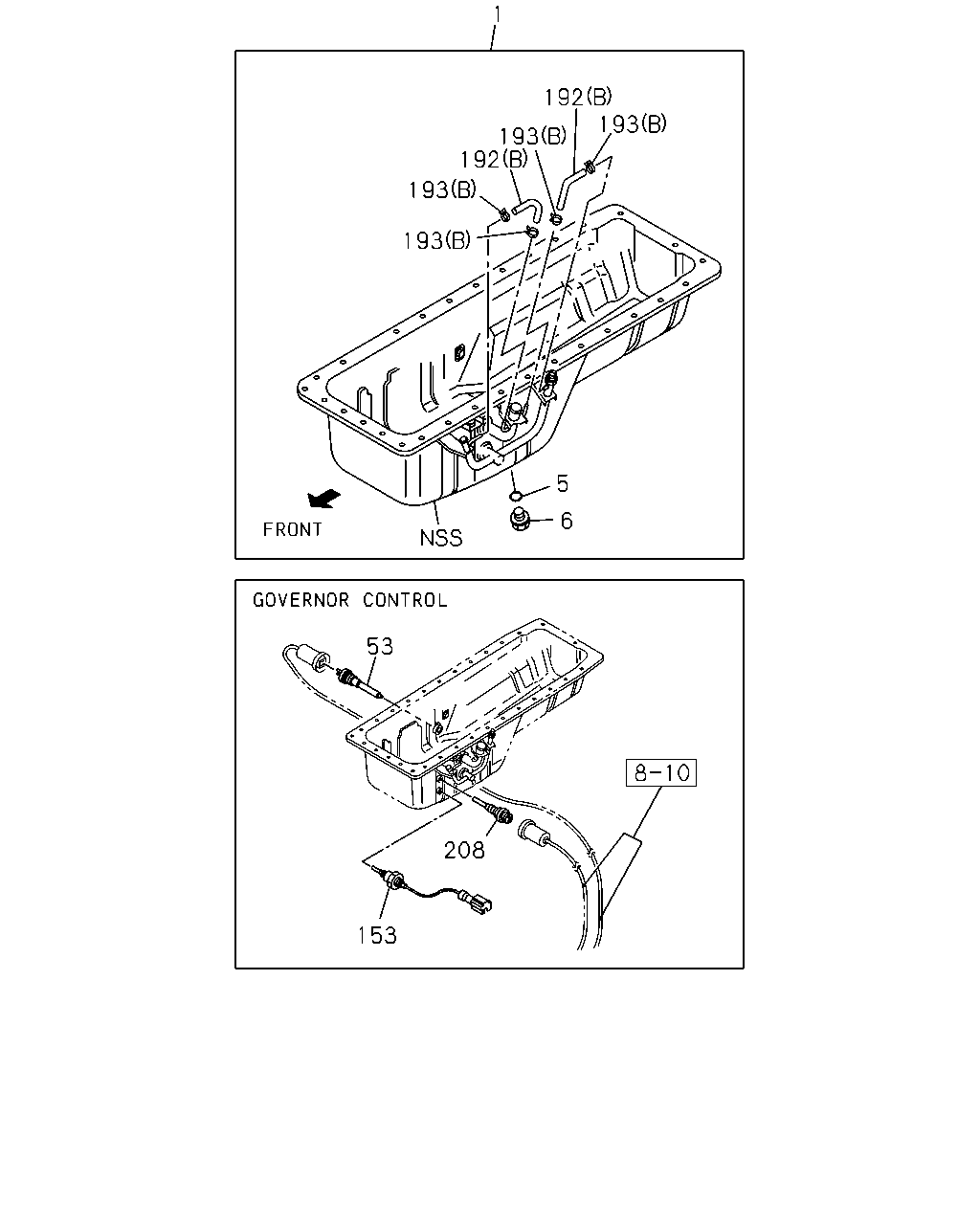

çizim 39886
1 192 193 193 192 193 193 5 6 53 208 153
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAN ASM; OIL 1-11360-850-1 01 1 9905- ●
1 PAN ASM; OIL 1-11360-827-1 01 1 9603-9705 ●
1 PAN ASM; OIL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) 		1-11360-827-2 01 1 9706-9901 ●
1 PAN ASM; OIL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-11360-850-0 01 1 9706-9901 ●
1 PAN ASM; OIL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-849-1 01 1 9905- ● ●
1 PAN ASM; OIL
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) EXC. GOVERNOR CONTROL<W69> 		1-11360-848-0 01 1 9706-9901 ●
1 PAN ASM; OIL
EXC. GOVERNOR CONTROL<W69> 		1-11360-826-0 01 1 9603-9705 ●
1 PAN ASM; OIL
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,GOVERNOR CONTROL<W69>,CHINA EQUIPMENT(YT2) 		1-11360-826-1 01 1 9706-9901 ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-828-0 01 1 9603-9705 ●
1 PAN ASM; OIL
GOVERNOR CONTROL<W69> 		1-11360-849-0 01 1 9706-9812 ●
1 PAN ASM; OIL
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> 		1-11360-849-0 01 1 9901-9901 ●
1 PAN ASM; OIL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-848-0 01 1 9905- ●
1 PAN ASM; OIL
EXC. ENGINE OIL TEMPERATURE GAUGE<UG3>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-11360-848-0 01 1 9905- ● ●
1 PAN ASM; OIL
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-848-0 01 1 9905- ●
1 PAN ASM; OIL
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-11360-826-3 01 1 0002- ●
1 PAN ASM; OIL
MIXER TRUCK<RA2> 		1-11360-826-3 01 1 0002- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 9603-9901 ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8 		1-09623-415-0 01 1 9905- ● ● ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9603-9901 ● ●
6 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-064-1 01 1 9905- ● ● ● ●
53 HEATER ASM; OIL PAN
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-81900-141-0 01 1 9905- ● ●
53 HEATER ASM; OIL PAN
GOVERNOR CONTROL<W69> 		1-81900-141-0 01 1 9603-9812 ●
53 HEATER ASM; OIL PAN
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> 		1-81900-141-0 01 1 9901-9901 ●
153 THERMOMETER UNIT; OIL
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-83161-032-0 01 1 9905- ● ●
153 THERMOMETER UNIT; OIL
GOVERNOR CONTROL<W69> 		1-83161-032-0 01 1 9603-9812 ●
153 THERMOMETER UNIT; OIL
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> 		1-83161-032-0 01 1 9901-9901 ●
192 HOSE; GUIDE TUBE
L=600 SERVICED BY L=3000 		0-02361-300-0 01 1 9902-9904 ● ●
192 HOSE; GUIDE TUBE
(A) L=620 SERVICED BY L=3000 		0-02365-300-0 01 1 9603-9901 ●
192 HOSE; GUIDE TUBE
(A) L=620 SERVICED BY L=3000 		0-02365-300-0 01 1 9905- ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9603-9901 ● ●
192 HOSE; GUIDE TUBE
(B) 		1-09360-297-0 02 1 9905- ● ● ● ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9603-9901 ●
192 HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000 		0-02365-300-0 01 1 9905- ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 9902-9904 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9603-9901 ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-0 02 1 9603-9901 ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9607-9901 ● ●
193 CLIP; HOSE,GUIDE TUBE
(B) ID=11.6 		1-09707-087-0 04 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=20.8 		8-94125-862-1 02 1 9905- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=26 L=26 		1-09701-236-0 01 1 9905- ● ● ● ●
208 SWITCH; OIL THERMO,OIL PAN
ENGINE OIL TEMPERATURE GAUGE<UG3> 		1-82450-038-2 01 1 9905- ● ●
208 SWITCH; OIL THERMO,OIL PAN
GOVERNOR CONTROL<W69> 		1-82450-038-2 01 1 9603-9812 ●
208 SWITCH; OIL THERMO,OIL PAN
CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> 		1-82450-038-2 01 1 9901-9901 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
