◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#41677) — 34 parça

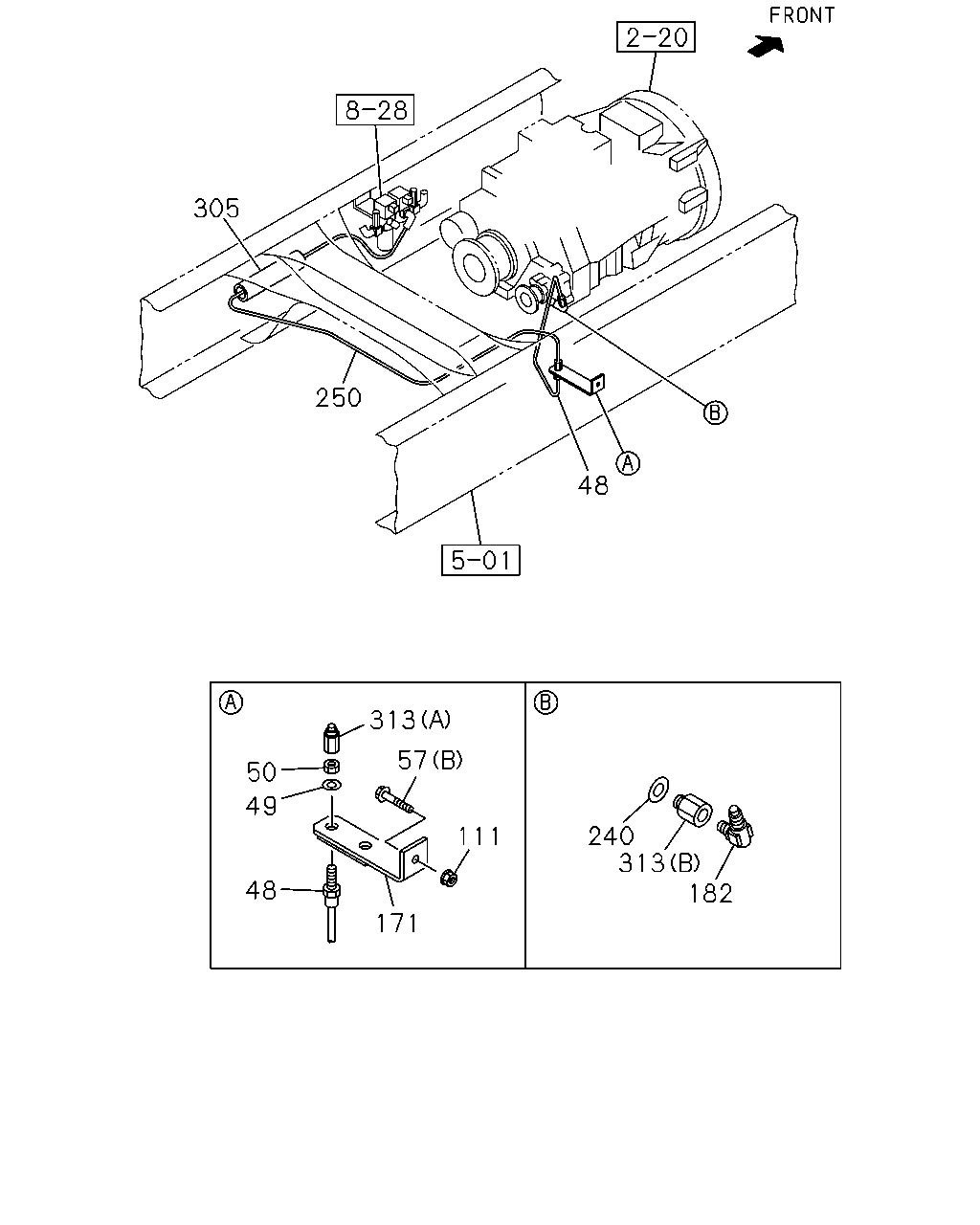

çizim 111731
305 250 48 313 57 50 49 240 313 182 111 48 171
BalonParca AdiParca NoAdetTipApplied Date A B C
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 0802-0907 ●
48 HOSE; FLEX,PTO
WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 0802-0907 ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 0908- ●
48 HOSE; FLEX,PTO
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) L=280 		1-09363-610-0 01 1 0908- ●
48 HOSE; FLEX,PTO
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0802- ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		9-09150-512-0 01 1 0802-1011 ● ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 0802- ● ●
57 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0710-0912 ●
57 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (C) 		1-34119-134-0 01 1 1001- ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0802- ● ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0802- ● ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) 		8-98100-228-0 01 1 0802- ● ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710- ● ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 0710-1312 ● ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0802- ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0802-0911 ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0912- ●
305 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0912- ●
305 TUBE; CORRUGATE
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0912- ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (B) 		1-09654-396-0 01 1 0710- ● ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802- ● ●
çizim 112102
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710- ● ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0710- ● ● ●

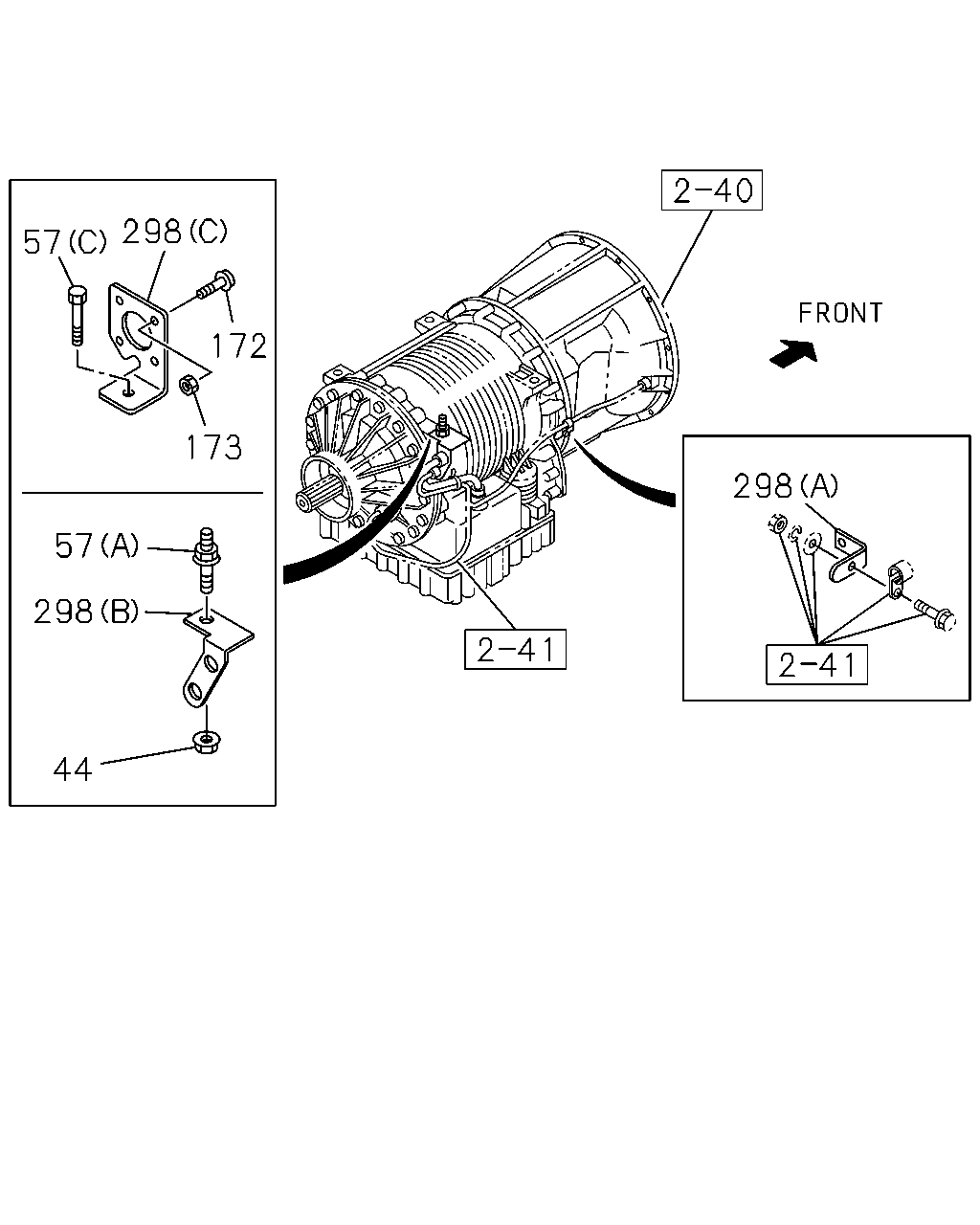

çizim 112114
298 57 172 173 298 57 298 44
BalonParca AdiParca NoAdetTipApplied Date A B C
44 NUT; BRKT
ALLISON MD3060P A/T(Y4G) M14 FLANGE 		0-91180-114-0 01 1 0710-0912 ●
44 NUT; BRKT
ALLISON MD3060P A/T(Y4G) 		1-34119-135-0 01 1 1001- ●
57 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0710-0912 ●
57 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (C) 		1-34119-134-0 01 1 1001- ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0802- ● ●
172 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) M4X16 		9-03494-416-0 04 1 1001- ●
173 NUT; BRKT
ALLISON MD3060P A/T(Y4G) M4 FLANGE 		8-97368-853-0 04 1 1001- ●
298 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G) (A) 		1-34119-088-0 01 1 0710- ●
298 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G) (B) 		1-34119-113-0 01 1 0710-0912 ●
298 BRACKET; HARNESS
ALLISON MD3060P A/T(Y4G) (C) 		1-34119-133-0 01 1 1001- ●
