2-53 — TRANSMISSION OIL COOLER SYSTEM (#41674) — 106 parça

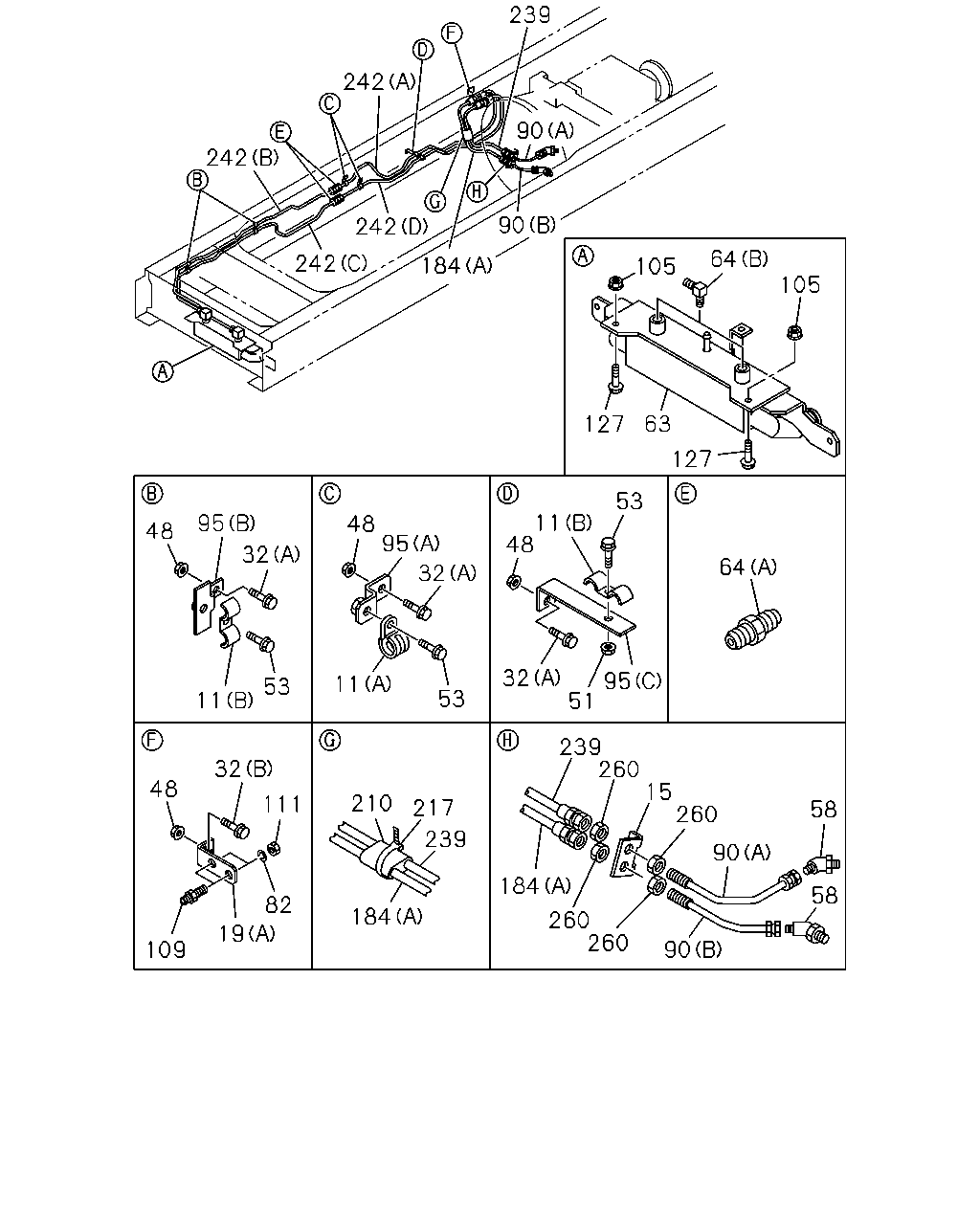

239 242 90 242 242 90 64 242 184 105 105 63 127 127 53 11 48 95 48 95 48 32 64 32 32 51 95 11 53 53 11 239 260 15 260 32 48 210 111 217 58 239 90 184 58 82 184 260 260 19 90 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	0710-
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0912
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	1001-
15	BRACKET; ATF PIPE ALLISON MD3060P A/T(Y4G)	1-47471-409-0	01	1	0710-0912
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	0710-0811
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98133-954-0	01	1	0812-0912
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	1001-
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (B)	8-98144-397-0	01	1	1001-
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	05	1	0710-0912
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	07	1	1001-
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	07	1	0710-0912
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	09	1	1001-
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0710-0811
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	02	1	0812-
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	0710-0811
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	06	1	0812-0912
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	1001-
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	1-09661-809-0	02	1	0710-0912
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	8-98144-617-0	02	1	1001-
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	0710-
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (A)	1-09664-263-0	02	1	0710-0811
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (B)	9-09903-722-0	02	1	0710-
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	0710-
90	PIPE ASM; ATF ALLISON MD3060P A/T(Y4G) (A)	1-32571-167-0	01	1	0710-0912
90	PIPE ASM; ATF ALLISON MD3060P A/T(Y4G) (B)	1-32571-168-0	01	1	0710-0912
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	1-47478-140-0	01	1	0710-1407
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	8-98269-434-0	01	1	1408-
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (A)	1-47479-255-0	02	1	0710-
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (B)	8-98089-351-0	02	1	0710-
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	0710-
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	0710-
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	0710-
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98025-696-1	01	1	0802-
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-593-0	01	1	0710-0912
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	02	1	0710-0811
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	01	1	0812-
217	CLIP; BAND,FLEX HOSE ALLISON MD3060P A/T(Y4G) L=250	1-09707-126-0	01	1	0710-0811
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	0802-
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3060P A/T(Y4G)	8-98097-594-0	01	1	0710-0912
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-573-0	01	1	0710-0811
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98112-994-0	01	1	0812-0912
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (E)	8-98144-258-0	01	1	1001-
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98097-574-0	01	1	0710-
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98097-575-0	01	1	0710-0811
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98112-995-0	01	1	0812-0912
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (F)	8-98144-259-0	01	1	1001-
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98097-576-0	01	1	0710-0811
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98113-105-0	01	1	0812-
260	NUT ALLISON MD3060P A/T(Y4G) M30	1-09400-166-0	04	1	0710-0912

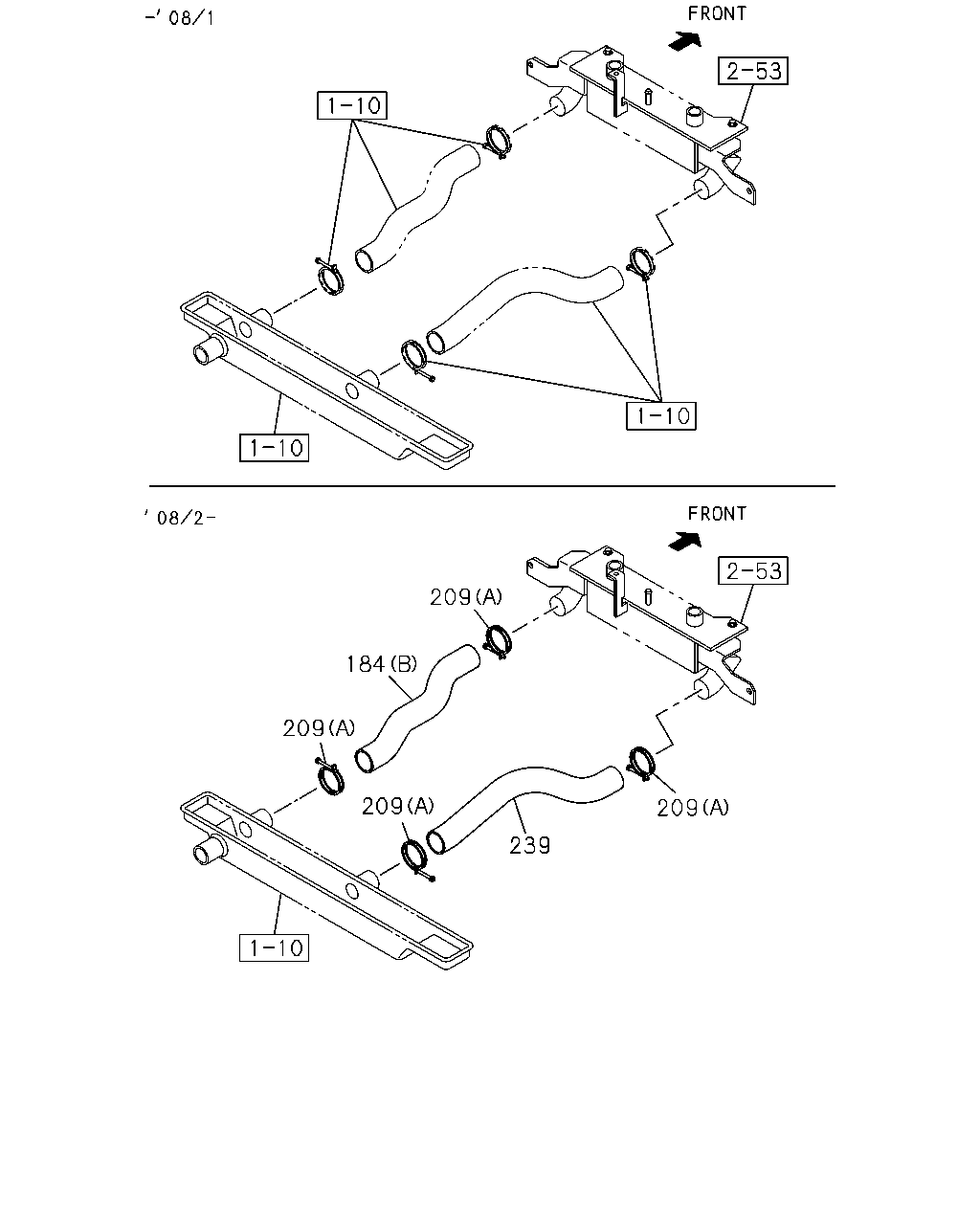

209 184 209 209 209 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98025-696-1	01	1	0802-
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-593-0	01	1	0710-0912
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (B) ID=26 L=26	1-09701-236-0	02	1	1001-
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D>	8-98025-697-1	01	1	0802-
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3060P A/T(Y4G)	8-98097-594-0	01	1	0710-0912

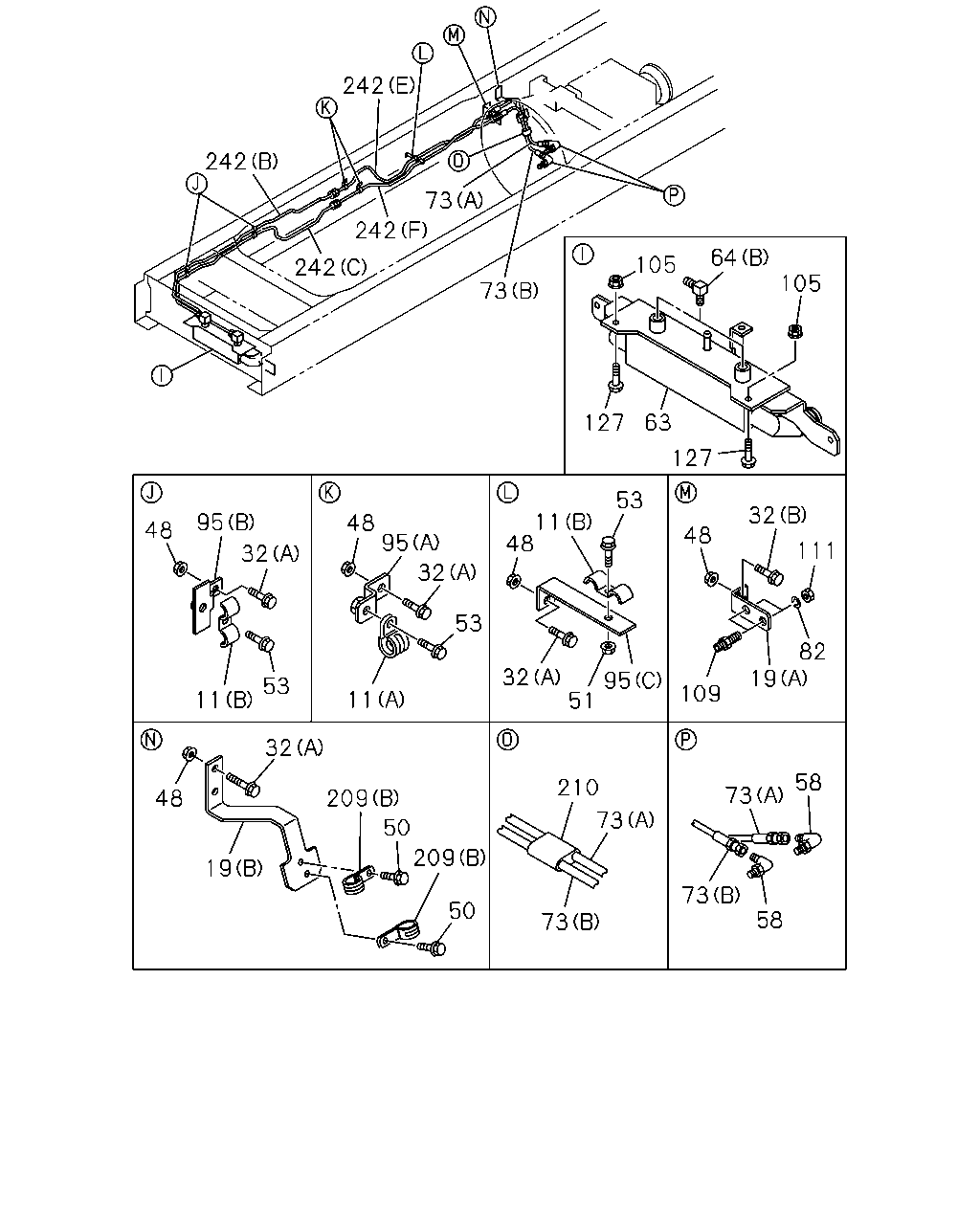

242 242 73 242 64 105 242 105 73 63 127 127 53 32 11 48 95 48 95 48 48 111 32 32 53 82 32 51 19 95 53 109 11 11 32 58 210 73 209 48 73 50 209 19 73 50 58 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	0710-
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0912
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	03	1	1001-
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	0710-0811
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98133-954-0	01	1	0812-0912
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	1001-
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (B)	8-98144-397-0	01	1	1001-
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	05	1	0710-0912
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	07	1	1001-
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	07	1	0710-0912
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	09	1	1001-
50	BOLT; CLIP ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	02	1	1001-
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0710-0811
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	02	1	0812-
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	0710-0811
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	06	1	0812-0912
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	1001-
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	1-09661-809-0	02	1	0710-0912
58	CONNECTOR; ATF ALLISON MD3060P A/T(Y4G)	8-98144-617-0	02	1	1001-
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	0710-
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (A)	1-09664-263-0	02	1	0710-0811
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (B)	9-09903-722-0	02	1	0710-
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (A)	8-98144-618-0	01	1	1001-
73	HOSE; FLEX,TRANS ALLISON MD3060P A/T(Y4G) (B)	8-98144-619-0	01	1	1001-
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	0710-
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	1-47478-140-0	01	1	0710-1407
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	8-98269-434-0	01	1	1408-
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (A)	1-47479-255-0	02	1	0710-
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (B)	8-98089-351-0	02	1	0710-
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	0710-
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	0710-
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	0710-
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (B) ID=26 L=26	1-09701-236-0	02	1	1001-
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	02	1	0710-0811
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	01	1	0812-
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98097-573-0	01	1	0710-0811
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98112-994-0	01	1	0812-0912
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (E)	8-98144-258-0	01	1	1001-
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98097-574-0	01	1	0710-
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98097-575-0	01	1	0710-0811
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98112-995-0	01	1	0812-0912
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (F)	8-98144-259-0	01	1	1001-
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98097-576-0	01	1	0710-0811
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98113-105-0	01	1	0812-
