2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#41667) — 132 parça

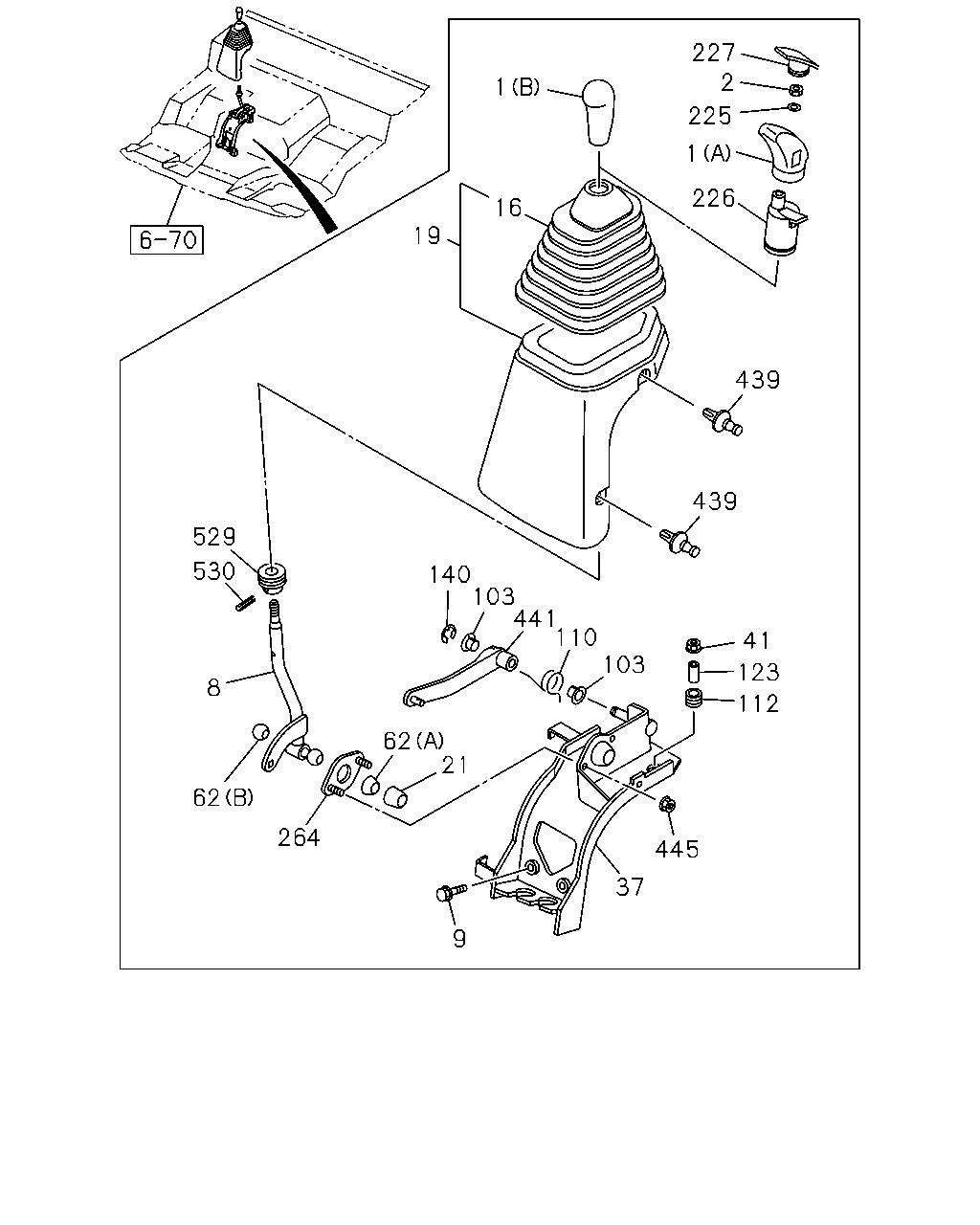

çizim 112095
227 2 1 225 1 226 16 19 439 439 529 530 140 103 441 110 103 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33611-038-0 01 1 0710- ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-038-0 01 1 0710- ●
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33611-099-1 01 1 0710- ●
1 KNOB; CHANGE LEVER
(C) 		1-33611-106-0 01 1 0710-1401 ●
1 KNOB; CHANGE LEVER
(C) 		8-98224-288-0 01 1 1402- ●
2 NUT; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 01 1 0710- ●
2 NUT; KNOB
M10 FLANGE 		0-91180-210-0 01 1 0710- ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0710- ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-308-0 01 1 0710- ●
8 LEVER; CHANGE 8-98071-308-0 01 1 0710- ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-457-0 01 1 0710-0805 ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 0806-1112 ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1201- ●
8 LEVER; CHANGE
FULLER FS8209HD DD M/T(Y3A) 		8-98093-458-0 01 1 0710- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0710- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0710- ● ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 0710- ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0710- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-954-0 01 1 0710- ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 0710- ● ●
21 SEAT; CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-429-0 01 1 0710- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0710- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-307-0 01 1 0710- ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-307-0 01 1 0710- ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 0710-1112 ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER FS8209HD DD M/T(Y3A) 		8-98093-450-0 01 1 0710- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710-0909 ● ● ●
41 NUT; CHANGE LEVER
MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER 		8-97329-625-0 02 1 0910- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0910- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 M/T(Y5E) (A) 		1-33619-427-0 01 1 0710- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0710- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 M/T(Y5E) (B) 		8-97049-147-0 01 1 0710- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0710- ● ●
103 BUSHING; RELAY LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=14 OD=16 		8-94252-671-0 02 1 0710- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0710- ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 0710- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 0710- ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0710- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0710- ●
112 RUBBER; CUSHION
ZF9S1110 M/T(Y5E) 		1-33619-442-0 04 1 0710- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0710- ● ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-443-0 04 1 0710- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0710- ● ●
140 RING; SNAP
ZF9S1110 M/T(Y5E) ID=10 		0-91805-510-0 01 1 0710- ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0710- ● ●
225 WASHER; PL,KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0710- ●
225 WASHER; PL,KNOB
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0710- ●
226 VALVE; SELECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33710-008-0 01 1 0710- ●
226 VALVE; SELECTOR 1-33710-008-0 01 1 0710- ●
227 COVER; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98013-168-0 01 1 0710- ●
227 COVER; KNOB 8-98013-168-0 01 1 0710- ●
264 PLATE; COVER
ZF9S1110 M/T(Y5E) 		1-33619-430-0 01 1 0710- ●
264 PLATE; COVER 1-33619-430-0 01 1 0710- ● ●
439 FASTENER; COVER
EXC. A/T<X9D> GRAY 		8-97407-955-0 04 1 0710- ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0710- ● ●
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 0710- ●
441 LEVER; SELECT 8-98071-283-0 01 1 0710- ●
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 0710- ●
441 LEVER; SELECT 8-98093-449-0 01 1 0710- ●
445 NUT; PLATE
ZF9S1110 M/T(Y5E) M6 FLANGE 		0-91180-106-0 02 1 0710- ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
529 RING; BOOT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-504-0 01 1 0710-1112 ●
529 RING; BOOT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-504-0 01 1 1201- ●
530 PIN; SPRING
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-505-0 01 1 0710-1112 ●
530 PIN; SPRING
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-505-0 01 1 1201- ●

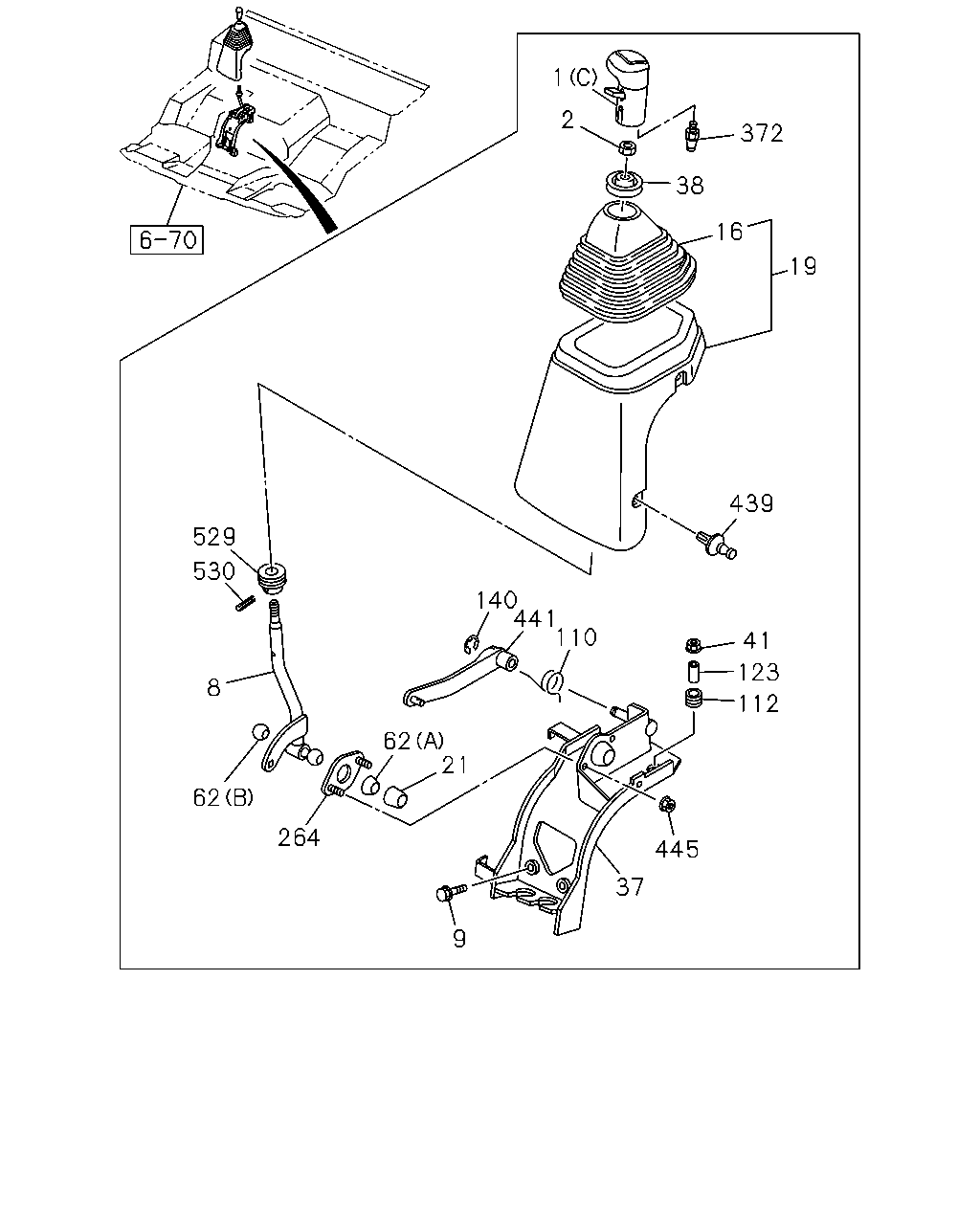

çizim 112105
1 2 372 38 16 19 439 529 530 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33611-038-0 01 1 0710- ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-038-0 01 1 0710- ●
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33611-099-1 01 1 0710- ●
1 KNOB; CHANGE LEVER
(C) 		1-33611-106-0 01 1 0710-1401 ●
1 KNOB; CHANGE LEVER
(C) 		8-98224-288-0 01 1 1402- ●
2 NUT; KNOB
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 01 1 0710- ●
2 NUT; KNOB
M10 FLANGE 		0-91180-210-0 01 1 0710- ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 0710- ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-308-0 01 1 0710- ●
8 LEVER; CHANGE 8-98071-308-0 01 1 0710- ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-457-0 01 1 0710-0805 ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 0806-1112 ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1201- ●
8 LEVER; CHANGE
FULLER FS8209HD DD M/T(Y3A) 		8-98093-458-0 01 1 0710- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0710- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0710- ● ●
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 0710- ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0710- ● ●
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97407-954-0 01 1 0710- ●
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 0710- ● ●
21 SEAT; CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-429-0 01 1 0710- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0710- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-307-0 01 1 0710- ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-307-0 01 1 0710- ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 0710-1112 ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 1201- ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER FS8209HD DD M/T(Y3A) 		8-98093-450-0 01 1 0710- ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 0710-1005 ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 1006- ●
38 HOLDER; BOOT CHANGE LEVER 1-79996-383-0 01 1 1006- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710-0909 ● ● ●
41 NUT; CHANGE LEVER
MANUAL TRANSMISSION<X9C> M8 W/DISHED WASHER 		8-97329-625-0 02 1 0910- ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0910- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 M/T(Y5E) (A) 		1-33619-427-0 01 1 0710- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0710- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1110 M/T(Y5E) (B) 		8-97049-147-0 01 1 0710- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0710- ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 0710- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 0710- ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0710- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0710- ●
112 RUBBER; CUSHION
ZF9S1110 M/T(Y5E) 		1-33619-442-0 04 1 0710- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0710- ● ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-443-0 04 1 0710- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0710- ● ●
140 RING; SNAP
ZF9S1110 M/T(Y5E) ID=10 		0-91805-510-0 01 1 0710- ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0710- ● ●
264 PLATE; COVER
ZF9S1110 M/T(Y5E) 		1-33619-430-0 01 1 0710- ●
264 PLATE; COVER 1-33619-430-0 01 1 0710- ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 02 1 0710-0804 ●
372 CONNECTOR; CHANGE LEVER 8-98114-396-0 02 1 0805- ●
439 FASTENER; COVER
EXC. A/T<X9D> GRAY 		8-97407-955-0 04 1 0710- ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0710- ● ●
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 0710- ●
441 LEVER; SELECT 8-98071-283-0 01 1 0710- ●
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 0710- ●
441 LEVER; SELECT 8-98093-449-0 01 1 0710- ●
445 NUT; PLATE
ZF9S1110 M/T(Y5E) M6 FLANGE 		0-91180-106-0 02 1 0710- ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
529 RING; BOOT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-504-0 01 1 0710-1112 ●
529 RING; BOOT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-504-0 01 1 1201- ●
530 PIN; SPRING
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-505-0 01 1 0710-1112 ●
530 PIN; SPRING
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-505-0 01 1 1201- ●

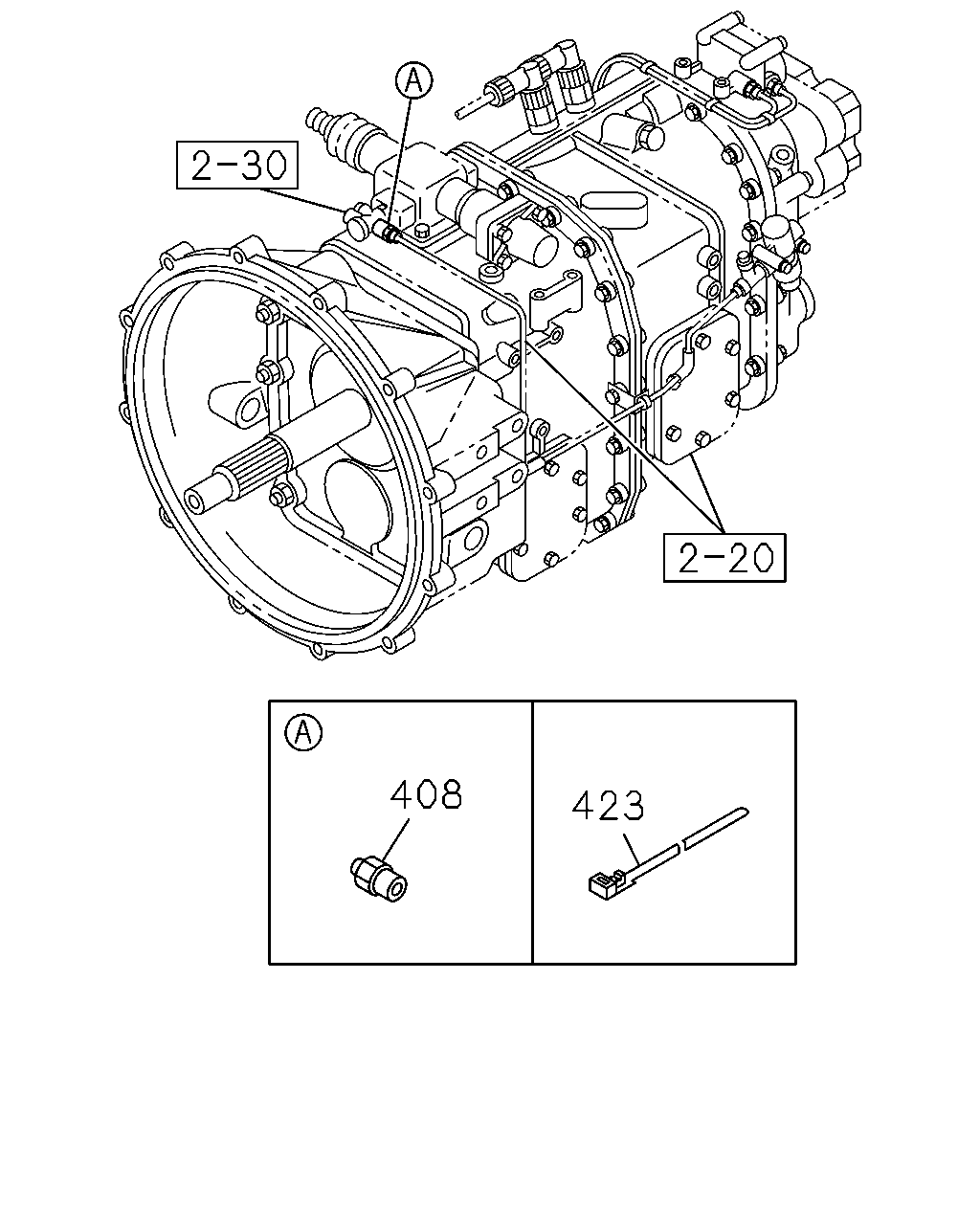

çizim 112109
408 423
BalonParca AdiParca NoAdetTipApplied Date A B C
408 CONNECTOR; AIR HOSE
FULLER FS8209HD DD M/T(Y3A) 		1-33119-461-0 01 1 0710- ●
423 CLIP; BAND
FULLER FS8209HD DD M/T(Y3A) L=140 		5-09707-031-1 03 1 0710-1009 ●
423 CLIP; BAND
FULLER FS8209HD DD M/T(Y3A) L=140 		5-09707-031-1 01 1 1010- ●
