◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30B - GEAR SHIFTER AND QUADRANT BOX ▶
2-30B — GEAR SHIFTER AND QUADRANT BOX (#41666) — 88 parça

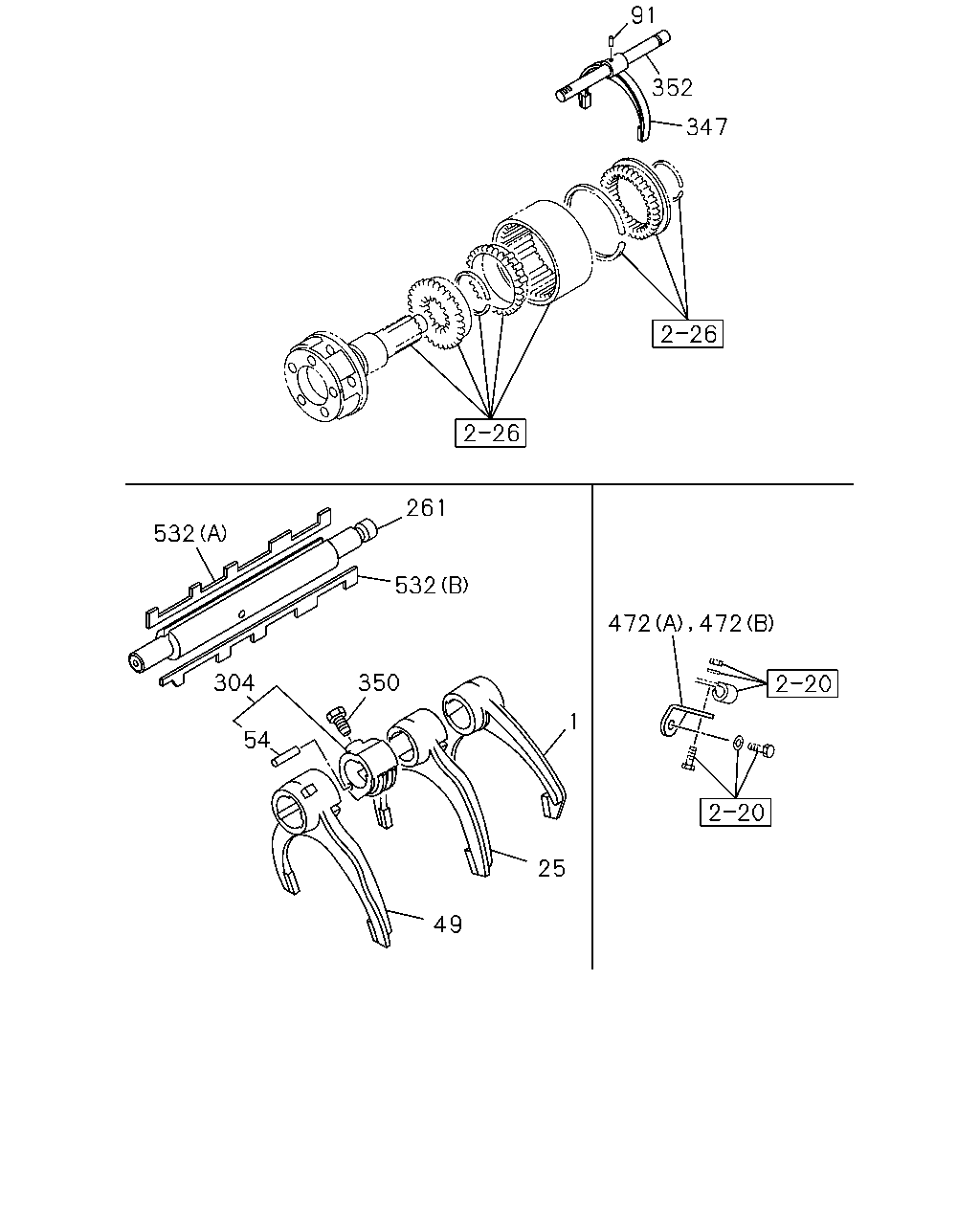

çizim 112088
91 352 347 261 532 532 472 350 304 1 54 25 49 472
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-629-0 01 1 0710-
25 ARM; SHIFT,2ND & 3RD 1-33511-630-0 01 1 0710-
49 ARM; SHIFT,4TH & 5TH 1-33511-537-0 01 1 0710-
54 PIN; SPR,SHIFT BLOCK 1-33519-101-0 01 1 0710-
91 PIN; SPR,SHIFT ARM 1-33519-100-0 01 1 0710-
261 ROD; GEAR CONT 1-33531-436-0 01 1 0710-
304 BLOCK; SHIFT SHAFT 1-33511-534-0 01 1 0710-
347 ARM; SHIFT,RANGE CHANGE 1-33511-533-0 01 1 0710-
350 SCREW; SHIFT ARM 1-33519-102-0 01 1 0710-
352 ROD; SHIFT,RANGE CHANGE 1-33531-435-0 01 1 0710-
472 EYE; LIFTING
(A) 		1-33119-528-0 01 1 0710-
472 EYE; LIFTING
(B) 		1-87060-783-0 01 1 0710-
532 PLATE; SHIFT FORK
(A) 		1-33539-054-0 01 1 0710-
532 PLATE; SHIFT FORK
(B) 		1-33539-055-0 01 1 0710-

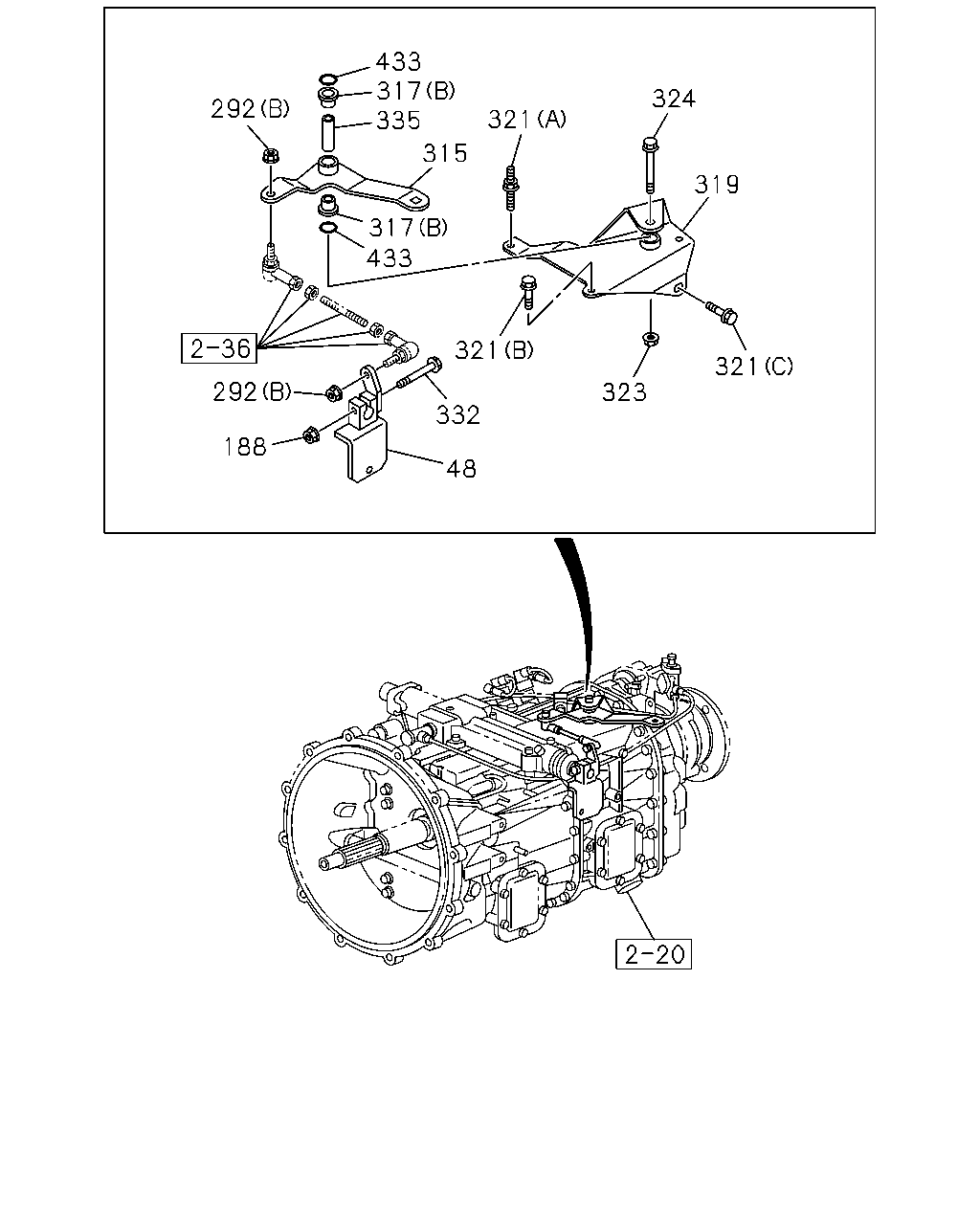

çizim 112089
433 317 335 324 292 321 315 319 317 433 321 321 292 323 332 188 48
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 8-98031-634-0 01 1 0710-
188 NUT; SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0710-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0710-1305
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1306-
315 LEVER; SELECT 8-98032-139-0 01 1 0710-
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 0710-1305
317 BUSHING; LEVER
(B) 		1-09330-119-0 02 1 1306-
319 BRACKET; SELECT LEVER 1-33657-816-0 01 1 0710-
321 BOLT; BRKT,RELAY LEVER
(B) M10X60 FLANGE 		0-28151-060-0 01 1 0710-
321 BOLT; BRKT,RELAY LEVER
(C) M10X25 FLANGE 		0-28751-025-0 01 1 0710-
321 BOLT; BRKT,RELAY LEVER
(A) M10X35 L=65 		8-97178-725-0 01 1 0710-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 0710-1305
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91180-110-0 01 1 1306-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 0710-
332 BOLT; 4TH,SHIFT LEVER 0-29261-060-0 01 1 0710-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-203-0 01 1 0710-
433 GASKET; BUSHING 1-09623-594-0 02 1 0710-1305
433 GASKET; BUSHING 1-09623-594-0 02 1 1306-

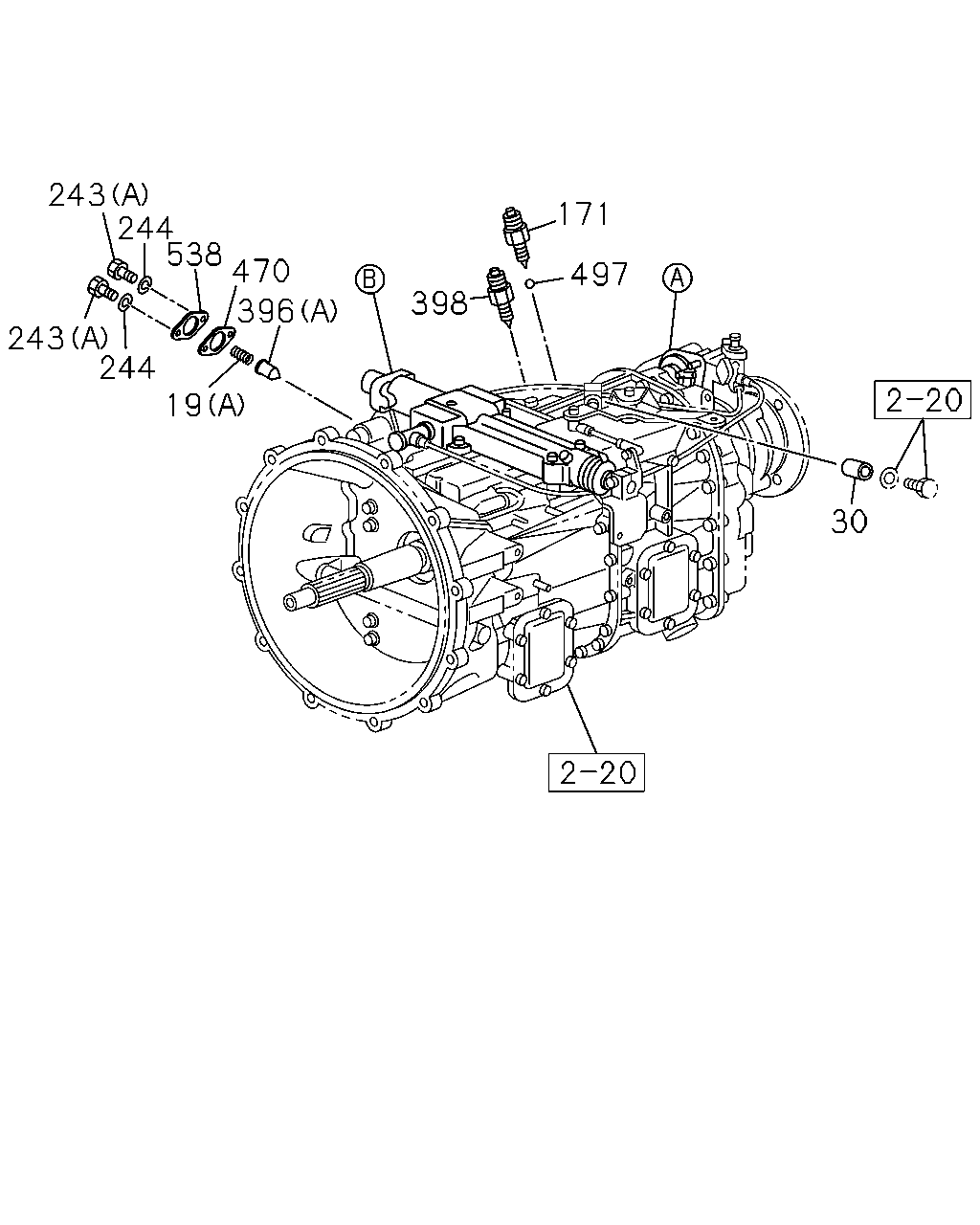

çizim 112091
243 244 538 470 171 497 396 398 243 244 19 30
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0710-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0710-
30 PIN; INTER LK 1-33119-309-0 01 1 0710-
171 SWITCH; NEUTRAL 1-82440-120-0 01 1 0710-
243 BOLT; COVER
(A) 		1-33549-480-0 02 1 0710-
243 BOLT; COVER
(B) 		1-33549-482-0 02 1 0710-
244 WASHER; LK,COVER 1-33119-530-0 02 1 0710-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0710-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0710-
398 SWITCH; REV LAMP 1-82440-121-0 01 1 0710-
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0710-
497 BALL; SWITCH 1-33119-308-0 01 1 0710-
538 COVER; DETENT 1-33119-529-0 01 1 0710-

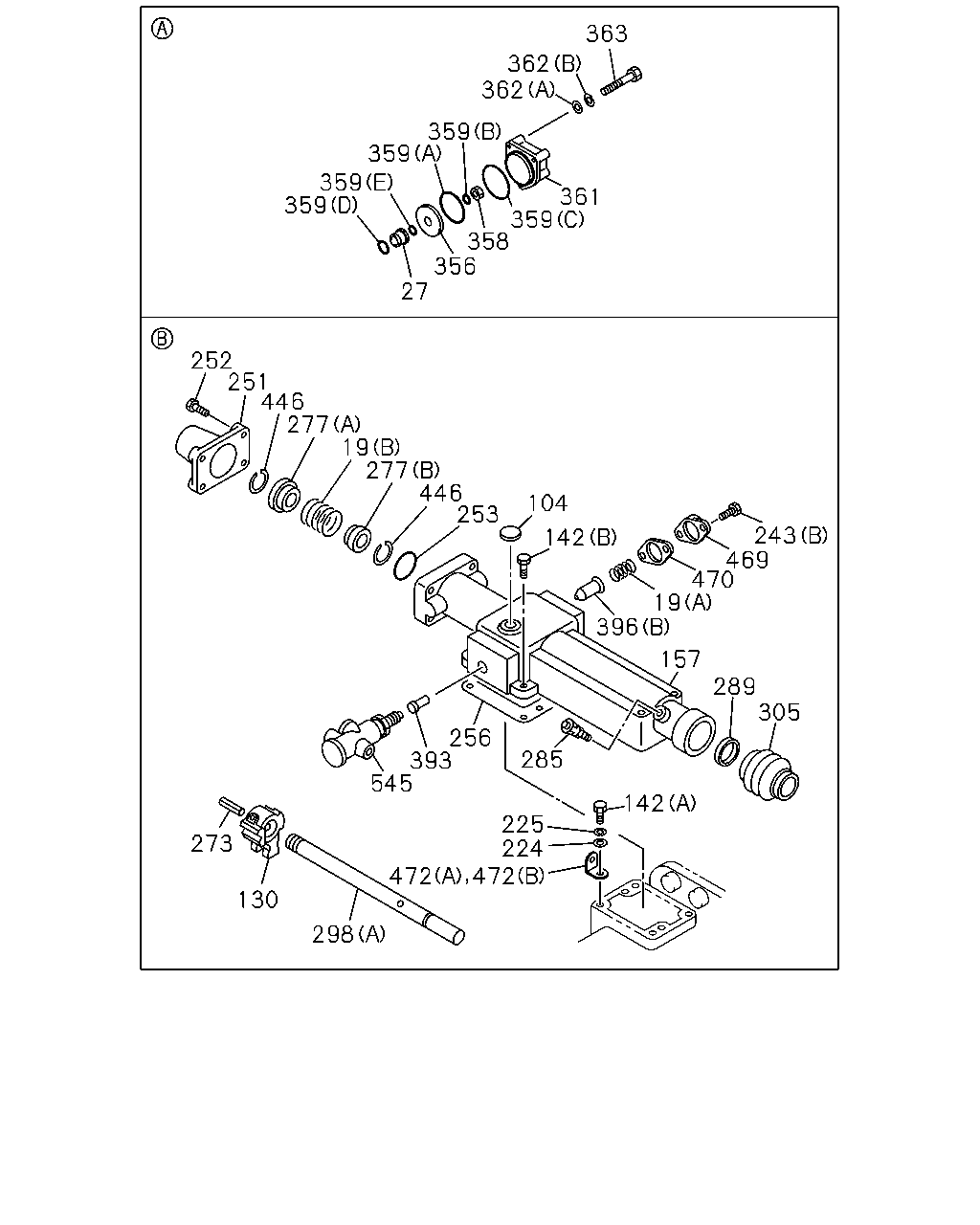

çizim 112099
363 362 362 359 359 359 359 361 359 358 356 27 252 251 446 277 19 277 446 253 104 243 469 470 19 396 142 157 289 305 256 393 545 285 142 225 224 273 472 130 298 472
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-052-0 02 1 0710-
19 SPRING; COIL COMP
(B) 		1-33549-226-0 01 1 0710-
27 BUSHING; SHIFT ROD 1-33569-042-0 01 1 0710-
104 PLUG; PLATE 1-33549-481-0 01 1 0710-
130 LEVER; SHIFT,INTERNAL 1-33521-181-0 01 1 0710-
142 BOLT; QUAD BOX
(B) M10X55 		1-33119-422-0 02 1 0710-
142 BOLT; QUAD BOX
(A) M10X35 		1-33549-524-0 04 1 0710-
157 BOX; QUAD,TRANS 1-33541-535-0 01 1 0710-
224 WASHER; PL,QUAD BOX 1-33119-524-0 03 1 0710-
225 WASHER; LK,QUAD BOX 1-34159-121-0 04 1 0710-
243 BOLT; COVER
(A) 		1-33549-480-0 02 1 0710-
243 BOLT; COVER
(B) 		1-33549-482-0 02 1 0710-
251 COVER; SIDE 1-33545-012-0 01 1 0710-
252 BOLT; SIDE COVER 1-33549-483-0 04 1 0710-
253 GASKET; SIDE COVER 1-33544-055-0 01 1 0710-
256 GASKET; QUAD BOX TO TRANS CASE 1-33549-377-0 01 1 0710-
273 PIN; SPR,STOPPER 1-33529-095-0 01 1 0710-
277 PLATE; SPRING SEAT
(A) 		1-33549-224-0 01 1 0710-
277 PLATE; SPRING SEAT
(B) 		1-33549-372-0 01 1 0710-
285 BREATHER; AIR,QUAD BOX 1-33549-354-0 01 1 0710-
289 SEAL; OIL,CONT SHAFT,QUAD BOX 1-33542-061-0 01 1 0710-
298 SHAFT; SHIFT LEVER
(A) 		1-33522-181-0 01 1 0710-
305 BOOT; LEVER SHAFT 1-33549-233-0 01 1 0710-
356 PISTON; AIR CYL 1-33551-015-0 01 1 0710-
358 NUT; SHIFT ROD 1-33539-091-0 01 1 0710-
359 GASKET; AIR CYL
(D) 		1-33552-006-0 01 1 0710-
359 GASKET; AIR CYL
(B) 		1-33552-007-0 01 1 0710-
359 GASKET; AIR CYL
(C) 		1-33563-008-0 01 1 0710-
359 GASKET; AIR CYL
(A) 		1-33569-043-0 01 1 0710-
359 GASKET; AIR CYL
(E) 		1-33569-044-0 01 1 0710-
361 CYLINDER; AIR,SHIFT 1-33569-045-0 01 1 0710-
362 WASHER; AIR CYL
(A) 		1-33119-524-0 03 1 0710-
362 WASHER; AIR CYL
(B) 		1-34159-121-0 03 1 0710-
363 BOLT; AIR CYL 1-33119-538-0 03 1 0710-
393 PIN; SW 1-33549-394-0 01 1 0710-
396 PLUNGER; SHIFT ROD
(A) 		1-33539-051-0 01 1 0710-
396 PLUNGER; SHIFT ROD
(B) 		1-33549-229-0 01 1 0710-
446 RING; SNAP,SPR SEAT 1-33549-223-0 02 1 0710-
469 COVER; SPRING,QUAD BOX 1-33119-529-0 01 1 0710-
470 GASKET; SPRING COVER 1-33119-321-0 02 1 0710-
472 EYE; LIFTING
(A) 		1-33119-528-0 01 1 0710-
472 EYE; LIFTING
(B) 		1-87060-783-0 01 1 0710-
545 VALVE; POPPET 1-33549-383-0 01 1 0710-
