Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#41665) — 677 parça

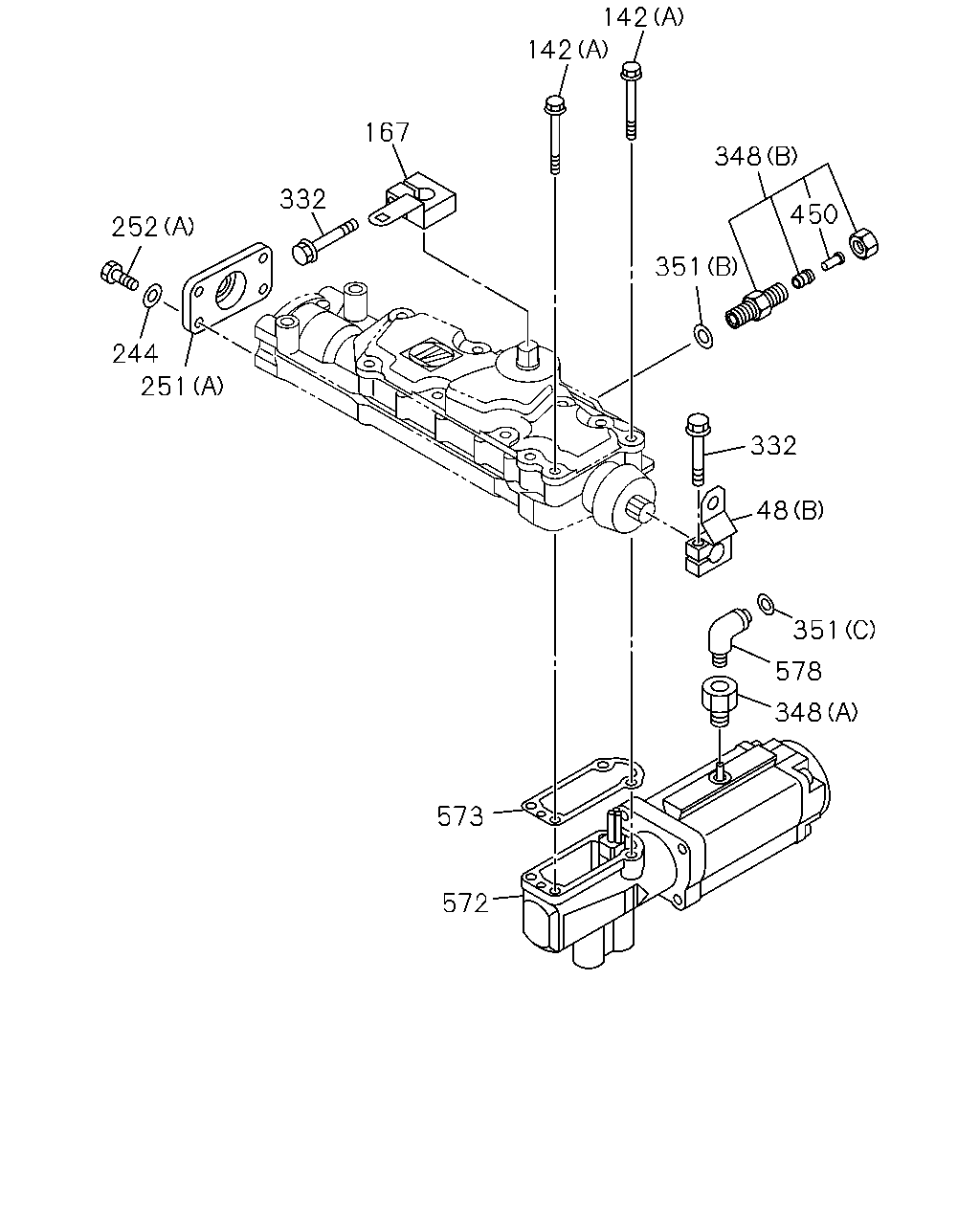

142 142 167 348 332 450 252 351 244 251 332 48 351 578 348 573 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33651-827-1	01	1	0710-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-725-0	01	1	0710-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	0710-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	0710-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	0710-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33651-831-1	01	1	0710-
244	WASHER; LK,COVER	1-33549-159-0	04	1	0710-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	0710-1305
251	COVER; SIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	0710-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	0710-1305
251	COVER; SIDE (B)	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	0710-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	0710-1305
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	0710-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	0710-1305
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A)	1-09654-396-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	0710-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	0710-1305
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	0904-1305
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1001-1305
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	0710-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	1-09630-084-0	01	1	0710-1305
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	02	1	1306-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	8-98251-344-0	02	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	0710-1305
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	0710-1305
351	GASKET; CONNECTOR PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	0904-0912
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1001-1305
450	INSERT; SHIFT ARM ASSISTOR SHIFT CONTROL<WX8> ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0710-
572	SERVO UNIT; GEAR SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33549-331-0	01	1	0710-
573	GASKET; SERVO UNIT ASSISTOR SHIFT CONTROL<WX8>	1-33549-332-0	01	1	0710-
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	0710-
578	CONNECTOR PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	0904-0912
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1001-1305

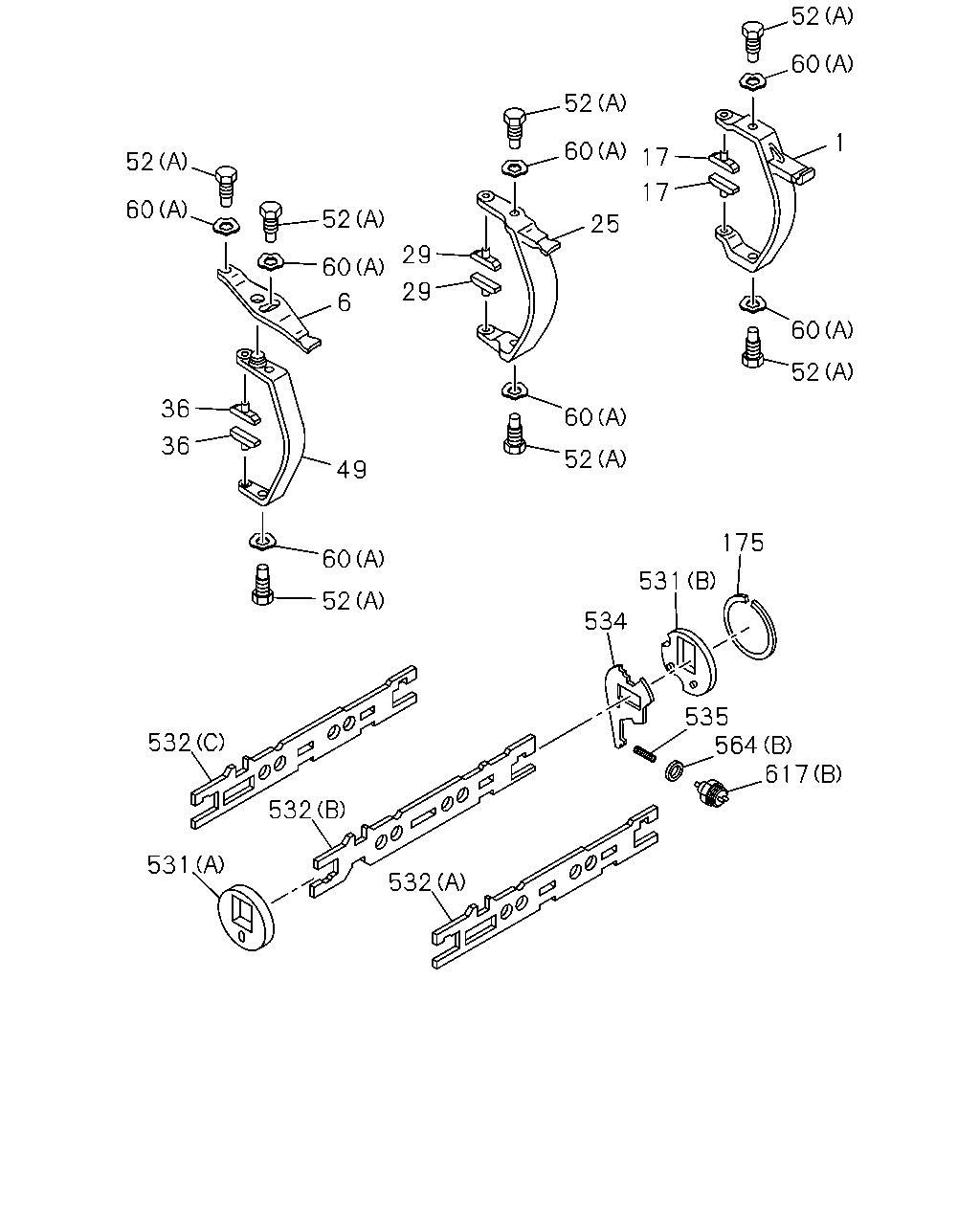

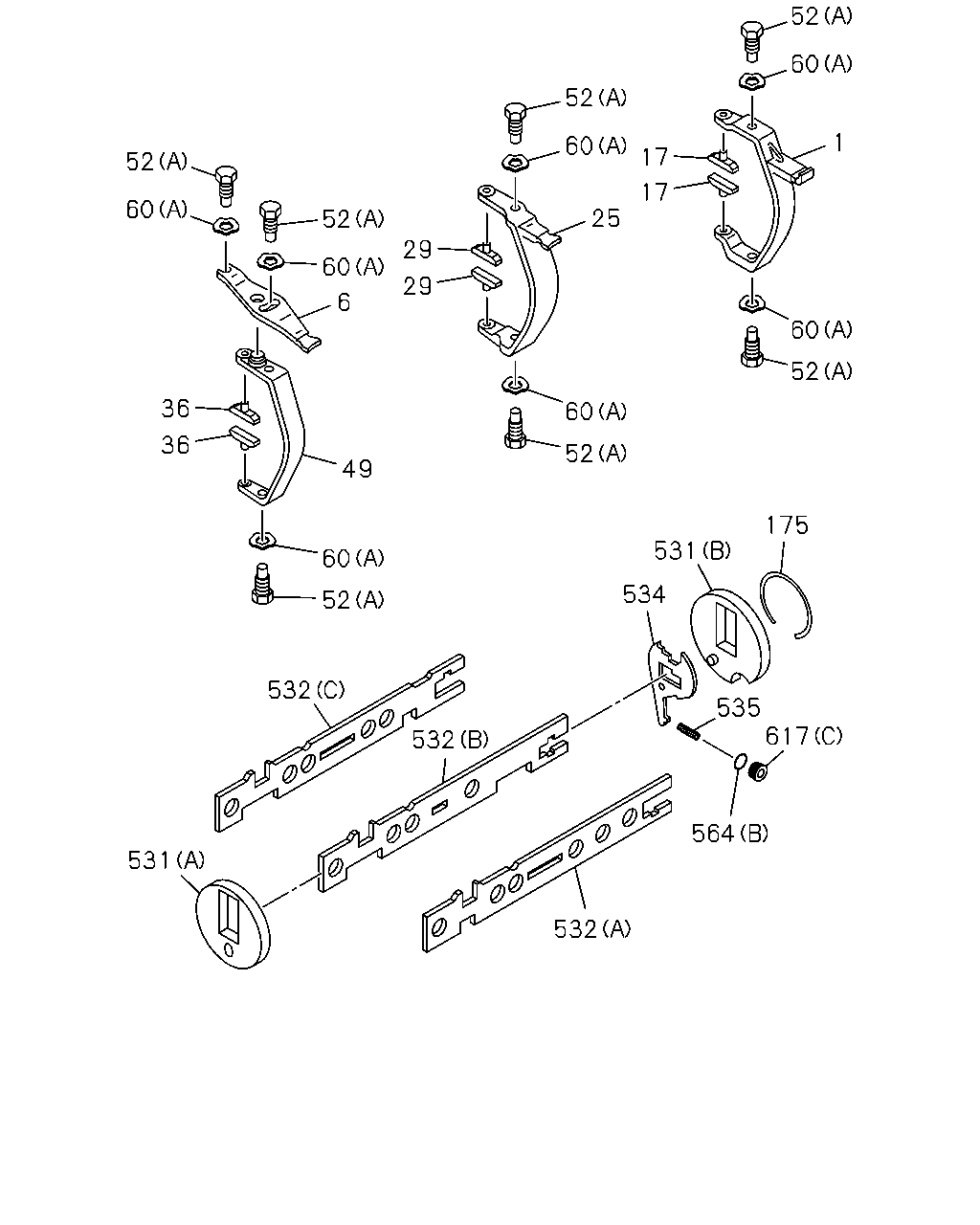

52 60 52 1 60 17 52 17 60 52 25 29 60 29 6 60 52 36 60 36 52 49 175 60 531 52 534 535 564 617 532 532 531 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	0710-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0710-0903
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0710-0903
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0904-0912
1	ARM; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0904-0912
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1001-1305
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	0904-0912
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1001-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
6	LEVER; RELAY	1-33511-641-0	01	1	0710-0903
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	0904-0912
6	LEVER; RELAY EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	0904-0912
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1001-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
6	LEVER; RELAY PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	0904-0912
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1001-1305
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	0710-1305
17	BLOCK; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	0710-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	0710-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	0710-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	0710-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	0710-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	0710-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	0710-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	0710-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	0710-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	0710-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-088-0	01	1	0710-0903
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	0904-0912
175	RING; STOPPER,SHIFT LEVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	0904-0912
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1001-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
175	RING; STOPPER,SHIFT LEVER PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	0904-0912
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1001-1305
531	PLATE; BEARING (A)	1-33539-044-0	01	1	0710-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	0710-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	0710-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	0710-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	0710-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	0710-
535	SPRING; LEVER	1-33539-049-0	01	1	0710-
564	SEAL; RING (B)	1-33549-444-0	01	1	0710-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	0710-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	0710-1305
617	PLUG (C)	1-34129-061-0	01	1	0710-1305
617	PLUG (C)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	0710-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	0710-1305

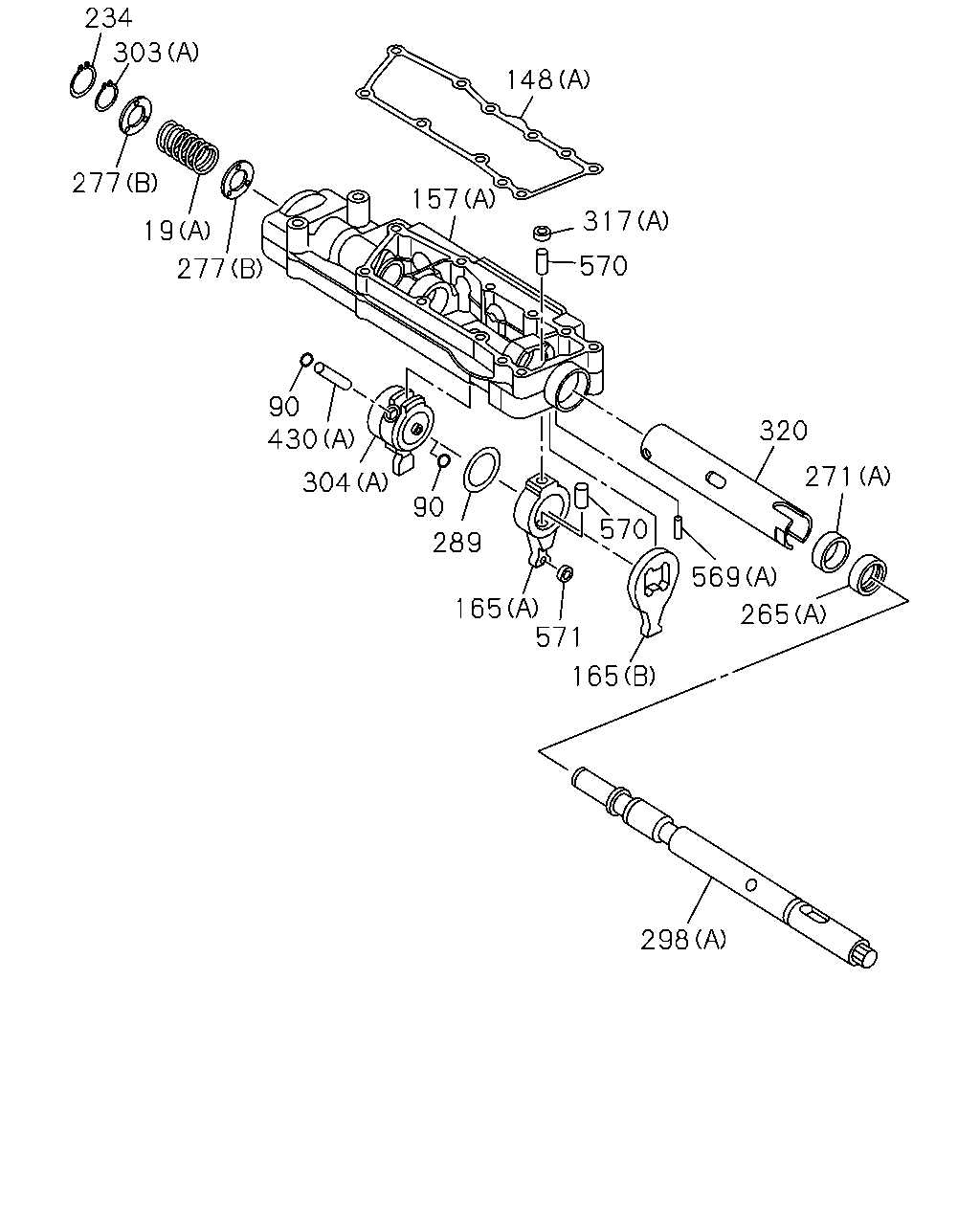

303 277 19 19 277 303 234 277 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	0710-1305
19	SPRING; COIL COMP (A)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	0710-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	0710-1305
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (C)	1-33539-093-0	01	1	1306-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-092-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-092-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-093-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-093-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-094-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-094-0	01	1	0904-0912
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	0710-1305
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) (B)	1-33539-089-0	01	1	1306-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1001-1305
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-092-0	01	1	1306-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1001-1305
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1001-1305
234	RING; SNAP	1-44519-224-0	01	1	0710-
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-33539-110-0	01	1	1306-
277	PLATE; SPRING SEAT (B)	1-33539-039-0	02	1	0710-1305
277	PLATE; SPRING SEAT COUNTRY NEW ZEALAND(CX6) (B)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-042-0	01	1	0710-1305
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	01	1	1306-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	0710-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	0710-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	0710-1305

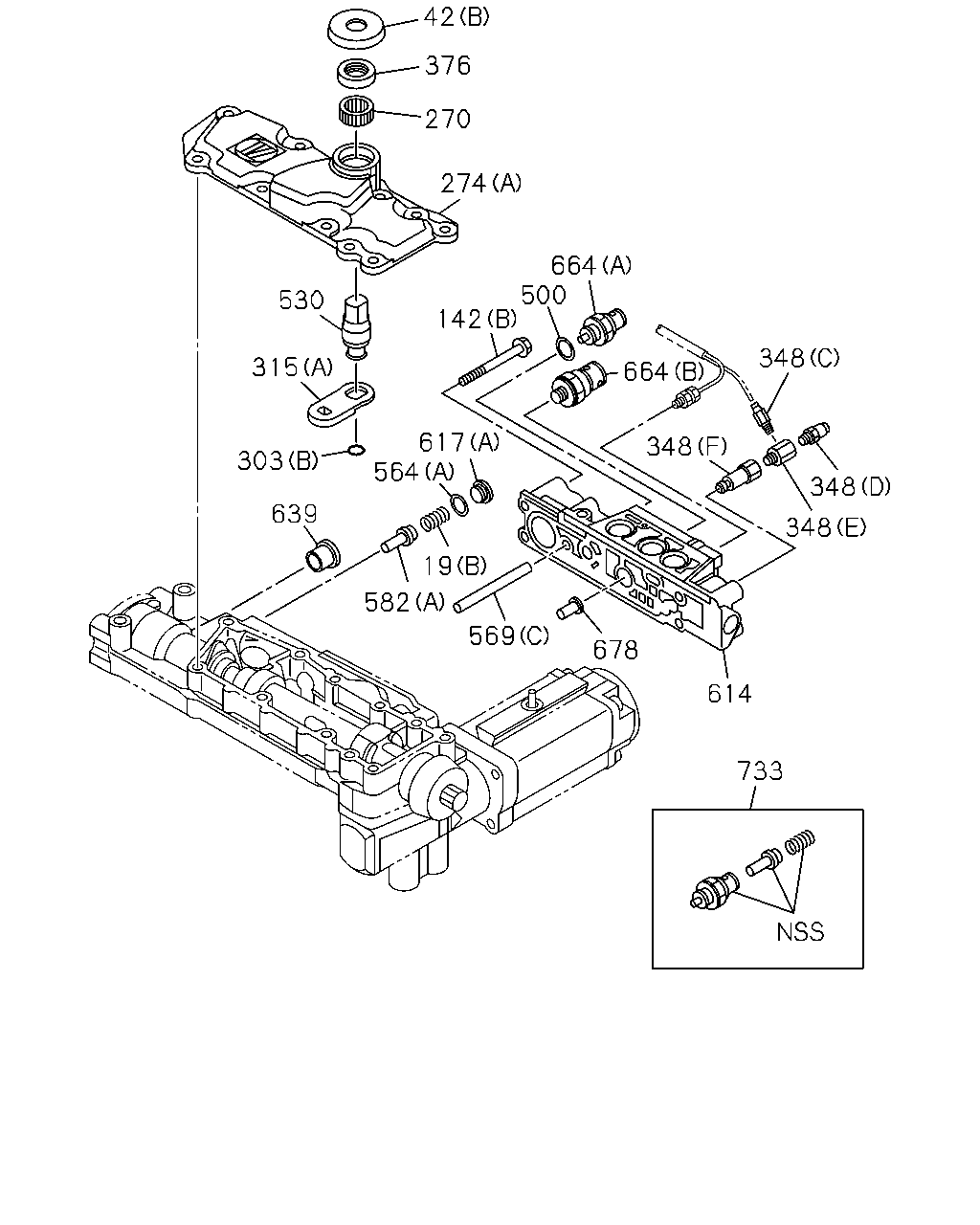

42 530 315 303 376 270 274 142 664 348 664 500 617 564 639 19 348 348 348 614 733 678 569 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	0710-1305
19	SPRING; COIL COMP (A)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	0710-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	0710-1305
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (C)	1-33539-093-0	01	1	1306-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-092-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-092-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-093-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-093-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-094-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-094-0	01	1	0904-0912
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	0710-1305
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) (B)	1-33539-089-0	01	1	1306-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1001-1305
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-092-0	01	1	1306-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1001-1305
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1001-1305
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	0710-1305
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	0710-1305
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	0710-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	0710-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	0710-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	0710-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
270	BEARING; NEEDLE,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-459-0	01	1	0710-
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	0710-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-499-0	01	1	0710-0903
274	COVER; SHAFT,QUAD BOX EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-499-0	01	1	0904-0912
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	0710-1305
274	COVER; SHAFT,QUAD BOX (A)	1-33549-477-0	01	1	1306-

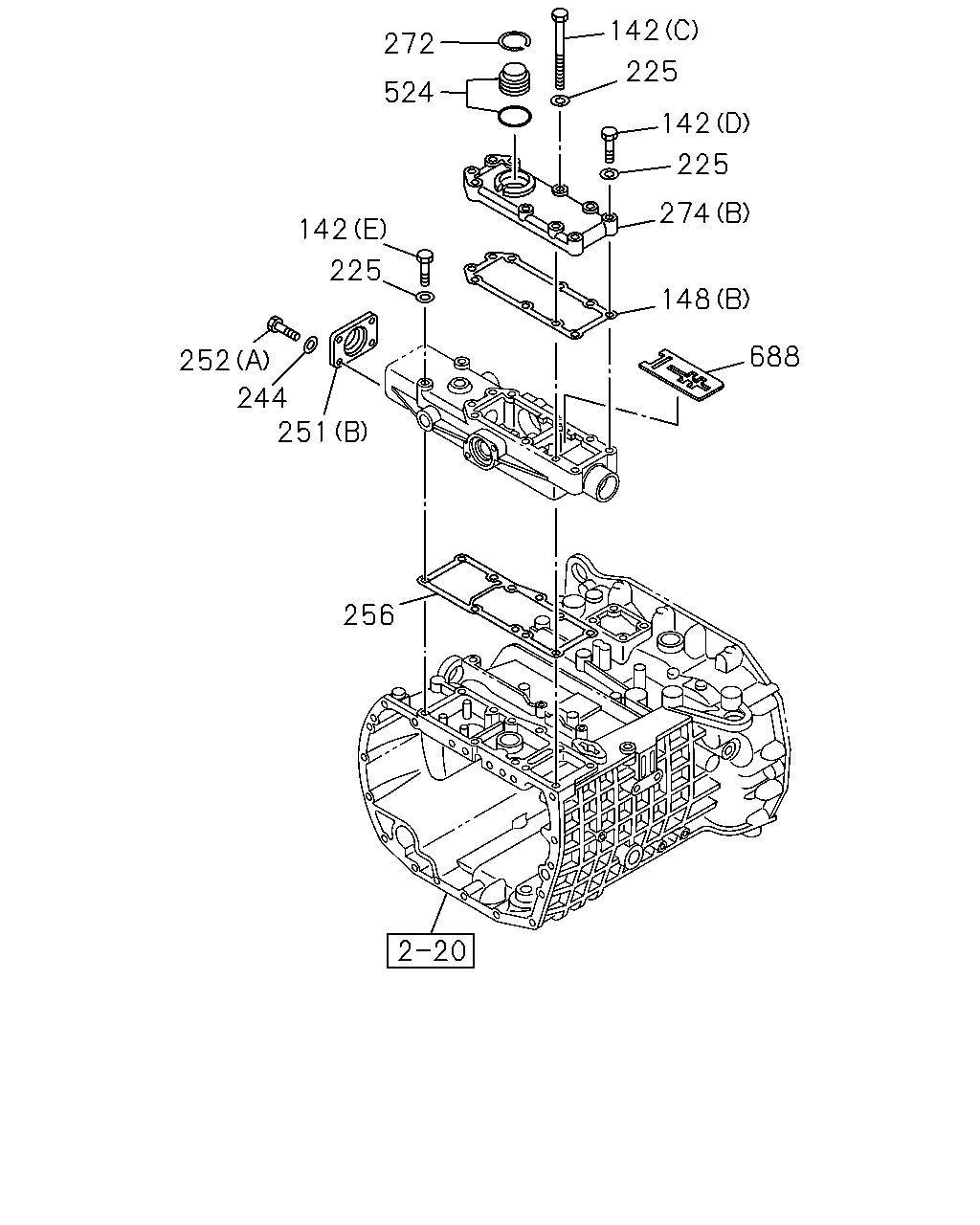

274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	0904-0912
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1001-1305
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	0710-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	0710-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	0710-1305
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-458-0	01	1	0710-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98085-738-0	01	1	0710-1305

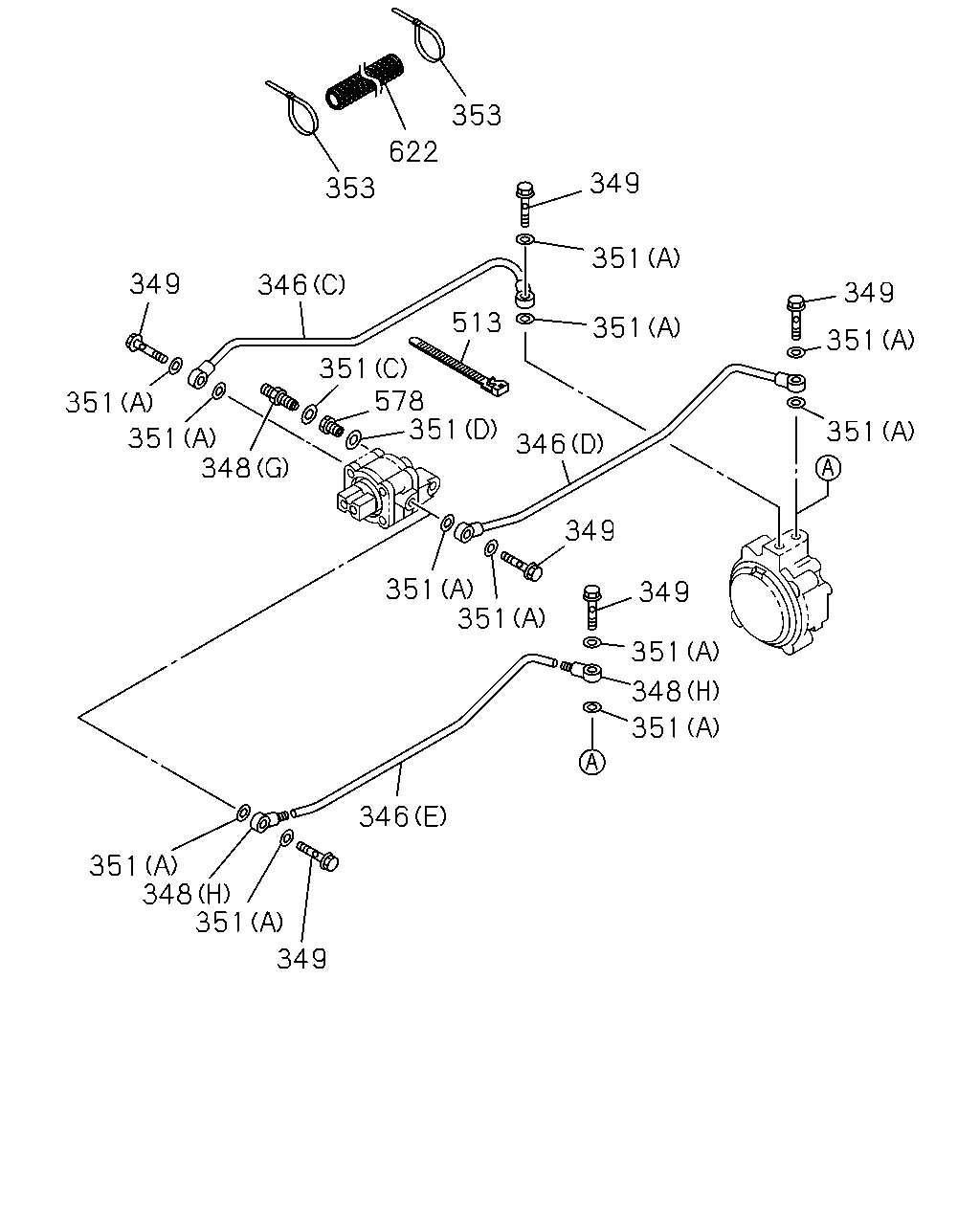

348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A)	1-09654-396-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	0710-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	0710-1305
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	0904-1305
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1001-1305
376	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33549-462-0	01	1	0710-
500	GASKET; SW ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	0710-
500	GASKET; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	0710-1305
530	SHAFT; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33549-460-0	01	1	0710-
564	SEAL; RING (B)	1-33549-444-0	01	1	0710-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	0710-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	0710-1305
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	0710-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	0710-1305
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-471-0	01	1	0710-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-487-0	02	1	0710-1305
614	VALVE ASM ASSISTOR SHIFT CONTROL<WX8>	1-33549-464-0	01	1	0710-1305
614	VALVE ASM	1-33549-549-0	01	1	1306-
617	PLUG (C)	1-34129-061-0	01	1	0710-1305
617	PLUG (C)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	0710-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	0710-1305
639	CAP ASSISTOR SHIFT CONTROL<WX8>	1-33549-465-0	01	1	0710-1305
639	CAP	1-33549-576-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-469-0	01	1	0710-1305
664	SWITCH (A)	1-33119-627-0	01	1	1306-
664	SWITCH ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-470-0	01	1	0710-
678	TAPPET ASSISTOR SHIFT CONTROL<WX8>	1-33549-466-0	01	1	0710-
733	REPAIR KIT	1-33549-617-0	01	1	1306-

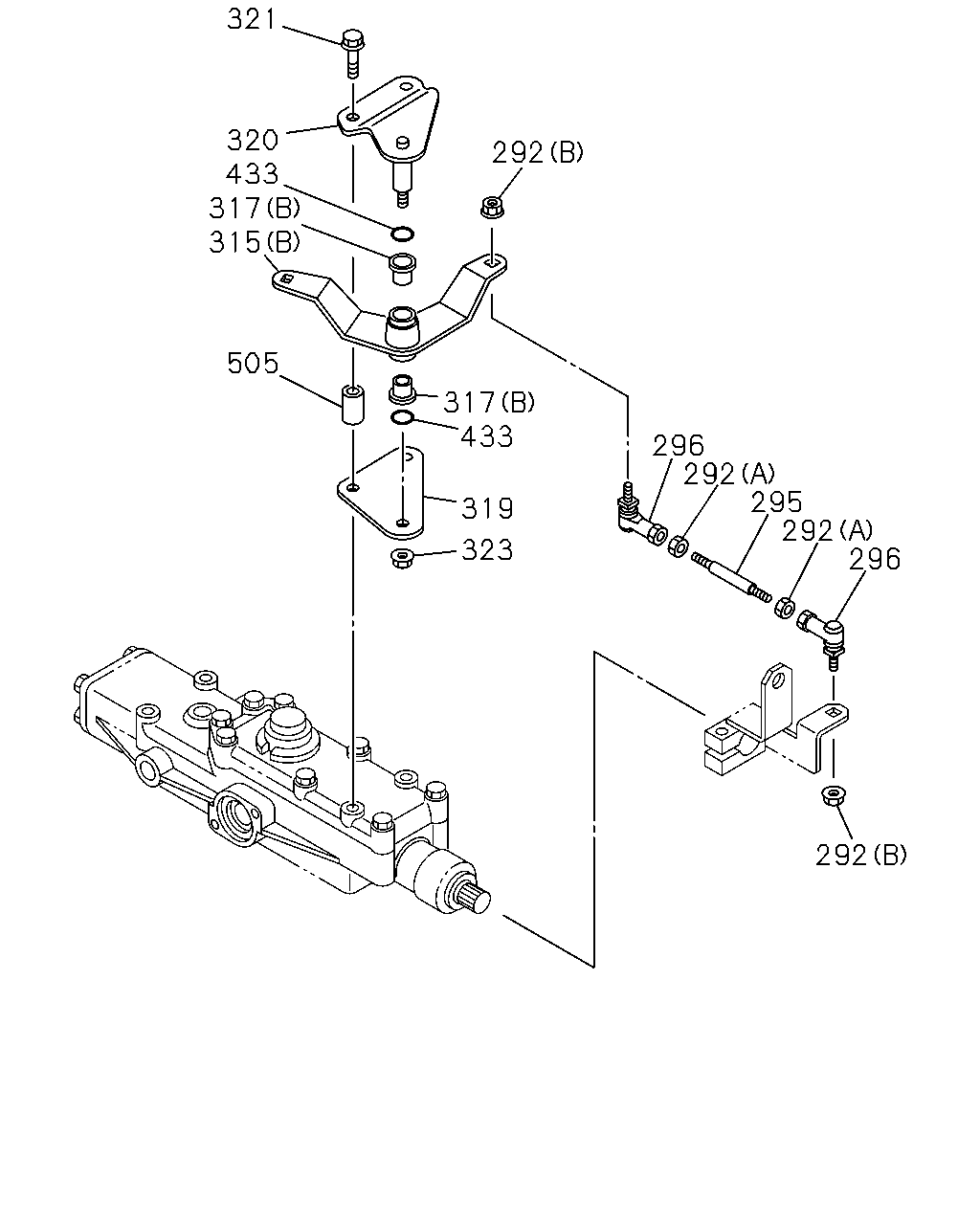

321 320 433 317 315 292 505 317 433 296 292 295 292 296 319 323 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8	0-91111-508-0	02	1	0710-1305
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	1-09440-062-1	02	1	0710-1305
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 L=50	9-08400-805-0	01	1	0710-1305
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09760-108-0	02	1	0710-1305
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-458-0	01	1	0710-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	8-98085-738-0	01	1	0710-1305
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-322-0	01	1	0710-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-09330-119-0	02	1	0710-1305
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-740-0	01	1	0710-1305
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	0710-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	0710-1305
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X130 FLANGE	0-28065-813-0	02	1	0710-1305
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	0710-1305
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0710-1305
505	SPACER; BRKT EXC. ASSISTOR SHIFT CONTROL<WX8> L=24.5	1-33659-186-1	02	1	0710-1305

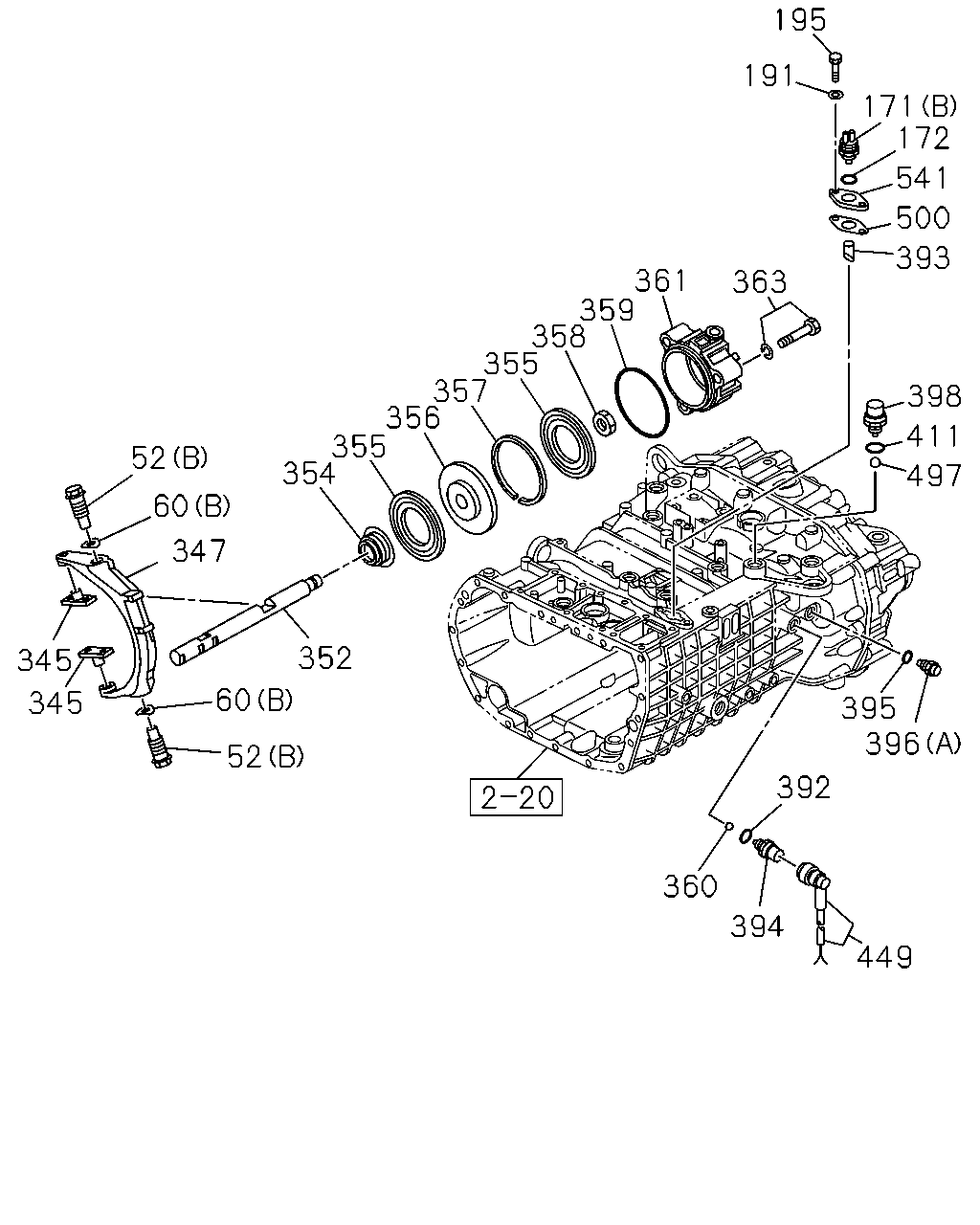

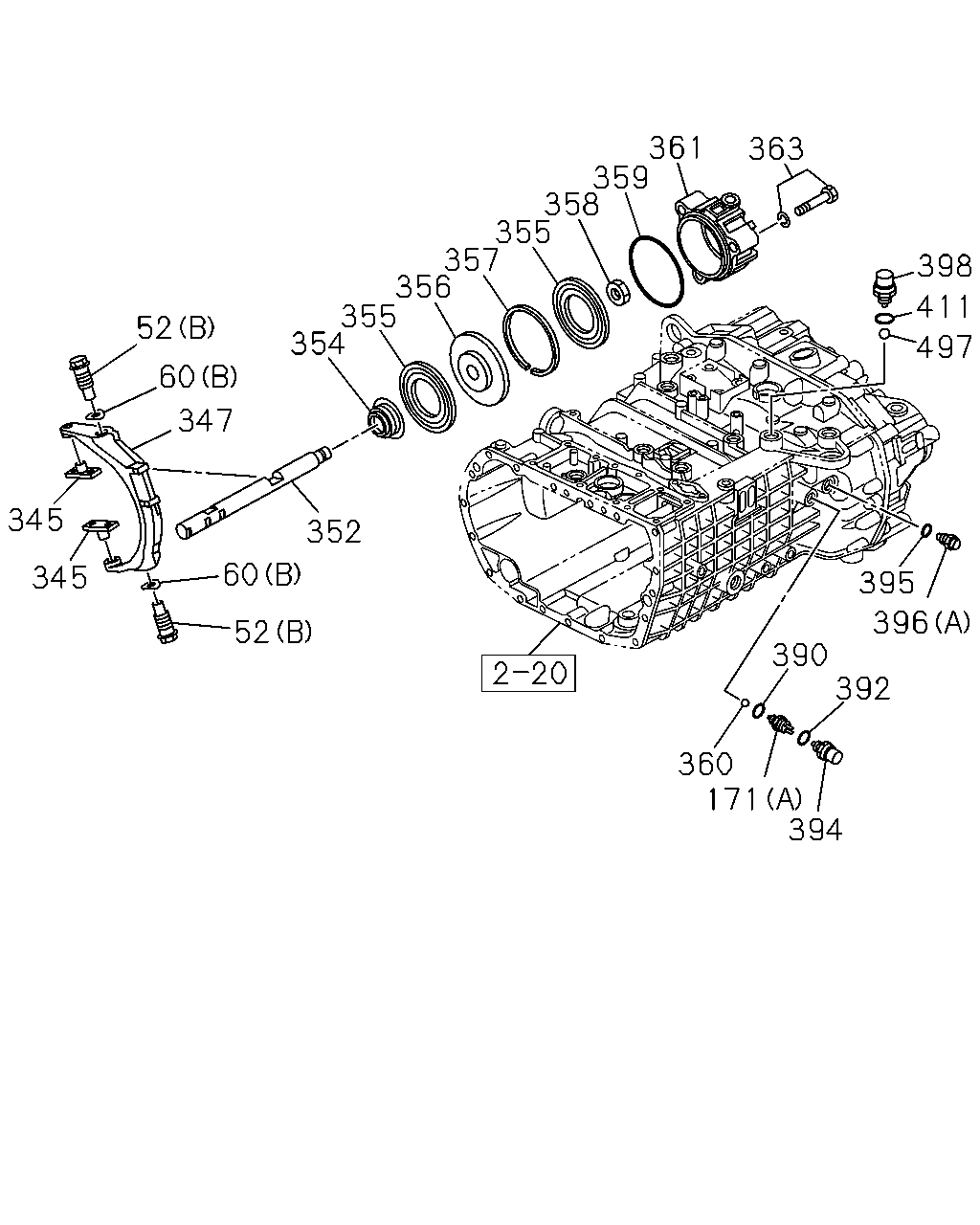

361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 345 352 60 345 395 396 52 390 392 360 171 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	0710-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	0710-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	0710-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	0710-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-338-0	01	1	0710-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-82440-095-0	01	1	0710-0903
171	SWITCH; NEUTRAL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-82440-095-0	01	1	0904-0912
171	SWITCH; NEUTRAL PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	0904-0912
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	1001-1305
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	0710-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	0710-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	0710-1305
352	ROD; SHIFT,RANGE CHANGE	1-33531-497-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	0710-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	0710-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	0710-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	0710-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	0710-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	0710-
360	BALL; AIR CYL	1-33119-252-0	01	1	0710-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	0710-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	0710-1305
363	BOLT; AIR CYL EXC. ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	0710-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	0710-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
390	GASKET; NEUTRAL SW ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33119-249-0	01	1	0710-1305
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0710-
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	0710-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-82440-095-0	01	1	0710-0903
394	SWITCH; RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-82440-095-0	01	1	0904-0912
394	SWITCH; RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	0904-0912
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1001-1305
395	GASKET; PLUNGER	1-33519-171-0	01	1	0710-1305
395	GASKET; PLUNGER	1-33549-497-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	0710-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	0710-1305
398	SWITCH; REV LAMP ASSISTOR SHIFT CONTROL<WX8>	1-38119-062-0	01	1	0710-0903
398	SWITCH; REV LAMP ASSISTOR SHIFT CONTROL<WX8>	1-38119-062-0	01	1	0904-0912
398	SWITCH; REV LAMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-38119-062-0	01	1	0904-0912
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1001-
398	SWITCH; REV LAMP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-82440-080-1	01	1	0710-0903
398	SWITCH; REV LAMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-82440-080-1	01	1	0904-0912
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	0710-
497	BALL; SWITCH	1-33119-252-0	01	1	0710-

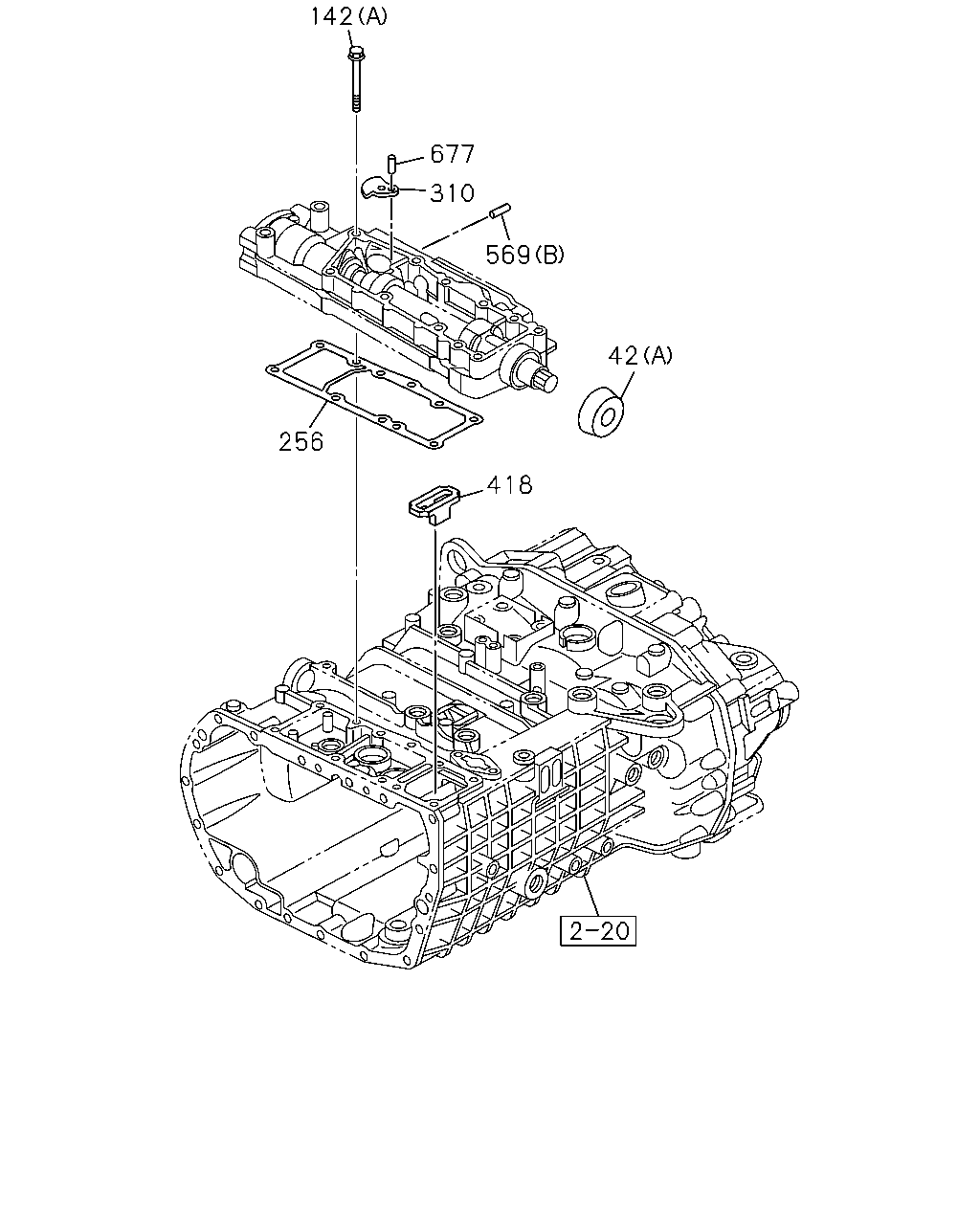

142 677 310 569 42 256 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	0710-1305
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	0710-1305
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	0710-1305
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	0710-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	0710-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	0710-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
256	GASKET; QUAD BOX TO TRANS CASE	1-33542-062-0	01	1	0710-0903
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	0904-0912
256	GASKET; QUAD BOX TO TRANS CASE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	0904-0912
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1001-
256	GASKET; QUAD BOX TO TRANS CASE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	0904-0912
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1001-1305
310	PLATE; LOCK,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-453-0	01	1	0710-
418	PIECE; DIST,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33549-454-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	0710-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	0710-1305
677	PIN; PLATE ASSISTOR SHIFT CONTROL<WX8>	1-33549-452-0	01	1	0710-

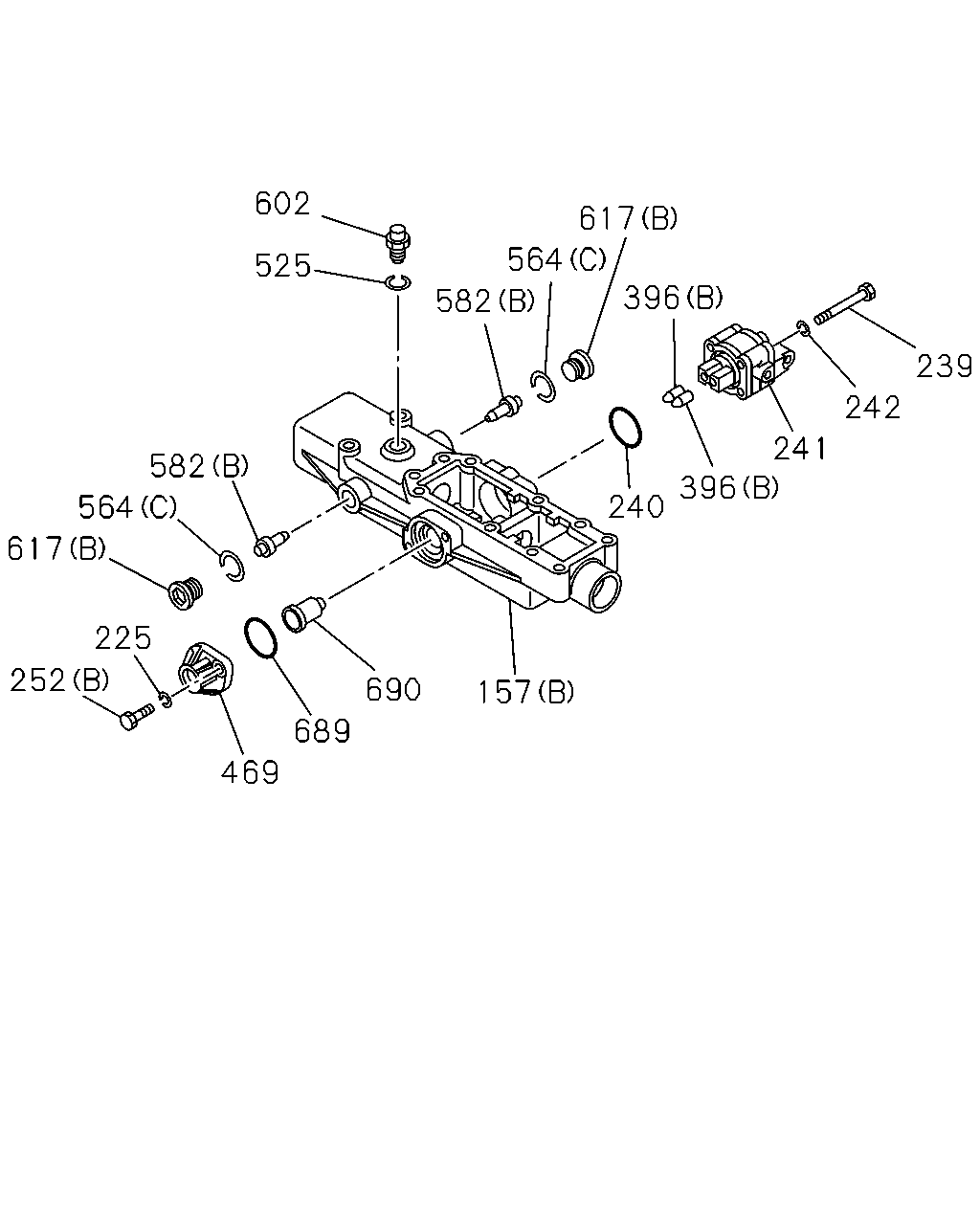

602 617 564 525 396 582 239 242 241 396 582 240 564 617 225 252 690 157 689 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-445-0	01	1	0710-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-485-0	01	1	0710-0903
157	BOX; QUAD,TRANS EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-485-0	01	1	0904-0912
157	BOX; QUAD,TRANS PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	0904-0912
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	1001-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	0710-1305
239	BOLT; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-302-0	04	1	0710-1305
240	GASKET; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-198-0	01	1	0710-1305
241	VALVE; CUT OFF EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-495-0	01	1	0710-1305
242	WASHER; CUT OFF VALVE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	04	1	0710-1305
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	0710-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	0710-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	0710-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	0710-1305
469	COVER; SPRING,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-216-0	01	1	0710-1305
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	0710-0903
525	RING; DETENT EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-497-0	01	1	0904-0912
525	RING; DETENT PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	0904-0912
525	RING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-286-0	01	1	1001-1305
564	SEAL; RING (B)	1-33549-444-0	01	1	0710-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	0710-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	0710-1305
582	BOLT; SPRING GUIDE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-471-0	01	1	0710-
582	BOLT; SPRING GUIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-487-0	02	1	0710-1305
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-498-0	01	1	0710-0903
602	PLUNGER; DETENT EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-498-0	01	1	0904-0912
602	PLUNGER; DETENT PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-285-0	01	1	0904-0912
602	PLUNGER; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-285-0	01	1	1001-1305
617	PLUG (C)	1-34129-061-0	01	1	0710-1305
617	PLUG (C)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	0710-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	0710-1305
689	GASKET; COVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-063-0	01	1	0710-1305
690	PIN; STOP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-496-0	01	1	0710-1305

142 272 225 524 142 225 274 142 225 148 688 252 244 251 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-467-0	05	1	0710-1305
142	BOLT; QUAD BOX (B) M8X70	1-33549-616-0	05	1	1306-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-455-0	13	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (E) M8X75	1-09089-015-0	02	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-486-0	06	1	0710-1305
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-34129-116-0	04	1	0710-1305
142	BOLT; QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-476-0	13	1	0710-1305
142	BOLT; QUAD BOX (A) M8X80	1-33549-614-0	13	1	1306-
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33544-056-0	01	1	0710-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33542-064-0	01	1	0710-1305
225	WASHER; LK,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-159-0	14	1	0710-1305
244	WASHER; LK,COVER	1-33549-159-0	04	1	0710-1305
244	WASHER; LK,COVER	1-33549-583-0	04	1	1306-
251	COVER; SIDE ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-472-0	01	1	0710-1305
251	COVER; SIDE EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	0710-1305
251	COVER; SIDE PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-478-0	01	1	0710-1305
251	COVER; SIDE (B)	1-33549-590-0	01	1	1306-
252	BOLT; SIDE COVER (A)	1-33119-296-0	04	1	0710-1305
252	BOLT; SIDE COVER (A) M8X20	1-33549-591-0	04	1	1306-
252	BOLT; SIDE COVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8X30	1-33549-172-0	02	1	0710-1305
256	GASKET; QUAD BOX TO TRANS CASE	1-33542-062-0	01	1	0710-0903
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	0904-0912
256	GASKET; QUAD BOX TO TRANS CASE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	0904-0912
256	GASKET; QUAD BOX TO TRANS CASE ASSISTOR SHIFT CONTROL<WX8>	1-33542-062-0	01	1	1001-
256	GASKET; QUAD BOX TO TRANS CASE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	0904-0912
256	GASKET; QUAD BOX TO TRANS CASE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33542-065-0	01	1	1001-1305
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-44519-217-0	01	1	0710-1305
274	COVER; SHAFT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-457-0	01	1	0710-1305
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-499-0	01	1	0710-0903
274	COVER; SHAFT,QUAD BOX EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-499-0	01	1	0904-0912
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-477-0	01	1	0710-1305
274	COVER; SHAFT,QUAD BOX (A)	1-33549-477-0	01	1	1306-
274	COVER; SHAFT,QUAD BOX PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	0904-0912
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-571-0	01	1	1001-1305
524	DETENT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-501-0	01	1	0710-1305
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-500-0	01	1	0710-0903
688	SHIFT; INTERLOCK EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-500-0	01	1	0904-0912
688	SHIFT; INTERLOCK PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	0904-0912
688	SHIFT; INTERLOCK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-572-0	01	1	1001-1305

234 303 148 277 157 317 19 570 277 90 430 320 271 304 90 570 289 569 165 571 265 165 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-089-0	01	1	0710-1305
19	SPRING; COIL COMP (A)	1-33539-090-0	01	1	1306-
19	SPRING; COIL COMP ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (B)	1-33539-022-0	01	1	0710-1305
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33539-030-0	02	1	0710-1305
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (C)	1-33539-093-0	01	1	1306-
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-092-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-092-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-093-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-093-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-094-0	01	1	0710-0903
19	SPRING; COIL COMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (F)	1-33539-094-0	01	1	0904-0912
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33539-090-0	01	1	0710-1305
19	SPRING; COIL COMP COUNTRY NEW ZEALAND(CX6) (B)	1-33539-089-0	01	1	1306-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33539-027-0	01	1	1001-1305
19	SPRING; COIL COMP EXC. COUNTRY NEW ZEALAND(CX6) (E)	1-33539-092-0	01	1	1306-
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33539-104-0	01	1	1001-1305
19	SPRING; COIL COMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	0904-0912
19	SPRING; COIL COMP EXC. ASSISTOR SHIFT CONTROL<WX8> (F)	1-33549-221-0	01	1	1001-1305
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	0710-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	0710-1305
148	GASKET; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33544-056-0	01	1	0710-
148	GASKET; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33542-064-0	01	1	0710-1305
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-445-0	01	1	0710-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-485-0	01	1	0710-0903
157	BOX; QUAD,TRANS EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-485-0	01	1	0904-0912
157	BOX; QUAD,TRANS PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	0904-0912
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-570-0	01	1	1001-1305
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	0710-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	0710-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	0710-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	0710-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	0710-1305
234	RING; SNAP	1-44519-224-0	01	1	0710-
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-446-0	01	1	0710-1305
265	SEAL; OIL,SHIFT (A) ALSO INCLUDED IN GASKET SET(M/T).	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-118-0	01	1	0710-1305
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-318-0	01	1	0710-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-124-0	01	1	0710-1305
271	BUSHING; QUAD BOX EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-33539-113-0	01	1	1306-
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-33539-110-0	01	1	1306-
277	PLATE; SPRING SEAT (B)	1-33539-039-0	02	1	0710-1305
277	PLATE; SPRING SEAT COUNTRY NEW ZEALAND(CX6) (B)	1-33539-107-0	02	1	1306-
277	PLATE; SPRING SEAT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-042-0	01	1	0710-1305
277	PLATE; SPRING SEAT EXC. COUNTRY NEW ZEALAND(CX6) (A)	1-33539-107-0	01	1	1306-
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33522-203-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER (A)	1-33522-204-0	01	1	1306-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	01	1	0710-
303	RING; SNAP,SHAFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-461-0	01	1	0710-
303	RING; SNAP,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33539-040-0	02	1	0710-1305
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-448-0	01	1	0710-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-492-0	01	1	0710-1305
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-322-0	01	1	0710-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-09330-119-0	02	1	0710-1305
320	SHAFT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-447-0	01	1	0710-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98085-739-0	01	1	0710-1305
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	0710-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	0710-1305
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	0710-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	0710-1305
570	PIN; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-451-0	02	1	0710-1305
570	PIN; SHIFT LEVER	1-33529-117-0	02	1	1306-
571	ROLLER; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33549-324-0	01	1	0710-

165 289 165 165 271 90 430 298 569 304 90 332 265 264 42 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-456-0	01	1	0710-1305
42	CAP; QUAD BOX (A)	1-33549-548-0	01	1	1306-
42	CAP; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-463-0	01	1	0710-1305
42	CAP; QUAD BOX (B)	1-33549-619-0	01	1	1306-
42	CAP; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-111-0	01	1	0710-1305
48	LEVER; 4TH,SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33651-827-1	01	1	0710-
48	LEVER; 4TH,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	8-98085-725-0	01	1	0710-1305
90	RING; SNAP,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8>	1-33529-109-0	01	1	0710-
90	RING; SNAP,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-494-0	02	1	0710-1305
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-325-0	01	1	0710-
165	LEVER; SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-450-0	01	1	0710-
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-488-0	01	1	0710-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-489-0	01	1	0710-1305
165	LEVER; SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-490-0	01	1	0710-1305
264	SEAL; DUST,SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-119-0	01	1	0710-1305
265	SEAL; OIL,SHIFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-446-0	01	1	0710-1305
265	SEAL; OIL,SHIFT (A) ALSO INCLUDED IN GASKET SET(M/T).	1-33549-544-0	01	1	1306-
265	SEAL; OIL,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-118-0	01	1	0710-1305
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-318-0	01	1	0710-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-124-0	01	1	0710-1305
271	BUSHING; QUAD BOX EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-33539-113-0	01	1	1306-
289	SEAL; OIL,CONT SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-491-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33522-203-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33522-205-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33522-204-0	01	1	0710-1305
298	SHAFT; SHIFT LEVER (A)	1-33522-204-0	01	1	1306-
304	BLOCK; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-448-0	01	1	0710-
304	BLOCK; SHIFT SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-492-0	01	1	0710-1305
332	BOLT; 4TH,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	02	1	0710-
332	BOLT; 4TH,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X40 FLANGE	0-28650-840-0	01	1	0710-1305
430	PIN; SPR,SHIFT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-449-0	01	1	0710-
430	PIN; SPR,SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-493-0	01	1	0710-1305
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-33529-106-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-452-0	01	1	0710-
569	PIN; QUADRANT BOX ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-468-0	01	1	0710-
569	PIN; QUADRANT BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33529-128-0	02	1	0710-1305

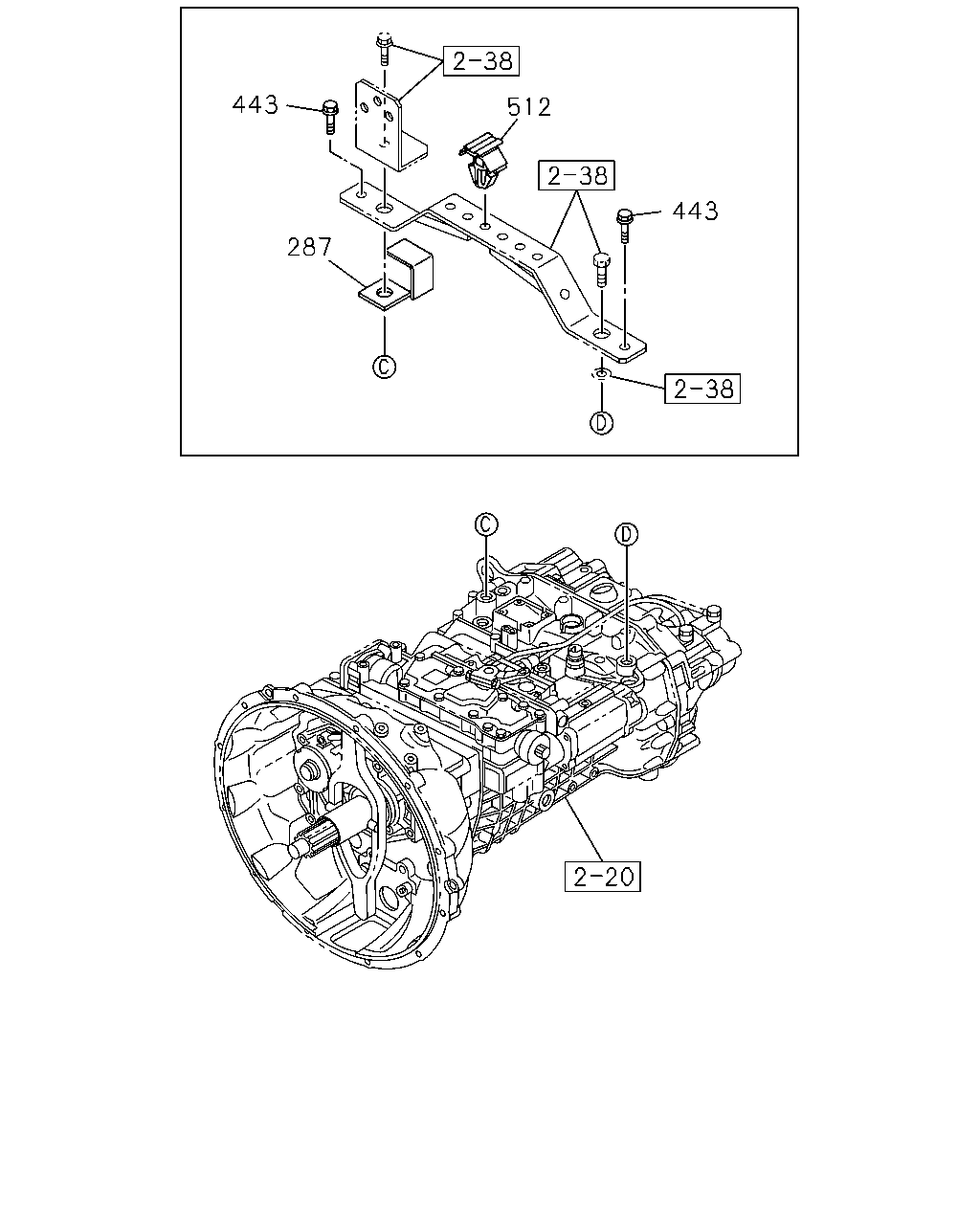

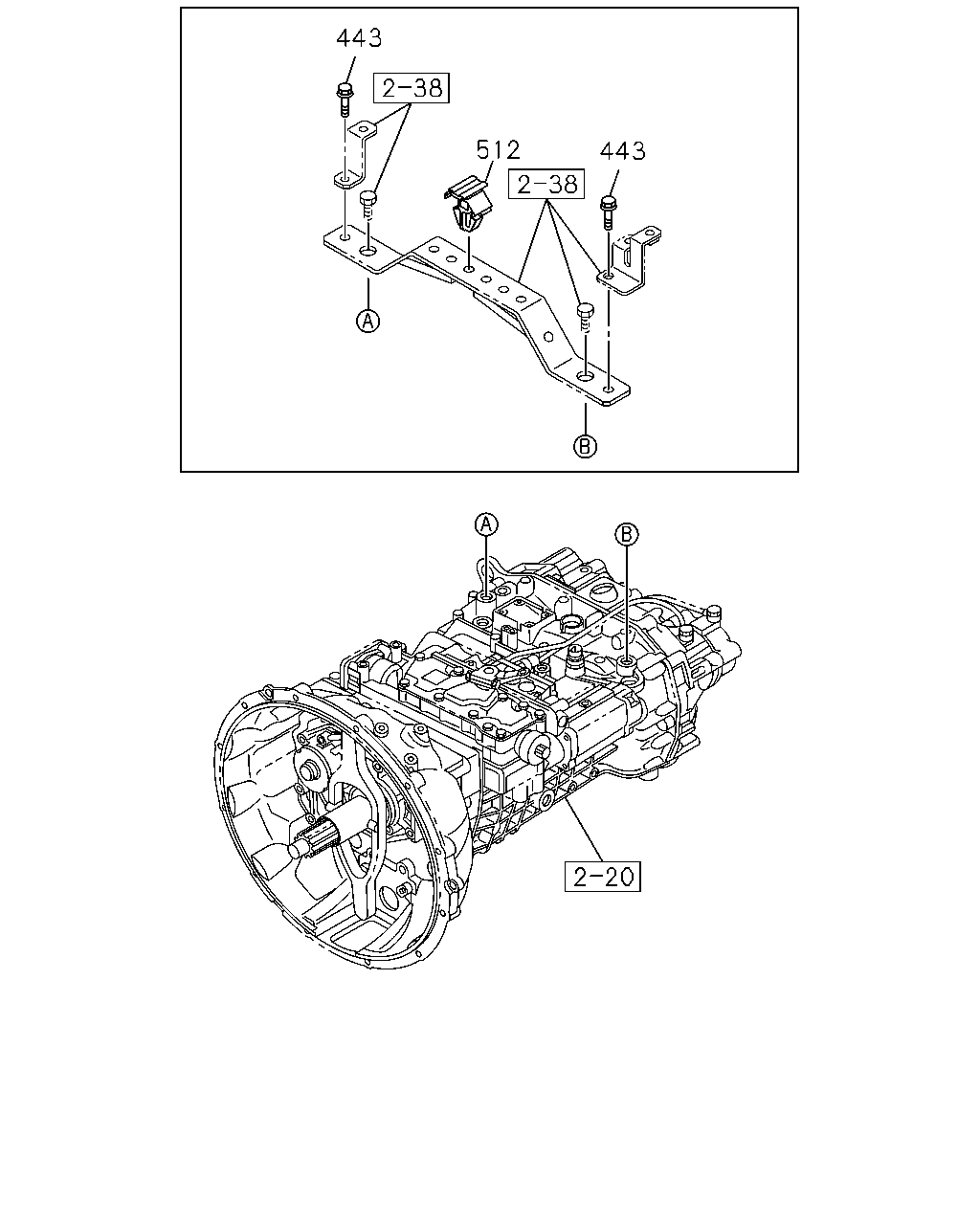

443 512 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0710-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	0710-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	0710-1305

52 60 52 1 60 17 52 17 60 25 52 29 60 29 6 60 52 36 60 36 52 49 175 531 60 534 52 532 535 617 532 564 531 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33511-643-0	01	1	0710-1305
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0710-0903
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0710-0903
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0904-0912
1	ARM; SHIFT,1ST & REV EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	0904-0912
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33511-645-0	01	1	1001-1305
1	ARM; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	0904-0912
1	ARM; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-657-0	01	1	1001-1305
1	ARM; SHIFT,1ST & REV	1-33511-657-0	01	1	1306-
6	LEVER; RELAY	1-33511-641-0	01	1	0710-0903
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	0904-0912
6	LEVER; RELAY EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	0904-0912
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33511-641-0	01	1	1001-1305
6	LEVER; RELAY	1-33511-658-0	01	1	1306-
6	LEVER; RELAY PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	0904-0912
6	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33511-658-0	01	1	1001-1305
17	BLOCK; SHIFT,1ST & REV ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM)	1-33519-081-0	02	1	0710-1305
17	BLOCK; SHIFT,1ST & REV EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	0710-1305
17	BLOCK; SHIFT,1ST & REV PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8>	1-33519-172-0	02	1	0710-1305
17	BLOCK; SHIFT,1ST & REV	1-33519-172-0	02	1	1306-
25	ARM; SHIFT,2ND & 3RD	1-33511-642-0	01	1	0710-
29	BLOCK; SHIFT,2ND & 3RD	1-33519-081-0	02	1	0710-
36	BLOCK; SHIFT,4TH & 5TH	1-33519-170-0	02	1	0710-
49	ARM; SHIFT,4TH & 5TH	1-33511-640-0	01	1	0710-
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	0710-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	0710-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	0710-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	0710-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-088-0	01	1	0710-0903
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	0904-0912
175	RING; STOPPER,SHIFT LEVER EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	0904-0912
175	RING; STOPPER,SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33539-088-0	01	1	1001-1305
175	RING; STOPPER,SHIFT LEVER	1-33539-103-0	01	1	1306-
175	RING; STOPPER,SHIFT LEVER PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	0904-0912
175	RING; STOPPER,SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33539-103-0	01	1	1001-1305
531	PLATE; BEARING (A)	1-33539-044-0	01	1	0710-
531	PLATE; BEARING (B)	1-33539-047-0	01	1	0710-
532	PLATE; SHIFT FORK (A)	1-33531-492-0	01	1	0710-
532	PLATE; SHIFT FORK (B)	1-33531-493-0	01	1	0710-
532	PLATE; SHIFT FORK (C)	1-33531-494-0	01	1	0710-
534	LEVER; LOCK,SHIFT PLATE	1-33539-087-0	01	1	0710-
535	SPRING; LEVER	1-33539-049-0	01	1	0710-
564	SEAL; RING (B)	1-33549-444-0	01	1	0710-1305
564	SEAL; RING (B)	1-33549-578-0	01	1	1306-
564	SEAL; RING ASSISTOR SHIFT CONTROL<WX8> (A) T=2.0	1-82449-010-0	01	1	0710-
564	SEAL; RING EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33119-249-0	02	1	0710-1305
617	PLUG (C)	1-34129-061-0	01	1	0710-1305
617	PLUG (C)	1-33539-109-0	01	1	1306-
617	PLUG ASSISTOR SHIFT CONTROL<WX8> (A)	1-33119-171-0	01	1	0710-1305
617	PLUG (A)	1-33119-619-0	01	1	1306-
617	PLUG EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-171-0	02	1	0710-1305

353 622 349 353 351 349 346 349 513 351 351 351 578 351 351 351 351 348 346 349 351 351 349 351 348 351 346 351 348 351 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	0710-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	0710-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-403-0	01	1	0710-0903
346	HOSE; AIR EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-403-0	01	1	0904-0912
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	0710-1305
346	HOSE; AIR PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-400-0	01	1	0904-0912
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-400-0	01	1	1001-1305
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (A)	1-09654-396-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (B)	1-09660-466-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (C)	1-09661-174-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (D)	1-09661-481-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (E)	8-94338-417-0	01	1	0710-
348	CONNECTOR; AIR HOSE ASSISTOR SHIFT CONTROL<WX8> (F)	8-98068-125-0	01	1	0710-
348	CONNECTOR; AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8> (G) M12 STRAIGHT	1-09654-246-0	01	1	0710-1305
348	CONNECTOR; AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	02	1	0904-1305
348	CONNECTOR; AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (H)	1-33549-139-0	04	1	1001-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	0710-1305
349	BOLT; EYE,AIR HOSE M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	04	1	0710-0903
349	BOLT; EYE,AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	04	1	0904-0912
349	BOLT; EYE,AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	0904-0912
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1001-1305
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	0710-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	1-09630-084-0	01	1	0710-1305
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	02	1	1306-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	8-98251-344-0	02	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	0710-1305
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	0710-1305
351	GASKET; CONNECTOR PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	0904-0912
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1001-1305
353	CLIP; AIR HOSE	1-33549-475-0	02	1	0710-1305
353	CLIP; AIR HOSE	1-33549-530-0	02	1	1306-
513	CLIP; BAND L=250	5-09707-030-1	05	1	0710-1104
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1105-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	0710-1305
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1105-1305
578	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	0710-
578	CONNECTOR PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	0904-0912
578	CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-553-0	01	1	1001-1305
622	TUBE; CORRUGATE	1-83129-021-0	01	1	0710-1004
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1005-

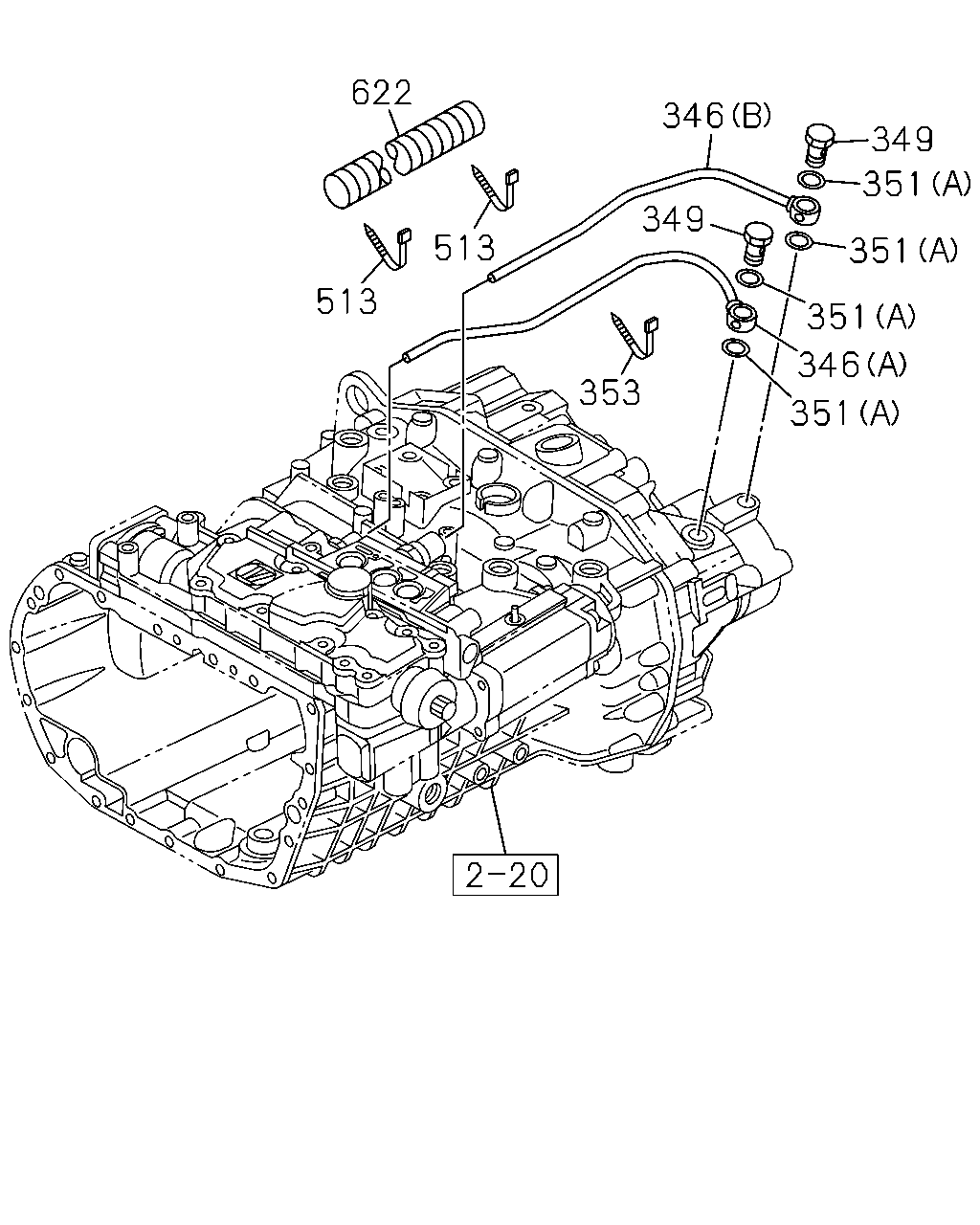

622 346 349 351 349 513 351 513 351 346 353 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-473-0	01	1	0710-
346	HOSE; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33549-474-0	01	1	0710-
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-403-0	01	1	0710-0903
346	HOSE; AIR EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-403-0	01	1	0904-0912
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (C)	1-33549-443-0	01	1	0710-1305
346	HOSE; AIR PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-400-0	01	1	0904-0912
346	HOSE; AIR EXC. ASSISTOR SHIFT CONTROL<WX8> (E)	1-33549-400-0	01	1	1001-1305
349	BOLT; EYE,AIR HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	02	1	0710-1305
349	BOLT; EYE,AIR HOSE M14	1-33549-592-0	02	1	1306-
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	04	1	0710-0903
349	BOLT; EYE,AIR HOSE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-33549-155-0	04	1	0904-0912
349	BOLT; EYE,AIR HOSE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	0904-0912
349	BOLT; EYE,AIR HOSE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33549-573-0	04	1	1001-1305
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	01	1	0710-1305
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	1-09630-084-0	01	1	0710-1305
351	GASKET; CONNECTOR (C) ID=12.2	1-09630-084-0	02	1	1306-1312
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (C) ID=12.2	8-98251-344-0	02	1	1401-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	0710-
351	GASKET; CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	04	1	0710-1305
351	GASKET; CONNECTOR (A)	1-33549-578-0	04	1	1306-
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33549-444-0	08	1	0710-1305
351	GASKET; CONNECTOR PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	0904-0912
351	GASKET; CONNECTOR EXC. ASSISTOR SHIFT CONTROL<WX8> (D)	1-33549-554-0	01	1	1001-1305
353	CLIP; AIR HOSE	1-33549-475-0	02	1	0710-1305
353	CLIP; AIR HOSE	1-33549-530-0	02	1	1306-
513	CLIP; BAND L=250	5-09707-030-1	05	1	0710-1104
513	CLIP; BAND ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	05	1	1105-
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=140	5-09707-031-1	01	1	0710-1305
513	CLIP; BAND EXC. ASSISTOR SHIFT CONTROL<WX8> L=250	5-09707-030-1	06	1	1105-1305
622	TUBE; CORRUGATE	1-83129-021-0	01	1	0710-1004
622	TUBE; CORRUGATE L=100 ID=22 L=350	1-83129-017-0	01	1	1005-

443 512 443 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
287	COVER; AIR BREATHER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-34141-026-0	01	1	0710-1305
443	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0710-
512	CLIP; PIPE ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	05	1	0710-
512	CLIP; PIPE EXC. ASSISTOR SHIFT CONTROL<WX8> OD=9 H=6	1-09709-178-0	04	1	0710-1305

195 191 171 172 541 500 393 361 359 358 355 357 356 355 354 363 398 411 52 497 60 347 352 345 60 345 395 396 52 392 360 394 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BOLT; SHIFT ARM (B)	1-33519-058-0	02	1	0710-1305
52	BOLT; SHIFT ARM (B)	1-33519-196-0	02	1	1306-
52	BOLT; SHIFT ARM (A)	1-33519-084-0	07	1	0710-1305
52	BOLT; SHIFT ARM (A)	1-33519-190-0	07	1	1306-
60	WASHER; LK (B)	1-33519-059-0	02	1	0710-1305
60	WASHER; LK (A)	1-33519-085-0	07	1	0710-1305
171	SWITCH; NEUTRAL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) (A)	1-33549-338-0	01	1	0710-1305
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-82440-095-0	01	1	0710-0903
171	SWITCH; NEUTRAL EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8> (B)	1-82440-095-0	01	1	0904-0912
171	SWITCH; NEUTRAL PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	0904-0912
171	SWITCH; NEUTRAL EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33119-587-0	01	1	1001-1305
172	GASKET; NEUTRAL SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	0710-1305
191	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8>	1-36129-007-0	02	1	0710-1305
195	BOLT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-301-0	02	1	0710-1305
345	BLOCK; SHIFT,RANGE CHANGE	1-33519-095-0	02	1	0710-
347	ARM; SHIFT,RANGE CHANGE	1-33511-529-0	01	1	0710-
352	ROD; SHIFT,RANGE CHANGE	1-33531-495-0	01	1	0710-1305
352	ROD; SHIFT,RANGE CHANGE	1-33531-497-0	01	1	1306-
354	SEAL; AIR CYL	1-33519-045-0	01	1	0710-
355	CUP; PISTON,AIR CYL	1-33519-088-0	02	1	0710-1305
356	PISTON; AIR CYL	1-33519-087-0	01	1	0710-1305
356	PISTON; AIR CYL	1-33519-197-0	01	1	1306-
357	RING; GUIDE,AIR CYL	1-33519-090-0	01	1	0710-1305
358	NUT; SHIFT ROD	1-33519-049-0	01	1	0710-1305
358	NUT; SHIFT ROD	1-33519-188-0	01	1	1306-
359	GASKET; AIR CYL	1-33519-093-0	01	1	0710-
360	BALL; AIR CYL	1-33119-252-0	01	1	0710-
361	CYLINDER; AIR,SHIFT	1-33519-092-0	01	1	0710-
363	BOLT; AIR CYL ASSISTOR SHIFT CONTROL<WX8> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-518-0	03	1	0710-1305
363	BOLT; AIR CYL EXC. ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	0710-1305
363	BOLT; AIR CYL PTO ZF TRANS RR(BDM) ASSISTOR SHIFT CONTROL<WX8> M10X70	1-33119-522-0	03	1	0710-1305
363	BOLT; AIR CYL M10X70	1-33119-616-0	03	1	1306-
392	GASKET; PLUG & SW ALSO INCLUDED IN GASKET SET(M/T).	1-33119-249-0	01	1	0710-
393	PIN; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-298-0	01	1	0710-1305
394	SWITCH; RANGE CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33549-469-0	01	1	0710-1305
394	SWITCH; RANGE CHANGE	1-33119-627-0	01	1	1306-
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-82440-095-0	01	1	0710-0903
394	SWITCH; RANGE CHANGE EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-82440-095-0	01	1	0904-0912
394	SWITCH; RANGE CHANGE PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	0904-0912
394	SWITCH; RANGE CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-587-0	01	1	1001-1305
395	GASKET; PLUNGER	1-33519-171-0	01	1	0710-1305
395	GASKET; PLUNGER	1-33549-497-0	01	1	1306-
396	PLUNGER; SHIFT ROD (A)	1-33519-073-0	01	1	0710-1305
396	PLUNGER; SHIFT ROD (A)	1-33519-189-0	01	1	1306-
396	PLUNGER; SHIFT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33529-085-0	02	1	0710-1305
398	SWITCH; REV LAMP ASSISTOR SHIFT CONTROL<WX8>	1-38119-062-0	01	1	0710-0903
398	SWITCH; REV LAMP ASSISTOR SHIFT CONTROL<WX8>	1-38119-062-0	01	1	0904-0912
398	SWITCH; REV LAMP PTO ZF TRANS RR(BDM) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-38119-062-0	01	1	0904-0912
398	SWITCH; REV LAMP	1-38119-062-0	01	1	1001-
398	SWITCH; REV LAMP EXC. ASSISTOR SHIFT CONTROL<WX8>	1-82440-080-1	01	1	0710-0903
398	SWITCH; REV LAMP EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-82440-080-1	01	1	0904-0912
411	GASKET; REV LAMP SW	1-33119-249-0	01	1	0710-
449	HARNESS; NEUTRAL SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-82659-152-0	01	1	0710-0903
449	HARNESS; NEUTRAL SW EXC. PTO ZF TRANS RR(BDM),ASSISTOR SHIFT CONTROL<WX8>	1-82659-152-0	01	1	0904-0912
497	BALL; SWITCH	1-33119-252-0	01	1	0710-
500	GASKET; SW ASSISTOR SHIFT CONTROL<WX8>	1-33119-249-0	01	1	0710-
500	GASKET; SW EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-299-0	01	1	0710-1305
541	PLATE; SWITCH EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33119-300-0	01	1	0710-1305

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
