◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#41664) — 121 parça

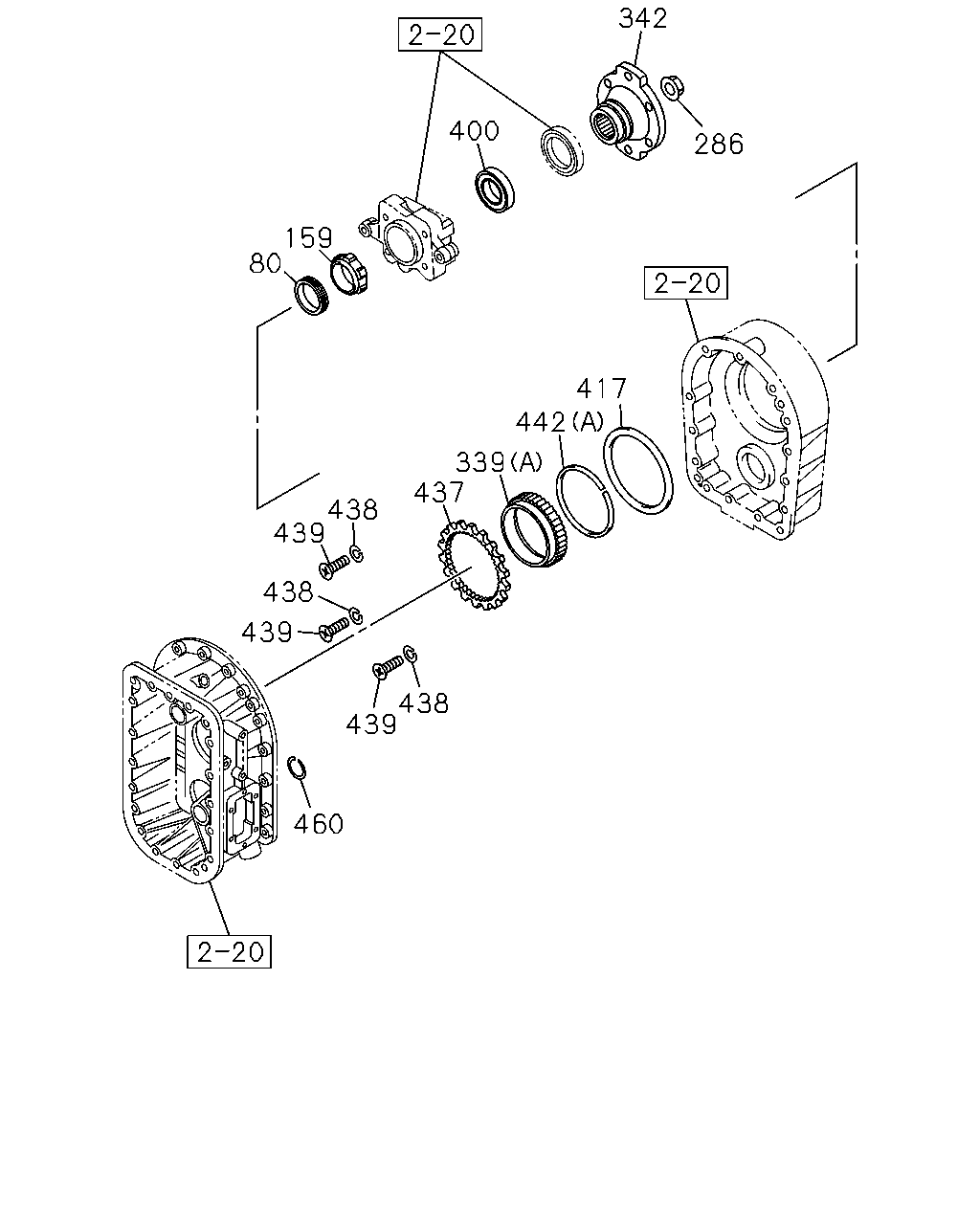

çizim 112066
342 400 286 159 80 417 442 339 437 438 439 438 439 438 439 460
BalonParca AdiParca NoAdetTipApplied Date
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0710-
159 SPACER; SPD DRIVE GEAR 1-33159-068-0 01 1 0710-
286 NUT; LK,MAINSHAFT 1-33239-356-0 01 1 0710-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0710-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0710-
342 FLANGE; OUTPUT 1-37243-430-0 01 1 0710-
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0710-
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 0710-
437 PLATE; LOCK 1-33269-054-0 01 1 0710-
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0710-
439 SCREW; LOCK PLATE 1-33269-057-0 03 1 0710-
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0710-
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0710-
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0710-

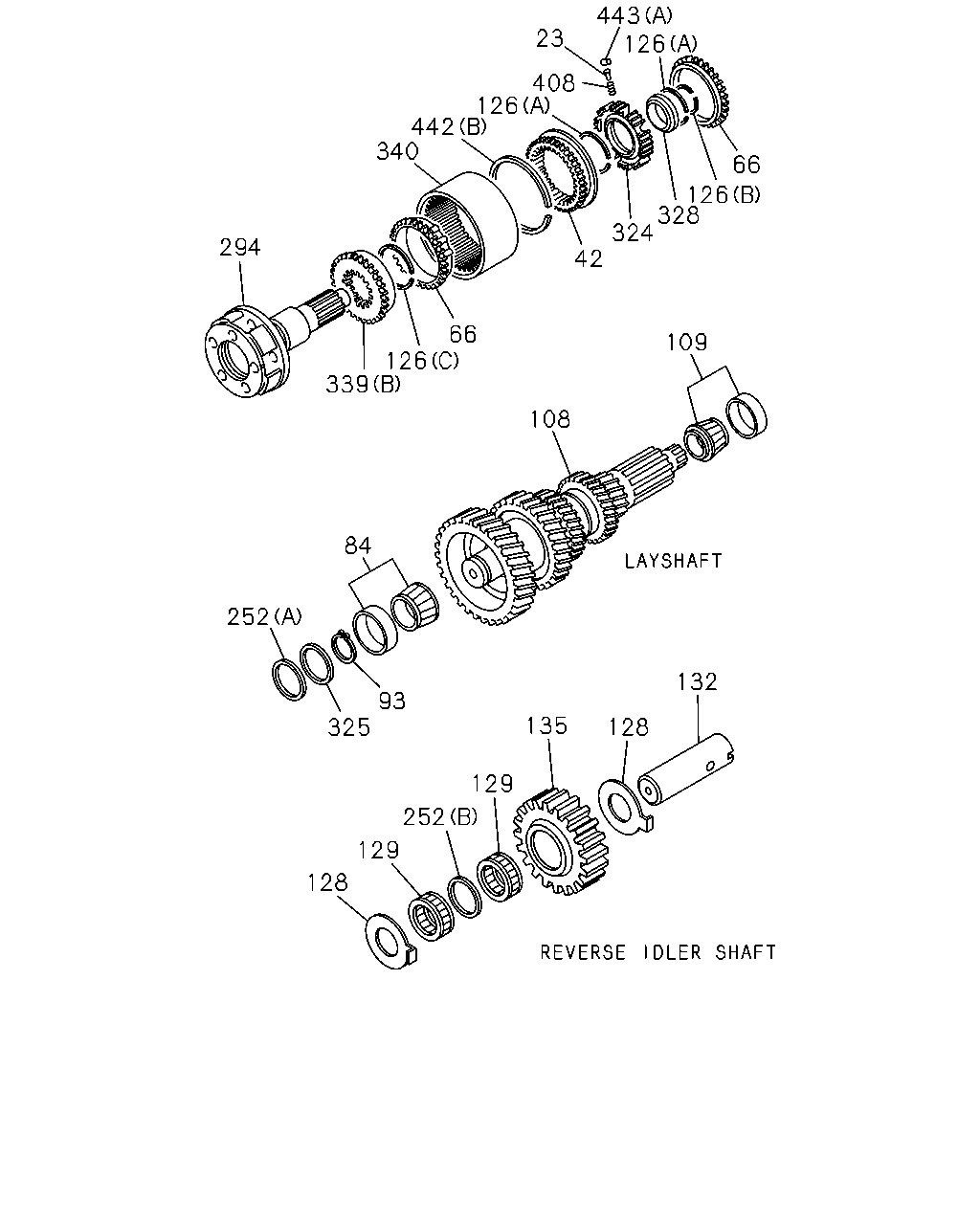

çizim 112070
443 126 23 408 126 442 340 66 126 328 324 42 294 66 126 339 109 108 84 252 132 93 325 135 128 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0710-
42 SLEEVE 1-33262-196-0 01 1 0710-
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0710-
84 BEARING; COUNTER SHAFT,FRT 1-33319-145-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0710-
108 SHAFT; COUNTER 1-33311-348-0 01 1 0710-
109 BEARING; COUNTER SHAFT,RR 1-33319-145-0 01 1 0710-
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0710-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0710-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0710-
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0710-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0710-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0710-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0710-
128 WASHER; THRUST,REV SHAFT 1-33359-004-0 02 1 0710-
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0710-
132 SHAFT; REV 1-33351-037-0 01 1 0710-
135 GEAR; REV IDLER 1-33361-078-0 01 1 0710-
252 SPACER
(A) 		1-33319-151-0 01 1 0710-
252 SPACER
(B) 		1-33359-006-0 01 1 0710-
294 SHAFT; OUTPUT 1-33231-293-0 01 1 0710-
324 HUB; CLU 1-33261-234-0 01 1 0710-
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0710-
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0710-
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0710-
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0710-
328 BEARING; CARRIER 1-33269-060-0 01 1 0710-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0710-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0710-
340 GEAR; RING 1-33339-052-0 01 1 0710-
408 SPRING 1-33264-039-0 18 1 0710-
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0710-
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0710-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0710-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0710-

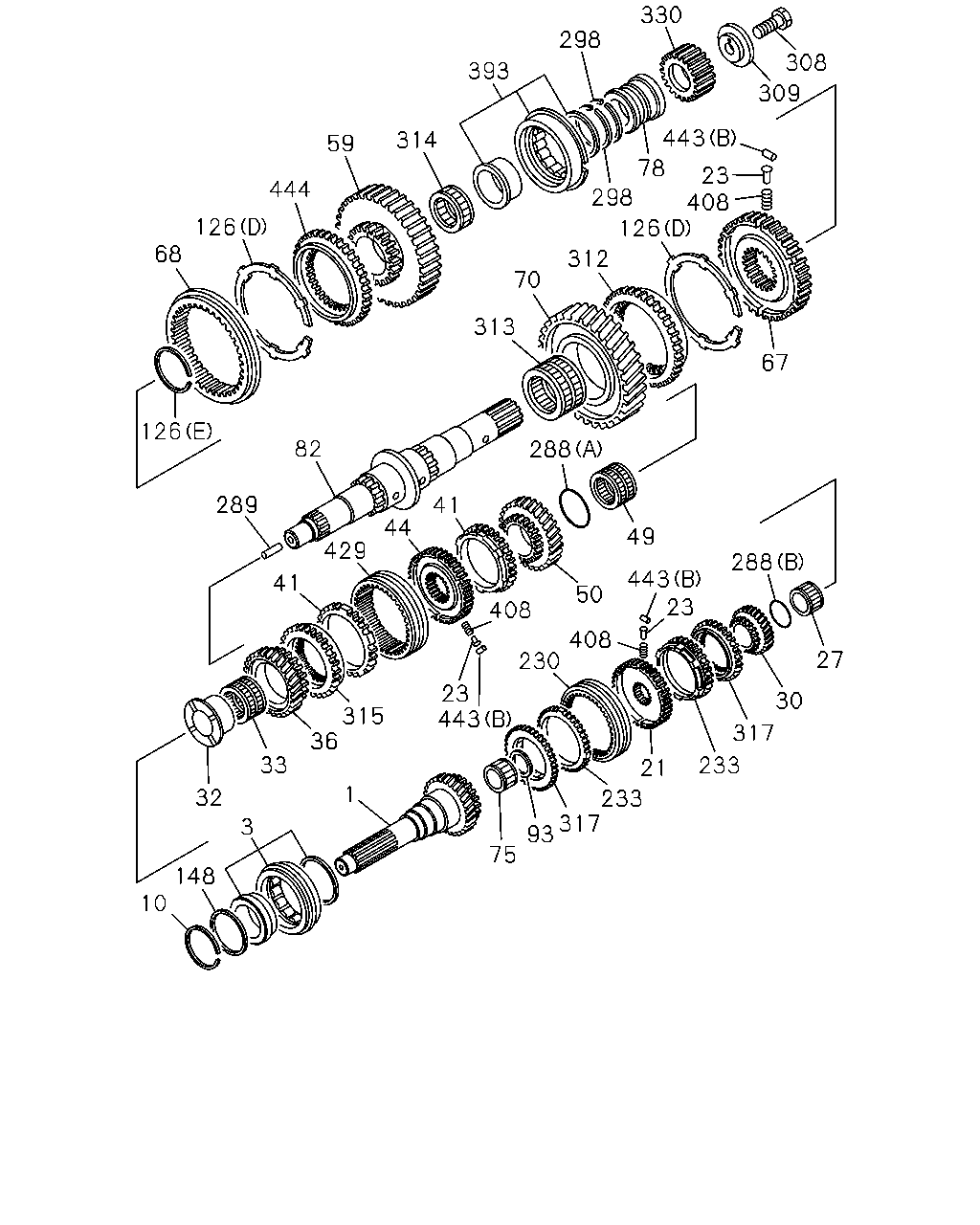

çizim 112081
330 298 308 393 309 443 314 59 78 23 408 126 444 298 126 68 312 70 313 67 126 82 288 289 41 44 49 429 288 443 23 41 50 408 408 230 27 23 443 30 315 36 317 33 233 21 1 32 233 317 93 3 75 148 10
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0710-
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0710-
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 0710-
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0710-
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0710-
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0710-
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0710-
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0710-
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0710-
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0710-
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0710-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0710-
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0710-
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0710-
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0710-
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0710-
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0710-
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0710-
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0710-
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0710-
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0710-
126 RING; SNAP,CLU HUB
(D) 		1-33269-058-0 02 1 0710-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0710-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0710-
126 RING; SNAP,CLU HUB
(A) 		1-33269-065-0 02 1 0710-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0710-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0710-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0710-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0710-
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0710-
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0710-
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0710-
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0710-
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0710-
298 GASKET; MAINSHAFT 1-33239-245-0 02 1 0710-
308 BOLT; MAINSHAFT 1-33239-355-0 01 1 0710-
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 0710-
312 CLUTCH; DOG,1ST GEAR 1-33265-562-0 01 1 0710-
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0710-
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0710-
315 CLUTCH; DOG,2ND GEAR 1-33265-561-0 02 1 0710-
317 CLUTCH; DOG,4TH GEAR 1-33265-561-0 02 1 0710-
330 GEAR; SUN 1-34311-004-0 01 1 0710-
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0710-
408 SPRING 1-33264-039-0 18 1 0710-
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0710-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0710-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0710-
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0710-
