0-12B — CYLINDER BLOCK (#4166) — 335 parça

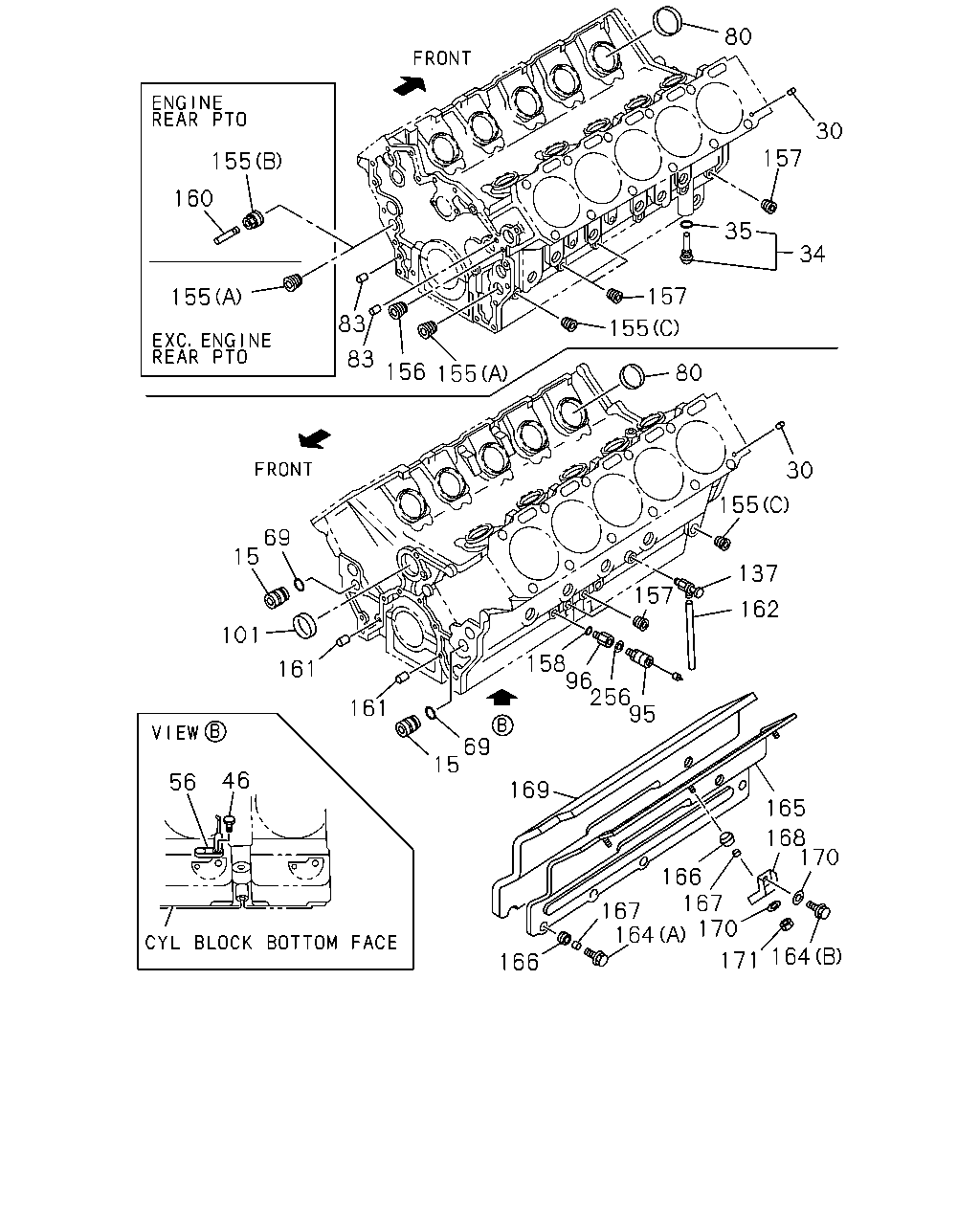

80 30 157 155 160 35 34 157 155 83 155 83 156 80 155 30 155 69 15 157 137 162 101 158 96 256 95 161 161 69 15 46 56 169 165 168 170 166 167 170 167 164 164 171 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9603-9901	●	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9905-	●	●	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9603-9901	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9905-	●	●	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9603-9901	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9905-	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9603-9901	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9905-	●	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9603-9901	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9905-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9603-9901		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9905-		●	●	●
56	JET; OIL,PISTON COOLING	1-13342-135-0	08	1	9603-9901	●
56	JET; OIL,PISTON COOLING	1-13342-135-1	08	1	9905-	●
56	JET; OIL,PISTON COOLING	1-13342-135-0	10	1	9603-9901		●
56	JET; OIL,PISTON COOLING	1-13342-135-0	10	1	9905-		●	●	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.8	1-09623-415-0	06	1	9603-9901	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9901	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.8	1-09623-415-0	06	1	9905-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9603-9901		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9905-		●	●	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9603-9901	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9905-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9603-9901		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9905-		●	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9603-9901	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9905-	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9603-9901	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-9909	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9910-	●	●	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9603-9901	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9905-	●	●	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9603-9901	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9905-	●	●	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9603-9901	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9603-9901	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9603-9901	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-0	01	1	9603-9901	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9603-9901	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9905-	●	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-1	01	1	9905-	●	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9905-	●	●	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9603-9901	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9905-	●	●	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9603-9901	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9905-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9603-9901		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9905-		●	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9603-9901	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-	●	●	●	●
160	JET ASM; OILING,PTO GEAR SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9603-9901	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9905-	●	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9603-9901	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9905-	●	●	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9901	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●	●	●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	9603-9603		●
164	BOLT; COVER BLOCK SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (A) M10X28 FLANGE	0-28181-028-0	03	1	9604-9702		●
164	BOLT; COVER BLOCK SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (A) M10X28 FLANGE	0-28181-028-0	03	1	9703-9901		●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9603-9603		●
164	BOLT; COVER BLOCK SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9604-9702		●
164	BOLT; COVER BLOCK SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9703-9901		●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	9905-0001		●	●	●
164	BOLT; COVER BLOCK SKIRT (A) M10X28 FLANGE	0-28181-028-0	03	1	0002-		●		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9> (A) M10X28 FLANGE	0-28181-028-0	03	1	0002-			●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	9905-0001		●	●	●
164	BOLT; COVER BLOCK SKIRT (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	0002-		●		●
164	BOLT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9> (B) M10X16 W/LK WASHER	1-09033-012-0	03	1	0002-			●
165	COVER; C/BL SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19381-320-1	01	1	9603-9702		●
165	COVER; C/BL SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19381-320-1	01	1	9703-9901		●
165	COVER; C/BL SKIRT	1-19381-320-1	01	1	9905-0001		●	●	●
165	COVER; C/BL SKIRT	1-19381-320-1	01	1	0002-		●		●
165	COVER; C/BL SKIRT ANTI NOISE EQUIPMENT<SV9>	1-19381-320-1	01	1	0002-			●
166	MOUNT; COVER BLOCK SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09337-020-0	06	1	9603-9702		●
166	MOUNT; COVER BLOCK SKIRT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09337-020-0	06	1	9703-9901		●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	06	1	9905-0001		●	●	●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	06	1	0002-		●		●
166	MOUNT; COVER BLOCK SKIRT ANTI NOISE EQUIPMENT<SV9>	1-09337-020-0	06	1	0002-			●
167	TUBE; DIST,SIDE COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	5-23332-003-0	06	1	9603-9702		●
167	TUBE; DIST,SIDE COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	5-23332-003-0	06	1	9703-9901		●
167	TUBE; DIST,SIDE COVER	5-23332-003-0	06	1	9905-0001		●	●	●
167	TUBE; DIST,SIDE COVER	5-23332-003-0	06	1	0002-		●		●
167	TUBE; DIST,SIDE COVER ANTI NOISE EQUIPMENT<SV9>	5-23332-003-0	06	1	0002-			●
168	BRACKET; SIDE COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19386-012-3	03	1	9603-9702		●
168	BRACKET; SIDE COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19386-012-3	03	1	9703-9901		●
168	BRACKET; SIDE COVER	1-19386-012-3	03	1	9905-0001		●	●	●
168	BRACKET; SIDE COVER	1-19386-012-3	03	1	0002-		●		●
168	BRACKET; SIDE COVER ANTI NOISE EQUIPMENT<SV9>	1-19386-012-3	03	1	0002-			●
169	INSULATOR; SIDE COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19389-148-0	01	1	9603-9702		●
169	INSULATOR; SIDE COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19389-148-0	01	1	9703-9705		●
169	INSULATOR; SIDE COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19389-197-0	01	1	9706-9901		●
169	INSULATOR; SIDE COVER	1-19389-197-0	01	1	9905-0001		●	●	●
169	INSULATOR; SIDE COVER	1-19389-197-0	01	1	0002-		●		●
169	INSULATOR; SIDE COVER ANTI NOISE EQUIPMENT<SV9>	1-19389-197-0	01	1	0002-			●
170	WASHER; COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) ID=10.5 OD=26	9-09160-710-0	06	1	9603-9702		●
170	WASHER; COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) ID=10.5 OD=26	9-09160-710-0	06	1	9703-9901		●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	06	1	9905-0001		●	●	●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	06	1	0002-		●		●
170	WASHER; COVER ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=26	9-09160-710-0	06	1	0002-			●
171	NUT; COVER & BRKT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) M10	9-09110-410-0	03	1	9603-9702		●
171	NUT; COVER & BRKT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) M10	9-09110-410-0	03	1	9703-9901		●
171	NUT; COVER & BRKT M10	9-09110-410-0	03	1	9905-0001		●	●	●
171	NUT; COVER & BRKT M10	9-09110-410-0	03	1	0002-		●		●
171	NUT; COVER & BRKT ANTI NOISE EQUIPMENT<SV9> M10	9-09110-410-0	03	1	0002-			●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9901	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●	●	●	●

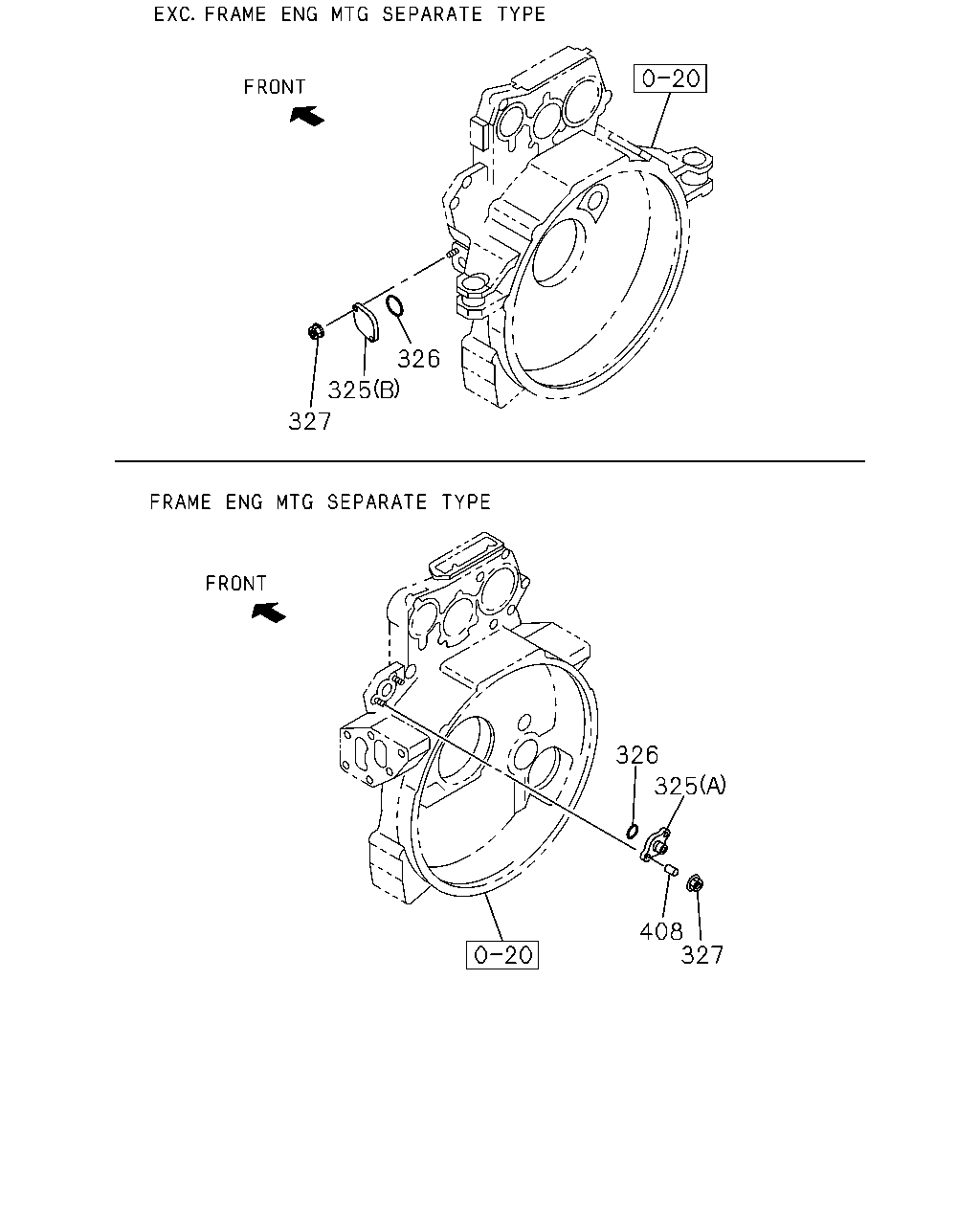

326 325 327 326 325 408 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
325	COVER; OIL FILTER HOLE FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-11749-113-0	01	1	9905-	●
325	COVER; OIL FILTER HOLE FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-11749-113-0	01	1	9603-9901	●	●
325	COVER; OIL FILTER HOLE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-11749-074-0	01	1	9603-9901	●	●
325	COVER; OIL FILTER HOLE EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-11749-074-0	01	1	9905-	●	●	●	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9603-9901	●	●
326	GASKET; COVER,OIL FILTER HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.7	1-09623-416-0	01	1	9905-	●	●	●	●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9603-9901	●	●
327	NUT; COVER,OIL FILTER HOLE M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●	●
408	TUBE; DIST,FILLER HOLE FRAME ENG MTG SEPARATE TYPE<SGM>	8-94399-936-0	01	1	9905-	●
408	TUBE; DIST,FILLER HOLE FRAME ENG MTG SEPARATE TYPE<SGM>	8-94399-936-0	01	1	9603-9901	●	●

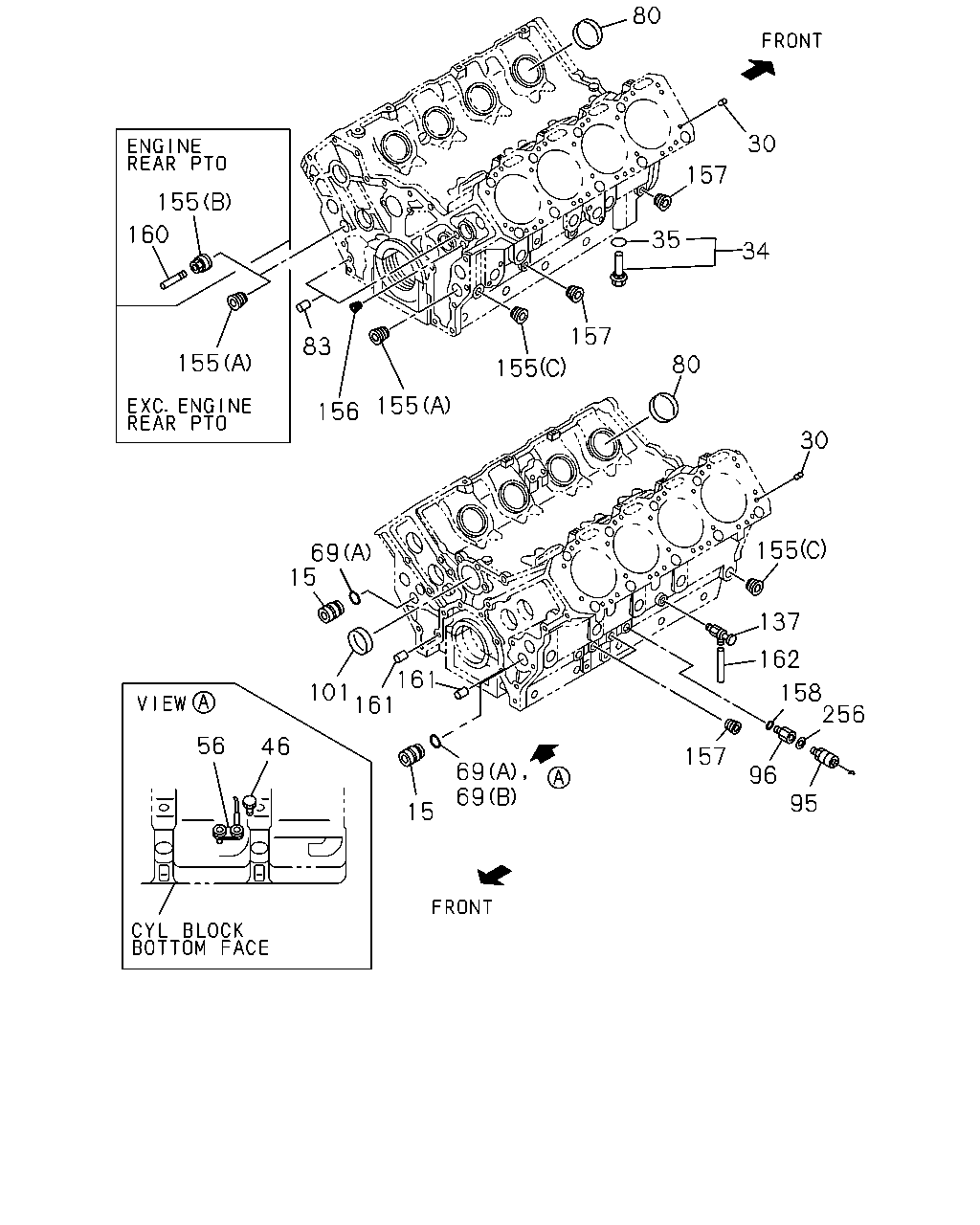

80 1 30 157 155 160 35 34 157 83 155 80 155 155 156 30 155 69 15 137 162 161 101 161 158 256 56 46 157 69 69 96 95 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-617-7	01	1	9603-9901	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-586-7	01	1	9603-9901	●
1	BLOCK ASM; CYL MIXER TRUCK<RA2>	1-11210-617-7	01	1	9905-	●
1	BLOCK ASM; CYL EXC. MIXER TRUCK<RA2>	1-11210-586-7	01	1	9905-	●
1	BLOCK ASM; CYL SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9603-9901		●
1	BLOCK ASM; CYL SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9603-9901		●
1	BLOCK ASM; CYL CXZ&LONG CHASSIS(CXZ6MF)	1-11210-584-7	01	1	9603-9901		●
1	BLOCK ASM; CYL MIXER TRUCK<RA2>	1-11210-585-7	01	1	9905-		●	●
1	BLOCK ASM; CYL EXC. MIXER TRUCK<RA2>	1-11210-584-7	01	1	9905-		●	●	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9603-9901	●	●
15	PLUG; OIL GALLERY M30X20	1-09609-019-0	02	1	9905-	●	●	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9603-9901	●	●
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	04	1	9905-	●	●	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9603-9901	●	●
34	VALVE; OIL RELIEF	1-13160-025-0	01	1	9905-	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9603-9901	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-145-0	01	1	9905-	●	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9603-9901	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	08	1	9905-	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9603-9901		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-036-1	10	1	9905-		●	●	●
56	JET; OIL,PISTON COOLING	1-13342-135-0	08	1	9603-9901	●
56	JET; OIL,PISTON COOLING	1-13342-135-1	08	1	9905-	●
56	JET; OIL,PISTON COOLING	1-13342-135-0	10	1	9603-9901		●
56	JET; OIL,PISTON COOLING	1-13342-135-0	10	1	9905-		●	●	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.8	1-09623-415-0	06	1	9603-9901	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9901	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=26.8	1-09623-415-0	06	1	9905-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-	●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9603-9901		●
69	GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	02	1	9905-		●	●	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9603-9901	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	08	1	9905-	●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9603-9901		●
80	CUP; SEALING,TAPPET CHAMBER OD=62	1-09600-021-0	10	1	9905-		●	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9603-9901	●	●
83	PIN; FLYWHEEL HSG	1-09740-036-0	02	1	9905-	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9603-9901	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-9909	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9910-	●	●	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9603-9901	●	●
96	ADAPTER; PRESS UNIT & SW	8-94390-391-0	01	1	9905-	●	●	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9603-9901	●	●
101	CUP; SEALING CAM END	1-09600-022-0	01	1	9905-	●	●	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9603-9901	●	●
137	COCK; DRAIN,WATER	1-09680-055-1	01	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9603-9901	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9603-9901	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-0	01	1	9603-9901	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9603-9901	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	01	1	9905-	●	●	●
155	PLUG; OIL GALLERY END ENGINE REAR PTO(SV1) (B) PT1,PT1/8	1-09605-076-1	01	1	9905-	●	●	●
155	PLUG; OIL GALLERY END (C) PT3/4	1-09605-020-0	02	1	9905-	●	●	●	●
155	PLUG; OIL GALLERY END EXC. ENGINE REAR PTO(SV1) (A) PT1	1-09605-021-0	02	1	9905-	●	●	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9603-9901	●	●
156	PLUG; IDLE GEAR PT1/4	1-09605-019-0	02	1	9905-	●	●	●	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9603-9901	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	06	1	9905-	●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9603-9901		●
157	PLUG; OIL GALLERY SIDE PT1/4	1-09605-019-0	08	1	9905-		●	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9603-9901	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-	●	●	●	●
160	JET ASM; OILING,PTO GEAR SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9603-9901	●	●
160	JET ASM; OILING,PTO GEAR ENGINE REAR PTO(SV1)	9-13342-002-0	01	1	9905-	●	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9603-9901	●	●
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9905-	●	●	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9603-9901	●	●
162	HOSE; WATER DRAIN,C/BL L=510 SERVICED BY L=10000	9-09914-701-0	01	1	9905-	●	●	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9901	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-	●	●	●	●

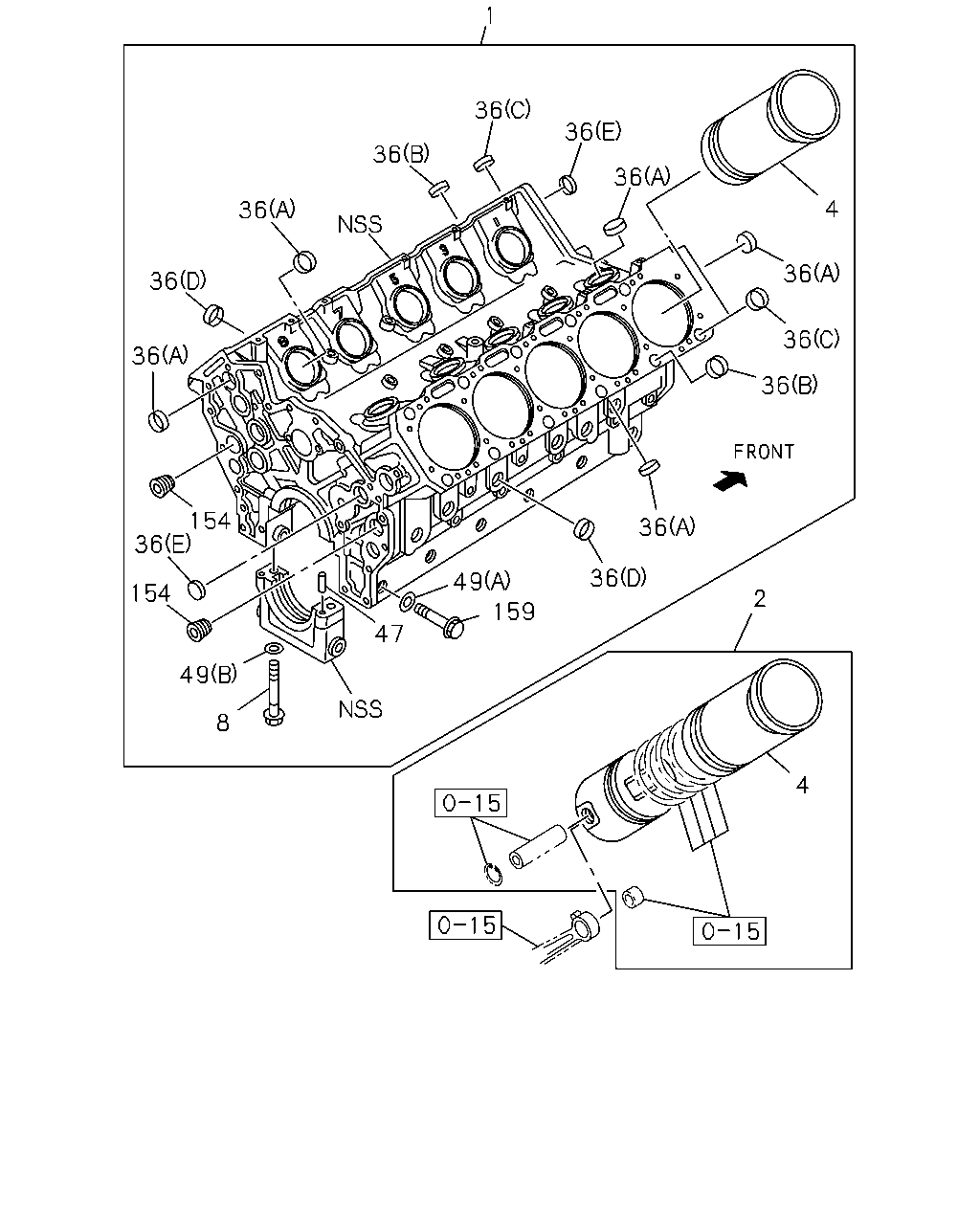

1 36 36 36 36 4 36 36 36 36 36 36 154 36 36 36 49 154 2 159 47 49 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-617-7	01	1	9603-9901	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-586-7	01	1	9603-9901	●
1	BLOCK ASM; CYL MIXER TRUCK<RA2>	1-11210-617-7	01	1	9905-	●
1	BLOCK ASM; CYL EXC. MIXER TRUCK<RA2>	1-11210-586-7	01	1	9905-	●
1	BLOCK ASM; CYL SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9603-9901		●
1	BLOCK ASM; CYL SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9603-9901		●
1	BLOCK ASM; CYL CXZ&LONG CHASSIS(CXZ6MF)	1-11210-584-7	01	1	9603-9901		●
1	BLOCK ASM; CYL MIXER TRUCK<RA2>	1-11210-585-7	01	1	9905-		●	●
1	BLOCK ASM; CYL EXC. MIXER TRUCK<RA2>	1-11210-584-7	01	1	9905-		●	●	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-445-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-0	08	1	9706-9901	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-446-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-0	08	1	9706-9901	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	08	1	9905-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	08	1	9905-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-0	10	1	9603-9901		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-0	10	1	9603-9901		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	10	1	9905-		●		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	10	1	9905-		●		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-807-1	10	1	9905-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-808-1	10	1	9905-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	08	1	9810-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	08	1	9810-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	08	1	9905-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	08	1	9905-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	10	1	9810-9901		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	10	1	9810-9901		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	10	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	10	1	9905-		●	●	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9603-9901	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	10	1	9905-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9603-9901		●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	23	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	07	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	23	1	9905-	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	9905-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9905-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	07	1	9905-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9603-9901	●	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9905-	●	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	27	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	08	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	14	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	09	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	27	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	08	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	14	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	09	1	9905-		●	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9603-9901	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9905-	●	●	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9603-9901	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9603-9901	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9905-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9905-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9603-9901		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9603-9901		●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9905-		●	●	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9905-		●	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9603-9901	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9905-	●	●	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9603-9810	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9811-9901	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9905-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9603-9810		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9811-9901		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9905-		●	●	●

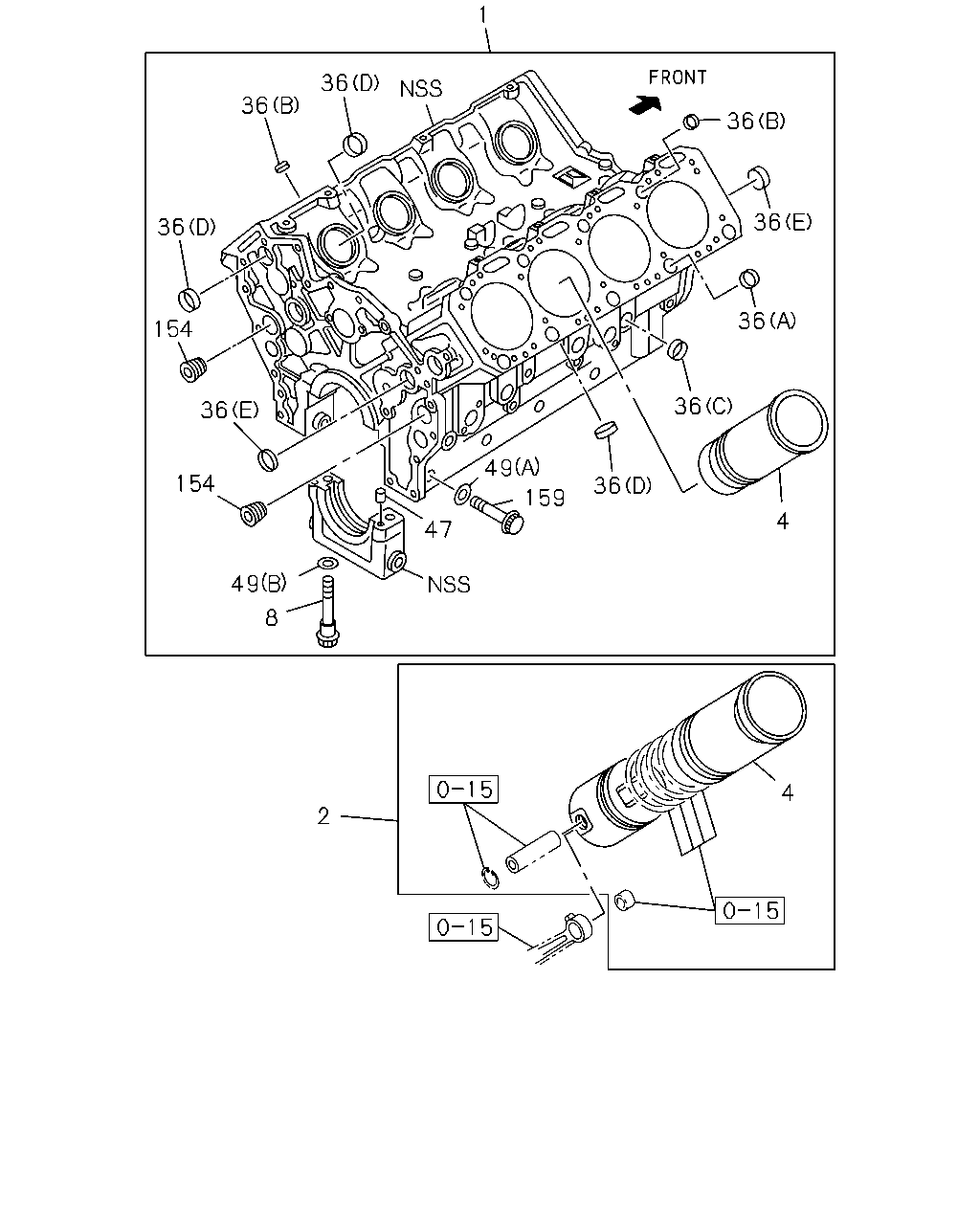

1 36 36 36 36 36 36 154 36 36 49 154 36 159 4 47 49 8 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	BLOCK ASM; CYL ENGINE REAR PTO(SV1)	1-11210-617-7	01	1	9603-9901	●
1	BLOCK ASM; CYL EXC. ENGINE REAR PTO(SV1)	1-11210-586-7	01	1	9603-9901	●
1	BLOCK ASM; CYL MIXER TRUCK<RA2>	1-11210-617-7	01	1	9905-	●
1	BLOCK ASM; CYL EXC. MIXER TRUCK<RA2>	1-11210-586-7	01	1	9905-	●
1	BLOCK ASM; CYL SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-11210-585-7	01	1	9603-9901		●
1	BLOCK ASM; CYL SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-11210-584-7	01	1	9603-9901		●
1	BLOCK ASM; CYL CXZ&LONG CHASSIS(CXZ6MF)	1-11210-584-7	01	1	9603-9901		●
1	BLOCK ASM; CYL MIXER TRUCK<RA2>	1-11210-585-7	01	1	9905-		●	●
1	BLOCK ASM; CYL EXC. MIXER TRUCK<RA2>	1-11210-584-7	01	1	9905-		●	●	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-445-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-0	08	1	9706-9901	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-446-0	08	1	9603-9705	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-0	08	1	9706-9901	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	08	1	9905-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	08	1	9905-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-0	10	1	9603-9901		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-0	10	1	9603-9901		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-789-3	10	1	9905-		●		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-790-3	10	1	9905-		●		●
2	LINER SET; ENG CYL GRADE=1X	1-87811-807-1	10	1	9905-			●
2	LINER SET; ENG CYL GRADE=3X	1-87811-808-1	10	1	9905-			●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	08	1	9810-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	08	1	9603-9809	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	08	1	9810-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-1	08	1	9905-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-1	08	1	9905-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-286-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	10	1	9810-9901		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-287-0	10	1	9603-9809		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	10	1	9810-9901		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-372-0	10	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-373-0	10	1	9905-		●	●	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	10	1	9603-9901	●
8	BOLT; BRG CAP M16X138	1-09070-140-0	10	1	9905-	●
8	BOLT; BRG CAP M16X138	1-09070-040-1	12	1	9603-9901		●
8	BOLT; BRG CAP M16X138	1-09070-140-0	12	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	23	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	07	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	23	1	9905-	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	06	1	9905-	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	12	1	9905-	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	07	1	9905-	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9603-9901	●	●
36	CUP; SEALING,WATER JACKET (E) OD=45	1-09600-058-0	04	1	9905-	●	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	27	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	08	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	14	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	09	1	9603-9901		●
36	CUP; SEALING,WATER JACKET (D) OD=45	1-09600-005-1	27	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	08	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	14	1	9905-		●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-020-0	09	1	9905-		●	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9603-9901	●	●
47	PIN; BRG CAP OD=8 L=16	9-08150-816-0	02	1	9905-	●	●	●	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9603-9901	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9603-9901	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	10	1	9905-	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	10	1	9905-	●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9603-9901		●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9603-9901		●
49	WASHER; BRG CAP (A) ID=14.2	1-09503-050-0	12	1	9905-		●	●	●
49	WASHER; BRG CAP (B) ID=16.2	9-09851-672-2	12	1	9905-		●	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9603-9901	●	●
154	PLUG; WATER DUCT	1-09605-022-0	02	1	9905-	●	●	●	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	10	1	9603-9810	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9811-9901	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	10	1	9905-	●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-034-1	12	1	9603-9810		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9811-9901		●
159	BOLT; BRG CAP SIDE FIX M14X80 FLANGE	1-09070-138-0	12	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
