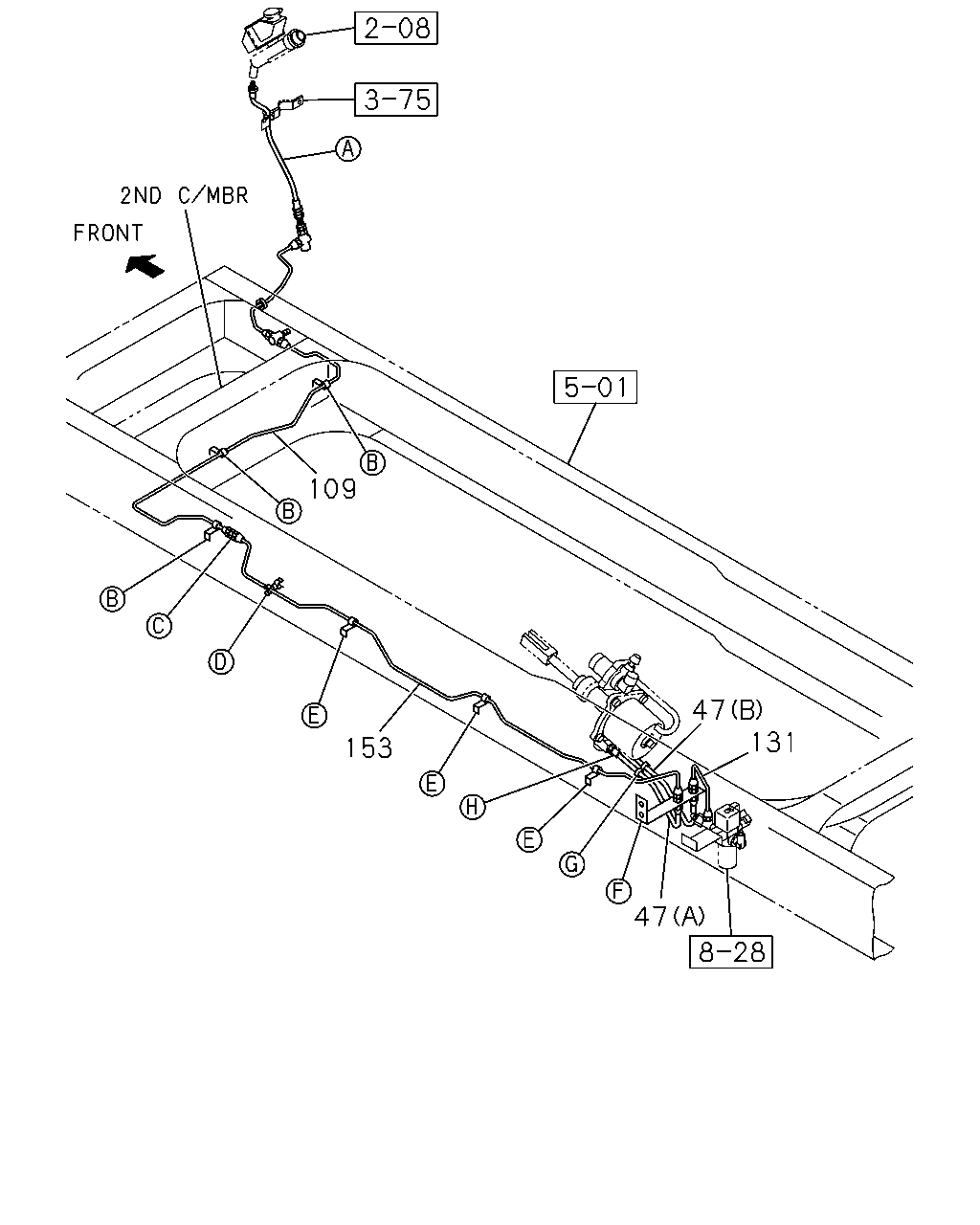

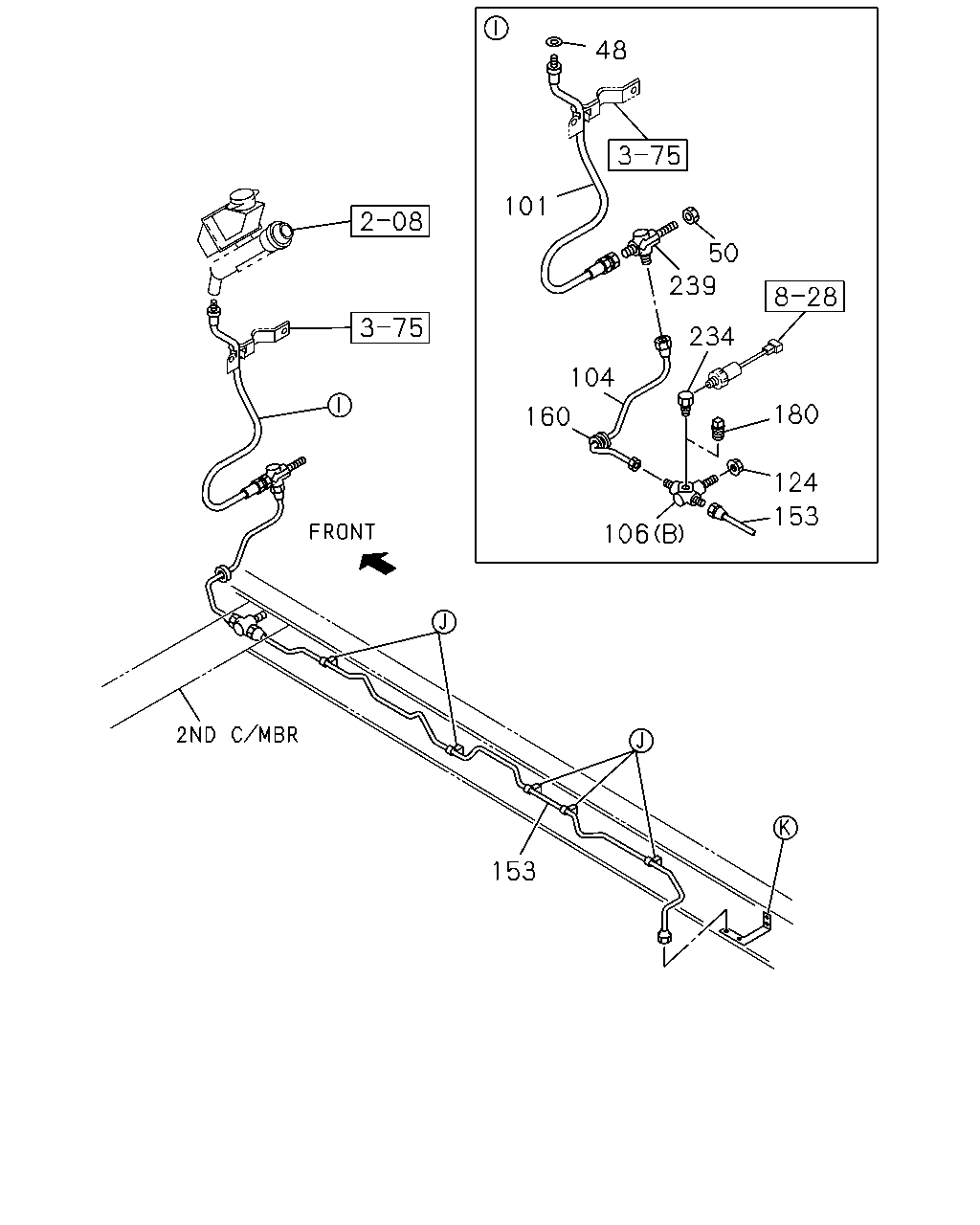

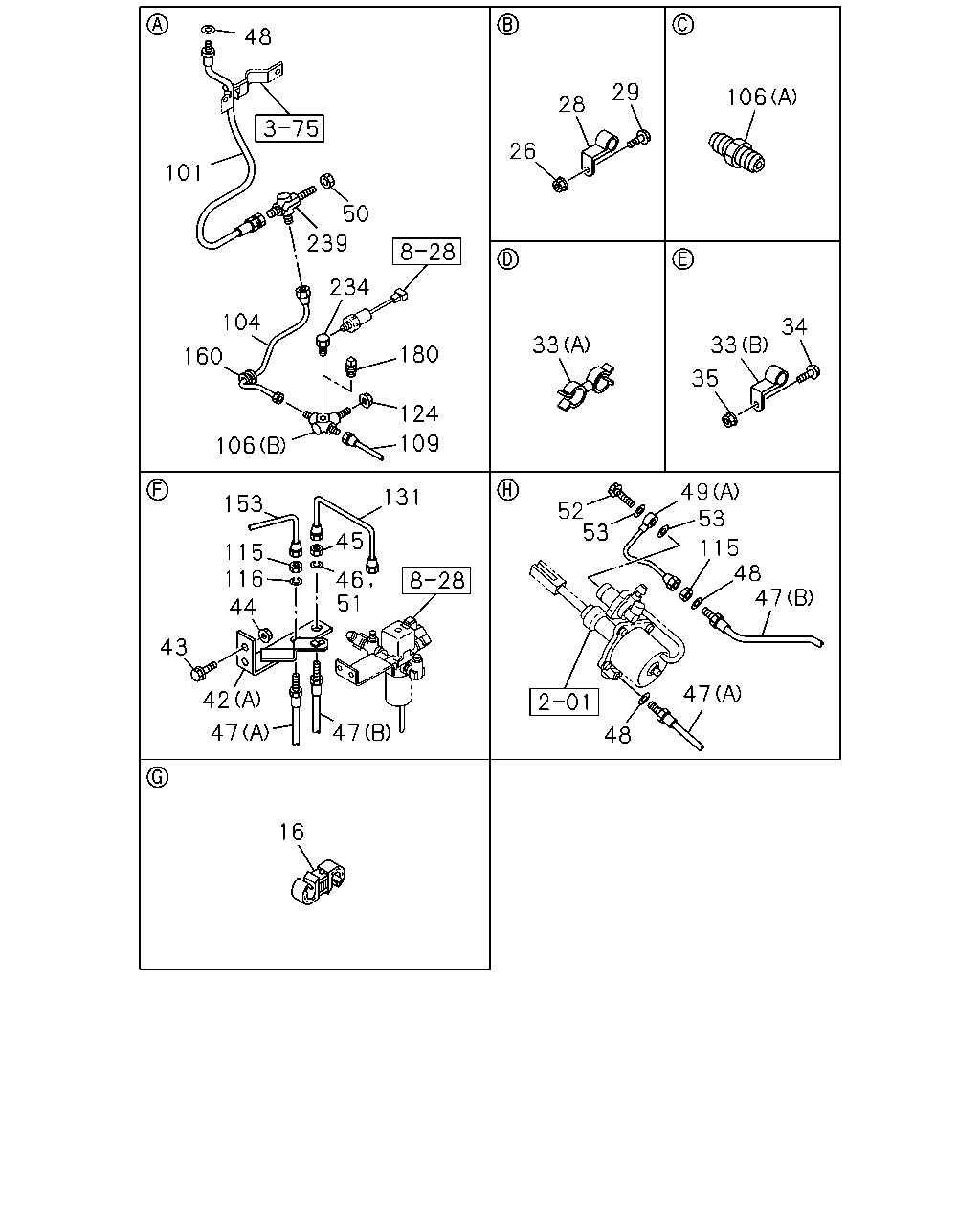

2-05 — CLUTCH PIPING (#41654) — 248 parça

35 33 34 153 52 115 116 45 44 46 53 53 42 9 54 49 43 45 46 16 48 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	NUT; BRKT,FLEX HOSE FULLER FS8209HD DD M/T(Y3A) M10 FLANGE	0-91180-210-0	02	1	0710-	●
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	0710-		●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0710-	●		●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-		●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0710-		●	●
33	CLIP; OIL PIPE FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0710-	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0710-		●	●
34	BOLT; PIPE CLIP FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE	0-28650-830-0	05	1	0710-	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0710-		●	●
35	NUT; PIPE CLIP FULLER FS8209HD DD M/T(Y3A) M8 FLANGE	0-91180-108-0	05	1	0710-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98077-571-0	01	1	0710-0710		●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98099-521-1	01	1	0710-		●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FS8209HD DD M/T(Y3A) (B)	8-98100-603-0	01	1	0710-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	0710-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	0710-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-	●		●
45	NUT; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> M12	9-09840-280-0	01	1	0710-0802		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0710-0802	●		●
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0803-		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0803-	●		●
46	WASHER; LK,FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=12.2	0-91510-512-0	01	1	0710-0802		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0710-0802	●		●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0803-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0803-1009	●		●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0710-		●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0710-		●	●
47	HOSE; FLEX,CLU CONT (C) L=430	1-09363-726-0	01	1	0710-0802	●
47	HOSE; FLEX,CLU CONT (C) L=390	1-09363-629-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT (D) L=460	1-09364-264-0	01	1	0710-0802	●
47	HOSE; FLEX,CLU CONT (D) L=640	1-09363-646-0	01	1	0803-0803	●
47	HOSE; FLEX,CLU CONT (D) L=370	1-09364-646-0	01	1	0804-	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-	●		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=232	1-49124-795-0	01	1	0710-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=232	1-49124-795-0	01	1	0710-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FS8209HD DD M/T(Y3A) (B)	1-49124-974-0	01	1	0710-	●
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0710-		●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0710-	●		●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312	●		●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
54	BRACKET; AIR,FLEX HOSE FULLER FS8209HD DD M/T(Y3A)	8-98081-247-0	01	1	0710-	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0710-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-	●		●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0710-1011		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0710-1011	●		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E)	8-98100-292-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0711		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0801-0802	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	0908-	●

109 47 131 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0710-		●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0710-		●	●
47	HOSE; FLEX,CLU CONT (C) L=430	1-09363-726-0	01	1	0710-0802	●
47	HOSE; FLEX,CLU CONT (C) L=390	1-09363-629-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT (D) L=460	1-09364-264-0	01	1	0710-0802	●
47	HOSE; FLEX,CLU CONT (D) L=640	1-09363-646-0	01	1	0803-0803	●
47	HOSE; FLEX,CLU CONT (D) L=370	1-09364-646-0	01	1	0804-	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1408 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0710		●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0711		●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1405 SERVICED BY L=1550	1-47428-766-0	01	1	0712-0802		●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0803-		●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801		●
131	PIPE; AIR,UNION TO FLEX HOSE PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-		●
131	PIPE; AIR,UNION TO FLEX HOSE PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) L=244	8-98092-621-0	01	1	0710-0710		●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804			●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-			●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E)	8-98100-292-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0711		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0801-0802	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	0908-	●

48 29 106 28 26 101 50 239 234 104 34 33 33 180 160 35 124 109 106 49 53 131 153 52 53 45 115 48 47 115 116 46 51 44 43 47 42 47 47 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	0710-		●
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	0710-	●		●
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0710-		●	●
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-		●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	03	1	0710-0811		●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	0812-		●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-		●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-		●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0710-		●	●
33	CLIP; OIL PIPE FULLER FS8209HD DD M/T(Y3A) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	0710-	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0710-		●	●
34	BOLT; PIPE CLIP FULLER FS8209HD DD M/T(Y3A) M8X30 FLANGE	0-28650-830-0	05	1	0710-	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0710-		●	●
35	NUT; PIPE CLIP FULLER FS8209HD DD M/T(Y3A) M8 FLANGE	0-91180-108-0	05	1	0710-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98077-571-0	01	1	0710-0710		●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) (A)	8-98099-521-1	01	1	0710-		●	●
42	BRACKET; FLEX HOSE,CLU CONT FULLER FS8209HD DD M/T(Y3A) (B)	8-98100-603-0	01	1	0710-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	0710-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0710-	●		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	0710-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0710-	●		●
45	NUT; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> M12	9-09840-280-0	01	1	0710-0802		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0710-0802	●		●
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0803-		●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	02	1	0803-	●		●
46	WASHER; LK,FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=12.2	0-91510-512-0	01	1	0710-0802		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0710-0802	●		●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0803-1009		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	02	1	0803-1009	●		●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011		●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-812-0	02	1	1010-1011	●		●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0710-		●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0710-		●	●
47	HOSE; FLEX,CLU CONT (C) L=430	1-09363-726-0	01	1	0710-0802	●
47	HOSE; FLEX,CLU CONT (C) L=390	1-09363-629-0	01	1	0803-	●
47	HOSE; FLEX,CLU CONT (D) L=460	1-09364-264-0	01	1	0710-0802	●
47	HOSE; FLEX,CLU CONT (D) L=640	1-09363-646-0	01	1	0803-0803	●
47	HOSE; FLEX,CLU CONT (D) L=370	1-09364-646-0	01	1	0804-	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-	●		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) (A) L=232	1-49124-795-0	01	1	0710-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=232	1-49124-795-0	01	1	0710-			●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FS8209HD DD M/T(Y3A) (B)	1-49124-974-0	01	1	0710-	●
50	NUT; UNION EXC. A/T<X9D> M12	0-91111-512-0	01	1	0710-		●
50	NUT; UNION M12	0-91111-512-0	01	1	0710-	●		●
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-		●
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1012-	●		●
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	0710-		●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0710-	●		●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312	●		●
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=510	8-98059-811-0	01	1	0710-0802		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=510	8-98059-811-0	01	1	0710-0802	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=500	8-98072-350-0	01	1	0803-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0803-	●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=381	8-98079-771-0	01	1	0710-0803		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	0804-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0804-	●		●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0710-		●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0710-	●		●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0710-		●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1408 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0710		●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0711		●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1405 SERVICED BY L=1550	1-47428-766-0	01	1	0712-0802		●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0803-		●	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0710-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-	●		●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0710-1011		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0710-1011	●		●
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	0710-		●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0710-	●		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801		●
131	PIPE; AIR,UNION TO FLEX HOSE PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-		●
131	PIPE; AIR,UNION TO FLEX HOSE PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) L=244	8-98092-621-0	01	1	0710-0710		●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804			●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804			●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-		●
131	PIPE; AIR,UNION TO FLEX HOSE EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-			●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E)	8-98100-292-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0711		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0801-0802	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	0908-	●
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●		●
180	PLUG; PIPE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0710-		●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0710-	●		●
234	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0710-		●
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0710-	●		●
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0710-0803		●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0710-0803	●		●
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	0804-		●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0804-	●		●

48 101 50 239 234 104 180 160 124 153 106 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-		●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-	●		●
50	NUT; UNION EXC. A/T<X9D> M12	0-91111-512-0	01	1	0710-		●
50	NUT; UNION M12	0-91111-512-0	01	1	0710-	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=510	8-98059-811-0	01	1	0710-0802		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=510	8-98059-811-0	01	1	0710-0802	●		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=500	8-98072-350-0	01	1	0803-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=500	8-98072-350-0	01	1	0803-	●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=381	8-98079-771-0	01	1	0710-0803		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	0804-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=533 SERVICED BY L=550	1-47428-753-0	01	1	0804-	●		●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0710-		●
106	UNION; OIL PIPE (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0710-	●		●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0710-		●	●
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	0710-		●
124	NUT; PIPE UNION M12	0-91111-512-0	01	1	0710-	●		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E)	8-98100-292-0	01	1	0710-0710		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0711		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802		●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-		●	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2727 SERVICED BY L=3000	1-47428-773-0	01	1	0801-0802	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2728 SERVICED BY L=3000	1-47428-773-0	01	1	0803-0806	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743 SERVICED BY L=3000	1-47428-773-0	01	1	0807-0907	●
153	PIPE ASM; CLU,UNION TO FLEX FULLER FS8209HD DD M/T(Y3A) L=2743	8-98152-245-0	01	1	0908-	●
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-		●
160	GROMMET; OIL PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●		●
180	PLUG; PIPE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0710-		●
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0710-	●		●
234	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0710-		●
234	CONNECTOR; ELBOW H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	0710-	●		●
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0710-0803		●
239	UNION; CLU HOSE M12 & M14 2WAY	1-09654-141-2	01	1	0710-0803	●		●
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	0804-		●
239	UNION; CLU HOSE	8-98107-850-0	01	1	0804-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
