◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#41650) — 135 parça

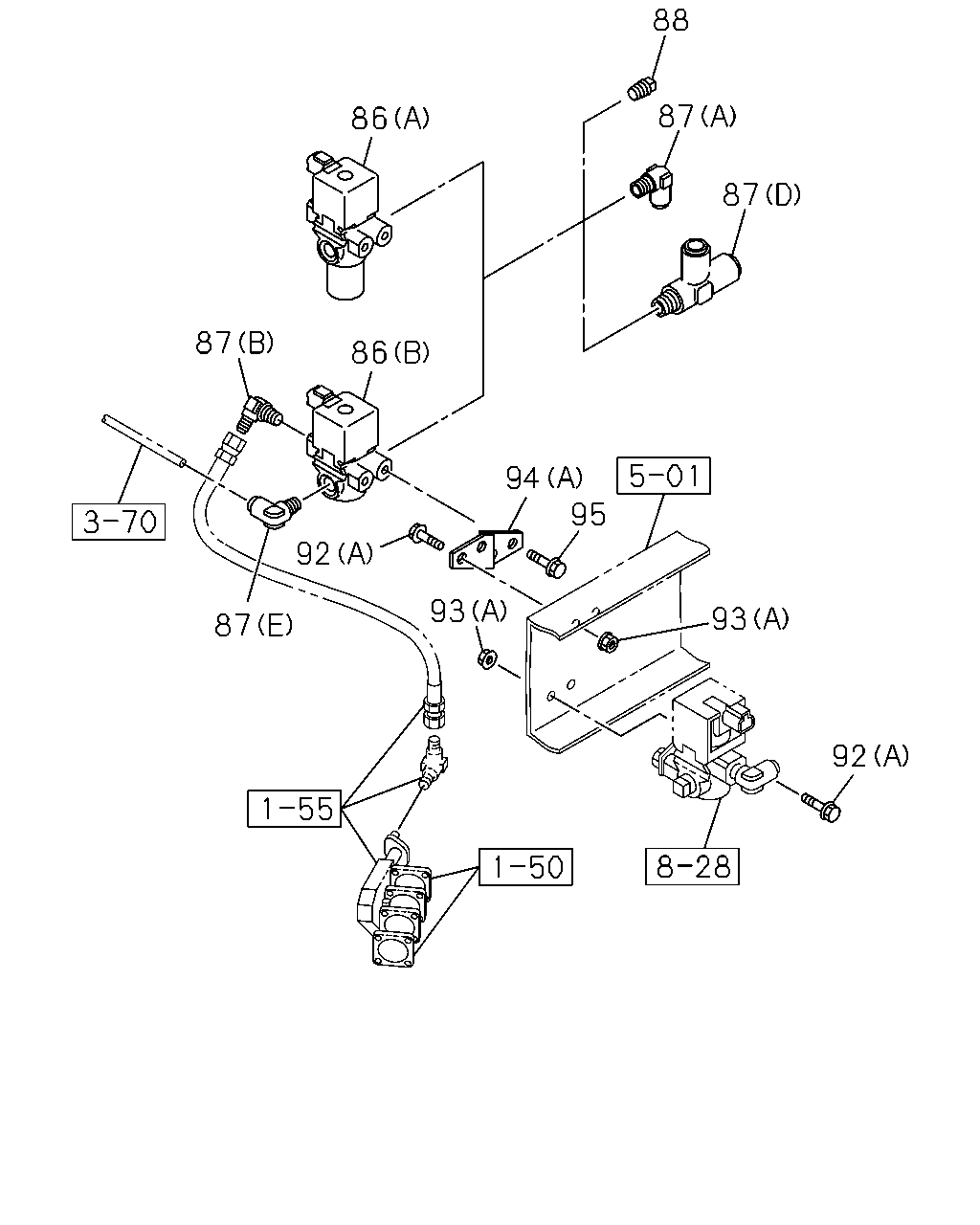

çizim 112032
88 87 86 87 87 86 94 95 92 93 93 87 92
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) GVR(GG****) (C) 		8-97633-075-0 01 1 1112-
86 VALVE; MAG,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-97633-075-0 01 1 1112-
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (B) 		1-82563-871-2 01 1 0710-0711
86 VALVE; MAG,EXH BRK
GVR(GG****) (B) 		1-82563-871-2 01 1 0710-0711
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 0712-0712
86 VALVE; MAG,EXH BRK
GVR(GG****) (B) 		1-82563-871-2 01 1 0712-0712
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 0801-
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (A) 		8-97376-939-3 01 1 0710-0711
86 VALVE; MAG,EXH BRK
FVR LEAF SUS(FGR***) GVR(GG****) (A) 		8-97376-939-3 01 1 0710-0711
87 CONNECTOR
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
FVR AIR SUS(FGD***) GVR(GG****) (F) 		8-98179-708-0 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98179-708-0 01 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112-
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0712
87 CONNECTOR
WHEEL BASE 3700MM(37W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0712
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEELBASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
GVR(GG****) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
WHEEL BASE 4200MM(42W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (E) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
87 CONNECTOR
WHEEL BASE 3700MM(37W) (D) DIN12X2 & R1/4 3WAY 		1-09661-071-0 01 1 0710-0712
88 PLUG
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEELBASE 6500MM(65W) PT1/4 		9-99204-513-0 01 1 0710-0712
88 PLUG
WHEEL BASE 3700MM(37W) PT1/4 		9-99204-513-0 01 1 0710-0712
88 PLUG
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEELBASE 6500MM(65W) PT1/4 		9-99204-513-0 01 1 0801-
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) GVR(GG****) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
92 BOLT; MAG VLV
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
92 BOLT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112-
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710-
92 BOLT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0807
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0808-
92 BOLT; MAG VLV
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0808-
93 NUT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112-
93 NUT; MAG VLV
FVR(FG****) (A) M10 FLANGE 		0-91180-210-0 02 1 0710-0710
93 NUT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0710
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0807
93 NUT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0807
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0808-
93 NUT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0808-
93 NUT; MAG VLV
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0808-
94 BRACKET; MAG VLV,EXH BRAKE
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-47471-374-1 01 1 0710-1004
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1005-1111
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		8-98057-863-0 01 1 0710-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-

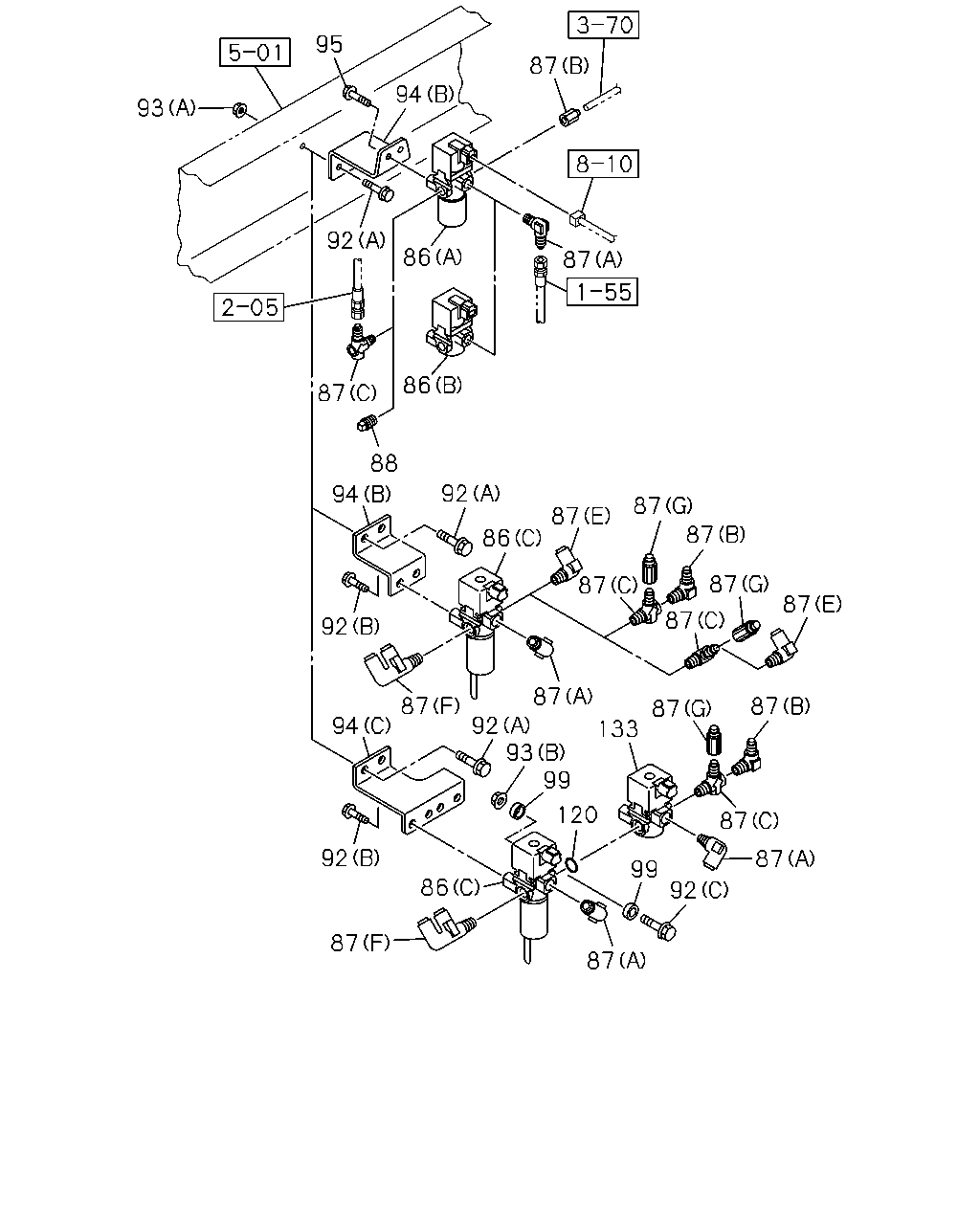

çizim 112051
95 87 94 93 92 86 87 86 87 88 92 94 87 87 87 86 87 87 87 87 92 87 87 94 87 87 92 93 99 133 120 87 92 87 99 86 92 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) GVR(GG****) (C) 		8-97633-075-0 01 1 1112-
86 VALVE; MAG,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-97633-075-0 01 1 1112-
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (B) 		1-82563-871-2 01 1 0710-0711
86 VALVE; MAG,EXH BRK
GVR(GG****) (B) 		1-82563-871-2 01 1 0710-0711
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 0712-0712
86 VALVE; MAG,EXH BRK
GVR(GG****) (B) 		1-82563-871-2 01 1 0712-0712
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 0801-
86 VALVE; MAG,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (A) 		8-97376-939-3 01 1 0710-0711
86 VALVE; MAG,EXH BRK
FVR LEAF SUS(FGR***) GVR(GG****) (A) 		8-97376-939-3 01 1 0710-0711
87 CONNECTOR
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
87 CONNECTOR
FVR AIR SUS(FGD***) GVR(GG****) (F) 		8-98179-708-0 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98179-708-0 01 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1112-
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1112-
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1112-
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0710-
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0712
87 CONNECTOR
WHEEL BASE 3700MM(37W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0712
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0801-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEELBASE 6500MM(65W) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
GVR(GG****) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
87 CONNECTOR
WHEEL BASE 4200MM(42W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-1111
87 CONNECTOR
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-
87 CONNECTOR
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-
87 CONNECTOR
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-
87 CONNECTOR
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (E) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
87 CONNECTOR
WHEEL BASE 3700MM(37W) (D) DIN12X2 & R1/4 3WAY 		1-09661-071-0 01 1 0710-0712
88 PLUG
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEELBASE 6500MM(65W) PT1/4 		9-99204-513-0 01 1 0710-0712
88 PLUG
WHEEL BASE 3700MM(37W) PT1/4 		9-99204-513-0 01 1 0710-0712
88 PLUG
WHEEL BASE 3700MM(37W),WHEEL BASE 5500MM(55W), WHEELBASE 6500MM(65W) PT1/4 		9-99204-513-0 01 1 0801-
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) GVR(GG****) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
92 BOLT; MAG VLV
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
92 BOLT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1112-
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710-
92 BOLT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0807
92 BOLT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0808-
92 BOLT; MAG VLV
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE 		0-28650-830-0 02 1 0808-
93 NUT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 1112-
93 NUT; MAG VLV
FVR(FG****) (A) M10 FLANGE 		0-91180-210-0 02 1 0710-0710
93 NUT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0710
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0807
93 NUT; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0807
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 0808-
93 NUT; MAG VLV
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 02 1 0808-
93 NUT; MAG VLV
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 02 1 0808-
94 BRACKET; MAG VLV,EXH BRAKE
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> (C) 		8-98101-296-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		1-47471-374-1 01 1 0710-1004
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1005-1111
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G),ZF9S1110 M/T(Y5E) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
FVR LEAF SUS(FGR***) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
GVR(GG****) FULLER FS8209HD DD M/T(Y3A) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. PTO CONTROL<SV6> (B) 		8-98154-633-0 01 1 1112-
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) (A) 		8-98057-863-0 01 1 0710-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
99 WASHER; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82569-266-0 02 1 1112-
120 GASKET; MAG VLV
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 1112-
133 VALVE; MAG,PTO CONT
FVR(FG****) ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO CONTROL<SV6> 		1-82563-871-2 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
