Sayfa 0-12A - Isuzu EPC

0-12A — CYLINDER BLOCK (#4165) — 206 parça

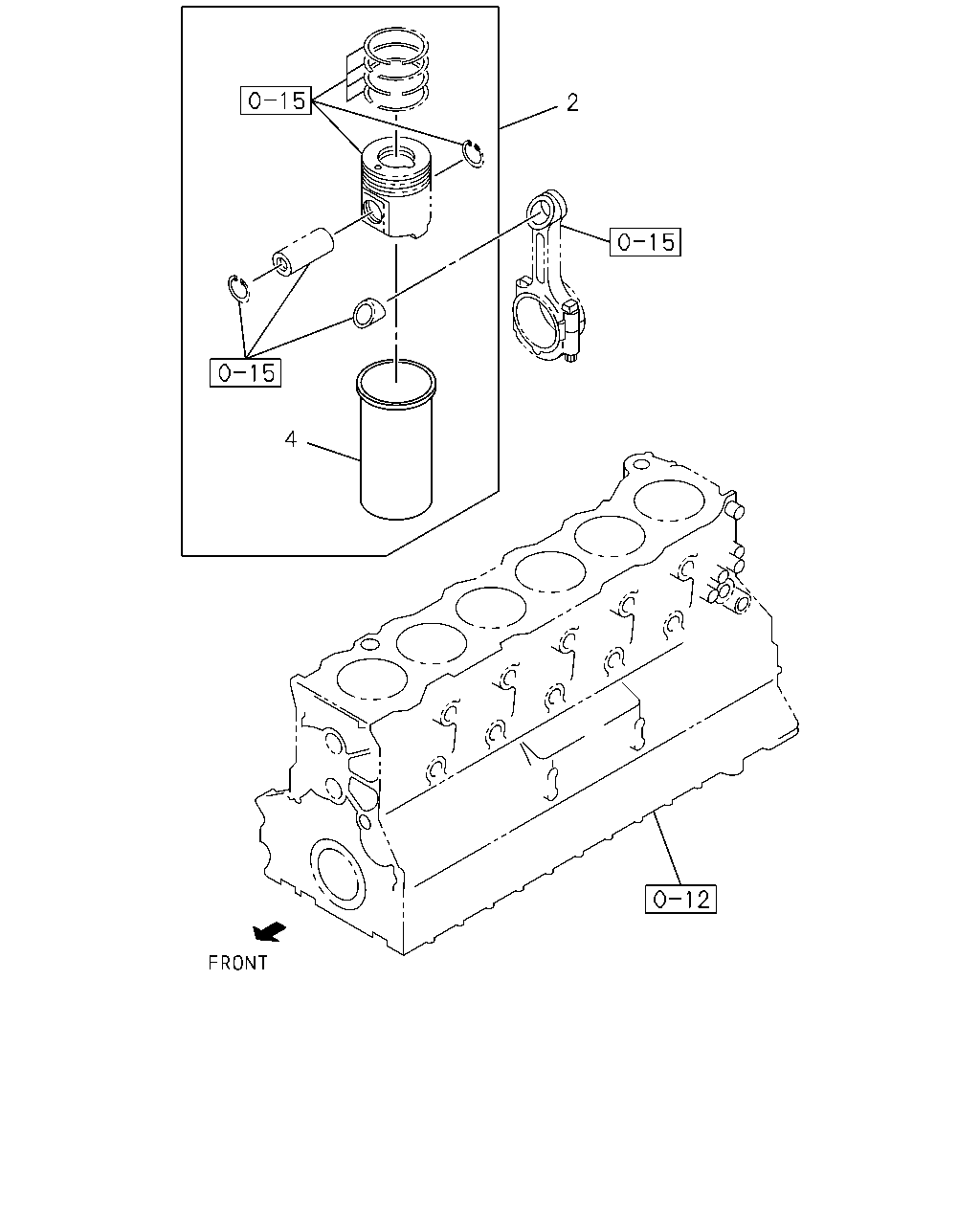

2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-719-0	06	1	9603-9710	●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-805-0	06	1	9711-9802	●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-839-0	06	1	9803-9901	●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-839-0	06	1	9902-9904		●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-839-3	06	1	9905-		●	●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-720-0	06	1	9603-9710	●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-806-0	06	1	9711-9802	●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-840-0	06	1	9803-9901	●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-840-0	06	1	9902-9904		●
2	LINER SET; ENG CYL GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-840-3	06	1	9905-		●	●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-704-0	06	1	9603-9710	●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-801-0	06	1	9711-9802	●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-835-0	06	1	9803-9901	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-837-3	06	1	9902-				●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-705-0	06	1	9603-9710	●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-802-0	06	1	9711-9802	●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-836-0	06	1	9803-9901	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-838-3	06	1	9902-				●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=1X	1-87811-835-3	06	1	9905-			●
2	LINER SET; ENG CYL EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> GRADE=3X	1-87811-836-3	06	1	9905-			●
2	LINER SET; ENG CYL GRADE=1X	1-87811-667-1	06	1	9905-9909					●
2	LINER SET; ENG CYL GRADE=1X	1-87811-667-6	06	1	9910-					●	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-668-1	06	1	9905-9909					●
2	LINER SET; ENG CYL GRADE=3X	1-87811-668-6	06	1	9910-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-296-0	06	1	9603-9802	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-0	06	1	9803-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-0	06	1	9902-9904		●		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-297-0	06	1	9603-9802	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-0	06	1	9803-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-0	06	1	9902-9904		●		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-0	06	1	9905-9909					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-2	06	1	9910-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-0	06	1	9905-9909					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-2	06	1	9910-					●	●

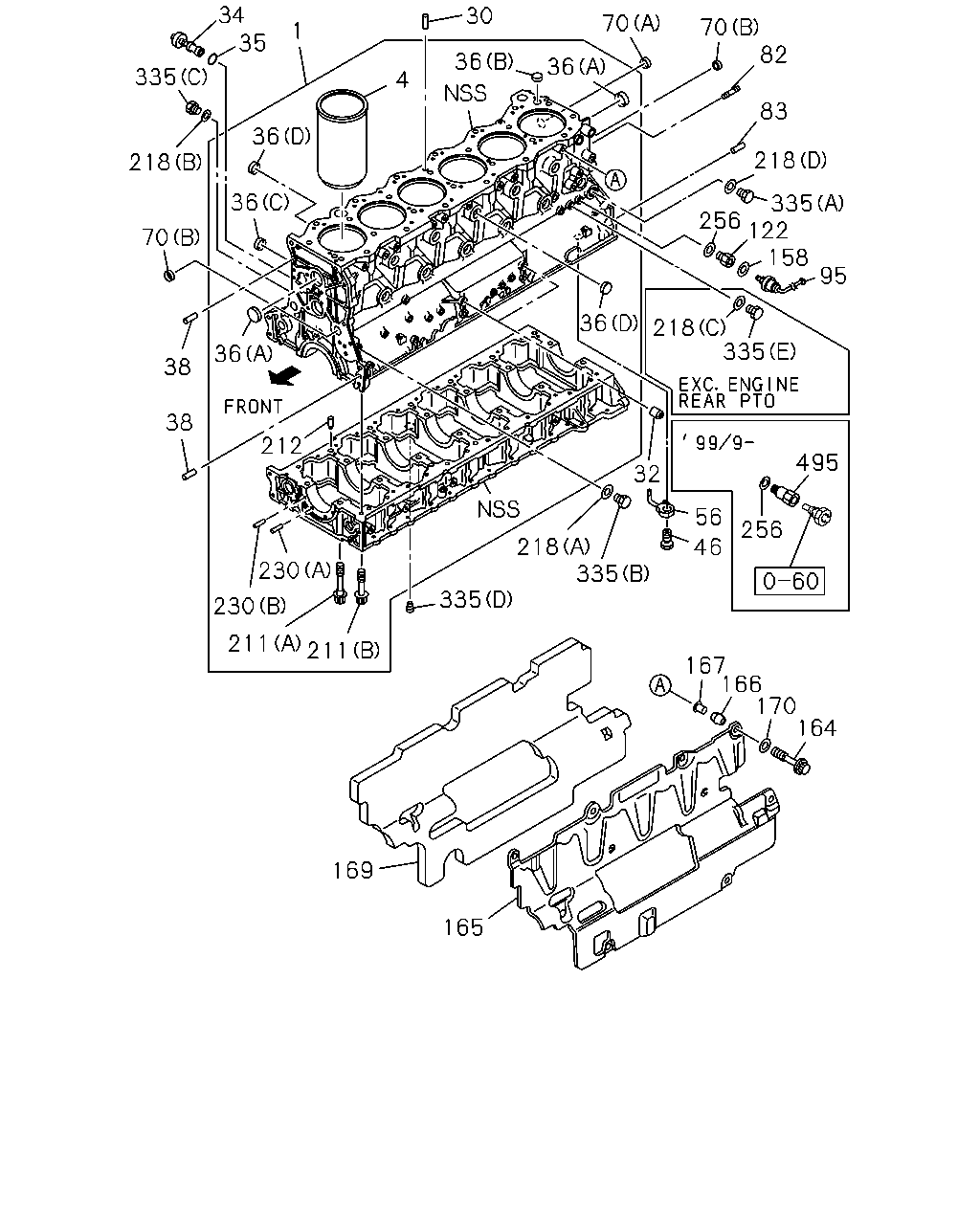

34 35 30 70 70 82 1 36 36 335 4 83 36 218 218 36 335 256 122 158 70 95 36 218 335 212 36 38 38 495 32 56 256 218 335 46 230 335 230 211 211 167 166 170 164 169 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	BLOCK ASM; CYL	1-11210-637-4	01	1	9603-9802	●
1	BLOCK ASM; CYL	1-11210-664-0	01	1	9803-9901	●
1	BLOCK ASM; CYL	1-11210-664-0	01	1	9902-9904		●		●
1	BLOCK ASM; CYL	1-11210-664-2	01	1	9905-		●	●	●
1	BLOCK ASM; CYL	1-11210-632-5	01	1	9905-9909					●
1	BLOCK ASM; CYL	1-11210-632-8	01	1	9910-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-296-0	06	1	9603-9802	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-0	06	1	9803-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-0	06	1	9902-9904		●		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-362-1	06	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-297-0	06	1	9603-9802	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-0	06	1	9803-9901	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-0	06	1	9902-9904		●		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-363-1	06	1	9905-		●	●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-0	06	1	9905-9909					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	1-11261-333-2	06	1	9910-					●	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-0	06	1	9905-9909					●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	1-11261-334-2	06	1	9910-					●	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	9603-9901	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	9902-9904		●		●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	9905-9909		●	●	●	●
30	PIN; CYL HD GASKET SETTING OD=10 L=18	9-08151-018-0	03	1	9910-		●	●	●	●	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	9603-9901	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	9902-9904		●		●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	9905-9909		●	●	●	●
32	PIN; INJ PUMP BRKT	8-94325-506-1	02	1	9910-		●	●	●	●	●
34	VALVE; OIL RELIEF	1-13160-030-2	01	1	9603-9901	●
34	VALVE; OIL RELIEF	1-13160-030-2	01	1	9902-9904		●		●
34	VALVE; OIL RELIEF	1-13160-030-2	01	1	9905-9909		●	●	●	●
34	VALVE; OIL RELIEF	1-13160-030-2	01	1	9910-		●	●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	9603-9901	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	9902-9904		●		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	9905-9909		●	●	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-297-0	01	1	9910-		●	●	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9902-9904		●		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9905-9909		●	●	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-1	04	1	9910-		●	●	●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	9902-9904		●		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	9905-9909		●	●	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	9910-		●	●	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-0	02	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-0	02	1	9902-9904		●		●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-0	02	1	9905-9909		●	●	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	1-09600-065-0	02	1	9910-		●	●	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	9603-9901	●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	9902-9904		●		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	9905-9909		●	●	●	●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-94241-637-0	13	1	9910-		●	●	●	●	●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	9603-9901	●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	9902-9904		●		●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	9905-9909		●	●	●	●
38	PIN; TIMING GEAR CASE OD=10 L=18	9-08151-018-0	02	1	9910-		●	●	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	9603-9901	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	9902-9904		●		●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	9905-9909		●	●	●	●
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-13349-014-0	06	1	9910-		●	●	●	●	●
56	JET; OIL,PISTON COOLING	1-13342-125-3	06	1	9603-9901	●
56	JET; OIL,PISTON COOLING	1-13342-125-3	06	1	9902-9904		●		●
56	JET; OIL,PISTON COOLING	1-13342-125-3	06	1	9905-		●	●	●
56	JET; OIL,PISTON COOLING	1-13342-139-0	06	1	9905-9909					●
56	JET; OIL,PISTON COOLING	1-13342-139-0	06	1	9910-					●	●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-1	01	1	9603-9901	●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-1	01	1	9902-9904		●		●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-1	01	1	9905-9909		●	●	●	●
70	CUP; SEALING,FRT & RR (A) OD=32	1-09600-012-1	01	1	9910-		●	●	●	●	●
70	CUP; SEALING,FRT & RR (B) OD=25	1-09600-016-0	04	1	9603-9901	●
70	CUP; SEALING,FRT & RR SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	03	1	9902-9904				●
70	CUP; SEALING,FRT & RR SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	03	1	9905-				●	●
70	CUP; SEALING,FRT & RR EXC. ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	04	1	9902-9904		●		●
70	CUP; SEALING,FRT & RR EXC. ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	04	1	9905-9909		●	●	●	●
70	CUP; SEALING,FRT & RR EXC. ENGINE REAR PTO(SV1) (B) OD=25	1-09600-016-0	04	1	9910-		●	●	●	●	●
82	STUD; FLYWHEEL HSG M14X35 L=56	9-04411-435-0	01	1	9603-9901	●
82	STUD; FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) M14X35 L=56	9-04411-435-0	01	1	9902-9904		●		●
82	STUD; FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) M14X35 L=56	9-04411-435-0	01	1	9905-9909		●	●	●	●
82	STUD; FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) M14X35 L=56	9-04411-435-0	01	1	9910-		●	●	●	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9603-9901	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9902-9904		●		●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9905-9909		●	●	●	●
83	PIN; FLYWHEEL HSG	9-08151-428-0	02	1	9910-		●	●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9603-9901	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9902-9904		●		●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9905-9909		●	●	●	●
95	PRESSURE UNIT; OIL	1-83151-042-0	01	1	9910-		●	●	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	9603-9901	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	9902-9904		●		●
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	9905-9909		●	●	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94390-391-0	01	1	9910-		●	●	●	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9901	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9904		●		●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-9909		●	●	●	●
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-		●	●	●	●	●
164	BOLT; COVER BLOCK SKIRT M10X35 FLANGE	0-28181-035-0	08	1	9603-9901	●
164	BOLT; COVER BLOCK SKIRT M10X35 FLANGE	0-28181-035-0	08	1	9905-9909					●
164	BOLT; COVER BLOCK SKIRT M10X35 FLANGE	0-28181-035-0	08	1	9910-					●	●
165	COVER; C/BL SKIRT	1-19381-376-0	01	1	9603-9901	●
165	COVER; C/BL SKIRT	1-19381-376-0	01	1	9905-9909					●
165	COVER; C/BL SKIRT	1-19381-376-0	01	1	9910-					●	●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	08	1	9603-9901	●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	08	1	9905-9909					●
166	MOUNT; COVER BLOCK SKIRT	1-09337-020-0	08	1	9910-					●	●
167	TUBE; DIST,SIDE COVER	1-19389-134-1	08	1	9603-9901	●
167	TUBE; DIST,SIDE COVER	1-19389-134-1	08	1	9905-9909					●
167	TUBE; DIST,SIDE COVER	1-19389-134-1	08	1	9910-					●	●
169	INSULATOR; SIDE COVER	1-19389-191-0	01	1	9603-9901	●
169	INSULATOR; SIDE COVER	1-19389-191-0	01	1	9905-9909					●
169	INSULATOR; SIDE COVER	1-19389-191-1	01	1	9910-					●	●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	08	1	9603-9901	●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	08	1	9905-9909					●
170	WASHER; COVER ID=10.5 OD=26	9-09160-710-0	08	1	9910-					●	●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M18X150	1-09070-086-3	14	1	9603-9901	●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M18X150	1-09070-086-3	14	1	9902-9904		●		●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M18X150	1-09070-086-3	14	1	9905-9905		●	●	●	●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M18X150	1-09070-151-0	14	1	9906-9909		●	●	●	●
211	BOLT; CRANKCASE (A) 12-POINT HEAD M18X150	1-09070-151-0	14	1	9910-		●	●	●	●	●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M12X114	1-09070-087-2	28	1	9603-9901	●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M12X114	1-09070-087-2	28	1	9902-9904		●		●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M12X114	1-09070-087-2	28	1	9905-9909		●	●	●	●
211	BOLT; CRANKCASE (B) 12-POINT HEAD M12X114	1-09070-087-2	28	1	9910-		●	●	●	●	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	9603-9901	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	9902-9904		●		●
212	PIN; CRANKCASE	1-09740-068-1	02	1	9905-9909		●	●	●	●
212	PIN; CRANKCASE	1-09740-068-1	02	1	9910-		●	●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9901	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9904		●		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-9909		●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-		●	●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	01	1	9603-9901	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	01	1	9902-9904		●		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	01	1	9905-9909		●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2	1-09630-084-0	01	1	9910-		●	●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9901	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (C) ID=14.2 OD=19.2	1-09630-085-0	01	1	9902-9904		●		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (C) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-9909		●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (C) ID=14.2 OD=19.2	1-09630-085-0	01	1	9910-		●	●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22	1-09630-089-0	01	1	9603-9901	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22	1-09630-089-0	01	1	9902-9904		●		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22	1-09630-089-0	01	1	9905-9909		●	●	●	●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=22	1-09630-089-0	01	1	9910-		●	●	●	●	●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	9603-9901	●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	9902-9904		●		●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	9905-9909		●	●	●	●
230	PIN; THRUST METAL,CR/SHF (A) L=25	1-09749-025-1	02	1	9910-		●	●	●	●	●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	9603-9901	●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	9902-9904		●		●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	9905-9909		●	●	●	●
230	PIN; THRUST METAL,CR/SHF (B) OD=5 L=10	9-08160-510-0	02	1	9910-		●	●	●	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9603-9901	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9902-9904		●		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9905-9909		●	●	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	9910-		●	●	●	●	●
335	PLUG; C/BL,SIDE (A) M22X12	1-09604-035-0	01	1	9603-9901	●
335	PLUG; C/BL,SIDE (A) M22X12	1-09604-035-0	01	1	9902-9904		●		●
335	PLUG; C/BL,SIDE (A) M22X12	1-09604-035-0	01	1	9905-9909		●	●	●	●
335	PLUG; C/BL,SIDE (A) M22X12	1-09604-035-0	01	1	9910-		●	●	●	●	●
335	PLUG; C/BL,SIDE (B) M10X7	1-09604-094-0	01	1	9603-9901	●
335	PLUG; C/BL,SIDE (B) M10X7	1-09604-094-0	01	1	9902-9904		●		●
335	PLUG; C/BL,SIDE (B) M10X7	1-09604-094-0	01	1	9905-9909		●	●	●	●
335	PLUG; C/BL,SIDE (B) M10X7	1-09604-094-0	01	1	9910-		●	●	●	●	●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	9603-9901	●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	9902-9904		●		●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	9905-9909		●	●	●	●
335	PLUG; C/BL,SIDE (C) M12X9	1-09604-095-0	01	1	9910-		●	●	●	●	●
335	PLUG; C/BL,SIDE (D) PT3/4	1-09605-025-0	01	1	9603-9609	●
335	PLUG; C/BL,SIDE (E) M14X9	9-99202-314-0	01	1	9603-9901	●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (E) M14X9	9-99202-314-0	01	1	9902-9904		●		●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (E) M14X9	9-99202-314-0	01	1	9905-9909		●	●	●	●
335	PLUG; C/BL,SIDE EXC. ENGINE REAR PTO(SV1) (E) M14X9	9-99202-314-0	01	1	9910-		●	●	●	●	●
495	ADAPTER; THERMOMETER UNIT CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-97600-859-0	01	1	9909-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
