1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#41649) — 65 parça

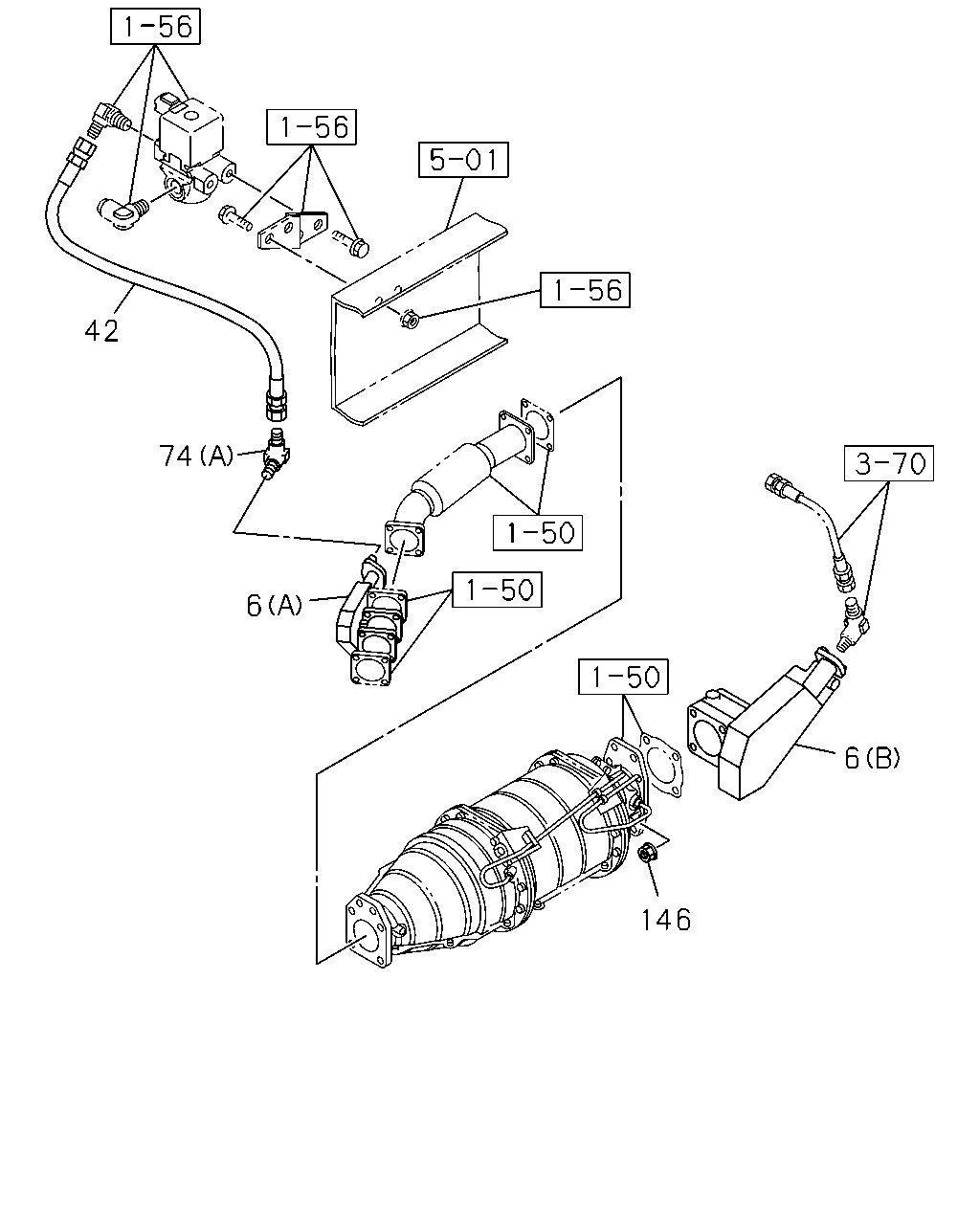

çizim 112035
42 74 6 6 146
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE
(A) 		8-98054-173-6 01 1 0710-1302
6 VALVE; EXH BRAKE
(A) 		8-98233-801-0 01 1 1303-
6 VALVE; EXH BRAKE
(B) 		8-98054-186-2 01 1 0710-0806
6 VALVE; EXH BRAKE
(B) 		8-98116-162-4 01 1 0807-
42 HOSE; FLEX,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=680 		8-98097-508-0 01 1 0710-0710
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) L=720 		8-98100-571-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) L=600 		8-98107-431-0 01 1 0801-0907
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 6500MM(65W) L=600 		8-98107-431-0 01 1 0801-0907
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) L=600 		8-98107-431-0 01 1 0908-
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=600 		8-98107-431-0 01 1 0908-
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) L=760 		8-98100-569-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 6500MM(65W) L=760 		8-98100-569-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=340 		1-09363-617-0 01 1 0710-0710
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=340 		1-09363-617-0 01 1 0710-0710
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=370 		1-09363-771-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=370 		1-09363-771-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=370 		1-09363-771-0 01 1 0801-0903
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=370 		1-09363-771-0 01 1 0904-
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=370 		1-09363-771-0 01 1 0904-
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=420 		1-09363-615-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=400 		1-09363-743-0 01 1 0801-0903
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
74 CONNECTOR; EXH BRK VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M12 L=56.5 		0-92113-106-0 01 1 0801-
146 NUT; EXH BRK VLV
M10 		0-91110-510-0 04 1 0710-0712
146 NUT; EXH BRK VLV
M10 FLANGE 		0-91180-210-0 04 1 0801-

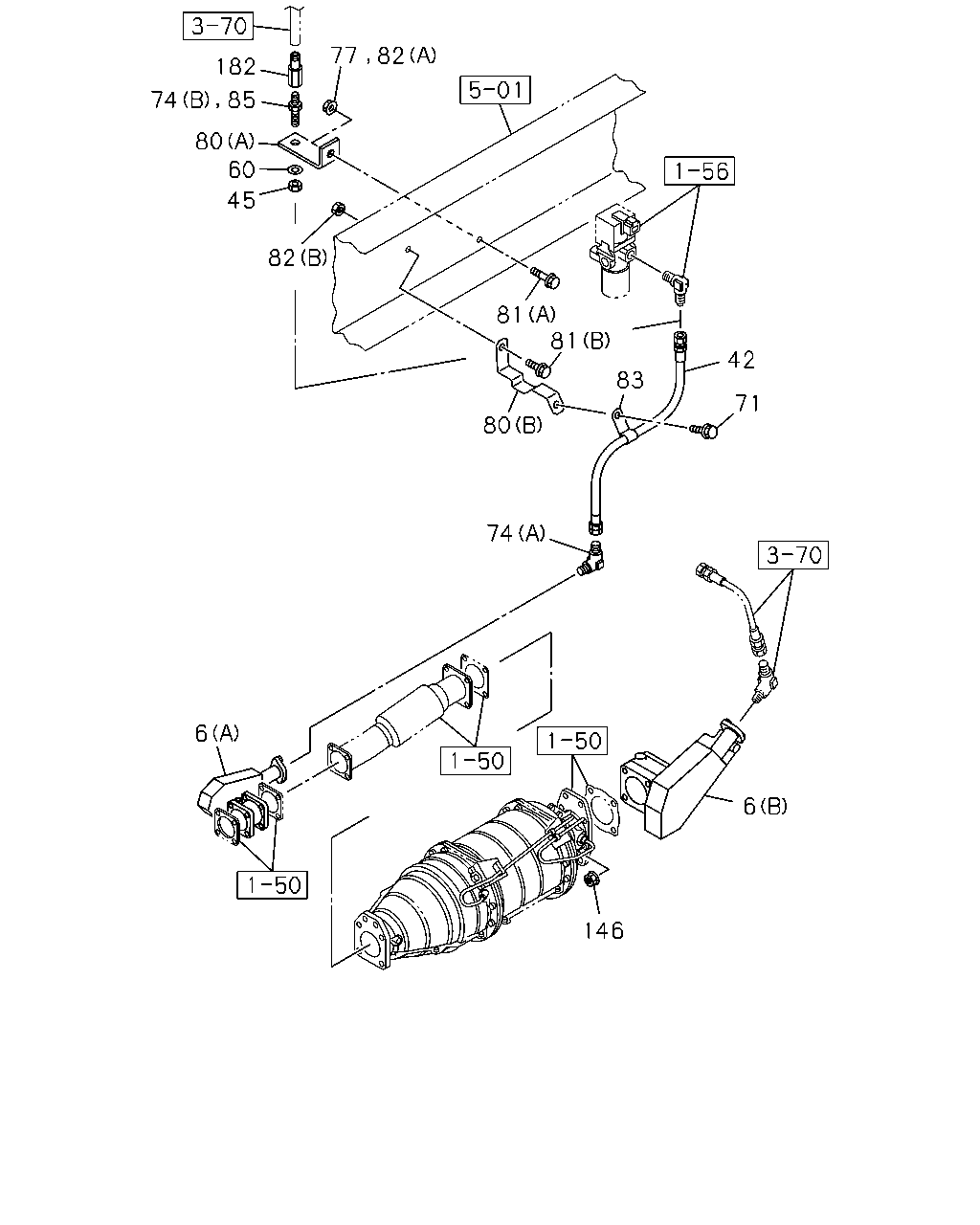

çizim 112038
77 182 80 60 45 82 81 81 42 83 80 71 74 6 6 146 82 74 85
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE
(A) 		8-98054-173-6 01 1 0710-1302
6 VALVE; EXH BRAKE
(A) 		8-98233-801-0 01 1 1303-
6 VALVE; EXH BRAKE
(B) 		8-98054-186-2 01 1 0710-0806
6 VALVE; EXH BRAKE
(B) 		8-98116-162-4 01 1 0807-
42 HOSE; FLEX,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=680 		8-98097-508-0 01 1 0710-0710
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) L=720 		8-98100-571-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) L=600 		8-98107-431-0 01 1 0801-0907
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 6500MM(65W) L=600 		8-98107-431-0 01 1 0801-0907
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) L=600 		8-98107-431-0 01 1 0908-
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=600 		8-98107-431-0 01 1 0908-
42 HOSE; FLEX,EXH BRK
FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) L=760 		8-98100-569-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 6500MM(65W) L=760 		8-98100-569-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=340 		1-09363-617-0 01 1 0710-0710
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=340 		1-09363-617-0 01 1 0710-0710
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=370 		1-09363-771-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=370 		1-09363-771-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=370 		1-09363-771-0 01 1 0801-0903
42 HOSE; FLEX,EXH BRK
FVR LEAF SUS(FGR***) WHEEL BASE 4200MM(42W) L=370 		1-09363-771-0 01 1 0904-
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=370 		1-09363-771-0 01 1 0904-
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=420 		1-09363-615-0 01 1 0710-0712
42 HOSE; FLEX,EXH BRK
GVR(GG****) L=400 		1-09363-743-0 01 1 0801-0903
45 NUT; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M12 		9-09840-280-0 01 1 0710-
60 WASHER; PL
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=12.2 		0-91510-512-0 01 1 0710-
71 BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0712
71 BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 0801-
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
74 CONNECTOR; EXH BRK VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M12 L=56.5 		0-92113-106-0 01 1 0801-
77 NUT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 0710-0712
80 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98078-153-0 01 1 0710-0712
80 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98078-153-0 01 1 0710-0710
80 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98100-228-0 01 1 0710-
81 BOLT; HOSE BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
81 BOLT; HOSE BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0712
82 NUT; HOSE BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE 		0-91180-108-0 01 1 0710-
82 NUT; HOSE BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10 FLANGE 		0-91180-210-0 01 1 0710-0712
83 CLIP; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=13 		1-09701-030-1 01 1 0710-
85 UNION; FLEX HOSE,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		1-09654-381-0 01 1 0710-0712
146 NUT; EXH BRK VLV
M10 		0-91110-510-0 04 1 0710-0712
146 NUT; EXH BRK VLV
M10 FLANGE 		0-91180-210-0 04 1 0801-
182 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0801-
