◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#41648) — 498 parça
çizim 112028
81 75 62 56 75 60 81 94 107 22 70 105 22 60 70 121 118 226 62 107 226 56 81 22 105 94 105 22 94 126
BalonParca AdiParca NoAdetTipApplied Date A B C
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0710-0910 ● ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98070-639-0 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0911- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0911- ● ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-641-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0810 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ● ●
126 PIPE; EXH,RR 1-22126-646-2 01 1 0710-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ● ●

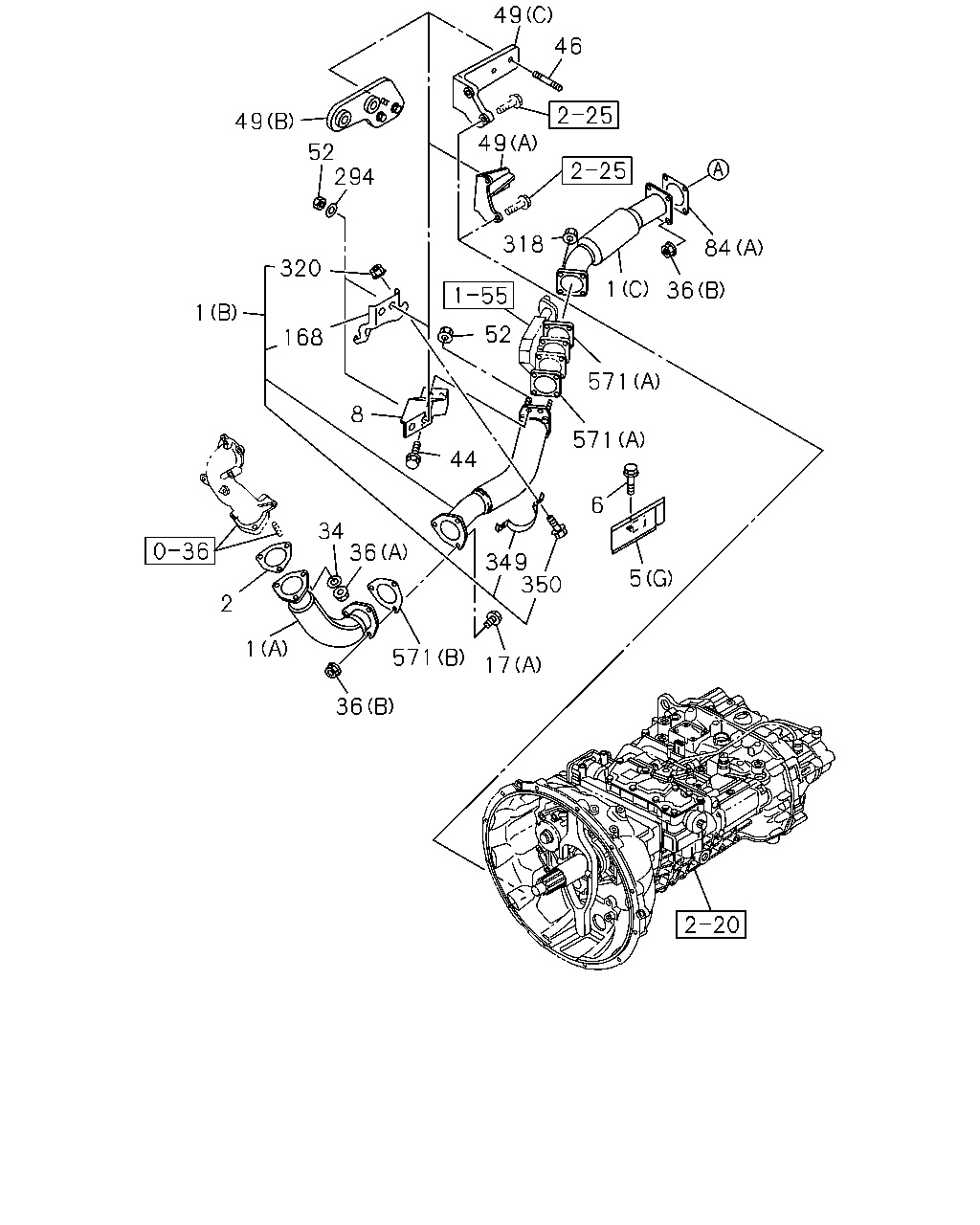

çizim 112036
49 46 49 318 84 36 1 571 571 6 5 350 349 44 52 168 320 294 52 49 1 2 1 36 571 17 36 34 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
(C) 		1-22123-984-1 01 1 0710-0907 ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) (C) 		1-22123-984-1 01 1 0710-0907 ●
1 PIPE; EXH
(C) 		1-22123-984-1 01 1 0908- ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		1-22123-984-1 01 1 0908- ●
1 PIPE; EXH
(B) 		8-98070-601-0 01 1 0710-0907 ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) (B) 		8-98070-601-0 01 1 0710-0907 ●
1 PIPE; EXH
(B) 		8-98070-601-0 01 1 0908-0912 ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98070-601-0 01 1 0908-0912 ●
1 PIPE; EXH
ZF9S1110 M/T(Y5E) (B) 		8-98070-601-0 01 1 1001-1209 ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98070-601-0 01 1 1001-1209 ●
1 PIPE; EXH
ZF9S1110 M/T(Y5E) (B) 		8-98220-351-0 01 1 1210- ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98220-351-0 01 1 1210- ●
1 PIPE; EXH
ALLISON MD3060P A/T(Y4G) (B) 		8-98153-916-0 01 1 1001-1209 ●
1 PIPE; EXH
ALLISON MD3060P A/T(Y4G) (B) 		8-98230-002-0 01 1 1210- ●
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0710-0902 ● ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0903-1209 ● ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) (B) 		8-98047-778-0 01 1 0710-1209 ●
1 PIPE; EXH
(B) 		8-98047-778-0 01 1 0710-1209 ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) (B) 		8-98221-117-0 01 1 1210- ●
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1210- ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) (C) 		8-98070-119-0 01 1 0710- ●
1 PIPE; EXH
(C) 		1-22123-893-1 01 1 0710-0710 ●
1 PIPE; EXH
(C) 		8-98099-921-0 01 1 0710- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0802-1406 ● ● ●
5 PROTECTOR; HEAT 8-98255-001-0 01 1 1407- ● ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0802- ● ● ●
8 BRACKET; EXH PIPE
WHEEL BASE 4200MM(42W) 		8-98070-600-0 01 1 0710-1209 ●
8 BRACKET; EXH PIPE
WHEEL BASE 4200MM(42W) 		8-98120-522-0 01 1 1210- ●
8 BRACKET; EXH PIPE 8-98069-914-0 01 1 0710- ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0710- ● ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0911- ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0710- ● ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710- ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710- ● ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-0910 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0911- ● ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1210- ● ●
46 BOLT; BRKT,EXH PIPE
FULLER FS8209HD DD M/T(Y3A) M10X25 L=40 		0-44011-025-0 02 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3060P A/T(Y4G) (A) 		8-98069-906-0 01 1 0710-0912 ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3060P A/T(Y4G) (B) 		8-98153-928-0 01 1 1001- ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98069-900-0 01 1 0710-0907 ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) (A) 		8-98069-900-0 01 1 0710-0907 ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98069-900-0 01 1 0908-1209 ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98069-900-0 01 1 0908-1209 ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (C) 		8-98124-769-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		8-98124-769-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) (A) 		8-98069-944-1 01 1 0710-1209 ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) (C) 		8-98120-497-0 01 1 1210- ●
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98069-908-0 01 1 0710-1209 ●
49 BRACKET; EXH PIPE TO TRANS
(C) 		8-98123-995-0 01 1 1210- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ● ●
168 BRACKET; EXH PIPE,FRT 8-98071-144-0 01 1 0710-0907 ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 6500MM(65W) 		8-98071-144-0 01 1 0710-0907 ●
168 BRACKET; EXH PIPE,FRT 8-98071-144-0 01 1 0908-0912 ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98071-144-0 01 1 0908-0912 ●
168 BRACKET; EXH PIPE,FRT
ZF9S1110 M/T(Y5E) 		8-98071-144-0 01 1 1001-1209 ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98071-144-0 01 1 1001-1209 ●
168 BRACKET; EXH PIPE,FRT
ZF9S1110 M/T(Y5E) 		8-98221-369-1 01 1 1210- ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98221-369-1 01 1 1210- ●
168 BRACKET; EXH PIPE,FRT
ALLISON MD3060P A/T(Y4G) 		8-98153-918-0 01 1 1001-1209 ●
168 BRACKET; EXH PIPE,FRT
ALLISON MD3060P A/T(Y4G) 		8-98230-000-1 01 1 1210- ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0710- ● ● ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0710-0712 ● ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0710-0907 ●
320 NUT; CLAMP,EXH PIPE
WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 0710-0907 ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0908- ●
320 NUT; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE 		0-91180-210-0 02 1 0908- ●
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0710-0907 ●
349 CLAMP; EXH PIPE
WHEEL BASE 6500MM(65W) 		8-98058-351-0 01 1 0710-0907 ●
349 CLAMP; EXH PIPE 8-98058-351-0 01 1 0908-0912 ●
349 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98058-351-0 01 1 0908-0912 ●
349 CLAMP; EXH PIPE
ZF9S1110 M/T(Y5E) 		8-98058-351-0 01 1 1001-1209 ●
349 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98058-351-0 01 1 1001-1209 ●
349 CLAMP; EXH PIPE
ALLISON MD3060P A/T(Y4G) 		8-98115-162-0 01 1 1001-1209 ●
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1210- ●
349 CLAMP; EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98115-162-0 01 1 1210- ●
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ●
350 BOLT; CLAMP,EXH PIPE
WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ●
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 0908- ●
350 BOLT; CLAMP,EXH PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X30 FLANGE 		0-28651-030-0 02 1 0908- ●
571 GASKET
(A) 		1-22116-043-0 02 1 0710- ● ● ●
571 GASKET
(B) 		8-98043-481-0 01 1 0710- ● ● ●

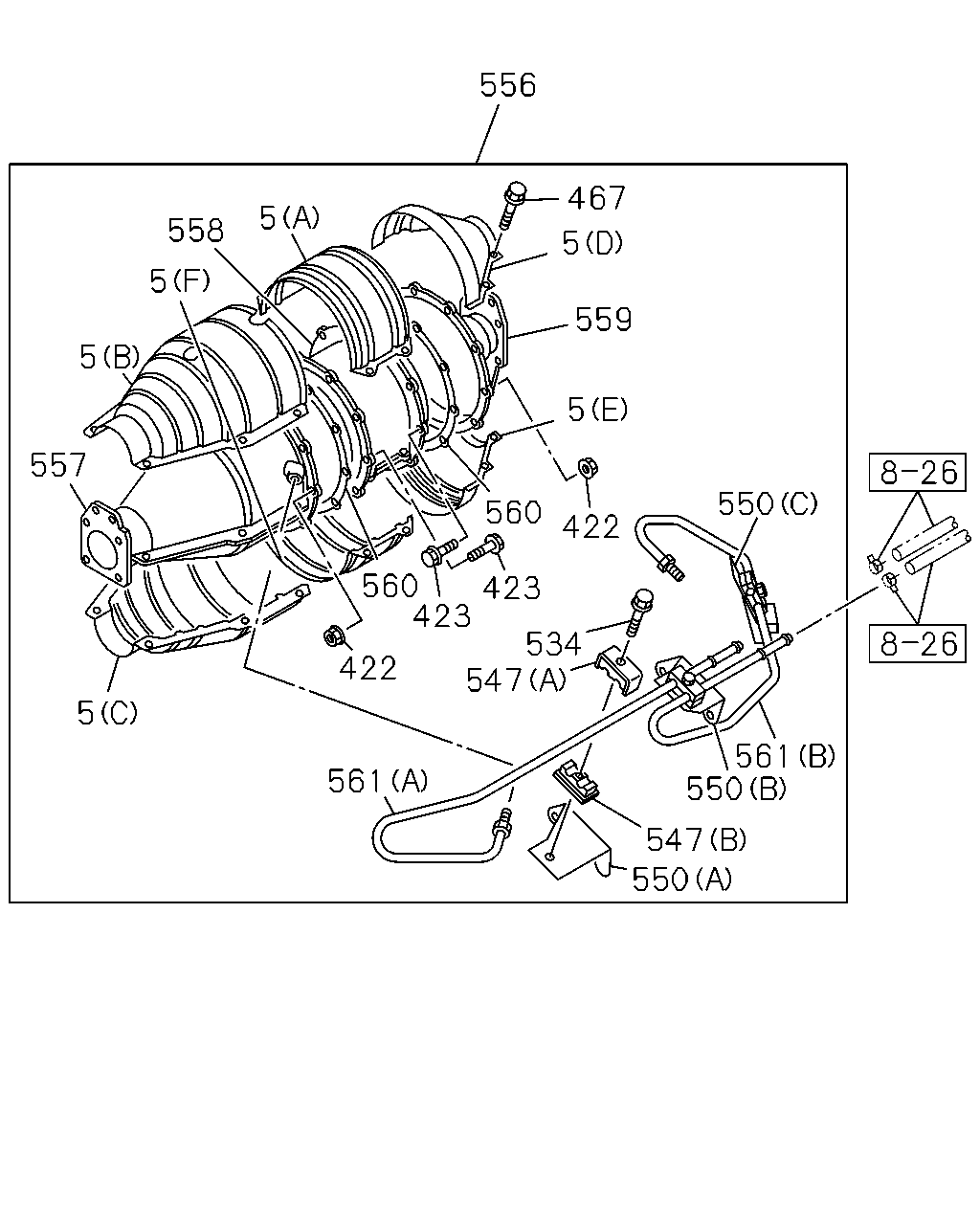

çizim 112040
556 467 5 558 5 5 559 5 5 557 550 560 422 560 423 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B C
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 0710- ● ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 0802-1406 ● ● ●
5 PROTECTOR; HEAT 8-98255-001-0 01 1 1407- ● ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0710- ● ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0710- ● ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710- ● ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710- ● ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710- ● ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710- ● ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0710- ● ● ●
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 0710- ● ● ●
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 0710- ● ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ● ●
557 CATALYST ASM 8-97608-054-5 01 1 0710- ● ● ●
558 FILTER ASM 8-97608-056-2 01 1 0710- ● ● ●
559 COVER; RR 8-97611-090-0 01 1 0710-1011 ● ● ●
559 COVER; RR 8-97622-903-0 01 1 1012- ● ● ●
560 GASKET; DPD 8-97611-092-0 02 1 0710- ● ● ●
561 PIPE; DPD
(A) 		8-97611-093-0 01 1 0710-1011 ● ● ●
561 PIPE; DPD
(A) 		8-97622-904-0 01 1 1012- ● ● ●
561 PIPE; DPD
(B) 		8-97611-094-0 01 1 0710-1011 ● ● ●
561 PIPE; DPD
(B) 		8-97622-905-0 01 1 1012- ● ● ●

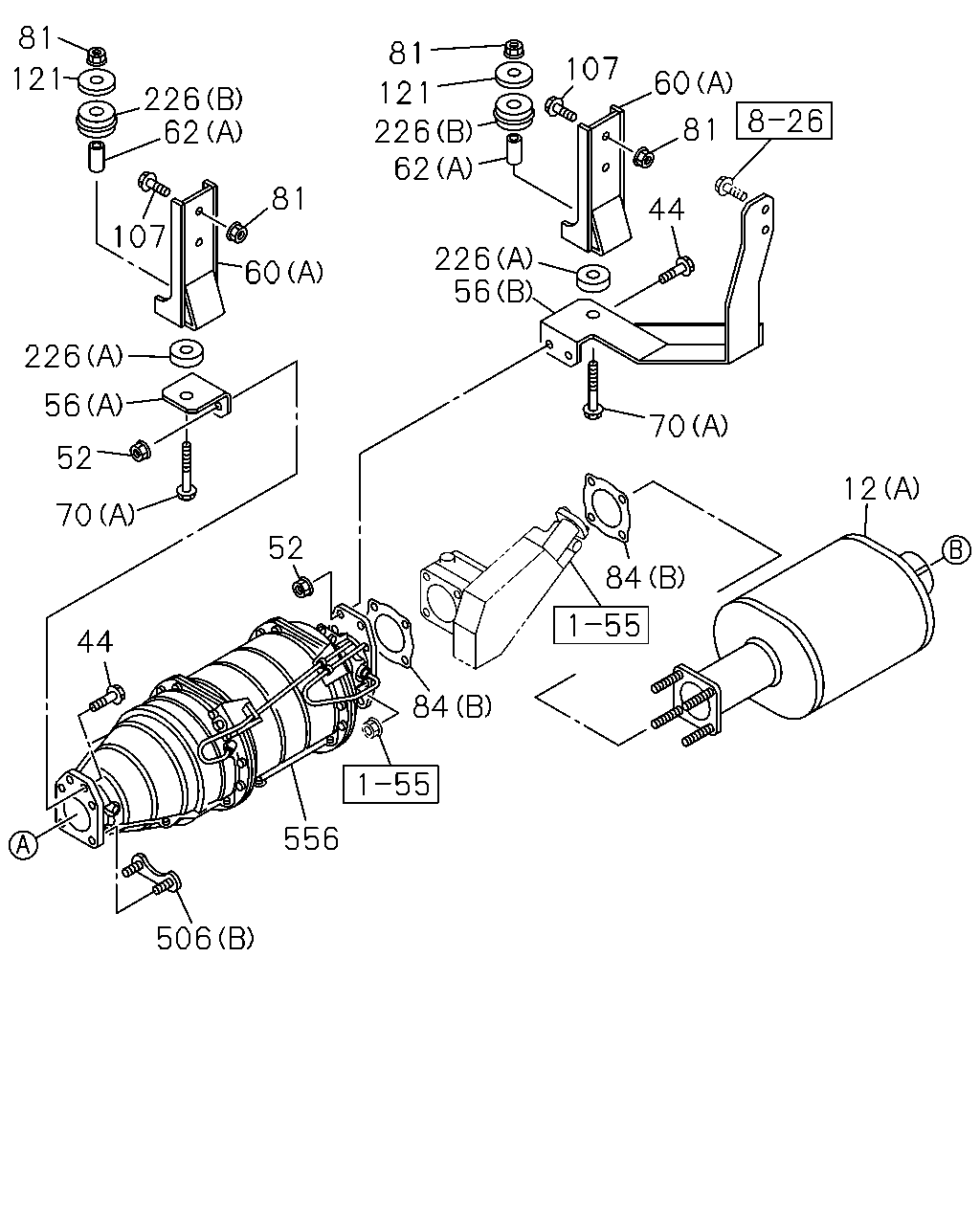

çizim 112043
81 81 107 121 60 121 226 62 226 62 81 81 44 107 226 56 60 226 56 70 52 12 70 52 84 44 84 556 506
BalonParca AdiParca NoAdetTipApplied Date A B C
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0910 ● ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0710-0910 ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0911- ● ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98070-639-0 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0911- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0911- ● ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-641-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0810 ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0710- ● ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0710-0910 ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0911- ● ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ● ●

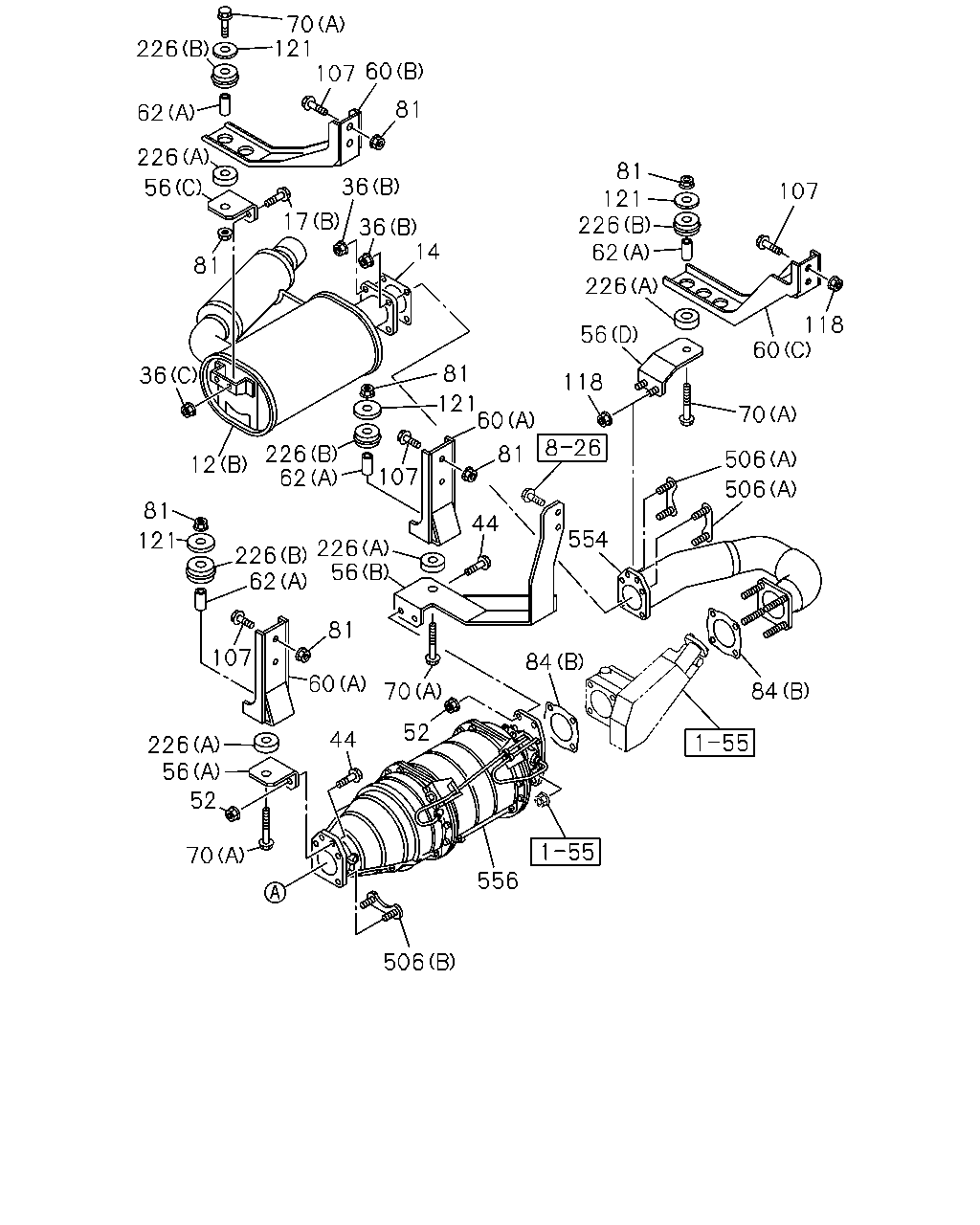

çizim 112044
70 121 107 226 60 81 62 226 81 121 226 62 36 56 107 17 6 14 81 226 118 60 56 81 36 118 121 60 70 226 62 81 506 107 12 506 81 44 554 121 226 226 56 62 81 107 84 60 84 70 52 44 226 56 52 70 556 506
BalonParca AdiParca NoAdetTipApplied Date A B C
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0802- ● ● ●
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0910 ● ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0710-0910 ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0911- ● ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0710-0910 ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0911- ● ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0710- ● ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0911- ● ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710- ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710- ● ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0710-0910 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0911- ● ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0907 ● ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98070-639-0 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0710-0910 ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0911- ● ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0911- ● ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-641-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0710-0810 ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0710- ● ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0710-0910 ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0911- ● ● ●
554 PIPE; EXH,SILENCER 8-98054-336-0 01 1 0710-0710 ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 0710-0910 ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 0911- ● ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
