◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11425 - FVR/GVR(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#41647) — 13 parça

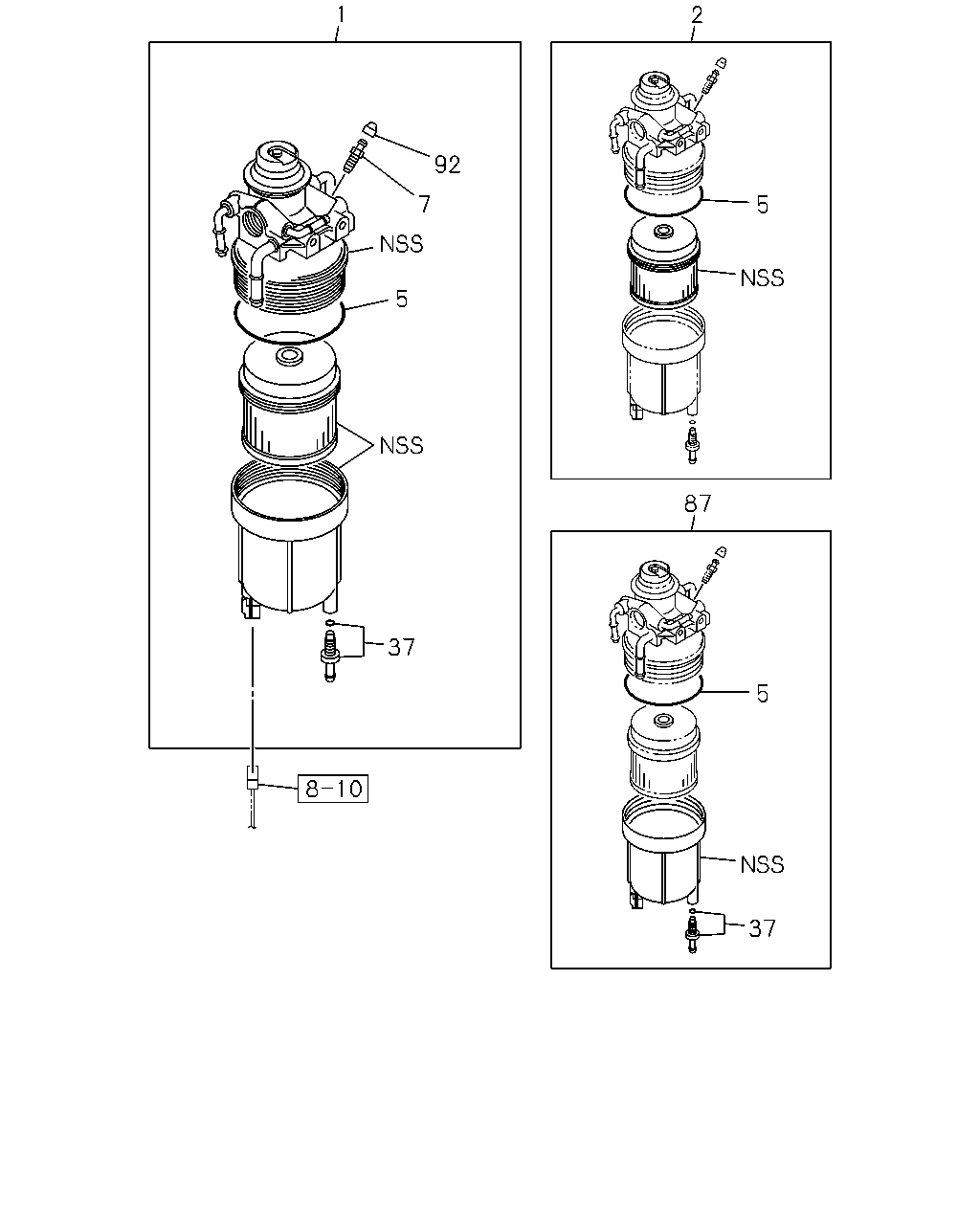

çizim 112027
1 2 92 7 5 5 87 37 5 37
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SEDIMENTER; FUEL 8-98023-327-2 01 1 0710-1002 ● ● ●
1 SEDIMENTER; FUEL 8-98162-904-3 01 1 1003- ● ● ●
2 ELEMENT; FUEL FILTER
BEST VALUE PARTS 		1-87610-093-0 01 1 1112- ● ● ●
2 ELEMENT; FUEL FILTER 8-98037-011-0 01 1 0710-1002 ● ● ●
2 ELEMENT; FUEL FILTER 8-98162-897-0 01 1 1003-1111 ● ● ●
2 ELEMENT; FUEL FILTER 8-98203-599-0 01 1 1112- ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 8-98037-015-0 01 1 0710-1111 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 8-98203-600-0 01 1 1112- ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		8-98034-312-0 01 1 0710- ● ● ●
37 PLUG; SENSOR 8-98037-095-0 01 1 0710- ● ● ●
87 CASE ASM; SEDIMENTER 8-98039-987-1 01 1 0710- ● ● ●
92 CAP; DRAIN 8-98034-314-0 01 1 0710- ● ● ●
103 REPAIR KIT; SEDIMENTER 8-98203-599-0 01 1 1112- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
