1-41 — FUEL PIPING; CHASSIS (#41646) — 107 parça

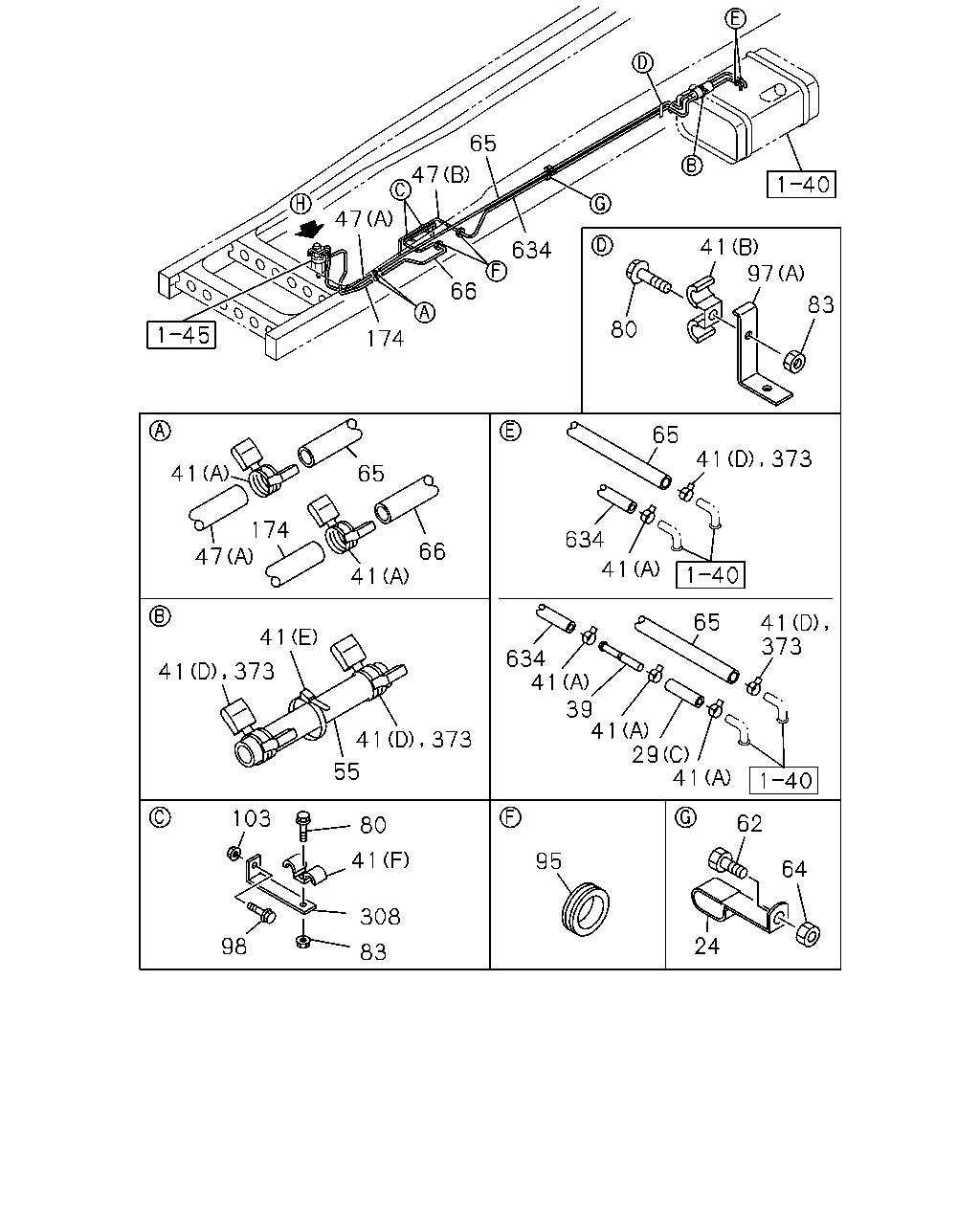

65 47 47 41 97 634 66 83 80 174 65 65 41 174 634 66 47 41 41 65 41 373 41 634 41 39 41 29 41 55 103 62 80 41 95 64 308 24 98 83 41 373 41 373 41 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0801-0808	●	●
24	CLIP; FUEL HOSE ID=20 L=70	1-09701-033-0	01	1	0801-0808			●
24	CLIP; FUEL HOSE ID=20 L=70	1-09701-033-0	01	1	0809-			●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-			●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●	●
39	PIPE; FUEL FUEL TANK 400L<SDH>	8-98009-438-1	01	1	0710-	●	●
39	PIPE; FUEL	8-98009-438-1	01	1	0710-			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0710			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0804-			●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-	●	●	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-	●	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0803	●	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710			●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-			●
62	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	01	1	0809-			●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0809-			●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-			●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●
95	BUSHING; PIPE,FUEL TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=25	1-09332-011-1	02	1	0710-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-0710	●	●	●
95	BUSHING; PIPE,FUEL TANK EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-		●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-	●	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-	●	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-	●	●	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0710-	●	●	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0804-	●	●
373	CLAMP; HOSE,FUEL ID=16	8-94238-568-0	02	1	0804-			●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
634	HOSE; RUBBER RETURN L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-			●

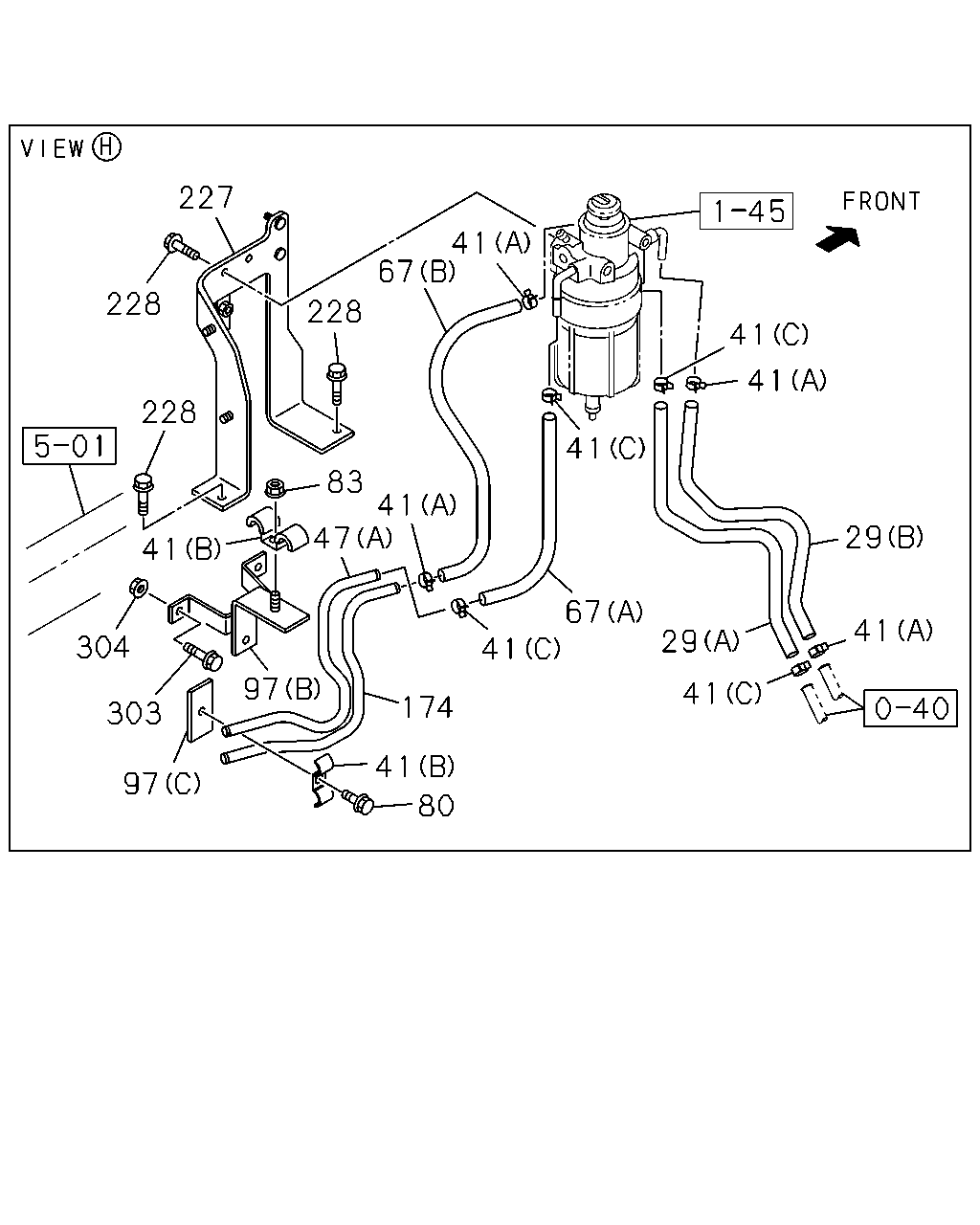

227 228 228 41 304 303 97 97 47 41 83 228 67 41 41 67 41 174 41 80 29 41 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
29	HOSE; FUEL (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-			●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0710-0710			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	01	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0804-			●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803			●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-	●	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-	●	●	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-	●	●	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-	●	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-	●	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-	●	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-	●	●	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●	●
303	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X35 FLANGE	0-28650-835-0	02	1	0802-1008	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0801	●	●	●
303	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 FLANGE	0-28650-830-0	02	1	0802-1008	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0802-1008		●	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●	●
