Isuzu WW
▶
TRUCKS
▶
FVR
▶
11425 - FVR/GVR(AUST)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#41640) — 68 parça
◀
[110A] NO.2 (22 parça)
[110A] NO.1 (29 parça)
[110A] NO.4 (9 parça)
[110A] NO.3 (8 parça)
▶

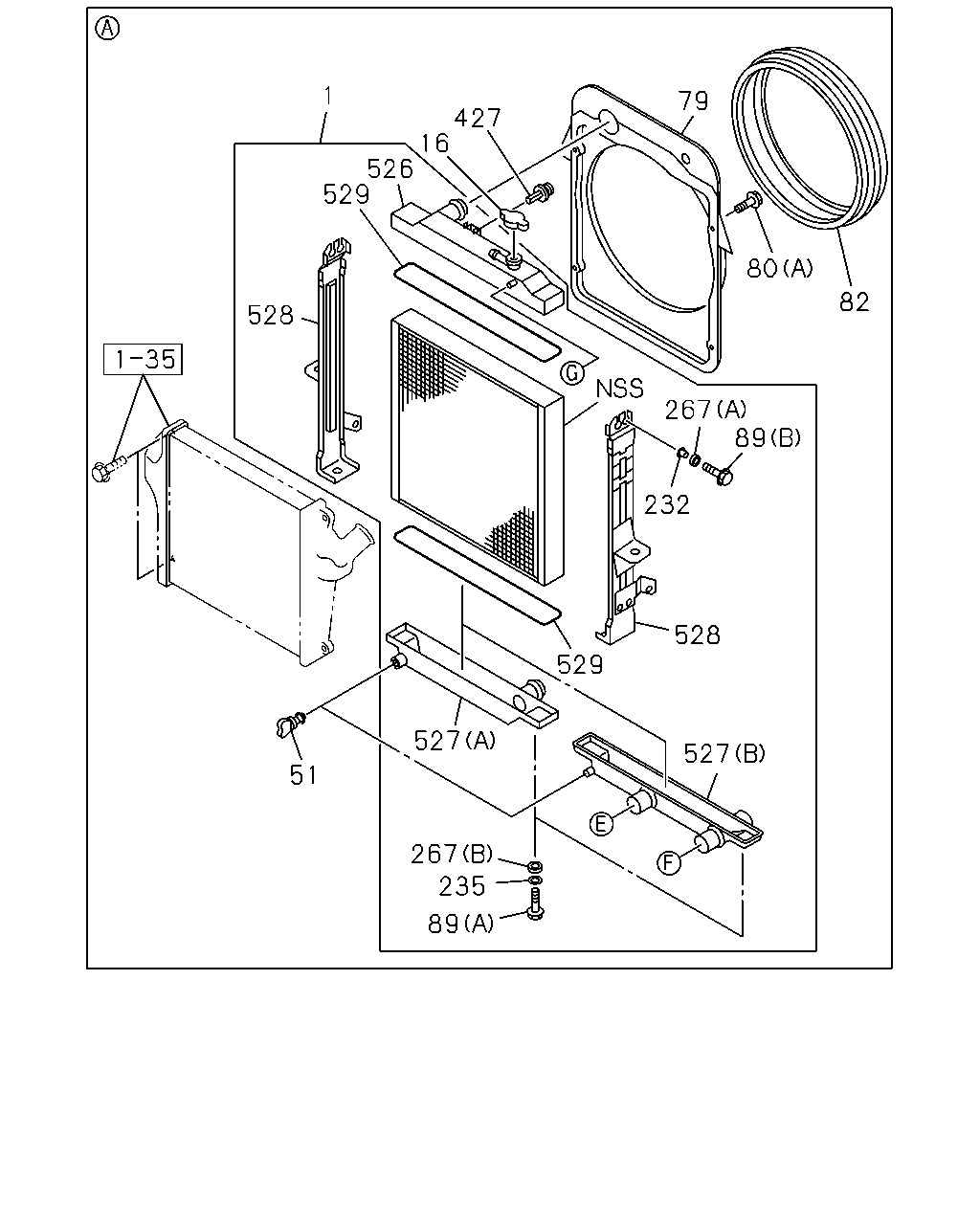

1
79
427
16
526
529
80
82
528
267
89
232
528
529
527
527
51
267
235
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
MANUAL TRANSMISSION<X9C>
8-98010-360-4
01
1
0710-
1
RADIATOR ASM
A/T<X9D>
8-98043-050-1
01
1
0710-
16
CAP; RAD
8-97239-187-0
01
1
0710-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0710-
79
GUIDE; FAN,RAD
8-98010-384-0
01
1
0710-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0710-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
0710-
82
COVER; FAN,RAD
8-98004-211-0
01
1
0710-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
0710-
89
BOLT
(B) M8X25
1-21469-153-0
04
1
0710-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
0710-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
0710-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
0710-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
0710-
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
0710-
526
TANK; UPR,RADIATOR CORE
MANUAL TRANSMISSION<X9C>
8-98004-202-2
01
1
0710-
526
TANK; UPR,RADIATOR CORE
A/T<X9D>
8-98010-366-2
01
1
0710-
527
TANK; LWR,RADIATOR CORE
MANUAL TRANSMISSION<X9C> (A)
8-98004-203-0
01
1
0710-
527
TANK; LWR,RADIATOR CORE
A/T<X9D> (B)
8-98038-558-2
01
1
0710-
528
PLATE; SIDE,RADIATOR CORE
8-98010-371-3
01
1
0710-
528
PLATE; SIDE,RADIATOR CORE
8-98010-372-4
01
1
0710-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
0710-

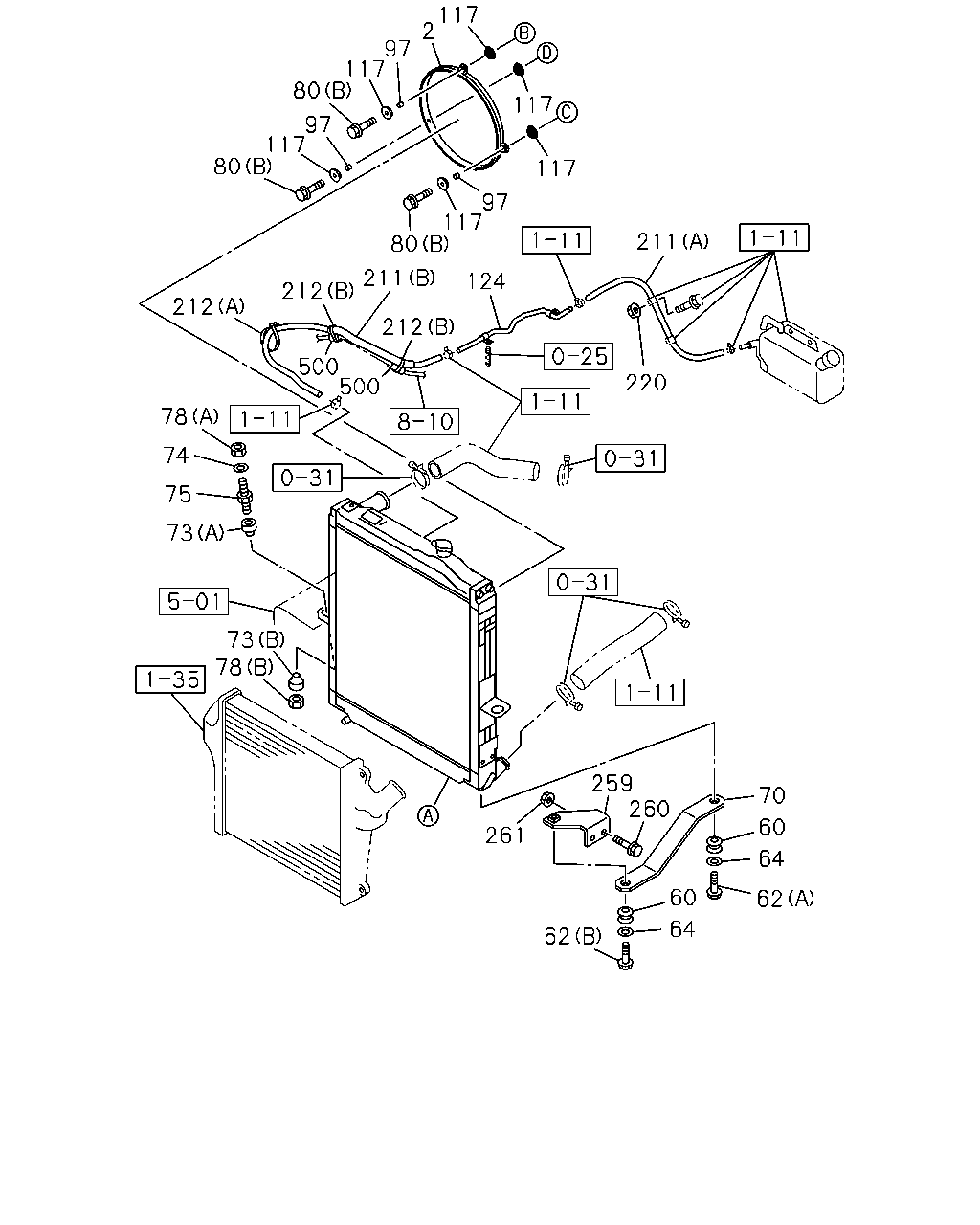

117
2
97
117
80
117
97
117
80
117
97
117
80
211
211
212
124
212
212
500
500
220
78
74
75
73
73
78
259
260
70
60
261
64
60
62
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
0710-
60
GROMMET
1-09332-117-0
04
1
0710-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
0710-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
0710-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
0710-
70
STAY; RAD
8-98004-132-2
02
1
0710-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
0710-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
0710-
74
WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22
1-09503-154-2
02
1
0710-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
0710-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
0710-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
0710-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
0710-
80
BOLT; FAN GUIDE
(A) M8X14
8-98046-222-0
04
1
0710-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
0710-
117
RUBBER; MTG,FAN GUIDE
8-94395-766-0
06
1
0710-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
0710-
211
HOSE; RAD TO PIPE
(A)
8-98067-261-2
01
1
0710-0805
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
0806-
211
HOSE; RAD TO PIPE
(B) L=970
8-98073-545-0
01
1
0710-
212
CLIP; HOSE
(A) L=250
5-09707-030-1
01
1
0710-
212
CLIP; HOSE
(B) L=140
5-09707-031-1
02
1
0710-
212
CLIP; HOSE
MANUAL TRANSMISSION<X9C> (C) ID=63
1-09704-067-0
04
1
0710-0801
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0710-
259
BRACKET; RAD STAY
8-98071-821-0
01
1
0710-
259
BRACKET; RAD STAY
8-98071-822-0
01
1
0710-
260
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
0710-
261
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0710-
500
SLEEVE; RUBBER
ID=17 OD=21 L=40
1-09337-012-0
02
1
0710-

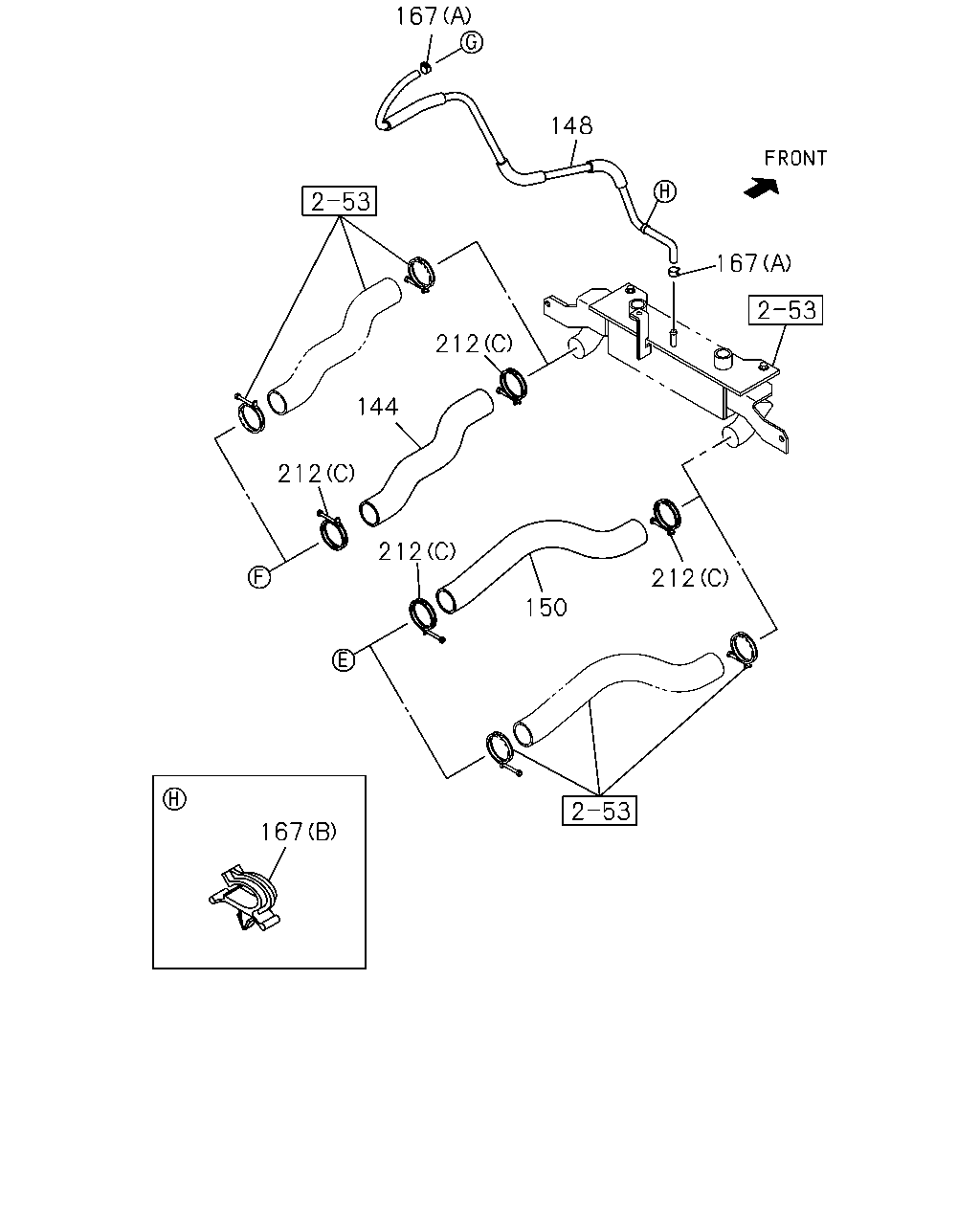

167
148
167
212
144
212
212
212
150
167
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
144
HOSE; RUBBER,PIPE
A/T<X9D>
8-98025-696-1
01
1
0710-0801
148
HOSE; WATER,BYPASS,SUB RAD
A/T<X9D>
8-98079-561-3
01
1
0710-0803
148
HOSE; WATER,BYPASS,SUB RAD
A/T<X9D>
8-98116-256-0
01
1
0804-
150
HOSE; OIL COOLER
A/T<X9D>
8-98025-697-1
01
1
0710-0801
167
CLIP; BYPASS HOSE
MANUAL TRANSMISSION<X9C> (B) ID=14-12
8-94379-592-0
01
1
0710-
167
CLIP; BYPASS HOSE
MANUAL TRANSMISSION<X9C> (A) ID=11.5
8-97375-638-0
02
1
0710-
212
CLIP; HOSE
(A) L=250
5-09707-030-1
01
1
0710-
212
CLIP; HOSE
(B) L=140
5-09707-031-1
02
1
0710-
212
CLIP; HOSE
MANUAL TRANSMISSION<X9C> (C) ID=63
1-09704-067-0
04
1
0710-0801
87
96
96
486
87
87
96
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
0710-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
0710-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
0710-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
0710-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
0710-
100
RUBBER; MTG
8-94394-268-1
01
1
0710-0910
100
RUBBER; MTG
8-98148-109-0
01
1
0911-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
0710-
