Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#41636) — 209 parça

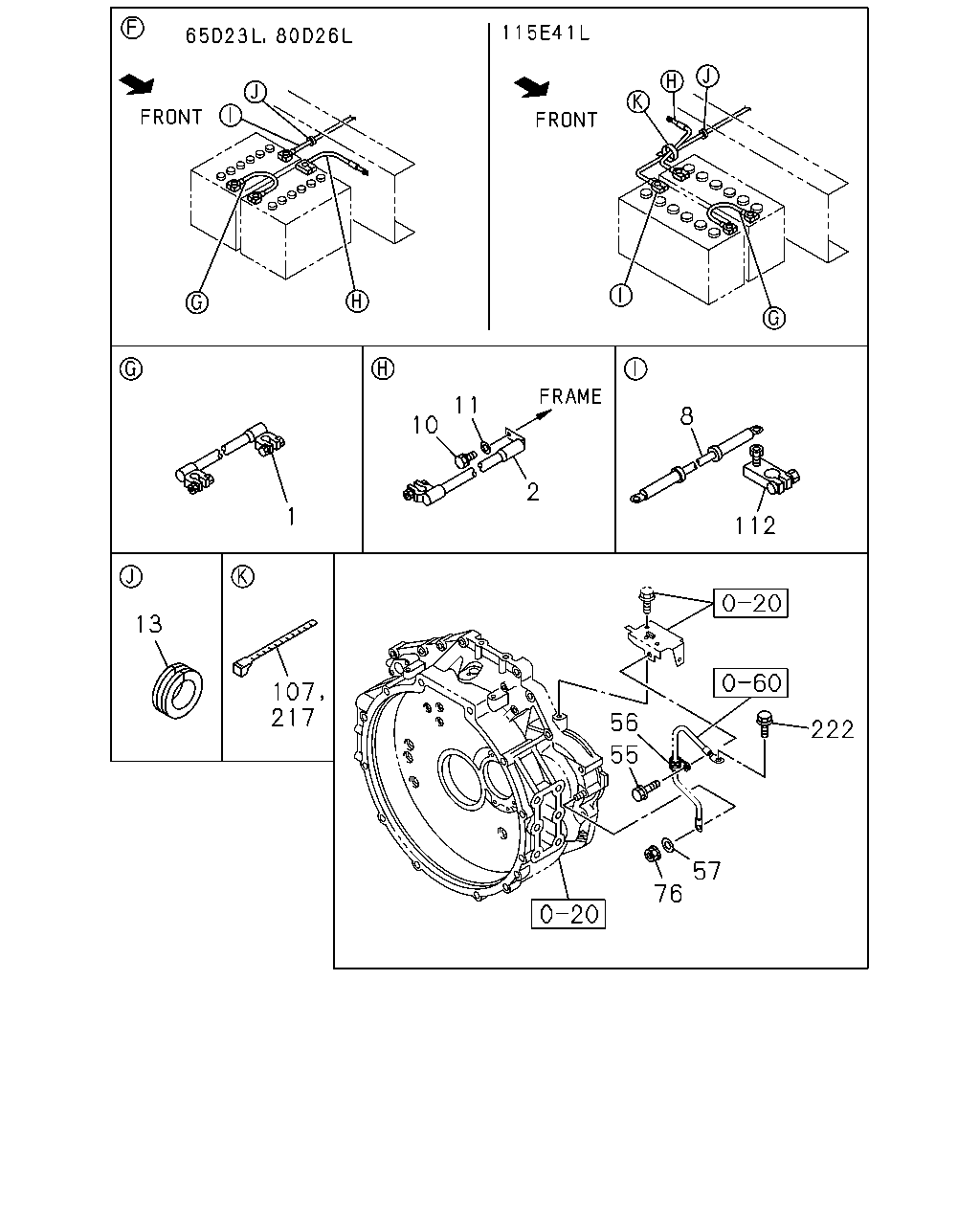

11 8 10 2 1 112 13 107 217 56 222 55 57 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	0710-	●	●	●
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-0	01	1	0710-0710	●	●	●
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	0710-	●	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> L=1730	8-98069-151-0	01	1	0710-0710	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> L=1730	8-98069-151-0	01	1	0710-0710		●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0710-0907	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0710-0907		●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0908-1004	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MANUAL TRANSMISSION<X9C>	8-98160-904-0	01	1	1005-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1005-		●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> A/T<X9D>	8-98159-381-0	01	1	1005-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA>	8-98069-163-0	01	1	0710-0710		●
8	CABLE; BATTERY,STARTER WHEEL BASE 3700MM(37W) BATTERY 115E41L<8MA>	8-98069-163-0	01	1	0710-0710			●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2985	8-98069-162-3	01	1	0710-0710		●
8	CABLE; BATTERY,STARTER WHEEL BASE 3700MM(37W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2985	8-98069-162-3	01	1	0710-0710			●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2985	8-98069-162-4	01	1	0711-0910		●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98154-156-0	01	1	0911-1004		●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-408-0	01	1	1005-		●
8	CABLE; BATTERY,STARTER FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 3700MM(37W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98105-277-0	01	1	0711-1004			●
8	CABLE; BATTERY,STARTER FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 3700MM(37W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-410-0	01	1	1005-			●
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0710-	●	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-	●	●	●
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	0710-	●	●
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=18	1-09891-003-0	01	1	0710-			●
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●	●
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	0710-	●	●	●
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0710-	●	●	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	0710-	●	●	●
107	CLIP; BAND L=140	5-09707-031-1	01	1	0710-	●	●	●
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	0710-	●	●	●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	0710-0809	●
217	CLIP; BAND,CABLE WHEEL BASE 6500MM(65W) L=250	5-09707-030-1	02	1	0710-0809		●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	0810-0907	●
217	CLIP; BAND,CABLE MANUAL TRANSMISSION<X9C> L=250	5-09707-030-1	02	1	0810-0907	●
217	CLIP; BAND,CABLE WHEEL BASE 6500MM(65W) L=250	5-09707-030-1	02	1	0810-0907		●
217	CLIP; BAND,CABLE WHEEL BASE 6500MM(65W) L=250	5-09707-030-1	02	1	0810-0907		●
217	CLIP; BAND,CABLE L=250	5-09707-030-1	02	1	0908-	●
217	CLIP; BAND,CABLE WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=250	5-09707-030-1	02	1	0908-		●
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0710-	●	●	●

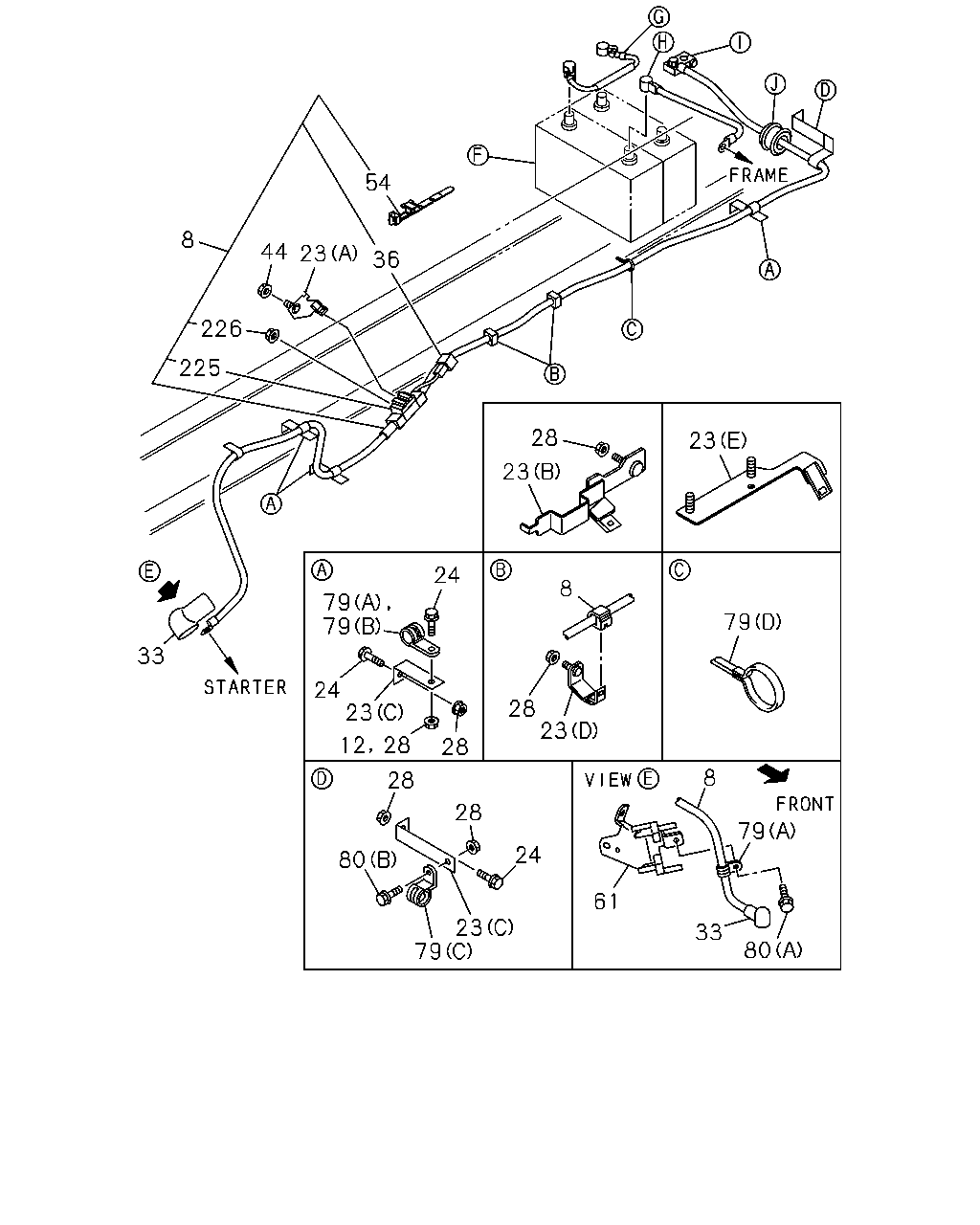

54 8 44 23 36 226 225 28 23 23 24 8 79 79 79 33 24 23 28 23 12 28 28 8 28 28 79 24 80 61 23 79 33 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> L=1730	8-98069-151-0	01	1	0710-0710	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> L=1730	8-98069-151-0	01	1	0710-0710		●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0710-0907	●
8	CABLE; BATTERY,STARTER WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0710-0907		●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1530	8-98069-150-3	01	1	0908-1004	●	●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> MANUAL TRANSMISSION<X9C>	8-98160-904-0	01	1	1005-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98160-904-0	01	1	1005-		●
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> A/T<X9D>	8-98159-381-0	01	1	1005-	●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA>	8-98069-163-0	01	1	0710-0710		●
8	CABLE; BATTERY,STARTER WHEEL BASE 3700MM(37W) BATTERY 115E41L<8MA>	8-98069-163-0	01	1	0710-0710			●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2985	8-98069-162-3	01	1	0710-0710		●
8	CABLE; BATTERY,STARTER WHEEL BASE 3700MM(37W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2985	8-98069-162-3	01	1	0710-0710			●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2985	8-98069-162-4	01	1	0711-0910		●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98154-156-0	01	1	0911-1004		●
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-408-0	01	1	1005-		●
8	CABLE; BATTERY,STARTER FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 3700MM(37W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98105-277-0	01	1	0711-1004			●
8	CABLE; BATTERY,STARTER FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 3700MM(37W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98159-410-0	01	1	1005-			●
12	NUT; BATTERY CABLE CLIP MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	0810-0907	●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0810-0907		●
12	NUT; BATTERY CABLE CLIP MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	0908-	●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0908-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0712	●	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0712	●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0710-0712		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0801-0809	●	●
12	NUT; BATTERY CABLE CLIP A/T<X9D> M8 FLANGE	0-91180-108-0	02	1	0810-	●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0810-		●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0710			●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0711-0712		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	0711-0712			●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0801-		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-			●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-			●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0710-0710			●
12	NUT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0711-0712		●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	0711-0712			●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	0710-0710	●	●	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=95	1-82699-085-0	02	1	0710-0710		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	0711-0809	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 6500MM(65W) (C) L=95	1-82699-085-0	02	1	0711-0809		●
23	BRACKET; CABLE CLIP TO FRAME A/T<X9D> (C) L=95	1-82699-085-0	02	1	0810-	●
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	0710-	●	●	●
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98085-160-4	01	1	0710-1111	●	●	●
23	BRACKET; CABLE CLIP TO FRAME (E)	8-98201-025-0	01	1	1112-	●	●	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=55	1-47475-304-0	01	1	0710-0712		●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=65	1-47479-064-1	01	1	0801-		●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (D)	8-97612-957-1	02	1	0710-0712		●
23	BRACKET; CABLE CLIP TO FRAME (D)	8-97612-957-1	02	1	0710-0712			●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=95	1-82699-085-0	03	1	0711-		●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	03	1	0711-			●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	03	1	0711-			●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	04	1	0710-0710			●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=95	1-82699-085-0	01	1	0711-0809		●
23	BRACKET; CABLE CLIP TO FRAME MANUAL TRANSMISSION<X9C> (C) L=95	1-82699-085-0	01	1	0810-	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	0810-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0710-0712	●	●	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0710-0712	●
24	BOLT; BRKT TO FRAME WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	01	1	0710-0712		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0801-0809	●
24	BOLT; BRKT TO FRAME WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	0801-0809		●
24	BOLT; BRKT TO FRAME A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	0810-	●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	02	1	0710-0710		●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	02	1	0710-0710		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0710-0710			●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	02	1	0711-0712		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0711-0712			●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	01	1	0801-0809		●
24	BOLT; BRKT TO FRAME MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	01	1	0810-	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	0810-		●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	01	1	0801-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	03	1	0710-0710			●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	03	1	0711-0712		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	03	1	0711-0712			●
24	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	03	1	0801-		●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	03	1	0801-			●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	03	1	0801-			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0710-0710	●
28	NUT; BRKT TO FRAME WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0710-0710		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0711-0712	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0801-0809	●	●
28	NUT; BRKT TO FRAME A/T<X9D> M8 FLANGE	0-91180-108-0	02	1	0810-	●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0810-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0710-0710			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0710-0710			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0711-0712	●	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	0711-0712		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0711-0712			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	0711-0712			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0801-0809	●	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0810-0907	●	●	●
28	NUT; BRKT TO FRAME MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	0810-0907	●
28	NUT; BRKT TO FRAME WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0810-0907		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	0908-1111	●	●	●
28	NUT; BRKT TO FRAME MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	0908-1111	●
28	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	0908-1111		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-	●	●	●
28	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	01	1	1112-	●
28	NUT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1112-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0710-0710			●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0711-0712		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0711-0712			●
28	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	03	1	0801-		●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0801-			●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	0801-			●
33	CAP; INSULATOR	1-82699-431-0	01	1	0710-	●	●	●
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	0710-	●	●	●
44	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0710-0804	●	●	●
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0805-	●	●	●
54	CLIP; BAND,BATTERY CABLE L=175	1-09707-176-1	01	1	0710-1004	●	●	●
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	0710-	●	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	0710-0710	●	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	0711-0712	●
79	CLIP; BATTERY CABLE WHEEL BASE 6500MM(65W) (B) ID=21 L=24	8-98019-191-0	01	1	0711-0712		●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	0801-0809	●
79	CLIP; BATTERY CABLE WHEEL BASE 6500MM(65W) (B) ID=21 L=24	8-98019-191-0	02	1	0801-0809		●
79	CLIP; BATTERY CABLE A/T<X9D> (B) ID=21 L=24	8-98019-191-0	02	1	0810-	●
79	CLIP; BATTERY CABLE (C) ID=19 L=24 H=21	1-09700-109-1	01	1	0710-0712	●	●	●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (C) ID=19 L=24 H=21	1-09700-109-1	01	1	0710-0712		●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (C) ID=19 L=24 H=21	1-09700-109-1	01	1	0801-		●
79	CLIP; BATTERY CABLE (A) ID=16 L=28	1-09700-872-0	01	1	0710-1004	●	●	●
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1005-	●	●	●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (B) ID=21 L=24	8-98019-191-0	02	1	0710-0710		●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	02	1	0710-0710			●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (B) ID=21 L=24	8-98019-191-0	03	1	0711-0712		●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	03	1	0711-0712			●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (B) ID=21 L=24	8-98019-191-0	03	1	0801-		●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	03	1	0801-			●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	03	1	0801-			●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (D) ID=20 L=50	9-09917-430-0	01	1	0710-		●
79	CLIP; BATTERY CABLE (D) ID=20 L=50	9-09917-430-0	01	1	0710-			●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (B) ID=21 L=24	8-98019-191-0	01	1	0803-0809		●
79	CLIP; BATTERY CABLE MANUAL TRANSMISSION<X9C> (B) ID=21 L=24	8-98019-191-0	01	1	0810-	●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	01	1	0810-		●
79	CLIP; BATTERY CABLE (B) ID=21 L=24	8-98019-191-0	03	1	0710-0710			●
79	CLIP; BATTERY CABLE WHEEL BASE 3700MM(37W) (B) ID=21 L=24	8-98019-191-0	02	1	0711-0712			●
79	CLIP; BATTERY CABLE (C) ID=13-18 L=26	1-09709-293-0	02	1	0801-0810	●	●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (C) ID=13-18 L=26	1-09709-293-0	02	1	0811-0901		●
79	CLIP; BATTERY CABLE (C) ID=13-18 L=26	1-09709-293-0	02	1	0811-0901			●
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (C) ID=13-18 L=26	1-09709-293-0	02	1	0902-		●
80	BOLT; BATTERY CABLE CLIP MANUAL TRANSMISSION<X9C> (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-0907	●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE	0-28650-825-0	01	1	0810-0907		●
80	BOLT; BATTERY CABLE CLIP MANUAL TRANSMISSION<X9C> (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-	●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE	0-28650-825-0	01	1	0908-		●
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0712	●	●	●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0712	●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 6500MM(65W) (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-0712		●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0801-0809	●	●
80	BOLT; BATTERY CABLE CLIP A/T<X9D> (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-	●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0810-		●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0710		●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0710		●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-0710			●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-0712		●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-0712			●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) (B) M8X25 FLANGE	0-28650-825-0	03	1	0801-		●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0801-			●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0801-			●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0710-0710			●
80	BOLT; BATTERY CABLE CLIP WHEEL BASE 4200MM(42W) (B) M8X25 FLANGE	0-28650-825-0	03	1	0711-0712		●
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	0711-0712			●
225	BLOCK; TERMINAL	8-98029-689-0	01	1	0710-	●	●	●
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	0710-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
