Sayfa 0-11A - Isuzu EPC

0-11A — CYLINDER HEAD (#4163) — 399 parça

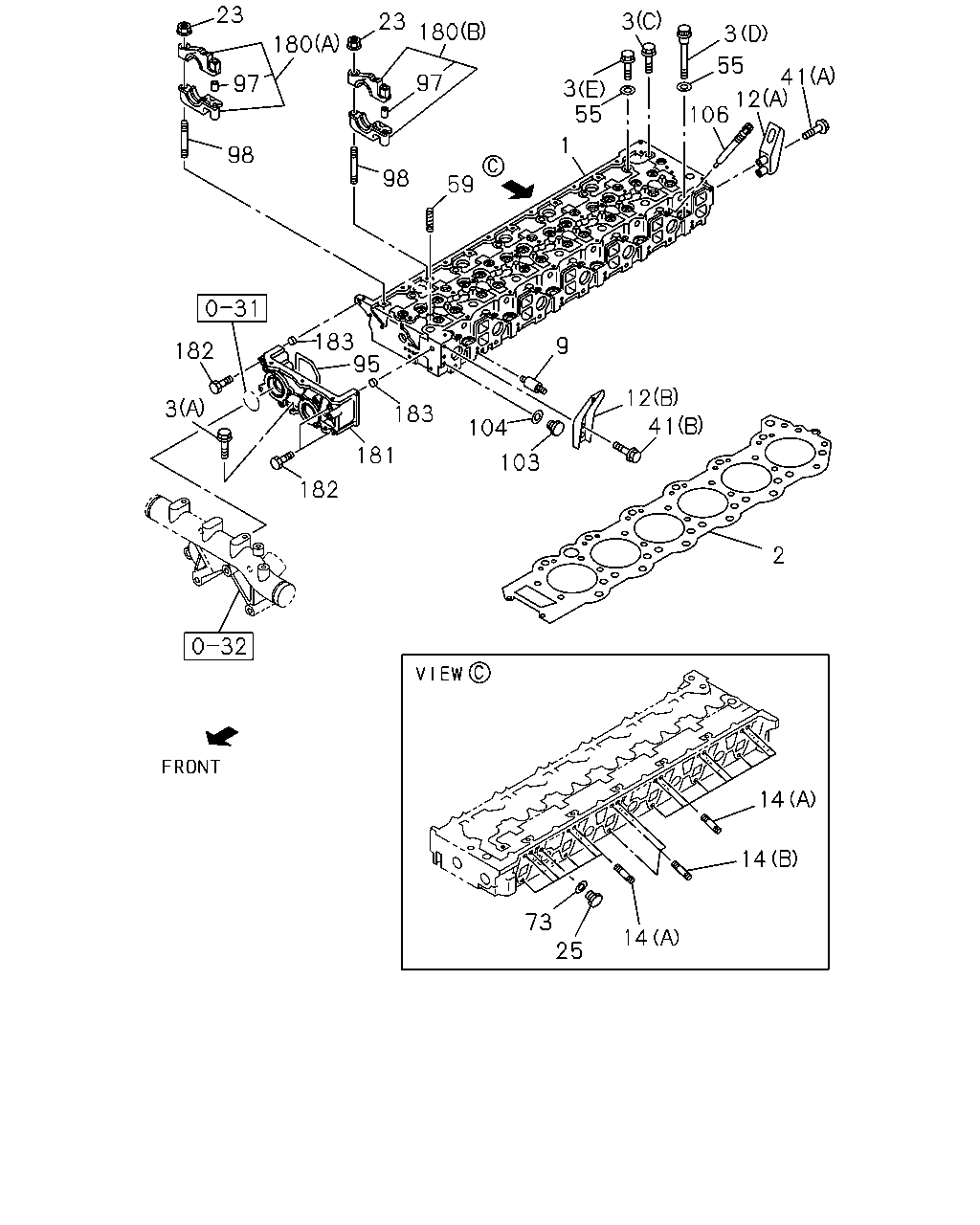

23 23 3 180 3 180 55 41 97 97 55 12 106 1 98 98 59 183 95 9 182 12 41 3 183 104 181 103 182 2 14 14 73 14 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HEAD ASM; CYL	1-11110-774-9	01	1	9603-9607	●
1	HEAD ASM; CYL	1-11110-872-1	01	1	9608-9710	●
1	HEAD ASM; CYL	1-11110-891-0	01	1	9711-9804	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9805-9901	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9902-9904		●	●
1	HEAD ASM; CYL	1-11110-902-3	01	1	9905-		●	●	●
1	HEAD ASM; CYL	1-11110-861-8	01	1	9905-9909					●
1	HEAD ASM; CYL	1-11110-861-9	01	1	9910-					●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-227-2	01	1	9603-9607	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-264-0	01	1	9608-9802	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-0	01	1	9803-9901	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-0	01	1	9902-9904		●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-2	01	1	9905-		●	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-265-1	01	1	9905-9909					●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-265-3	01	1	9910-					●	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9603-9901	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9902-9904		●	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9910-		●	●	●	●	●
3	BOLT; CYL HD TO BLOCK (B) M12X110	1-09030-089-0	01	1	9603-9607	●
3	BOLT; CYL HD TO BLOCK (C) M12X120	1-09044-070-0	01	1	9603-9607	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9608-9901	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9902-9904		●	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9910-		●	●	●	●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115	1-09070-114-2	06	1	9603-9901	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115	1-09070-114-2	06	1	9902-9902		●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115 FLANGE	1-09070-141-0	06	1	9903-9904		●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115 FLANGE	1-09070-141-0	06	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115 FLANGE	1-09070-141-0	06	1	9910-		●	●	●	●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-115-2	20	1	9603-9901	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-115-2	20	1	9902-9902		●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-142-0	20	1	9903-9904		●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-142-0	20	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-142-0	20	1	9910-		●	●	●	●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9603-9901	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9902-9904		●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9905-9909		●	●	●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9910-		●	●	●	●	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9603-9901	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9902-9904		●	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9905-9909		●	●	●	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9910-		●	●	●	●	●
12	HANGER; ENG,RR (B) FRONT	1-11777-156-2	01	1	9603-9607	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9608-9901	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9902-9904		●	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9905-9909		●	●	●	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9910-		●	●	●	●	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9603-9901	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9902-9904		●	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9905-9909		●	●	●	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9910-		●	●	●	●	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9603-9901	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9902-9904		●	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9905-9909		●	●	●	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9910-		●	●	●	●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9603-9901	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9902-9904		●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9905-9909		●	●	●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9910-		●	●	●	●	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9603-9901	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9902-9904		●	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9905-9909		●	●	●	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9910-		●	●	●	●	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9603-9901	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9902-9904		●	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9905-9909		●	●	●	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9910-		●	●	●	●	●
41	BOLT; ENG HANGER (B) M12X35 FLANGE	0-28791-235-0	02	1	9603-9607	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9608-9901	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9902-9904		●	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9905-9909		●	●	●	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9910-		●	●	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9603-9901	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9902-9904		●	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9905-9909		●	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9910-		●	●	●	●	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9603-9901	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9902-9904		●	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9905-9909		●	●	●	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9910-		●	●	●	●	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9901	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9902-9904		●	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-9909		●	●	●	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9910-		●	●	●	●	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9603-9901	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9902-9904		●	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9905-9909		●	●	●	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9910-		●	●	●	●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9603-9901	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9902-9904		●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9905-9909		●	●	●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9910-		●	●	●	●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9603-9901	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9902-9904		●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9905-9909		●	●	●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9910-		●	●	●	●	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9603-9901	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9902-9904		●	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9905-9909		●	●	●	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9910-		●	●	●	●	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9901	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9904		●	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-9909		●	●	●	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-		●	●	●	●	●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9603-9901	●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9902-9904		●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9905-9909		●		●	●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9910-		●		●	●	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9603-9901	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9902-9904		●	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9905-9909		●	●	●	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9910-		●	●	●	●	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9603-9901	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9902-9904		●	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9905-9909		●	●	●	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9910-		●	●	●	●	●
181	CASE; HEAD GEAR	1-11310-057-0	01	1	9603-9607	●
181	CASE; HEAD GEAR	1-11310-058-0	01	1	9608-9901	●
181	CASE; HEAD GEAR	1-11310-058-0	01	1	9902-9904		●	●
181	CASE; HEAD GEAR	1-11310-058-0	01	1	9905-9909		●	●	●	●
181	CASE; HEAD GEAR	1-11310-058-1	01	1	9910-		●	●	●	●	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9603-9901	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9902-9904		●	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9905-9909		●	●	●	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9910-		●	●	●	●	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9603-9901	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9902-9904		●	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9905-9909		●	●	●	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9910-		●	●	●	●	●

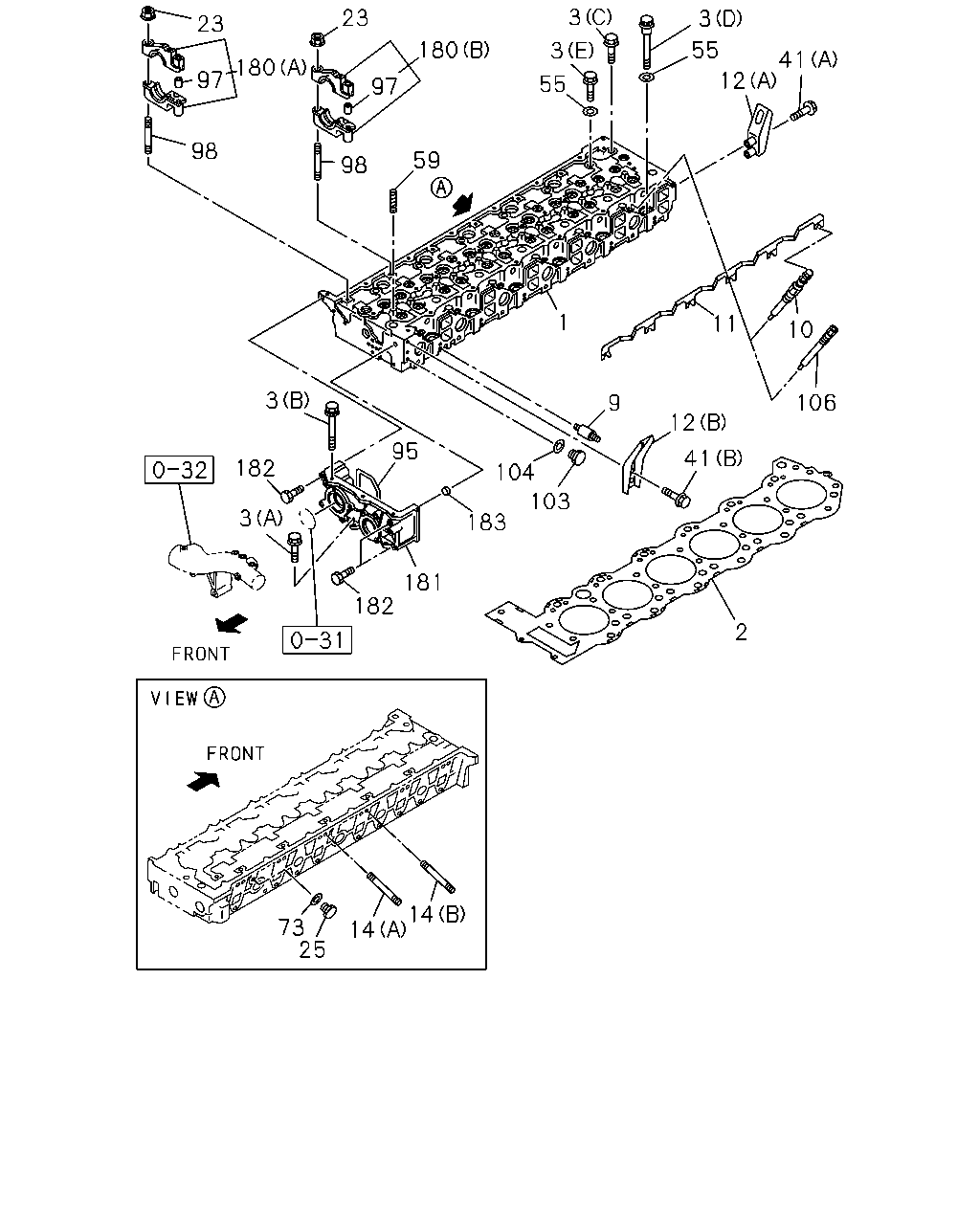

3 23 3 23 180 55 3 41 180 97 12 55 97 98 59 98 1 11 10 3 106 9 12 95 41 182 104 103 3 183 181 182 2 14 73 25 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HEAD ASM; CYL	1-11110-774-9	01	1	9603-9607	●
1	HEAD ASM; CYL	1-11110-872-1	01	1	9608-9710	●
1	HEAD ASM; CYL	1-11110-891-0	01	1	9711-9804	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9805-9901	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9902-9904		●	●
1	HEAD ASM; CYL	1-11110-902-3	01	1	9905-		●	●	●
1	HEAD ASM; CYL	1-11110-861-8	01	1	9905-9909					●
1	HEAD ASM; CYL	1-11110-861-9	01	1	9910-					●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-227-2	01	1	9603-9607	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-264-0	01	1	9608-9802	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-0	01	1	9803-9901	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-0	01	1	9902-9904		●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-271-2	01	1	9905-		●	●	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-265-1	01	1	9905-9909					●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11141-265-3	01	1	9910-					●	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9603-9901	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9902-9904		●	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (A) M10X35 FLANGE	0-28181-035-0	02	1	9910-		●	●	●	●	●
3	BOLT; CYL HD TO BLOCK (B) M12X110	1-09030-089-0	01	1	9603-9607	●
3	BOLT; CYL HD TO BLOCK (C) M12X120	1-09044-070-0	01	1	9603-9607	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9608-9901	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9902-9904		●	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (C) M12X120 FLANGE	0-28186-212-0	01	1	9910-		●	●	●	●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115	1-09070-114-2	06	1	9603-9901	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115	1-09070-114-2	06	1	9902-9902		●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115 FLANGE	1-09070-141-0	06	1	9903-9904		●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115 FLANGE	1-09070-141-0	06	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (D) 12-POINT HEAD M18X115 FLANGE	1-09070-141-0	06	1	9910-		●	●	●	●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-115-2	20	1	9603-9901	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-115-2	20	1	9902-9902		●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-142-0	20	1	9903-9904		●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-142-0	20	1	9905-9909		●	●	●	●
3	BOLT; CYL HD TO BLOCK (E) 12-POINT HEAD M18X159	1-09070-142-0	20	1	9910-		●	●	●	●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9603-9901	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9902-9904		●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9905-9909		●	●	●	●
9	STUD; INL MANIF M10X13,M10X17 L=65	1-09309-008-0	12	1	9910-		●	●	●	●	●
10	PLUG; GLOW CXZ(CXZ***) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	9-82513-928-9	06	1	9603-9809	●
10	PLUG; GLOW CXZ(CXZ***) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-82513-043-0	06	1	9810-9901	●
10	PLUG; GLOW GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-82513-043-0	06	1	9902-9904		●	●
10	PLUG; GLOW GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-82513-043-1	06	1	9905-		●	●	●
11	CONNECTOR; GLOW PLUG CXZ(CXZ***) GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19732-030-1	01	1	9603-9901	●
11	CONNECTOR; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19732-030-1	01	1	9902-9904		●	●
11	CONNECTOR; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-19732-030-2	01	1	9905-		●	●	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9603-9901	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9902-9904		●	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9905-9909		●	●	●	●
12	HANGER; ENG,RR (A) REAR	1-11777-149-2	02	1	9910-		●	●	●	●	●
12	HANGER; ENG,RR (B) FRONT	1-11777-156-2	01	1	9603-9607	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9608-9901	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9902-9904		●	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9905-9909		●	●	●	●
12	HANGER; ENG,RR (B) FRONT	1-11777-216-1	01	1	9910-		●	●	●	●	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9603-9901	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9902-9904		●	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9905-9909		●	●	●	●
14	STUD; EXH MANIF (A) M10X95 L=110	1-09302-063-0	15	1	9910-		●	●	●	●	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9603-9901	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9902-9904		●	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9905-9909		●	●	●	●
14	STUD; EXH MANIF (B) M10X130 L=145	1-09302-107-0	03	1	9910-		●	●	●	●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9603-9901	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9902-9904		●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9905-9909		●	●	●	●
23	NUT; CAM BRKT M4 FLANGE	1-09440-004-0	14	1	9910-		●	●	●	●	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9603-9901	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9902-9904		●	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9905-9909		●	●	●	●
25	PLUG; CYL HD M14X9	9-99202-314-0	01	1	9910-		●	●	●	●	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9603-9901	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9902-9904		●	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9905-9909		●	●	●	●
41	BOLT; ENG HANGER (A) M12X50 FLANGE	0-28191-250-0	04	1	9910-		●	●	●	●	●
41	BOLT; ENG HANGER (B) M12X35 FLANGE	0-28791-235-0	02	1	9603-9607	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9608-9901	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9902-9904		●	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9905-9909		●	●	●	●
41	BOLT; ENG HANGER (B) M12X25 FLANGE	0-28191-225-0	02	1	9910-		●	●	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9603-9901	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9902-9904		●	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9905-9909		●	●	●	●
55	WASHER; PL,CYL HD TO BLOCK ID=18.2 OD=29	1-09503-032-0	26	1	9910-		●	●	●	●	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9603-9901	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9902-9904		●	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9905-9909		●	●	●	●
59	GUIDE; BRIDGE	1-11729-005-0	12	1	9910-		●	●	●	●	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9603-9901	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9902-9904		●	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9905-9909		●	●	●	●
73	GASKET; PLUG,HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9910-		●	●	●	●	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9603-9901	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9902-9904		●	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9905-9909		●	●	●	●
95	GASKET; CYL HD TO GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09623-403-0	01	1	9910-		●	●	●	●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9603-9901	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9902-9904		●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9905-9909		●	●	●	●
97	DOWEL; CAM BRKT SET OD=16	1-13119-005-0	28	1	9910-		●	●	●	●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9603-9901	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9902-9904		●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9905-9909		●	●	●	●
98	STUD; CAM BRKT M12X100 L=120	8-94397-322-0	14	1	9910-		●	●	●	●	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9603-9901	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9902-9904		●	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9905-9909		●	●	●	●
103	PLUG; HD M10X7	1-09604-094-0	01	1	9910-		●	●	●	●	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9901	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9904		●	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9905-9909		●	●	●	●
104	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-		●	●	●	●	●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9603-9901	●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9902-9904		●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9905-9909		●		●	●
106	PLUG; GLOW PLUG HOLE EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-11119-018-0	06	1	9910-		●		●	●	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9603-9901	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9902-9904		●	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9905-9909		●	●	●	●
180	BRACKET SET; CAM,CYL HD (A) FRONT	1-12516-148-1	01	1	9910-		●	●	●	●	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9603-9901	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9902-9904		●	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9905-9909		●	●	●	●
180	BRACKET SET; CAM,CYL HD (B)	1-12516-152-1	06	1	9910-		●	●	●	●	●
181	CASE; HEAD GEAR	1-11310-057-0	01	1	9603-9607	●
181	CASE; HEAD GEAR	1-11310-058-0	01	1	9608-9901	●
181	CASE; HEAD GEAR	1-11310-058-0	01	1	9902-9904		●	●
181	CASE; HEAD GEAR	1-11310-058-0	01	1	9905-9909		●	●	●	●
181	CASE; HEAD GEAR	1-11310-058-1	01	1	9910-		●	●	●	●	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9603-9901	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9902-9904		●	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9905-9909		●	●	●	●
182	BOLT; CASE M10X80	9-05921-080-0	07	1	9910-		●	●	●	●	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9603-9901	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9902-9904		●	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9905-9909		●	●	●	●
183	DOWEL; CYL HEAD	1-13119-004-0	02	1	9910-		●	●	●	●	●

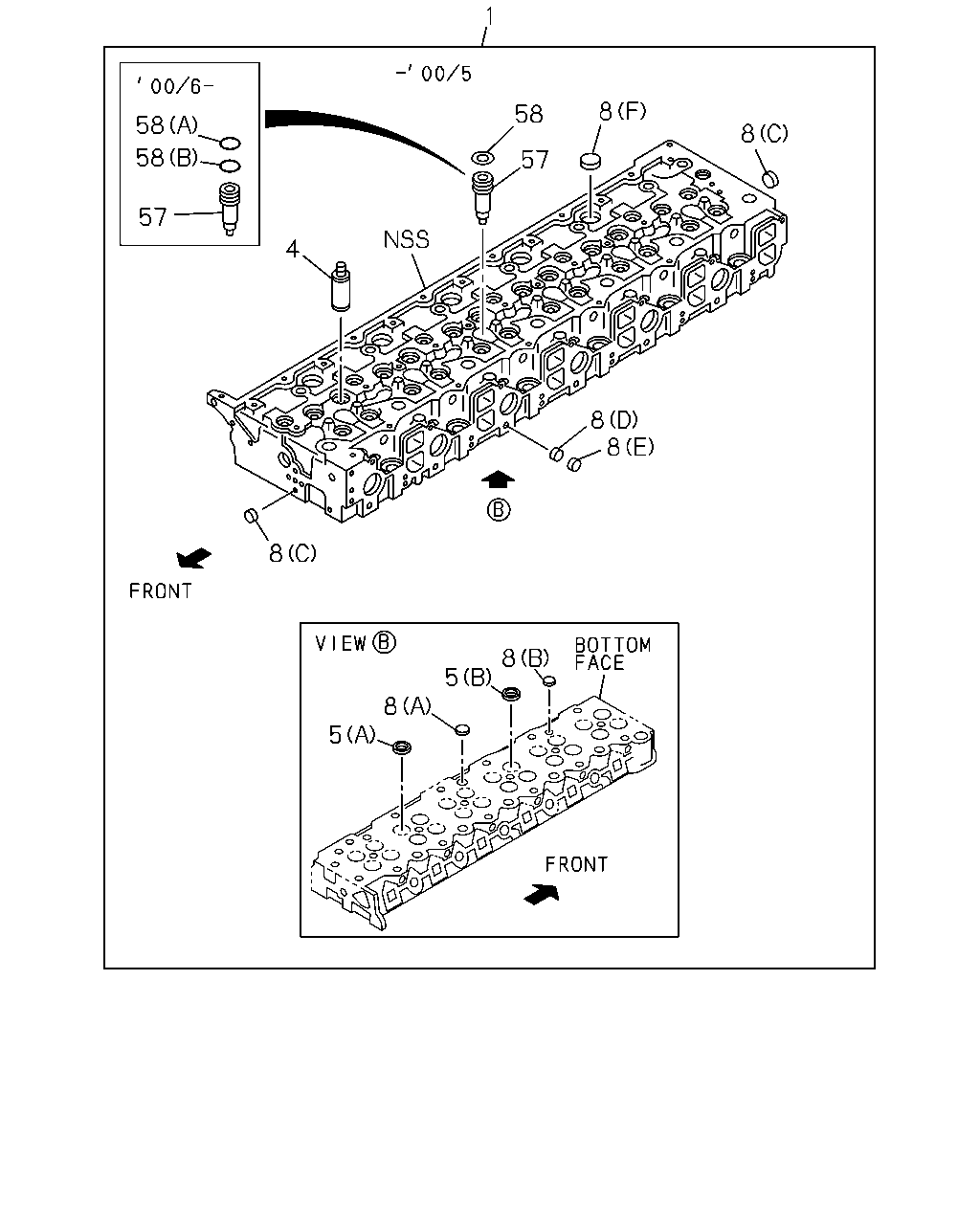

1 8 58 5 8 5 57 57 4 8 8 8 8 5 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HEAD ASM; CYL	1-11110-774-9	01	1	9603-9607	●
1	HEAD ASM; CYL	1-11110-872-1	01	1	9608-9710	●
1	HEAD ASM; CYL	1-11110-891-0	01	1	9711-9804	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9805-9901	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9902-9904		●	●
1	HEAD ASM; CYL	1-11110-902-3	01	1	9905-		●	●	●
1	HEAD ASM; CYL	1-11110-861-8	01	1	9905-9909					●
1	HEAD ASM; CYL	1-11110-861-9	01	1	9910-					●	●
4	GUIDE; VLV	1-11721-004-0	24	1	9603-9901	●
4	GUIDE; VLV	1-11721-004-0	24	1	9902-9904		●	●
4	GUIDE; VLV	1-11721-004-0	24	1	9905-9909		●	●	●	●
4	GUIDE; VLV	1-11721-004-0	24	1	9910-0005		●	●	●	●	●
4	GUIDE; VLV	1-11721-012-0	24	1	0006-		●	●	●	●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-057-4	12	1	9603-9710	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-076-0	12	1	9711-9901	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-076-0	12	1	9902-9904		●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-076-0	12	1	9905-		●	●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-091-1	12	1	9603-9611	●
5	SEAT; VLV INSERT (B) INLET	1-11715-107-0	12	1	9612-9710	●
5	SEAT; VLV INSERT (B) INLET	1-11715-111-0	12	1	9711-9901	●
5	SEAT; VLV INSERT (B) INLET	1-11715-111-0	12	1	9902-9904		●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-111-0	12	1	9905-		●	●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-070-0	12	1	9905-9909					●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-070-0	12	1	9910-0005					●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-077-0	12	1	0006-					●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-105-1	12	1	9905-9909					●
5	SEAT; VLV INSERT (B) INLET	1-11715-105-1	12	1	9910-0005					●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-112-0	12	1	0006-					●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	03	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	03	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	03	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	09	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	09	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	09	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	02	1	9905-9909					●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	02	1	9910-					●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	10	1	9905-9909					●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	10	1	9910-					●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-043-0	06	1	9603-9804	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9805-9901	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9902-9904		●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9905-9909		●	●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9910-0005		●	●	●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-058-0	06	1	0006-		●	●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9603-9901	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9902-9904		●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9905-9909		●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9910-0005		●	●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK	8-97233-126-0	06	1	0006-		●	●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED	8-97233-127-0	06	1	0006-		●	●	●	●	●

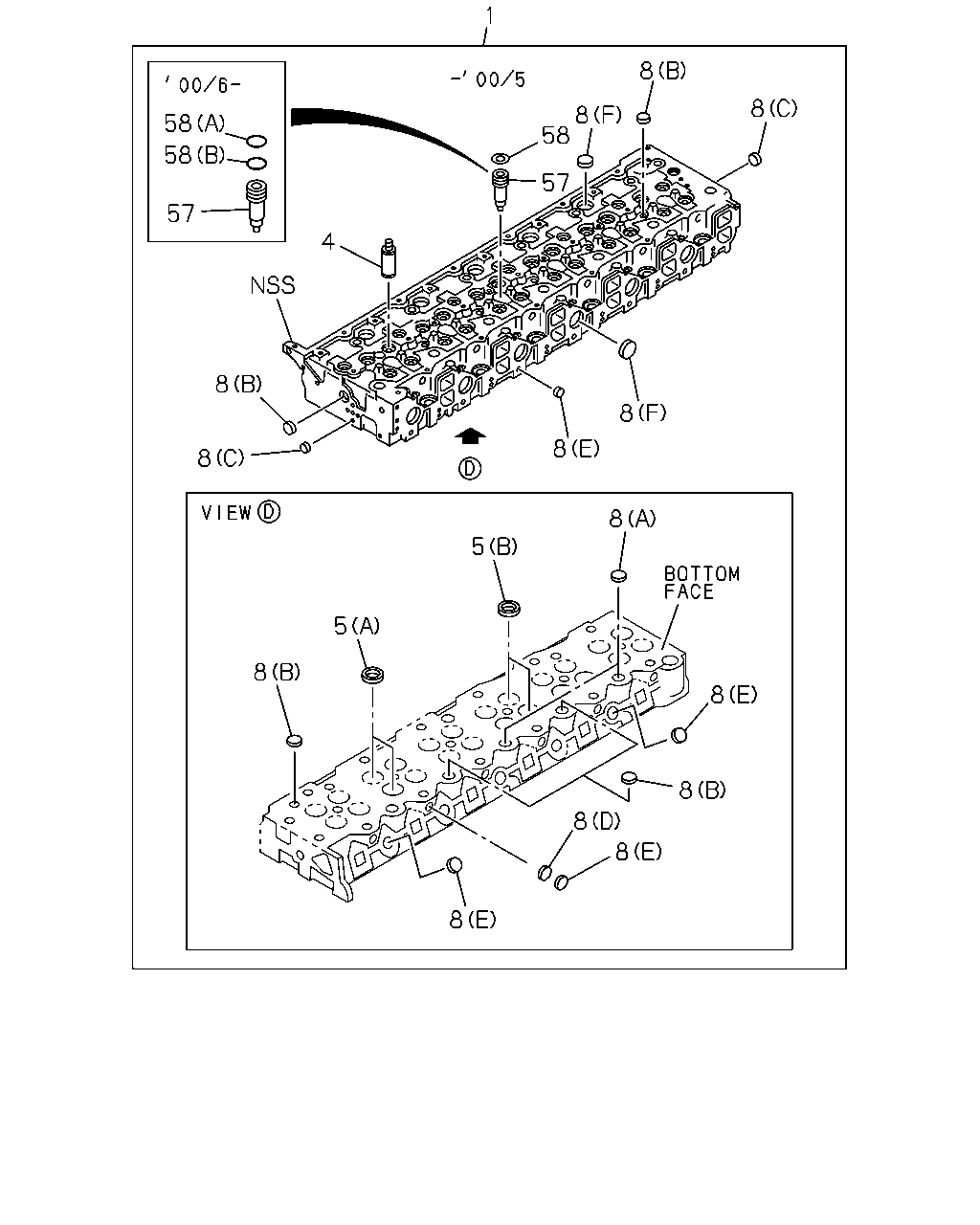

1 8 8 8 58 58 58 57 57 4 8 8 8 8 8 5 5 8 8 8 8 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	HEAD ASM; CYL	1-11110-774-9	01	1	9603-9607	●
1	HEAD ASM; CYL	1-11110-872-1	01	1	9608-9710	●
1	HEAD ASM; CYL	1-11110-891-0	01	1	9711-9804	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9805-9901	●
1	HEAD ASM; CYL	1-11110-902-0	01	1	9902-9904		●	●
1	HEAD ASM; CYL	1-11110-902-3	01	1	9905-		●	●	●
1	HEAD ASM; CYL	1-11110-861-8	01	1	9905-9909					●
1	HEAD ASM; CYL	1-11110-861-9	01	1	9910-					●	●
4	GUIDE; VLV	1-11721-004-0	24	1	9603-9901	●
4	GUIDE; VLV	1-11721-004-0	24	1	9902-9904		●	●
4	GUIDE; VLV	1-11721-004-0	24	1	9905-9909		●	●	●	●
4	GUIDE; VLV	1-11721-004-0	24	1	9910-0005		●	●	●	●	●
4	GUIDE; VLV	1-11721-012-0	24	1	0006-		●	●	●	●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-057-4	12	1	9603-9710	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-076-0	12	1	9711-9901	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-076-0	12	1	9902-9904		●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-076-0	12	1	9905-		●	●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-091-1	12	1	9603-9611	●
5	SEAT; VLV INSERT (B) INLET	1-11715-107-0	12	1	9612-9710	●
5	SEAT; VLV INSERT (B) INLET	1-11715-111-0	12	1	9711-9901	●
5	SEAT; VLV INSERT (B) INLET	1-11715-111-0	12	1	9902-9904		●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-111-0	12	1	9905-		●	●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-070-0	12	1	9905-9909					●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-070-0	12	1	9910-0005					●	●
5	SEAT; VLV INSERT (A) EXHAUST	1-11711-077-0	12	1	0006-					●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-105-1	12	1	9905-9909					●
5	SEAT; VLV INSERT (B) INLET	1-11715-105-1	12	1	9910-0005					●	●
5	SEAT; VLV INSERT (B) INLET	1-11715-112-0	12	1	0006-					●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	03	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	03	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	03	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	09	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	09	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	09	1	9905-		●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (C) OD=12.3	5-09600-013-0	02	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (D) OD=16	5-11129-006-0	06	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (E) OD=18	5-11219-008-0	12	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9603-9901	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9902-9904		●	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9905-9909		●	●	●	●
8	CUP; SEALING,WATER JACKET (F) OD=40	8-94241-637-0	18	1	9910-		●	●	●	●	●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	02	1	9905-9909					●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-1	02	1	9910-					●	●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	10	1	9905-9909					●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	10	1	9910-					●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-043-0	06	1	9603-9804	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9805-9901	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9902-9904		●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9905-9909		●	●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-057-1	06	1	9910-0005		●	●	●	●	●
57	SLEEVE; NOZZLE HOLDER	1-11129-058-0	06	1	0006-		●	●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9603-9901	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9902-9904		●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9905-9909		●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09565-330-0	06	1	9910-0005		●	●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=30.9 BLACK	8-97233-126-0	06	1	0006-		●	●	●	●	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=30.9 RED	8-97233-127-0	06	1	0006-		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
