Sayfa 0-10B - Isuzu EPC

0-10B — CYLINDER HEAD COVER (#4162) — 269 parça

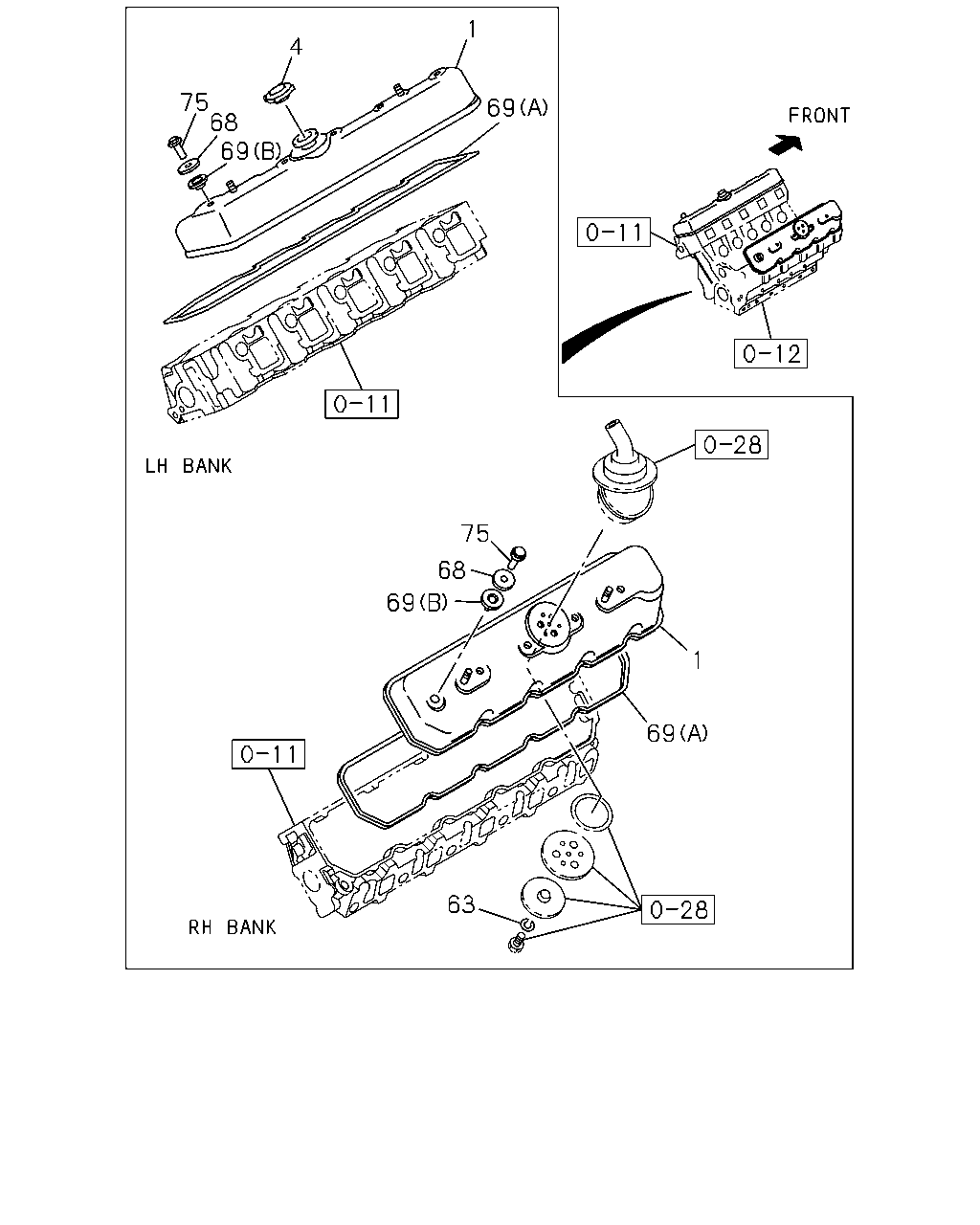

1 4 75 68 69 69 75 68 69 1 69 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD RH BANK	1-11171-338-2	01	1	9905-0001	●
1	COVER; CYL HD LH BANK	1-11171-405-1	01	1	9905-	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) RH BANK	1-11171-338-2	01	1	9603-9901	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) LH BANK	1-11171-405-1	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) RH BANK	1-11171-366-0	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) LH BANK	1-11171-367-1	01	1	9603-9901	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9603-9901		●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-11171-404-1	01	1	9603-9901		●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) LH BANK	1-11171-345-2	01	1	9603-9901		●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9905-		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	9905-0001		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	0002-		●		●
1	COVER; CYL HD ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-404-1	01	1	0002-			●
1	COVER; CYL HD INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD MIXER TRUCK<RA2> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD EXC. ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-345-2	01	1	0004-			●
4	CAP; OIL FILLER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	8-94399-723-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9905-9909	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9910-0001	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	0002-	●	●		●
4	CAP; OIL FILLER ANTI NOISE EQUIPMENT<SV9>	8-94399-723-0	01	1	0002-			●
4	CAP; OIL FILLER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2)	1-11750-020-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER MIXER TRUCK<RA2>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER EXC. ANTI NOISE EQUIPMENT<SV9>	1-11750-020-0	01	1	0004-			●
63	WASHER; LK,BAFFLE PLATE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) ID=6.1	9-09150-506-0	04	1	9603-9901		●
63	WASHER; LK,BAFFLE PLATE INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> ID=6.1	9-09150-506-0	04	1	0002-0003			●
63	WASHER; LK,BAFFLE PLATE MIXER TRUCK<RA2> ID=6.1	9-09150-506-0	04	1	0002-0003			●
63	WASHER; LK,BAFFLE PLATE EXC. ANTI NOISE EQUIPMENT<SV9> ID=6.1	9-09150-506-0	04	1	0004-			●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9905-	●
68	WASHER; CAP NUT,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-11179-048-0	08	1	9603-9803	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9804-9901	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9603-9901		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-090-0	02	1	9603-9901	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-106-0	02	1	9905-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-089-0	02	1	9603-9901		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) MIXER TRUCK<RA2> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-09639-031-0	10	1	0004-			●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9905-	●
75	NUT; CAP,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-11175-008-0	08	1	9603-9803	●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9804-9901	●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9603-9901		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9905-		●	●	●

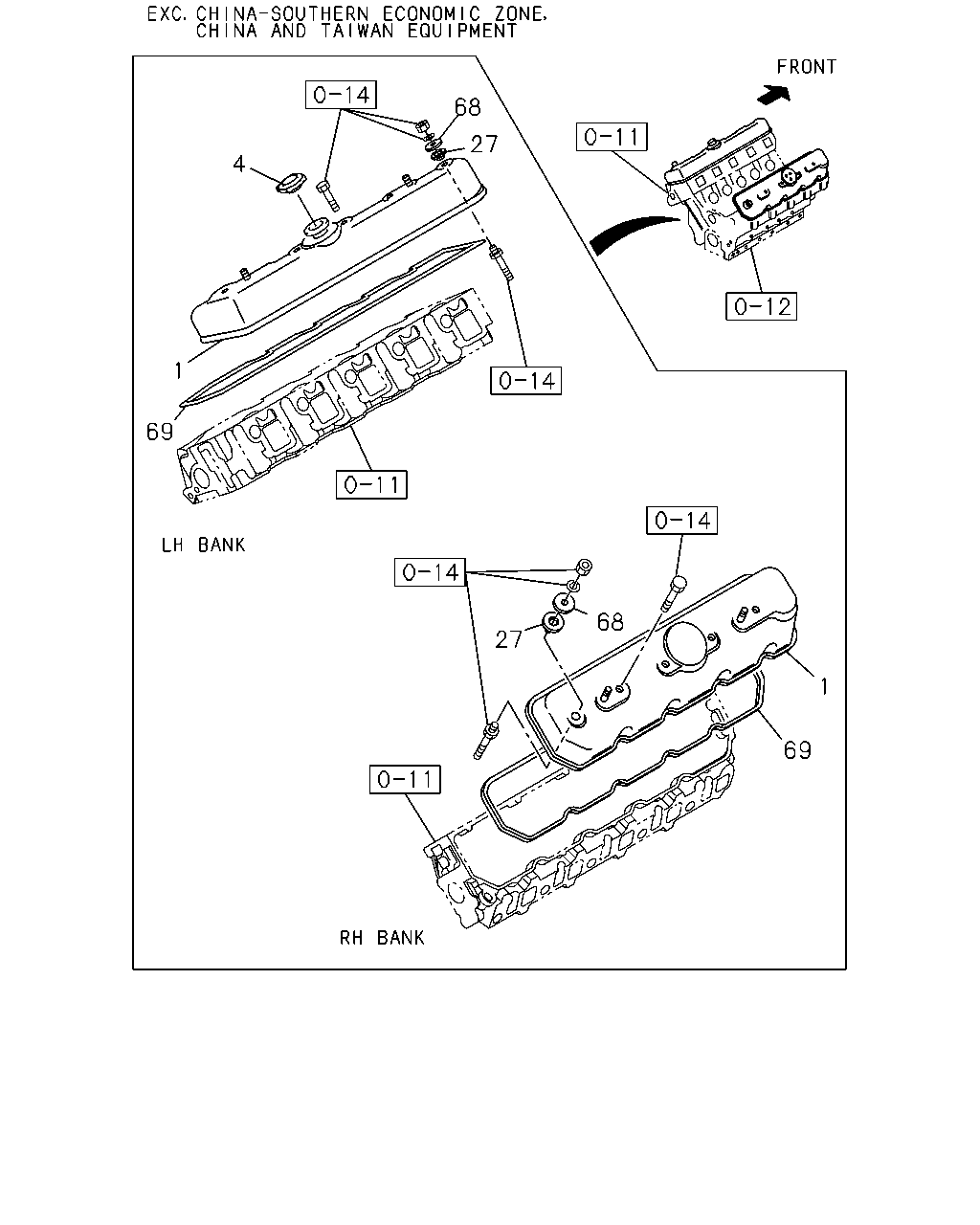

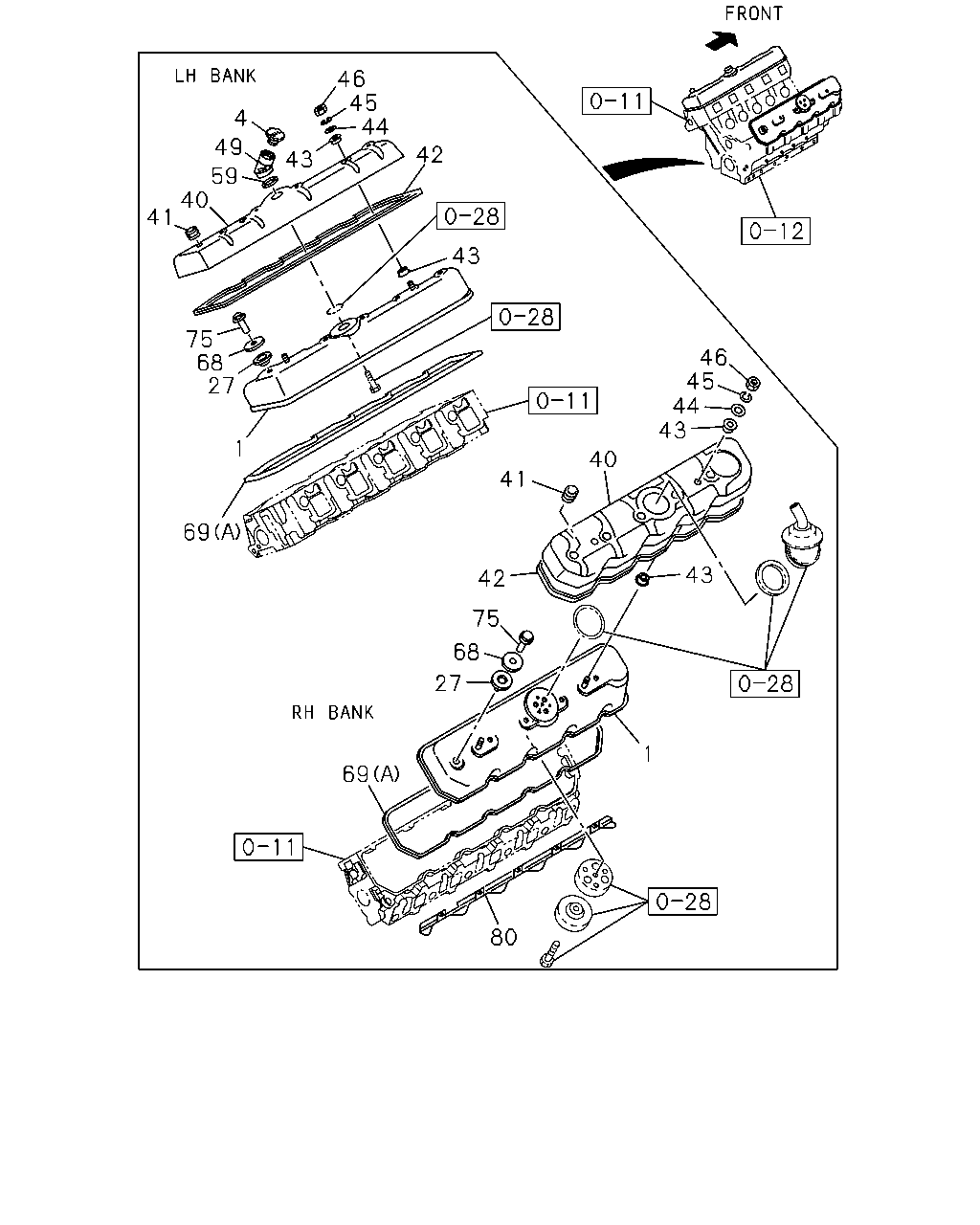

46 45 44 4 49 42 43 59 40 41 43 75 68 27 46 45 44 43 1 40 41 69 43 42 75 68 27 1 69 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD RH BANK	1-11171-338-2	01	1	9905-0001	●
1	COVER; CYL HD LH BANK	1-11171-405-1	01	1	9905-	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) RH BANK	1-11171-338-2	01	1	9603-9901	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) LH BANK	1-11171-405-1	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) RH BANK	1-11171-366-0	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) LH BANK	1-11171-367-1	01	1	9603-9901	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9603-9901		●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-11171-404-1	01	1	9603-9901		●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) LH BANK	1-11171-345-2	01	1	9603-9901		●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9905-		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	9905-0001		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	0002-		●		●
1	COVER; CYL HD ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-404-1	01	1	0002-			●
1	COVER; CYL HD INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD MIXER TRUCK<RA2> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD EXC. ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-345-2	01	1	0004-			●
4	CAP; OIL FILLER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	8-94399-723-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9905-9909	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9910-0001	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	0002-	●	●		●
4	CAP; OIL FILLER ANTI NOISE EQUIPMENT<SV9>	8-94399-723-0	01	1	0002-			●
4	CAP; OIL FILLER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2)	1-11750-020-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER MIXER TRUCK<RA2>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER EXC. ANTI NOISE EQUIPMENT<SV9>	1-11750-020-0	01	1	0004-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9905-0001		●	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	0002-		●		●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ANTI NOISE EQUIPMENT<SV9>	1-09639-031-0	10	1	0002-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9603-9901	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9905-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9603-9901		●
40	COVER	1-19381-265-0	02	1	9905-	●
40	COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-19381-265-0	02	1	9603-9901	●
40	COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19381-341-0	02	1	9603-9901		●
40	COVER	1-19381-341-0	02	1	9905-0001		●	●	●
40	COVER	1-19381-341-0	02	1	0002-		●		●
40	COVER ANTI NOISE EQUIPMENT<SV9>	1-19381-341-0	02	1	0002-			●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	08	1	9905-	●
41	GROMMET; HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-19389-004-0	08	1	9603-9901	●
41	GROMMET; HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19389-004-0	10	1	9603-9901		●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	10	1	9905-0001		●	●	●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	10	1	0002-		●		●
41	GROMMET; HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9>	1-19389-004-0	10	1	0002-			●
42	SEAL; RUBBER,HD COVER,OUTER L=1520	1-19387-008-0	02	1	9905-	●
42	SEAL; RUBBER,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=1520	1-19387-008-0	02	1	9603-9901	●
42	SEAL; RUBBER,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) L=1820	1-19387-007-0	02	1	9603-9901		●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	02	1	9905-0001		●	●	●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	02	1	0002-		●		●
42	SEAL; RUBBER,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> L=1820	1-19387-007-0	02	1	0002-			●
43	RUBBER; MTG,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09337-027-0	08	1	9603-9901	●	●
43	RUBBER; MTG,HD COVER,OUTER	1-09337-027-0	08	1	9905-0001	●	●	●	●
43	RUBBER; MTG,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9>	1-09337-027-0	08	1	0002-	●	●	●	●
44	WASHER; PL,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) ID=8.4 OD=18	9-09160-608-0	04	1	9603-9901	●	●
44	WASHER; PL,HD COVER,OUTER ID=8.4 OD=18	9-09160-608-0	04	1	9905-0001	●	●	●	●
44	WASHER; PL,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=18	9-09160-608-0	04	1	0002-	●	●	●	●
45	WASHER; LK,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) ID=8.2	9-09150-508-0	04	1	9603-9901	●	●
45	WASHER; LK,HD COVER,OUTER ID=8.2	9-09150-508-0	04	1	9905-0001	●	●	●	●
45	WASHER; LK,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> ID=8.2	9-09150-508-0	04	1	0002-	●	●	●	●
46	NUT; HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	04	1	9603-9901	●	●
46	NUT; HD COVER,OUTER M8	9-09110-408-0	04	1	9905-0001	●	●	●	●
46	NUT; HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	04	1	0002-	●	●	●	●
49	FILLER; OIL,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-11741-177-1	01	1	9603-9901	●	●
49	FILLER; OIL,HD COVER LH BANK	1-11741-177-1	01	1	9905-0001	●	●	●	●
49	FILLER; OIL,HD COVER ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11741-177-1	01	1	0002-	●	●	●	●
59	GROMMET; OIL FILLER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-09333-132-0	01	1	9603-9901	●	●
59	GROMMET; OIL FILLER LH BANK	1-09333-132-0	01	1	9905-0001	●	●	●	●
59	GROMMET; OIL FILLER ANTI NOISE EQUIPMENT<SV9> LH BANK	1-09333-132-0	01	1	0002-	●	●	●	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9905-	●
68	WASHER; CAP NUT,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-11179-048-0	08	1	9603-9803	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9804-9901	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9603-9901		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-090-0	02	1	9603-9901	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-106-0	02	1	9905-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-089-0	02	1	9603-9901		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) MIXER TRUCK<RA2> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-09639-031-0	10	1	0004-			●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9905-	●
75	NUT; CAP,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-11175-008-0	08	1	9603-9803	●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9804-9901	●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9603-9901		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9905-		●	●	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-184-1	02	1	9905-	●
80	PROTECTOR; HEAT,SEAL RUBBER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-14181-184-1	02	1	9603-9901	●
80	PROTECTOR; HEAT,SEAL RUBBER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-14181-183-1	02	1	9603-9901		●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-183-1	02	1	9905-0001		●	●	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-183-1	02	1	0002-		●		●
80	PROTECTOR; HEAT,SEAL RUBBER ANTI NOISE EQUIPMENT<SV9>	1-14181-183-1	02	1	0002-			●

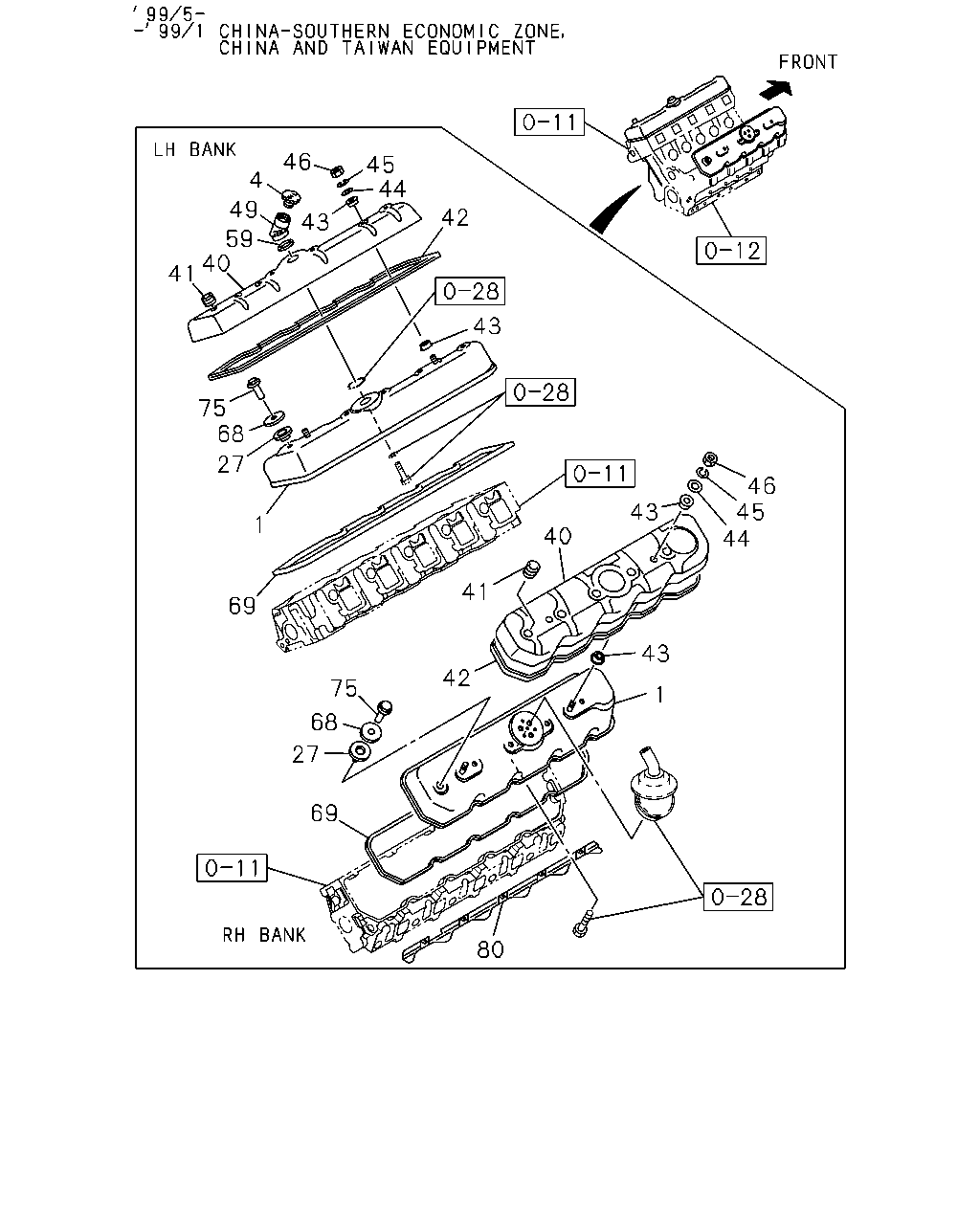

46 45 44 4 49 42 43 59 40 41 43 75 68 27 46 45 44 43 1 40 41 69 43 42 75 1 68 27 69 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD RH BANK	1-11171-338-2	01	1	9905-0001	●
1	COVER; CYL HD LH BANK	1-11171-405-1	01	1	9905-	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) RH BANK	1-11171-338-2	01	1	9603-9901	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) LH BANK	1-11171-405-1	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) RH BANK	1-11171-366-0	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) LH BANK	1-11171-367-1	01	1	9603-9901	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9603-9901		●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-11171-404-1	01	1	9603-9901		●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) LH BANK	1-11171-345-2	01	1	9603-9901		●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9905-		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	9905-0001		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	0002-		●		●
1	COVER; CYL HD ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-404-1	01	1	0002-			●
1	COVER; CYL HD INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD MIXER TRUCK<RA2> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD EXC. ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-345-2	01	1	0004-			●
4	CAP; OIL FILLER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	8-94399-723-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9905-9909	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9910-0001	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	0002-	●	●		●
4	CAP; OIL FILLER ANTI NOISE EQUIPMENT<SV9>	8-94399-723-0	01	1	0002-			●
4	CAP; OIL FILLER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2)	1-11750-020-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER MIXER TRUCK<RA2>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER EXC. ANTI NOISE EQUIPMENT<SV9>	1-11750-020-0	01	1	0004-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9905-0001		●	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	0002-		●		●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ANTI NOISE EQUIPMENT<SV9>	1-09639-031-0	10	1	0002-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9603-9901	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9905-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9603-9901		●
40	COVER	1-19381-265-0	02	1	9905-	●
40	COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-19381-265-0	02	1	9603-9901	●
40	COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19381-341-0	02	1	9603-9901		●
40	COVER	1-19381-341-0	02	1	9905-0001		●	●	●
40	COVER	1-19381-341-0	02	1	0002-		●		●
40	COVER ANTI NOISE EQUIPMENT<SV9>	1-19381-341-0	02	1	0002-			●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	08	1	9905-	●
41	GROMMET; HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-19389-004-0	08	1	9603-9901	●
41	GROMMET; HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-19389-004-0	10	1	9603-9901		●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	10	1	9905-0001		●	●	●
41	GROMMET; HD COVER,OUTER	1-19389-004-0	10	1	0002-		●		●
41	GROMMET; HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9>	1-19389-004-0	10	1	0002-			●
42	SEAL; RUBBER,HD COVER,OUTER L=1520	1-19387-008-0	02	1	9905-	●
42	SEAL; RUBBER,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=1520	1-19387-008-0	02	1	9603-9901	●
42	SEAL; RUBBER,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) L=1820	1-19387-007-0	02	1	9603-9901		●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	02	1	9905-0001		●	●	●
42	SEAL; RUBBER,HD COVER,OUTER L=1820	1-19387-007-0	02	1	0002-		●		●
42	SEAL; RUBBER,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> L=1820	1-19387-007-0	02	1	0002-			●
43	RUBBER; MTG,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-09337-027-0	08	1	9603-9901	●	●
43	RUBBER; MTG,HD COVER,OUTER	1-09337-027-0	08	1	9905-0001	●	●	●	●
43	RUBBER; MTG,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9>	1-09337-027-0	08	1	0002-	●	●	●	●
44	WASHER; PL,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) ID=8.4 OD=18	9-09160-608-0	04	1	9603-9901	●	●
44	WASHER; PL,HD COVER,OUTER ID=8.4 OD=18	9-09160-608-0	04	1	9905-0001	●	●	●	●
44	WASHER; PL,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=18	9-09160-608-0	04	1	0002-	●	●	●	●
45	WASHER; LK,HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) ID=8.2	9-09150-508-0	04	1	9603-9901	●	●
45	WASHER; LK,HD COVER,OUTER ID=8.2	9-09150-508-0	04	1	9905-0001	●	●	●	●
45	WASHER; LK,HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> ID=8.2	9-09150-508-0	04	1	0002-	●	●	●	●
46	NUT; HD COVER,OUTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) M8	9-09110-408-0	04	1	9603-9901	●	●
46	NUT; HD COVER,OUTER M8	9-09110-408-0	04	1	9905-0001	●	●	●	●
46	NUT; HD COVER,OUTER ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	04	1	0002-	●	●	●	●
49	FILLER; OIL,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-11741-177-1	01	1	9603-9901	●	●
49	FILLER; OIL,HD COVER LH BANK	1-11741-177-1	01	1	9905-0001	●	●	●	●
49	FILLER; OIL,HD COVER ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11741-177-1	01	1	0002-	●	●	●	●
59	GROMMET; OIL FILLER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-09333-132-0	01	1	9603-9901	●	●
59	GROMMET; OIL FILLER LH BANK	1-09333-132-0	01	1	9905-0001	●	●	●	●
59	GROMMET; OIL FILLER ANTI NOISE EQUIPMENT<SV9> LH BANK	1-09333-132-0	01	1	0002-	●	●	●	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9905-	●
68	WASHER; CAP NUT,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-11179-048-0	08	1	9603-9803	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9804-9901	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9603-9901		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-090-0	02	1	9603-9901	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-106-0	02	1	9905-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-089-0	02	1	9603-9901		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) MIXER TRUCK<RA2> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-09639-031-0	10	1	0004-			●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9905-	●
75	NUT; CAP,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-11175-008-0	08	1	9603-9803	●
75	NUT; CAP,HD COVER	1-11175-008-0	08	1	9804-9901	●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9603-9901		●
75	NUT; CAP,HD COVER	1-11175-008-0	10	1	9905-		●	●	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-184-1	02	1	9905-	●
80	PROTECTOR; HEAT,SEAL RUBBER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-14181-184-1	02	1	9603-9901	●
80	PROTECTOR; HEAT,SEAL RUBBER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	1-14181-183-1	02	1	9603-9901		●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-183-1	02	1	9905-0001		●	●	●
80	PROTECTOR; HEAT,SEAL RUBBER	1-14181-183-1	02	1	0002-		●		●
80	PROTECTOR; HEAT,SEAL RUBBER ANTI NOISE EQUIPMENT<SV9>	1-14181-183-1	02	1	0002-			●

68 27 4 1 69 68 27 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COVER; CYL HD RH BANK	1-11171-338-2	01	1	9905-0001	●
1	COVER; CYL HD LH BANK	1-11171-405-1	01	1	9905-	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) RH BANK	1-11171-338-2	01	1	9603-9901	●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) LH BANK	1-11171-405-1	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) RH BANK	1-11171-366-0	01	1	9603-9901	●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,CHINA EQUIPMENT(YT2) LH BANK	1-11171-367-1	01	1	9603-9901	●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9603-9901		●
1	COVER; CYL HD CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2) LH BANK	1-11171-404-1	01	1	9603-9901		●
1	COVER; CYL HD EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2) LH BANK	1-11171-345-2	01	1	9603-9901		●
1	COVER; CYL HD RH BANK	1-11171-340-2	01	1	9905-		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	9905-0001		●	●	●
1	COVER; CYL HD LH BANK	1-11171-404-1	01	1	0002-		●		●
1	COVER; CYL HD ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-404-1	01	1	0002-			●
1	COVER; CYL HD INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD MIXER TRUCK<RA2> LH BANK	1-11171-345-2	01	1	0002-0003			●
1	COVER; CYL HD EXC. ANTI NOISE EQUIPMENT<SV9> LH BANK	1-11171-345-2	01	1	0004-			●
4	CAP; OIL FILLER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5),CHINA EQUIPMENT(YT2)	8-94399-723-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9905-9909	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	9910-0001	●	●	●	●
4	CAP; OIL FILLER	8-94399-723-0	01	1	0002-	●	●		●
4	CAP; OIL FILLER ANTI NOISE EQUIPMENT<SV9>	8-94399-723-0	01	1	0002-			●
4	CAP; OIL FILLER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) ,SAKHALIN EQUIPMENT(TLE),TAIWAN EQUIPMENT(WW5), CHINA EQUIPMENT(YT2)	1-11750-020-0	01	1	9603-9901	●	●
4	CAP; OIL FILLER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER MIXER TRUCK<RA2>	1-11750-020-0	01	1	0002-0003			●
4	CAP; OIL FILLER EXC. ANTI NOISE EQUIPMENT<SV9>	1-11750-020-0	01	1	0004-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9905-0001		●	●	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	0002-		●		●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ANTI NOISE EQUIPMENT<SV9>	1-09639-031-0	10	1	0002-			●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9603-9901	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	08	1	9905-	●
27	GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-09639-031-0	10	1	9603-9901		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9905-	●
68	WASHER; CAP NUT,HD COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-11179-048-0	08	1	9603-9803	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	08	1	9804-9901	●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9603-9901		●
68	WASHER; CAP NUT,HD COVER	1-11179-048-0	10	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-090-0	02	1	9603-9901	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-11173-106-0	02	1	9905-	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-089-0	02	1	9603-9901		●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	1-11173-105-0	02	1	9905-		●	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) MIXER TRUCK<RA2> (B)	1-09639-031-0	10	1	0002-0003			●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-09639-031-0	10	1	0004-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
