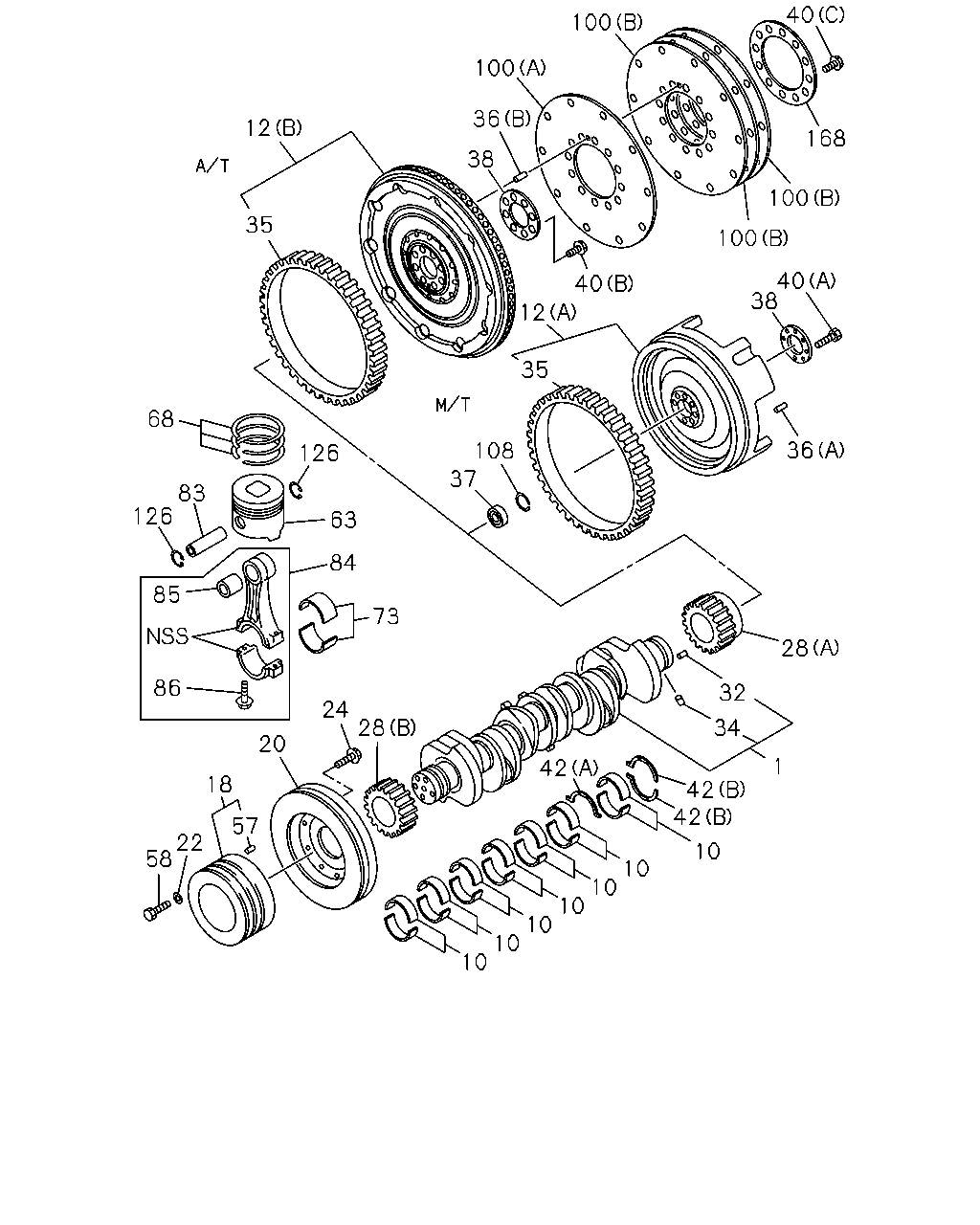

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#41615) — 40 parça

40 100 100 36 12 168 38 12 100 35 100 40 38 40 35 68 36 108 37 126 83 126 63 84 85 73 28 86 32 24 28 34 20 1 42 18 42 42 57 22 58 10 10 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-004-0	01	1	0710-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0710-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0710-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0710-
12	FLYWHEEL ALLISON MD3060P A/T(Y4G) (B)	8-97610-682-1	01	1	0710-
12	FLYWHEEL FULLER FS8209HD DD M/T(Y3A),ZF9S1110 M/T(Y5E) (A)	8-97602-463-2	01	1	0710-
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0710-
20	DAMPER; CR/SHF	8-97613-696-1	01	1	0710-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0710-
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0710-
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	0710-
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0710-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0710-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0710-
35	GEAR; RING Z=140	8-94396-784-1	01	1	0710-
36	PIN; FLYWHEEL ALLISON MD3060P A/T(Y4G) (B) OD=6 L=16	9-08160-616-0	01	1	0710-
36	PIN; FLYWHEEL FULLER FS8209HD DD M/T(Y3A),ZF9S1110 M/T(Y5E) (A) OD=10 L=22	9-08151-022-0	02	1	0710-
37	BEARING; PILOT,TOP GEAR SHAFT FULLER FS8209HD DD M/T(Y3A),ZF9S1110 M/T(Y5E)	8-94392-288-0	01	1	0710-
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0710-
40	BOLT; FLYWHEEL ALLISON MD3060P A/T(Y4G) (C)	8-11505-501-0	12	1	0710-
40	BOLT; FLYWHEEL ALLISON MD3060P A/T(Y4G) (B)	8-97606-638-0	08	1	0710-
40	BOLT; FLYWHEEL FULLER FS8209HD DD M/T(Y3A),ZF9S1110 M/T(Y5E) (A) M16X62	8-94393-070-2	08	1	0710-
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0710-
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0710-
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0710-
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0710-
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	0710-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0710-
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0710-
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0710-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0710-
84	ROD ASM; CONN	8-98018-425-2	06	1	0710-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0710-
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0710-1004
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-
100	PLATE; FLEX ALLISON MD3060P A/T(Y4G) (A)	8-29538-154-0	01	1	0710-
100	PLATE; FLEX ALLISON MD3060P A/T(Y4G) (B)	8-29538-155-0	03	1	0710-
108	RING; SNAP,BRG SET FULLER FS8209HD DD M/T(Y3A),ZF9S1110 M/T(Y5E) OD=59.2	9-09180-155-0	01	1	0710-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0710-
168	PLATE; WEAR ALLISON MD3060P A/T(Y4G)	8-29538-157-0	01	1	0710-
