4-25 — REAR FINAL DRIVE (#41608) — 259 parça

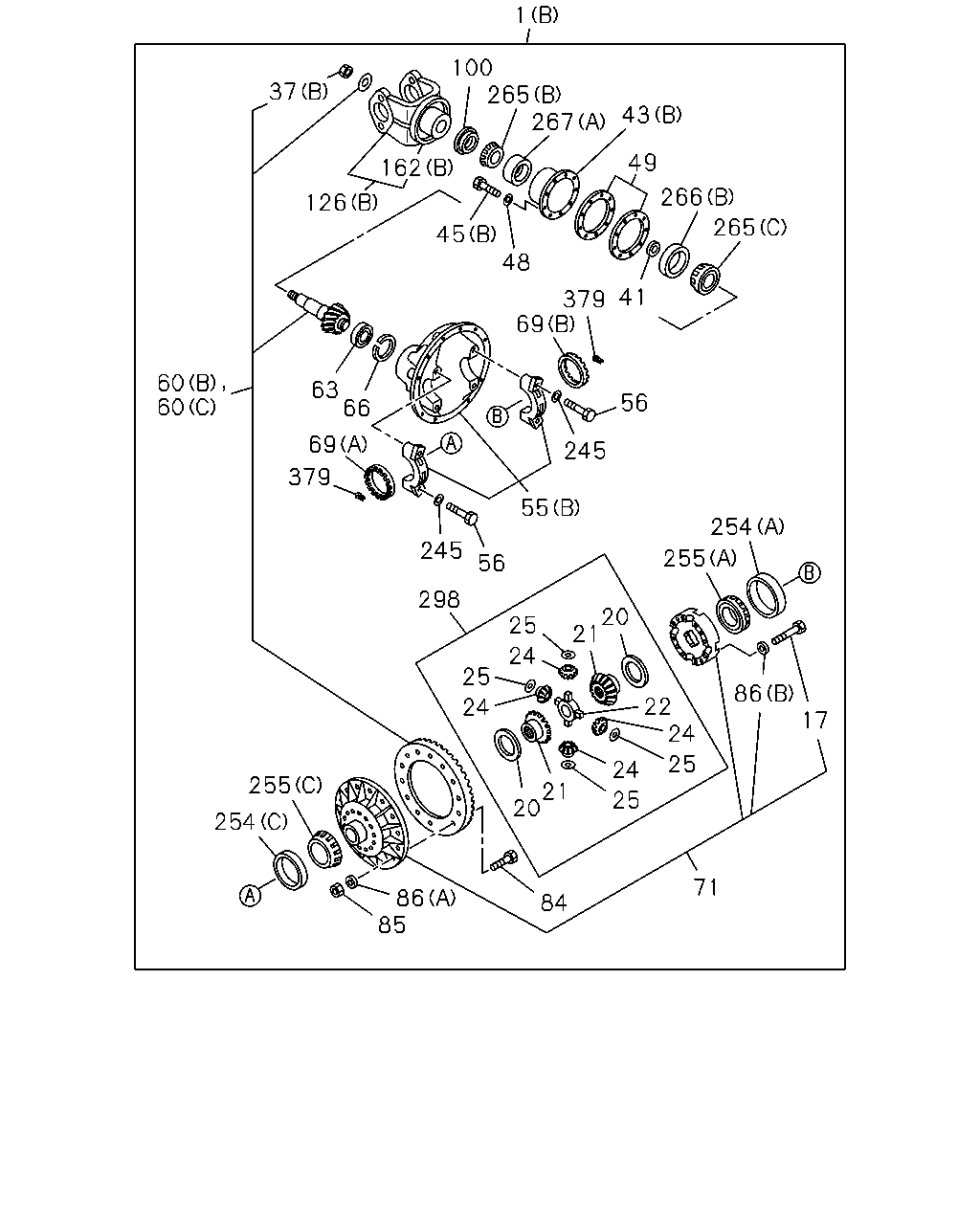

çizim 112165
1 100 265 267 37 43 49 162 266 126 265 45 48 41 379 69 60 60 63 66 56 69 245 379 55 254 245 255 56 298 20 21 25 24 25 86 17 22 24 24 25 24 255 21 20 25 254 71 86 85 84
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41003-352-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 43/7 		1-41003-357-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 45/7 		1-41003-315-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 45/7 		1-41003-316-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 41/6 		1-41003-353-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 41/6 		1-41003-358-0 01 1 0710- ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0710- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0710- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 0710-0710 ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0710- ● ● ●
48 WASHER; LK,FINAL PINION 1-41329-034-0 08 1 0710- ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-090-0 01 1 0710- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0710- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-592-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-597-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-733-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-734-0 01 1 0710- ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0710- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-185-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710- ● ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0710- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710- ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0710- ● ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710- ● ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-190-0 01 1 0710- ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710- ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-051-0 02 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●

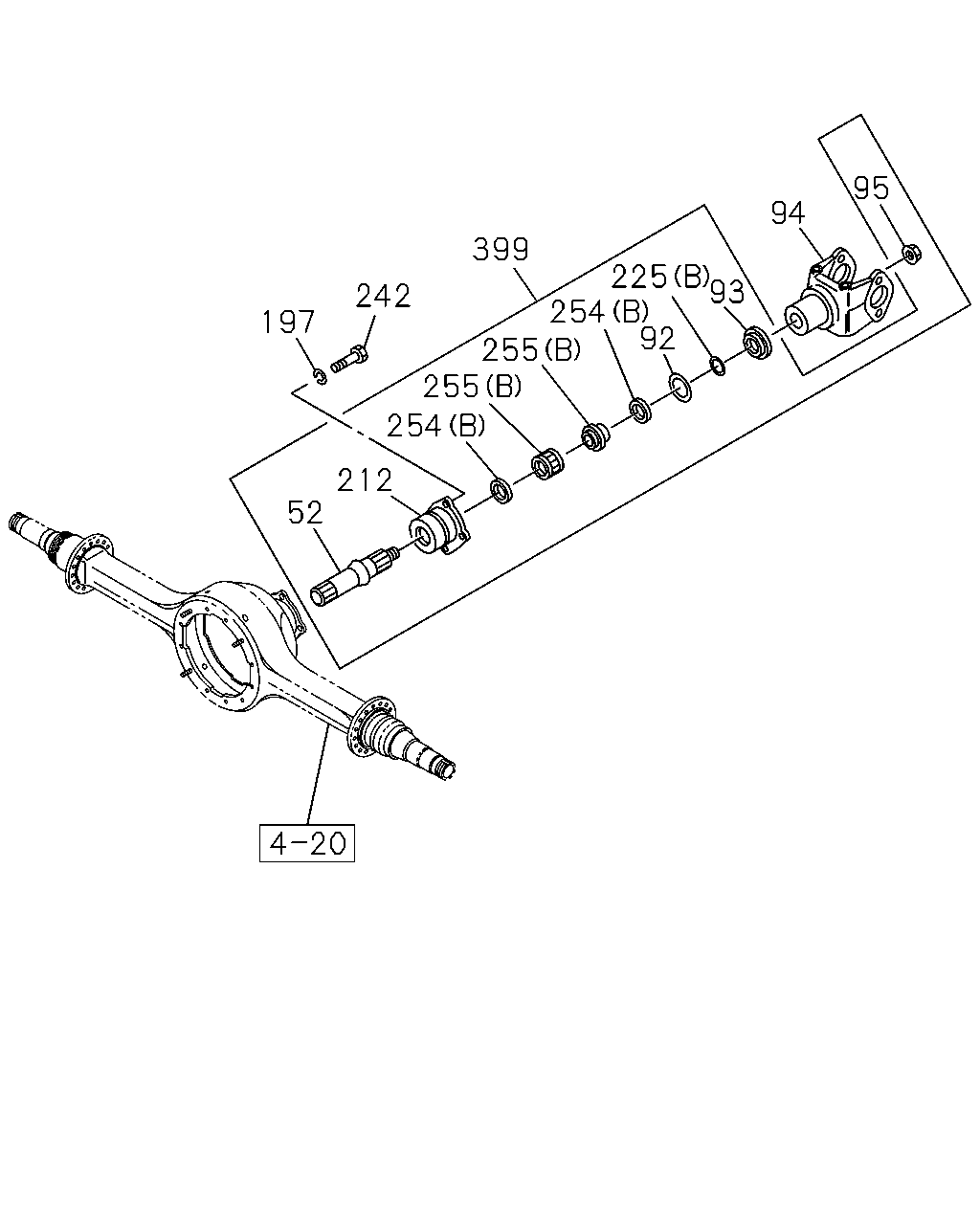

çizim 112168
95 94 399 225 93 254 92 255 255 242 197 254 212 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 SHAFT; OUTPUT 1-41343-025-0 01 1 0710- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 0710- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-191-0 01 1 0710- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 0710- ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0710- ● ● ●
197 COVER; HELICAL GEAR CASE 1-41329-037-0 04 1 0710- ● ● ●
212 COVER 1-41519-049-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0710- ● ● ●
242 BOLT; COVER 1-42119-226-0 04 1 0710- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-051-0 02 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 0710- ● ● ●

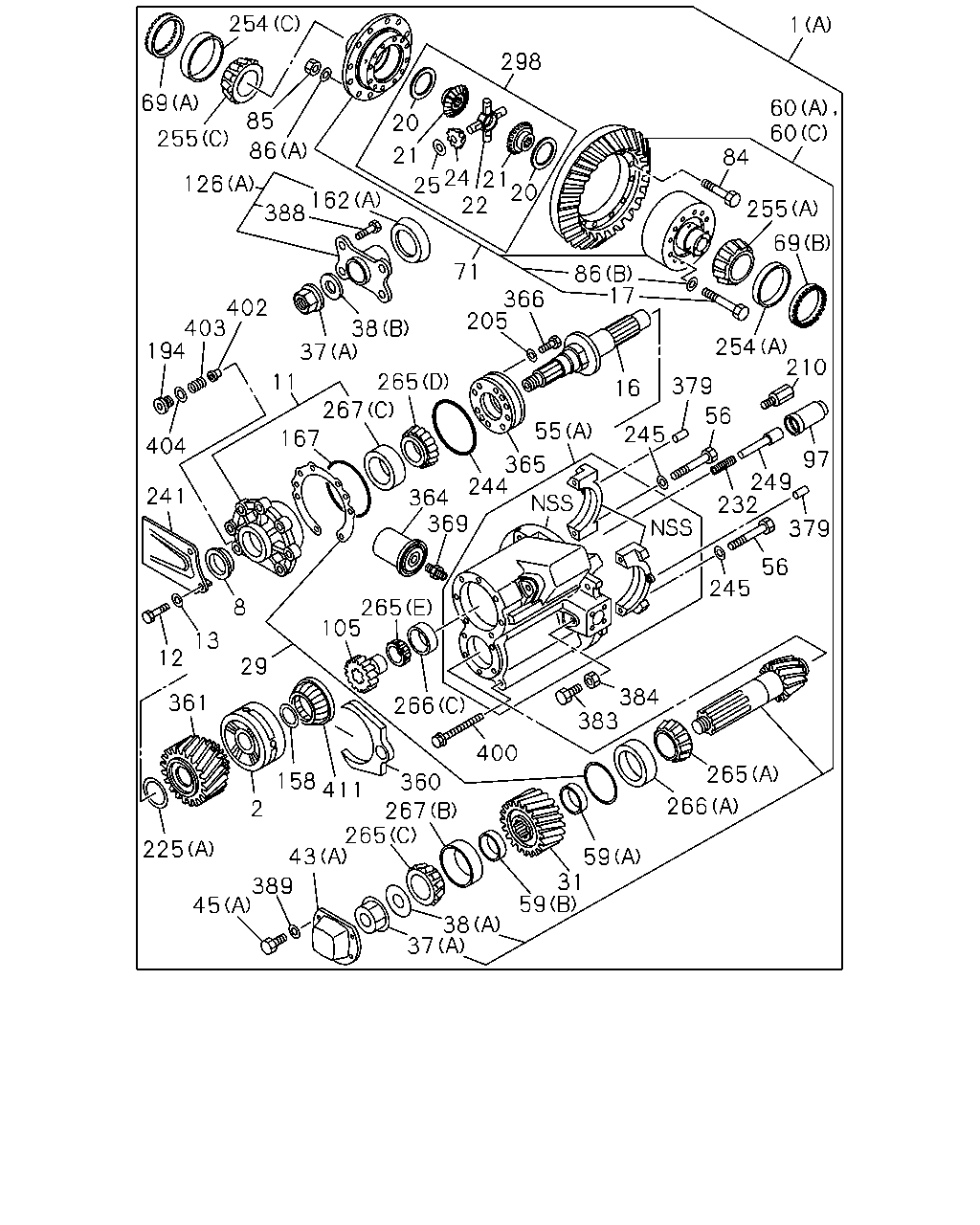

çizim 112181
1 60 60 255 84 69 254 210 97 249 232 379 56 245 384 383 265 266 59 31 59 38 37 265 43 389 45 225 2 411 158 29 105 265 369 364 365 55 16 244 379 245 86 366 205 265 267 167 11 37 38 71 22 21 20 298 20 21 24 25 8 13 12 361 241 404 194 403 402 388 86 85 255 69 126 162 254 17 56 400 360 267 266
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41003-352-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 43/7 		1-41003-357-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 45/7 		1-41003-315-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 45/7 		1-41003-316-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 41/6 		1-41003-353-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 41/6 		1-41003-358-0 01 1 0710- ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 0710- ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-190-0 01 1 0710- ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 0710- ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 0710- ● ● ●
13 WASHER; COVER TO CASE 1-41329-084-0 07 1 0710- ● ● ●
16 SHAFT ASM; INPUT 1-41341-032-0 01 1 0710- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
29 SHIM; BRG RET 1-41154-091-0 02 1 0710- ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-423-0 01 1 0710- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0710- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0710- ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 0710- ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0710- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0710- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 0710- ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 0710- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-592-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-597-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-733-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-734-0 01 1 0710- ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0710- ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-301-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710- ● ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0710- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710- ● ●
158 RING; SNAP 1-41519-043-0 01 1 0710- ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0710- ● ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-161-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710- ● ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-190-0 01 1 0710- ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710- ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0710- ● ● ●
194 PLUG 1-41119-077-0 01 1 0710-0710 ●
194 PLUG
ALLISON MD3560P A/T(Y3B) 		1-41119-077-0 02 1 0710-0710 ●
194 PLUG 1-41119-077-0 02 1 0710-0710 ●
194 PLUG 1-41119-077-0 01 1 0710- ● ● ●
194 PLUG 1-41119-077-0 01 1 0710- ● ● ●
194 PLUG 1-41329-077-0 01 1 0710- ● ● ●
205 WASHER; PL 1-41329-016-0 06 1 0710- ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 0710-0710 ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0710- ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0710- ● ● ●
241 COVER; SHIFT HSG 1-41329-080-0 01 1 0710- ● ● ●
244 GASKET; COVER 1-41349-155-0 01 1 0710- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-051-0 02 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 0710- ● ● ●
361 GEAR; DRIVE 1-41251-423-0 01 1 0710- ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 0710- ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 0710- ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 0710- ● ● ●
369 PLUG; STRAINER 1-41389-020-0 01 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0710- ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0710- ● ● ●
388 BOLT; COUPLING
ALLISON MD3560P A/T(Y3B) 		1-37249-160-0 04 1 0710-0710 ●
388 BOLT; COUPLING 1-37249-160-0 04 1 0710-0710 ●
388 BOLT; COUPLING
ALLISON MD3560P A/T(Y3B) 		1-37249-160-0 04 1 0710- ● ●
388 BOLT; COUPLING
ZF9S1110 M/T(Y5E) 		1-37249-204-0 04 1 0710-0710 ●
388 BOLT; COUPLING 1-37249-204-0 04 1 0710- ●
388 BOLT; COUPLING
ZF9S1110 M/T(Y5E) 		1-37249-204-0 04 1 0710- ● ●
389 WASHER; FINAL PINION CAGE 1-41329-069-0 05 1 0710- ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 0710- ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 0710- ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 0710- ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 0710- ● ● ●
411 SLEEVE; CLU 1-41519-082-0 01 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
