Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11426 - FVZ(AUST)EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶
4-20 — REAR AXLE CASE AND SHAFT
(#41607) — 494 parça
Tümü
A - FGY5MV
B - FGZ5MV
◀

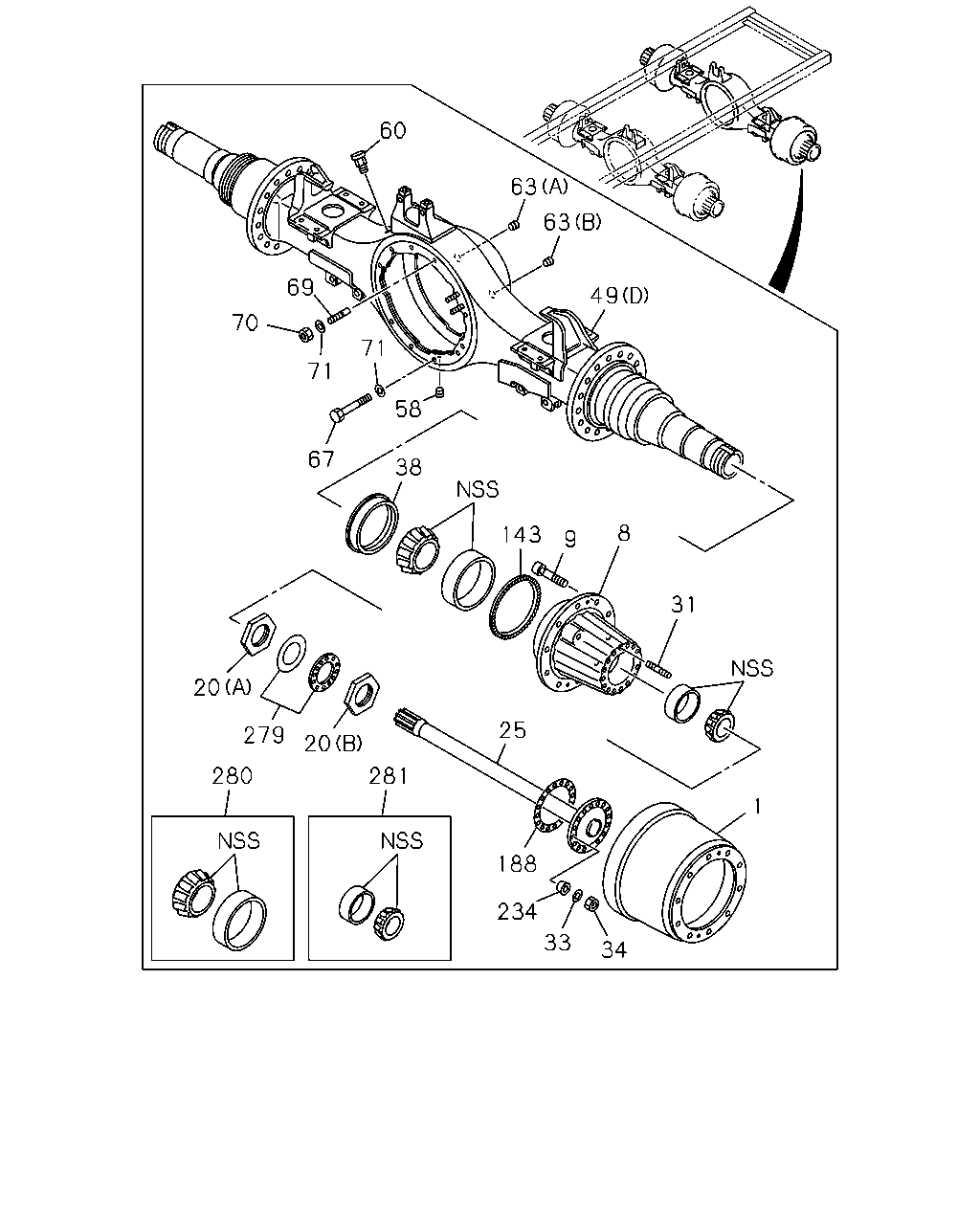

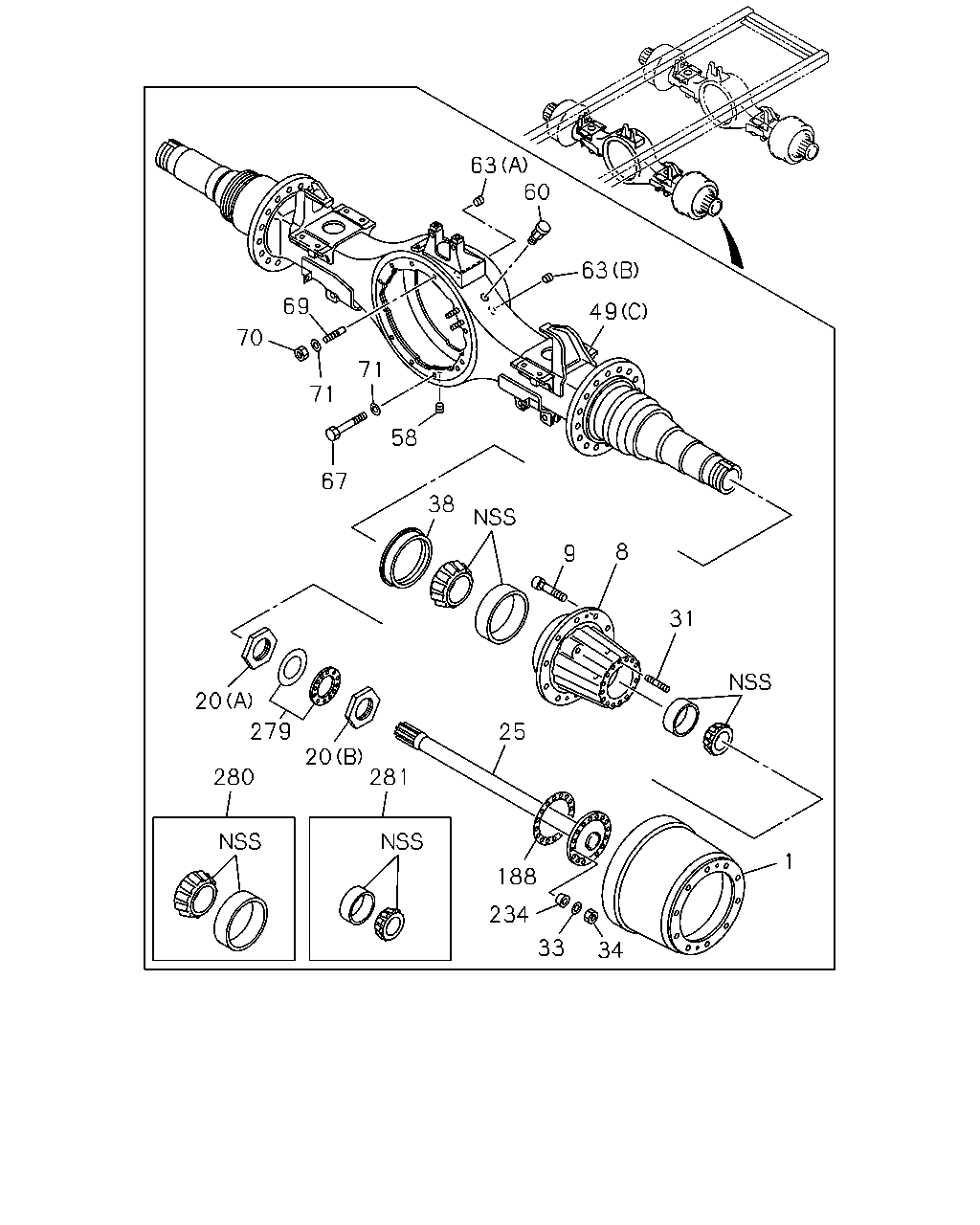

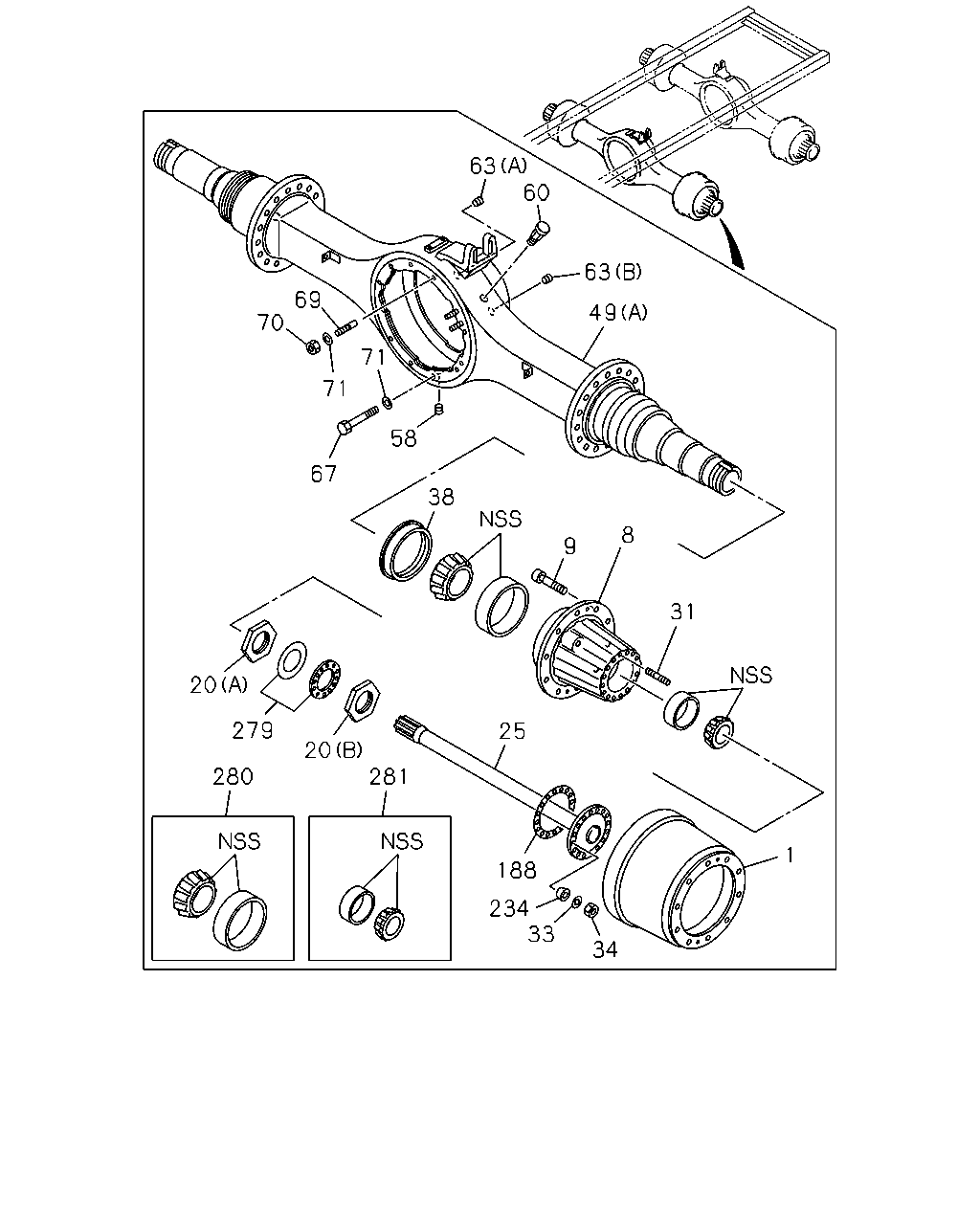

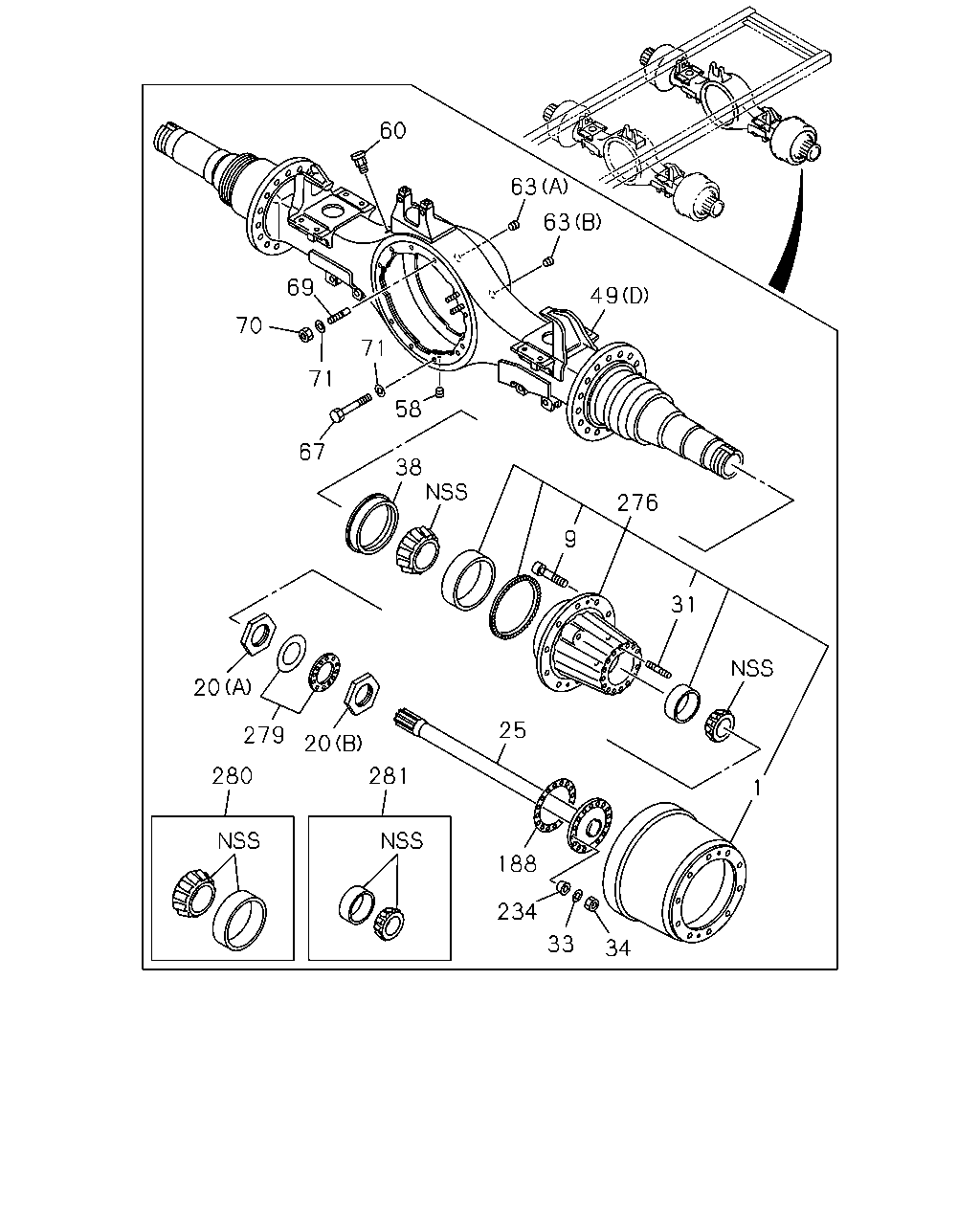

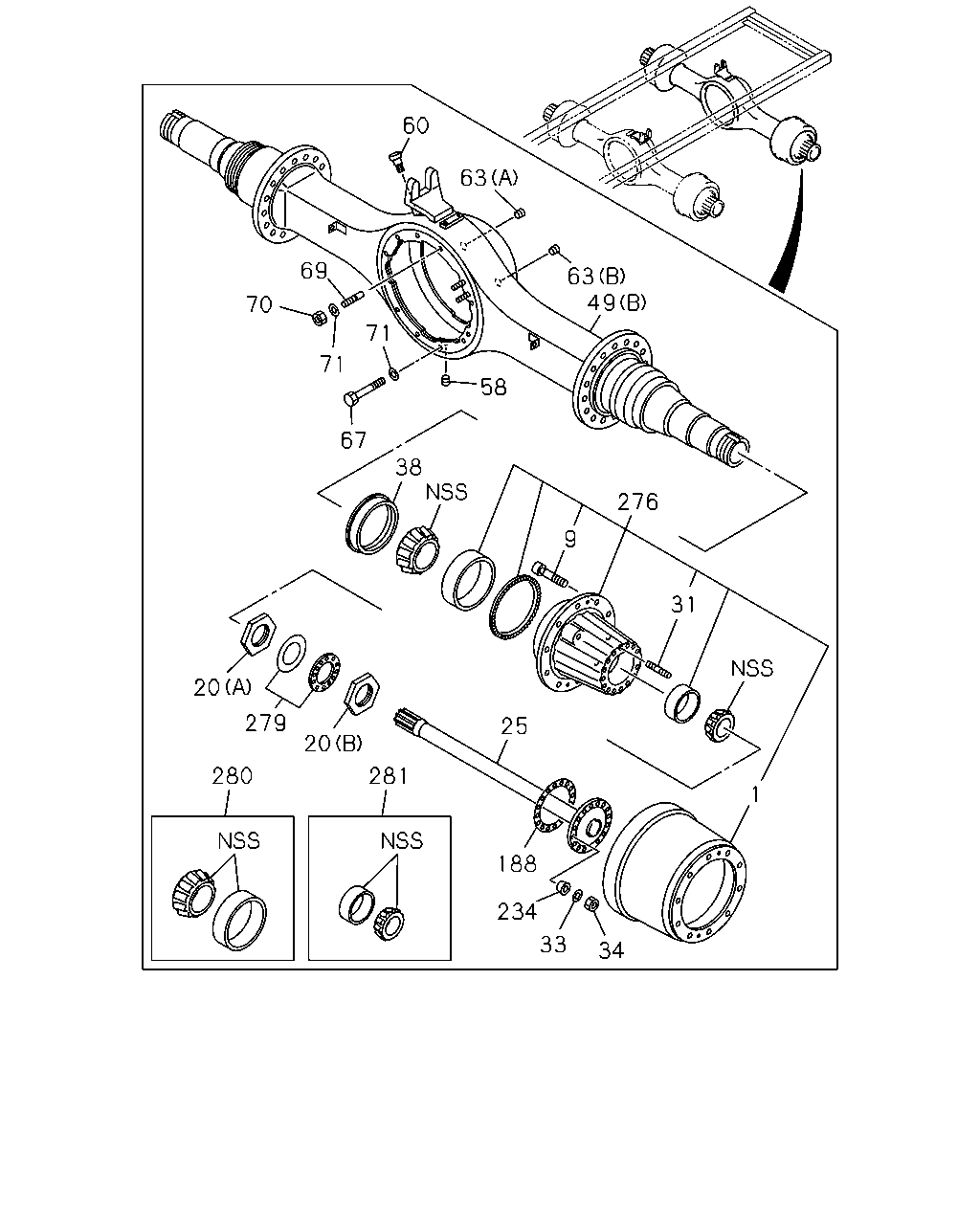

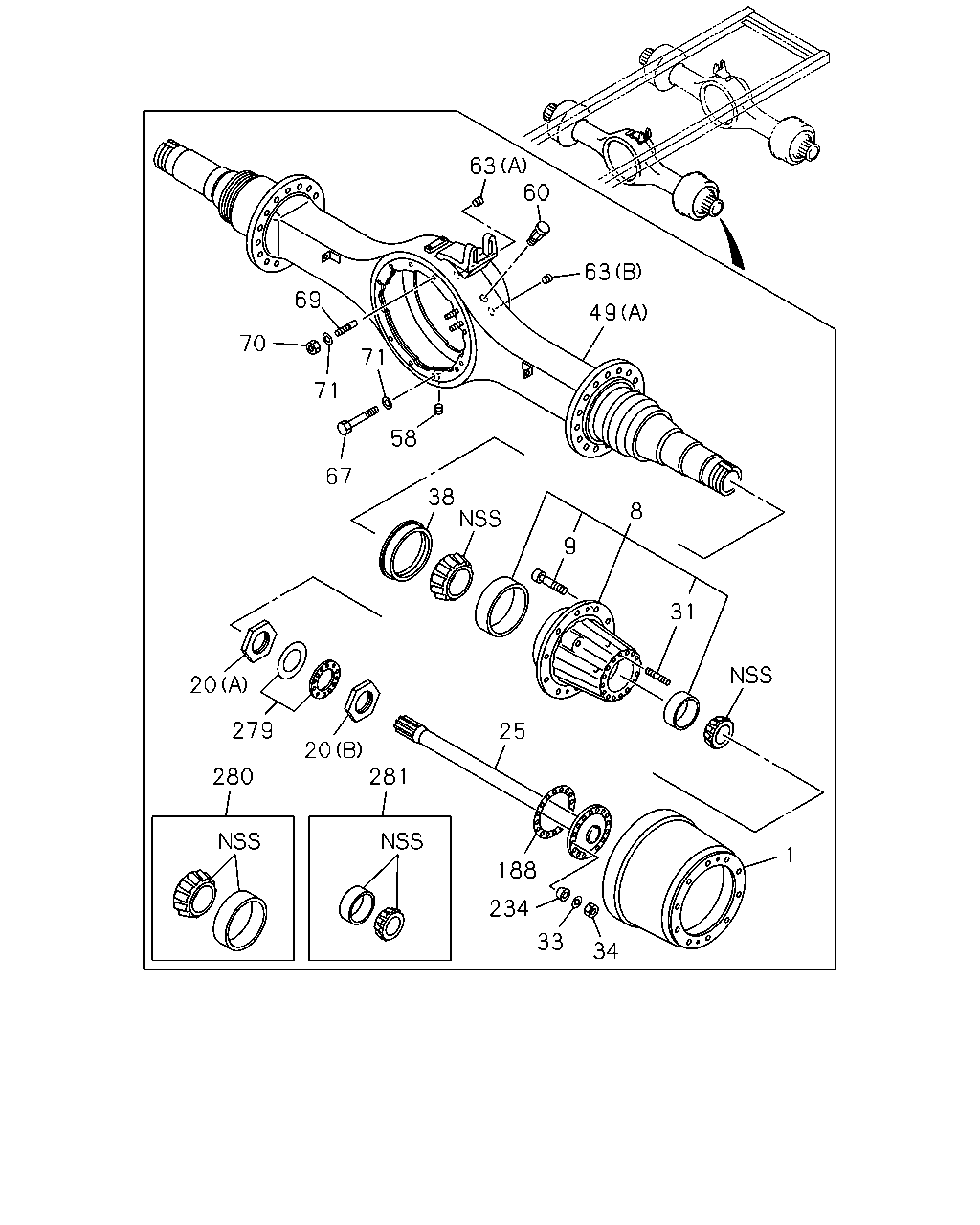

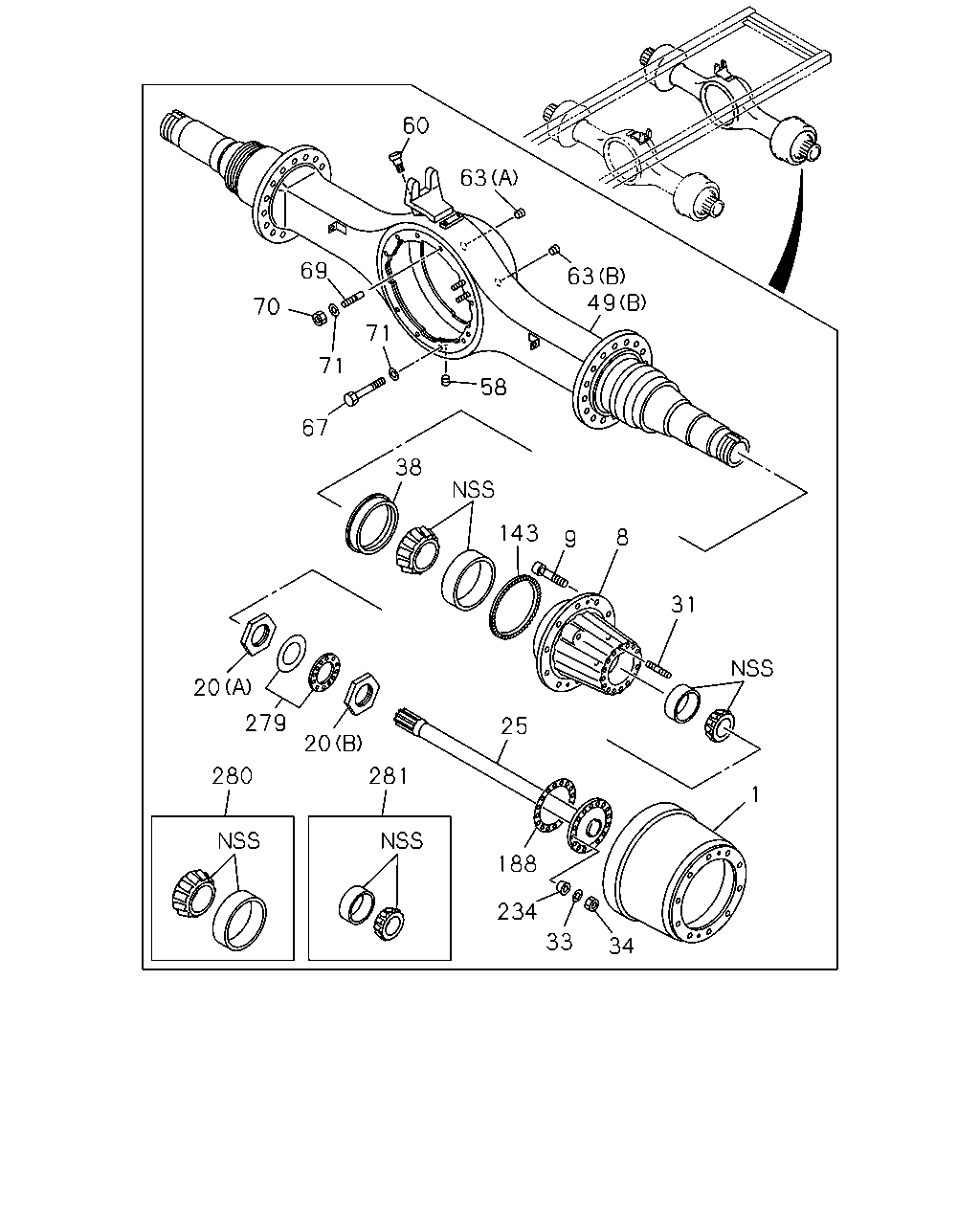

[420A] AIR SUS;REARWARD '12/5- (63 parça)
[420A] AIR SUS;REARWARD -'12/4 (60 parça)
[420A] AIR SUS;FORWARD -'12/4 (62 parça)
[420A] AIR SUS;FORWARD '12/5- (62 parça)
[420A] LEAF SUS;FORWARD -'12/4 (62 parça)
[420A] LEAF SUS;REARWARD -'12/4 (60 parça)
[420A] LEAF SUS;REARWARD '12/5- (63 parça)
[420A] LEAF SUS;FORWARD '12/5- (62 parça)
▶
1
34
33
234
188
25
281
280
20
279
20
31
8
9
143
38
67
71
70
69
71
58
49
63
63
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-155-0
02
1
0710-1204
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
143
RING; EXCITER
1-42319-224-0
02
1
1205-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
1
34
33
234
188
25
281
20
280
279
20
31
276
9
38
67
71
70
69
71
58
49
63
63
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
276
HUB & DRUM ASM
1-42311-158-0
02
1
0710-1204
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
49
63
60
63
69
70
71
71
58
67
38
8
9
31
1
25
34
33
188
234
281
20
279
20
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-155-0
02
1
0710-1204
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
1
34
33
234
188
25
281
20
280
279
20
31
8
9
38
67
58
71
71
70
69
49
63
60
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-155-0
02
1
0710-1204
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
63
60
63
49
8
31
1
34
33
234
188
281
20
279
20
38
67
58
71
71
70
69
9
25
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-155-0
02
1
0710-1204
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
63
63
49
60
69
71
71
70
67
58
38
9
276
31
1
34
33
234
188
25
281
20
279
20
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
276
HUB & DRUM ASM
1-42311-158-0
02
1
0710-1204
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
49
63
63
60
69
71
71
70
67
38
58
143
9
8
31
1
34
33
234
188
25
281
20
279
280
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-155-0
02
1
0710-1204
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
143
RING; EXCITER
1-42319-224-0
02
1
1205-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
63
60
63
49
69
71
71
70
67
58
38
9
8
31
1
34
33
234
25
281
20
279
20
280
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-419-0
02
1
0710-1204
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
1
DRUM; BRK,RR
1-42315-422-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-155-0
02
1
0710-1204
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1205-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD RH,REARWARD LH
1-42171-548-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
25
SHAFT; AXLE,RR
FORWARD LH,REARWARD RH
1-42171-585-0
01
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0710-
●
●
49
CASE; RR AXLE
(A)
1-42190-739-0
01
1
0710-1205
●
49
CASE; RR AXLE
(A)
1-42190-750-0
01
1
1206-
●
49
CASE; RR AXLE
(B)
1-42190-740-0
01
1
0710-1306
●
49
CASE; RR AXLE
(B)
1-42190-751-0
01
1
1307-
●
49
CASE; RR AXLE
(C)
1-42190-737-0
01
1
0710-
●
49
CASE; RR AXLE
(D)
1-42190-738-0
01
1
0710-1306
●
49
CASE; RR AXLE
(D)
1-42190-745-0
01
1
1307-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
0710-
●
●
60
BREATHER; RR AXLE CASE
1-09893-028-0
02
1
0710-1312
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
02
1
1401-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
14
1
0710-0710
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
0710-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
06
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
04
1
0710-
●
●
69
STUD; AXLE CASE
L=69.85
1-42119-134-0
03
1
0710-
●
●
69
STUD; AXLE CASE
L=88.14
1-42119-133-0
03
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
0710-
●
●
70
NUT; CARRIER
1-42179-005-0
06
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
04
1
0710-0710
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
04
1
0710-0710
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
0710-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
