Sayfa 4-01 - Isuzu EPC

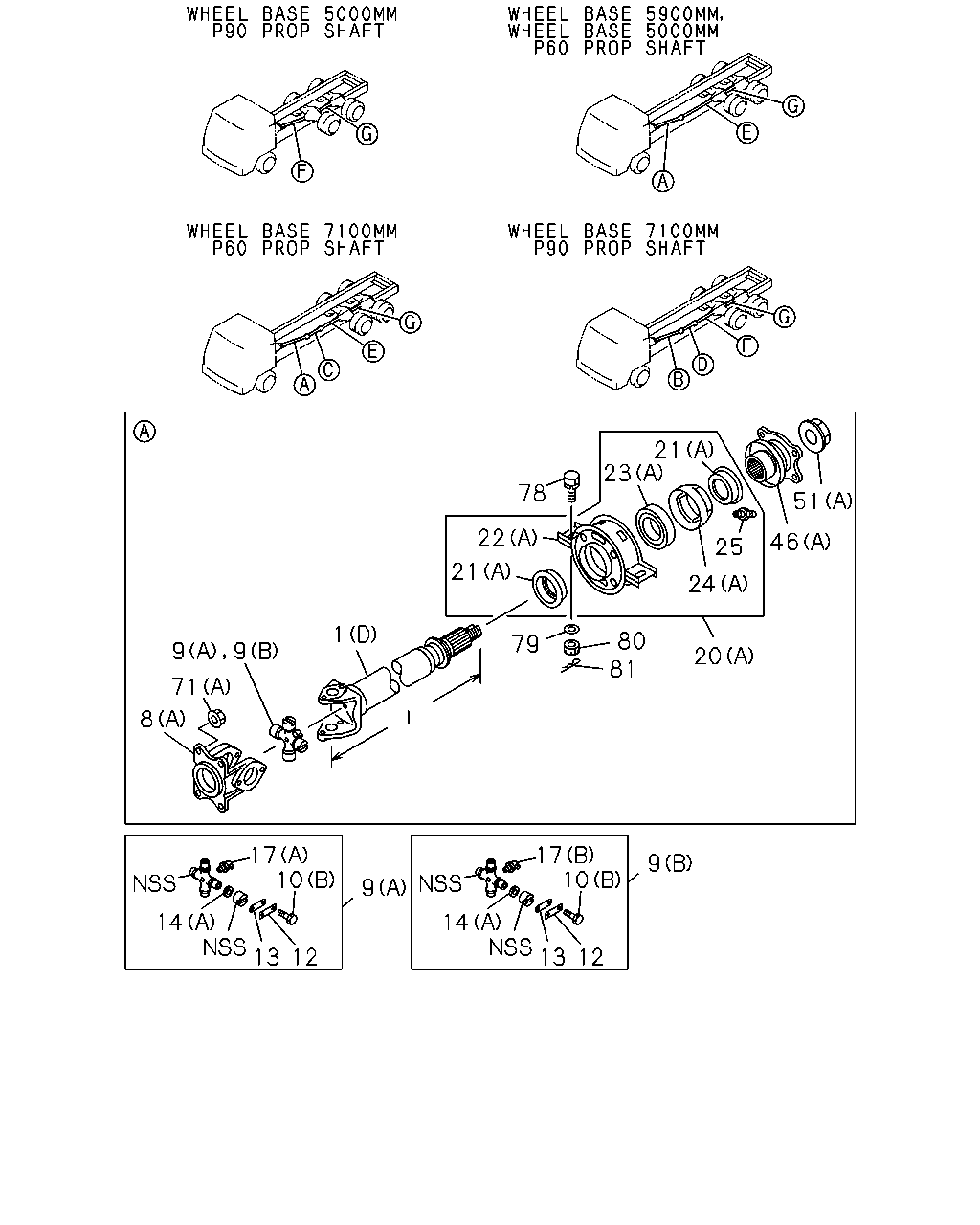

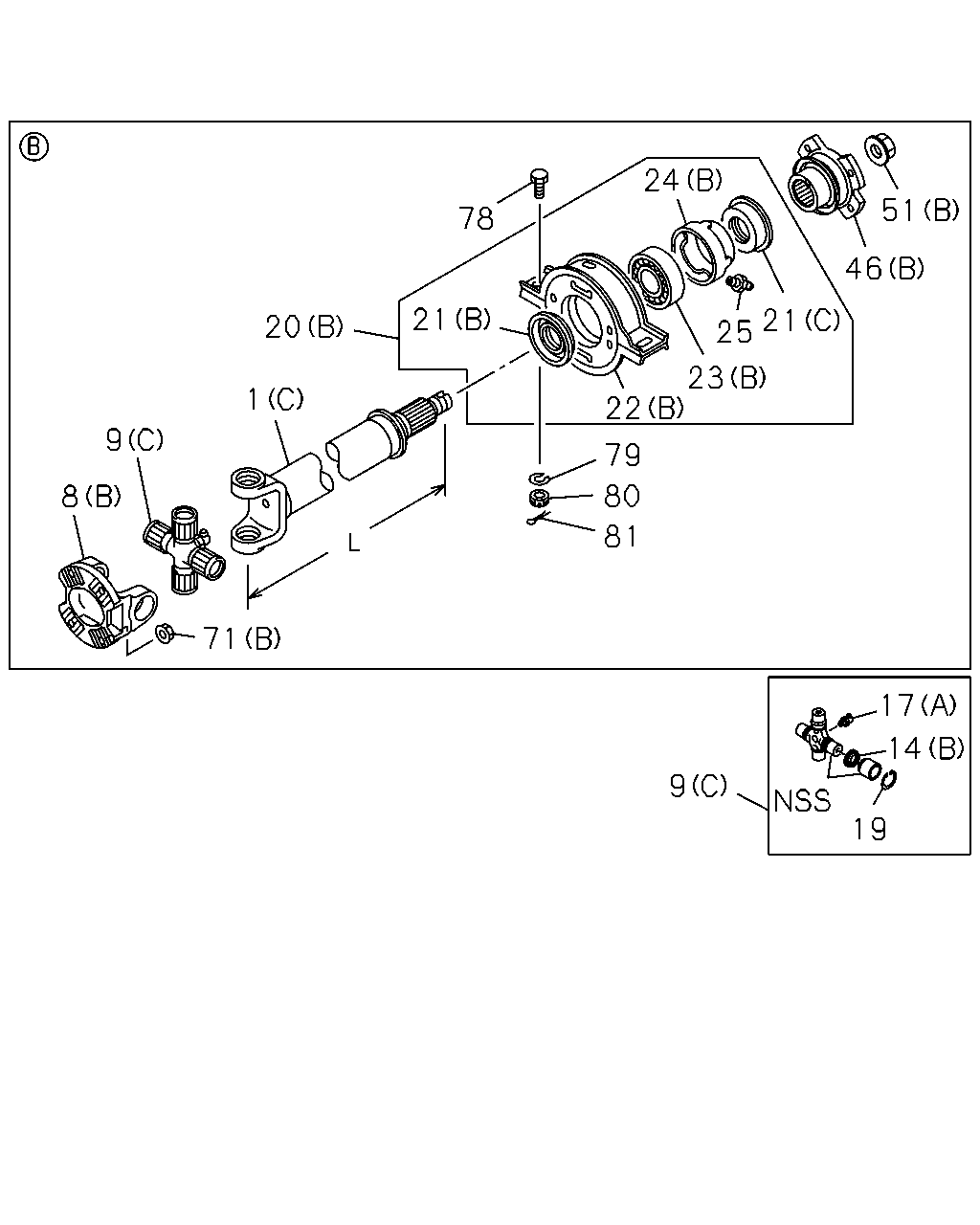

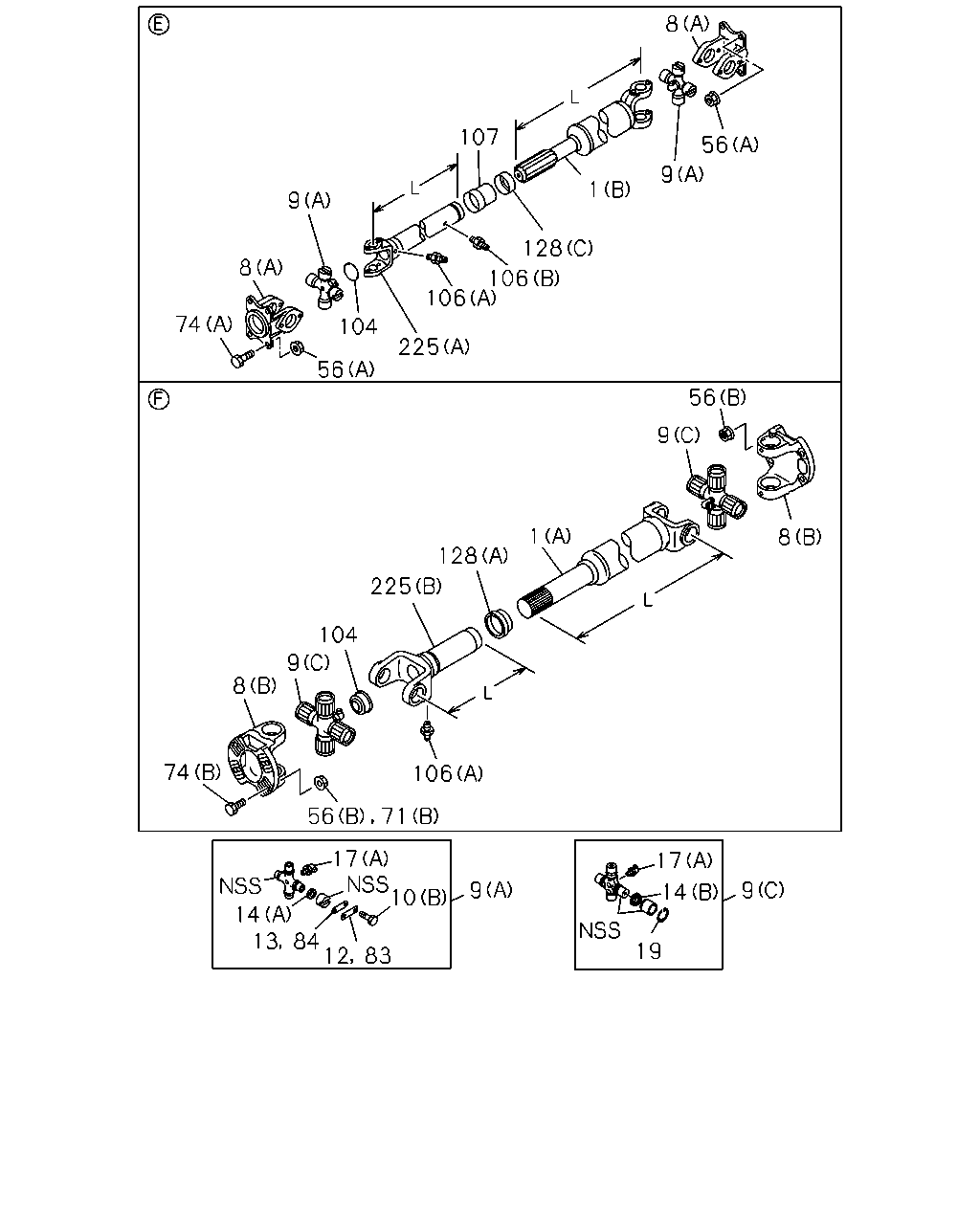

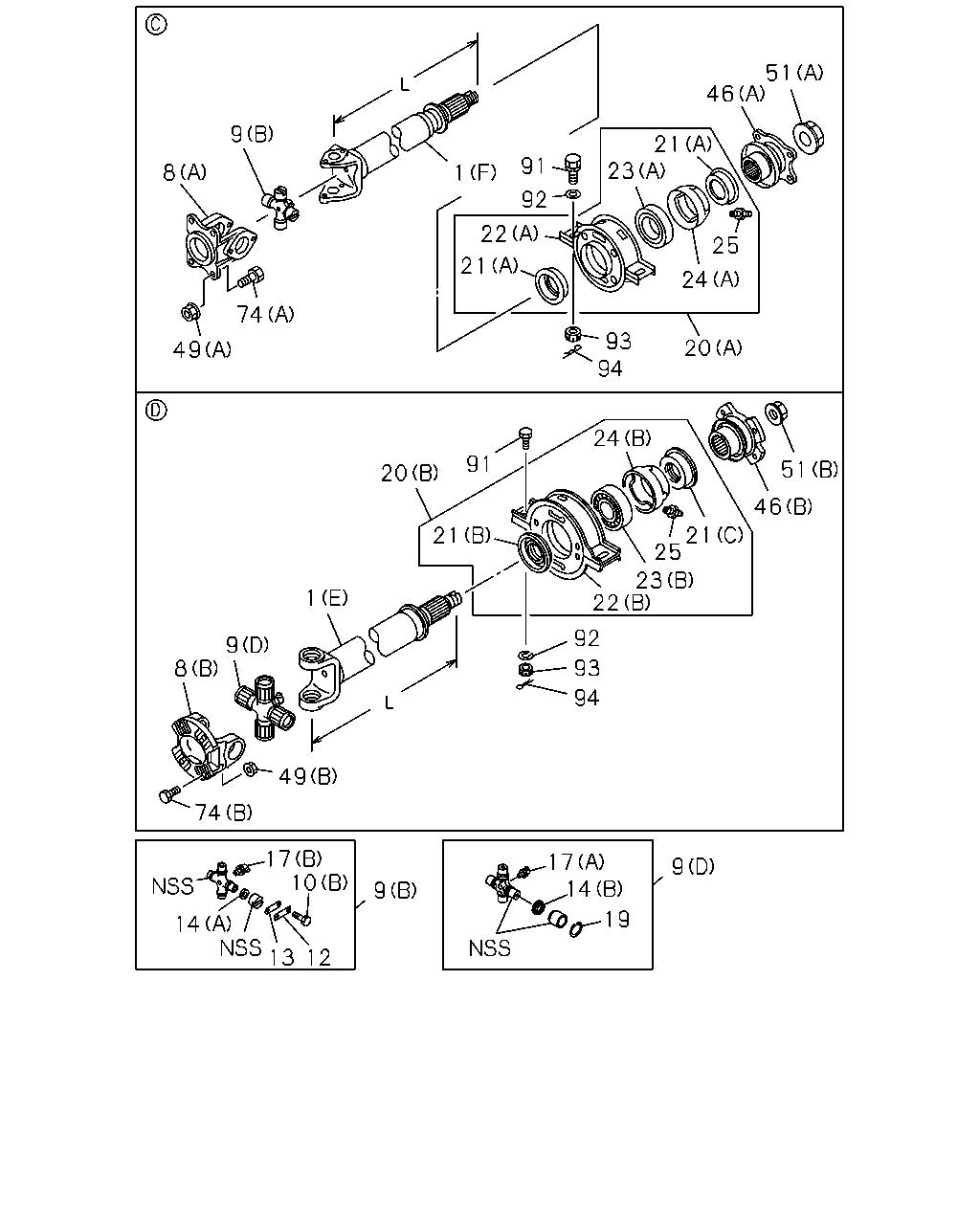

4-01 — PROPELLER SHAFT (#41604) — 502 parça

24 51 78 46 21 21 25 20 23 22 1 9 79 80 8 81 71 17 14 9 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98091-300-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	8-98091-296-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-0	01	1	0710-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	0710-	●	●	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1019	8-98091-293-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=1164	8-98091-322-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	0904-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	0904-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-0	01	1	0710-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0710-0903	●		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0904-	●	●	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0710-0903			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0904-		●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0710-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (D)	1-37300-111-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-090-0	02	1	0710-	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	02	1	0710-	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0710-0903	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0904-	●	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	AR	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0710-0903			●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0904-		●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	AR	1	0710-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0710-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0710-0903	●		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0904-	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0710-0903			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0904-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0710-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903			●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-		●	●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903	●		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	04	1	0710-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	12	1	0710-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	08	1	0710-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	0710-	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	0710-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0710-0903	●		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0710-0903	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0904-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0904-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0710-0903	●		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0710-0903	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0904-	●	●	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0904-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	0710-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	0710-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0710-0903	●		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0710-0903	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0904-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0904-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	0710-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	0710-	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0710-0903	●		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0710-0903	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0904-	●	●	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0904-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	0710-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	0710-	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0710-0903	●		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0710-0903	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0904-	●	●	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0904-	●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903	●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	0904-		●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0904-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0904-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	0710-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	0710-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0710-0903	●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0710-0903	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0904-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0904-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	0710-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	0710-	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0710-0903	●		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0710-0903	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0904-	●	●	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0904-	●
71	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	0710-	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0710-0710	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	1-09440-048-0	04	1	0710-0805	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0806-	●	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0710-	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0710-	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0710-1204	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0710-	●	●	●

51 46 9 21 23 91 8 1 92 22 25 21 24 74 93 94 20 49 24 91 51 20 46 21 25 21 23 22 1 92 9 8 93 94 49 74 17 10 17 14 9 9 19 14 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98091-300-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	8-98091-296-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-0	01	1	0710-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	0710-	●	●	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1019	8-98091-293-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=1164	8-98091-322-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	0904-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	0904-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-0	01	1	0710-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0710-0903	●		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0904-	●	●	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0710-0903			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0904-		●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0710-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (D)	1-37300-111-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-090-0	02	1	0710-	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	02	1	0710-	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0710-0903	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0904-	●	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	AR	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0710-0903			●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0904-		●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	AR	1	0710-	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	24	1	0710-	●
10	BOLT; UJT (A)	1-09087-046-0	08	1	0710-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0710-0903	●		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0904-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0710-0903			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0904-		●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	08	1	0710-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0710-0903	●		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0710-0903			●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0904-	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0904-		●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	08	1	0710-	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0710-0903	●		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0710-0903			●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0904-	●	●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0904-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0710-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0710-0903	●		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0904-	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0710-0903			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0904-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0710-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903			●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-		●	●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903	●		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	04	1	0710-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	12	1	0710-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	08	1	0710-		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	0710-	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	0710-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0710-0903	●		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0710-0903	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0904-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0904-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0710-0903	●		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0710-0903	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0904-	●	●	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0904-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	0710-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	0710-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0710-0903	●		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0710-0903	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0904-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0904-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	0710-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	0710-	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0710-0903	●		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0710-0903	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0904-	●	●	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0904-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	0710-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	0710-	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0710-0903	●		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0710-0903	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0904-	●	●	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0904-	●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903	●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	0904-		●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0904-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0904-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	0710-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	0710-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0710-0903	●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0710-0903	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0904-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0904-	●
49	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	0710-	●
49	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0710-0710	●
49	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	1-09440-048-0	04	1	0710-0805	●
49	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0806-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	0710-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	0710-	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0710-0903	●		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0710-0903	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0904-	●	●	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0904-	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	0710-0810	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	0710-0810	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	08	1	0710-0810	●	●	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	0811-	●	●	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	0811-	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	08	1	0710-0810	●	●	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	0811-	●	●	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	0811-	●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	0710-	●		●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	0710-	●		●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	0710-1204	●		●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-	●		●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	0710-	●		●

8 107 56 9 1 9 128 8 106 106 74 104 225 56 56 9 1 8 128 225 104 9 8 74 106 17 10 17 9 9 14 14 12 19 83 56 71 13 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98091-300-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	8-98091-296-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-0	01	1	0710-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	0710-	●	●	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1019	8-98091-293-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=1164	8-98091-322-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	0904-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	0904-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-0	01	1	0710-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0710-0903	●		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0904-	●	●	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0710-0903			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0904-		●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0710-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (D)	1-37300-111-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-090-0	02	1	0710-	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	02	1	0710-	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0710-0903	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0904-	●	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	AR	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0710-0903			●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0904-		●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	AR	1	0710-	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	24	1	0710-	●
10	BOLT; UJT (A)	1-09087-046-0	08	1	0710-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0710-0903	●		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0904-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0710-0903			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0904-		●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	08	1	0710-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0710-0903	●		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0710-0903			●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0904-	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0904-		●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	08	1	0710-	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0710-0903	●		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0710-0903			●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0904-	●	●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0904-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0710-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0710-0903	●		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0904-	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0710-0903			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0904-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0710-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903			●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-		●	●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903	●		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-	●		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	04	1	0710-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	12	1	0710-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST P90 PROP SHAFT(C5T) T=2.2	1-09587-102-1	08	1	0710-		●
56	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	08	1	0710-	●	●	●
56	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	08	1	0710-0710	●	●	●
56	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	1-09440-048-0	08	1	0710-0805	●	●	●
56	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	08	1	0806-	●	●	●
71	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	0710-	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0710-0710	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	1-09440-048-0	04	1	0710-0805	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0806-	●	●	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	0710-0810	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	0710-0810	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	08	1	0710-0810	●	●	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	0811-	●	●	●
74	BOLT; YOKE,TRANS P60 PROP SHAFT(C2M) (A) M16X48	1-09000-383-0	04	1	0811-	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	08	1	0710-0810	●	●	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	0811-	●	●	●
74	BOLT; YOKE,TRANS P90 PROP SHAFT(C5T) (B) M14X50	1-09000-645-0	04	1	0811-	●
83	PLATE; LK,UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0710-0903	●		●
83	PLATE; LK,UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0904-	●	●	●
84	COVER; UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0710-0903	●		●
84	COVER; UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0904-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	0710-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903	●		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT	1-09380-006-0	01	1	0904-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0710-	●	●	●
107	COVER; RET,SLEEVE P60 PROP SHAFT(C2M)	1-37249-137-1	01	1	0710-0903	●		●
107	COVER; RET,SLEEVE P60 PROP SHAFT(C2M)	1-37249-137-1	01	1	0904-	●	●	●
128	SEAL; SLEEVE (B)	1-37247-017-0	01	1	0710-	●	●	●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M) (C)	1-37247-021-0	01	1	0710-0903	●		●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M) (C)	1-37247-021-0	01	1	0904-	●	●	●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-019-0	01	1	0710-	●	●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT(C2M) (A) L=332	1-37241-109-1	01	1	0710-0903	●		●
225	YOKE; SLEEVE,PROP SHAFT P60 PROP SHAFT(C2M) (A) L=332	1-37241-109-1	01	1	0904-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT(C5T) (B) L=330	1-37241-124-0	01	1	0710-	●	●

21 23 51 78 22 46 25 21 24 1 80 81 79 9 9 20 71 8 17 10 17 10 9 9 14 13 14 13 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98091-300-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	8-98091-296-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-0	01	1	0710-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	0710-	●	●	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1019	8-98091-293-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=1164	8-98091-322-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	0904-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	0904-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-0	01	1	0710-		●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	01	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	03	1	0710-	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0710-0903	●		●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	01	1	0904-	●	●	●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0710-0903			●
8	YOKE; FLANGE,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37211-072-1	02	1	0904-		●	●
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT(C5T) (B)	1-37211-079-1	02	1	0710-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (D)	1-37300-111-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-090-0	02	1	0710-	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	02	1	0710-	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0710-0903	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0904-	●	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	AR	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0710-0903			●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0904-		●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	AR	1	0710-	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	24	1	0710-	●
10	BOLT; UJT (A)	1-09087-046-0	08	1	0710-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0710-0903	●		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0904-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0710-0903			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0904-		●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	08	1	0710-	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0710-0903	●		●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0710-0903			●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0904-	●	●	●
12	PLATE; LK,FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M)	1-37356-010-0	04	1	0904-		●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	08	1	0710-	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0710-0903	●		●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0710-0903			●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0904-	●	●	●
13	COVER; FRT UJT,PROP SHAFT P60 PROP SHAFT(C2M) T=6	1-37355-022-0	04	1	0904-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	04	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	12	1	0710-	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	12	1	0710-	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0710-0903	●		●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	04	1	0904-	●	●	●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0710-0903			●
14	COVER; DUST,SPIDER P60 PROP SHAFT(C2M) (A)	9-37352-023-0	08	1	0904-		●	●
14	COVER; DUST,SPIDER P90 PROP SHAFT(C5T) (B)	1-37249-131-0	08	1	0710-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0710-	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903			●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0710-0903	●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-		●	●
17	NIPPLE; GREASE,PROP SHAFT (B) 90 PT1/8 ELBOW	0-90301-610-0	01	1	0904-	●
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0710-0903	●		●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-		●
17	NIPPLE; GREASE,PROP SHAFT P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0904-	●		●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	0710-	●
20	BEARING ASM; CTR,PROP SHAFT P90 PROP SHAFT(C5T) (B) ID=60	1-37510-115-0	01	1	0710-	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0710-0903	●		●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0710-0903	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0904-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT P60 PROP SHAFT(C2M) (A)	1-37510-093-3	01	1	0904-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (B) D=120	1-09625-127-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P90 PROP SHAFT(C5T) (C)	1-09625-621-0	01	1	0710-	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0710-0903	●		●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0710-0903	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0904-	●	●	●
21	SEAL; OIL,CENTER BRG P60 PROP SHAFT(C2M) (A) D=120	1-09625-126-0	02	1	0904-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	0710-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37516-048-2	01	1	0710-	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0710-0903	●		●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0710-0903	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0904-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37516-047-2	01	1	0904-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	0710-	●
23	BEARING; CENTER,PROP SHAFT P90 PROP SHAFT(C5T) (B)	9-00090-256-0	01	1	0710-	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0710-0903	●		●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0710-0903	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0904-	●	●	●
23	BEARING; CENTER,PROP SHAFT P60 PROP SHAFT(C2M) (A)	9-00090-292-0	01	1	0904-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	0710-	●
24	RETAINER; CENTER BRG,1ST P90 PROP SHAFT(C5T) (B)	1-37529-109-0	01	1	0710-	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0710-0903	●		●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0710-0903	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0904-	●	●	●
24	RETAINER; CENTER BRG,1ST P60 PROP SHAFT(C2M) (A)	1-37529-039-0	01	1	0904-	●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0710-0903	●
25	NIPPLE; GREASE,CENTER BRG P60 PROP SHAFT(C2M) MT6 STRAIGHT	1-09380-006-0	01	1	0904-		●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0904-	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0904-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	0710-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P90 PROP SHAFT(C5T) (B)	1-37245-348-0	01	1	0710-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0710-0903	●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0710-0903	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0904-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST P60 PROP SHAFT(C2M) (A)	1-37245-283-1	01	1	0904-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	0710-	●
51	NUT; FLANGE,SPLINED P90 PROP SHAFT(C5T) (B) M39 FLANGE	1-09440-046-0	01	1	0710-	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0710-0903	●		●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0710-0903	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0904-	●	●	●
51	NUT; FLANGE,SPLINED P60 PROP SHAFT(C2M) (A) M33 FLANGE	1-09449-051-0	01	1	0904-	●
71	NUT; YOKE P60 PROP SHAFT(C2M) (A) M16 FLANGE	1-09449-065-0	04	1	0710-	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0710-0710	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	1-09440-048-0	04	1	0710-0805	●	●	●
71	NUT; YOKE P90 PROP SHAFT(C5T) (B) M14 FLANGE	8-97365-444-0	04	1	0806-	●	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0710-	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0710-	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0710-1204	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0710-	●	●	●

198 96 10 1 96 198 9 128 102 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1149	8-98091-300-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (C) L=1090	8-98092-523-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (F) L=1214	8-98091-296-0	01	1	0710-	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=919	8-98091-321-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (E) L=1210	8-98092-403-0	01	1	0710-	●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=944	8-98092-526-0	01	1	0710-	●
1	SHAFT; PROP (G) L=441	1-37124-191-0	01	1	0710-	●	●	●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=1019	8-98091-293-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=1164	8-98091-322-0	01	1	0710-			●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (D) L=644	8-98144-464-0	01	1	0904-		●
1	SHAFT; PROP P60 PROP SHAFT(C2M) (B) L=649	1-37124-842-0	01	1	0904-		●
1	SHAFT; PROP P90 PROP SHAFT(C5T) (A) L=1354	8-98092-531-0	01	1	0710-		●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (D)	1-37300-111-0	01	1	0710-	●
9	JOURNAL ASM; PROP SHAFT (E)	1-37300-090-0	02	1	0710-	●	●	●
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT(C5T) (C)	1-37300-110-0	02	1	0710-	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0710-0903	●		●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) END	1-37300-094-1	AR	1	0904-	●	●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (A) 1ST	1-37300-094-1	AR	1	0710-	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0710-0903			●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 2ND	1-37300-095-1	AR	1	0904-		●	●
9	JOURNAL ASM; PROP SHAFT P60 PROP SHAFT(C2M) (B) 1ST	1-37300-095-1	AR	1	0710-	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	24	1	0710-	●
10	BOLT; UJT (A)	1-09087-046-0	08	1	0710-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0710-0903	●		●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	08	1	0904-	●	●	●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0710-0903			●
10	BOLT; UJT P60 PROP SHAFT(C2M) (B) M10X20	0-20951-020-0	16	1	0904-		●	●
96	BOLT; PROP SHAFT	1-09088-006-0	08	1	0710-	●	●	●
102	YOKE; TRANSFER TO AXLE L=303.3	1-37241-094-0	01	1	0710-	●	●	●
128	SEAL; SLEEVE (B)	1-37247-017-0	01	1	0710-	●	●	●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M) (C)	1-37247-021-0	01	1	0710-0903	●		●
128	SEAL; SLEEVE P60 PROP SHAFT(C2M) (C)	1-37247-021-0	01	1	0904-	●	●	●
128	SEAL; SLEEVE P90 PROP SHAFT(C5T) (A)	1-37247-019-0	01	1	0710-	●	●
198	PLATE; PROP SHAFT	1-37319-009-0	04	1	0710-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
