◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#41603) — 295 parça

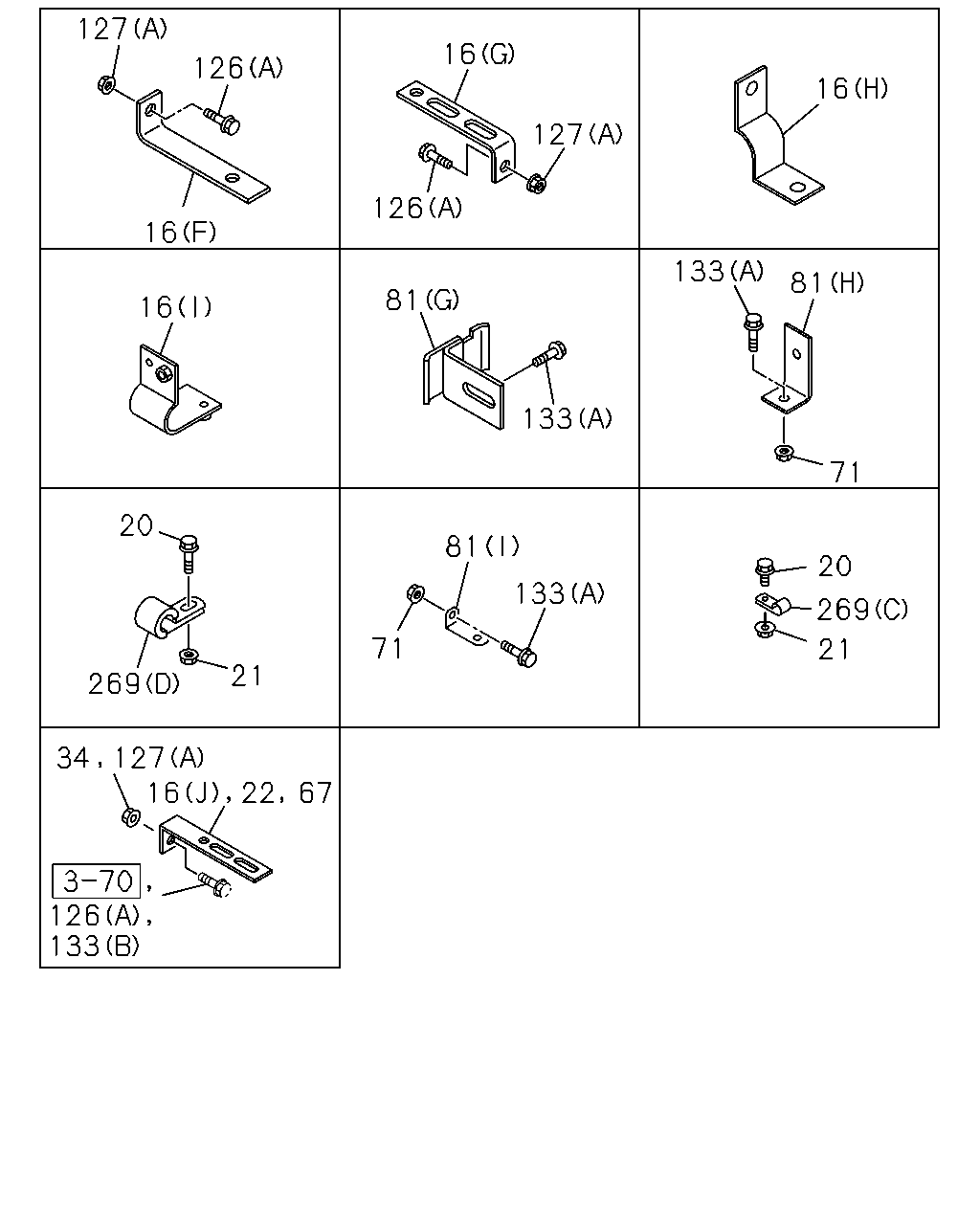

çizim 112145
127 16 126 16 127 126 16 133 81 81 16 133 71 20 81 20 133 269 71 21 21 269 34 127 67 126 133 16 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 01 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 03 1 0801- ●
16 BRACKET; PIPE CLIP
EXC. ANTI LOCK BRAKE<JE5> (J) L=150 H=30 		1-47477-629-2 01 1 0809-0903 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0908- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0907 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
22 BRACKET; CLIP
L=100 H=30 		1-47477-645-2 01 1 0710-0910 ●
22 BRACKET; CLIP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) L=100 H=30 		1-47477-645-2 01 1 0710-0910 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0907 ● ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908-0908 ●
34 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 01 1 0908-0908 ●
34 NUT; BRKT
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE 		0-91180-108-0 01 1 0908-0908 ●
34 NUT; BRKT
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE 		0-91180-108-0 01 1 0909- ●
67 BRACKET; CLIP
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) L=100 H=30 		1-47477-645-2 01 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 01 1 0710-0907 ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0812 ● ●
81 BRACKET; CLIP
(J) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(K) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(L) 		8-98186-380-0 01 1 1106- ● ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 04 1 0710-0712 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0808 ●
126 BOLT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0904- ●
126 BOLT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 03 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ●
127 NUT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0904- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0904- ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 06 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(E) ID=31 L=35 		1-09700-329-1 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=13 L=50 		0-95235-286-0 01 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0801-0907 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0908- ● ●
269 CLIP; BAND,NYLON TUBE
(F) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(F) ID=28 L=40 		1-09701-261-0 06 1 0803- ●

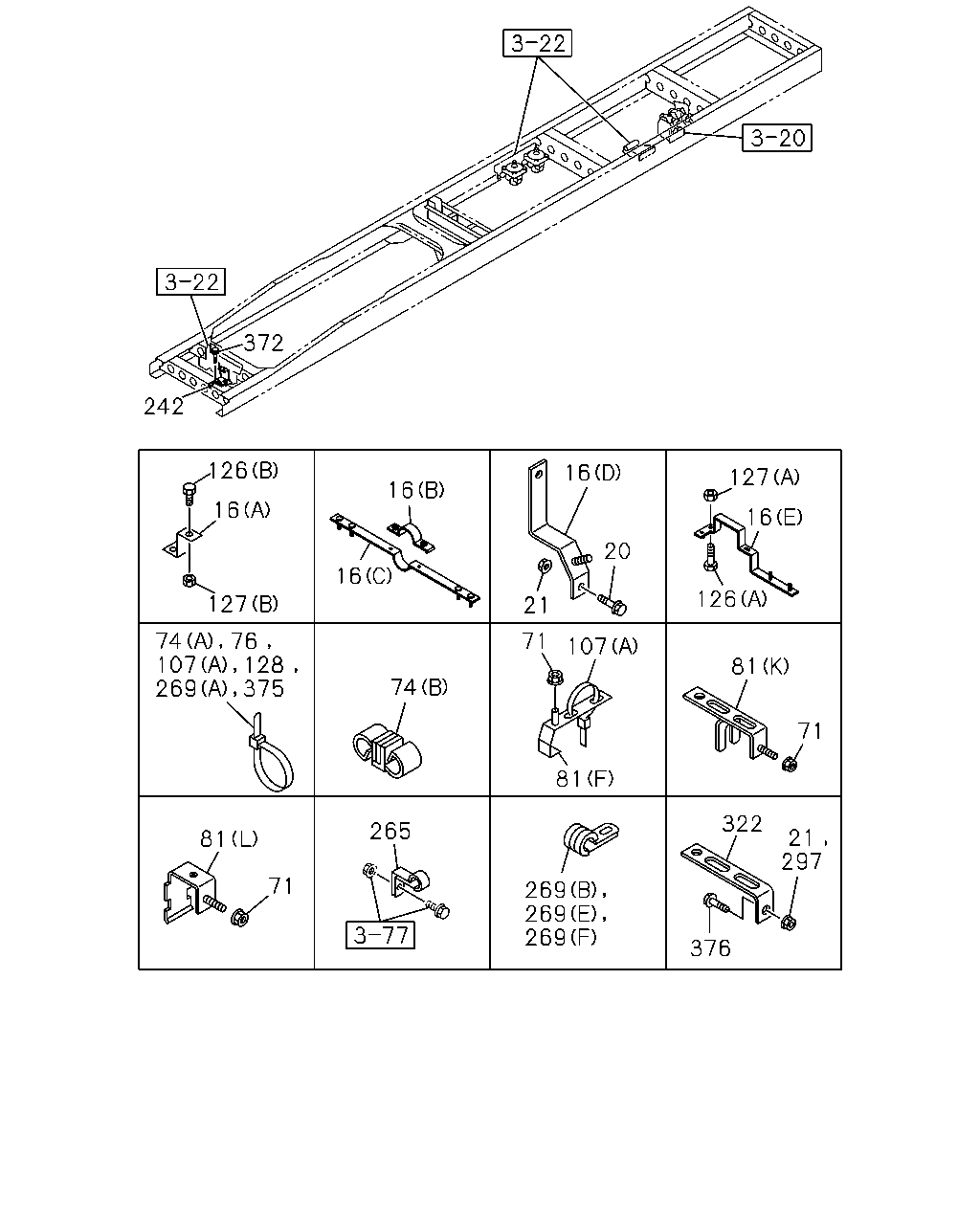

çizim 112151
372 242 126 16 127 16 16 16 20 16 126 127 21 71 107 81 74 71 81 322 265 21 297 81 71 269 269 269 376 74 76 107 128 269 375
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-546-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-720-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(F) 		1-34656-009-0 02 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(H) 		1-47478-588-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-249-0 01 1 0710- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 02 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(E) 		1-47479-901-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 01 1 0710-0712 ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 03 1 0801- ●
16 BRACKET; PIPE CLIP
EXC. ANTI LOCK BRAKE<JE5> (J) L=150 H=30 		1-47477-629-2 01 1 0809-0903 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0710- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0710- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0710 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0908- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0907 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0710-0907 ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0710- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 0712-0712 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0712-0712 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0809 ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 0801-0809 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0809 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0810-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0810-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0810-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 11 1 0908- ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0801-0805 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0806-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0806-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0806-0907 ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (A) L=350 		1-09707-183-0 04 1 0908- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 07 1 0710-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0908- ● ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (A) L=350 		1-09707-183-0 03 1 0908- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0812-0907 ● ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0908-0911 ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 01 1 0912- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 10 1 0908- ●
74 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 02 1 0908- ●
76 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 01 1 0812- ●
81 BRACKET; CLIP
(F) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 01 1 0710-0907 ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0812 ● ●
81 BRACKET; CLIP
(J) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(K) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(L) 		8-98186-380-0 01 1 1106- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 49 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 21 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 42 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 23 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 45 1 0908- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 50 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
126 BOLT; CLIP BRKT
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 04 1 0710-0712 ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801- ●
126 BOLT; CLIP BRKT
(A) M8X10 FLANGE 		0-28050-810-0 02 1 0801- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0808 ●
126 BOLT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 01 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0904- ●
126 BOLT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE 		0-28650-830-0 02 1 0809-0903 ●
126 BOLT; CLIP BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X35 FLANGE 		0-28650-835-0 03 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0907 ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
126 BOLT; CLIP BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908- ●
127 NUT; CLIP BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0710- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0808 ●
127 NUT; CLIP BRKT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 0904- ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0808 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
EXC. ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0809-0903 ●
127 NUT; CLIP BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 0904- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0810- ●
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0710- ● ●
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0710- ● ●
269 CLIP; BAND,NYLON TUBE
(B) ID=35 L=33 		1-09700-945-0 06 1 0710-0710 ●
269 CLIP; BAND,NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 06 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(E) ID=31 L=35 		1-09700-329-1 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=13 L=50 		0-95235-286-0 01 1 0710- ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0710-0712 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0801-0907 ●
269 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0908- ● ●
269 CLIP; BAND,NYLON TUBE
(F) ID=28 L=40 		1-09701-261-0 03 1 0710-0802 ●
269 CLIP; BAND,NYLON TUBE
(F) ID=28 L=40 		1-09701-261-0 06 1 0803- ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 0710-0807 ● ●
297 NUT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 0808- ● ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		1-47479-598-0 02 1 0710-0807 ● ●
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		1-47479-598-0 02 1 0808- ● ●
372 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0712 ● ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0712-0811 ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 02 1 0710-0811 ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0812-0906 ● ●
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 0907- ● ●
375 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 0907- ● ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0807 ● ●
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 0808- ● ●

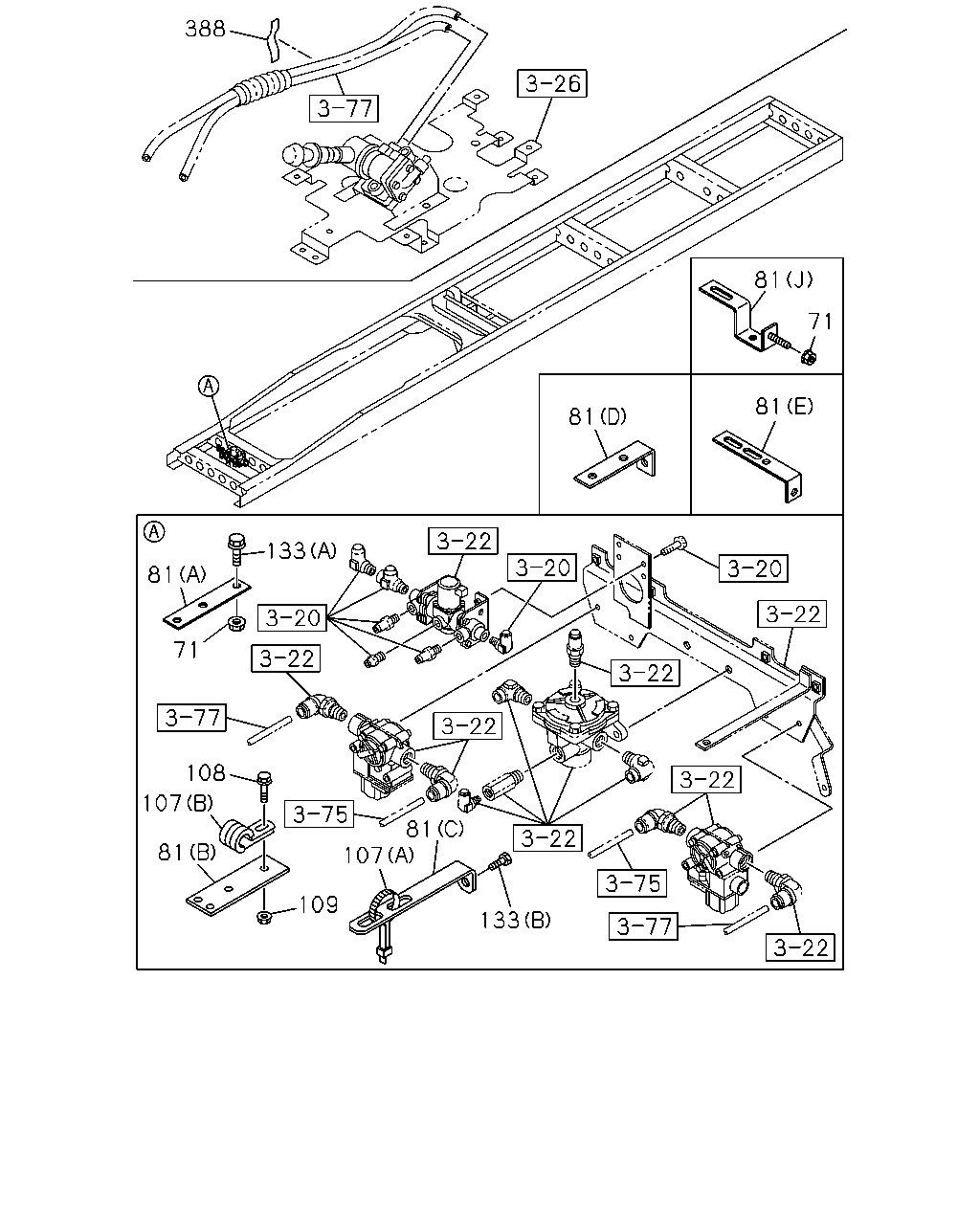

çizim 112163
388 81 71 81 81 133 81 71 108 107 81 81 107 109 133
BalonParca AdiParca NoAdetTipApplied Date A B
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-0710 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 0710-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0812- ● ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0907 ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908- ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0907 ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0908- ●
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106- ● ●
81 BRACKET; CLIP
(F) 		8-98047-730-0 02 1 0710-0710 ● ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 01 1 0710-0907 ● ●
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0710- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 0710- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0710- ● ●
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 0710- ●
81 BRACKET; CLIP
(I) 		1-82699-527-1 01 1 0710-0711 ●
81 BRACKET; CLIP
(G) 		1-47479-693-0 02 1 0712- ●
81 BRACKET; CLIP
(E) L=100 H=30 		1-47477-645-2 04 1 0710-0812 ● ●
81 BRACKET; CLIP
(J) 		8-98129-212-0 04 1 0901-1012 ● ●
81 BRACKET; CLIP
(K) 		8-98177-873-0 04 1 1101- ● ●
81 BRACKET; CLIP
(H) L=65 		1-47477-713-0 01 1 0710-0902 ● ●
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0903- ● ●
81 BRACKET; CLIP
(L) 		8-98186-380-0 01 1 1106- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 0710- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 02 1 0710-0801 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 0802-0811 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 0710-0802 ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 25 1 0803-0907 ● ●
107 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 49 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 21 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) (A) L=350 		1-09707-183-0 42 1 0908- ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 23 1 0710-0907 ●
107 CLIP; NYLON TUBE
WHEEL BASE 5900MM(59W) (A) L=350 		1-09707-183-0 45 1 0908- ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 0801-0907 ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 50 1 0908- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0710-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0712 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0907 ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0710-0802 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0803-0811 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0812-0907 ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0908- ●
133 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0812- ● ●
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0812- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
WHEEL BASE 5000MM(50W) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0907 ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ● ●
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0908- ●
388 SEAL
100X40 		1-72498-022-1 03 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
