◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#41602) — 43 parça

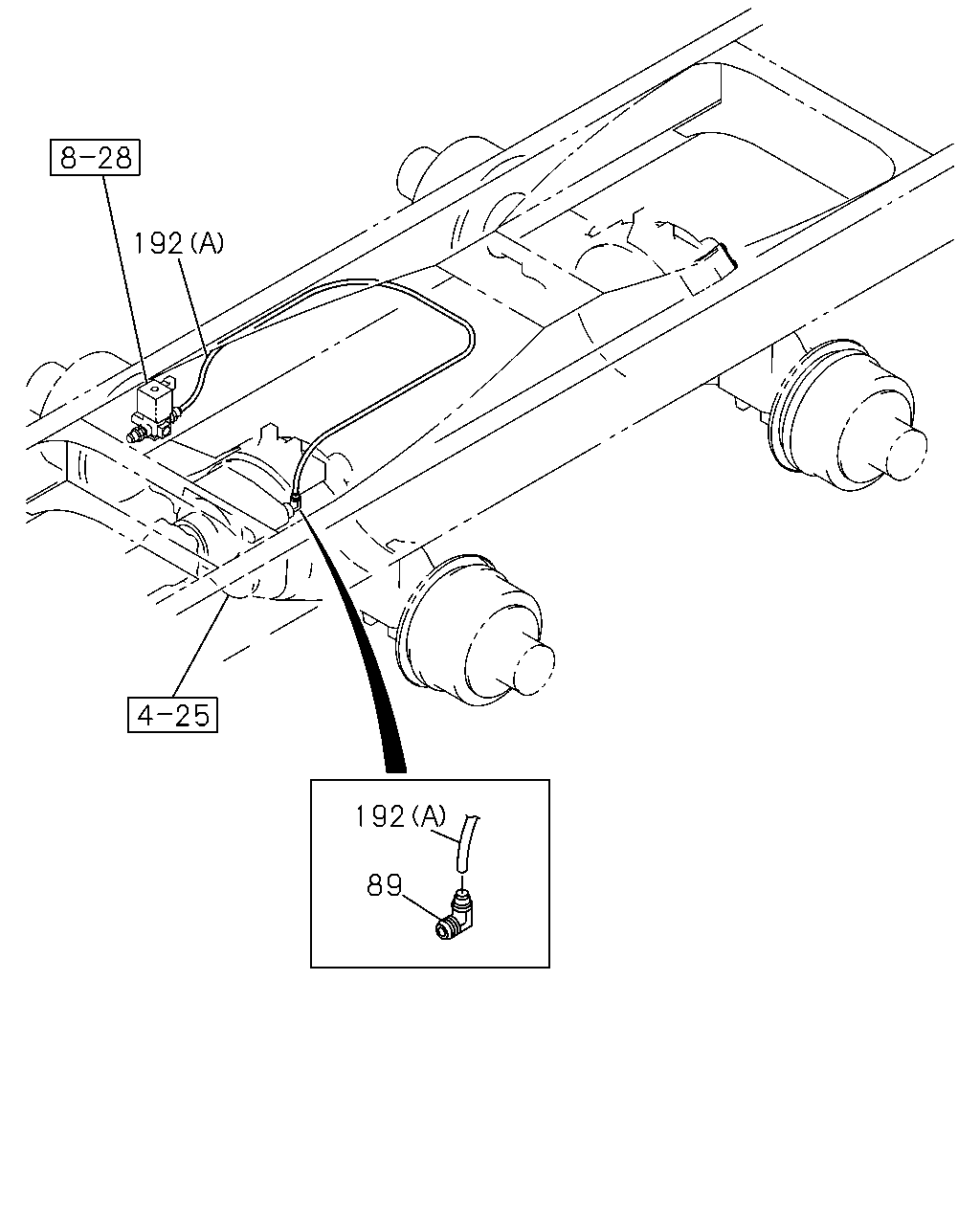

çizim 112147
192 192 89
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09661-209-0 01 1 0710- ● ●
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 0712-0807 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> (B) L=220 OD=12 		8-98107-956-0 01 1 0808- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●

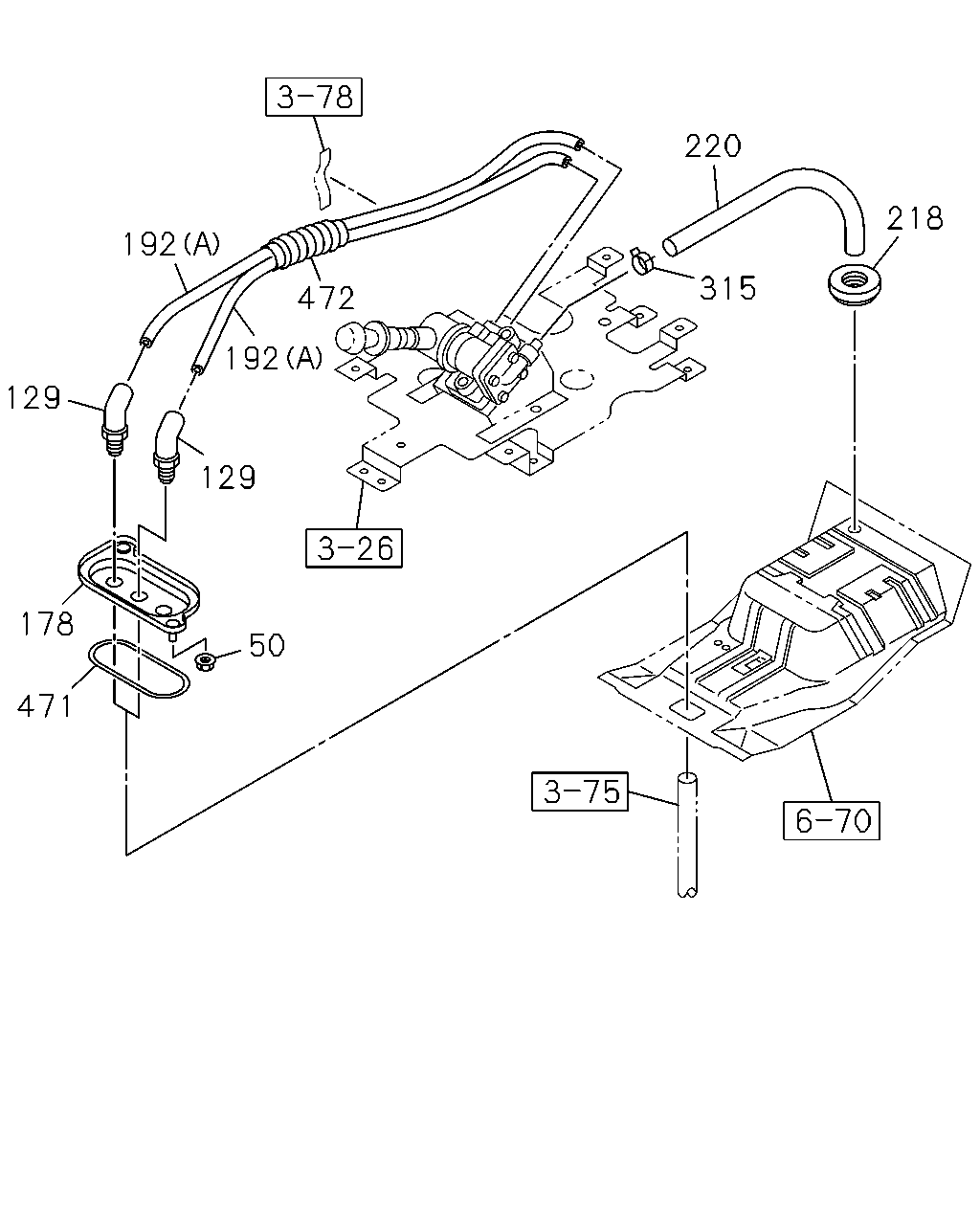

çizim 112148
220 218 192 315 472 192 129 129 178 50 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
129 CONNECTOR; NYLON TUBE 8-97611-963-1 01 1 0710- ● ●
129 CONNECTOR; NYLON TUBE 8-97611-963-1 01 1 0710- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 0710- ● ●
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 0712-0807 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> (B) L=220 OD=12 		8-98107-956-0 01 1 0808- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 0912- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0912- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 0912- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 0710- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 0710- ● ●

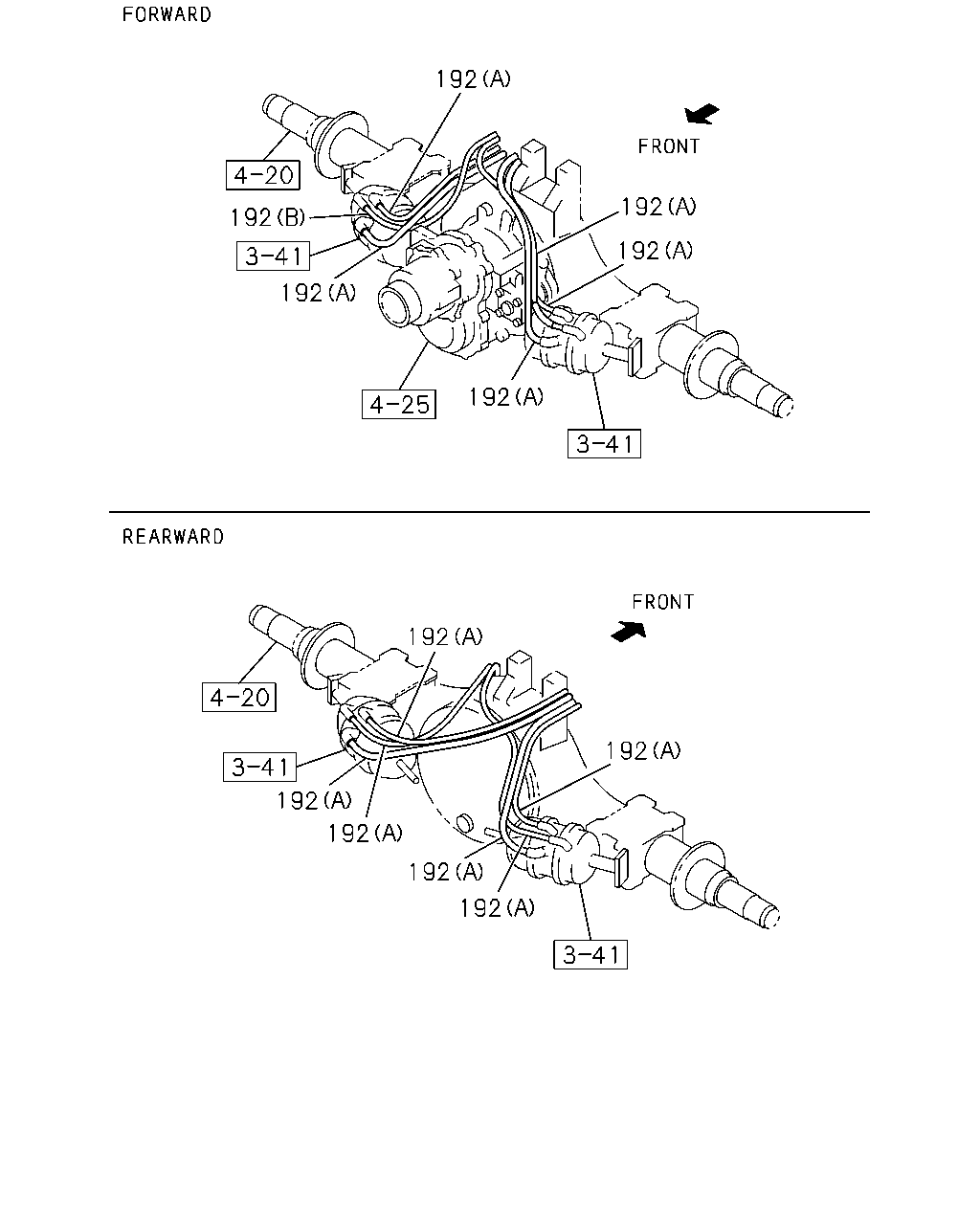

çizim 112505
192 192 192 192 192 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 0712-0807 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> (B) L=220 OD=12 		8-98107-956-0 01 1 0808- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●

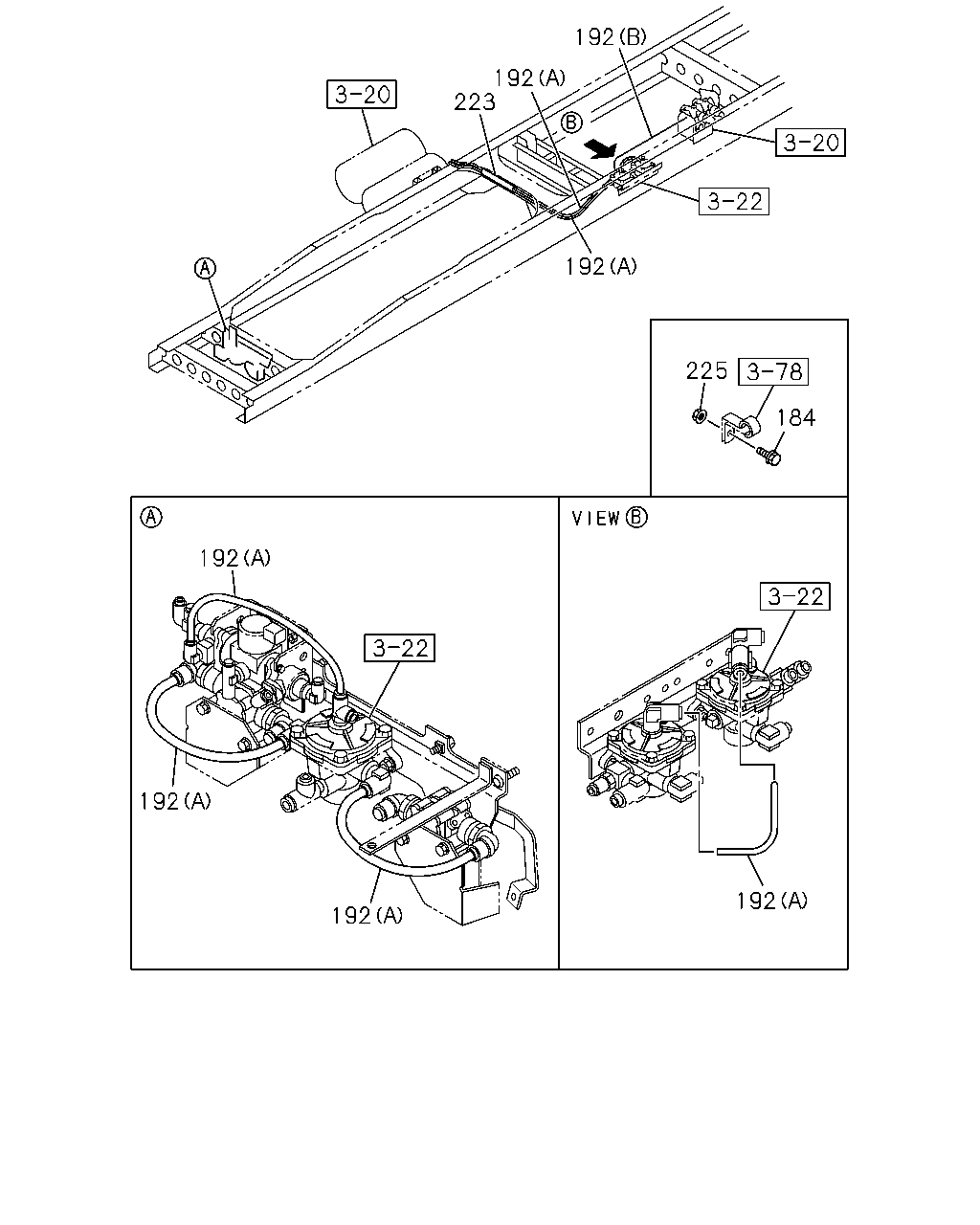

çizim 112506
192 192 223 192 225 184 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
192 TUBE; NYLON
(B) L=220 OD=12 		8-98107-956-0 01 1 0712-0807 ●
192 TUBE; NYLON
ANTI LOCK BRAKE<JE5> (B) L=220 OD=12 		8-98107-956-0 01 1 0808- ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
