0-25A — INLET MANIFOLD (#416) — 149 parça

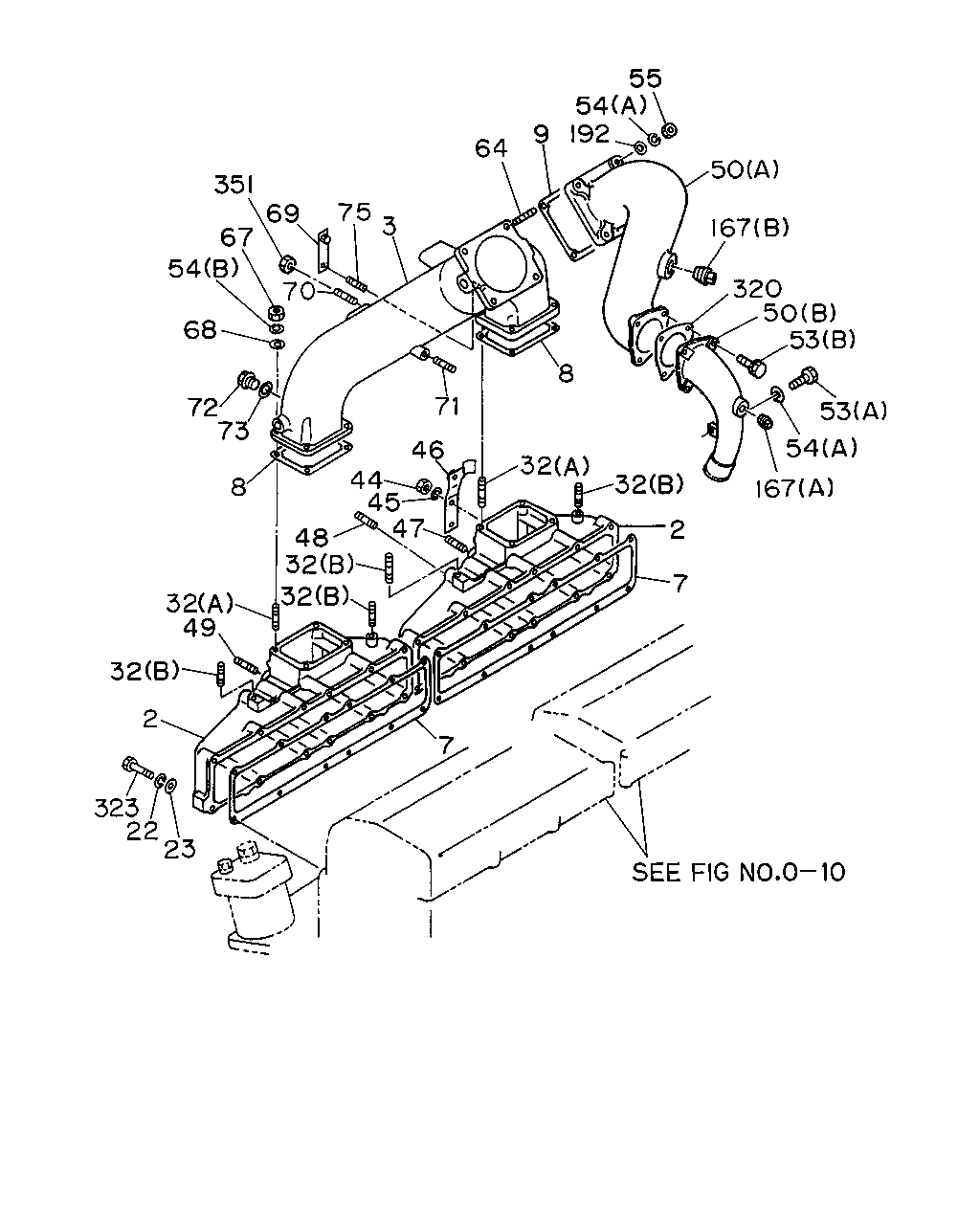

55 50 54 167 192 320 50 53 9 64 53 3 75 69 351 67 54 54 8 167 70 68 72 71 73 44 8 45 32 46 47 48 32 2 7 32 32 32 49 32 2 323 22 23 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL REAR	1-14110-225-0	01	1	8712-	●	●	●
2	COVER; INL FRONT	1-14110-303-0	01	1	8712-	●	●	●
3	DUCT; INT	1-14114-674-1	01	1	8712-9001			●
3	DUCT; INT	1-14114-583-3	01	1	8712-	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	8712-9602	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-082-0	02	1	9603-		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-041-0	02	1	8712-9603	●	●	●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-087-0	02	1	9604-		●
9	GASKET; DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-14317-031-0	01	1	8712-9603	●	●	●
9	GASKET; DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-14317-040-0	01	1	9604-		●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	8712-	●	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	22	1	8712-	●	●	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	06	1	8712-9001			●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	04	1	8712-	●	●	●
32	STUD; INL PIPE (A) M8X71 L=83	9-09830-212-0	02	1	8712-	●	●
44	NUT; PIPE BRKT M10	9-09110-410-0	04	1	8712-9001	●	●	●
44	NUT; PIPE BRKT M10	9-09110-410-0	02	1	9002-	●	●
45	WASHER; LK,PIPE BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
46	BRACKET; P/S PIPE	1-11369-119-0	01	1	8712-	●	●	●
47	STUD; BRKT,POWER STEERING M10X18 L=33	9-04411-018-0	02	1	8712-	●	●	●
48	STUD; BRKT,GOV HARNESS M10X16 L=31	9-04411-016-0	01	1	8712-	●	●	●
49	STUD; CABLE M10X22 L=37	9-04411-022-0	04	1	8712-	●	●	●
50	PIPE; INL (A)	1-14114-759-0	01	1	8712-9001			●
50	PIPE; INL (B)	1-14114-760-0	01	1	8712-9001			●
50	PIPE; INL	1-14112-200-0	01	1	8712-		●
50	PIPE; INL	1-14112-174-0	01	1	8712-9306	●
53	BOLT; INL PIPE (A) M10X30	9-01971-030-0	01	1	8712-9001			●
53	BOLT; INL PIPE (B) M10X35 W/LK WASHER	9-01991-035-0	03	1	8712-9001			●
53	BOLT; INL PIPE M10X75	9-01056-075-0	01	1	8712-9004	●	●
53	BOLT; INL PIPE M10X75	0-10806-075-0	01	1	9005-	●	●
53	BOLT; INL PIPE M10X25	9-01971-025-0	01	1	8712-9002	●	●
53	BOLT; INL PIPE M10X25 W/LK&PL WASHER	0-50141-025-0	01	1	9003-	●	●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	06	1	8712-9001			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	8712-9001			●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	06	1	8712-		●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	05	1	8712-9306	●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	08	1	8712-9001	●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	04	1	9002-9306	●
55	NUT; INL PIPE M10	9-09110-410-0	08	1	8712-9001			●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	8712-9306	●	●
55	NUT; INL PIPE M10	9-09110-410-0	09	1	8712-9001	●
55	NUT; INL PIPE M10	9-09110-410-0	05	1	9002-9306	●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	9307-		●
64	STUD; INL PIPE M10X35 L=50	9-04411-035-0	04	1	8712-9001			●
64	STUD; INL PIPE M10X20 L=35	9-04411-020-0	04	1	8712-	●	●
67	NUT; INL DUCT M8	9-09110-408-0	06	1	8712-9001			●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	06	1	8712-9001			●
68	WASHER; PL,INL DUCT ID=10.5 OD=18	9-09160-510-0	01	1	8712-		●
69	BRACKET; AIR PIPE	1-19199-074-0	01	1	8712-		●	●
70	STUD; WATER PIPE M10X16 L=31	9-04411-016-0	02	1	8712-9001			●
71	STUD; FUEL PIPE M6X16 L=25	9-04110-616-0	02	1	8712-	●	●	●
72	PLUG; HTR BOSS M22X12	1-09604-035-0	02	1	8712-	●	●	●
73	GASKET; PLUG,AIR DUCT ID=22.5	9-09571-422-0	02	1	8712-	●	●	●
75	STUD; BRKT,AIR PIPE M6X25 L=34	9-04110-625-0	01	1	8712-	●	●	●
167	PLUG; INL MANIF (B) PT1	1-09605-021-0	01	1	8712-9001			●
167	PLUG; INL MANIF (A) PT3/4	9-09204-526-0	01	1	8712-9001			●
192	WASHER; PL,INL PIPE ID=10.5 OD=18	9-09160-510-0	04	1	8712-9001			●
192	WASHER; PL,INL PIPE ID=10.5 OD=18	9-09160-510-0	01	1	8712-	●	●
320	GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-022-0	01	1	8712-9001			●
323	BOLT; DUCT M8X50	9-01065-850-0	12	1	9307-	●	●	●
323	BOLT; DUCT M8X102 L=116	9-09801-273-0	04	1	9307-	●	●	●
323	BOLT; DUCT M8X140	9-09801-276-0	08	1	9307-	●	●	●
351	NUT; BRKT,INL PIPE M10	9-09110-410-0	02	1	8712-9001			●
351	NUT; BRKT,INL PIPE M8	9-09110-408-0	02	1	8712-		●
351	NUT; BRKT,INL PIPE M8	9-09110-408-0	06	1	8712-9306	●

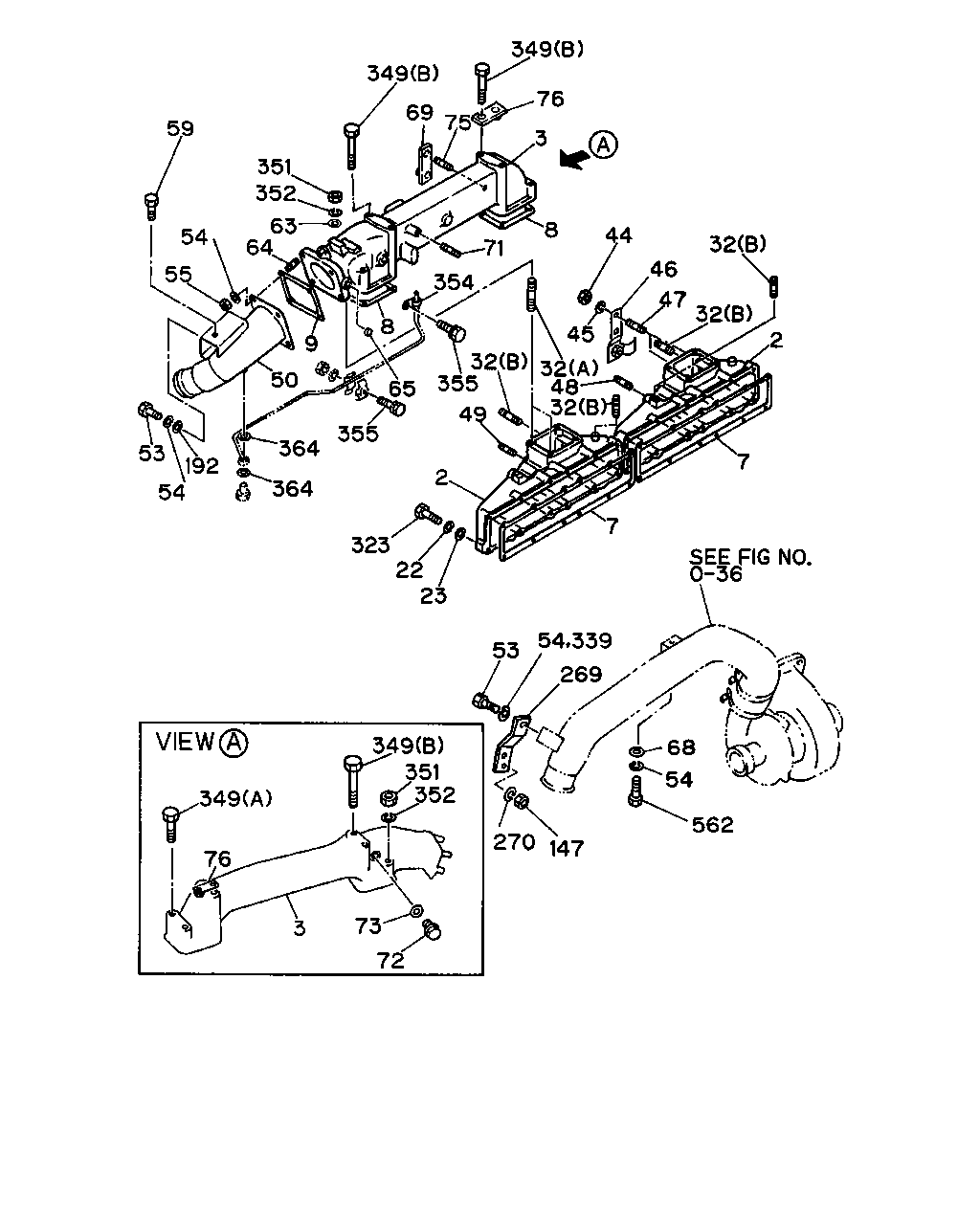

59 349 349 69 76 75 351 3 8 71 354 352 54 63 64 55 44 32 45 46 47 32 2 32 32 355 48 8 9 50 65 355 364 53 192 54 364 49 2 323 7 7 23 22 54 339 53 269 68 54 562 147 270 349 351 352 349 76 3 73 72 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	COVER; INL REAR	1-14110-225-0	01	1	8712-	●	●	●
2	COVER; INL FRONT	1-14110-303-0	01	1	8712-	●	●	●
3	DUCT; INT	1-14114-674-1	01	1	8712-9001			●
3	DUCT; INT	1-14114-583-3	01	1	8712-	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-031-0	02	1	8712-9602	●	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-082-0	02	1	9603-		●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-041-0	02	1	8712-9603	●	●	●
8	GASKET; INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14117-087-0	02	1	9604-		●
9	GASKET; DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-14317-031-0	01	1	8712-9603	●	●	●
9	GASKET; DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	1-14317-040-0	01	1	9604-		●
22	WASHER; LK,INL MANIF ID=8.2	9-09150-508-0	24	1	8712-	●	●	●
23	WASHER; PL,INL MANIF ID=8.4 OD=18	9-09164-608-0	22	1	8712-	●	●	●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	06	1	8712-9001			●
32	STUD; INL PIPE (B) M5X25 L=35	9-94010-525-0	04	1	8712-	●	●	●
32	STUD; INL PIPE (A) M8X71 L=83	9-09830-212-0	02	1	8712-	●	●
44	NUT; PIPE BRKT M10	9-09110-410-0	04	1	8712-9001	●	●	●
44	NUT; PIPE BRKT M10	9-09110-410-0	02	1	9002-	●	●
45	WASHER; LK,PIPE BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●	●
46	BRACKET; P/S PIPE	1-11369-119-0	01	1	8712-	●	●	●
47	STUD; BRKT,POWER STEERING M10X18 L=33	9-04411-018-0	02	1	8712-	●	●	●
48	STUD; BRKT,GOV HARNESS M10X16 L=31	9-04411-016-0	01	1	8712-	●	●	●
49	STUD; CABLE M10X22 L=37	9-04411-022-0	04	1	8712-	●	●	●
50	PIPE; INL (A)	1-14114-759-0	01	1	8712-9001			●
50	PIPE; INL (B)	1-14114-760-0	01	1	8712-9001			●
50	PIPE; INL	1-14112-200-0	01	1	8712-		●
50	PIPE; INL	1-14112-174-0	01	1	8712-9306	●
53	BOLT; INL PIPE (A) M10X30	9-01971-030-0	01	1	8712-9001			●
53	BOLT; INL PIPE (B) M10X35 W/LK WASHER	9-01991-035-0	03	1	8712-9001			●
53	BOLT; INL PIPE M10X75	9-01056-075-0	01	1	8712-9004	●	●
53	BOLT; INL PIPE M10X75	0-10806-075-0	01	1	9005-	●	●
53	BOLT; INL PIPE M10X25	9-01971-025-0	01	1	8712-9002	●	●
53	BOLT; INL PIPE M10X25 W/LK&PL WASHER	0-50141-025-0	01	1	9003-	●	●
54	WASHER; LK,INL PIPE (B) ID=8.2	9-09150-508-0	06	1	8712-9001			●
54	WASHER; LK,INL PIPE (A) ID=10.2	9-09150-510-0	04	1	8712-9001			●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	06	1	8712-		●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	05	1	8712-9306	●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	08	1	8712-9001	●
54	WASHER; LK,INL PIPE ID=10.2	9-09150-510-0	04	1	9002-9306	●
55	NUT; INL PIPE M10	9-09110-410-0	08	1	8712-9001			●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	8712-9306	●	●
55	NUT; INL PIPE M10	9-09110-410-0	09	1	8712-9001	●
55	NUT; INL PIPE M10	9-09110-410-0	05	1	9002-9306	●
55	NUT; INL PIPE M10	9-09110-410-0	04	1	9307-		●
59	BOLT; INL PIPE TO MANIF M10X25	9-01971-025-0	01	1	8712-9002		●
59	BOLT; INL PIPE TO MANIF M10X25 W/LK&PL WASHER	0-50141-025-0	01	1	9003-		●
63	WASHER; PL,INL PIPE ID=8.4	9-09160-508-0	07	1	8712-		●
64	STUD; INL PIPE M10X35 L=50	9-04411-035-0	04	1	8712-9001			●
64	STUD; INL PIPE M10X20 L=35	9-04411-020-0	04	1	8712-	●	●
65	BUSHING; SHAFT	1-14319-072-0	02	1	8712-8811	●	●
65	BUSHING; SHAFT	1-14319-096-0	02	1	8812-	●	●
68	WASHER; PL,INL DUCT ID=8.4	9-09160-508-0	06	1	8712-9001			●
68	WASHER; PL,INL DUCT ID=10.5 OD=18	9-09160-510-0	01	1	8712-		●
69	BRACKET; AIR PIPE	1-19199-074-0	01	1	8712-		●	●
71	STUD; FUEL PIPE M6X16 L=25	9-04110-616-0	02	1	8712-	●	●	●
72	PLUG; HTR BOSS M22X12	1-09604-035-0	02	1	8712-	●	●	●
73	GASKET; PLUG,AIR DUCT ID=22.5	9-09571-422-0	02	1	8712-	●	●	●
75	STUD; BRKT,AIR PIPE M6X25 L=34	9-04110-625-0	01	1	8712-	●	●	●
76	BRACKET; ENG HARNESS	1-47465-484-0	01	1	8712-	●	●
147	NUT; BRKT M10	9-09110-510-0	02	1	8712-	●	●
192	WASHER; PL,INL PIPE ID=10.5 OD=18	9-09160-510-0	04	1	8712-9001			●
192	WASHER; PL,INL PIPE ID=10.5 OD=18	9-09160-510-0	01	1	8712-	●	●
269	BRACKET; INJ PIPE TO HSG	1-14119-229-0	01	1	8712-	●	●
270	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	8712-	●	●
323	BOLT; DUCT M8X50	9-01065-850-0	12	1	9307-	●	●	●
323	BOLT; DUCT M8X102 L=116	9-09801-273-0	04	1	9307-	●	●	●
323	BOLT; DUCT M8X140	9-09801-276-0	08	1	9307-	●	●	●
339	WASHER; LK,DUCT & BRKT ID=10.2	9-09150-510-0	01	1	8712-9306	●
349	BOLT; BRKT,INL PIPE (B) M8X85	9-01055-885-0	02	1	8712-9005	●	●
349	BOLT; BRKT,INL PIPE (B) M8X85	0-10805-885-0	02	1	9006-	●	●
349	BOLT; BRKT,INL PIPE (A) M8X180	9-09801-272-0	04	1	8712-	●	●
351	NUT; BRKT,INL PIPE M10	9-09110-410-0	02	1	8712-9001			●
351	NUT; BRKT,INL PIPE M8	9-09110-408-0	02	1	8712-		●
351	NUT; BRKT,INL PIPE M8	9-09110-408-0	06	1	8712-9306	●
352	WASHER; LK,BRKT,INL PIPE ID=8.2	9-09150-508-0	08	1	8712-		●
354	CLIP; AIR PIPE	1-09700-146-0	02	1	8712-		●
355	BOLT; CLIP,AIR PIPE M6X14	9-01910-614-0	03	1	8712-9005		●
355	BOLT; CLIP,AIR PIPE M6X14 W/LK WASHER	0-50040-614-0	03	1	9006-		●
355	BOLT; CLIP,AIR PIPE M10X20 W/LK WASHER	9-01911-020-0	01	1	8712-9002		●
355	BOLT; CLIP,AIR PIPE M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-		●
355	BOLT; CLIP,AIR PIPE M6X14	9-01910-614-0	05	1	8712-9005	●
355	BOLT; CLIP,AIR PIPE M6X14 W/LK WASHER	0-50040-614-0	05	1	9006-9306	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	9002-9306	●
562	BOLT; INL DUCT M10X75	9-01056-075-0	01	1	8712-9004		●
562	BOLT; INL DUCT M10X75	0-10806-075-0	01	1	9005-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
