Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11426 - FVZ(AUST)EURO4
▶
3 - Brakes, Brake System
▶

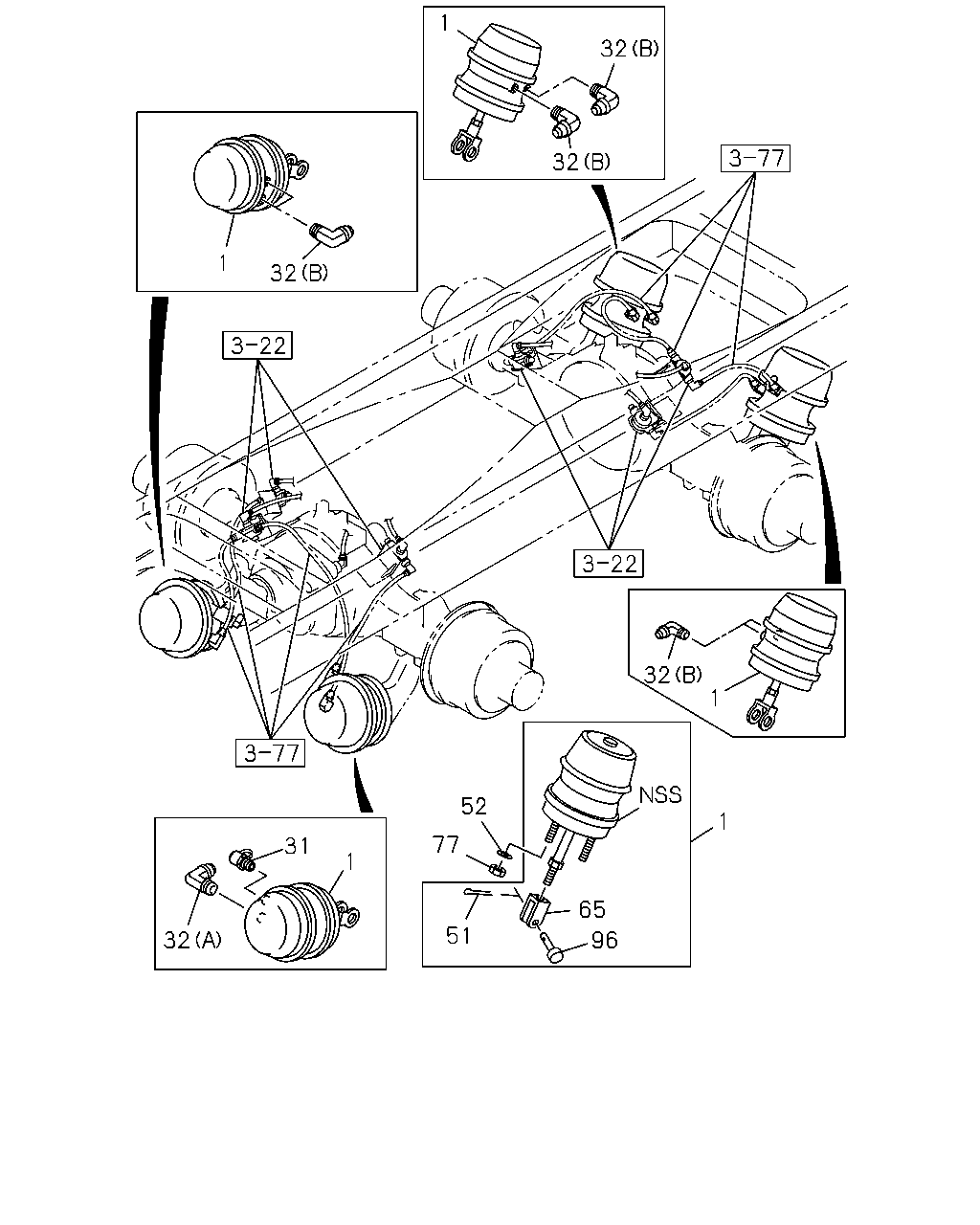

3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#41596) — 21 parça
Tümü
A - FGY5MV
B - FGZ5MV
1
32
32
1
32
32
1
52
1
77
31
1
65
51
32
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CHAMBER ASM; SPRING
1-48250-943-0
01
1
0710-1205
●
●
1
CHAMBER ASM; SPRING
1-48250-943-0
01
1
0710-1205
●
●
1
CHAMBER ASM; SPRING
1-48250-957-0
01
1
1206-
●
●
1
CHAMBER ASM; SPRING
1-48250-957-0
01
1
1206-
●
●
1
CHAMBER ASM; SPRING
1-48250-944-0
01
1
0710-1205
●
●
1
CHAMBER ASM; SPRING
1-48250-944-0
01
1
0710-1205
●
●
1
CHAMBER ASM; SPRING
1-48250-958-0
01
1
1206-
●
●
1
CHAMBER ASM; SPRING
1-48250-958-0
01
1
1206-
●
●
31
CONNECTOR
1-47459-013-1
01
1
0710-
●
●
32
CONNECTOR; SPR CHAMBER
(A)
1-09660-804-0
01
1
0710-
●
●
32
CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW
1-09660-962-0
07
1
0710-
●
●
51
PIN; SPLIT
1-48259-275-0
02
1
0710-
●
●
51
PIN; SPLIT
1-48259-275-0
02
1
0710-
●
●
52
WASHER; PL
1-41519-038-0
04
1
0710-
●
●
52
WASHER; PL
1-41519-038-0
04
1
0710-
●
●
65
JOINT; JAW
1-48259-321-0
02
1
0710-
●
●
65
JOINT; JAW
1-48259-321-0
02
1
0710-
●
●
77
NUT; SPR CHAMBER BRK
1-87050-052-0
04
1
0710-
●
●
77
NUT; SPR CHAMBER BRK
1-87050-052-0
04
1
0710-
●
●
96
PIN; JAW JOINT
1-48259-273-0
02
1
0710-
●
●
96
PIN; JAW JOINT
1-48259-273-0
02
1
0710-
●
●
