◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#41592) — 268 parça
çizim 112484
155 279
BalonParca AdiParca NoAdetTipApplied Date A B
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710-0710 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0712 ● ●
155 REPAIR KIT; RELAY VALVE
ZF9S1110 M/T(Y5E) (A) 		1-85576-294-0 01 1 0801- ● ●
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 0710- ● ●

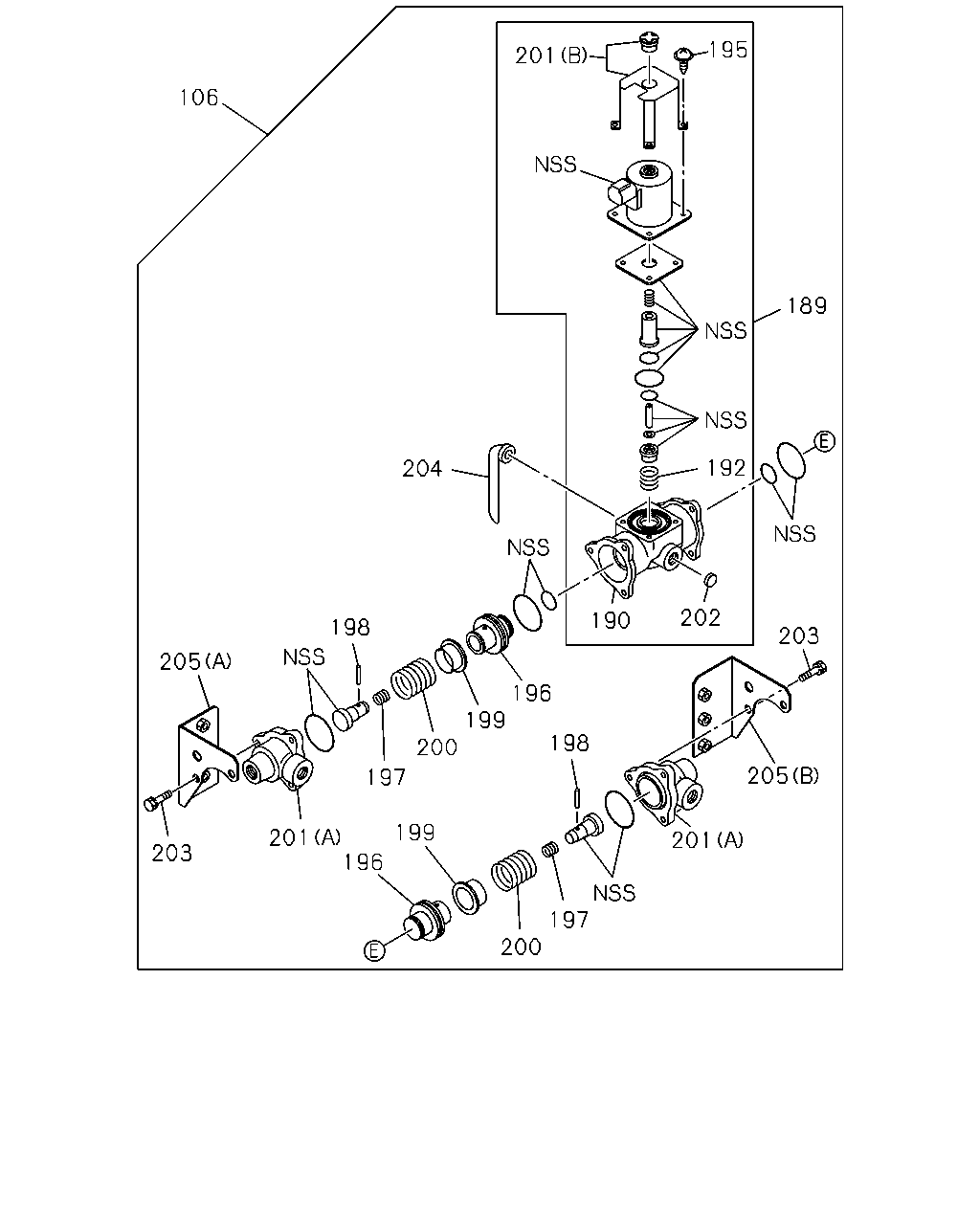

çizim 112489
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-247-0 01 1 0710- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-234-0 01 1 0710- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-232-0 02 1 0710- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710- ● ●

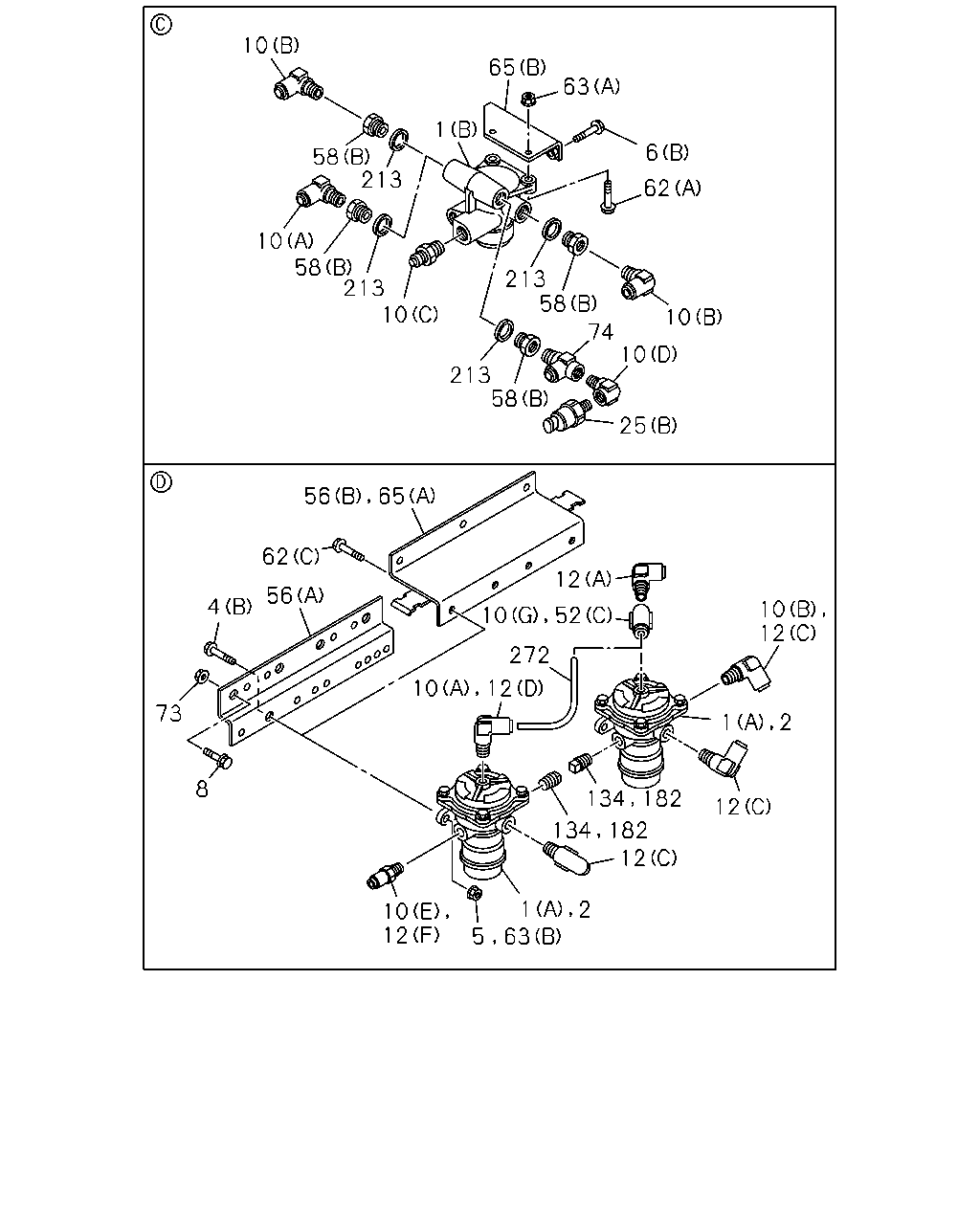

çizim 112491
10 65 63 1 6 58 213 62 10 58 213 10 213 58 10 74 10 213 58 25 62 12 56 4 10 12 10 52 272 10 12 73 2 1 8 134 182 12 134 182 12 12 10 12 56 65 5 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; RELAY RWD RR
(B) 		1-48240-354-1 01 1 0710- ● ●
1 VALVE; RELAY RWD RR
(A) 		1-48210-997-0 02 1 1010- ●
2 VALVE; RELAY 1-48210-997-0 02 1 0710-1009 ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010- ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0712 ● ●
2 VALVE; RELAY
ZF9S1110 M/T(Y5E) 		1-48210-997-0 01 1 0801- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0710-0805 ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 0806-1009 ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0712 ● ●
4 BOLT; RELAY VLV TO BRKT
ZF9S1110 M/T(Y5E) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0801- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-1009 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1010- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0712 ● ●
5 NUT
ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-0712 ● ●
6 BOLT; VLV
ZF9S1110 M/T(Y5E) (A) M8X80 FLANGE 		0-28050-880-0 04 1 0801-1408 ● ●
6 BOLT; VLV
ZF9S1110 M/T(Y5E) (A) M8X85 		1-09044-074-0 04 1 1409- ● ●
8 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 0710- ● ●
10 CONNECTOR
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0710- ● ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710- ● ●
10 CONNECTOR
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0710- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-1009 ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ●
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
10 CONNECTOR
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
10 CONNECTOR
(G) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0809 ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-1009 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-1009 ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1009 ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0712 ● ●
12 CONNECTOR; RELAY VLV
ZF9S1110 M/T(Y5E) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710-0712 ● ●
12 CONNECTOR; RELAY VLV
ZF9S1110 M/T(Y5E) (B) 		1-09661-207-0 01 1 0801- ● ●
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0710- ● ●
25 SWITCH; PRESSURE
(B) 		8-98010-856-1 01 1 0710- ● ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0710-0809 ● ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0810-0811 ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0712 ● ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-0712 ● ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0801- ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0810-1009 ●
56 BRACKET; RELAY VLV
(A) 		1-47479-937-0 01 1 0710-0809 ● ●
56 BRACKET; RELAY VLV
(A) 		1-47479-937-0 01 1 0810- ●
56 BRACKET; RELAY VLV
(B) 		8-98131-580-0 01 1 0810-1009 ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0712 ● ●
58 ADAPTER
ZF9S1110 M/T(Y5E) (C) 		1-48219-154-0 01 1 0801- ● ●
62 BOLT; BRKT FIX
(B) REARWARD M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 04 1 0710-0711 ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
62 BOLT; BRKT FIX
(B) FORWARD M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0712- ● ●
62 BOLT; BRKT FIX
(C) M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
63 NUT; BRKT FIX
(A) M8 		0-91110-508-0 04 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0712- ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 1010- ●
65 BRACKET; RELAY VLV RR
(B) 		1-47471-032-0 01 1 0710- ● ●
65 BRACKET; RELAY VLV RR
(A) 		8-98131-580-0 01 1 1010- ●
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
74 CONNECTOR; 3WAY 1-09661-536-0 01 1 0710- ● ●
134 PLUG; RELAY VALVE
PT3/8 		9-09204-517-0 02 1 1010- ●
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 0710-1009 ● ●
182 PLUG; RELAY VLV
PT3/8 		9-09204-517-0 02 1 1010- ●
213 GASKET
ID=22.5 		9-09571-422-0 04 1 0710- ● ●
272 TUBE ASM; NYLON,UNION TO UNION
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1010- ●

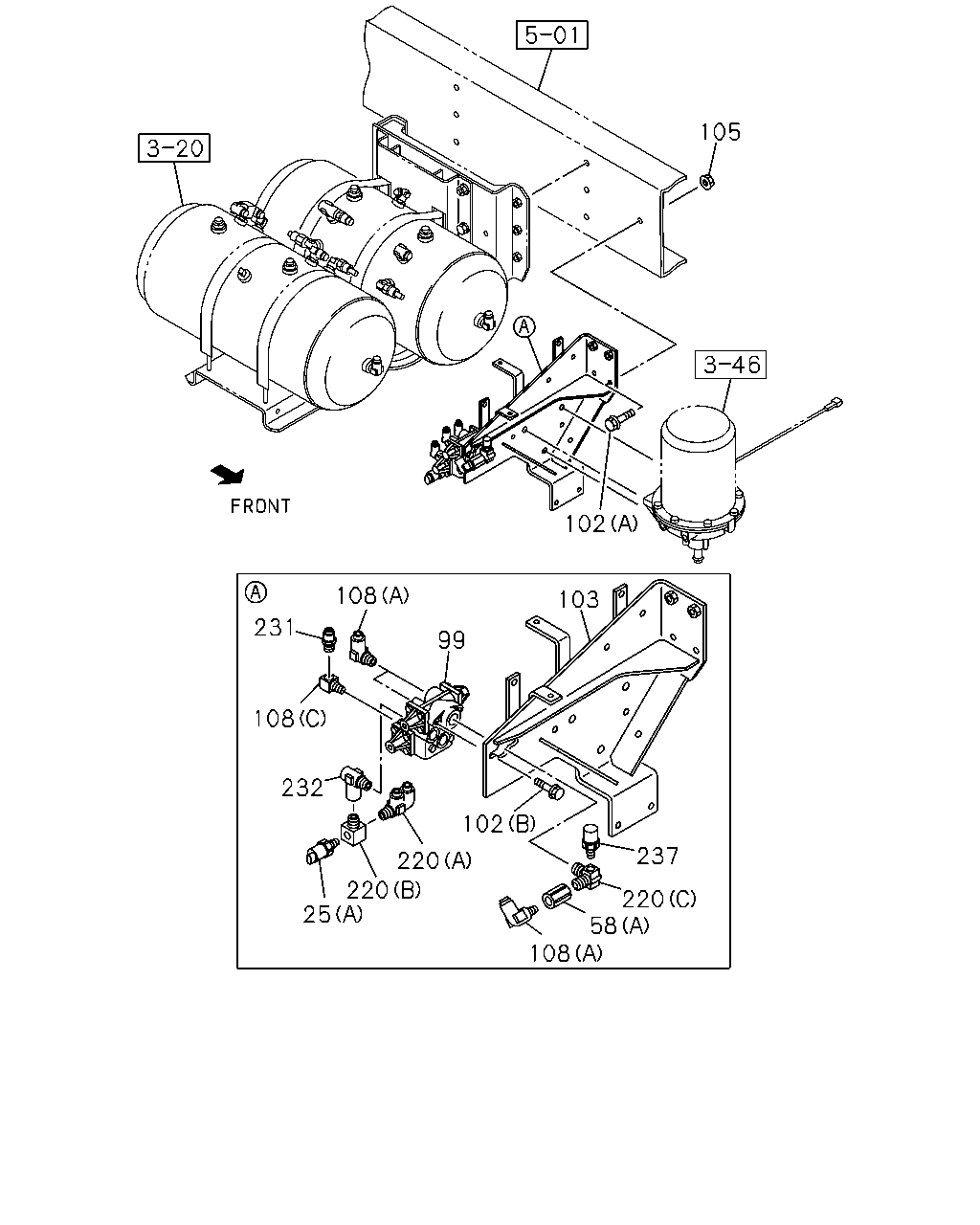

çizim 112493
105 102 108 103 231 99 108 232 102 237 220 220 25 220 58 108
BalonParca AdiParca NoAdetTipApplied Date A B
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 0710- ● ●
25 SWITCH; PRESSURE
(B) 		8-98010-856-1 01 1 0710- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0712 ● ●
58 ADAPTER
ZF9S1110 M/T(Y5E) (C) 		1-48219-154-0 01 1 0801- ● ●
99 VALVE; PROTECTION 1-48110-294-2 01 1 0710- ● ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
102 BOLT; PROTECTION VALVE
(A) M10X40 FLANGE 		0-28051-040-0 02 1 0710-0711 ● ●
102 BOLT; PROTECTION VALVE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0710-0710 ● ●
103 BRACKET; PROTECTION VALVE 8-98100-094-0 01 1 0710-0801 ● ●
103 BRACKET; PROTECTION VALVE 8-98073-219-1 01 1 0802-0805 ● ●
103 BRACKET; PROTECTION VALVE 8-98119-704-0 01 1 0806- ● ●
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710-0712 ● ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) (B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0801- ● ●
220 CONNECTOR; 3WAY
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710- ● ●
220 CONNECTOR; 3WAY
(C) 		8-98031-238-0 01 1 0710- ● ●
220 CONNECTOR; 3WAY
(B) 		1-09656-708-0 01 1 0710-1101 ● ●
220 CONNECTOR; 3WAY
(B) 		8-98166-127-0 01 1 1102- ● ●
231 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710- ● ●
232 VALVE; CHECK 8-98032-527-0 01 1 0710- ● ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710- ● ●

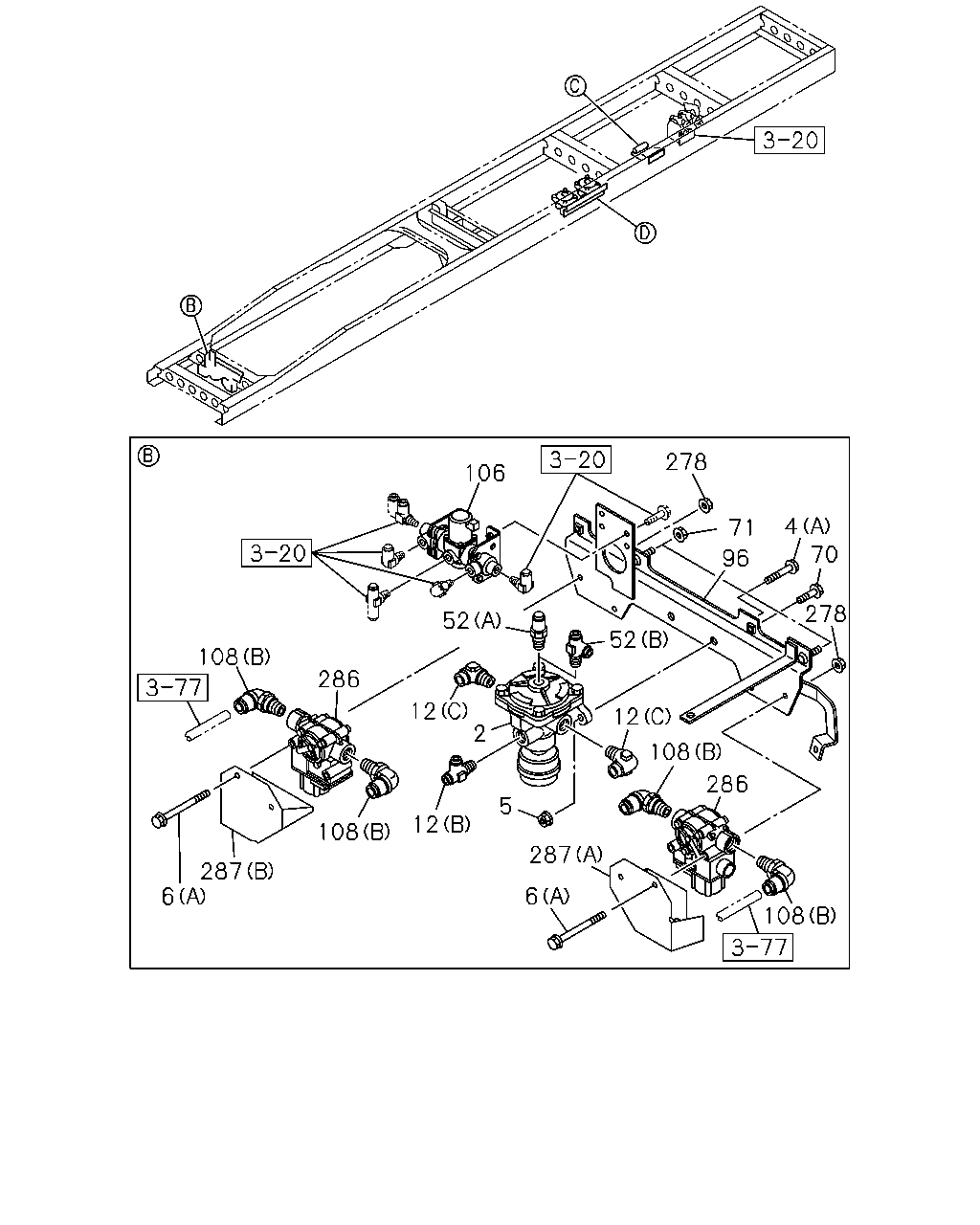

çizim 112497
278 106 4 70 71 96 278 52 52 108 286 12 2 12 108 286 5 12 108 287 287 6 6 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 02 1 0710-1009 ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010- ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0712 ● ●
2 VALVE; RELAY
ZF9S1110 M/T(Y5E) 		1-48210-997-0 01 1 0801- ● ●
4 BOLT; RELAY VLV TO BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0710-0805 ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 0806-1009 ● ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
4 BOLT; RELAY VLV TO BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0712 ● ●
4 BOLT; RELAY VLV TO BRKT
ZF9S1110 M/T(Y5E) (A) M10X35 FLANGE 		0-28651-035-0 02 1 0801- ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 0710-1009 ● ●
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1010- ●
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-0712 ● ●
5 NUT
ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
6 BOLT; VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
6 BOLT; VLV
(A) M8X80 FLANGE 		0-28050-880-0 04 1 0710-0712 ● ●
6 BOLT; VLV
ZF9S1110 M/T(Y5E) (A) M8X80 FLANGE 		0-28050-880-0 04 1 0801-1408 ● ●
6 BOLT; VLV
ZF9S1110 M/T(Y5E) (A) M8X85 		1-09044-074-0 04 1 1409- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0809 ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0810- ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-1009 ● ●
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710-1009 ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1010- ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-1009 ● ●
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1010- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0712 ● ●
12 CONNECTOR; RELAY VLV
ZF9S1110 M/T(Y5E) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801- ● ●
12 CONNECTOR; RELAY VLV
(B) 		1-09661-207-0 01 1 0710-0712 ● ●
12 CONNECTOR; RELAY VLV
ZF9S1110 M/T(Y5E) (B) 		1-09661-207-0 01 1 0801- ● ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0710-0809 ● ●
52 CONNECTOR; RELAY VLV
(C) 		1-09661-537-0 01 1 0810-0811 ●
52 CONNECTOR; RELAY VLV
(C) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0812- ●
52 CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-0712 ● ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801- ● ●
52 CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-0712 ● ●
52 CONNECTOR; RELAY VLV
ANTI LOCK BRAKE<JE5> EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0801- ● ●
52 CONNECTOR; RELAY VLV
(C) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0810-1009 ●
70 BOLT; AIR VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
71 NUT; AIR VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
96 BRACKET 8-98074-613-2 01 1 0710-0712 ● ●
96 BRACKET
ZF9S1110 M/T(Y5E) 		8-98074-613-3 01 1 0801-1408 ● ●
96 BRACKET
ZF9S1110 M/T(Y5E) 		8-98273-496-0 01 1 1409- ● ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-123-1 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(C) PT3/8 ELBOW 		1-09660-696-0 01 1 0710- ● ●
108 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0710- ● ●
108 CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0710-0712 ● ●
108 CONNECTOR; ELBOW
ZF9S1110 M/T(Y5E) (B) DIN12 & M22 ELBOW 		1-09661-497-0 04 1 0801- ● ●
278 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 04 1 0710-0712 ● ●
286 MODULATOR; FRT 1-48240-115-0 02 1 0710-0712 ● ●
286 MODULATOR; FRT
ZF9S1110 M/T(Y5E) 		1-48240-115-0 02 1 0801-1408 ● ●
286 MODULATOR; FRT
ZF9S1110 M/T(Y5E) 		8-98215-454-0 02 1 1409- ● ●
287 COVER; MODULATOR
(A) 		1-47479-611-1 01 1 0710-0712 ● ●
287 COVER; MODULATOR
ZF9S1110 M/T(Y5E) (A) 		1-47479-611-1 01 1 0801-1408 ● ●
287 COVER; MODULATOR
ZF9S1110 M/T(Y5E) (A) 		8-98273-493-0 01 1 1409- ● ●
287 COVER; MODULATOR
(B) 		8-98073-401-0 01 1 0710-0712 ● ●
287 COVER; MODULATOR
ZF9S1110 M/T(Y5E) (B) 		8-98073-401-0 01 1 0801-1408 ● ●
287 COVER; MODULATOR
ZF9S1110 M/T(Y5E) (B) 		8-98273-494-0 01 1 1409- ● ●
çizim 112498
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-304-1 01 1 0710- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710- ● ●

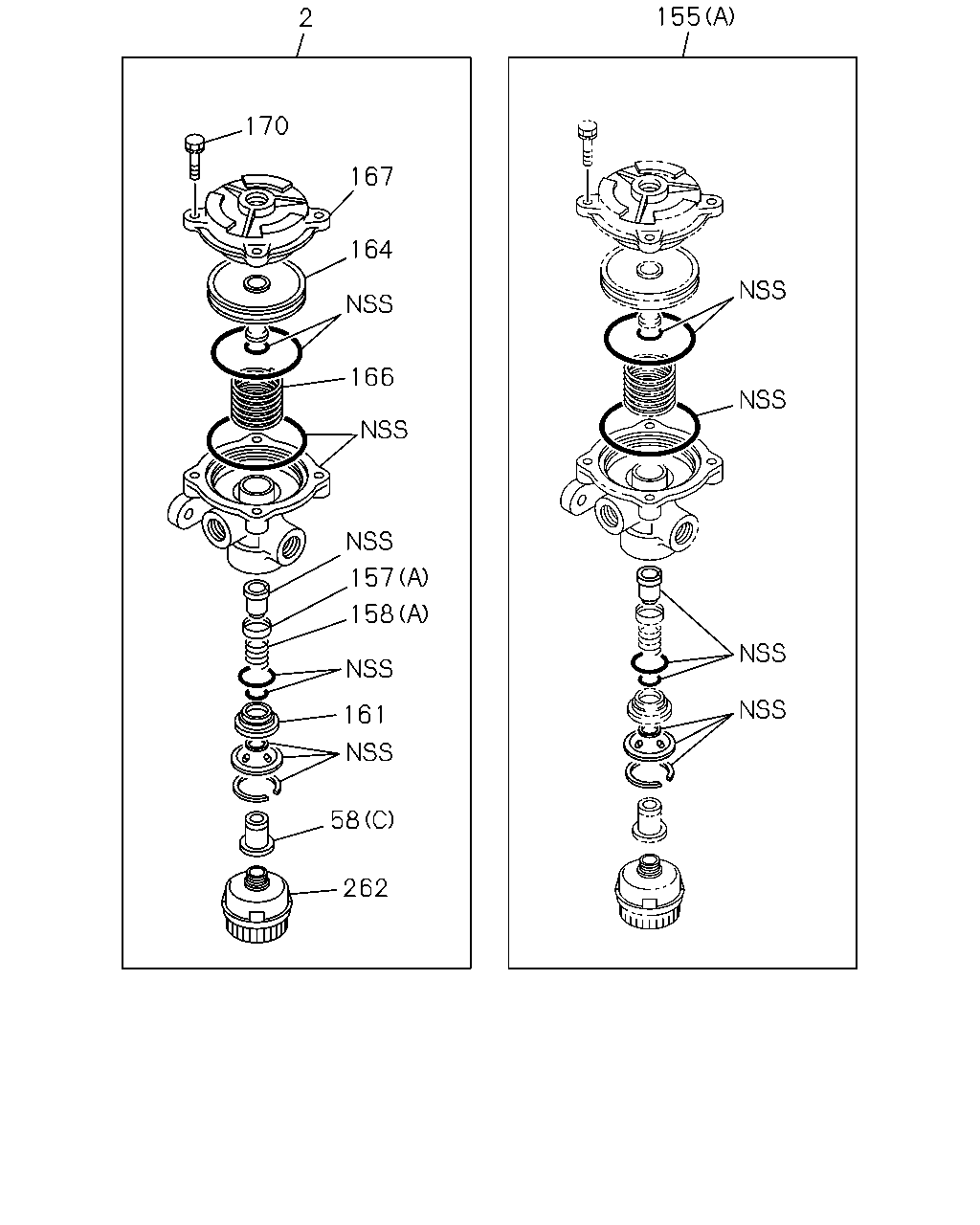

çizim 112499
155 2 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-997-0 02 1 0710-1009 ● ●
2 VALVE; RELAY 1-48210-997-0 02 1 1010- ●
2 VALVE; RELAY 1-48210-997-0 01 1 0710-0712 ● ●
2 VALVE; RELAY
ZF9S1110 M/T(Y5E) 		1-48210-997-0 01 1 0801- ● ●
58 ADAPTER
(B) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0710- ● ●
58 ADAPTER
(A) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 02 1 0710- ● ●
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-0712 ● ●
58 ADAPTER
ZF9S1110 M/T(Y5E) (C) 		1-48219-154-0 01 1 0801- ● ●
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710-0710 ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 02 1 0710- ● ●
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-294-0 01 1 0710-0712 ● ●
155 REPAIR KIT; RELAY VALVE
ZF9S1110 M/T(Y5E) (A) 		1-85576-294-0 01 1 0801- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0712 ● ●
157 RETAINER; VALVE
ZF9S1110 M/T(Y5E) (A) 		1-48213-002-0 01 1 0801- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1008 ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0712 ● ●
158 SPRING; VALVE
ZF9S1110 M/T(Y5E) (A) 		1-47819-089-0 01 1 0801- ● ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0710- ● ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-0712 ● ●
161 GUIDE; VALVE
ZF9S1110 M/T(Y5E) 		1-48129-014-0 01 1 0801- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 0710- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0710-0712 ● ●
164 PISTON; RELAY VALVE
ZF9S1110 M/T(Y5E) 		1-48219-071-0 01 1 0801- ● ●
166 SPRING; PISTON 1-47819-090-0 02 1 0710- ● ●
166 SPRING; PISTON 1-47819-090-0 01 1 0710-0712 ● ●
166 SPRING; PISTON
ZF9S1110 M/T(Y5E) 		1-47819-090-0 01 1 0801- ● ●
167 COVER; VALVE 1-48219-070-0 02 1 0710- ● ●
167 COVER; VALVE 1-48219-070-0 01 1 0710-0712 ● ●
167 COVER; VALVE
ZF9S1110 M/T(Y5E) 		1-48219-070-0 01 1 0801- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 0710- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0710-0712 ● ●
170 SCREW; COVER TO BODY
ZF9S1110 M/T(Y5E) 		1-48219-039-0 04 1 0801- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE
ZF9S1110 M/T(Y5E) 		1-48219-149-0 01 1 0801- ● ●

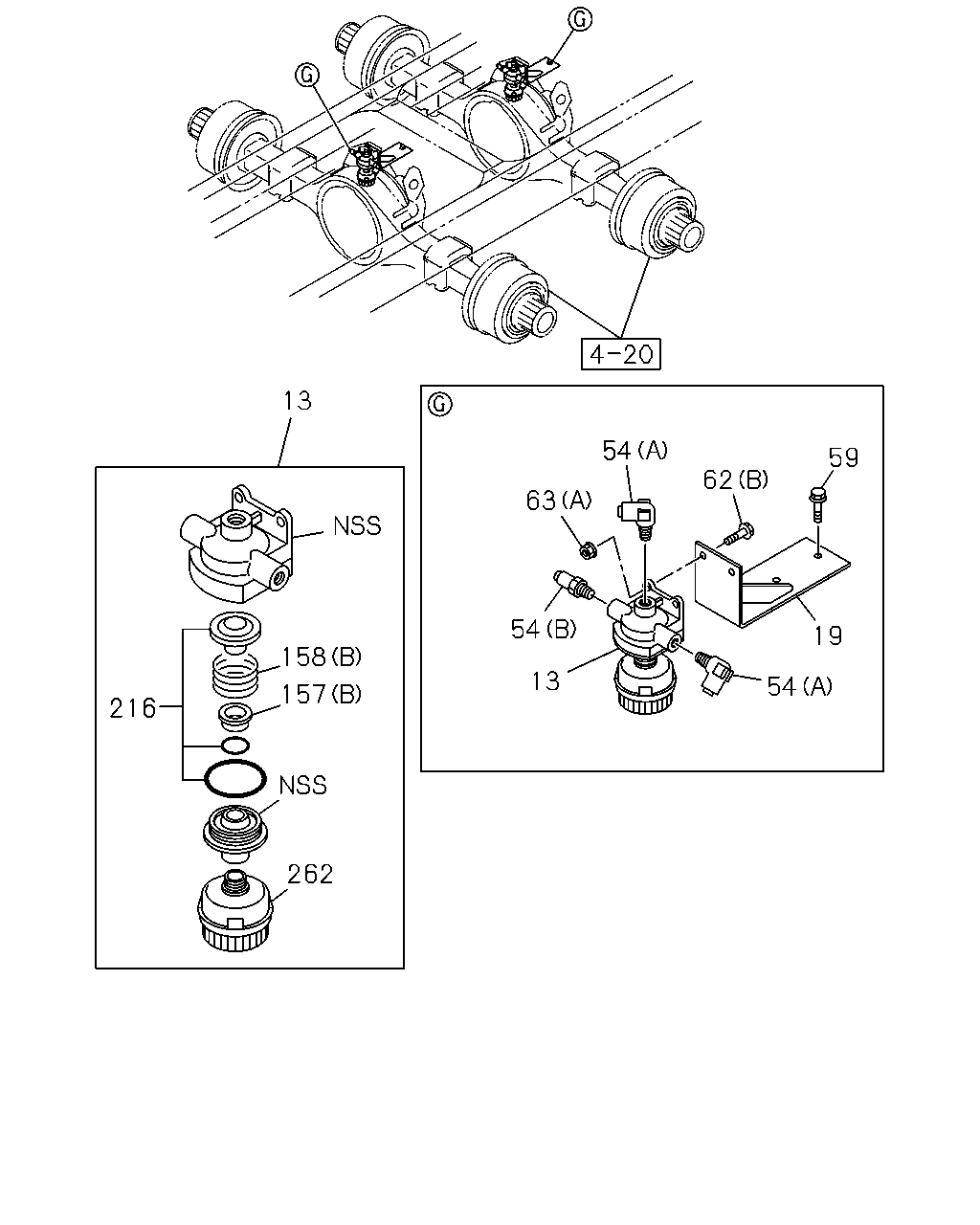

çizim 112501
13 54 59 62 63 54 19 158 13 54 157 216 262
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-733-0 02 1 0710-1008 ● ●
13 VALVE ASM; QUICK RELEASE 8-98170-207-0 02 1 1009- ● ●
19 BRACKET; QUICK RELEASE VLV
REARWARD 		8-98033-795-0 01 1 0710- ●
19 BRACKET; QUICK RELEASE VLV
FORWARD 		8-98069-343-0 01 1 0710- ●
19 BRACKET; QUICK RELEASE VLV 8-98033-795-0 02 1 0710- ●
54 CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0710- ● ●
54 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710- ● ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
62 BOLT; BRKT FIX
(B) REARWARD M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28050-820-0 04 1 0710-0711 ●
62 BOLT; BRKT FIX
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
62 BOLT; BRKT FIX
(B) FORWARD M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
62 BOLT; BRKT FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0712- ● ●
62 BOLT; BRKT FIX
(C) M10X35 FLANGE 		0-28651-035-0 04 1 1010- ●
63 NUT; BRKT FIX
(A) M8 		0-91110-508-0 04 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 		0-91110-508-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 0712- ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
63 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
63 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 04 1 1010- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0710- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0710-0712 ● ●
157 RETAINER; VALVE
ZF9S1110 M/T(Y5E) (A) 		1-48213-002-0 01 1 0801- ● ●
157 RETAINER; VALVE
(B) 		1-48419-036-0 02 1 0710-1008 ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 02 1 1009- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 02 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0710- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0710-0712 ● ●
158 SPRING; VALVE
ZF9S1110 M/T(Y5E) (A) 		1-47819-089-0 01 1 0801- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 02 1 0710-1008 ● ●
216 REPAIR KIT; QUICK RELEASE VLV 8-98171-596-0 02 1 1009- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 0710- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-0712 ● ●
262 SILENCER; RELAY VALVE
ZF9S1110 M/T(Y5E) 		1-48219-149-0 01 1 0801- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
