Sayfa 3-20 - Isuzu EPC

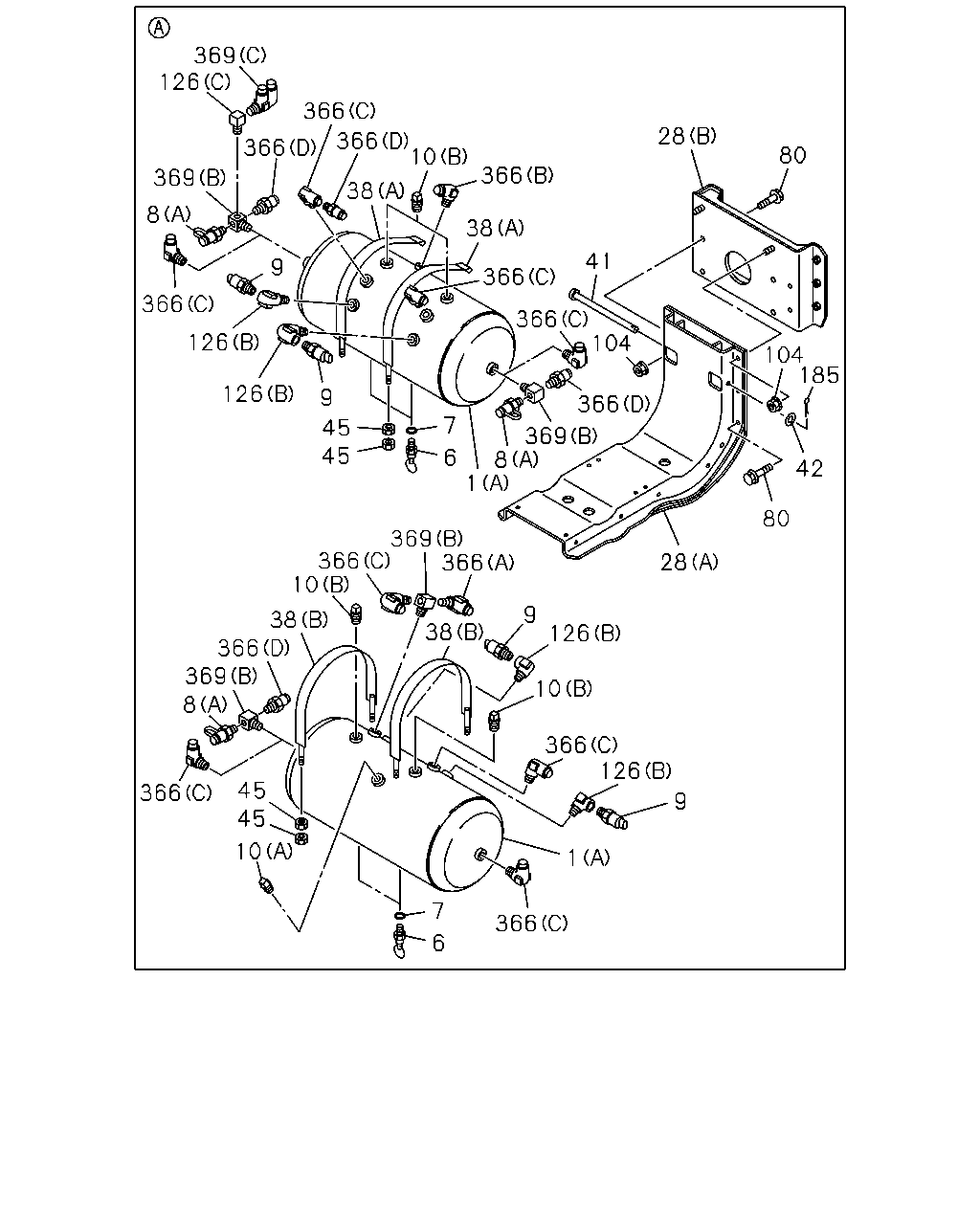

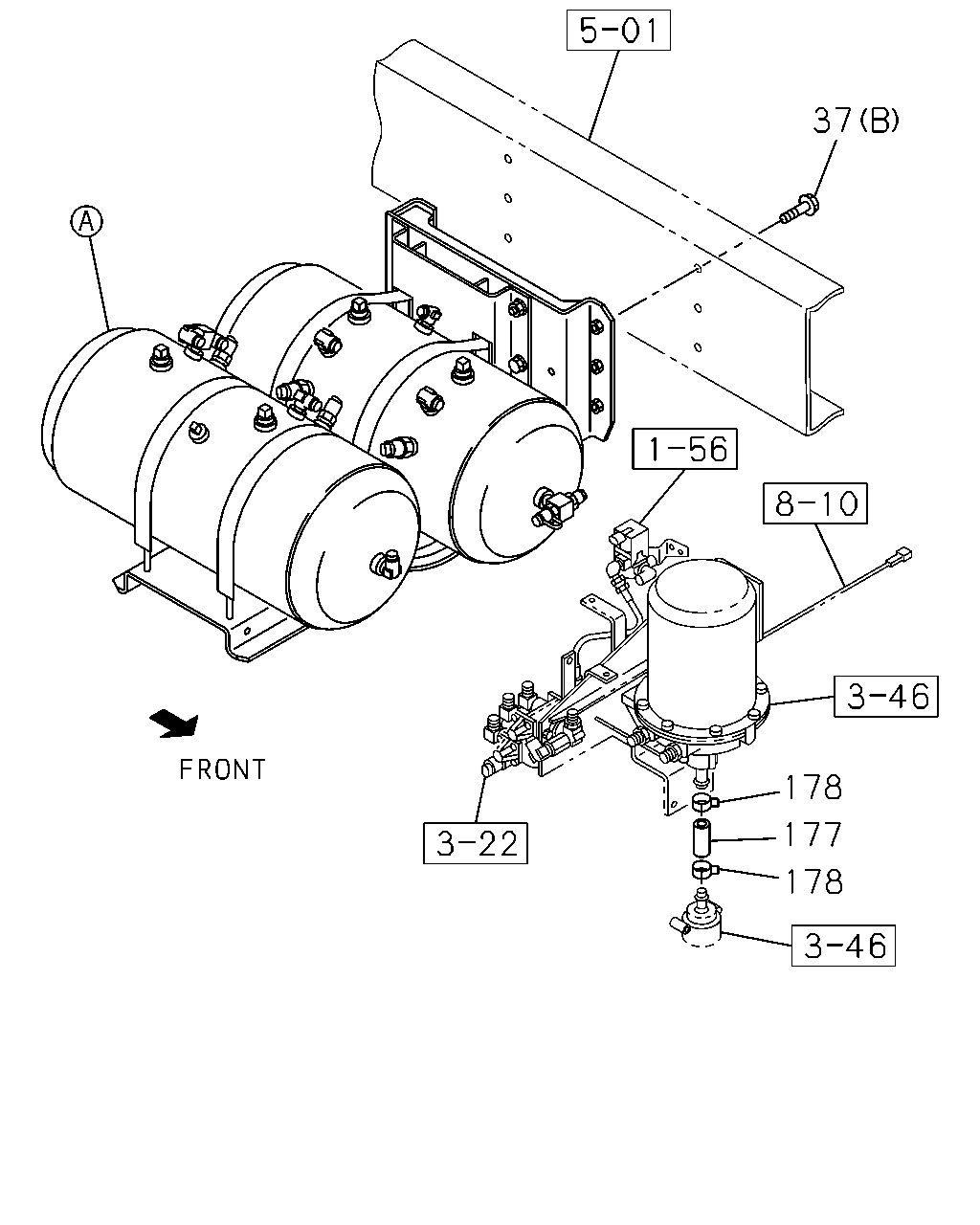

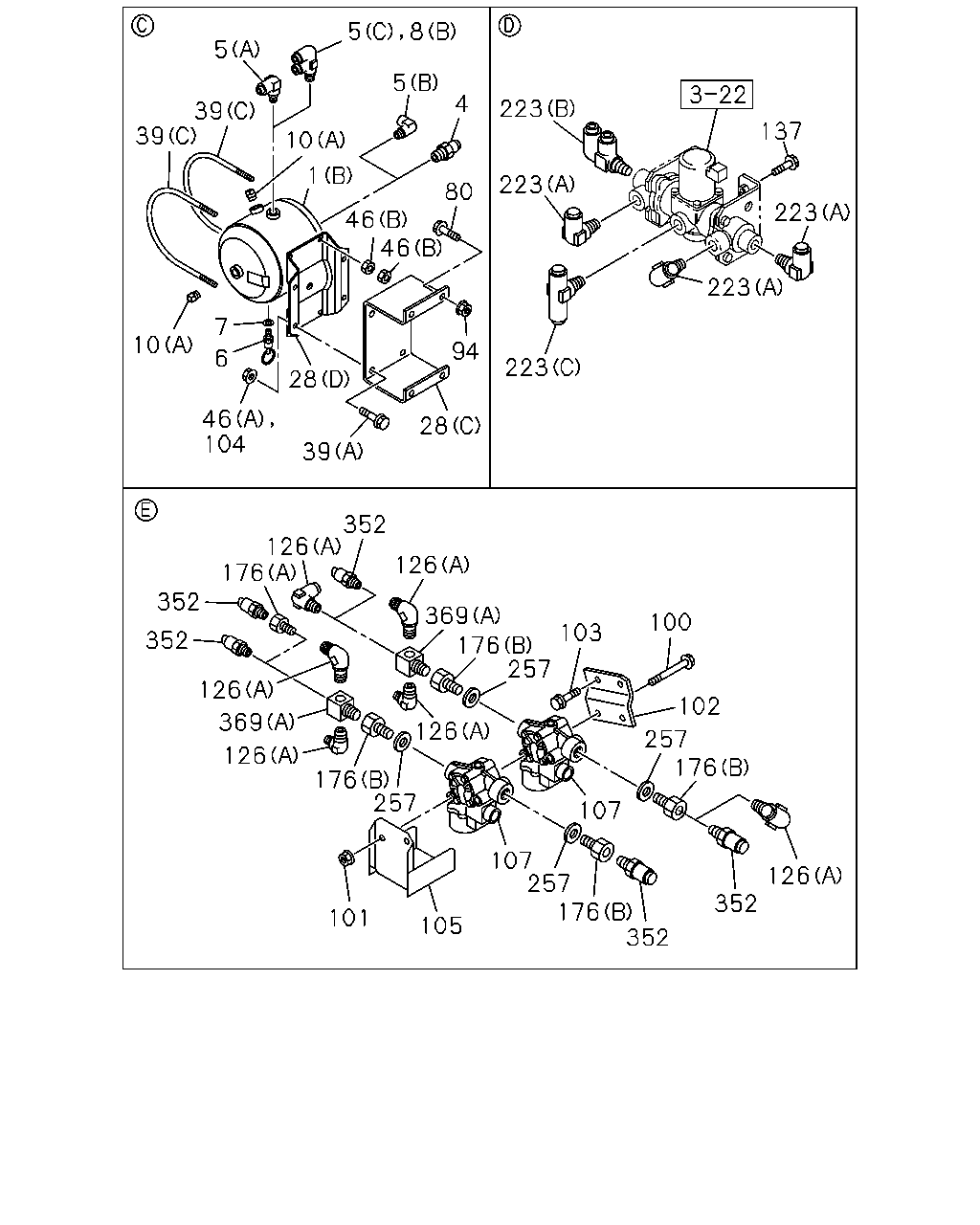

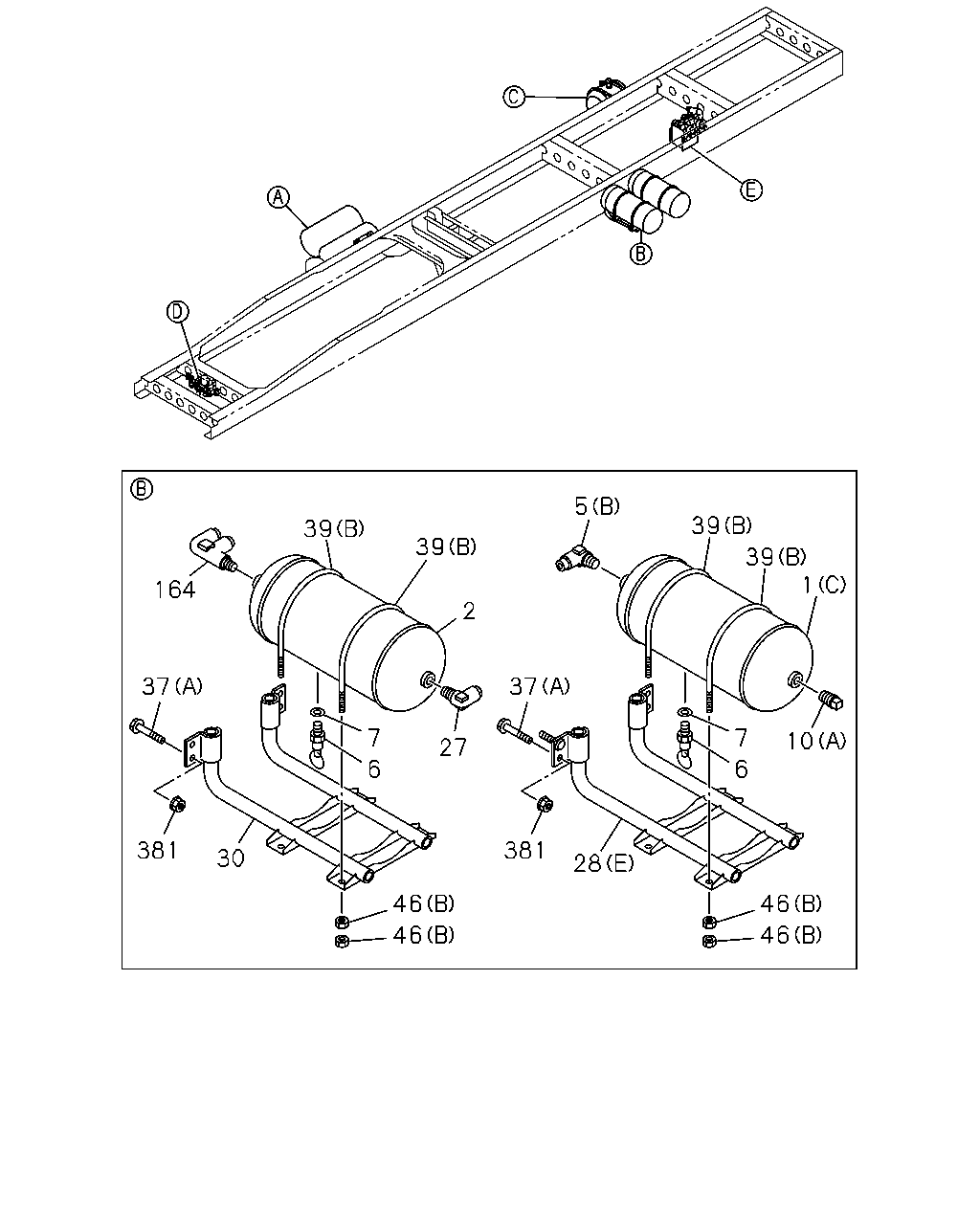

3-20 — AIR TANK (#41591) — 341 parça

369 126 366 28 366 10 366 80 366 369 38 8 38 41 9 366 366 366 104 126 104 185 126 9 366 7 45 45 369 8 1 6 42 80 369 366 366 10 28 9 38 366 369 38 126 10 8 366 126 45 45 366 9 10 1 7 366 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48370-961-0	02	1	0710-	●	●
1	TANK ASM; AIR (B)	8-98090-803-1	01	1	0710-0906	●	●
1	TANK ASM; AIR (B)	8-98081-870-1	01	1	0907-	●	●
1	TANK ASM; AIR COUNTRY NEW ZEALAND(CX6) (C)	1-48371-435-0	01	1	0806-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0710-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0805	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0805	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0808-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0808-	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK EXC. COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	02	1	0808-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0710-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0805	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0805	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0808-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0808-	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-	●
7	GASKET; DRAIN COCK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK EXC. COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	02	1	0808-		●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	03	1	0710-	●	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-0805	●
8	CONNECTOR; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-0805		●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0806-1003	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5000MM(50W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1004-		●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	04	1	0710-	●	●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	0710-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0805	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0805	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	01	1	0710-0805		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-0806	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-0806	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-	●	●
10	PLUG; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) PT3/8	9-09204-517-0	01	1	0806-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0710	●	●
10	PLUG; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	02	1	0710-0805		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0806-		●
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	0710-	●	●
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	0710-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	0710-	●	●
28	BRACKET; AIR TANK (C)	8-98092-757-0	01	1	0710-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	0710-		●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-1	01	1	0806-0807	●	●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	0808-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	0808-		●
28	BRACKET; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E)	8-98128-349-0	01	1	0808-		●
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	0710-	●	●
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	0710-	●	●
41	PIN; BAND FIX	1-09744-068-0	01	1	0710-	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	01	1	0710-1101	●	●
42	WASHER; PL ID=10.5	0-91614-510-0	01	1	1102-	●	●
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	0710-	●	●
80	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	0710-	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	03	1	0712-0806	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0807-0906	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0907-1003	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0907-1003	●
80	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X35 FLANGE	0-28651-035-0	04	1	0907-1003		●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1004-	●	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1004-	●
80	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1004-		●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0710-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	0907-	●
104	NUT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10	0-91110-510-0	04	1	0907-		●
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	0710-	●	●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-		●
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0710-	●
126	CONNECTOR; ELBOW COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW	1-09660-696-0	01	1	0806-	●	●
185	PIN; SNAP L=32.6	8-98062-280-0	01	1	0710-	●	●
366	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-	●	●
366	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-	●	●
366	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0710-	●	●
366	CONNECTOR; NYLON TUBE (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0710-0805	●	●
366	CONNECTOR; NYLON TUBE COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0806-	●	●
366	CONNECTOR; NYLON TUBE EXC. COUNTRY NEW ZEALAND(CX6) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0806-	●	●
369	CONNECTOR; 3WAY ZF9S1110 M/T(Y5E) (A) PT3/8 3WAY	1-09661-300-0	02	1	0710-1111	●	●
369	CONNECTOR; 3WAY ZF9S1110 M/T(Y5E) (A)	8-98203-578-0	02	1	1112-1408	●	●
369	CONNECTOR; 3WAY ZF9S1110 M/T(Y5E) (A) PT3/8 3WAY	1-09661-300-0	02	1	1409-	●	●
369	CONNECTOR; 3WAY COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0806-	●	●
369	CONNECTOR; 3WAY (B)	1-09656-708-0	04	1	0710-1101	●	●
369	CONNECTOR; 3WAY (B)	8-98166-127-0	04	1	1102-	●	●

5 39 39 39 39 1 164 2 37 37 7 7 10 27 6 6 381 381 28 30 46 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48370-961-0	02	1	0710-	●	●
1	TANK ASM; AIR (B)	8-98090-803-1	01	1	0710-0906	●	●
1	TANK ASM; AIR (B)	8-98081-870-1	01	1	0907-	●	●
1	TANK ASM; AIR COUNTRY NEW ZEALAND(CX6) (C)	1-48371-435-0	01	1	0806-	●	●
2	TANK; AIR	1-48371-435-0	01	1	0710-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-	●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0710	●
5	UNION; AIR TANK WHEEL BASE 5000MM(50W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0805		●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0805		●
5	UNION; AIR TANK COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-		●
5	UNION; AIR TANK (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1004-	●
5	UNION; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1004-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0710-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0805	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0805	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0808-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0808-	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK EXC. COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	02	1	0808-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0710-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0805	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0805	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0808-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0808-	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-	●
7	GASKET; DRAIN COCK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK EXC. COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	02	1	0808-		●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	0710-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0805	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0805	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	01	1	0710-0805		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-0806	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-0806	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-	●	●
10	PLUG; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) PT3/8	9-09204-517-0	01	1	0806-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0710	●	●
10	PLUG; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	02	1	0710-0805		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0806-		●
27	UNION; ELBOW,AIR TANK DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-	●	●
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	0710-	●	●
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	0710-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	0710-	●	●
28	BRACKET; AIR TANK (C)	8-98092-757-0	01	1	0710-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	0710-		●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-1	01	1	0806-0807	●	●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	0808-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	0808-		●
28	BRACKET; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E)	8-98128-349-0	01	1	0808-		●
30	BRACKET; AIR TANK,SUB	8-98047-746-2	01	1	0710-	●	●
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	0710-	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	0710-0805	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	0806-0807	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	02	1	0806-0807	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	0808-	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	0808-	●	●
39	U-BOLT; AIR TANK (A) M10X35 FLANGE	0-28651-035-0	04	1	0710-0906	●
39	U-BOLT; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X35 FLANGE	0-28651-035-0	04	1	0710-0906		●
39	U-BOLT; AIR TANK (C) L=210	1-48317-458-1	02	1	0710-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	0710-0805	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	0806-0807	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0806-0807	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	0808-	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-	●
39	U-BOLT; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-		●
39	U-BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-		●
39	U-BOLT; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-		●
39	U-BOLT; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	04	1	0808-		●
46	NUT; U-BOLT (A) M10	0-91110-510-0	04	1	0710-0710	●
46	NUT; U-BOLT (A) M10	0-91110-510-0	04	1	0710-0906	●
46	NUT; U-BOLT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10	0-91110-510-0	04	1	0710-0906		●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0710-0805	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0710-0805	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0806-0807	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0806-0807	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0806-0807	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0808-	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0808-	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-	●
46	NUT; U-BOLT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-		●
46	NUT; U-BOLT EXC. COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-		●
46	NUT; U-BOLT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-		●
46	NUT; U-BOLT WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	16	1	0808-		●
164	CONNECTOR; SUB AIR TANK DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	0710-0805	●	●
381	NUT; SUB TANK M14	0-91110-514-0	04	1	0806-	●	●
381	NUT; SUB TANK COUNTRY NEW ZEALAND(CX6) M14	0-91110-514-0	04	1	0806-	●	●

37 178 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK (B) M12X40 FLANGE	0-28651-240-0	06	1	0710-	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	0710-0805	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	02	1	0806-0807	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	02	1	0806-0807	●	●
37	BOLT; AIR TANK (A) M14X50	0-20851-450-0	03	1	0808-	●	●
37	BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) M14X50	0-20851-450-0	03	1	0808-	●	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0710-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	02	1	0710-	●	●

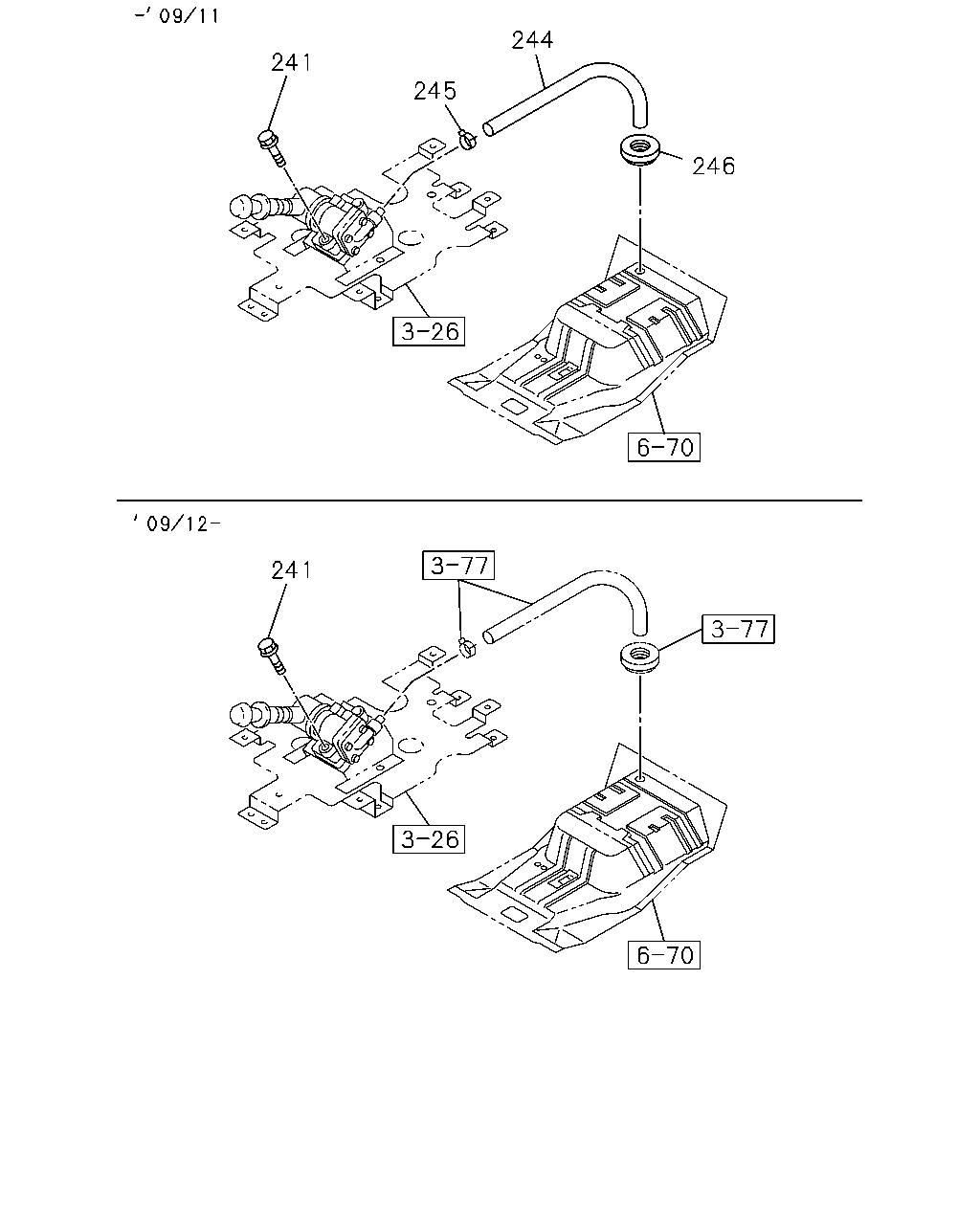

244 241 245 246 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0710-	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0710-0911	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0710-0911	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0710-0911	●	●

5 5 4 223 39 39 137 10 1 46 46 223 80 223 223 7 10 94 6 223 28 46 104 28 39 352 126 176 126 352 369 100 103 352 176 257 126 102 369 126 257 176 126 176 257 107 107 257 176 352 126 352 101 105 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	1-48370-961-0	02	1	0710-	●	●
1	TANK ASM; AIR (B)	8-98090-803-1	01	1	0710-0906	●	●
1	TANK ASM; AIR (B)	8-98081-870-1	01	1	0907-	●	●
1	TANK ASM; AIR COUNTRY NEW ZEALAND(CX6) (C)	1-48371-435-0	01	1	0806-	●	●
4	CONNECTOR; FLARE WHEEL BASE 5000MM(50W) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0711		●
4	CONNECTOR; FLARE WHEEL BASE 5000MM(50W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0712-0805		●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-	●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0710	●
5	UNION; AIR TANK WHEEL BASE 5000MM(50W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-0805		●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0710-0805		●
5	UNION; AIR TANK COUNTRY NEW ZEALAND(CX6) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0806-		●
5	UNION; AIR TANK (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1004-	●
5	UNION; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1004-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0710-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0805	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0710-0805	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0806-0807	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0808-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0808-	●
6	COCK; DRAIN,AIR TANK COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK EXC. COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	01	1	0808-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6)	1-48312-015-0	02	1	0808-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0710-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0805	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0710-0805	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0806-0807	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0808-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0808-	●
7	GASKET; DRAIN COCK COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-	●
7	GASKET; DRAIN COCK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK EXC. COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	01	1	0808-		●
7	GASKET; DRAIN COCK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) ID=14	1-09630-145-0	02	1	0808-		●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	03	1	0710-	●	●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-0805	●
8	CONNECTOR; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-0805		●
8	CONNECTOR; AIR TANK (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0806-1003	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5000MM(50W) (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1004-		●
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	04	1	0710-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0805	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0805	●
10	PLUG; AIR TANK WHEEL BASE 5000MM(50W) (A) PT3/8	9-09204-517-0	01	1	0710-0805		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-0806	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-0806	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0806-	●	●
10	PLUG; AIR TANK COUNTRY NEW ZEALAND(CX6) (A) PT3/8	9-09204-517-0	01	1	0806-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0710-0710	●	●
10	PLUG; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	02	1	0710-0805		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	0806-		●
28	BRACKET; AIR TANK (A)	8-98048-199-0	01	1	0710-	●	●
28	BRACKET; AIR TANK (B)	8-98048-200-2	01	1	0710-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	0710-	●	●
28	BRACKET; AIR TANK (C)	8-98092-757-0	01	1	0710-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C)	8-98092-757-0	01	1	0710-		●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-1	01	1	0806-0807	●	●
28	BRACKET; AIR TANK COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	0808-	●
28	BRACKET; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (E)	8-98047-746-2	01	1	0808-		●
28	BRACKET; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (E)	8-98128-349-0	01	1	0808-		●
39	U-BOLT; AIR TANK (A) M10X35 FLANGE	0-28651-035-0	04	1	0710-0906	●
39	U-BOLT; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X35 FLANGE	0-28651-035-0	04	1	0710-0906		●
39	U-BOLT; AIR TANK (C) L=210	1-48317-458-1	02	1	0710-	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	0710-0805	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	0806-0807	●	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0806-0807	●	●
39	U-BOLT; AIR TANK (B)	1-48317-289-0	02	1	0808-	●
39	U-BOLT; AIR TANK COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-	●
39	U-BOLT; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-		●
39	U-BOLT; AIR TANK EXC. COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-		●
39	U-BOLT; AIR TANK WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	02	1	0808-		●
39	U-BOLT; AIR TANK WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (B)	1-48317-289-0	04	1	0808-		●
46	NUT; U-BOLT (A) M10	0-91110-510-0	04	1	0710-0710	●
46	NUT; U-BOLT (A) M10	0-91110-510-0	04	1	0710-0906	●
46	NUT; U-BOLT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10	0-91110-510-0	04	1	0710-0906		●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0710-0805	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0710-0805	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0806-0807	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0806-0807	●	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0806-0807	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0808-	●	●
46	NUT; U-BOLT (B) M8	0-91110-508-0	08	1	0808-	●
46	NUT; U-BOLT COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-	●
46	NUT; U-BOLT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-		●
46	NUT; U-BOLT EXC. COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-		●
46	NUT; U-BOLT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	08	1	0808-		●
46	NUT; U-BOLT WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (B) M8	0-91110-508-0	16	1	0808-		●
80	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	0710-	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	03	1	0712-0806	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0807-0906	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0907-1003	●	●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	0907-1003	●
80	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X35 FLANGE	0-28651-035-0	04	1	0907-1003		●
80	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1004-	●	●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1004-	●
80	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X25 FLANGE	0-28651-025-0	04	1	1004-		●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0710-0711	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	03	1	0712-0712	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0801-	●	●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> M8X150 FLANGE	0-28055-815-0	02	1	0710-0710		●
100	BOLT; MODULATOR ZF9S1110 M/T(Y5E) M8X150 FLANGE	0-28055-815-0	02	1	0710-0804	●	●
100	BOLT; MODULATOR ZF9S1110 M/T(Y5E) M8X140 FLANGE	0-28055-814-0	02	1	0805-	●	●
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
101	NUT; MODULATOR ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
102	BRACKET; MODULATOR ZF9S1110 M/T(Y5E)	8-98034-539-2	01	1	0710-1408	●	●
102	BRACKET; MODULATOR ZF9S1110 M/T(Y5E)	8-98273-170-0	01	1	1409-	●	●
103	BOLT; BRKT ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	03	1	0710-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	0907-	●
104	NUT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10	0-91110-510-0	04	1	0907-		●
105	COVER; MODULATOR	1-47479-792-0	01	1	0710-1408	●
105	COVER; MODULATOR	8-98272-749-0	01	1	1409-	●
107	MODULATOR; RR ZF9S1110 M/T(Y5E)	1-48240-115-0	02	1	0710-1408	●	●
107	MODULATOR; RR ZF9S1110 M/T(Y5E)	8-98215-454-0	02	1	1409-	●	●
126	CONNECTOR; ELBOW (B) PT1/4 2WAY	1-09660-693-0	04	1	0710-	●	●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-		●
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0710-	●
126	CONNECTOR; ELBOW COUNTRY NEW ZEALAND(CX6) (C) PT3/8 ELBOW	1-09660-696-0	01	1	0806-	●	●
137	BOLT; BRKT H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
176	ADAPTER ZF9S1110 M/T(Y5E) (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-	●	●
176	ADAPTER (A) PT3/8	1-09664-210-0	01	1	0710-	●
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	0710-	●	●
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-	●	●
223	UNION H.S.A SYSTEM<6EP> (C)	1-09661-073-0	01	1	0710-	●	●
257	GASKET; PLUG ZF9S1110 M/T(Y5E) ID=22.5	9-09571-422-0	04	1	0710-	●	●
352	CONNECTOR; STRAIGHT ANTI LOCK BRAKE<JE5> DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0710-		●
352	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-	●
369	CONNECTOR; 3WAY ZF9S1110 M/T(Y5E) (A) PT3/8 3WAY	1-09661-300-0	02	1	0710-1111	●	●
369	CONNECTOR; 3WAY ZF9S1110 M/T(Y5E) (A)	8-98203-578-0	02	1	1112-1408	●	●
369	CONNECTOR; 3WAY ZF9S1110 M/T(Y5E) (A) PT3/8 3WAY	1-09661-300-0	02	1	1409-	●	●
369	CONNECTOR; 3WAY COUNTRY NEW ZEALAND(CX6) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0806-	●	●
369	CONNECTOR; 3WAY (B)	1-09656-708-0	04	1	0710-1101	●	●
369	CONNECTOR; 3WAY (B)	8-98166-127-0	04	1	1102-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
