◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#41587) — 80 parça

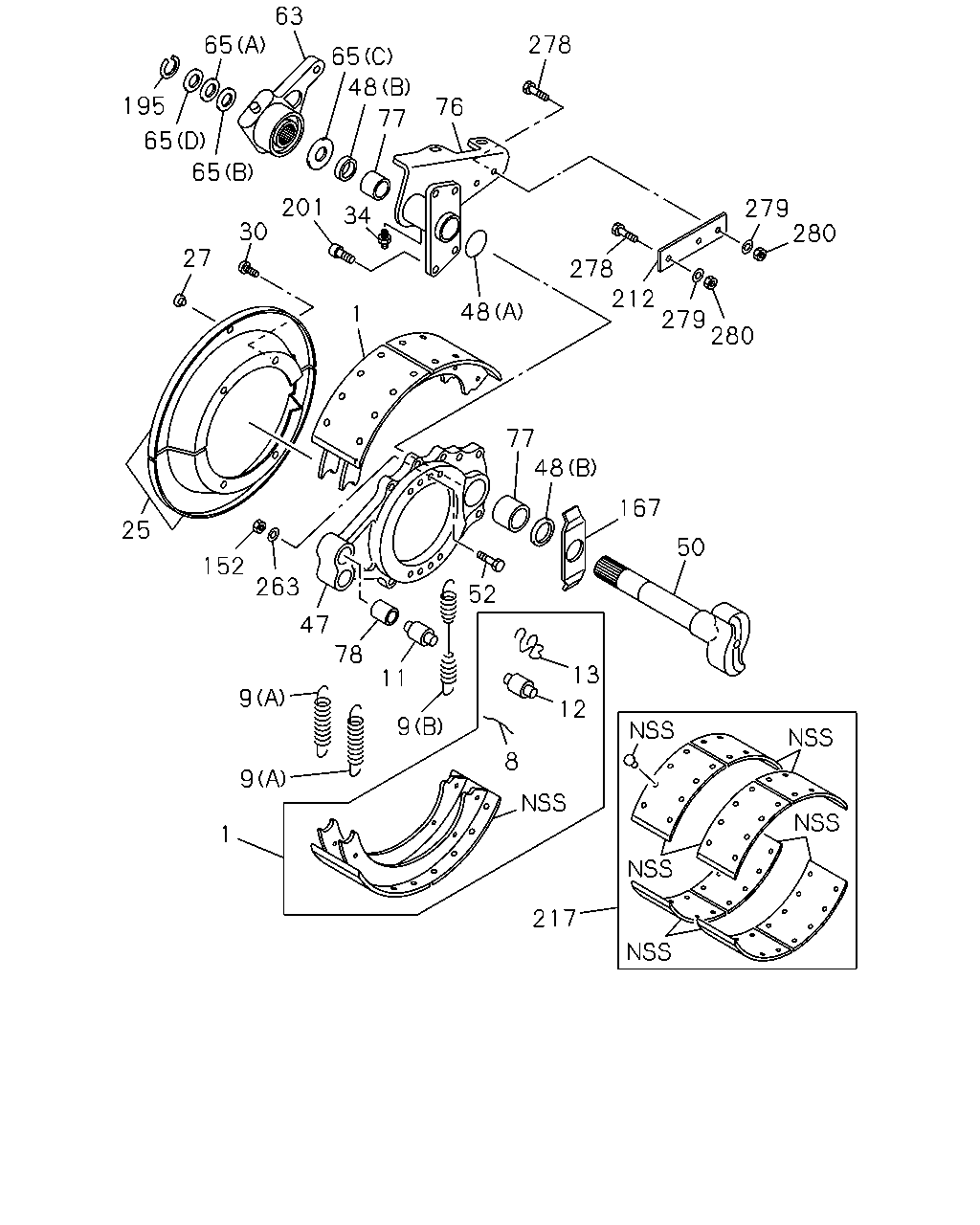

çizim 112477
50 167 48 77 280 279 212 278 280 279 278 76 77 48 65 63 65 195 65 65 30 27 201 34 1 48 152 25 263 47 78 11 9 52 13 12 8 217 9 9 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-734-0 04 1 0710- ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0710- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710- ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710- ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710- ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0710- ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0710- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0710- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0710- ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710- ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710- ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710- ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710- ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0710- ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0710- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0710- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0710- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0710- ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0710- ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FORWARD RH,REARWARD LH 		1-47141-139-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FORWARD RH,REARWARD LH 		1-47141-139-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FORWARD LH,REARWARD RH 		1-47149-102-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FORWARD LH,REARWARD RH 		1-47149-102-0 01 1 0710- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0710- ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0710- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0710- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0710- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0710- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-033-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-034-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-022-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-023-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-024-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-025-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 0804- ●
77 BUSHING 1-47146-012-0 04 1 0710- ● ●
77 BUSHING 1-47146-012-0 04 1 0710- ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0710- ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0710- ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0710- ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0710- ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0710- ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0710- ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0710- ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0710- ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0710- ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0710- ● ●
212 STAY 1-47149-081-0 02 1 0710- ● ●
212 STAY 1-47149-081-0 02 1 0710- ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0710- ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0710- ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0710- ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0710- ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 0710- ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 0710- ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 0710- ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 0710- ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 0710- ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
