Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11426 - FVZ(AUST)EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

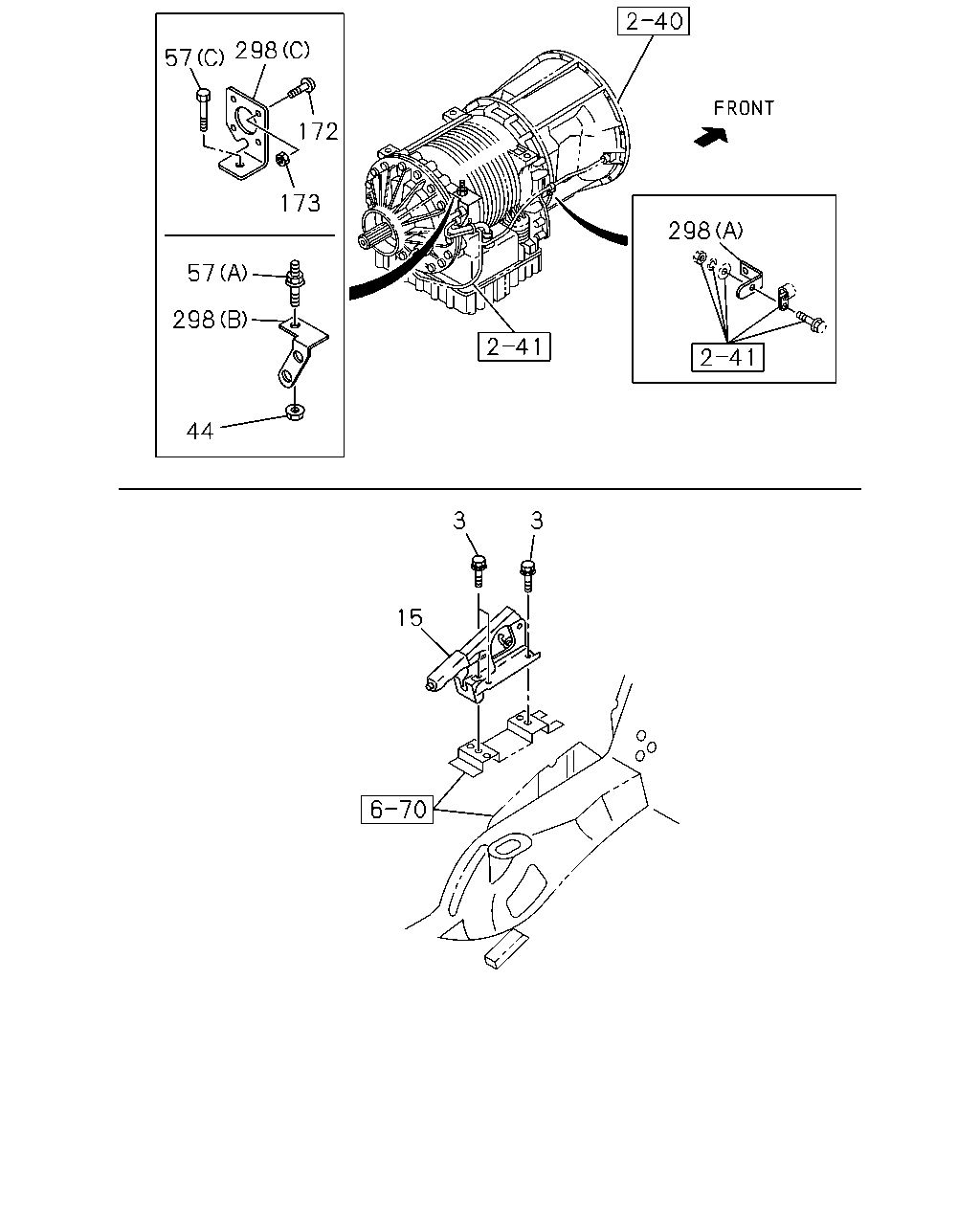

2-85 — POWER TAKE OFF CONTROL
(#41585) — 42 parça
Tümü
A - FGY5MV
B - FGZ5MV
◀
[285A] A/T AND DUMP CONTROL LEVER (23 parça)
[285A] ZF M/T (19 parça)
▶
298
57
172
173
298
57
298
44
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0710-
●
●
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
0710-
●
●
44
NUT; BRKT
ALLISON MD3560P A/T(Y3B) M14 FLANGE
0-91180-114-0
01
1
0710-0905
●
●
44
NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) M14 FLANGE
0-91180-114-0
01
1
0906-0910
●
44
NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M14 FLANGE
0-91180-114-0
01
1
0906-0910
●
44
NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W)
1-34119-135-0
01
1
0906-0910
●
44
NUT; BRKT
ALLISON MD3560P A/T(Y3B)
1-34119-135-0
01
1
0911-
●
●
57
BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE
0-28650-830-0
01
1
0802-
●
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) M10X22,M14X55 L=88
1-09029-071-0
01
1
0710-0905
●
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88
1-09029-071-0
01
1
0906-0910
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88
1-09029-071-0
01
1
0906-0910
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C)
1-34119-134-0
01
1
0906-0910
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (C)
1-34119-134-0
01
1
0911-
●
●
172
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M4X16
9-03494-416-0
04
1
0906-0910
●
172
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M4X16
9-03494-416-0
04
1
0911-
●
●
173
NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M4 FLANGE
8-97368-853-0
04
1
0906-0910
●
173
NUT; BRKT
ALLISON MD3560P A/T(Y3B) M4 FLANGE
8-97368-853-0
04
1
0911-
●
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (A)
1-34119-088-0
01
1
0710-
●
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B)
1-34119-113-0
01
1
0710-0905
●
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (B)
1-34119-113-0
01
1
0906-0910
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B)
1-34119-113-0
01
1
0906-0910
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C)
1-34119-133-0
01
1
0906-0910
●
298
BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (C)
1-34119-133-0
01
1
0911-
●
●
305
250
48
313
57
50
49
240
313
182
111
48
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230
1-09363-666-0
01
1
0802-1008
●
●
48
HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230
1-09363-666-0
01
1
1009-
●
●
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2
9-09150-512-0
01
1
0802-1011
●
●
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
0802-
●
●
57
BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE
0-28650-830-0
01
1
0802-
●
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) M10X22,M14X55 L=88
1-09029-071-0
01
1
0710-0905
●
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88
1-09029-071-0
01
1
0906-0910
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88
1-09029-071-0
01
1
0906-0910
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C)
1-34119-134-0
01
1
0906-0910
●
57
BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (C)
1-34119-134-0
01
1
0911-
●
●
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
01
1
0802-
●
●
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM)
8-98100-228-0
01
1
0802-
●
●
182
CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0710-
●
●
240
GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
0710-1312
●
●
240
GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1401-
●
●
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0802-
●
●
305
TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10
1-87411-019-0
02
1
0802-
●
●
313
ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
0802-
●
●
313
ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B)
1-09654-396-0
01
1
0710-
●
●
