Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#41582) — 174 parça

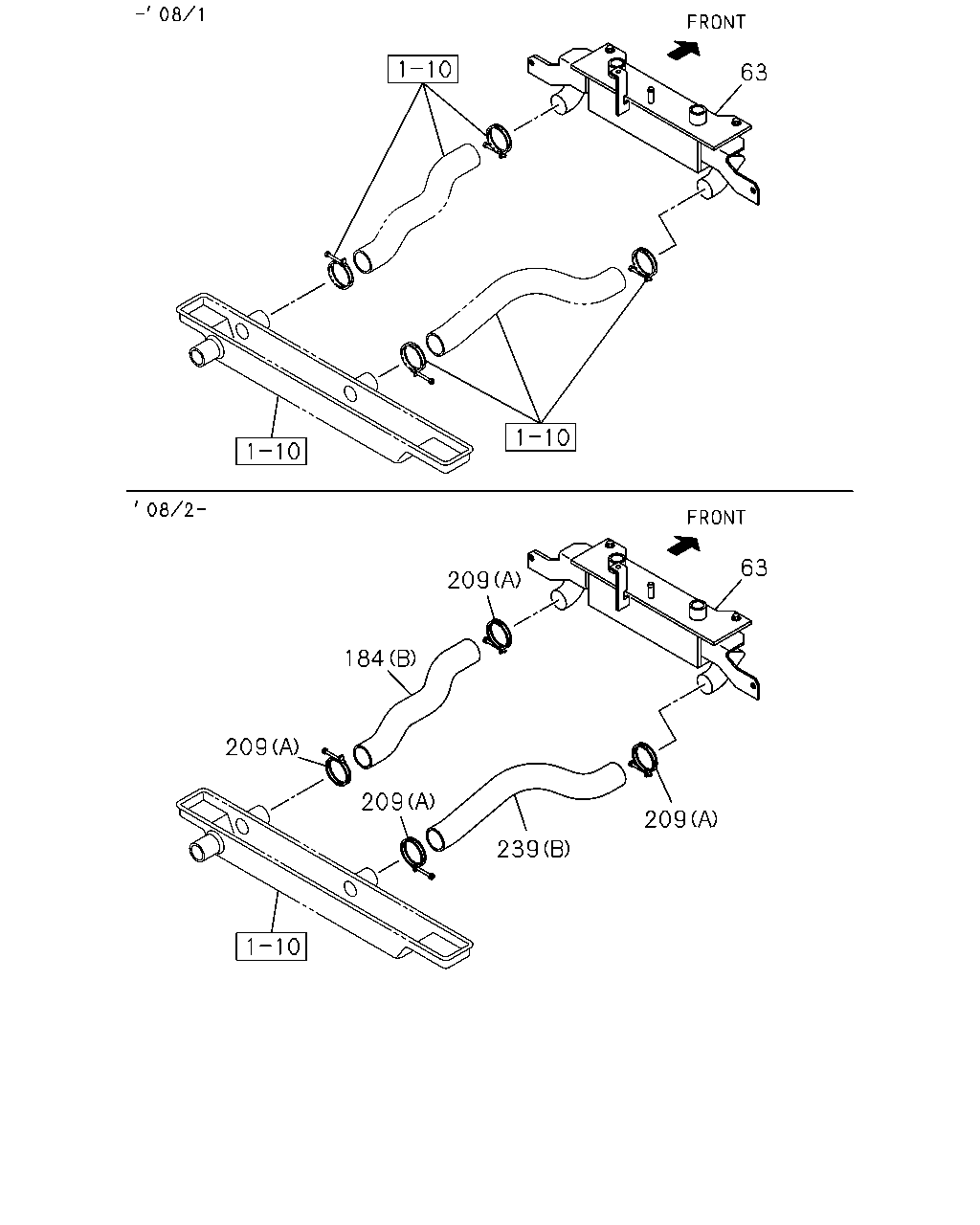

63 63 209 184 209 209 209 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	0710-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98025-696-1	01	1	0802-	●	●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98097-593-0	01	1	0710-0903	●	●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98097-593-0	01	1	0904-0910	●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98097-593-0	01	1	0904-0910		●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-	●	●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) ID=26 L=26	1-09701-236-0	02	1	0904-0910		●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (B) ID=26 L=26	1-09701-236-0	02	1	0911-	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98025-697-1	01	1	0802-	●	●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3560P A/T(Y3B) (A)	8-98097-594-0	01	1	0710-0903	●	●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98097-594-0	01	1	0904-0910	●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98097-594-0	01	1	0904-0910		●

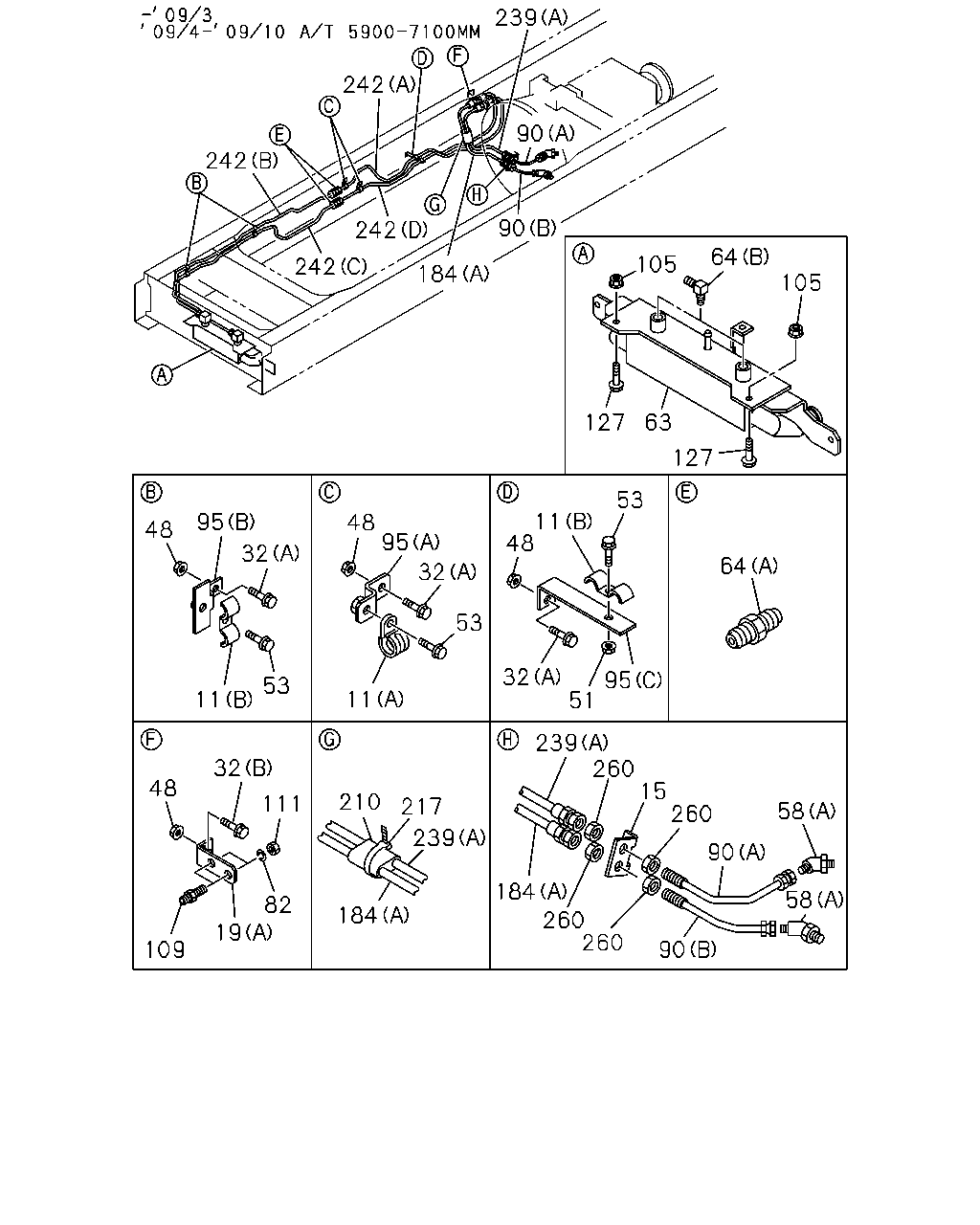

239 242 90 242 242 90 64 105 242 184 105 63 127 127 53 11 48 95 48 95 48 32 64 32 53 32 51 95 53 11 11 239 260 15 260 32 48 210 111 217 58 239 90 184 58 82 184 260 260 19 90 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (A) ID=19 L=20	0-95235-836-0	02	1	0710-	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0903	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0910	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0910		●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	03	1	0911-	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) ID=19 & 19	1-09701-324-0	03	1	0904-0910		●
15	BRACKET; ATF PIPE ALLISON MD3560P A/T(Y3B)	1-47471-409-0	01	1	0710-0903	●	●
15	BRACKET; ATF PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W)	1-47471-409-0	01	1	0904-0910	●
15	BRACKET; ATF PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W)	1-47471-409-0	01	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98097-570-0	01	1	0710-0811	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98133-954-0	01	1	0812-0903	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98133-954-0	01	1	0904-0910	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98133-954-0	01	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (A)	8-98097-570-0	01	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98097-570-0	01	1	0911-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B)	8-98144-397-0	01	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (B)	8-98144-397-0	01	1	0911-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	05	1	0710-0912	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (A) M8X30 FLANGE	0-28650-830-0	02	1	0904-0910		●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	02	1	0911-0912	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	07	1	1001-	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	07	1	0710-0912	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	02	1	0904-0910		●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	02	1	0911-0912	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	09	1	1001-	●	●
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	01	1	0710-0811	●	●
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	0710-0811	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	06	1	0812-0903	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	06	1	0904-0910	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	06	1	0904-0910		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	0911-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M8X20 FLANGE	0-28650-820-0	05	1	0904-0910		●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) (A)	1-09661-809-0	02	1	0710-0903	●	●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	1-09661-809-0	02	1	0904-0910	●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	1-09661-809-0	02	1	0904-0910		●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B)	8-98144-617-0	02	1	0905-0910		●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) (B)	8-98144-617-0	02	1	0911-	●	●
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	0710-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) (A)	1-09664-263-0	02	1	0710-0811	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) (B)	9-09903-722-0	02	1	0710-	●	●
82	WASHER; LK,UNION ALLISON MD3560P A/T(Y3B) ID=30.5	9-09150-530-0	02	1	0710-	●	●
90	PIPE ASM; ATF ALLISON MD3560P A/T(Y3B) (A)	1-32571-167-0	01	1	0710-0903	●	●
90	PIPE ASM; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	1-32571-167-0	01	1	0904-0910	●
90	PIPE ASM; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	1-32571-167-0	01	1	0904-0910		●
90	PIPE ASM; ATF ALLISON MD3560P A/T(Y3B) (B)	1-32571-168-0	01	1	0710-0903	●	●
90	PIPE ASM; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (B)	1-32571-168-0	01	1	0904-0910	●
90	PIPE ASM; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B)	1-32571-168-0	01	1	0904-0910		●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	1-47478-140-0	01	1	0710-1407	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	8-98269-434-0	01	1	1408-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (A)	1-47479-255-0	02	1	0710-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (B)	8-98089-351-0	02	1	0710-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
109	UNION ALLISON MD3560P A/T(Y3B) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-	●	●
111	NUT; UNION ALLISON MD3560P A/T(Y3B) M30	9-09840-252-1	02	1	0710-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
184	HOSE; FLEX,PIPE TO COOLER A/T<X9D> (B)	8-98025-696-1	01	1	0802-	●	●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98097-593-0	01	1	0710-0903	●	●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98097-593-0	01	1	0904-0910	●
184	HOSE; FLEX,PIPE TO COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98097-593-0	01	1	0904-0910		●
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	02	1	0710-0811	●	●
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	01	1	0812-	●	●
217	CLIP; BAND,FLEX HOSE ALLISON MD3560P A/T(Y3B) L=250	1-09707-126-0	01	1	0710-0811	●	●
239	HOSE; FLEX,COOLER TO PIPE A/T<X9D> (B)	8-98025-697-1	01	1	0802-	●	●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3560P A/T(Y3B) (A)	8-98097-594-0	01	1	0710-0903	●	●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98097-594-0	01	1	0904-0910	●
239	HOSE; FLEX,COOLER TO PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98097-594-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98097-574-0	01	1	0710-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98097-573-0	01	1	0710-0811	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98112-994-0	01	1	0812-0903	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98112-994-0	01	1	0904-0910	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98112-994-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98097-575-0	01	1	0710-0811	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98112-995-0	01	1	0812-0903	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (D)	8-98112-995-0	01	1	0904-0910	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (D)	8-98112-995-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98097-576-0	01	1	0710-0811	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98113-105-0	01	1	0812-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (E)	8-98144-258-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (E)	8-98144-258-0	01	1	0911-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (F)	8-98144-259-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (F)	8-98144-259-0	01	1	0911-	●	●
260	NUT ALLISON MD3560P A/T(Y3B) M30	1-09400-166-0	04	1	0710-0903	●	●
260	NUT ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) M30	1-09400-166-0	04	1	0904-0910	●
260	NUT ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M30	1-09400-166-0	04	1	0904-0910		●

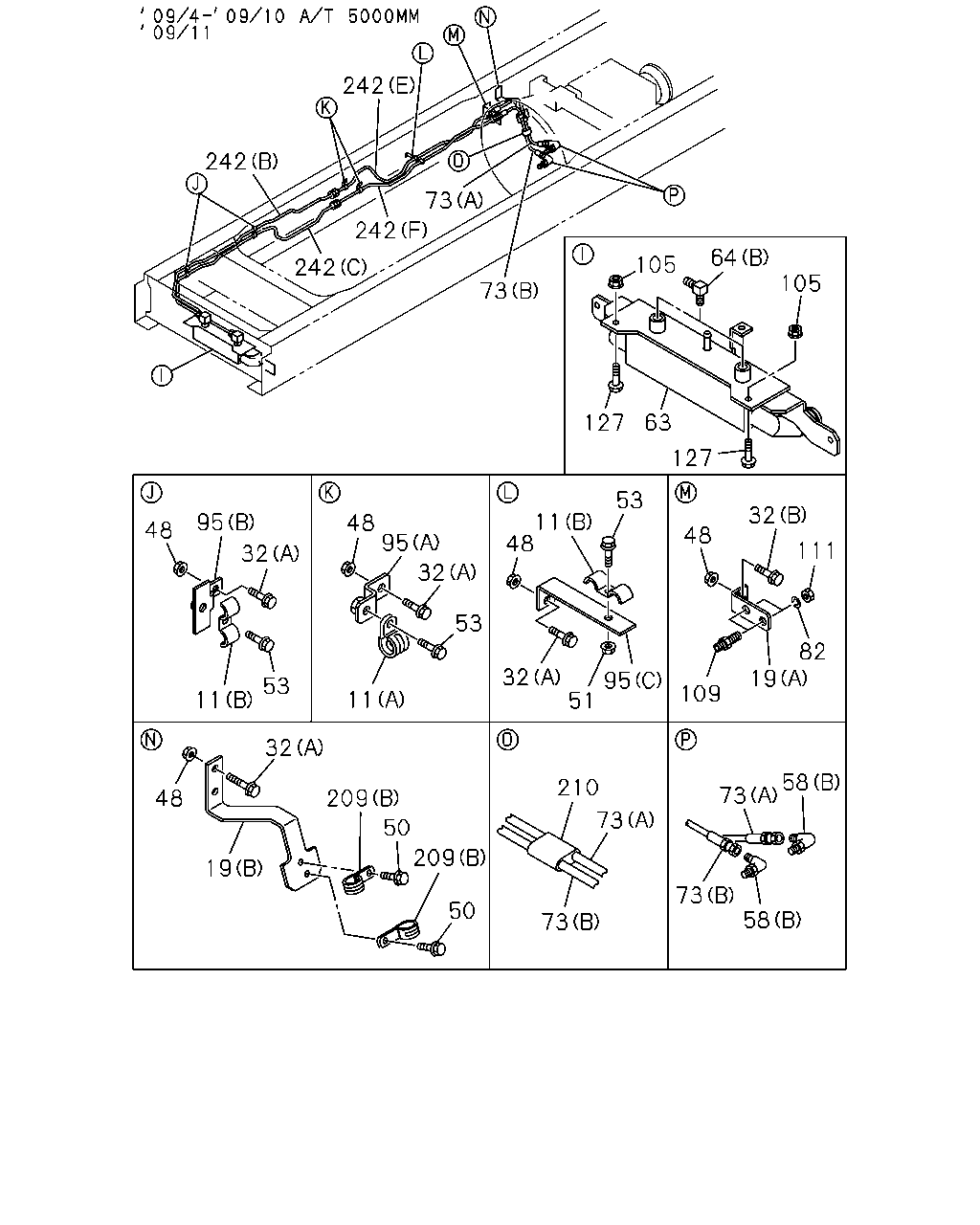

242 242 73 242 64 105 242 105 73 63 127 127 53 32 11 48 95 48 95 48 48 111 32 32 53 82 32 51 19 95 53 109 11 11 32 58 210 73 209 48 73 50 209 19 73 58 50 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (A) ID=19 L=20	0-95235-836-0	02	1	0710-	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	03	1	0710-0811	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	04	1	0812-0903	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0910	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) ID=19 & 19	1-09701-324-0	04	1	0904-0910		●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) (B) ID=19 & 19	1-09701-324-0	03	1	0911-	●	●
11	CLIP; PIPE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) ID=19 & 19	1-09701-324-0	03	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98097-570-0	01	1	0710-0811	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98133-954-0	01	1	0812-0903	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98133-954-0	01	1	0904-0910	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98133-954-0	01	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (A)	8-98097-570-0	01	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (A)	8-98097-570-0	01	1	0911-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B)	8-98144-397-0	01	1	0904-0910		●
19	BRACKET; FLEX HOSE ALLISON MD3560P A/T(Y3B) (B)	8-98144-397-0	01	1	0911-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	05	1	0710-0912	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (A) M8X30 FLANGE	0-28650-830-0	02	1	0904-0910		●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	02	1	0911-0912	●	●
32	BOLT; BRKT ALLISON MD3560P A/T(Y3B) (A) M8X30 FLANGE	0-28650-830-0	07	1	1001-	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	07	1	0710-0912	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	02	1	0904-0910		●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	02	1	0911-0912	●	●
48	NUT; BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	09	1	1001-	●	●
50	BOLT; CLIP ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M8X20 FLANGE	0-28650-820-0	02	1	0904-0910		●
50	BOLT; CLIP ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	02	1	0911-	●	●
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	01	1	0710-0811	●	●
51	NUT; CLIP TO BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	02	1	0812-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	0710-0811	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	06	1	0812-0903	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	06	1	0904-0910	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	06	1	0904-0910		●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	05	1	0911-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M8X20 FLANGE	0-28650-820-0	05	1	0904-0910		●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) (A)	1-09661-809-0	02	1	0710-0903	●	●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	1-09661-809-0	02	1	0904-0910	●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	1-09661-809-0	02	1	0904-0910		●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B)	8-98144-617-0	02	1	0905-0910		●
58	CONNECTOR; ATF ALLISON MD3560P A/T(Y3B) (B)	8-98144-617-0	02	1	0911-	●	●
63	COOLER; OIL A/T<X9D>	8-98025-666-2	01	1	0710-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) (A)	1-09664-263-0	02	1	0710-0811	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3560P A/T(Y3B) (B)	9-09903-722-0	02	1	0710-	●	●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (A)	8-98144-618-0	01	1	0905-0910		●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (A)	8-98144-618-0	01	1	0911-	●	●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B)	8-98144-619-0	01	1	0905-0910		●
73	HOSE; FLEX,TRANS ALLISON MD3560P A/T(Y3B) (B)	8-98144-619-0	01	1	0911-	●	●
82	WASHER; LK,UNION ALLISON MD3560P A/T(Y3B) ID=30.5	9-09150-530-0	02	1	0710-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	1-47478-140-0	01	1	0710-1407	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (C)	8-98269-434-0	01	1	1408-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (A)	1-47479-255-0	02	1	0710-	●	●
95	BRACKET; CLIP ALLISON MD3560P A/T(Y3B) (B)	8-98089-351-0	02	1	0710-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
109	UNION ALLISON MD3560P A/T(Y3B) M30 & M30 STRAIGHT	1-09664-191-0	02	1	0710-	●	●
111	NUT; UNION ALLISON MD3560P A/T(Y3B) M30	9-09840-252-1	02	1	0710-	●	●
127	BOLT; COOLER A/T<X9D> M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
209	CLIP; HOSE A/T<X9D> (A) ID=63	1-09704-067-0	04	1	0802-	●	●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) ID=26 L=26	1-09701-236-0	02	1	0904-0910		●
209	CLIP; HOSE ALLISON MD3560P A/T(Y3B) (B) ID=26 L=26	1-09701-236-0	02	1	0911-	●	●
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	02	1	0710-0811	●	●
210	BAND; FLEX HOSE ALLISON MD3560P A/T(Y3B) L=175	1-09707-178-0	01	1	0812-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (B)	8-98097-574-0	01	1	0710-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98097-573-0	01	1	0710-0811	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (A)	8-98112-994-0	01	1	0812-0903	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A)	8-98112-994-0	01	1	0904-0910	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A)	8-98112-994-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98097-575-0	01	1	0710-0811	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98112-995-0	01	1	0812-0903	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (D)	8-98112-995-0	01	1	0904-0910	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (D)	8-98112-995-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (D)	8-98097-576-0	01	1	0710-0811	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (C)	8-98113-105-0	01	1	0812-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (E)	8-98144-258-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (E)	8-98144-258-0	01	1	0911-	●	●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (F)	8-98144-259-0	01	1	0904-0910		●
242	PIPE; COOLER ALLISON MD3560P A/T(Y3B) (F)	8-98144-259-0	01	1	0911-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
