2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#41580) — 24 parça

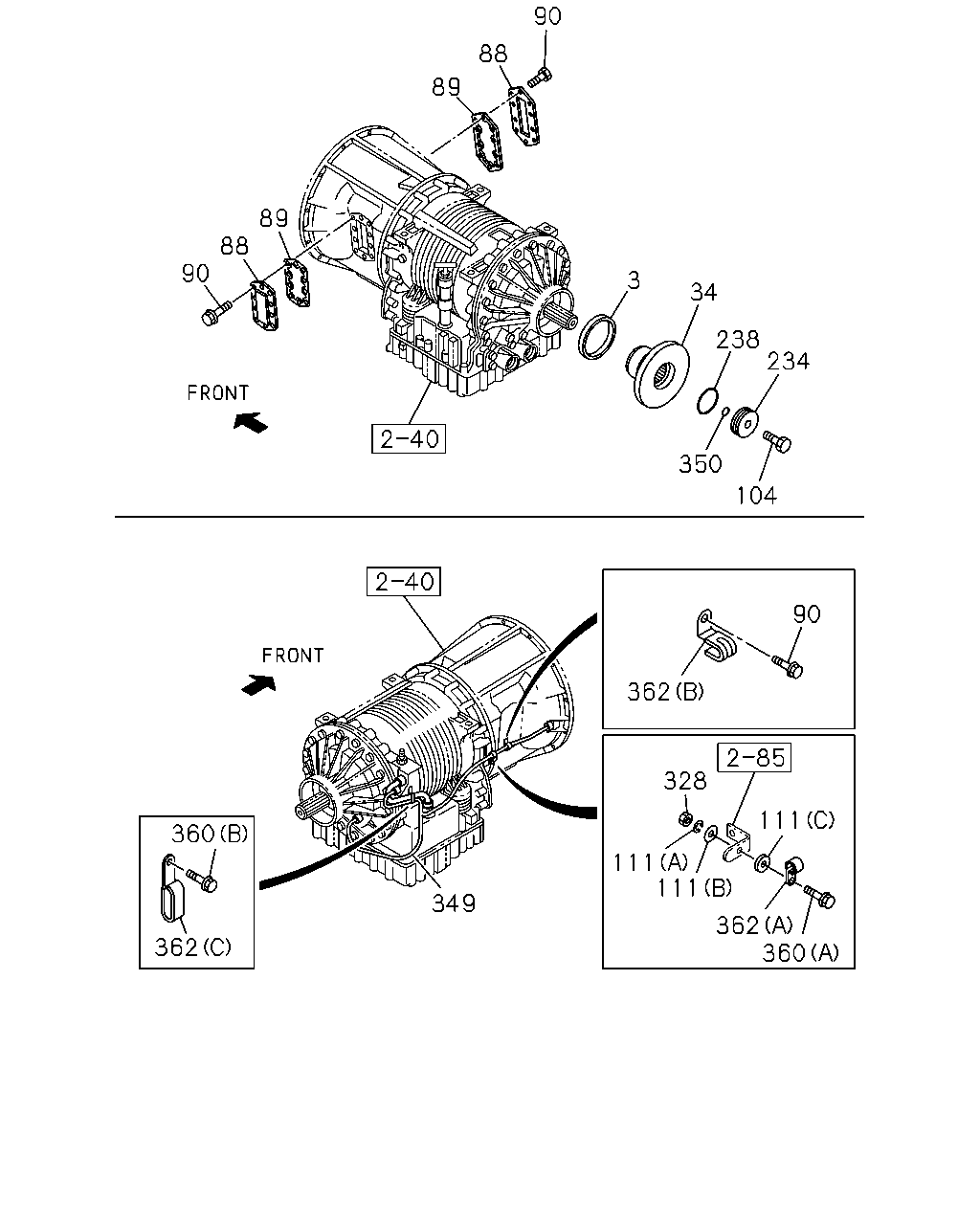

çizim 112465
90 88 89 89 88 90 3 34 238 234 350 104 90 362 328 111 360 111 111 349 362 360 362
BalonParca AdiParca NoAdetTipApplied Date
3 SEAL; OIL,RR COVER,A/T 1-34119-071-0 01 1 0710-
34 FLANGE; OIL PUMP,A/T 1-37243-412-0 01 1 0710-
88 COVER; SIDE,A/T 1-38181-011-0 02 1 0710-
89 GASKET; SIDE COVER 1-38183-012-0 02 1 0710-
90 BOLT; SIDE COVER 1-34119-068-0 20 1 0710-
104 BOLT; RET 1-09029-100-0 01 1 0710-
111 WASHER; PL,RR COVER
(B) 		1-34119-091-0 01 1 0710-
111 WASHER; PL,RR COVER
(A) 		1-34119-092-0 01 1 0710-
111 WASHER; PL,RR COVER
WHEEL BASE 5000MM(50W) (C) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0906-0910
111 WASHER; PL,RR COVER
(C) ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0911-
234 PLATE; RETAINER 1-37249-192-0 01 1 0710-
238 GASKET; PLUG 1-09623-634-0 01 1 0710-
328 NUT; RR COVER 1-34119-093-0 01 1 0710-
349 HARNESS; SENSOR 1-82673-917-0 01 1 0710-0905
349 HARNESS; SENSOR
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		1-82673-917-0 01 1 0906-0910
349 HARNESS; SENSOR
WHEEL BASE 5000MM(50W) 		8-98080-446-0 01 1 0906-0910
349 HARNESS; SENSOR 8-98080-446-0 01 1 0911-
350 GASKET; BOLT,FLANGE 1-09623-674-0 01 1 0710-
360 BOLT; CLIP
(A) M6X1.00 		1-34119-090-0 01 1 0710-
360 BOLT; CLIP
WHEEL BASE 5000MM(50W) (B) 		8-98149-708-0 01 1 0906-0910
360 BOLT; CLIP
(B) 		8-98149-708-0 01 1 0911-
362 CLIP; HARNESS
(B) 		5-09709-095-0 01 1 0710-0805
362 CLIP; HARNESS
(C) ID=19 L=20 		0-95235-836-0 01 1 0710-
362 CLIP; HARNESS
(A) 		1-34119-089-0 01 1 0710-
