Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#4158) — 278 parça

227 230 232 218 219 237 245 250 246 248 296 299 329 246 247 248 250 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
218	PLUG 8PE1S(59L),10PE1S(60L)	1-15629-043-0	01	1	9603-9904	●	●
218	PLUG 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-15629-043-0	01	1	9905-	●	●
219	GASKET 8PE1S(59L),10PE1S(60L)	9-09720-555-0	01	1	9603-9904	●	●
219	GASKET 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	9-09720-555-0	01	1	9905-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9603-	●	●
230	PUMP; GREASE	1-85556-007-2	01	1	9603-	●	●
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	9603-	●	●
237	BAG; TOOL	8-97130-902-0	01	1	9603-	●	●
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	01	1	9603-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	01	1	9603-	●	●
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	01	1	9603-	●	●
247	CHAIN; TIRE,750-20,DOUBLE TIRE 900-20 9.00-20 DOUBLE TYPE	9-85591-255-0	01	1	9603-9904	●	●
248	CHAIN; TIRE,1000-20,DOUBLE (A) 10.00-20 DOUBLE TYPE	9-85591-240-0	01	1	9603-9904	●	●
248	CHAIN; TIRE,1000-20,DOUBLE (B) 11.00-20 DOUBLE TYPE	9-85591-260-0	01	1	9603-9904	●	●
249	CHAIN; TIRE,TRIPLE TIRE 900-20 9.00-20 TRIPLE TYPE	9-85591-256-0	01	1	9603-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	01	1	9603-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	01	1	9603-	●	●
296	REPLACER; SLINGER 6WA1 TC-S(56L)	1-85210-027-0	01	1	9603-9606		●
296	REPLACER; SLINGER 6WA1 TC-S(56L)	1-85210-027-0	01	1	9607-9706	●	●
296	REPLACER; SLINGER 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85210-027-0	01	1	9707-9904	●	●
296	REPLACER; SLINGER 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85210-027-0	01	1	9905-	●	●
299	PULLER ASM; TRANS CONTROL ZF M/T<X9E>	1-85210-081-0	01	1	9603-9904	●	●
329	PULLER ASM; SLINGER 8PE1S(59L),10PE1S(60L) ID=124	1-85220-052-0	01	1	9603-9904	●	●
329	PULLER ASM; SLINGER 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=124	1-85220-052-0	01	1	9905-	●	●

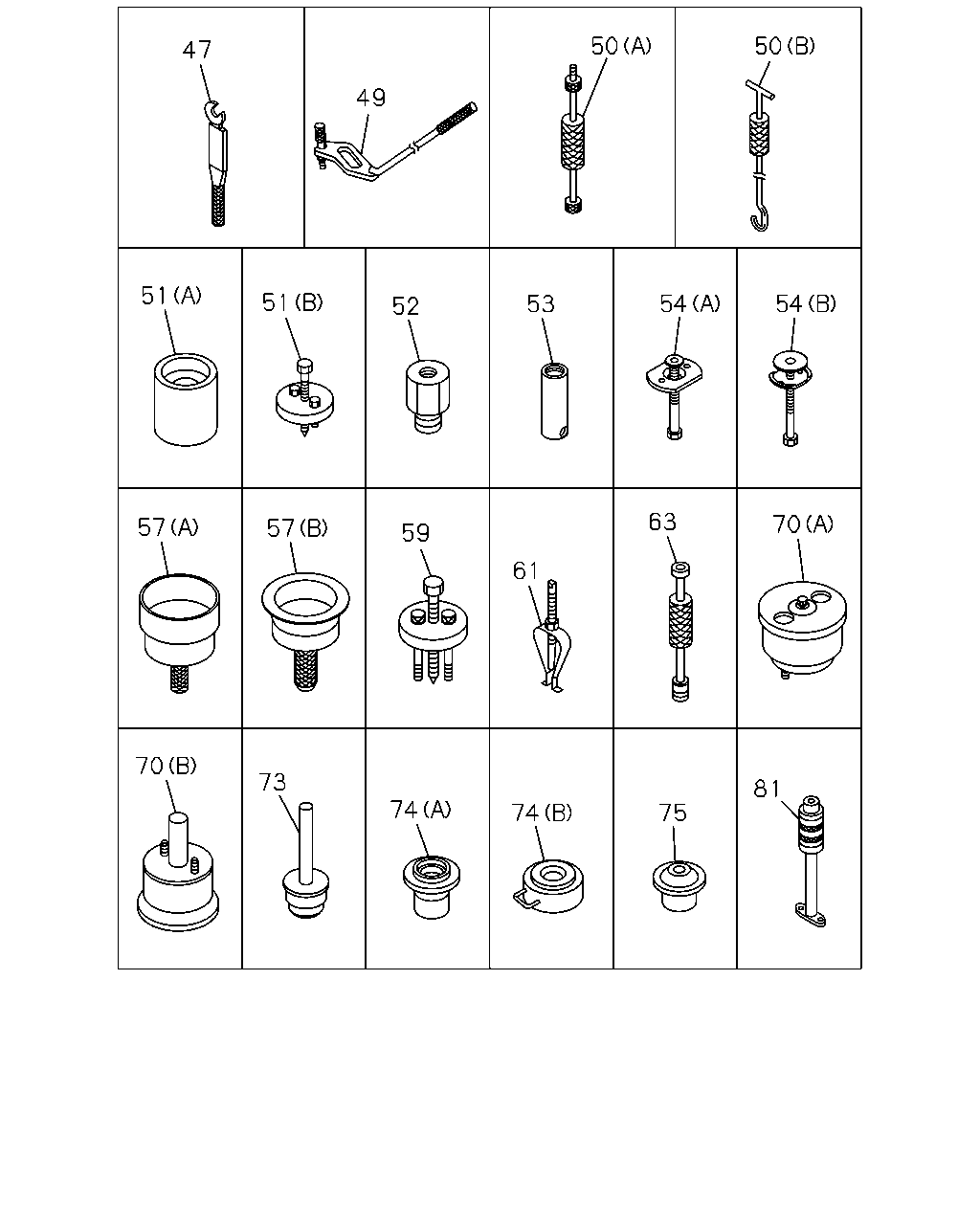

50 50 47 49 51 51 54 54 53 52 63 70 57 57 59 61 70 73 81 74 74 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	WRENCH ASM; UNIVERSAL,INJ PUMP 8PE1S(59L),10PE1S(60L)	1-85220-018-0	01	1	9603-9904	●	●
47	WRENCH ASM; UNIVERSAL,INJ PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85220-018-0	01	1	9905-	●	●
49	REPLACER ASM; VALVE 8PE1S(59L),10PE1S(60L)	1-85235-001-0	01	1	9603-9904	●	●
49	REPLACER ASM; VALVE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85235-001-0	01	1	9905-	●	●
50	REPLACER; NOZZLE HOLDER 8PE1S(59L),10PE1S(60L) (B) L=500	1-85230-007-0	01	1	9603-9904	●	●
50	REPLACER; NOZZLE HOLDER 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) L=500	1-85230-007-0	01	1	9905-	●	●
50	REPLACER; NOZZLE HOLDER 6WA1 TC-S(56L) (A) L=300	1-85230-013-0	01	1	9603-9606		●
50	REPLACER; NOZZLE HOLDER 6WA1 TC-S(56L) (A) L=300	1-85230-013-0	01	1	9607-9706	●	●
50	REPLACER; NOZZLE HOLDER 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) L=300	1-85230-013-0	01	1	9707-9904	●	●
50	REPLACER; NOZZLE HOLDER 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) L=300	1-85230-013-0	01	1	9905-	●	●
51	PULLER ASM; WATER PUMP 8PE1S(59L),10PE1S(60L) (B)	1-85210-028-0	01	1	9603-9904	●	●
51	PULLER ASM; WATER PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-85210-028-0	01	1	9905-	●	●
51	PULLER ASM; WATER PUMP 6WA1 TC-S(56L) (A)	1-85220-047-0	01	1	9603-9606		●
51	PULLER ASM; WATER PUMP 6WA1 TC-S(56L) (A)	1-85220-047-0	01	1	9607-9706	●	●
51	PULLER ASM; WATER PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-85220-047-0	01	1	9707-9904	●	●
51	PULLER ASM; WATER PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-85220-047-0	01	1	9905-	●	●
52	REMOVER; WATER PUMP 6WA1 TC-S(56L)	1-85210-062-0	01	1	9603-9606		●
52	REMOVER; WATER PUMP 6WA1 TC-S(56L)	1-85210-062-0	01	1	9607-9706	●	●
52	REMOVER; WATER PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85210-062-0	01	1	9707-9904	●	●
52	REMOVER; WATER PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85210-062-0	01	1	9905-	●	●
53	PULLER; TAPER BUSHING 6WA1 TC-S(56L)	1-85210-063-0	01	1	9603-9606		●
53	PULLER; TAPER BUSHING 6WA1 TC-S(56L)	1-85210-063-0	01	1	9607-9706	●	●
53	PULLER; TAPER BUSHING 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85210-063-0	01	1	9707-9904	●	●
53	PULLER; TAPER BUSHING 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85210-063-0	01	1	9905-	●	●
54	PULLER; THERMOSTAT SEAL 8PE1S(59L),10PE1S(60L) (A)	1-85210-029-0	01	1	9603-9904	●	●
54	PULLER; THERMOSTAT SEAL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A)	1-85210-029-0	01	1	9905-	●	●
54	PULLER; THERMOSTAT SEAL 6WA1 TC-S(56L) (B)	1-85210-067-0	01	1	9603-9606		●
54	PULLER; THERMOSTAT SEAL 6WA1 TC-S(56L) (B)	1-85210-067-0	01	1	9607-9706	●	●
54	PULLER; THERMOSTAT SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-85210-067-0	01	1	9707-9904	●	●
54	PULLER; THERMOSTAT SEAL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B)	1-85210-067-0	01	1	9905-	●	●
57	TOOL; SETTING CRANK GEAR 8PE1S(59L),10PE1S(60L) (A) OD=175	1-85221-028-0	01	1	9603-9904	●	●
57	TOOL; SETTING CRANK GEAR 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) OD=175	1-85221-028-0	01	1	9905-	●	●
57	TOOL; SETTING CRANK GEAR 6WA1 TC-S(56L) (B) OD=162	1-85220-045-0	01	1	9603-9606		●
57	TOOL; SETTING CRANK GEAR 6WA1 TC-S(56L) (B) OD=162	1-85220-045-0	01	1	9607-9706	●	●
57	TOOL; SETTING CRANK GEAR 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) OD=162	1-85220-045-0	01	1	9707-9904	●	●
57	TOOL; SETTING CRANK GEAR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) OD=162	1-85220-045-0	01	1	9905-	●	●
59	PULLER ASM; TIMING GEAR 6WA1 TC-S(56L)	1-85210-065-0	01	1	9603-9606		●
59	PULLER ASM; TIMING GEAR 6WA1 TC-S(56L)	1-85210-065-0	01	1	9607-9904	●	●
59	PULLER ASM; TIMING GEAR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L)	1-85210-065-0	01	1	9905-	●	●
61	PULLER ASM; PILOT BRG 8PE1S(59L),10PE1S(60L)	9-85210-157-0	01	1	9603-9904	●	●
61	PULLER ASM; PILOT BRG 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	9-85210-157-0	01	1	9905-	●	●
61	PULLER ASM; PILOT BRG 6WA1 TC-S(56L)	9-85210-157-0	01	1	9603-9606		●
61	PULLER ASM; PILOT BRG 6WA1 TC-S(56L)	9-85210-157-0	01	1	9607-9706	●	●
61	PULLER ASM; PILOT BRG 6WA1 TC-S(56L),6WG1 TC-N(71L)	9-85210-157-0	01	1	9707-9904	●	●
61	PULLER ASM; PILOT BRG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	9-85210-157-0	01	1	9905-	●	●
63	PULLER; NOZZLE SLEEVE 8PE1S(59L),10PE1S(60L)	1-85210-026-0	01	1	9603-9904	●	●
63	PULLER; NOZZLE SLEEVE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85210-026-0	01	1	9905-	●	●
70	TOOL; SETTING,OIL SEAL 8PE1S(59L),10PE1S(60L) (B) FOR OIL SEAL	1-85220-051-0	01	1	9603-9904	●	●
70	TOOL; SETTING,OIL SEAL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) FOR OIL SEAL	1-85220-051-0	01	1	9905-	●	●
70	TOOL; SETTING,OIL SEAL 8PE1S(59L),10PE1S(60L) (B) FOR OIL THROWER	1-85220-053-0	01	1	9603-9904	●	●
70	TOOL; SETTING,OIL SEAL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) FOR OIL THROWER	1-85220-053-0	01	1	9905-	●	●
70	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L) (A)	1-85220-043-0	01	1	9603-9606		●
70	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L) (A)	1-85220-043-0	01	1	9607-9706	●	●
70	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-85220-043-0	01	1	9707-9904	●	●
70	TOOL; SETTING,OIL SEAL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-85220-043-0	01	1	9905-	●	●
73	TOOL; SETTING,THERMOSTAT SEAL 8PE1S(59L),10PE1S(60L)	1-85221-034-0	01	1	9603-9904	●	●
73	TOOL; SETTING,THERMOSTAT SEAL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85221-034-0	01	1	9905-	●	●
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-S(56L)	1-85221-034-0	01	1	9603-9606		●
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-S(56L)	1-85221-034-0	01	1	9607-9706	●	●
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85221-034-0	01	1	9707-9904	●	●
73	TOOL; SETTING,THERMOSTAT SEAL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85221-034-0	01	1	9905-	●	●
74	TOOL; SETTING,INJ PUMP BRG 8PE1S(59L),10PE1S(60L) (A)	1-85220-019-0	01	1	9603-9904	●	●
74	TOOL; SETTING,INJ PUMP BRG 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A)	1-85220-019-0	01	1	9905-	●	●
74	TOOL; SETTING,INJ PUMP BRG 8PE1S(59L),10PE1S(60L) (B)	1-85220-020-1	01	1	9603-9904	●	●
74	TOOL; SETTING,INJ PUMP BRG 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-85220-020-1	01	1	9905-	●	●
75	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L)	1-85220-049-0	01	1	9603-9606		●
75	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L)	1-85220-049-0	01	1	9607-9706	●	●
75	TOOL; SETTING,OIL SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85220-049-0	01	1	9707-9904	●	●
75	TOOL; SETTING,OIL SEAL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85220-049-0	01	1	9905-	●	●
81	PULLER; BRG CAP 8PE1S(59L),10PE1S(60L)	1-85210-015-0	01	1	9603-9904	●	●
81	PULLER; BRG CAP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85210-015-0	01	1	9905-	●	●

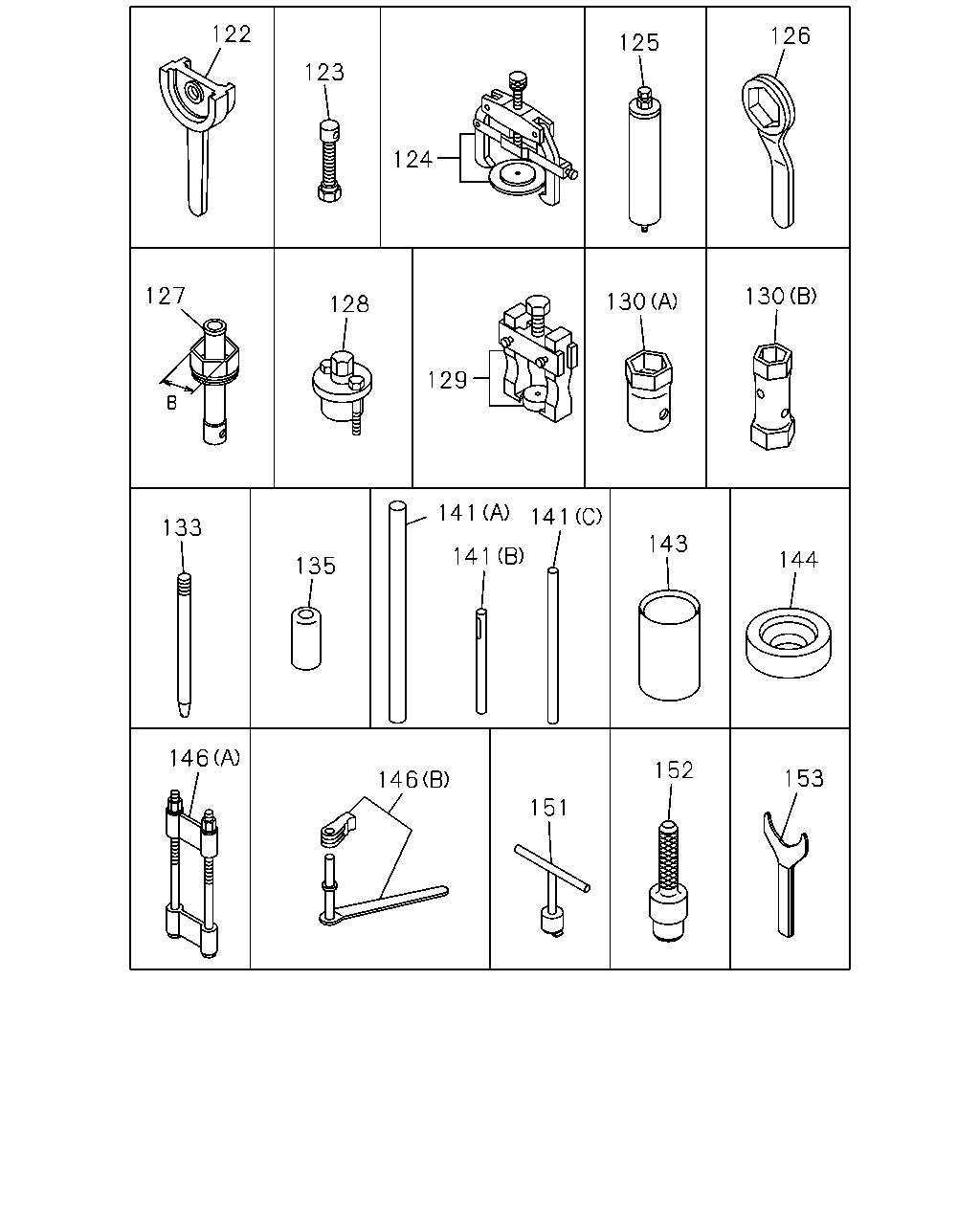

122 126 125 123 124 127 130 130 128 129 141 141 133 143 141 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A>	9-85210-129-1	01	1	9603-	●	●
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	9603-	●	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	9603-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9603-	●	●
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9603-	●	●
127	WRENCH ASM; HUB BRG NUT REARWARD L=400 B=105	9-85113-509-0	01	1	9603-	●	●
127	WRENCH ASM; HUB BRG NUT FORWARD L=400 B=116	9-85113-524-0	01	1	9603-	●	●
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	9603-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9603-	●	●
130	WRENCH; BOX (A) B=63	9-85111-368-0	01	1	9603-	●	●
130	WRENCH; BOX (B) B=46 & 54 L=165	9-85112-320-0	01	1	9603-	●	●
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	9603-	●	●
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9603-	●	●
130	WRENCH; BOX (B) B=41 & 46 L=165	9-85113-401-0	01	1	9603-	●	●
133	WRENCH; NUT STARTER 8PE1S(59L),10PE1S(60L)	1-85221-030-0	02	1	9603-9904	●	●
133	WRENCH; NUT STARTER 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85221-030-0	02	1	9905-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9603-	●	●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9603-	●	●
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	9603-	●	●
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	9603-	●	●
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	9603-	●	●
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	9603-	●	●
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	9603-	●	●
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	9603-9910	●	●
146	REPLACER KIT; LEAF SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85237-017-0	01	1	9911-	●	●
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	9603-	●	●
146	REPLACER KIT; LEAF SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-85237-016-0	01	1	9911-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	9603-	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9603-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9603-	●	●

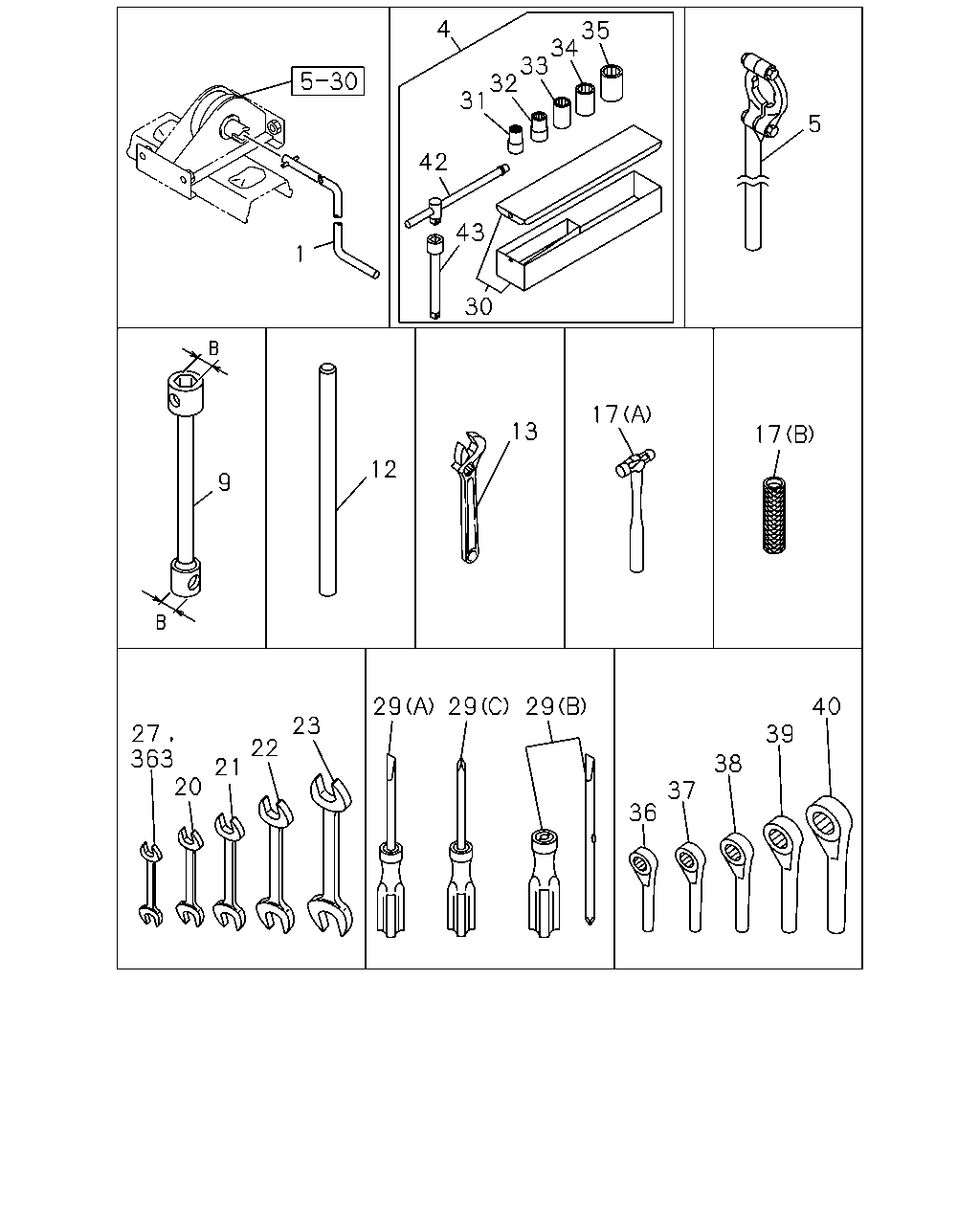

4 35 34 33 32 31 5 42 43 1 30 17 13 17 12 9 29 29 40 29 23 27 363 20 39 22 38 21 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9603-	●	●
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	9603-9904	●	●
4	WRENCH KIT; SOCKET 8PE1S(59L),10PE1S(60L)	9-85110-012-0	01	1	9905-	●	●
5	WRENCH ASM; NUT,MAINSHAFT ZF M/T<X9E>	1-85110-010-0	01	1	9603-	●	●
9	WRENCH; WHEEL PIN WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440	1-85113-015-1	01	1	9603-9904	●	●
9	WRENCH; WHEEL PIN WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=41X21 L=440	1-85113-015-1	01	1	9905-	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450	1-85111-033-1	01	1	9603-9904	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> B=33X30 L=450	1-85111-033-1	01	1	9905-	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9603-9904	●	●
12	HANDLE; WRENCH,WHEEL PIN 8PE1S(59L),10PE1S(60L) OD=25 L=480	1-85116-011-0	01	1	9905-	●	●
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9603-9904	●	●
13	WRENCH; MONKEY 8PE1S(59L),10PE1S(60L) L=255	1-85117-002-1	01	1	9905-	●	●
17	HAMMER (A) L=310	9-85121-406-0	01	1	9603-9904	●	●
17	HAMMER 8PE1S(59L),10PE1S(60L) (A) L=310	9-85121-406-0	01	1	9905-	●	●
17	HAMMER 8PE1S(59L),10PE1S(60L) (B) L=150	1-85220-021-0	01	1	9603-9904	●	●
17	HAMMER 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) L=150	1-85220-021-0	01	1	9905-	●	●
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9603-9904	●	●
20	WRENCH; 10X12 8PE1S(59L),10PE1S(60L) 10X12	9-09592-110-0	01	1	9905-	●	●
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9603-9904	●	●
21	WRENCH; 14X17 8PE1S(59L),10PE1S(60L) 14X17	9-09592-114-0	01	1	9905-	●	●
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9603-9904	●	●
22	WRENCH; 19X22 8PE1S(59L),10PE1S(60L) 19X22	9-99592-119-0	01	1	9905-	●	●
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9603-9904	●	●
23	WRENCH; 24X27 8PE1S(59L),10PE1S(60L) 24X27	9-09592-124-0	01	1	9905-	●	●
27	WRENCH; OPEN END 5.5X7 8X10	9-99592-108-0	01	1	9603-9904	●	●
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	9603-9904	●	●
29	DRIVER; SCREW 8PE1S(59L),10PE1S(60L) (A) <-> L=285	1-85151-004-0	01	1	9905-	●	●
29	DRIVER; SCREW (B) <+>,<-> L=160	8-94242-798-1	01	1	9603-9904	●	●
29	DRIVER; SCREW 8PE1S(59L),10PE1S(60L) (B) <+>,<-> L=160	8-94242-798-1	01	1	9905-	●	●
29	DRIVER; SCREW (C) <+> L=275	9-09595-023-0	01	1	9603-9904	●	●
29	DRIVER; SCREW 8PE1S(59L),10PE1S(60L) (C) <+> L=275	9-09595-023-0	01	1	9905-	●	●
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	9603-9904	●	●
30	BOX; SOCKET WRENCH 8PE1S(59L),10PE1S(60L)	9-85581-260-0	01	1	9905-	●	●
31	WRENCH; 12	9-09590-012-0	01	1	9603-9904	●	●
31	WRENCH; 12 8PE1S(59L),10PE1S(60L)	9-09590-012-0	01	1	9905-	●	●
32	WRENCH; 14	9-09590-014-0	01	1	9603-9904	●	●
32	WRENCH; 14 8PE1S(59L),10PE1S(60L)	9-09590-014-0	01	1	9905-	●	●
33	WRENCH; 17	9-09590-017-0	01	1	9603-9904	●	●
33	WRENCH; 17 8PE1S(59L),10PE1S(60L)	9-09590-017-0	01	1	9905-	●	●
34	WRENCH; 19	9-09590-019-0	01	1	9603-9904	●	●
34	WRENCH; 19 8PE1S(59L),10PE1S(60L)	9-09590-019-0	01	1	9905-	●	●
35	WRENCH; 22	9-09590-022-0	01	1	9603-9904	●	●
35	WRENCH; 22 8PE1S(59L),10PE1S(60L)	9-09590-022-0	01	1	9905-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	9603-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	9603-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	9603-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	9603-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	9603-	●	●
42	HANDLE; SLIDING	9-09590-512-0	01	1	9603-9904	●	●
42	HANDLE; SLIDING 8PE1S(59L),10PE1S(60L)	9-09590-512-0	01	1	9905-	●	●
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	9603-9904	●	●
43	BAR; EXTENSION,SOCKET WRENCH 8PE1S(59L),10PE1S(60L)	9-09590-812-0	01	1	9905-	●	●
363	WRENCH; OPEN END 8X10 8PE1S(59L),10PE1S(60L) 8X10	9-99592-108-0	01	1	9905-	●	●

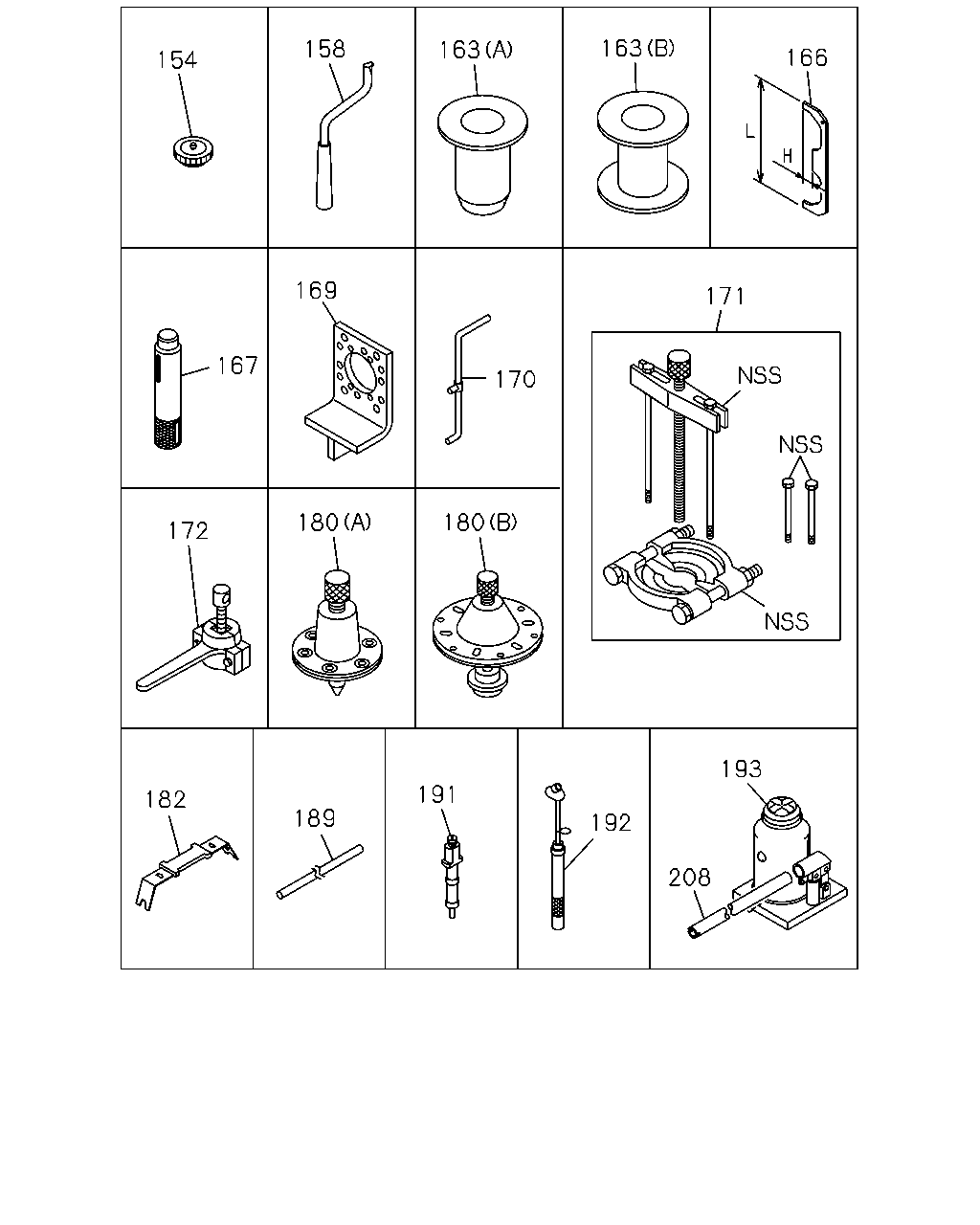

163 158 163 166 154 169 171 167 170 180 180 172 193 191 182 189 192 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9603-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9603-	●	●
163	TOOL; SETTING ISUZU M/T<X9A> (A) L=195	1-85221-162-1	01	1	9603-	●	●
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=150	1-85221-163-0	01	1	9603-	●	●
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5	1-85253-015-0	01	1	9603-	●	●
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) L=550 H=17.5	1-85253-010-0	01	1	9603-9904	●	●
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) L=550 H=17.5	1-85253-010-0	01	1	9905-	●	●
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	9603-	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9603-	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9603-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9603-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	9603-	●	●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9603-	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9603-	●	●
182	REMOVER ASM	1-85239-008-0	01	1	9603-	●	●
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	9603-	●	●
191	ADAPTER 8PE1S(59L),10PE1S(60L)	1-85317-002-0	01	1	9603-9904	●	●
191	ADAPTER 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85317-002-0	01	1	9905-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9603-9908	●	●
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9603-9908	●	●
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9603-9908	●	●
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-001-0	01	1	9909-9912	●	●
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9909-9912	●	●
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0001-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-	●	●
193	JACK ASM 15TON	1-85510-019-0	01	1	9603-9608	●	●
193	JACK ASM 8PE1S(59L),10PE1S(60L) 15TON	1-85510-021-0	01	1	9709-9709	●	●
193	JACK ASM 8PE1S(59L),10PE1S(60L) 15TON	1-85510-019-1	01	1	9710-	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9603-	●	●

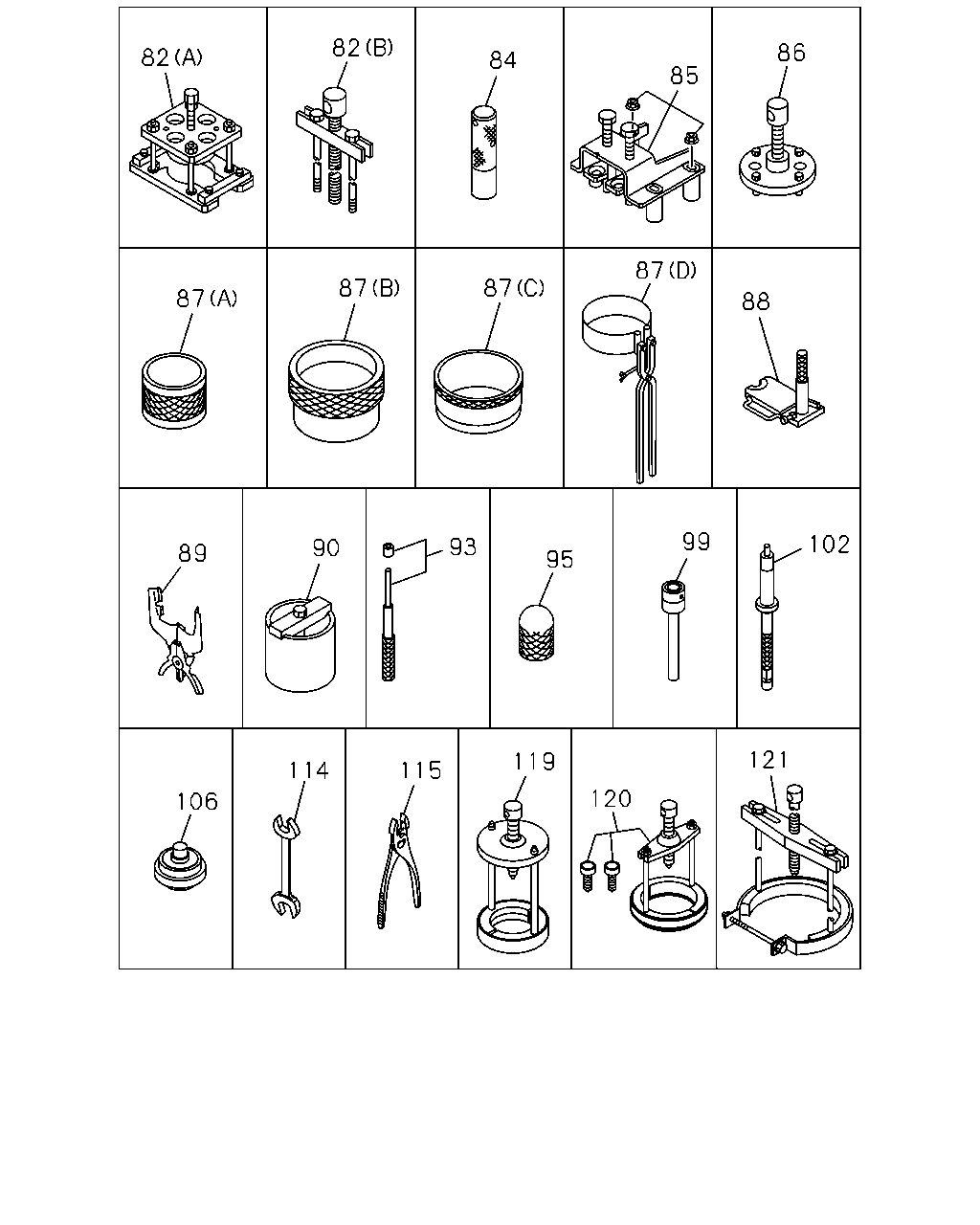

82 86 82 84 85 87 87 87 87 88 99 102 93 90 89 95 121 119 115 114 120 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	PULLER ASM; CR/SHF GEAR 8PE1S(59L),10PE1S(60L) (B)	9-85211-139-0	01	1	9603-9904	●	●
82	PULLER ASM; CR/SHF GEAR 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	9-85211-139-0	01	1	9905-	●	●
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-S(56L) (A)	1-85210-064-0	01	1	9603-9606		●
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-S(56L) (A)	1-85210-064-0	01	1	9607-9706	●	●
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-85210-064-0	01	1	9707-9904	●	●
82	PULLER ASM; CR/SHF GEAR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-85210-064-0	01	1	9905-	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) INLET VALVE	1-85221-136-0	01	1	9603-9606		●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) INLET VALVE	1-85221-136-0	01	1	9607-9609	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) EXHAUST	1-85221-184-0	01	1	9610-9706	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) EXHAUST	1-85221-184-0	01	1	9707-9904	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) EXHAUST	1-85221-184-0	01	1	9905-	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) EXHAUST VALVE	1-85221-140-0	01	1	9603-9606		●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) EXHAUST VALVE	1-85221-140-1	01	1	9607-9612	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L) INLET	1-85221-187-0	01	1	9701-9706	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-S(56L),6WG1 TC-N(71L) INLET	1-85221-187-0	01	1	9707-9904	●	●
84	REPLACER; VALVE SEAL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) INLET	1-85221-187-0	01	1	9905-	●	●
85	REPLACER ASM; VALVE SPR 6WA1 TC-S(56L)	1-85235-010-0	01	1	9603-9606		●
85	REPLACER ASM; VALVE SPR 6WA1 TC-S(56L)	1-85235-010-0	01	1	9607-9609	●	●
85	REPLACER ASM; VALVE SPR 6WA1 TC-S(56L)	1-85235-013-0	01	1	9610-9706	●	●
85	REPLACER ASM; VALVE SPR 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85235-013-0	01	1	9707-9904	●	●
85	REPLACER ASM; VALVE SPR 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85235-013-0	01	1	9905-	●	●
86	REPLACER; FLYWHEEL 8PE1S(59L),10PE1S(60L)	1-85230-006-0	01	1	9603-9904	●	●
86	REPLACER; FLYWHEEL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85230-006-0	01	1	9905-	●	●
87	TOOL; PISTON 8PE1S(59L),10PE1S(60L) (A)	1-85220-058-0	01	1	9603-9806	●	●
87	TOOL; PISTON 8PE1S(59L),10PE1S(60L) (D)	1-85220-082-0	01	1	9807-9904	●	●
87	TOOL; PISTON 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A)	1-85220-082-0	01	1	9905-	●	●
87	TOOL; PISTON 6WA1 TC-S(56L) (B)	1-85220-046-0	01	1	9603-9606		●
87	TOOL; PISTON 6WA1 TC-S(56L) (B)	1-85220-046-0	01	1	9607-9904	●	●
87	TOOL; PISTON 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) (B)	1-85220-046-0	01	1	9905-	●	●
87	TOOL; PISTON 6WG1 TC-N(71L) (C)	1-85220-059-0	01	1	9707-9904		●
87	TOOL; PISTON 6WG1 TC-C(72L) (C)	1-85220-059-0	01	1	9905-		●
88	TOOL; CONNROD BUSHING 8PE1S(59L),10PE1S(60L)	1-85220-002-0	01	1	9603-9904	●	●
88	TOOL; CONNROD BUSHING 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85220-002-0	01	1	9905-	●	●
89	TOOL; PISTON RING 8PE1S(59L),10PE1S(60L)	1-85221-029-0	01	1	9603-9904	●	●
89	TOOL; PISTON RING 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85221-029-0	01	1	9905-	●	●
89	TOOL; PISTON RING 6WA1 TC-S(56L)	1-85221-029-0	01	1	9603-9606		●
89	TOOL; PISTON RING 6WA1 TC-S(56L)	1-85221-029-0	01	1	9607-9904	●	●
89	TOOL; PISTON RING 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L)	1-85221-029-0	01	1	9905-	●	●
89	TOOL; PISTON RING 6WG1 TC-N(71L)	1-85221-025-0	01	1	9707-9904		●
89	TOOL; PISTON RING 6WG1 TC-C(72L)	1-85221-025-0	01	1	9905-		●
90	PULLER; INJ PUMP BRG 8PE1S(59L),10PE1S(60L)	1-85210-039-0	01	1	9603-9904	●	●
90	PULLER; INJ PUMP BRG 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85210-039-0	01	1	9905-	●	●
93	SETTING KIT; VALVE GUIDE 8PE1S(59L),10PE1S(60L) L=260	9-85231-202-0	01	1	9603-9904	●	●
93	SETTING KIT; VALVE GUIDE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) L=260	9-85231-202-0	01	1	9905-	●	●
93	SETTING KIT; VALVE GUIDE 6WA1 TC-S(56L) L=260	9-85231-202-0	01	1	9603-9606		●
93	SETTING KIT; VALVE GUIDE 6WA1 TC-S(56L) L=260	9-85231-202-0	01	1	9607-9706	●	●
93	SETTING KIT; VALVE GUIDE 6WA1 TC-S(56L),6WG1 TC-N(71L) L=260	9-85231-202-0	01	1	9707-9904	●	●
93	SETTING KIT; VALVE GUIDE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) L=260	9-85231-202-0	01	1	9905-	●	●
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-S(56L)	9-85221-324-0	01	1	9603-9606		●
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-S(56L)	9-85221-324-0	01	1	9607-9706	●	●
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-S(56L),6WG1 TC-N(71L)	9-85221-324-0	01	1	9707-9904	●	●
95	SETTING TOOL; BRIDGE GUIDE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	9-85221-324-0	01	1	9905-	●	●
99	WRENCH; CYL HD BOLT 8PE1S(59L),10PE1S(60L)	1-85115-013-0	01	1	9603-9904	●	●
99	WRENCH; CYL HD BOLT 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85115-013-0	01	1	9905-	●	●
102	ADAPTER; COMP GAGE 6WA1 TC-S(56L)	1-85317-019-0	01	1	9603-9606		●
102	ADAPTER; COMP GAGE 6WA1 TC-S(56L)	1-85317-019-0	01	1	9607-9706	●	●
102	ADAPTER; COMP GAGE 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85317-019-0	01	1	9707-9904	●	●
102	ADAPTER; COMP GAGE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85317-019-0	01	1	9905-	●	●
106	TOOL; SETTING PILOT BRG 8PE1S(59L),10PE1S(60L)	1-85221-057-0	01	1	9603-9904	●	●
106	TOOL; SETTING PILOT BRG 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85221-057-0	01	1	9905-	●	●
106	TOOL; SETTING PILOT BRG 6WA1 TC-S(56L)	1-85221-057-0	01	1	9603-9606		●
106	TOOL; SETTING PILOT BRG 6WA1 TC-S(56L)	1-85221-057-0	01	1	9607-9706	●	●
106	TOOL; SETTING PILOT BRG 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-85221-057-0	01	1	9707-9904	●	●
106	TOOL; SETTING PILOT BRG 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-85221-057-0	01	1	9905-	●	●
114	WRENCH; INJ PUMP 8PE1S(59L),10PE1S(60L)	1-85220-027-0	01	1	9603-9904	●	●
114	WRENCH; INJ PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-85220-027-0	01	1	9905-	●	●
115	PLIER	5-85171-001-0	01	1	9603-9904	●	●
115	PLIER 8PE1S(59L),10PE1S(60L)	5-85171-001-0	01	1	9905-	●	●
119	PULLER ASM; TOP GEAR BRG ISUZU M/T<X9A> L=235	9-85210-190-0	01	1	9603-	●	●
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	9603-	●	●
121	PULLER ASM; COUNTER REAR ISUZU M/T<X9A>	1-85210-069-0	01	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
