◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#41576) — 68 parça

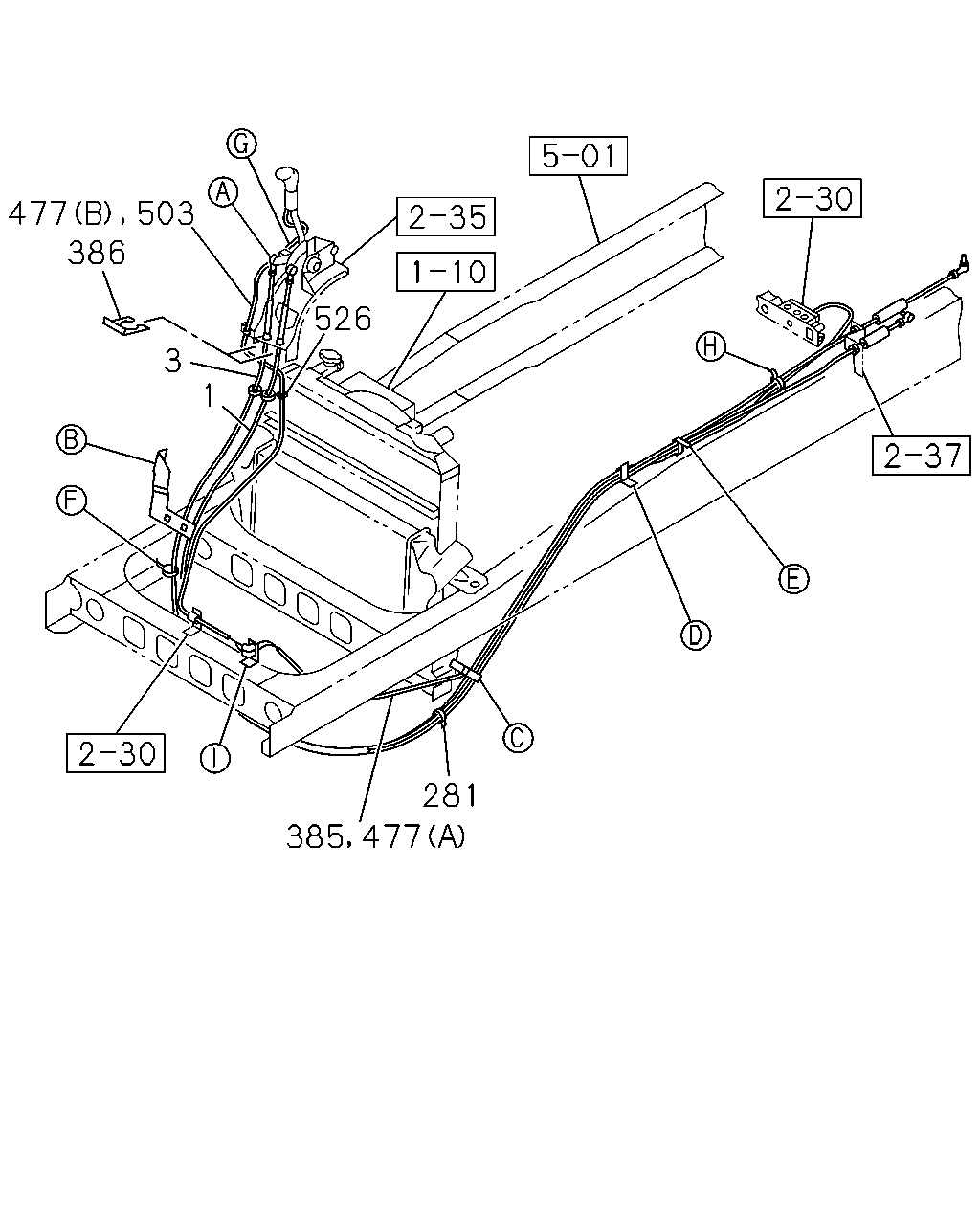

çizim 112468
386 526 3 1 281 385 477 477 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0710- ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98010-459-1 01 1 0710-0710 ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0710- ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0710- ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98010-495-1 01 1 0710-0710 ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0710- ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0710-0802 ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0803- ● ●
281 CLIP; BAND
ZF9S1110 M/T(Y5E) L=300 		1-09707-001-1 01 1 0803- ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0710-0710 ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0710-0808 ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809- ● ●
386 CLIP; CONT CABLE & TUBE
ZF9S1110 M/T(Y5E) 		1-09700-966-1 02 1 0710- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0710- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0710- ● ●
526 GROMMET
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 0710- ● ●

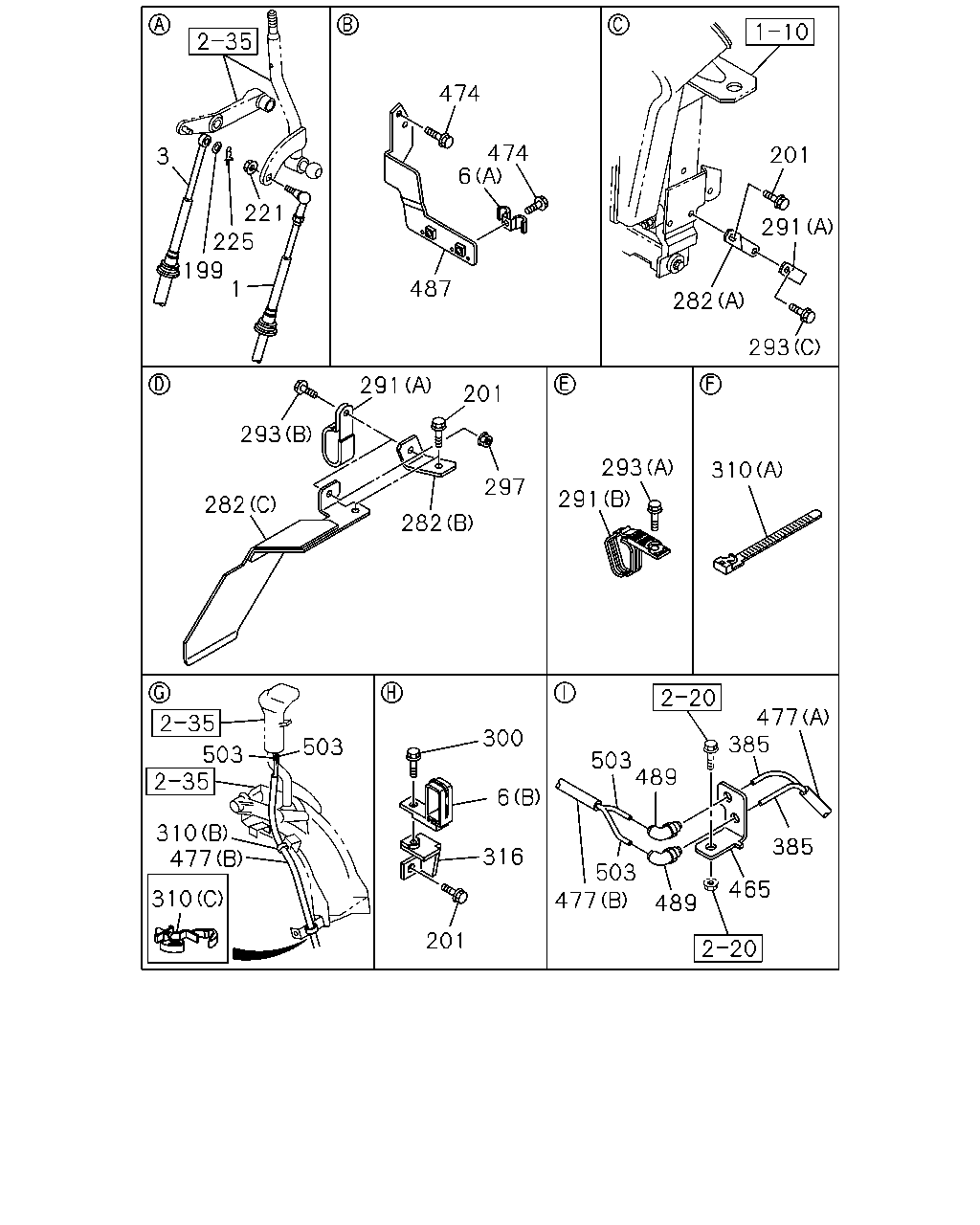

çizim 112480
474 474 6 201 3 221 291 225 199 487 1 282 293 291 201 293 293 310 297 291 282 282 477 385 300 503 503 503 489 6 310 477 385 316 465 503 477 310 489 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98017-475-4 01 1 0710- ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98010-459-1 01 1 0710-0710 ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 0710- ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3585 		8-98017-496-2 01 1 0710- ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98010-495-1 01 1 0710-0710 ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 0710- ● ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710- ● ●
6 CLIP; CABLE
ZF9S1110 M/T(Y5E) (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710- ● ●
199 WASHER; PL,SELECT
ZF9S1110 M/T(Y5E) ID=8.4 OD=16 		0-91614-508-0 01 1 0710- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28050-820-0 01 1 0710- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0805 ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806- ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X16 FLANGE 		0-28050-816-0 01 1 0806- ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X30 FLANGE 		0-28151-230-0 01 1 0710-0806 ● ●
201 BOLT; BRKT
ZF9S1110 M/T(Y5E) M12X35 FLANGE 		0-28151-235-0 01 1 0807- ● ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-049-0 01 1 0710-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
ZF9S1110 M/T(Y5E) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
ZF9S1110 M/T(Y5E) L=27.7 		8-94111-137-0 01 1 0710- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-419-0 01 1 0710-0711 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-265-2 01 1 0712- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82699-199-0 01 1 0710-1103 ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98171-762-0 01 1 1104- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (A) ID=11X2 L=16 		0-95325-026-0 02 1 0710- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ZF9S1110 M/T(Y5E) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
297 NUT; CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
300 BOLT; CLIP
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 0710- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (C) ID=12 		8-94218-436-0 01 1 0710- ● ●
310 CLIP; TUBE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) ID=6 & 10-13 		8-97069-515-0 01 1 0710- ● ●
316 BRACKET; CLIP
ZF9S1110 M/T(Y5E) 		8-98086-439-0 01 1 0710- ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0710-0710 ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 01 1 0710-0808 ● ●
385 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 0809- ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98091-848-0 01 1 0710-0710 ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-414-0 01 1 0710-0907 ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 0906-0907 ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 0908- ● ●
465 BRACKET; CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 0908- ● ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 01 1 0710- ● ●
474 BOLT; BRKT
ZF9S1110 M/T(Y5E) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-1105 ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 1106- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710- ● ●
477 TUBE; CORRUGATE
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 0710- ● ●
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) 		8-98021-923-2 01 1 0710-1012 ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98180-729-0 01 1 1101- ● ●
489 CONNECTOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 0710- ● ●
503 TUBE; NYLON
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 0710- ● ●
