◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#41562) — 518 parça

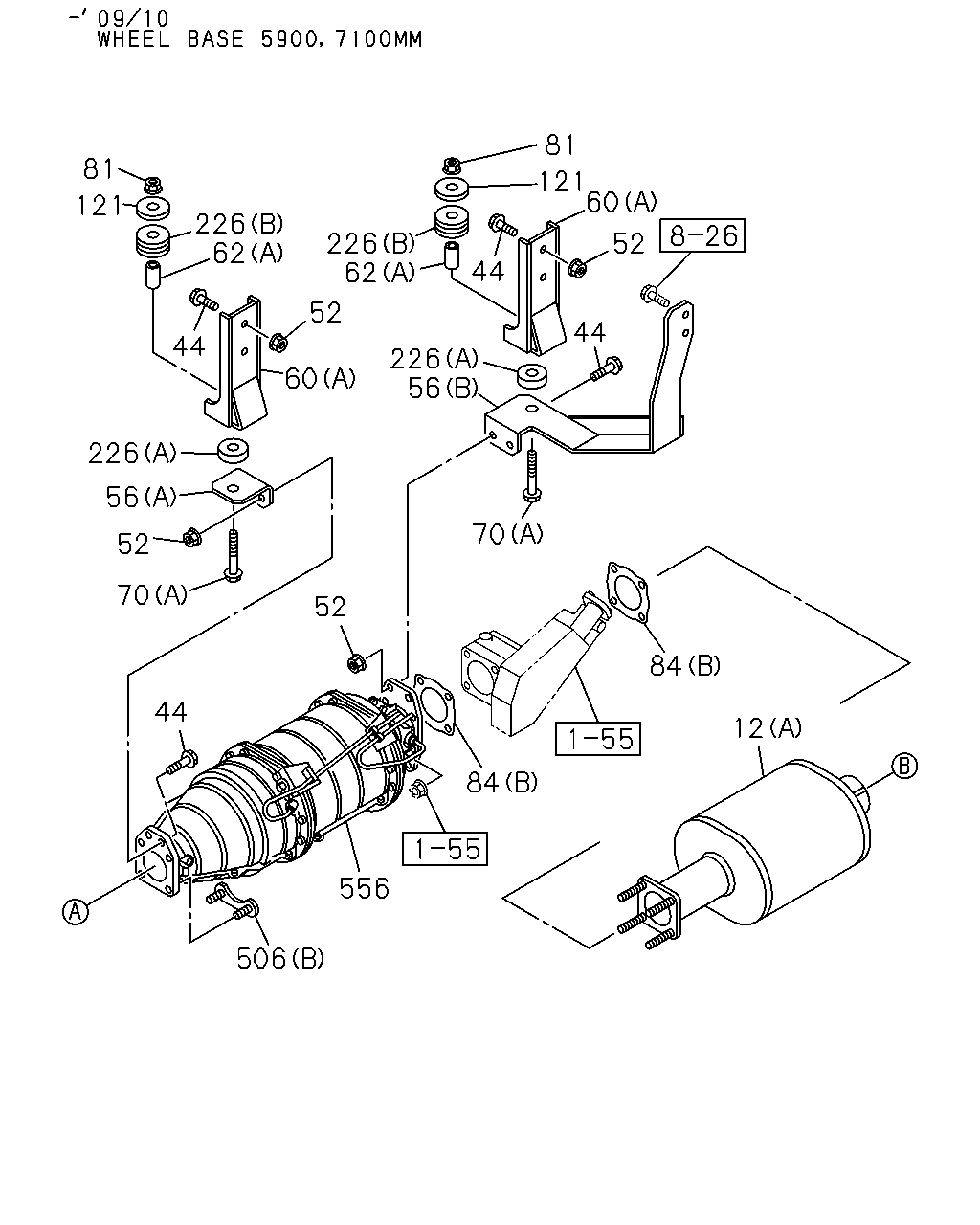

çizim 112425
81 81 121 60 121 226 62 226 62 52 44 52 44 44 226 56 60 226 56 70 52 70 52 84 44 12 84 556 506
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0910 ●
12 SILENCER ASM; EXH
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98041-925-1 01 1 0710-0910 ●
12 SILENCER ASM; EXH
WHEEL BASE 5000MM(50W) (B) 		8-98070-098-2 01 1 0710-0910 ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0911- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0906 ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M10X35 FLANGE 		0-28651-035-0 02 1 0907-0907 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98070-639-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (F) 		8-98070-639-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (E) L=204 		1-22131-520-1 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM(50W) (C) 		8-98071-227-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM(50W) (D) 		8-98071-231-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98070-628-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-641-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (D) 		8-98070-641-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM(50W) (C) 		8-98071-228-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM(50W) (B) 		8-98072-708-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM(50W) (A) 		8-98060-852-0 01 1 0710-0905 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98060-852-0 01 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) L=22 		1-22159-392-0 01 1 0710-0906 ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) L=22 		9-22159-024-0 01 1 0907-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM(50W) (A) 		8-98060-852-0 02 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ●
70 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ●
70 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ●
70 BOLT; BRKT
WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ●
81 NUT; BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 04 1 0710-0810 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ●
81 NUT; BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5000MM(50W) ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ●
121 WASHER; PL,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5000MM(50W) ID=8.4 OD=22 		1-09503-154-2 02 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (A) 		8-94457-277-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-94457-277-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (B) 		8-94457-278-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) 		8-94457-278-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (A) 		8-94457-277-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (B) 		8-94457-278-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0710- ● ●
506 BRACKET; STUD
WHEEL BASE 5000MM(50W) (A) 		1-22134-214-0 02 1 0710-0910 ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0911- ● ●

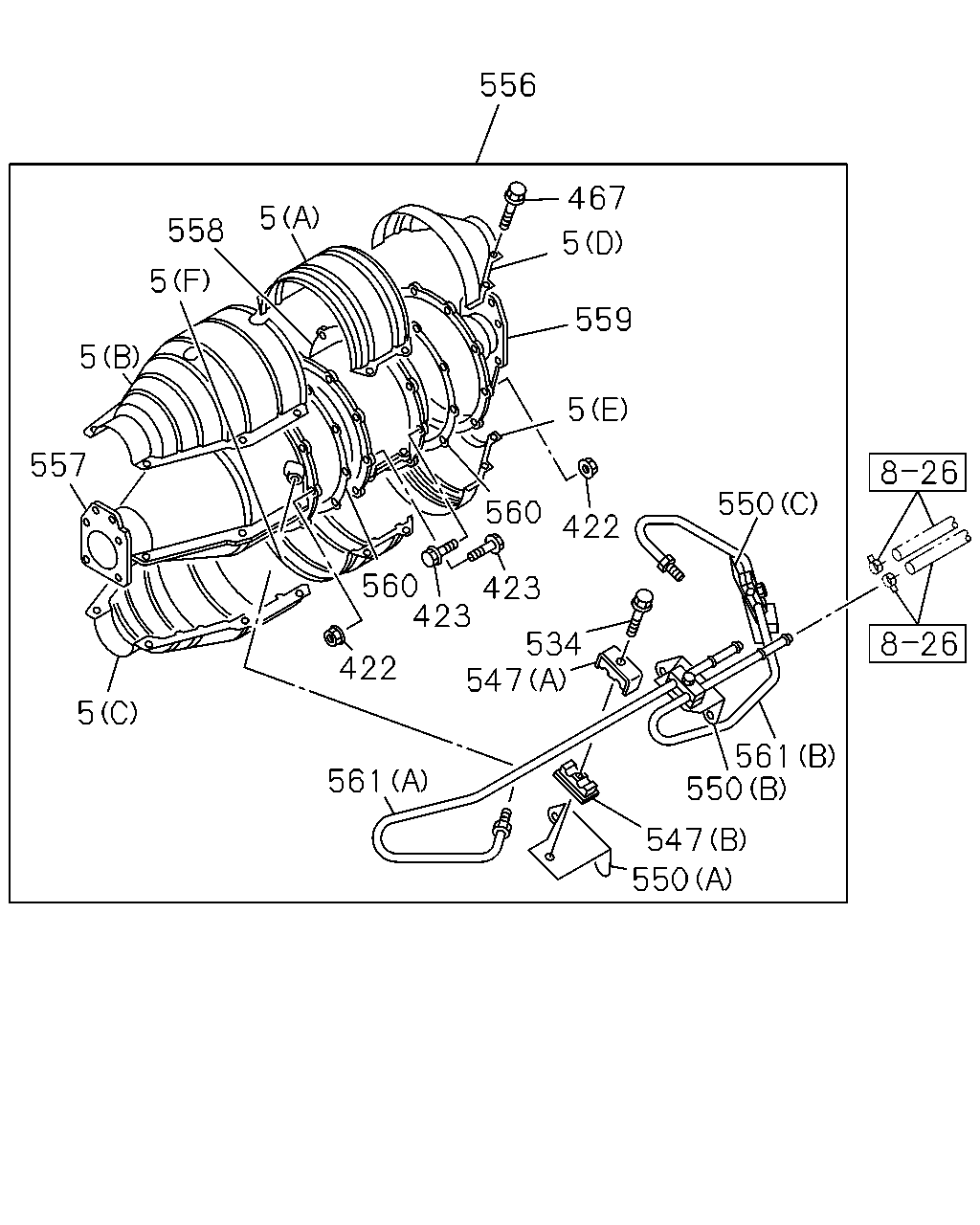

556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ●
çizim 112426
81 75 62 56 75 60 81 94 107 22 70 105 22 60 70 121 118 226 62 107 226 56 81 22 105 94 105 22 94 126
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0710-0910 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0710-0910 ●
22 CLAMP; EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) ID=80-84 		1-22133-233-0 02 1 0710-0910 ●
22 CLAMP; EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) ID=80-84 		1-22133-233-0 02 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98070-639-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (F) 		8-98070-639-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (E) L=204 		1-22131-520-1 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM(50W) (C) 		8-98071-227-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM(50W) (D) 		8-98071-231-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98070-628-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-641-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (D) 		8-98070-641-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM(50W) (C) 		8-98071-228-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM(50W) (B) 		8-98072-708-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM(50W) (A) 		8-98060-852-0 01 1 0710-0905 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98060-852-0 01 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) L=22 		1-22159-392-0 01 1 0710-0906 ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) L=22 		9-22159-024-0 01 1 0907-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM(50W) (A) 		8-98060-852-0 02 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ●
70 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ●
70 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ●
70 BOLT; BRKT
WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0710-0910 ●
75 RUBBER; SUPPORT,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) OD=40 		1-22159-193-0 02 1 0710-0910 ●
81 NUT; BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 04 1 0710-0810 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ●
81 NUT; BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ●
94 BOLT; CLAMP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ●
94 BOLT; CLAMP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X40 FLANGE 		0-28651-040-0 02 1 0710-0910 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
105 NUT; CLAMP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
105 NUT; CLAMP
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
118 NUT; SILENCER MTG BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5000MM(50W) ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ●
121 WASHER; PL,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5000MM(50W) ID=8.4 OD=22 		1-09503-154-2 02 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ●
126 PIPE; EXH,RR 1-22126-646-2 01 1 0710-0910 ●
126 PIPE; EXH,RR
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		1-22126-646-2 01 1 0710-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (A) 		8-94457-277-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-94457-277-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (B) 		8-94457-278-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) 		8-94457-278-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (A) 		8-94457-277-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (B) 		8-94457-278-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ●

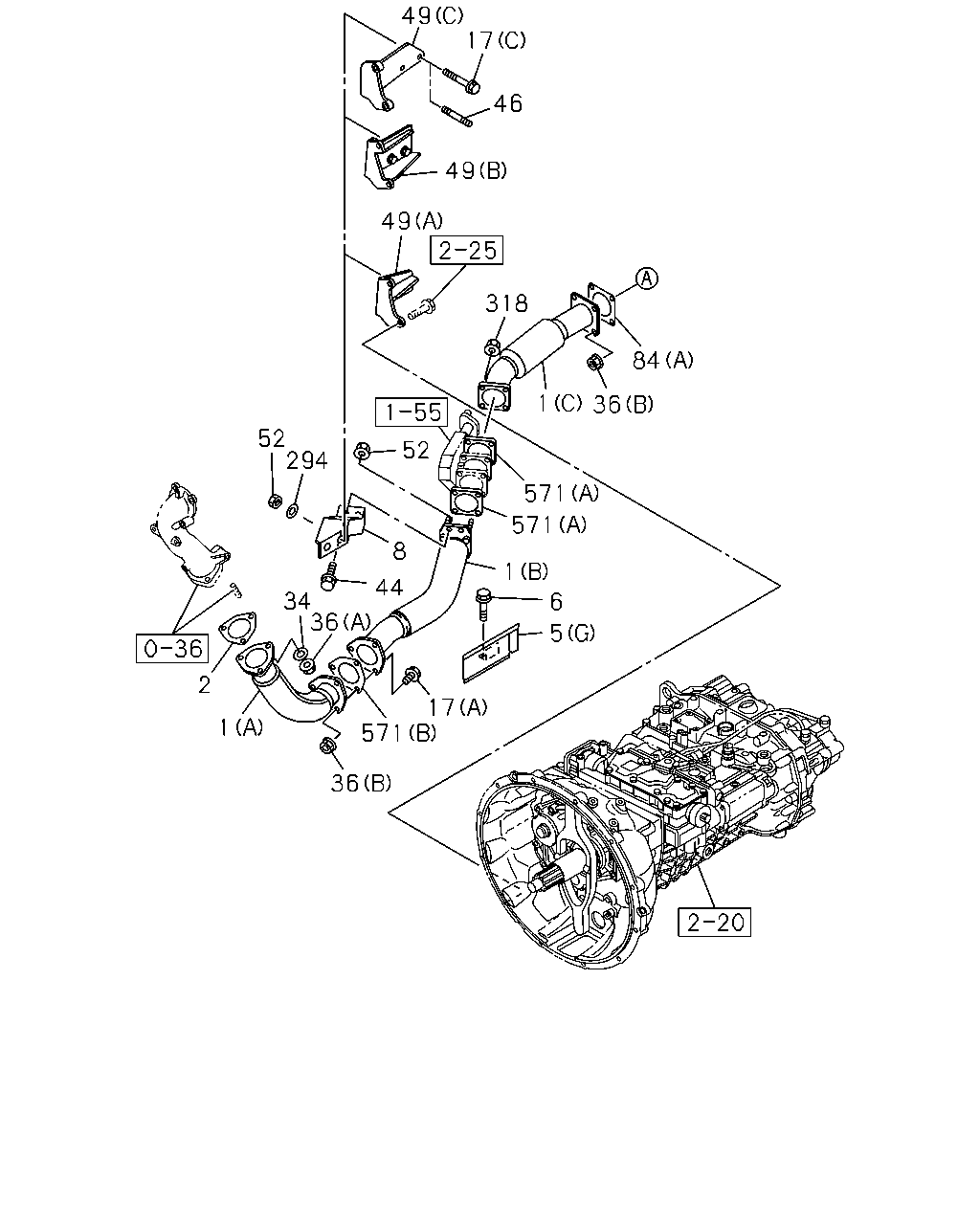

çizim 112429
49 17 46 49 49 318 84 36 1 571 571 1 6 5 17 571 36 1 2 34 36 44 8 52 294 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		8-98047-778-0 01 1 0710-1209 ● ●
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1210- ● ●
1 PIPE; EXH
(C) 		1-22123-893-1 01 1 0710-0710 ● ●
1 PIPE; EXH
(C) 		8-98099-921-0 01 1 0710- ● ●
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0710-0902 ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 0903-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
ZF9S1110 M/T(Y5E) (G) 		8-98073-436-0 01 1 0802-1406 ● ●
5 PROTECTOR; HEAT
ZF9S1110 M/T(Y5E) 		8-98255-001-0 01 1 1407- ● ●
6 BOLT; HEAT PROTECTOR
ZF9S1110 M/T(Y5E) M8X25 FLANGE 		0-28650-825-0 02 1 0802- ● ●
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) 		8-98070-600-0 01 1 0710-1209 ● ●
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) 		8-98120-522-0 01 1 1210- ● ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) 		8-98069-914-0 01 1 0710-0906 ● ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) 		8-98069-914-0 01 1 0907-0910 ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98069-914-0 01 1 0907-0910 ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98149-834-0 01 1 0907-0910 ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) 		8-98149-834-0 01 1 0911- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0710- ● ●
17 BOLT; EXH PIPE
WHEEL BASE 5000MM(50W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0911- ● ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C) M16X45 		9-92361-645-0 02 1 0907-0910 ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 0911- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0710- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710- ● ●
36 NUT; EXH PIPE
WHEEL BASE 5000MM(50W) (C) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
36 NUT; EXH PIPE
WHEEL BASE 5000MM(50W) (B) M12 FLANGE 		0-91180-212-0 04 1 0710-0910 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0911- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0906 ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M10X35 FLANGE 		0-28651-035-0 02 1 0907-0907 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1210- ● ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98069-944-1 01 1 0710-1209 ● ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (C) 		8-98120-497-0 01 1 1210- ● ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) (B) 		8-98069-906-0 01 1 0710-0906 ● ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) (B) 		8-98069-906-0 01 1 0907-0910 ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) 		8-98069-906-0 01 1 0907-0910 ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C) 		8-98149-833-0 01 1 0907-0910 ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) (C) 		8-98149-833-0 01 1 0911- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0710- ● ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0710-0712 ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ●
571 GASKET
(A) 		1-22116-043-0 02 1 0710- ● ●
571 GASKET
(B) 		8-98043-481-0 01 1 0710- ● ●

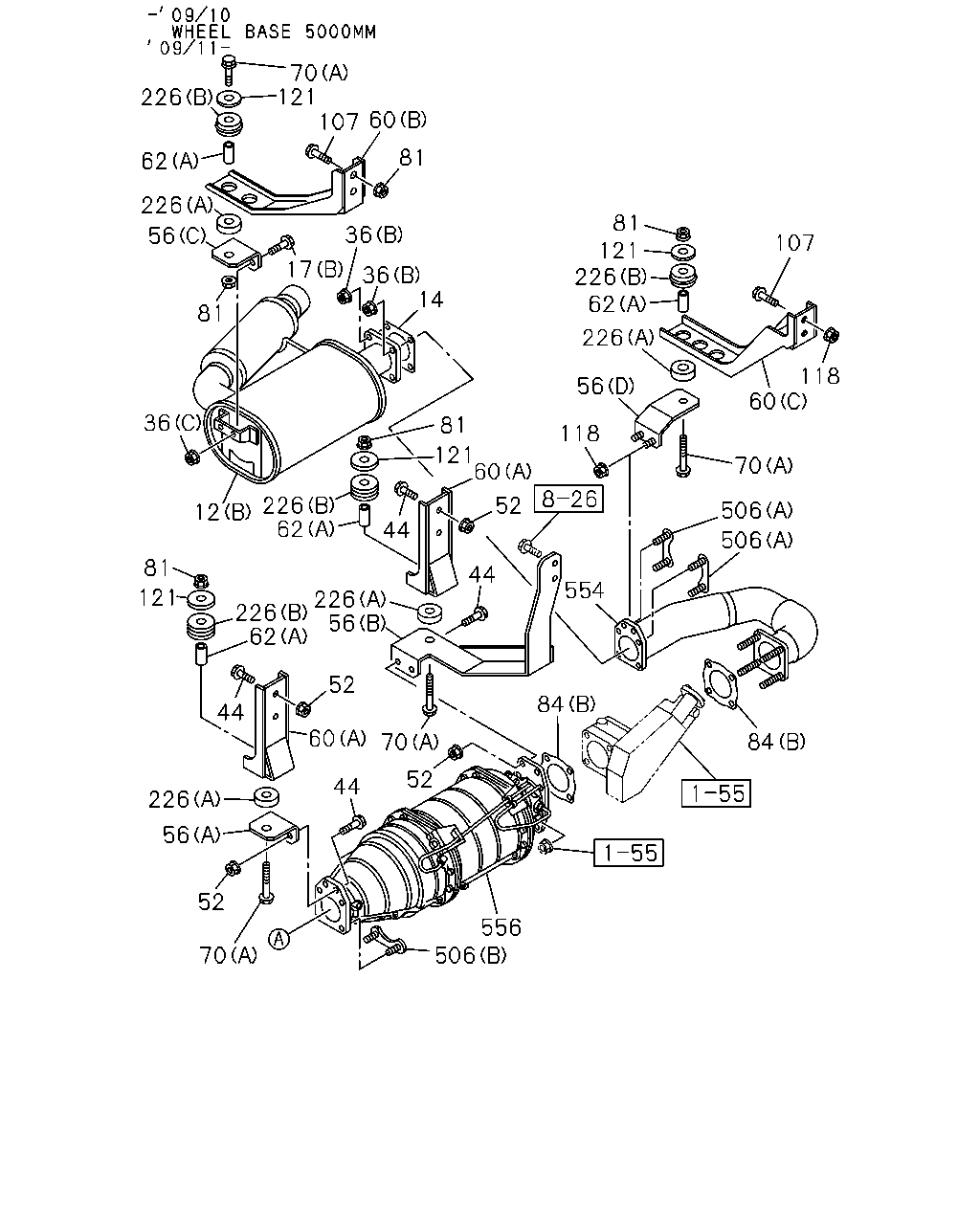

çizim 112431
70 121 107 226 60 81 62 226 81 121 226 62 36 56 107 17 36 14 81 226 118 60 56 36 81 118 121 60 70 226 62 52 506 12 44 506 81 554 44 121 226 226 56 62 52 84 44 60 84 70 52 44 226 56 52 556 506 70
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
(A) 		8-98041-925-1 01 1 0710-0910 ●
12 SILENCER ASM; EXH
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98041-925-1 01 1 0710-0910 ●
12 SILENCER ASM; EXH
WHEEL BASE 5000MM(50W) (B) 		8-98070-098-2 01 1 0710-0910 ●
12 SILENCER ASM; EXH
(B) 		8-98070-098-2 01 1 0911- ● ●
14 GASKET; SILENCER TO EXH PIPE
WHEEL BASE 5000MM(50W) 		1-22116-042-0 01 1 0710-0910 ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0911- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0710- ● ●
17 BOLT; EXH PIPE
WHEEL BASE 5000MM(50W) (B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0911- ● ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (C) M16X45 		9-92361-645-0 02 1 0907-0910 ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 0911- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0710- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0710- ● ●
36 NUT; EXH PIPE
WHEEL BASE 5000MM(50W) (C) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
36 NUT; EXH PIPE
WHEEL BASE 5000MM(50W) (B) M12 FLANGE 		0-91180-212-0 04 1 0710-0910 ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0911- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 0710- ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0906 ● ●
44 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10X30 FLANGE 		0-28651-030-0 02 1 0907-0907 ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) M10X35 FLANGE 		0-28651-035-0 02 1 0907-0907 ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0908- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(F) 		8-98070-639-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (F) 		8-98070-639-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=204 		1-22131-520-1 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (E) L=204 		1-22131-520-1 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0710- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM(50W) (C) 		8-98071-227-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0911- ● ●
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 5000MM(50W) (D) 		8-98071-231-0 01 1 0710-0910 ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98070-628-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 0911-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98070-641-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (D) 		8-98070-641-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM(50W) (C) 		8-98071-228-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-0 01 1 0911- ● ●
60 BRACKET; FRAME TO BRKT
WHEEL BASE 5000MM(50W) (B) 		8-98072-708-0 01 1 0710-0910 ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0710-0905 ● ●
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM(50W) (A) 		8-98060-852-0 01 1 0710-0905 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0906-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-98060-852-0 01 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 01 1 0911- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0710-0906 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) L=22 		1-22159-392-0 01 1 0710-0906 ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) L=22 		9-22159-024-0 01 1 0907-0910 ●
62 TUBE; DIST,BRKT
WHEEL BASE 5000MM(50W) (A) 		8-98060-852-0 02 1 0906-0910 ●
62 TUBE; DIST,BRKT
(A) 		8-98060-852-0 02 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ● ●
70 BOLT; BRKT
WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0710-0905 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ●
70 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X70 FLANGE 		0-28051-070-0 01 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 01 1 0911- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ●
70 BOLT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) M10X50 FLANGE 		0-28051-050-0 01 1 0710-0910 ●
70 BOLT; BRKT
WHEEL BASE 5000MM(50W) (A) M10X70 FLANGE 		0-28051-070-0 02 1 0906-0910 ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0911- ● ●
81 NUT; BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 04 1 0710-0810 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 02 1 0710-0810 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0811-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ● ●
81 NUT; BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 02 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0710-0905 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M10 FLANGE 		0-91180-210-0 01 1 0906-0910 ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0710- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 02 1 0710- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-0910 ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ● ●
118 NUT; SILENCER MTG BRKT
WHEEL BASE 5000MM(50W) M10 FLANGE 		0-91180-210-0 02 1 0710-0910 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5000MM(50W) ID=8.4 OD=22 		1-09503-154-2 01 1 0710-0905 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ●
121 WASHER; PL,BRKT
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) ID=8.4 OD=22 		1-09503-154-2 01 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 01 1 0911- ● ●
121 WASHER; PL,BRKT
WHEEL BASE 5000MM(50W) ID=8.4 OD=22 		1-09503-154-2 02 1 0906-0910 ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 02 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (A) 		8-94457-277-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) 		8-94457-277-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0710-0905 ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (B) 		8-94457-278-1 01 1 0710-0905 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) 		8-94457-278-1 01 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 0911- ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (A) 		8-94457-277-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0911- ● ●
226 RUBBER; CUSHION
WHEEL BASE 5000MM(50W) (B) 		8-94457-278-1 02 1 0906-0910 ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0911- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0710- ● ●
506 BRACKET; STUD
WHEEL BASE 5000MM(50W) (A) 		1-22134-214-0 02 1 0710-0910 ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0911- ● ●
554 PIPE; EXH,SILENCER
WHEEL BASE 5000MM(50W) 		8-98054-336-0 01 1 0710-0710 ●
554 PIPE; EXH,SILENCER
WHEEL BASE 5000MM(50W) 		8-98085-262-0 01 1 0710-0910 ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 0911- ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ●
çizim 112433
556 467 5 558 5 5 559 5 5 557 550 560 422 560 423 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 0710- ● ●
5 PROTECTOR; HEAT
ZF9S1110 M/T(Y5E) (G) 		8-98073-436-0 01 1 0802-1406 ● ●
5 PROTECTOR; HEAT
ZF9S1110 M/T(Y5E) 		8-98255-001-0 01 1 1407- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0710- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0710- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0710- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0710- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0710- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0710- ● ●
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 0710- ● ●
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 0710- ● ●
556 DPD ASM 8-97606-314-5 01 1 0710-1011 ● ●
556 DPD ASM 8-97622-899-3 01 1 1012- ● ●
557 CATALYST ASM 8-97608-054-5 01 1 0710- ● ●
558 FILTER ASM 8-97608-056-2 01 1 0710- ● ●
559 COVER; RR 8-97611-090-0 01 1 0710-1011 ● ●
559 COVER; RR 8-97622-903-0 01 1 1012- ● ●
560 GASKET; DPD 8-97611-092-0 02 1 0710- ● ●
561 PIPE; DPD
(A) 		8-97611-093-0 01 1 0710-1011 ● ●
561 PIPE; DPD
(A) 		8-97622-904-0 01 1 1012- ● ●
561 PIPE; DPD
(B) 		8-97611-094-0 01 1 0710-1011 ● ●
561 PIPE; DPD
(B) 		8-97622-905-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
