8-80 — WINDSHIELD WIPER AND WASHER (#4156) — 72 parça

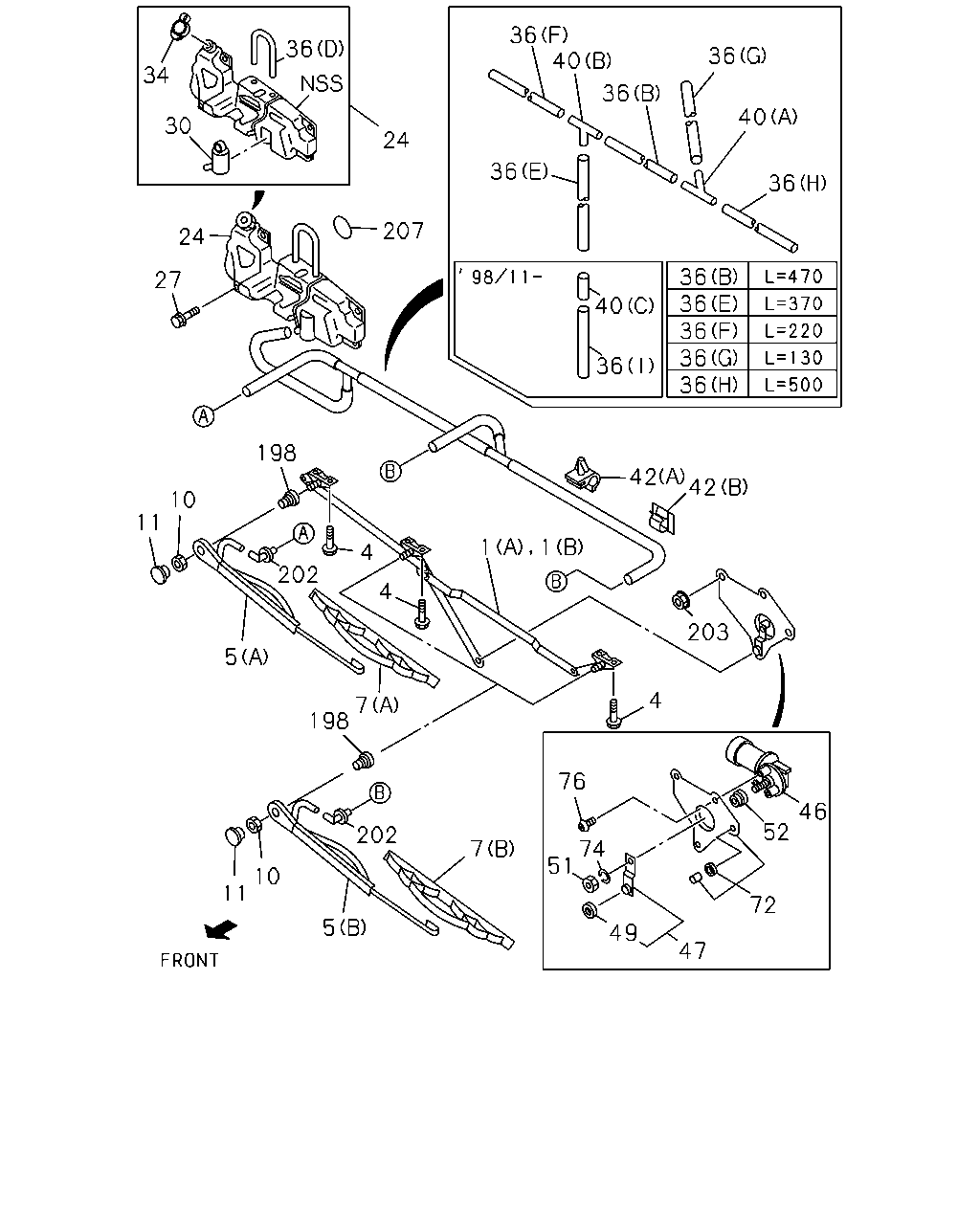

çizim 8890
36 40 36 36 34 36 40 24 36 36 207 24 36 36 36 36 36 27 40 36 198 42 42 10 11 1 1 4 202 4 203 5 4 7 198 76 46 52 202 7 74 51 10 11 72 5 49 47 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER
(A) 		1-83312-107-0 01 1 9603-9607 ● ●
1 LINK ASM; FRT WIPER
(B) 		1-83312-112-1 01 1 9608- ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9603- ● ●
5 ARM; WIPER
(A) 		1-86810-031-0 01 1 9603- ● ●
5 ARM; WIPER
(B) 		1-86810-032-0 02 1 9603- ● ●
7 BLADE; WIPER
(B) L=500 		1-83315-049-0 02 1 9603-9604 ● ●
7 BLADE; WIPER
(B) L=500 		8-97134-563-1 02 1 9605- ● ●
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 9603- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 9603- ● ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 9603- ● ●
24 TANK ASM; WASHER 1-86815-013-7 01 1 9603- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9603- ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9603- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9603- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 9603- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 9603- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9603- ● ●
36 HOSE; WASHER
(E),(F),(G),(H) SERVICED BY L=10000 		8-94389-303-0 01 1 9603- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 9603- ● ●
36 HOSE; WASHER
(I) SERVICED BY L=10000 		8-94153-780-0 01 1 9811- ● ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 9603- ● ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 9603- ● ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 9811- ● ●
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 9603- ● ●
42 CLIP; WASHER HOSE
(B) 1 SET=5 PIECE 		1-09987-214-0 01 1 0101- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 9603-9904 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-141-0 01 1 9905- ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 9603- ● ●
49 SEAL; BALL JOINT,CRANK ARM,FRT WIPER 8-94167-624-0 01 1 9603- ● ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 9603- ● ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 9603- ● ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 9603- ● ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 9603- ● ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 9603- ● ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 9603- ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 9603- ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		8-94279-517-0 04 1 9603-9611 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9612- ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9603- ● ●

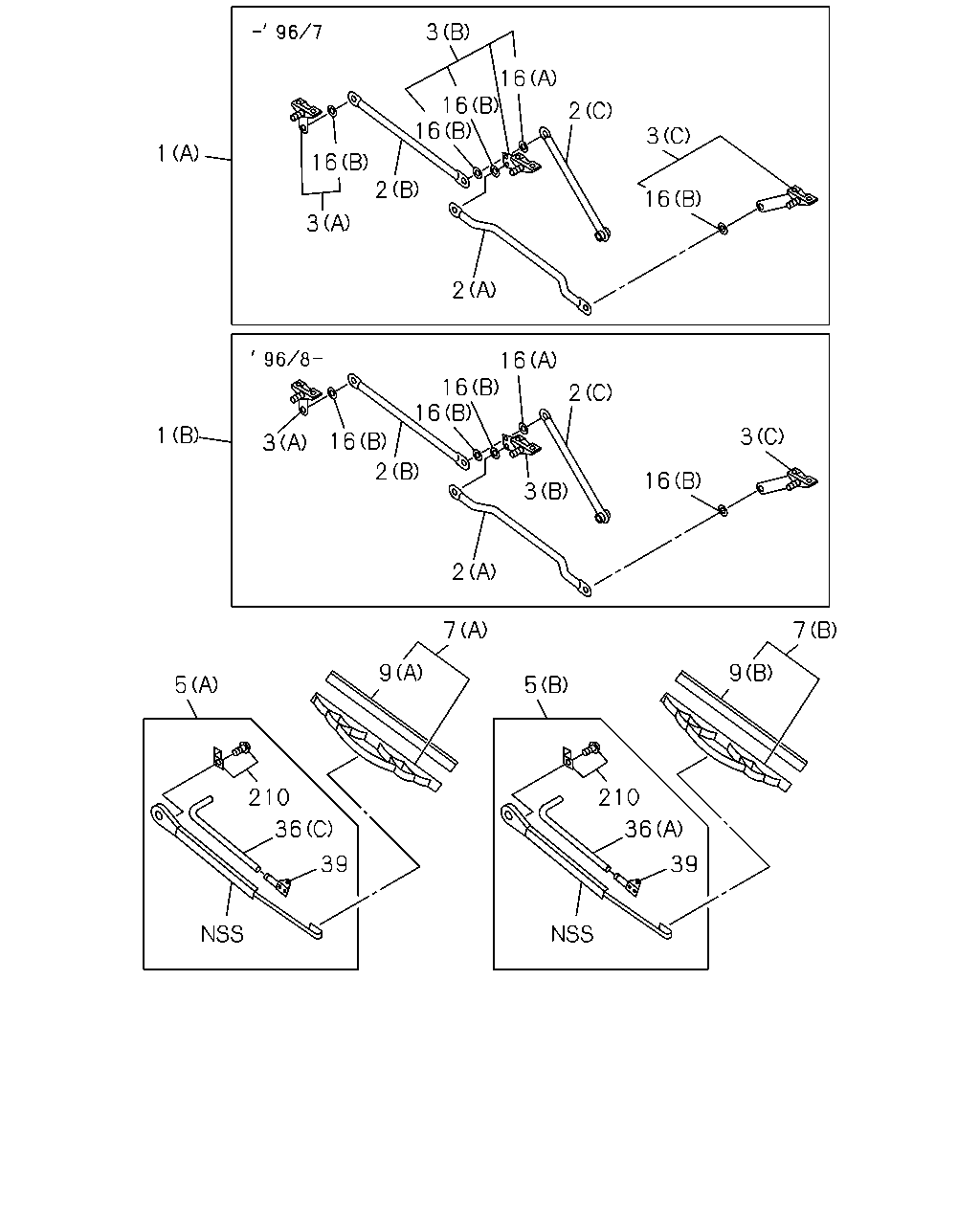

çizim 8891
3 16 16 16 2 3 1 16 2 16 3 2 16 16 16 2 1 3 16 3 2 16 3 2 7 7 9 9 5 5 210 210 36 36 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER
(A) 		1-83312-107-0 01 1 9603-9607 ● ●
1 LINK ASM; FRT WIPER
(B) 		1-83312-112-1 01 1 9608- ● ●
2 LINK; FRT WIPER
(C) 		1-83312-108-0 01 1 9603-9607 ● ●
2 LINK; FRT WIPER
(C) 		1-83312-131-0 01 1 9608- ● ●
2 LINK; FRT WIPER
(B) 		1-86810-129-0 01 1 9603-9607 ● ●
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 9608- ● ●
2 LINK; FRT WIPER
(A) 		1-86810-130-0 01 1 9603-9607 ● ●
2 LINK; FRT WIPER
(A) 		1-83312-133-0 01 1 9608- ● ●
3 PIVOT ASM; FRT WIPER
(C) 		1-86810-125-0 01 1 9603-9701 ● ●
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-104-0 01 1 9702- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		1-86810-126-0 01 1 9603-9701 ● ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-105-0 01 1 9702- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		1-86810-127-0 01 1 9603-9701 ● ●
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-106-0 01 1 9702- ● ●
5 ARM; WIPER
(A) 		1-86810-031-0 01 1 9603- ● ●
5 ARM; WIPER
(B) 		1-86810-032-0 02 1 9603- ● ●
7 BLADE; WIPER
(B) L=500 		1-83315-049-0 02 1 9603-9604 ● ●
7 BLADE; WIPER
(B) L=500 		8-97134-563-1 02 1 9605- ● ●
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 9603- ● ●
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 9603- ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 9603- ● ●
16 SEAL; BALL JOINT
(A) 		8-94167-624-0 01 1 9603-9607 ● ●
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 9608- ● ●
16 SEAL; BALL JOINT
(B) 		8-97025-889-0 04 1 9603-9607 ● ●
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 9608- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 9603- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 9603- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9603- ● ●
36 HOSE; WASHER
(E),(F),(G),(H) SERVICED BY L=10000 		8-94389-303-0 01 1 9603- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 9603- ● ●
36 HOSE; WASHER
(I) SERVICED BY L=10000 		8-94153-780-0 01 1 9811- ● ●
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-86810-055-0 03 1 9603- ● ●
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 9603- ● ●
