0-12 — CYLINDER BLOCK (#41559) — 72 parça

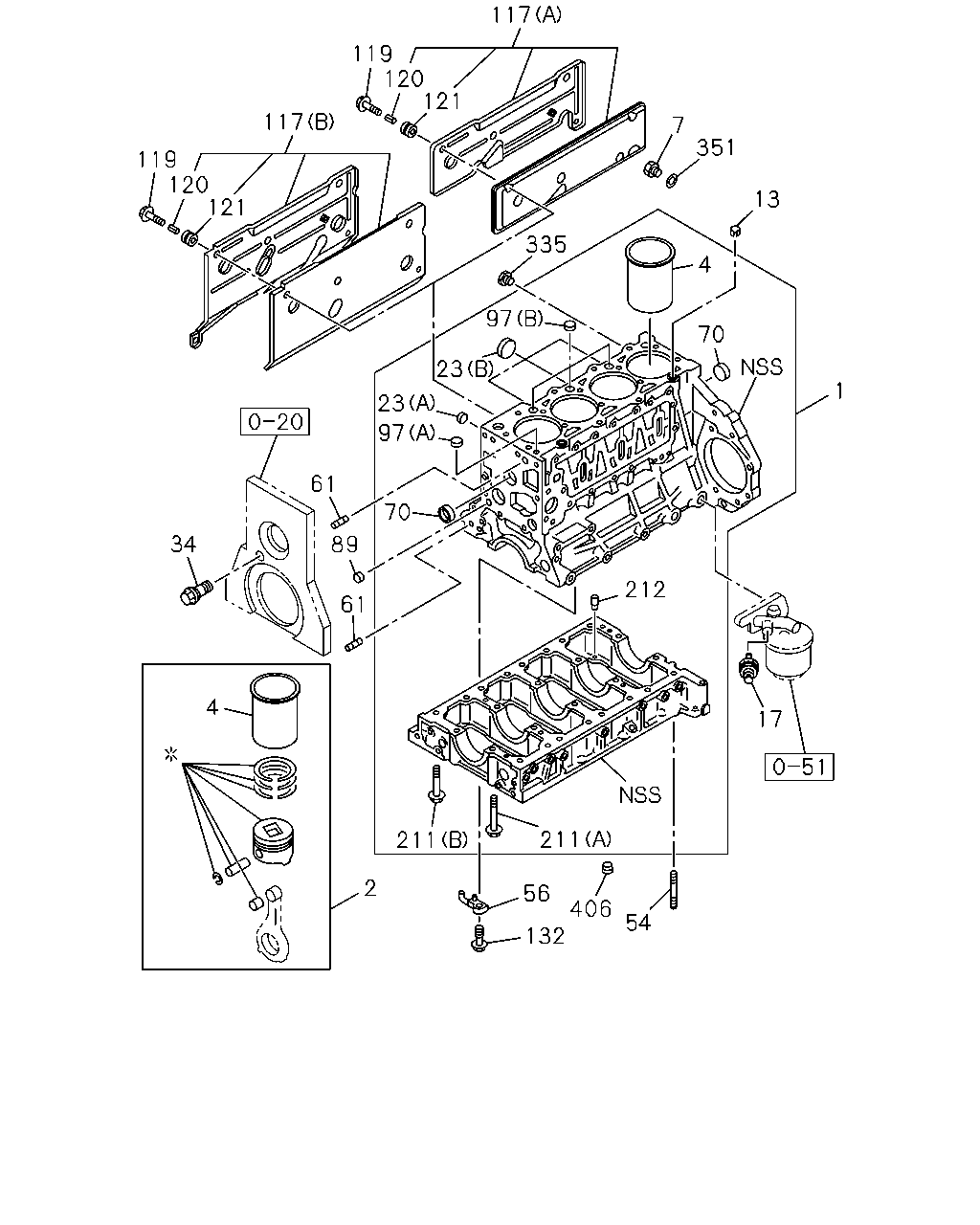

çizim 8035
117 119 120 121 117 7 351 119 120 121 13 335 4 97 70 23 1 23 97 61 70 34 89 212 61 4 17 211 211 2 56 406 132 54
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL
TURBOCHARGER(K51) 		8-97173-726-5 01 1 9811- ●
1 00.033 BLOCK ASM; CYL
EXC. TURBOCHARGER(K51) 		8-97191-846-5 01 1 9811- ●
1 00.033 BLOCK ASM; CYL 8-97163-853-3 01 1 9811- ●
1 00.033 BLOCK ASM; CYL 8-97148-885-1 01 1 9811- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER(K51) GRADE=1X 		5-87813-571-1 04 1 9811- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER(K51) GRADE=3X 		5-87813-572-1 04 1 9811- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER(K51) GRADE=1X 		5-87813-392-2 04 1 9811- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER(K51) GRADE=3X 		5-87813-393-2 04 1 9811- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87813-390-1 04 1 9811- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87813-391-1 04 1 9811- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1 		5-87813-409-0 04 1 9811-9907 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-744-1 04 1 9908- ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-410-0 04 1 9811-9907 ●
2 00.030 LINER SET; ENG CYL
CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-745-1 04 1 9908- ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=1X 		5-87813-328-0 04 1 9811- ●
2 00.030 LINER SET; ENG CYL
EXC. CHARGE AIR COOLER<6PL> GRADE=3X 		5-87813-329-0 04 1 9811- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-729-0 04 1 9811-0204 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97351-558-0 04 1 0205- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-730-0 04 1 9811-0204 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97351-559-0 04 1 0205- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-97176-727-0 04 1 9811- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-97176-728-0 04 1 9811- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 9811- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 9811- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 9811- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 9811- ●
7 00.034 PLUG; WATER DRAIN
04.105 M10X7 		9-09861-010-0 01 1 9811-0208 ● ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0209- ● ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 9811- ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 9811- ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 9811- ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 9811- ● ● ●
34 01.609 VALVE; OIL RELIEF 8-94386-047-1 01 1 9811- ● ● ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. CHARGE AIR COOLER<6PL> M8X20 L=38 		8-97021-431-0 03 1 9811-0003 ●
54 01.428 STUD; OIL PAN TO BLOCK
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> M8X20 L=38 		8-97021-431-0 03 1 9811-0003 ●
54 01.428 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0004-0112 ●
54 01.428 STUD; OIL PAN TO BLOCK
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M8X20 L=38 		8-97021-431-0 03 1 0201- ●
56 01.519 JET; OIL,PISTON COOLING
TURBOCHARGER(K51) 		8-97213-294-0 04 1 9811- ●
56 01.519 JET; OIL,PISTON COOLING
EXC. TURBOCHARGER(K51) 		8-94370-579-0 04 1 9811- ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-0 04 1 9811- ●
56 01.519 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 9811- ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 9811- ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 9811- ● ● ●
70 00.034 CUP; SEALING,FRT & RR
00.293 OD=25 		1-09600-016-0 01 1 9811- ●
89 00.034 CUP; SEALING,OIL GALLERY
03.265 OD=20 		9-11219-192-0 03 1 9811-9907 ● ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 9908- ● ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0205- ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0205- ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97258-620-1 01 1 0112- ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97118-347-0 01 1 9811-0003 ●
117 00.030 COVER ASM; C/BL
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (A) 		8-97118-347-0 01 1 9811-0003 ●
117 00.030 COVER ASM; C/BL
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97118-347-0 01 1 0004- ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0112- ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9811-0003 ●
119 00.034 BOLT; COVER FIX
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 9811-0003 ●
119 00.034 BOLT; COVER FIX
EXC. CHARGE AIR COOLER<6PL> M8X22 W/LK&PL WASHER 		8-94329-953-1 03 1 0004- ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> OD=13 T=9.5 		8-94140-427-1 05 1 0112- ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> OD=13 T=9.5 		8-94140-427-1 04 1 9811-0003 ●
120 00.034 BUSHING; MTG RUBBER
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> OD=13 T=9.5 		8-94140-427-1 04 1 9811-0003 ●
120 00.034 BUSHING; MTG RUBBER
EXC. CHARGE AIR COOLER<6PL> OD=13 T=9.5 		8-94140-427-1 04 1 0004- ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97315-987-0 05 1 0112- ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> OD=22 		8-94140-428-1 04 1 9811-0003 ●
121 00.034 RUBBER; MTG,COVER
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> OD=22 		8-94140-428-1 04 1 9811-0003 ●
121 00.034 RUBBER; MTG,COVER
EXC. CHARGE AIR COOLER<6PL> OD=22 		8-94140-428-1 04 1 0004- ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 9811- ● ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 9811- ● ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 9811- ● ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 9811- ● ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 01 1 9811- ● ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 9811- ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 9811- ● ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 9811- ● ● ●
